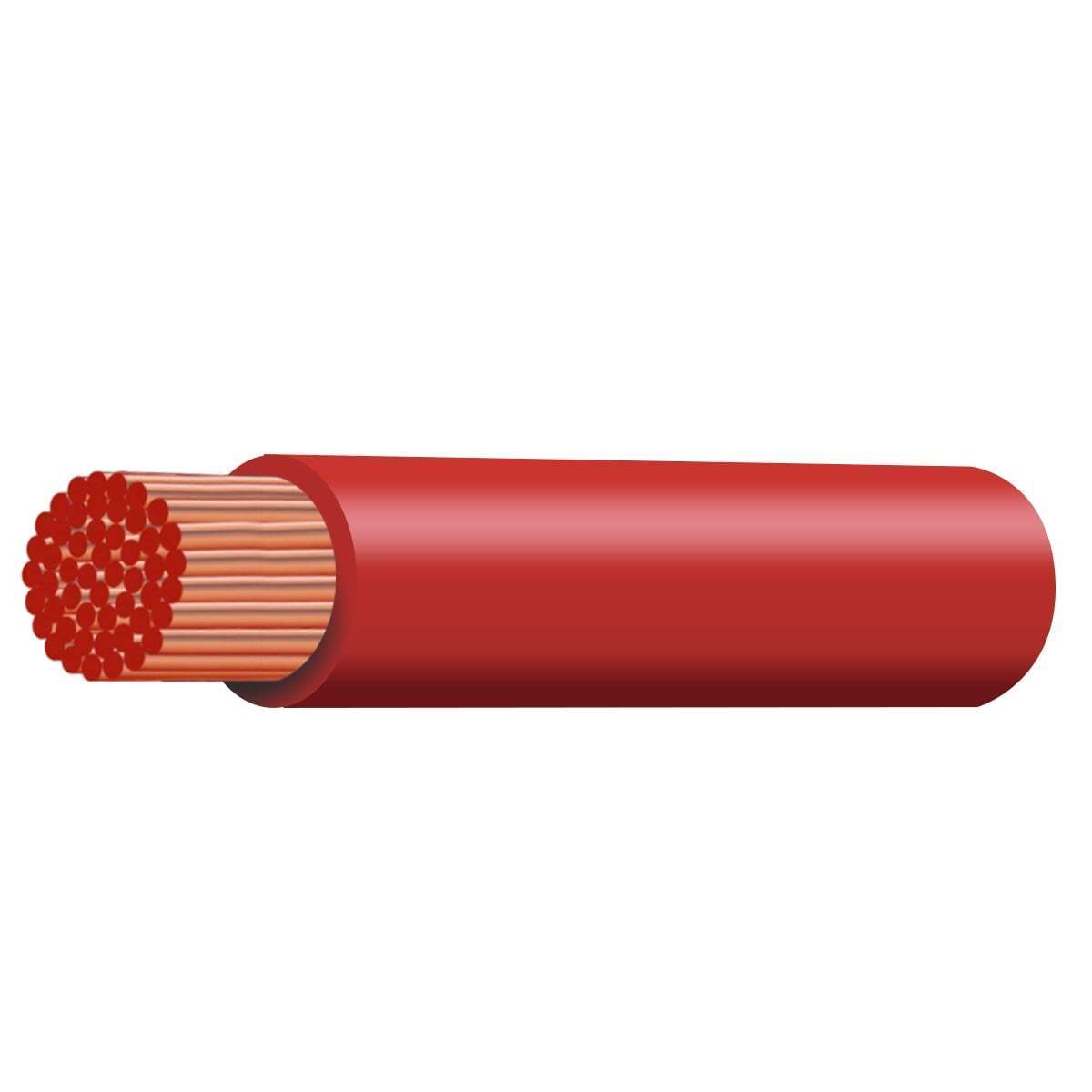

8B&S (7.72mm²) Red Single Core Automotive Cable per Metre
8B&S (7.72mm²) Red Single Core Automotive Cable per Metre
69A Rated (AS/NZS 3008, Free Air 40°C), Plain Copper, V90HT Insulation, Max 120V DC
View all products from Key

DESCRIPTION
8B&S (7.72mm²) Red Single Core Automotive Cable: Reliable Power Delivery for Demanding 12V, 24V, and 48V Systems
Engineered for High-Current Automotive and Low-Voltage Applications
The 8B&S (7.72mm²) red single core automotive cable is designed to provide consistent, low-resistance power transfer in 12V, 24V, and 48V DC systems. Rated 69A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), this cable is well suited for high-demand circuits such as auxiliary battery charging, inverter connections, and heavy-duty lighting. Its plain annealed copper conductor (96 strands of 0.32mm) ensures excellent conductivity and flexibility, reducing voltage drop over longer runs.
Unlike generic automotive wire, this cable features heat-resistant V90HT PVC insulation for engine bays and under-bonnet environments. The single core construction allows for custom bundling and routing, giving installers full control over cable management in complex builds.
*Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
Key Features
- 69A current capacity in free air at 40°C (AS/NZS 3008.1.1); derate when bundled or enclosed
- Plain annealed copper conductor (96/0.32mm stranding) for superior conductivity and flexibility
- V90HT PVC insulation, heat-resistant for under-bonnet runs
- Voltage rating: 120V DC / 50V AC (not for mains connection), suitable for 12V, 24V, and 48V systems
- Sold per metre for precise project quantities with minimal waste
Built for Australian Conditions
This cable is Australian made by KEY using plain copper to AS/NZS 1125 and a durable V90HT PVC compound for the heat and movement common in automotive, marine, and off-grid installations. The 5.5mm nominal outer diameter strikes a balance between current capacity and ease of routing through conduits, grommets, and tight spaces. Whether you're wiring a dual-battery system in a 4WD, connecting a solar regulator to an auxiliary battery, or powering a high-output light bar, this cable delivers the performance and longevity expected in professional installations.
Applications
- Auxiliary battery and dual-battery systems in 4WDs, caravans, and campers
- High-current connections for inverters, DC-DC chargers, and solar regulators
- Heavy-duty lighting circuits, including light bars and driving lights
- Marine wiring for bilge pumps, windlasses, and navigation equipment
- General low-voltage wiring in off-grid solar setups and remote power systems
Why Choose This Cable Over Generic Alternatives?
Many budget cables use copper-clad aluminium (CCA). This product is plain annealed copper throughout, with a resistance of 2.4 ohm/km at 20°C, and V90HT PVC heat-resistant insulation. The result is a safer, more efficient installation with reduced risk of voltage drop, overheating, and premature failure—critical in mobile and remote applications where reliability is non-negotiable.
Get the Right Cable for Your Next Project
Order the 8B&S (7.72mm²) red single core automotive cable by the metre today and ensure your 12V, 24V, or 48V system has the dependable power delivery it needs. For larger projects, explore our full range of gauges and colours to complete your wiring loom with confidence.
SKU: Key-KABC1112030RD1
SPECIFICATIONS
Specifications
Conductor: plain copper to AS/NZS 1125. Insulation / sheath: V90HT PVC. Voltage rating: 120V DC / 50V AC – not for mains connection.
This listing is the highlighted row. Source: KEY Battery Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.
| Part No. | Size B&S | No. of Cores | Conductor No. / Dia. (mm) | Nominal Area (mm²) | Insulation Thickness (mm) | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | **AMP Rating (free air, 40°C) |
|---|---|---|---|---|---|---|---|---|
| KABC1112030 | 8 | 1 | 96/0.32 | 7.72 | 0.9 | 2.4 | 5.5 | 69 |
| KABC1192030 | 6 | 1 | 168/0.32 | 13.51 | 1.1 | 1.4 | 7.0 | 98 |
| KABC1287030 | 4 | 1 | 252/0.32 | 20.27 | 1.1 | 0.9 | 8.7 | 127 |
| KABC1364030 | 3 | 1 | 329/0.32 | 26.46 | 1.6 | 0.7 | 10.6 | 152 |
| KABC1455030 | 2 | 1 | 399/0.32 | 32.09 | 1.7 | 0.6 | 11.7 | 172 |
| KABC1492032 | 1 | 1 | 492/0.32 | 39.57 | 1.7 | 0.5 | 12.4 | 197 |
| KABC1609032 | 0 | 1 | 608/0.32 | 48.90 | 1.7 | 0.4 | 13.7 | 227 |
| KABC1912030 | 2/0 | 1 | 798/0.32 | 64.18 | 1.7 | 0.3 | 14.9 | 274 |
| KABC11204030 | 3/0 | 1 | 1035/0.32 | 83.24 | 2.0 | 0.23 | 17 | 323 |
| KABC2T11230 | 8 | 2 | 96/0.32 | 7.72 | 0.9 | 2.4 | 7.6 x 13.1 | 64 |
| KABC2T19230 | 6 | 2 | 168/0.32 | 13.51 | 1.1 | 1.4 | 9.1 x 16.0 | 92 |
| KABC2TW28703 | 4 | 2 | 252/0.32 | 20.27 | 1.1 | 0.9 | 10.8 x 19.4 | 118 |
** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
| SKU: | Key-KABC1112030RD1 |
| Model #: | KABC1112030-RD |
| MPN: | KABC1112030-RD |
| HS code: | 8544493080 |
| Country of origin: | AU |
| Package weight: | 0.1 kg |
| Package length: | 0.05 m |
| Package width: | 0.05 m |
| Package height: | 0.05 m |
