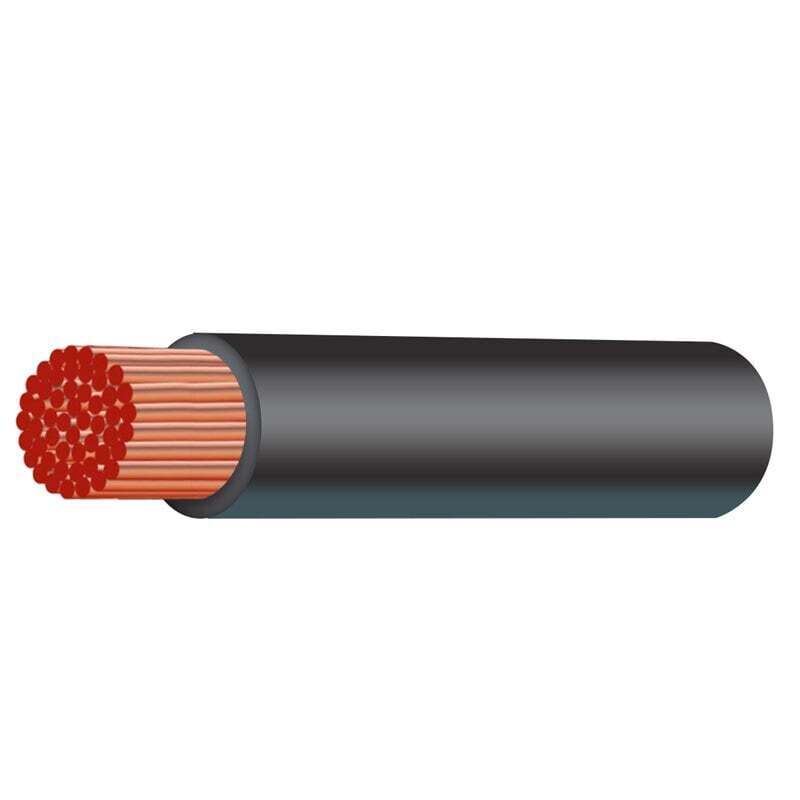

8B&S (7.72mm²) Black Single Core Automotive Cable per Metre
8B&S (7.72mm²) Black Single Core Automotive Cable per Metre
69A rated (AS/NZS 3008, free air 40°C) with flexible high-strand copper and V90HT insulation
View all products from Key

DESCRIPTION
High-Conductivity Single Core Automotive Cable for Demanding DC Power
KEY 8B&S (7.72mm²) Black Single Core Automotive Cable per Metre is a professional-grade single core automotive cable sold per metre for clean, efficient power delivery in 12V and 24V vehicle systems, and suitable for higher-voltage DC setups within its rating (up to DC 120V). Built with a high-strand copper conductor to AS/NZS 1125 and insulated for automotive environments, it’s designed to help reduce voltage drop and heat build-up in high-current circuits—particularly important when you’re running inverters, DC-DC chargers, dual battery systems, or long cable runs in caravans, 4WDs, marine and industrial installations.
In real-world installs, cable choice is often the difference between accessories that perform as expected and systems that feel underpowered. By using quality copper and a robust insulation system, this cable supports more stable voltage at the load, helping equipment operate within its intended input range. That translates to fewer nuisance low-voltage cut-outs, improved charging performance, and better overall system efficiency—especially when paired with correctly sized fusing and terminations.
Designed for Australian Conditions and Standards
This cable is Australian made by KEY, with plain copper conductors to AS/NZS 1125 and V90HT PVC insulation. The insulation is engineered for elevated temperatures typical of engine bays, canopies and enclosed compartments, while the fine-strand construction improves flexibility—making routing through tight spaces and around bends easier without compromising the integrity expected of automotive battery cable.
Where It Fits: From Battery Links to High-Draw Accessories
Use 8B&S (7.72mm²) Black Single Core Automotive Cable per Metre wherever you need dependable DC cabling with predictable performance. It’s commonly selected for starter and auxiliary battery connections, busbar feeds, winch and compressor circuits, and cabling between batteries and MPPT solar controllers or inverters. If your application involves 8B&S (7.72mm²) DC wiring or you’re chasing lower voltage drop over long vehicle and caravan cable runs, stepping up to the correct B&S size can make a measurable difference.
Note: Rated 69A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), this cable suits starter, auxiliary battery and accessory circuits. *Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
Key Features
- High-conductivity copper conductor to AS/NZS 1125 to support efficient current flow
- Flexible, multi-stranded construction for easier routing in vehicles and equipment
- V90HT PVC insulation suited to harsh automotive environments and elevated temperatures
- Clear identification with black sheath for polarity and circuit tracing
- DC voltage rating up to 120V (not suitable for mains connection)
- Supplied per metre so you can order the exact length needed
Build with Confidence
Whether you’re wiring a touring 4WD, upgrading a caravan power setup, or building a reliable auxiliary battery system, choosing the right cable helps protect your investment in batteries and electronics. Order 8B&S (7.72mm²) Black Single Core Automotive Cable per Metre by the metre, select the length you need, and complete your install with appropriately rated lugs, heatshrink and circuit protection matched to the cable’s 69A free-air rating in your DC system.
SKU: Key-KABC1112030BK1
SPECIFICATIONS
Specifications
Conductor: plain copper to AS/NZS 1125. Insulation / sheath: V90HT PVC. Voltage rating: 120V DC / 50V AC – not for mains connection.
This listing is the highlighted row. Source: KEY Battery Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.
| Part No. | Size B&S | No. of Cores | Conductor No. / Dia. (mm) | Nominal Area (mm²) | Insulation Thickness (mm) | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | **AMP Rating (free air, 40°C) |
|---|---|---|---|---|---|---|---|---|
| KABC1112030 | 8 | 1 | 96/0.32 | 7.72 | 0.9 | 2.4 | 5.5 | 69 |
| KABC1192030 | 6 | 1 | 168/0.32 | 13.51 | 1.1 | 1.4 | 7.0 | 98 |
| KABC1287030 | 4 | 1 | 252/0.32 | 20.27 | 1.1 | 0.9 | 8.7 | 127 |
| KABC1364030 | 3 | 1 | 329/0.32 | 26.46 | 1.6 | 0.7 | 10.6 | 152 |
| KABC1455030 | 2 | 1 | 399/0.32 | 32.09 | 1.7 | 0.6 | 11.7 | 172 |
| KABC1492032 | 1 | 1 | 492/0.32 | 39.57 | 1.7 | 0.5 | 12.4 | 197 |
| KABC1609032 | 0 | 1 | 608/0.32 | 48.90 | 1.7 | 0.4 | 13.7 | 227 |
| KABC1912030 | 2/0 | 1 | 798/0.32 | 64.18 | 1.7 | 0.3 | 14.9 | 274 |
| KABC11204030 | 3/0 | 1 | 1035/0.32 | 83.24 | 2.0 | 0.23 | 17 | 323 |
| KABC2T11230 | 8 | 2 | 96/0.32 | 7.72 | 0.9 | 2.4 | 7.6 x 13.1 | 64 |
| KABC2T19230 | 6 | 2 | 168/0.32 | 13.51 | 1.1 | 1.4 | 9.1 x 16.0 | 92 |
| KABC2TW28703 | 4 | 2 | 252/0.32 | 20.27 | 1.1 | 0.9 | 10.8 x 19.4 | 118 |
** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.
| SKU: | Key-KABC1112030BK1 |
| Model #: | KABC1112030-BK |
| MPN: | KABC1112030-BK |
| HS code: | 8544493080 |
| Country of origin: | AU |
| Package weight: | 0.088 kg |
| Package length: | 0.15 m |
| Package width: | 0.15 m |
| Package height: | 0.01 m |
