4B&S (20.27mm²) Red Single Core Automotive Cable per Metre

127A Rated (AS/NZS 3008, Free Air 40°C), 20.27mm², Plain Copper, V90HT PVC, 8.7mm OD


Regular price $11.95
/
Availability: In Stock
View all products from Key
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
96818

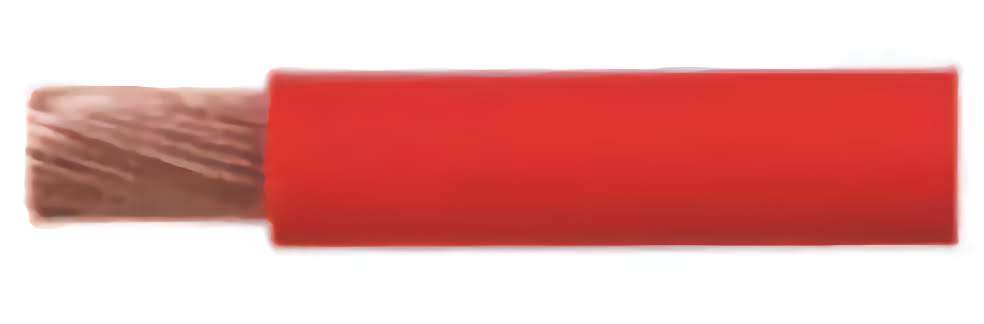

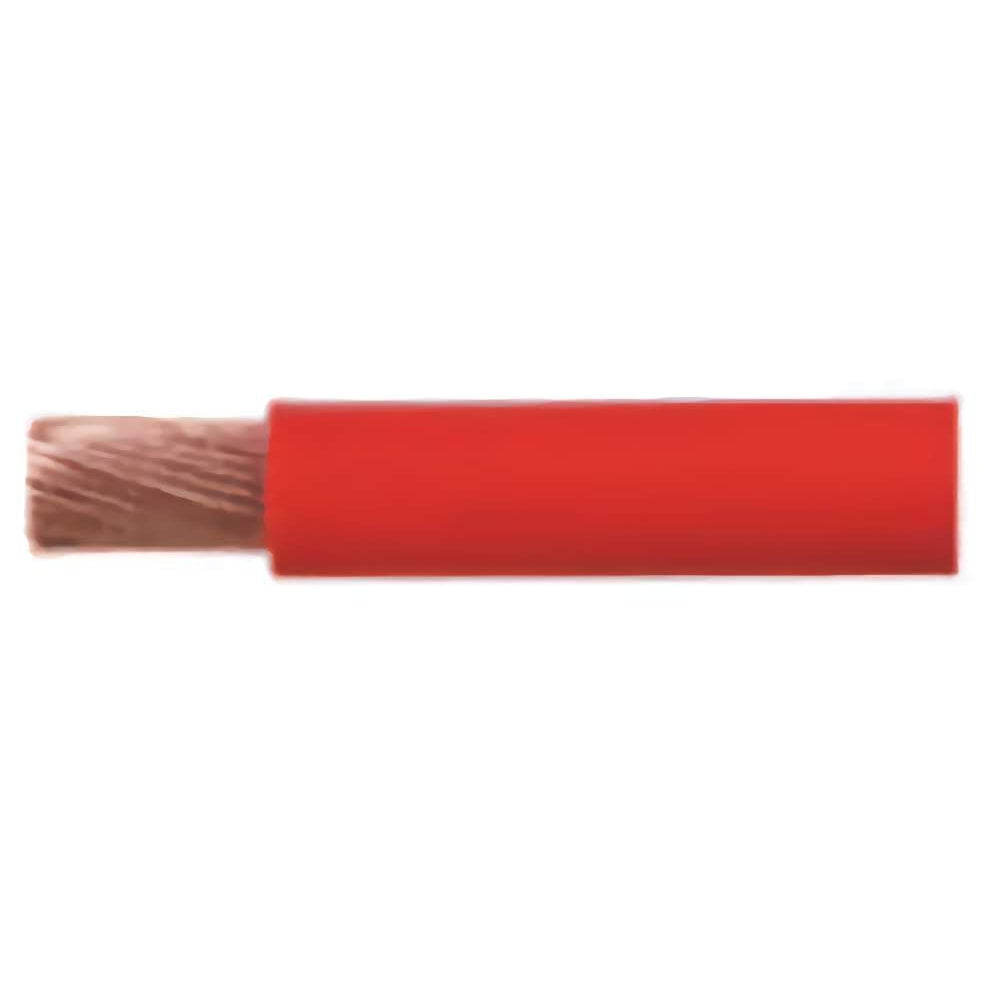

Horizontal view of red 4B&S automotive cable with stripped end showing stranded copper core

4B&S (20.27mm²) Red Single Core Automotive Cable per Metre

DESCRIPTION

4B&S (20.27mm²) Red Single Core Automotive Cable: High-Current Power Delivery for Demanding Vehicle Systems

Engineered for Reliable 12V, 24V, and 48V Automotive and Marine Applications

The 4B&S (20.27mm²) red single core automotive cable is purpose-built to handle high-current loads in vehicle electrical systems, from starter motor circuits to auxiliary battery banks and high-power accessories. Rated 127A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), this cable provides a robust pathway for power where standard wiring falls short. Its plain copper conductor and V90HT heat-resistant PVC insulation ensure consistent performance under the bonnet, in chassis runs, or within marine environments.

Unlike generic automotive wire, this cable uses fine-stranded copper for superior flexibility and vibration resistance, reducing the risk of fatigue failure in mobile installations. The 1.1mm V90HT PVC insulation wall suits engine bays and underbody routing. Whether you're wiring a dual-battery system, a high-output alternator, or a large inverter, this cable delivers the current capacity and durability required.

Key Features

  • Rated 127A in free air at 40°C — AS/NZS 3008.1.1; derate when bundled or enclosed
  • 20.27mm² cross-sectional area — equivalent to 4B&S gauge, ideal for long cable runs
  • Plain copper conductor — to AS/NZS 1125, maximises conductivity
  • Fine-stranded construction — enhances flexibility for easier routing in tight spaces
  • V90HT PVC insulation — heat-resistant for engine bay use
  • Rated to 120V DC maximum — suitable for 12V, 24V, and 48V systems

Why Cable Quality Matters in High-Current Circuits

Inadequate cabling is a common cause of voltage drop, overheating, and unreliable system performance. This 4B&S cable uses plain copper with a low electrical resistance of 0.9 ohm/km at 20°C, minimising energy loss across the conductor. The result is more efficient power transfer to your starter motor, winch, or auxiliary battery, and reduced heat buildup that can degrade insulation over time.

*Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation. Always consult a professional installer to ensure compliance with system design and safety requirements.

Applications Beyond Standard Automotive Wiring

While optimised for automotive battery and starter circuits, this cable excels in a range of high-power 12V, 24V, and 48V applications:

  • Dual-battery systems in 4WDs, caravans, and camper trailers
  • High-output alternator and starter motor upgrades
  • DC-DC charger and solar charge controller connections
  • Large inverter installations (up to 120V DC)
  • Marine electrical systems (note: this is plain copper; consider tinned for direct saltwater exposure)
  • General high-current wiring in trucks, buses, and agricultural machinery

Built for Australian Conditions

Australian made by KEY, this cable is designed to cope with the vibration, temperature extremes, and under-bonnet conditions typical of Australian vehicles. Its V90HT PVC insulation is heat-resistant, while the fine-stranded copper core withstands repeated flexing without work-hardening and cracking.

Selecting the correct cable gauge is critical for safety and performance. The 4B&S size offers a practical balance between current capacity and physical dimensions (8.7mm O.D.), fitting through standard grommets and conduit while supporting high-current loads. For even higher currents, consider stepping up to 2B&S or larger.

Order Your 4B&S Red Automotive Cable Today

Upgrade your vehicle's electrical system with a cable that delivers dependable high-current performance. Add the 4B&S (20.27mm²) red single core automotive cable to your cart now and power your next adventure with confidence.


SKU: Key-KABC1287030RD1

SPECIFICATIONS

Specifications

Conductor: plain copper to AS/NZS 1125. Insulation / sheath: V90HT PVC. Voltage rating: 120V DC / 50V AC – not for mains connection.

This listing is the highlighted row. Source: KEY Battery Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.

Part No. Size B&S No. of Cores Conductor No. / Dia. (mm) Nominal Area (mm²) Insulation Thickness (mm) Electrical Resistance at 20°C (ohm/km) Nominal O.D. (mm) **AMP Rating (free air, 40°C)
KABC1112030 8 1 96/0.32 7.72 0.9 2.4 5.5 69
KABC1192030 6 1 168/0.32 13.51 1.1 1.4 7.0 98
KABC1287030 4 1 252/0.32 20.27 1.1 0.9 8.7 127
KABC1364030 3 1 329/0.32 26.46 1.6 0.7 10.6 152
KABC1455030 2 1 399/0.32 32.09 1.7 0.6 11.7 172
KABC1492032 1 1 492/0.32 39.57 1.7 0.5 12.4 197
KABC1609032 0 1 608/0.32 48.90 1.7 0.4 13.7 227
KABC1912030 2/0 1 798/0.32 64.18 1.7 0.3 14.9 274
KABC11204030 3/0 1 1035/0.32 83.24 2.0 0.23 17 323
KABC2T11230 8 2 96/0.32 7.72 0.9 2.4 7.6 x 13.1 64
KABC2T19230 6 2 168/0.32 13.51 1.1 1.4 9.1 x 16.0 92
KABC2TW28703 4 2 252/0.32 20.27 1.1 0.9 10.8 x 19.4 118

** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.


SKU: Key-KABC1287030RD1
Model #: KABC1287030-RD
MPN: KABC1287030-RD
HS code: 8544493080
Country of origin: AU
Package weight: 0.4 kg
Package length: 0.01 m
Package width: 0.05 m
Package height: 0.1 m
