4B&S (20.27mm²) Black Single Core Automotive Cable per Metre

127A Rated (AS/NZS 3008, Free Air 40°C), 20.27mm², V90HT Insulation, Sold per Metre


Regular price $11.95
/
Availability: In Stock
View all products from Key
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
97255

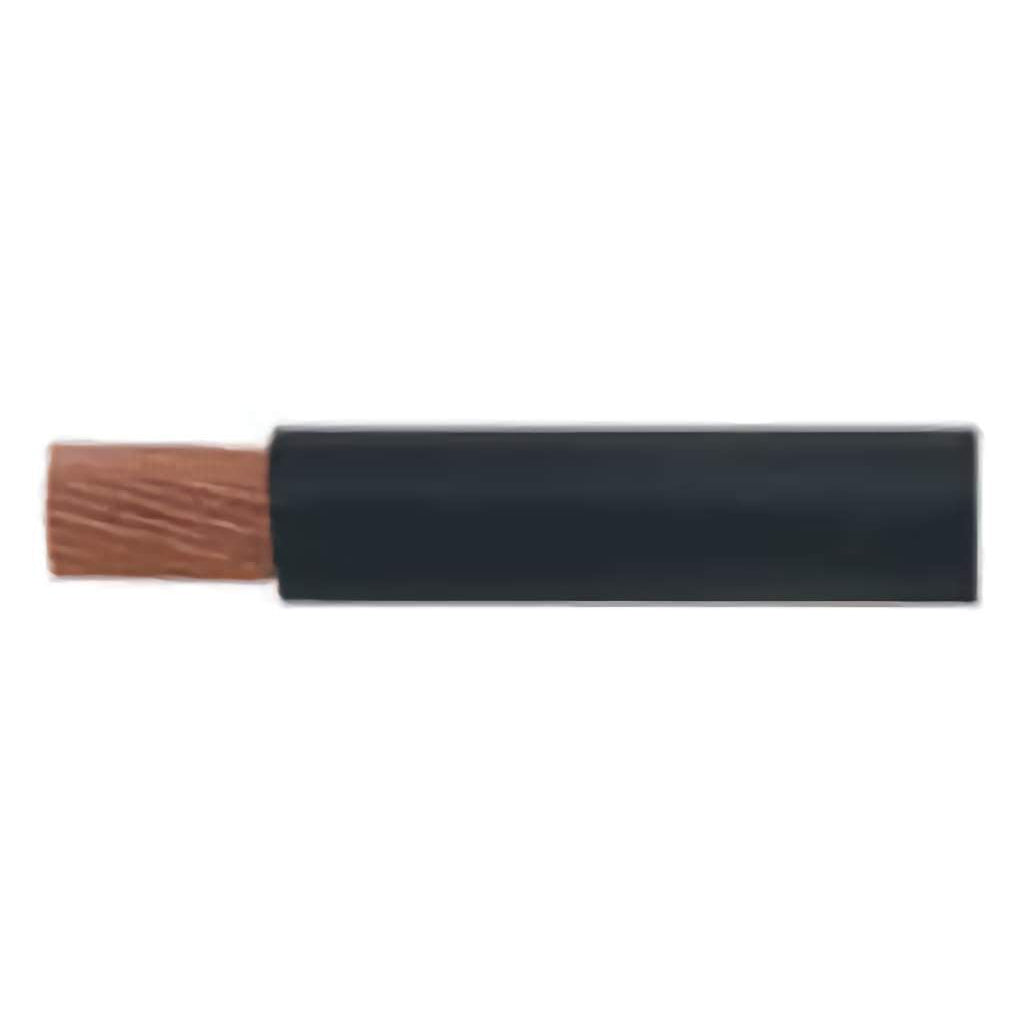

Side view of stripped 4B&S black single core automotive cable showing multi-stranded copper conductor

4B&S (20.27mm²) Black Single Core Automotive Cable per Metre

DESCRIPTION

4B&S (20.27mm²) Black Single Core Automotive Cable: High-Current Conductor for 12V, 24V, and 48V Systems

Engineered for Demanding Automotive and Off-Grid Power Applications

This 4B&S (20.27mm²) black single core automotive cable is designed to deliver reliable, high-current power in 12V, 24V, and 48V DC systems. Rated 127A to AS/NZS 3008.1.1 (two single-core cables spaced in free air at 40°C ambient), it is an excellent choice for automotive battery and starter wiring, DC-DC charger installations, MPPT solar charge controllers, and high-power inverter connections. The cable's plain copper conductor and durable V90HT heat-resistant PVC insulation ensure efficient power transfer and long-term reliability in harsh under-bonnet and mobile environments.

Unlike standard electrical wire, this cable is built to withstand the vibration, heat, and flexing common in 4WD, caravan, marine, and heavy vehicle applications. Its fine-stranded construction (252/0.32mm) provides excellent flexibility for routing through tight spaces. Whether you're upgrading your dual battery system, wiring a high-output alternator, or connecting a large inverter, this cable provides the current-carrying capacity and durability needed for critical power circuits.

Key Features

  • Rated 127A in free air at 40°C (AS/NZS 3008.1.1) for high-demand circuits; derate when bundled or enclosed
  • 20.27mm² cross-sectional area (approx. 4 AWG equivalent) with fine-stranded 252/0.32mm copper for flexibility
  • Plain copper conductor minimises voltage drop and resistive heating
  • V90HT heat-resistant PVC insulation for under-bonnet and high-heat environments
  • Sold per metre for custom-length installations without waste

Optimised for High-Current DC Systems

In 12V automotive systems, voltage drop is a critical concern. This cable's low electrical resistance (0.9 ohm/km at 20°C) helps maintain system voltage over longer runs, ensuring your battery chargers, inverters, and solar controllers operate efficiently. It is suitable for 24V and 48V systems as well, with a voltage rating of 120V DC / 50V AC (not for mains connection), making it versatile for off-grid solar setups, truck electrical systems, and marine applications.

The 4B&S gauge (20.27mm²) is a popular choice for auxiliary battery wiring, winch power cables, and high-amperage accessory circuits. Its robust construction reduces the risk of overheating and insulation failure in hot engine bays. *Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.

Built for Australian Conditions

This cable is Australian made by KEY for the unique demands of the Australian market, from corrugated outback tracks to coastal marine environments. The fine-stranded copper conductor withstands repeated flexing without work-hardening or breaking, a common failure point in inferior cables.

For installers and DIY enthusiasts, the cable has an 8.7mm nominal outer diameter with 1.1mm insulation. Use quality crimp lugs and heat shrink matched to 20.27mm² (4B&S) cable for secure, low-resistance connections in fuse blocks, busbars, and battery terminals.

Applications

  • Automotive battery and starter motor cables for cars, 4WDs, trucks, and buses
  • Dual battery system wiring with DC-DC chargers and smart isolators
  • High-power inverter connections (size the cable for run length and voltage)
  • Solar charge controller to battery bank wiring in off-grid and mobile setups
  • Marine electrical systems (verify suitability for marine use)
  • General high-current DC power distribution in custom vehicle and equipment builds

Upgrade Your Power System with Confidence

Select the 4B&S (20.27mm²) black single core automotive cable for your next installation and experience the difference that quality materials and precise manufacturing make. Add the required length to your cart and build a power system that delivers when you need it most.


SKU: Key-KABC1287030BK1

SPECIFICATIONS

Specifications

Conductor: plain copper to AS/NZS 1125. Insulation / sheath: V90HT PVC. Voltage rating: 120V DC / 50V AC – not for mains connection.

This listing is the highlighted row. Source: KEY Battery Cable Spec Sheet F181a-1 (July 2026); AMP ratings per the note below.

Part No. Size B&S No. of Cores Conductor No. / Dia. (mm) Nominal Area (mm²) Insulation Thickness (mm) Electrical Resistance at 20°C (ohm/km) Nominal O.D. (mm) **AMP Rating (free air, 40°C)
KABC1112030 8 1 96/0.32 7.72 0.9 2.4 5.5 69
KABC1192030 6 1 168/0.32 13.51 1.1 1.4 7.0 98
KABC1287030 4 1 252/0.32 20.27 1.1 0.9 8.7 127
KABC1364030 3 1 329/0.32 26.46 1.6 0.7 10.6 152
KABC1455030 2 1 399/0.32 32.09 1.7 0.6 11.7 172
KABC1492032 1 1 492/0.32 39.57 1.7 0.5 12.4 197
KABC1609032 0 1 608/0.32 48.90 1.7 0.4 13.7 227
KABC1912030 2/0 1 798/0.32 64.18 1.7 0.3 14.9 274
KABC11204030 3/0 1 1035/0.32 83.24 2.0 0.23 17 323
KABC2T11230 8 2 96/0.32 7.72 0.9 2.4 7.6 x 13.1 64
KABC2T19230 6 2 168/0.32 13.51 1.1 1.4 9.1 x 16.0 92
KABC2TW28703 4 2 252/0.32 20.27 1.1 0.9 10.8 x 19.4 118

** AMP rating: AS/NZS 3008.1.1 value in free air at 40°C ambient (single core: two cables spaced in free air; twin core: one cable in free air), with the V90HT PVC insulation rated at 90°C, interpolated for each conductor size. Derating factors apply for bundled cables, enclosure and higher ambient temperatures. Use our cable sizing calculator for your installation.


SKU: Key-KABC1287030BK1
Model #: KABC1287030-BK
MPN: KABC1287030-BK
HS code: 8544493080
Country of origin: AU
Package weight: 0.25 kg
Package length: 0.01 m
Package width: 0.01 m
Package height: 0.1 m
