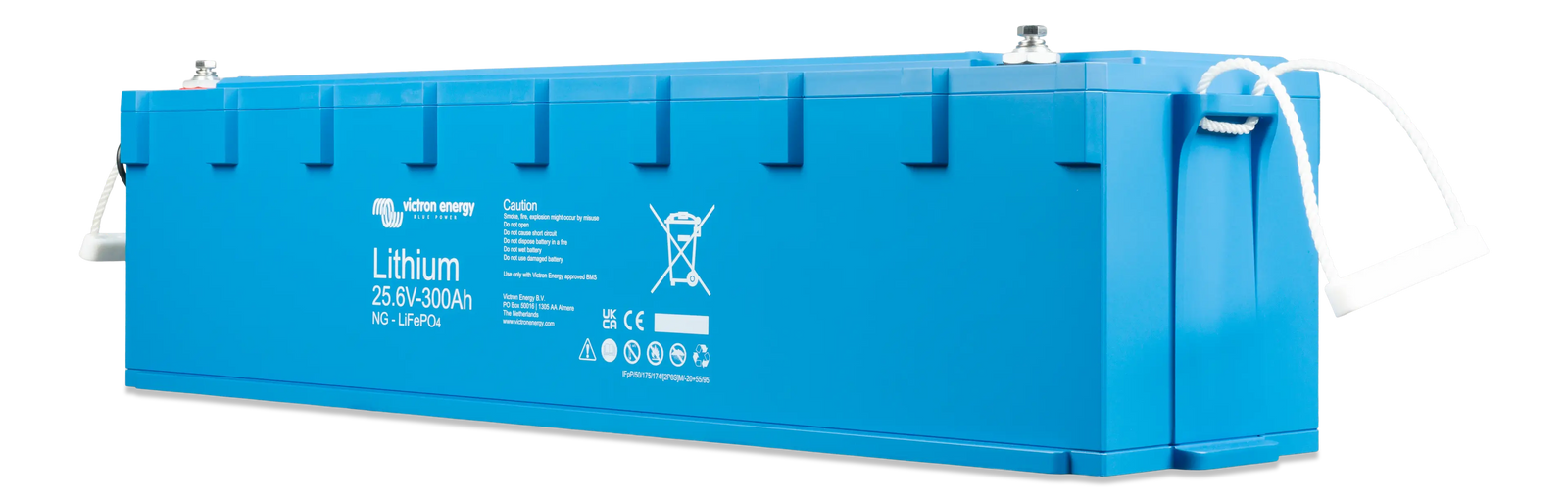

Victron 24V 300Ah Smart NG (NextGen) LiFePO4 Lithium Battery

Next Generation Lithium

RRP $5,553.89
$5,048.99
SAVE $504.90 (9%)
Due in Soon
Victron logo

You may also need:


Victron 24V (25.6V) 300Ah Smart NG (NextGen) LiFePO4 Lithium Battery

Important Note - Requires one of these BMS':

  • smallBMS NG – recommended for use in small systems without intending on using a Victron Inverter/charger.
  • Lynx Smart BMS 500A NG M10 or Lynx Smart BMS 1000A NG M10 – recommended for all other systems.

The Victron 24V (25.6V) 300Ah Smart NG LiFePO4 Lithium Battery is the latest innovation in energy storage technology, designed to meet the demands of high-performance energy systems. Featuring advanced Lithium Iron Phosphate (LiFePO4 or LFP) chemistry, this battery delivers exceptional efficiency, reliability, and durability. Perfect for solar setups, off-grid living, RVs, caravans, marine use, and industrial applications, it’s a versatile choice for those seeking powerful, long-lasting energy solutions.

Key Features:

1. Integrated Shunt for Smart Monitoring

Equipped with an integrated shunt, this battery transmits critical data, such as voltage, current, and temperature, directly to the Lynx Smart BMS. These metrics are used to calculate the state of charge, providing real-time insights via the VictronConnect app or a GX communication center.

2. Advanced Connectivity and Control

  • Bluetooth & VictronConnect App: Monitor and control all battery parameters via the VictronConnect app or the VRM Portal.
  • GX Communication Center: For enhanced system monitoring, link the battery to a GX device such as a Cerbo GX or Ekrano GX to access parameters such as cell voltage, battery current, and temperature in real-time.
  • Automatic Firmware Updates: Firmware is automatically updated via the BMS, ensuring your battery operates with the latest advancements in technology.

3. Flexible System Configurations

This battery supports series, parallel, and series/parallel connections, allowing you to scale your system voltage up to 48V. The maximum number of batteries in one system is 50.

4. Built for Durability and Harsh Conditions

  • IP-Rated for Dust and Water Resistance: Designed to withstand harsh environments, the battery’s increased ingress protection ensures durability against dust and low-pressure water jets.
  • Low Self-Discharge Rate: The battery boasts an incredibly low self-discharge rate of just 2% per month, contributing to its longevity and reliability.

5. Optional Redundancy with Parallel Lynx Smart BMS

Maximize safety and efficiency with the optional parallel redundancy feature. Multiple Lynx Smart BMS units can be connected in a single installation, offering increased capacity, higher discharge currents, and additional system redundancy.

Applications:

  • Off-grid solar energy systems
  • RV, caravan, and tiny home setups
  • Marine and industrial power systems
  • Backup energy solutions for residential or commercial buildings

Easy Installation and Maintenance

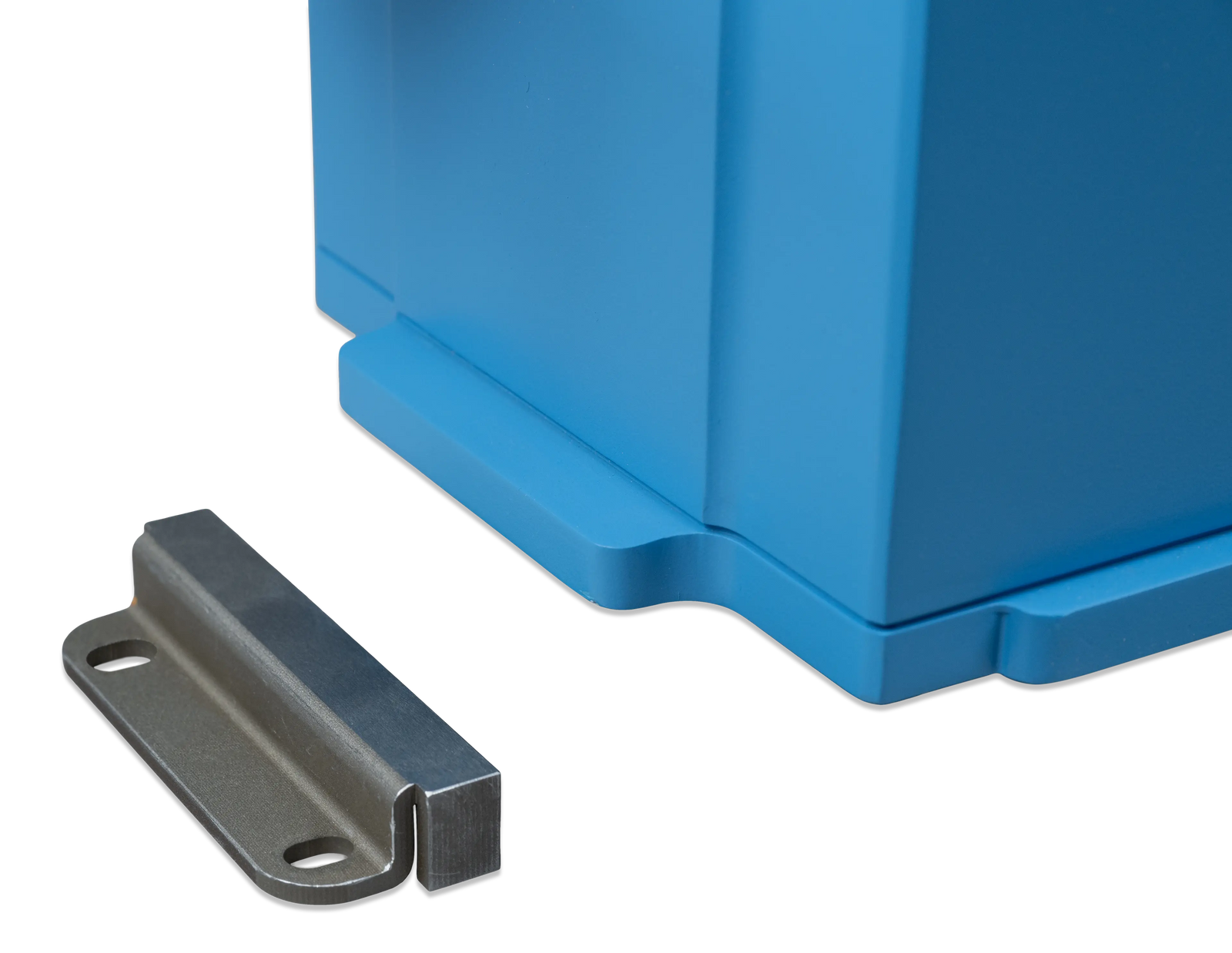

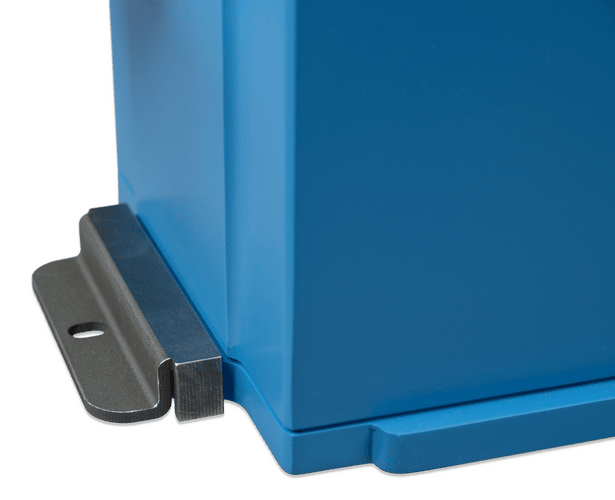

The Victron Lithium NG battery features mounting brackets for secure and easy installation, ensuring stability even in mobile or challenging environments.

Upgrade to Unmatched Energy Efficiency

Don’t compromise on power or reliability. Upgrade to the Victron 24V (25.6V) 300Ah Smart NG LiFePO4 Lithium Battery today and experience cutting-edge energy storage for your RV, marine, off-grid, or industrial system.

Visit Victron Energy's Official Lithium NG Webpage for More Details


(BAT524130620)

Specifications

Battery Model LFP-25.6/300Ah
Nominal Voltage 25.6V
Nominal Capacity @ 25°C 300 Ah
Nominal Energy @ 25°C 7680 Wh
Capacity Loss <1%
Energy Loss <1%
Round Trip Efficiency 92%
Discharge Current ≤1C Yes
Cycle Life
80% DoD 2500 cycles
70% DoD 3000 cycles
50% DoD 5000 cycles
Max Continuous Discharge 300 A
Max Pulse Discharge (10s) 600 A
End of Discharge Voltage 22.4 V
Internal Resistance 1 mΩ
Charge Voltage Between 28V and 28.8V
Float Voltage 27V
Max Continuous Charge 300 A
Max Pulse Charge (10s) 450 A
GENERAL
BMS-es Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately
Cell measurements Cell voltages and temperatures, battery current
Battery BMS interface Male + female cable with M8 circular connector, high-speed digital communication, length 50 cm
Alarm feature Pre-alarm contact on BMS
Bluetooth In the BMS
Max batteries per BMS 50 (384 kWh per BMS)
Battery firmware updates Automatically updated by BMS
Repairable Yes (cover can be removed with screws)
OPERATING CONDITIONS
Operating temperature Discharge: -20°C to +50°C, Charge: +5°C to +50°C
Storage temperature -45°C to +70°C
Humidity (non-condensing) Max. 95%
Protection class IP65
MOUNTING
Mounting options Strap or mounting brackets
Can be placed on their sides Yes
OTHER
Self-discharge rate ≤ 3 % per month @ 25°C
Power connection M8 (threaded inserts and bolts)
Dimensions (h x w x d) mm 206 x 841 x 205
Weight (est.) 52 kg
STANDARDS
Safety Cells: UL1973, UL9540A, IEC62619 (pending)
EMC EN 61000-6-3, EN 61000-6-2
Automotive ECE R10-6 (pending)
Performance IEC 62620 (pending)
SKU VIC-BAT524130620
Barcode # 8719076064749
MPN # BAT524130620
