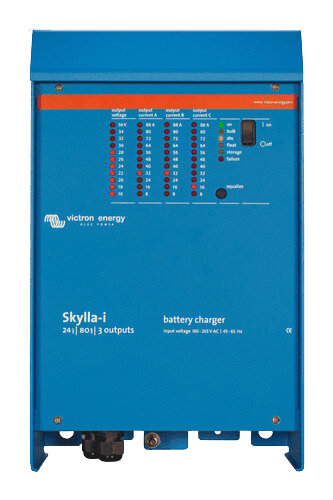

Victron 24V 80A Skylla-i 24/80 (3) 230VAC/45-65Hz Battery Charger

3-Bank Marine Grade Charger with NMEA2000 & Li-Ion Support


Regular price $2,282.07
$2,288.00
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

0

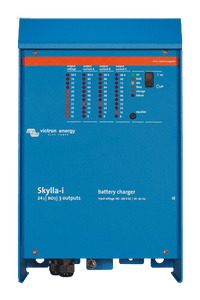

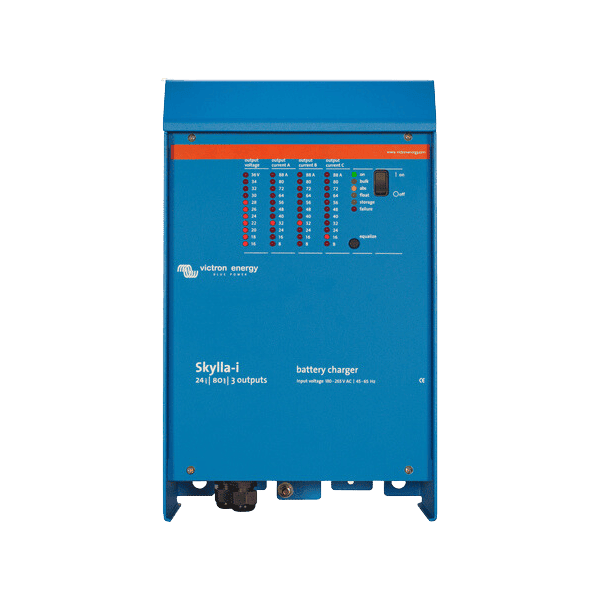

Front panel of a blue Victron Skylla-i 24V 80A battery charger with LED status display and power switch

Victron 24V 80A Skylla-i 24/80 (3) 230VAC/45-65Hz Battery Charger

DESCRIPTION

Advanced 24V Power Management for Multi-Bank Systems

The Victron 24V 80A Skylla-i (3) Battery Charger is engineered for heavy-duty marine, industrial, and off-grid applications requiring precise power distribution. Capable of delivering a full 80 amps across three isolated outputs, this advanced charger allows you to simultaneously maintain three separate 24V battery banks without performance compromise. Whether managing service, starting, or auxiliary batteries on a large vessel, the Skylla-i ensures each bank receives the exact charge required for optimal health and longevity.

Rugged Construction for Adverse Environments

Industrial and marine settings demand equipment that can endure extreme conditions. The Skylla-i is housed in an aluminium epoxy powder-coated casing complete with a protective drip shield and marine-grade stainless steel fixings. Internal circuit boards are shielded by a robust acrylic coating, providing maximum corrosion resistance against heat, high humidity, and salt-laden air. Built-in temperature sensors continuously monitor internal thermals, automatically reducing the output current if extreme environmental conditions threaten operation.

Intelligent Battery Protection and Longevity

Lead-acid and lithium batteries require distinct charging profiles to maximise their service life. The Skylla-i addresses this with a variable absorption time mechanism. Following a shallow discharge, absorption time is kept short to prevent overcharging. Conversely, after a deep discharge, the charger automatically extends absorption to ensure complete replenishment.

To further protect your battery bank, the innovative BatterySafe mode mitigates damage caused by excessive gassing. If a rapid charge rate and high absorption voltage are selected, the charger automatically caps the voltage increase rate once the gassing threshold is reached.

When the system is inactive, the built-in Storage mode activates after 24 hours without discharge. It lowers the float voltage to 26.4V (for 24V systems), significantly minimising positive plate corrosion. A weekly automatic voltage boost refreshes the cells, preventing electrolyte stratification and sulphation.

Seamless Network Integration and Parallel Operation

Modern power systems rely on interconnected data. Featuring a CAN bus (NMEA2000) interface, the Skylla-i allows for highly synchronised parallel operation. By interconnecting multiple chargers with standard RJ45 UTP cables, you can effortlessly scale your charging capacity to meet growing energy demands. The charger also includes a rotary switch, DIP switches, and potentiometers to manually fine-tune charge algorithms for specific battery chemistries.

Lithium-Ion (LiFePO4) Ready

As the transition to lithium energy storage continues, the Skylla-i is fully equipped to support LiFePO4 battery banks. Simple charger control can be managed by linking a relay or open collector optocoupler from a Lithium-Ion BMS to the remote control port. For comprehensive system oversight, full control of voltage and current is achievable via the galvanically isolated CAN bus port.

Key Features

  • Three Full-Current Outputs: Charge up to three 24V battery banks simultaneously at the maximum rated current.
  • Temperature Compensation: Included sensor dynamically adjusts charge voltage based on battery temperature, crucial for sealed lead-acid setups.
  • Battery Voltage Sense: Compensates for voltage drops across cable resistance to ensure precise charging.
  • AC and DC Supply Compatibility: Functions flawlessly as an AC-DC charger or DC-DC power supply, accepting diverse input sources.
  • Power Supply Mode: Operates as a highly stabilised power supply when batteries or large buffer capacitors are absent.

Enhance Your Marine or Industrial Power System

Equip your vessel, fleet, or remote power station with a charging solution built for uncompromising reliability. Integrate the Victron 24V 80A Skylla-i (3) into your setup to ensure your critical battery banks remain perfectly charged, protected, and ready for deployment.

SPECIFICATIONS

Specifications

ModelSkylla-i 24/80 (3)
Input Voltage (VAC)230 V
Input Voltage Range (VAC)185-265 V
Input Voltage Range (VDC)180-350 V
Maximum AC Input Current @ 180 VAC16 A
Frequency (Hz)45-65 Hz
Power Factor0.98
Charge Voltage 'Absorption' (VDC)28.8 V
Charge Voltage 'Float' (VDC)27.6 V
Charge Voltage 'Storage' (VDC)26.4 V
Charge Current (A)3 x 80 A (Max Total Output: 80 A)
Charge Algorithm7 Stage Adaptive
Battery Capacity (Ah)400-800 Ah
Charge Algorithm, Li-Ion3 Stage, with On-Off Control or CAN Bus Control
Temperature SensorYes
Can Be Used as Power SupplyYes
Remote On-Off PortYes (Can Be Connected to a Li-Ion BMS)
VE.Can Communication PortTwo RJ45 Connectors, NMEA2000 Protocol, Galvanically Isolated. Integrated 12 V CAN-bus Power Supply, 30 V DC Maximum
Synchronised Parallel OperationYes, with VE.Can
Alarm RelayDPST; AC Rating: 240 VAC / 4 A; DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Forced CoolingYes
ProtectionBattery Reverse Polarity (Fuse); Output Short Circuit; Over Temperature
Operating Temp. Range-20 to 60 °C (Full Output Current up to 40 °C)
Humidity (Non-Condensing)Max 95%
Material & ColourAluminium (Blue RAL 5012)
Battery ConnectionM8 Bolts
230 VAC ConnectionScrew-clamp 10 mm² (AWG 7)
Protection CategoryIP 21
Weight7 kg (16 lbs)
Dimensions (H x W x D)405 x 250 x 150 mm (16.0 x 9.9 x 5.9 in)
SafetyEN 60335-1, EN 60335-2-29
EmissionEN 55014-1, EN 61000-6-3, EN 61000-3-2
ImmunityEN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

SKU: VIC-SKI024080002
Barcode: 8719076026235
Model #: SKI024080002
MPN: SKI024080002
