Victron 24V 100A Skylla-i 24/100 (1+1) 230VAC/45-65Hz Battery Charger

Dual Output 100A Charger with VE.Can and Adaptive 7-Stage Charging


Regular price $2,227.00
$2,251.70
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

0

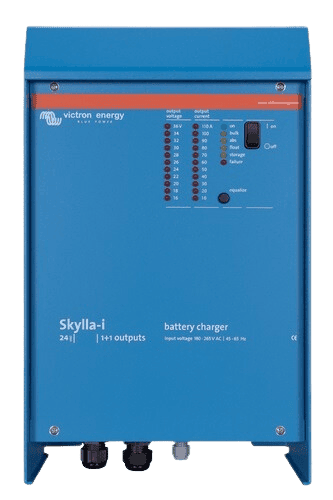

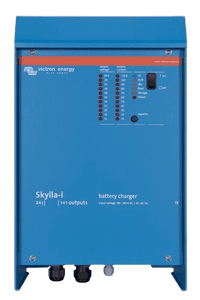

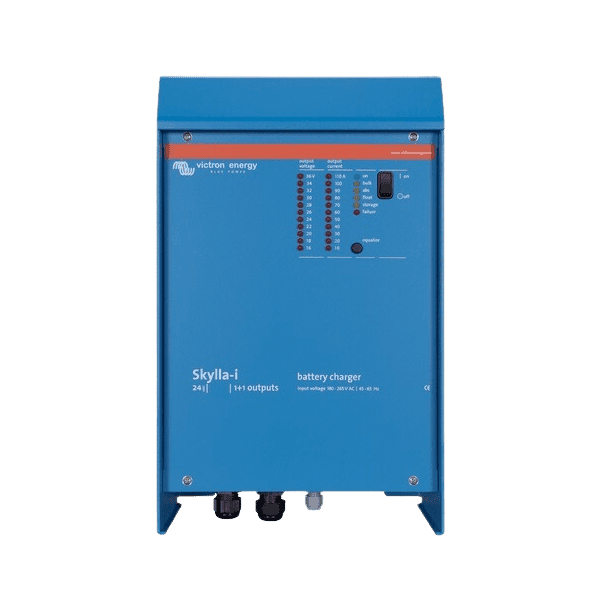

Front view of Victron Skylla-i 24V 100A battery charger showing status LEDs and control switch

Victron 24V 100A Skylla-i 24/100 (1+1) 230VAC/45-65Hz Battery Charger

DESCRIPTION

Victron Skylla-i 24/100 (1+1): Professional 24V 100A Battery Charger for Marine, Off-Grid, and Industrial Applications

Advanced Multi-Stage Charging with Dual Isolated Outputs

The Victron Skylla-i 24/100 (1+1) is a high-performance 24V 100A battery charger engineered for demanding environments where reliability and precise charge control are critical. Featuring two isolated outputs, it delivers a full 100 A to the main battery bank while providing a dedicated 4 A output to maintain a starter battery, making it an ideal solution for marine battery charging, off-grid power systems, and industrial backup applications.

Built on Victron's proven Skylla-i platform, this charger combines adaptive 7-stage charging with advanced communication capabilities, ensuring optimal battery health and longevity for lead-acid and lithium-ion chemistries alike.

Intelligent Adaptive Charging for Maximum Battery Life

Unlike conventional chargers with fixed absorption times, the Skylla-i employs variable absorption technology that automatically adjusts the charge cycle based on depth of discharge. After shallow discharges, absorption time is minimised to prevent overcharging; following deep discharges, it extends to ensure complete recharge. This adaptive approach significantly reduces battery wear and extends service life.

The integrated BatterySafe mode prevents excessive gassing by limiting voltage rise once the gassing threshold is reached, protecting sealed batteries from damage during high-current charging. For extended idle periods, the Storage mode reduces float voltage to 26.4 V and performs a weekly refresh cycle to prevent electrolyte stratification and sulphation, two leading causes of premature battery failure.

Rugged Construction for Harsh Environments

Encased in a durable aluminium housing with epoxy powder coating and a drip shield, the Skylla-i is purpose-built to withstand heat, humidity, and salt-laden air. Stainless steel fixings and acrylic-coated circuit boards provide superior corrosion resistance, while internal temperature sensors automatically derate output current under extreme conditions to protect power components. This makes it a trusted choice for marine battery chargers and coastal installations.

Flexible Configuration and System Integration

Setup is straightforward via a rotary switch, DIP switches, and potentiometers, allowing precise adaptation to specific battery types and operating conditions. For advanced integration, the VE.Can (NMEA2000) interface with dual RJ45 connectors enables synchronised parallel operation of multiple chargers, remote monitoring, and full CAN bus control for lithium-ion battery management systems.

The charger also supports voltage sense to compensate for cable losses, ensuring the battery receives the correct charge voltage regardless of installation distance. A remote on/off port allows direct connection to a Li-Ion BMS for simple charge control.

Key Features

  • 100 A charge current for main battery banks up to 1000 Ah, with a 4 A auxiliary output for starter batteries
  • Adaptive 7-stage charge algorithm optimised for lead-acid batteries, with dedicated Li-Ion profiles
  • VE.Can (NMEA2000) communication for synchronised parallel operation and BMS integration
  • BatterySafe and Storage modes prevent gassing and sulphation during idle periods
  • Temperature-compensated charging with included sensor for sealed batteries and fluctuating environments
  • Dual-use capability: functions as a stabilised power supply when batteries are disconnected
  • Wide input range: accepts 185-265 VAC or 180-350 VDC for AC-DC and DC-DC operation

Designed for Demanding Applications

Whether you are maintaining a large house bank on a cruising yacht, powering a remote telecommunications site, or building a resilient off-grid energy system, the Skylla-i 24/100 delivers the precision and durability required. Its ability to operate from both AC and DC sources adds flexibility for hybrid installations, while the IP21-rated enclosure with forced cooling ensures reliable performance in engine rooms and equipment shelters.

With a power factor of 0.98 and high efficiency, this charger minimises generator run time and reduces energy costs compared to less sophisticated units. The M8 bolt battery connections (approx. 8 mm) and screw-clamp AC terminals (10 mm² or AWG 7) simplify installation with heavy-duty cabling.

Upgrade Your Charging Infrastructure

Equip your system with the Victron Skylla-i 24/100 (1+1) for professional-grade battery management that protects your investment and ensures dependable power availability. Order today to experience the difference adaptive, multi-stage charging makes in demanding environments.

SPECIFICATIONS

Specifications

ModelSkylla-i 24/100 (1+1)
Outputs2 Isolated Outputs
Input Voltage (VAC)230 V
Input Voltage Range (VAC)185-265 V
Input Voltage Range (VDC)180-350 V
Maximum AC Input Current @ 180 VAC20 A
Frequency45-65 Hz
Power Factor0.98
Charge Voltage 'Absorption' (VDC)28.8 V
Charge Voltage 'Float' (VDC)27.6 V
Charge Voltage 'Storage' (VDC)26.4 V
Output Voltage Range20-36 V
Charge Current (A)100 A
Charge Current Starter Batt. (A)4 A
Charge Algorithm7 Stage Adaptive
Battery Capacity (Ah)500-1000 Ah
Charge Algorithm, Li-Ion3 Stage, With On-Off Control or CAN Bus Control
Temperature SensorYes
Can Be Used As Power SupplyYes
Remote On-Off PortYes (Can Be Connected to a Li-Ion BMS)
VE.Can Communication PortTwo RJ45 Connectors, NMEA2000 Protocol, Galvanically Isolated.
Integrated 12 V CAN-Bus Power Supply30 V DC Maximum
Synchronised Parallel OperationYes, With VE.Can
Alarm RelayDPST; AC Rating: 240 VAC/4 A; DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Forced CoolingYes
ProtectionBattery Reverse Polarity (Fuse); Output Short Circuit; Over Temperature
Operating Temp. Range-20 to 60 °C (Full Output Current up to 40 °C)
Humidity (Non-Condensing)Max 95%
Material & ColourAluminium (Blue RAL 5012)
Battery-ConnectionM8 Bolts
230 VAC-ConnectionScrew-Clamp 10 mm² (AWG 7)
Protection CategoryIP 21
Weight7 kg (16 lbs)
Dimensions HxWxD405 x 250 x 150 mm (16.0 x 9.9 x 5.9 inches)
SafetyEN 60335-1, EN 60335-2-29
EmissionEN 55014-1, EN 61000-6-3, EN 61000-3-2
ImmunityEN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

SKU: VIC-SKI024100000
Barcode: 8719076026242
Model #: SKI024100000
MPN: SKI024100000
