Victron Battery Monitor BMV-702 Black (Non-Bluetooth)
Victron Battery Monitor BMV-702 Black (Non-Bluetooth)
Midpoint Voltage Monitoring for Series Battery Banks, 500A Shunt Included
Key features: Round LCD battery monitor gauge, Square bezel mounting option, 500A / 50mV precision shunt for current monitoring, RJ12 communication and power supply cables.

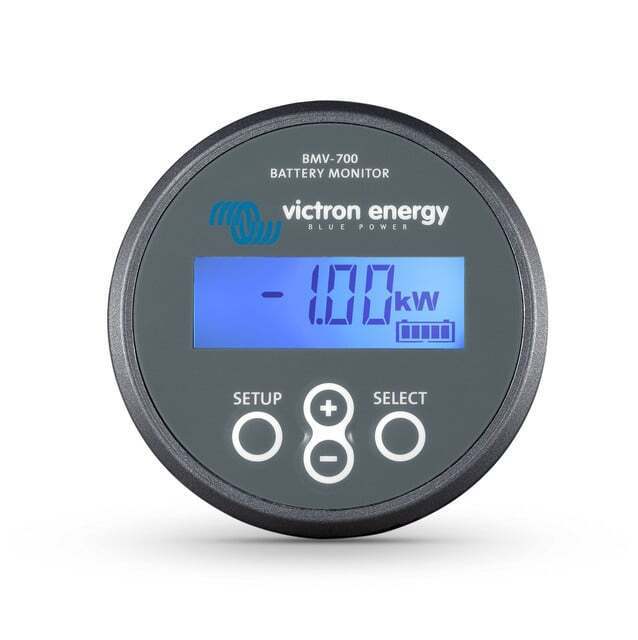

Highlights:LCD Display: Backlit screen displaying real-time battery status and parameters,Setup Button: Menu button to access monitor configuration settings,Navigation Buttons: Plus and minus keys for scrolling and adjusting values,Select Button: Button to toggle through display data and confirm selections.

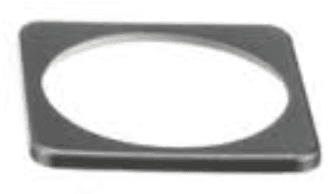

This square bezel accessory allows for a clean, professional flush-mount installation of the round battery monitor into square dash apertures.

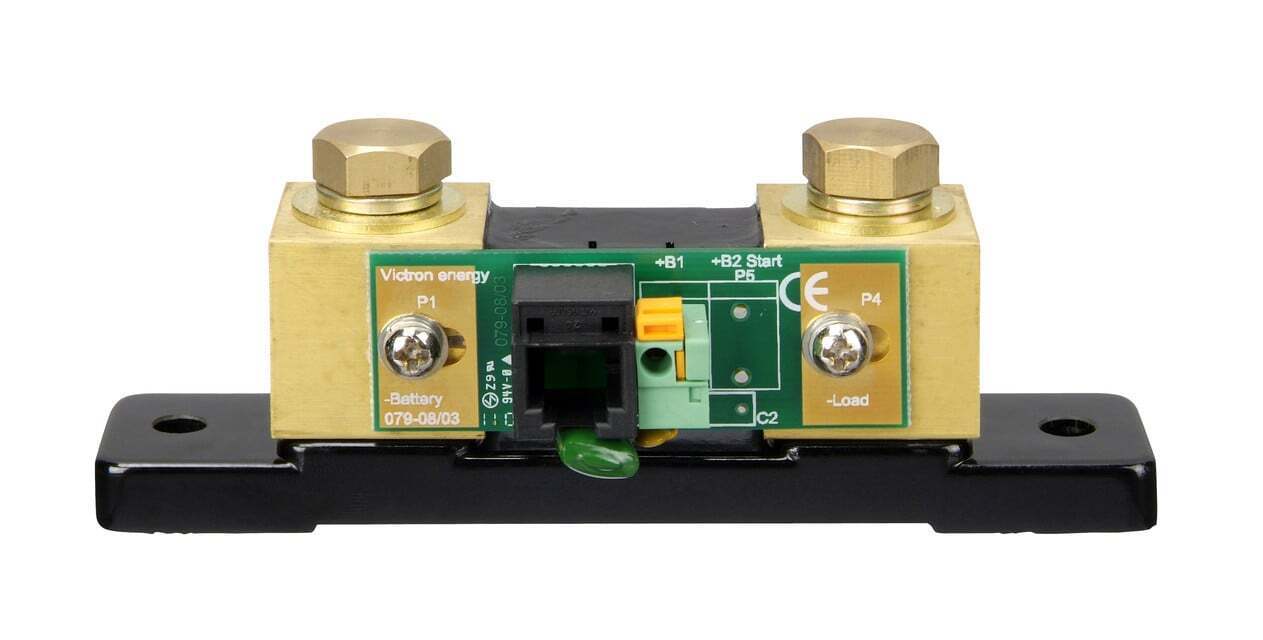

Heavy-duty 500A shunt featuring solid brass terminal blocks and an integrated circuit board with RJ12 and voltage sense connections.

DESCRIPTION
Victron BMV-702: Precision Battery Monitoring for 12V to 48V Systems
Advanced Battery Management with Midpoint Voltage Detection

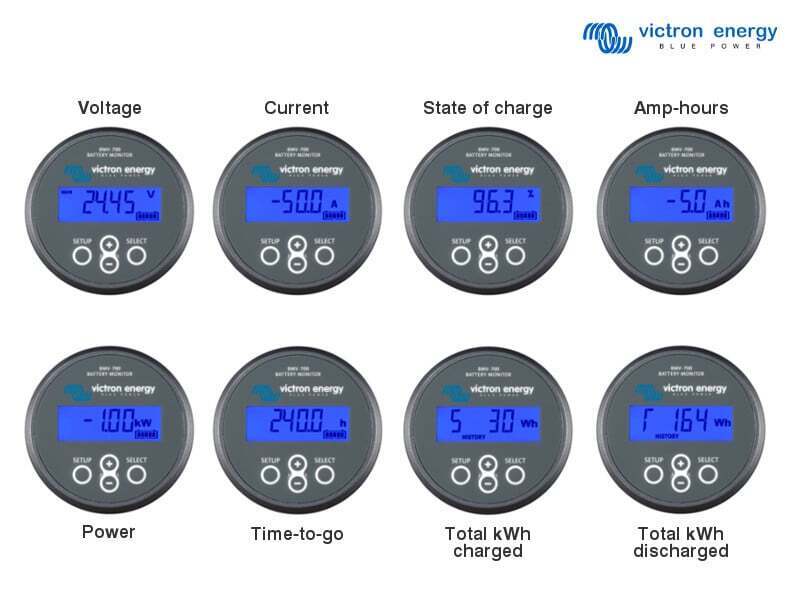

The Victron BMV-702 Battery Monitor functions as an intelligent fuel gauge for your battery bank, delivering real-time data on voltage, current, state of charge, and time remaining. Unlike basic voltage meters, the BMV-702 employs sophisticated algorithms that account for discharge rate, temperature, and battery age, ensuring accurate readings even under dynamic loads. This model includes a dedicated secondary input for midpoint voltage monitoring, a critical feature for identifying cell imbalances in series-connected battery strings before they lead to costly failures.
Designed for lithium and lead-acid batteries, the BMV-702 supports systems from 6.5V to 95V DC, making it suitable for 12V, 24V, and 48V installations in caravans, marine vessels, and off-grid solar setups. The included 500A/50mV shunt provides high-resolution current measurement down to 10mA, while the VE.Direct communication port enables integration with Victron GX devices and the VictronConnect app for detailed historical analysis.
Midpoint Voltage Monitoring: Protect Your Battery Investment
In series-connected battery banks, a single failing cell can compromise the entire string. The BMV-702 continuously measures the voltage at the midpoint of the bank, detecting deviations that indicate imbalance, aging, or damage. Early warning via programmable alarms allows corrective action, such as equalisation charging or cell replacement, preventing irreversible damage to expensive battery sets. This feature is especially valuable for large lithium or AGM banks where replacement costs are significant.
Key Features
- Midpoint voltage monitoring detects cell imbalance in series battery banks
- High-precision 500A shunt with 10mA resolution for accurate current tracking
- Programmable relay for load shedding or generator start
- VE.Direct port for connection to GX devices and VictronConnect
- Wide 6.5–95V DC input range compatible with 12V, 24V, and 48V systems
- Low self-consumption of 4mA at 12V minimises battery drain
- Historical data logging for performance analysis and troubleshooting
Easy Installation and Flexible Mounting

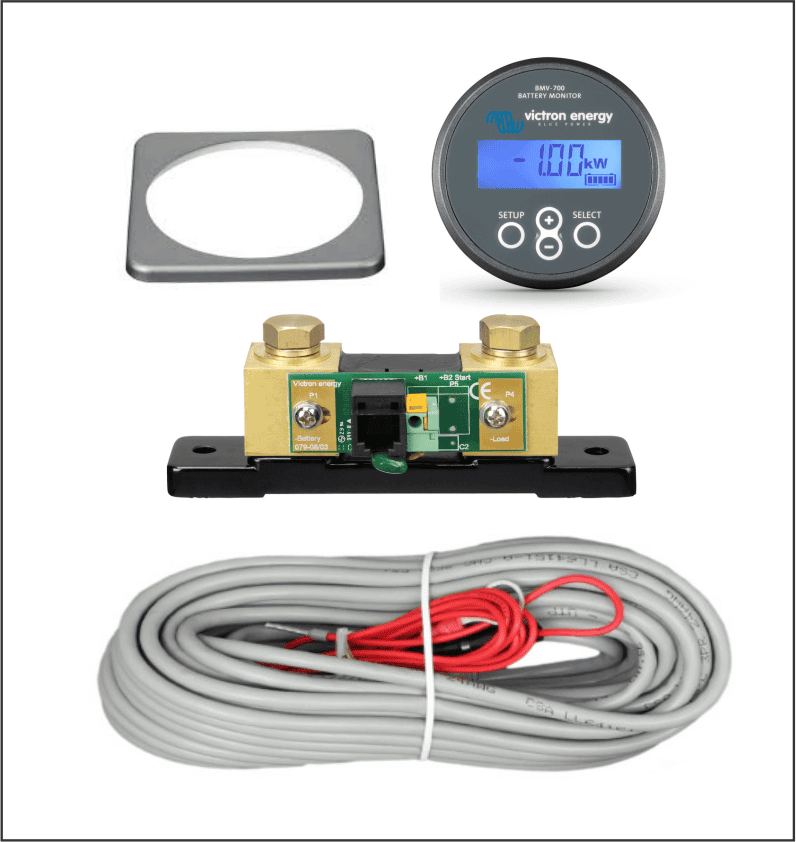

The BMV-702 ships with a 500A/50mV shunt featuring M10 (approx. 3/8") brass terminals, a 10-metre RJ12 cable, and a fused battery connection. The round head unit (63mm diameter) can be flush-mounted using the included square bezel (69x69mm) for a clean dashboard appearance. All electrical connections terminate at the shunt’s quick-connect PCB, simplifying wiring and reducing installation time.
Applications
Ideal for monitoring lithium battery banks in caravans, RVs, and boats, the BMV-702 also excels in off-grid solar systems, backup power installations, and industrial battery rooms. Its ability to track multiple parameters helps users optimise charging, extend battery life, and avoid unexpected downtime.
Take Control of Your Energy System
Equip your battery bank with the Victron BMV-702 Battery Monitor and gain the insights needed to maximise performance and longevity. Order today to ensure your power system operates at peak efficiency.
SKU: Vic-BAM010702200
SPECIFICATIONS
Specifications
| Supply Voltage Range | 6.5 - 95 VDC |
|---|---|
| Input Voltage Range, Auxiliary Battery | 6.5 - 95 VDC |
| Battery Capacity (Ah) | 1 - 9999 Ah |
| Operating Temperature Range | -40 +50 °C (-40 - 120 °F) |
| Temperature Measurement Range | -20 +50 °C (-4 - 120 °F) |
| Additional Input | Voltage (of a second battery), Temperature or Midpoint Voltage |
| Current Draw (Backlight Off) | < 4 mA |
| Low Current Consumption | 2.9 Ah per month (4 mA) @ 12 V and 2.2 Ah per month (3 mA) @ 24 V |
| VE.Direct Communication Port | Yes |
| Relay | 60 V / 1 A normally open (function can be inverted) |
| Shunt Selection Capability | Up to 10,000 A |
| Shunt (Included) | 500 A / 50 mV |
| Current Measurement Resolution | 10 mA (0.01 A) |
| Voltage Resolution | ± 0.01 V |
| Amp Hours Resolution | ± 0.1 Ah |
| State Of Charge Resolution (0 - 100%) | ± 0.1% |
| Time-To-Go Resolution | ± 1 min |
| Temperature Accuracy (0 - 50 °C or 30 - 120 °F) | ± 1 °C/°F |
| Accuracy Of Current Measurement | ± 0.4% |
| Accuracy Of Voltage Measurement | ± 0.3% |
| Installation | Flush mount |
| Head Unit Front Diameter | 63 mm (2.5 inch) |
| Head Unit Front Bezel | 69 x 69 mm (2.7 x 2.7 inch) |
| Head Unit Body Diameter And Depth | 52 mm (2.0 inch) and 31 mm (1.2 inch) |
| Shunt Connection Bolts | M10 (0.3937 inch) |
| Head Unit Protection Category | IP55 (not intended for outdoor use) |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Automotive | ECE R10-4 / EN 50498 |
| SKU: | Vic-BAM010702200 |
| Barcode: | 8719076020110 |
| Model #: | BAM010702200 |
| MPN: | BAM010702200 |
