Victron 12V 90Ah Gel Deep Cycle Battery
Victron 12V 90Ah Gel Deep Cycle Battery
Highlights:M8 threaded terminals: Solid copper M8 threaded terminals for low resistance high-current electrical connections,M8 threaded terminals: Standardised bolt-down terminals for secure connection in mobile or marine environments,Gel deep cycle technology: VRLA gel technology ensures high cycle life and recovery from deep discharge,Flame retardant case: Durable ABS enclosure designed for safety and chemical resistance,Maintenance-free design: Sealed non-spillable construction requires no topping up of electrolyte.

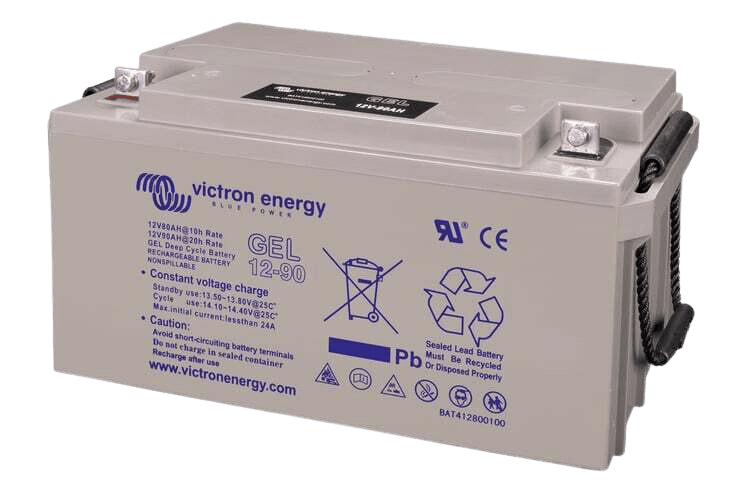

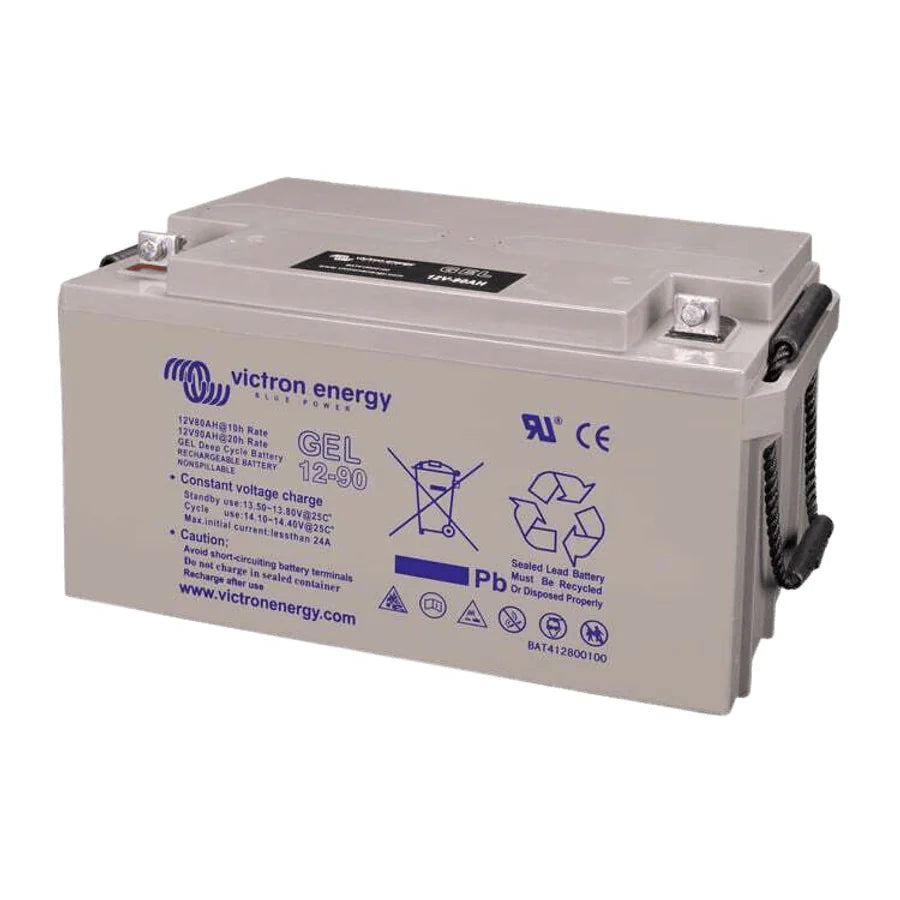

Key features: High-strength rope carrying handles for easier transport and installation, Very low self-discharge rates suitable for seasonal use, Sealed VRLA construction prevents electrolyte leakage, Vibration resistant for marine and automotive applications.

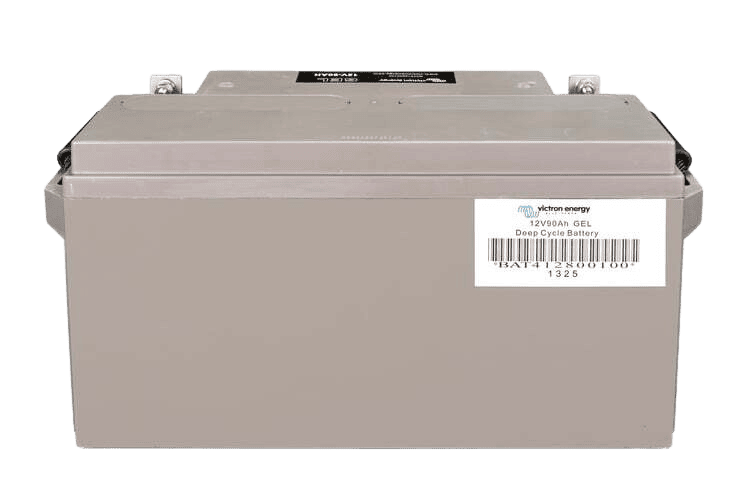

The rear face of the Victron 12V 90Ah battery features a clear identification label with the manufacturer SKU BAT412800100 and barcode for inventory tracking.
DESCRIPTION

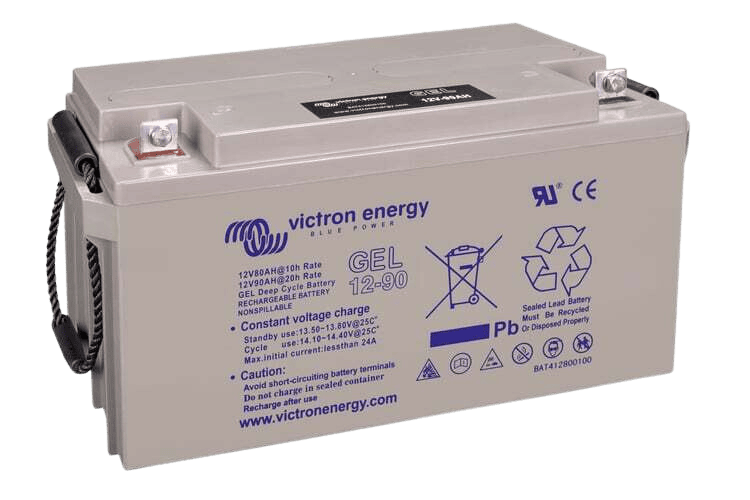

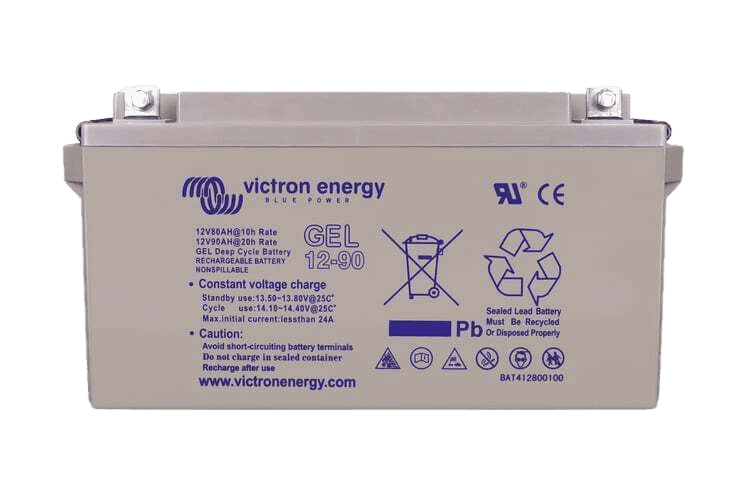

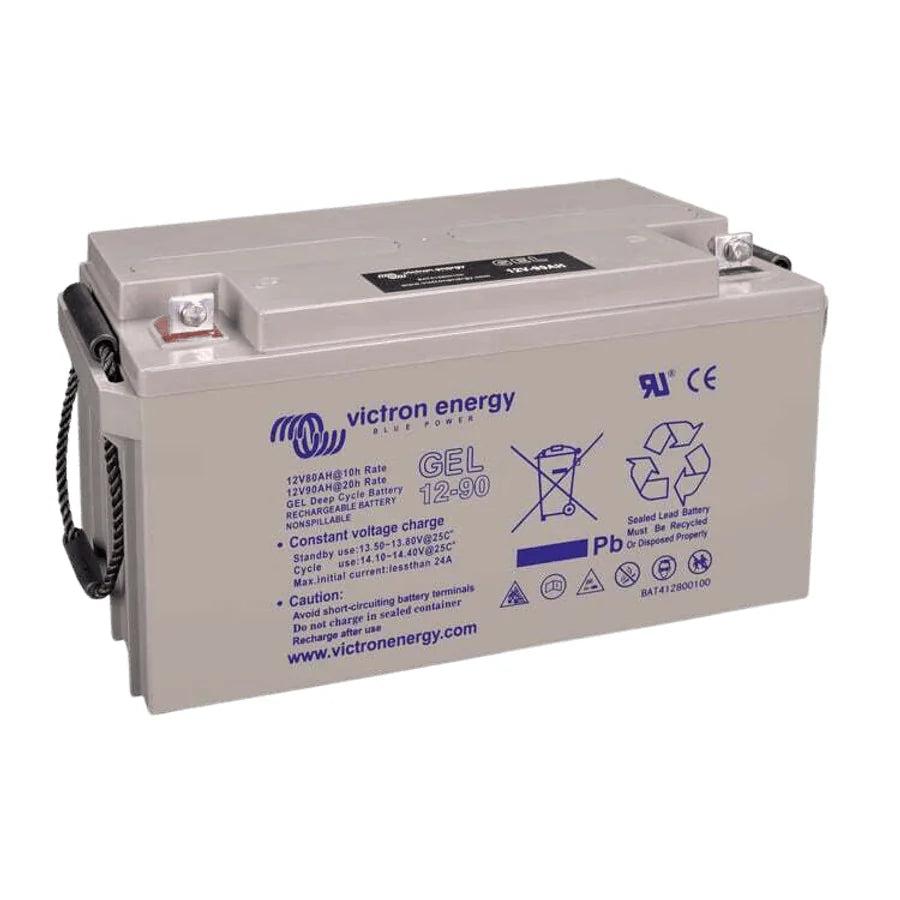

Victron 12V 90Ah Gel Deep Cycle Battery – Reliable Power for Demanding Applications
Advanced VRLA Gel Technology for Long Service Life
The Victron 12V 90Ah Gel Deep Cycle Battery is engineered using sealed VRLA technology, delivering dependable energy storage with zero maintenance requirements. As a true gel battery, the electrolyte is immobilised, enhancing durability, safety, and overall cycle performance. This makes it an excellent choice for users who require consistent power over long periods without the need for regular upkeep.
Optimised for Deep Cycle Performance
Designed specifically for deep cycle use, this 12V 90Ah gel battery provides superior cycle capacity and extended service life compared to standard AGM alternatives. It performs exceptionally well in cyclic applications where repeated discharging and recharging are required, making it ideal for caravan battery systems, RV house batteries, marine energy storage, off-grid solar installations, industrial backup systems, and tiny home power solutions.
Key Benefits of Victron Gel Battery Design
- Low self-discharge rate of less than 2 percent per month at 20°C, ideal for seasonal or standby use
- Excellent recovery after deep or prolonged discharge when used correctly
- Sealed and maintenance free construction for safe indoor or enclosed installations
- Enhanced cycle life compared to AGM deep cycle batteries
Stable Performance Across Charging and Temperature Conditions
The Victron 90Ah gel deep cycle battery is optimised for use with Victron adaptive charging systems, including the advanced four-step adaptive charge curve. This intelligent charging process reduces internal gassing, prevents overcharging, and significantly extends battery lifespan. When paired with Victron chargers, the battery benefits from variable absorption time, storage mode, and battery safe mode.
Temperature resilience is another standout feature. While all lead acid batteries are affected by heat and cold, Victron gel batteries maintain predictable performance when installed with proper temperature compensation. This makes them a reliable option for mobile, marine, and off-grid environments where ambient temperatures can vary.
Ideal Applications and Use Cases
This 12V 90Ah gel deep cycle battery is perfectly suited for a wide range of energy storage needs, including caravan and RV auxiliary power, marine house banks, off-grid solar battery systems, industrial standby power, remote monitoring equipment, and compact tiny home installations.
Why Choose Victron Energy
Victron Energy is globally recognised for producing high quality deep cycle batteries built with high purity materials and robust internal construction. This battery supports stable voltage output, reduced corrosion, and long-term reliability under both float and cyclic conditions.
Power Your System with Confidence
If you need a dependable, long-lasting, and maintenance free energy storage solution, the Victron 12V 90Ah Gel Deep Cycle Battery is a proven choice. Upgrade your vehicle, vessel, or off-grid system now to be powered by reliable Victron technology built for performance and longevity.
SPECIFICATIONS
Specifications
| Article Number | BAT412800104 |
|---|---|
| Battery Type | Sealed (VRLA) Gel Battery |
| Rated Capacity | 90 Ah |
| Nominal Voltage | 12 V |
| Rated Capacity Basis | 20 hr. discharge at 25°C |
| Technology | Flat Plate GEL |
| Terminals | M8 Drilled, Flat Copper |
| Dimensions (L x W x H) | 350 x 167 x 183 mm |
| Weight | 26 kg |
| CCA @0°F | 360 |
| RES CAP @80°F | 120 |
| Float Design Life | 12 years at 20°C |
| Cycle Design Life (80% Discharge) | 500 cycles |
| Cycle Design Life (50% Discharge) | 750 cycles |
| Cycle Design Life (30% Discharge) | 1800 cycles |
| Low Self-Discharge | Less than 2% per month at 20°C |
| Absorption Voltage | 14.1 - 14.4 V |
| Float Voltage | 13.5 - 13.8 V |
| Storage Voltage | 13.2 - 13.5 V |
| Container | ABS Fireproof Containers |
| Compliance | CE and UL Specifications |
| SKU: | VIC-BAT412800104 |
| Barcode: | 8719076037200 |
| Model #: | BAT412800104 |
| MPN: | BAT412800104 |
