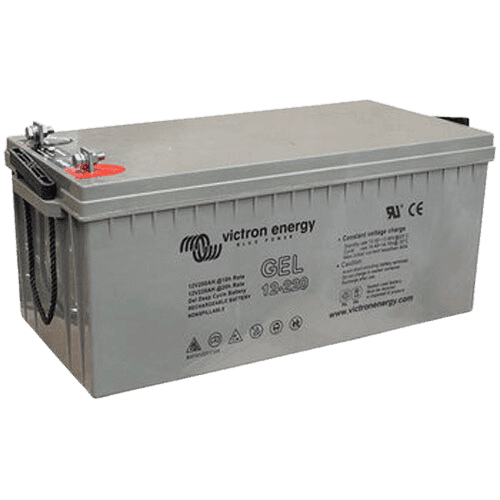

Victron 12V 220Ah Gel Deep Cycle Battery
Victron 12V 220Ah Gel Deep Cycle Battery
Highlights:M8 Copper Terminals: High conductivity copper bolt terminals for secure electrical connections,Rope Handles: Integrated heavy-duty rope handles for easier lifting of the 66kg unit,Gel Chemistry: Maintenance-free VRLA gel technology for long service life and deep discharge recovery,Safety Compliance: CE and UL certified with standard safety warnings for sealed lead-acid batteries,ABS Casing: Durable and flame retardant ABS plastic housing to protect battery internal cells.

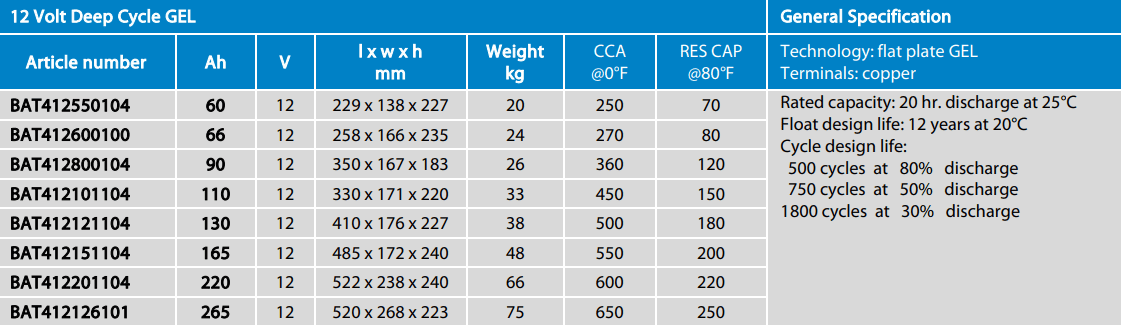

Key features: 220Ah capacity at 20hr discharge rate, Total unit weight of 66kg, Physical dimensions of 522 x 238 x 240 mm, 750 cycles at 50% depth of discharge, 12 year float design life at 20°C.

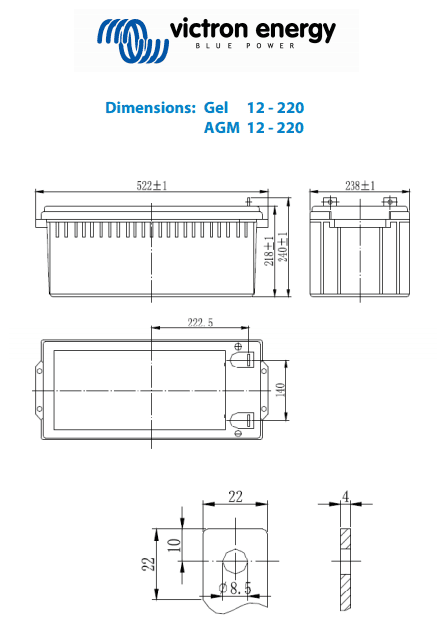

Comprehensive dimensional diagram providing the exact footprint and height measurements (522mm L x 238mm W x 240mm H) and terminal hole diameters for the 220Ah battery.
DESCRIPTION
Victron 12V 220Ah Gel Deep Cycle Battery – Long-Life VRLA Energy Storage
Engineered for Reliable Deep Cycle Performance
The Victron 12V 220Ah Gel Deep Cycle Battery is designed for demanding energy storage applications where reliability, longevity, and safety are critical. Built using advanced VRLA technology, this sealed lead acid battery is completely maintenance free for life, making it an ideal choice for users who require dependable power without ongoing upkeep. Its gel electrolyte construction ensures excellent cycle durability and stable performance across a wide range of operating conditions.
Advanced VRLA Gel Technology Explained
Unlike AGM alternatives, this sealed (VRLA) gel battery immobilizes the electrolyte in a gel form, significantly reducing internal corrosion and extending service life. This makes it especially well suited for deep discharge applications where consistent cycling is required. With superior deep discharge recovery and low internal self-discharge, it performs exceptionally well in long-term energy storage systems.
Key Technology Benefits
- Low self-discharge rate of less than 2% per month at 20°C for long storage periods
- Exceptional recovery after deep or prolonged discharge
- Enhanced cycle life compared to AGM batteries under cyclic use
Optimised for Cyclic and Standby Applications
The rated 220Ah capacity is measured at a 20-hour discharge rate, ensuring predictable and transparent performance for real-world use. While gel batteries deliver slightly lower peak current than AGM at very high discharge rates, they compensate with a longer service life under both float and cycling conditions. This makes the Victron 12V 220Ah gel battery an excellent solution for caravan power systems, RV house batteries, marine energy storage, off-grid solar setups, industrial backup systems, and tiny home installations.
Temperature Stability and Long Service Life
High-purity materials and lead calcium grids allow this deep cycle gel battery to maintain capacity and reliability even during extended storage. When paired with correct temperature-compensated charging, service life is maximised, even in challenging environments. Reduced capacity at low temperatures and accelerated aging at high temperatures are well controlled when installed according to Victron’s recommendations.
Compatible with Victron Adaptive Charging Systems
This battery is fully compatible with Victron’s four-step adaptive charging technology, which intelligently adjusts bulk, absorption, float, and storage voltages. This charging profile reduces gassing, prevents overcharging, and significantly extends battery lifespan. It is perfectly suited for solar battery storage systems, inverter battery banks, and standby power solutions where efficiency and durability are essential.
Ideal Applications
Commonly used in caravan, RV, marine, off-grid solar, industrial backup, and tiny home power systems, this long-life gel battery is a trusted solution for users searching for a 12V 220Ah gel deep cycle battery for solar storage, a maintenance free VRLA battery for off-grid power, or a high capacity deep cycle battery for RV and marine use.
Power Your System with Confidence
If you need a long-lasting, sealed lead acid gel battery that delivers consistent deep cycle performance with minimal maintenance, the Victron 12V 220Ah Gel Deep Cycle Battery is the proven choice. Upgrade your vehicle, vessel, or energy system now to be powered by reliable Victron technology built for long-term performance.
SKU: VIC-BAT412201104
Visit Victron's Official Victron 12V 220Ah Gel Deep Cycle Battery Webpage Here
SPECIFICATIONS
| SKU: | VIC-BAT412201104 |
| Barcode: | 8719076037101 |
| Model #: | BAT412201104 |
| MPN: | BAT412201104 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
