Victron 12V 165Ah Gel Deep Cycle Battery


Victron 12V 165Ah Gel deep cycle battery featuring M8 terminals and integrated carry handlesHighlights:M8 Threaded Insert Terminals: High-conductivity copper M8 threaded terminals for secure low-resistance connections,Integrated Rope Handles: Heavy-duty rope handles for safe manual handling and installation,Gel Technology: Sealed GEL electrolyte ensures better cycle life and heat dissipation over standard AGM batteries,VRLA Construction: Valve Regulated Lead Acid design for maintenance-free, non-spillable operation,Deep Cycle Discharge: Optimised for repeated deep discharge cycles in off-grid and marine applications.Specification data table for Victron GEL batteries including weight and CCA ratingsKey features: 165Ah capacity at 20-hour discharge rate, 550A Cold Cranking Amps (CCA) performance, Cycle life of up to 1800 cycles at 30% discharge, 48kg unit weight for high energy density, 12-year float design life at 20 degrees Celsius.Dimensional engineering drawing for Victron 12-165 battery modelDetailed dimensional schematic showing the 485mm length, 172mm width and 240mm height profile, along with specific M8 terminal bolt hole measurements.

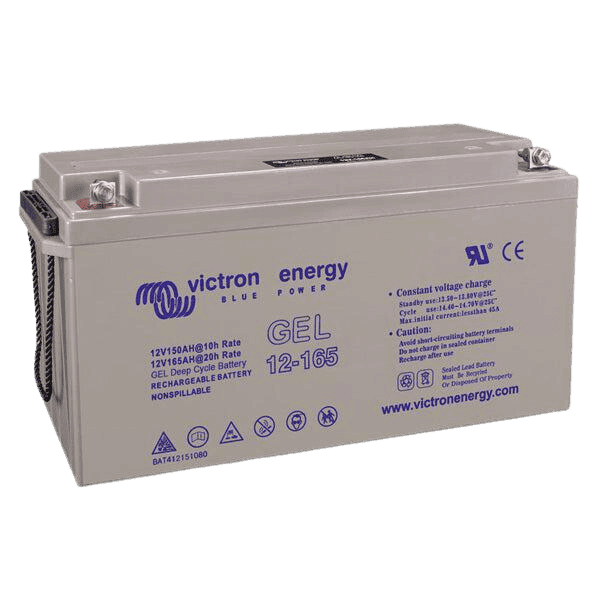

Victron 12V 165Ah Gel deep cycle battery featuring M8 terminals and integrated carry handles

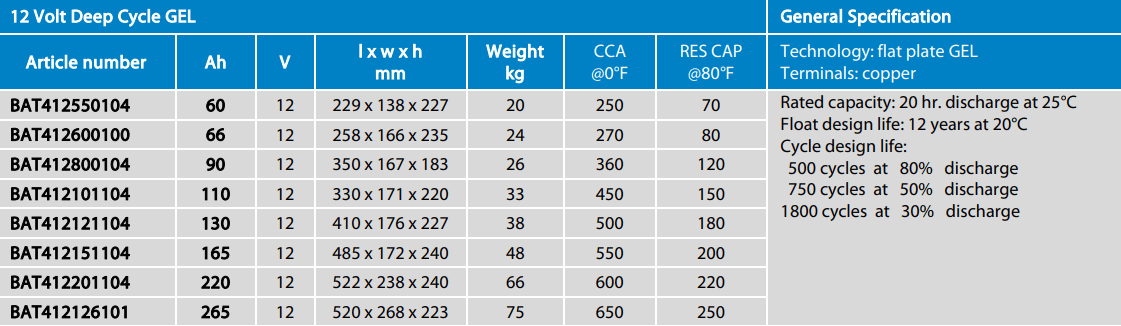

Specification data table for Victron GEL batteries including weight and CCA ratings

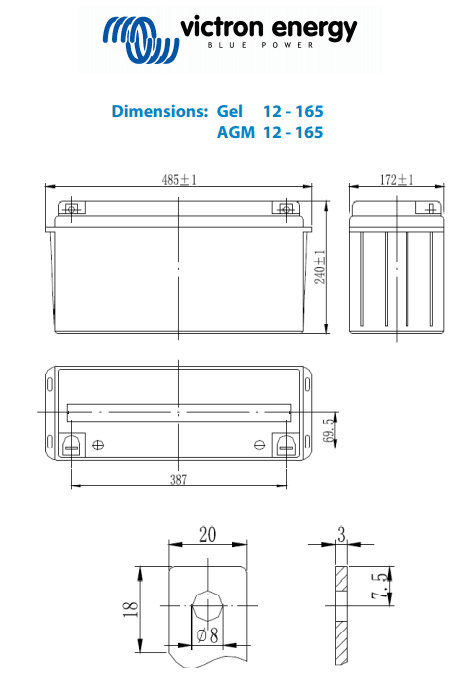

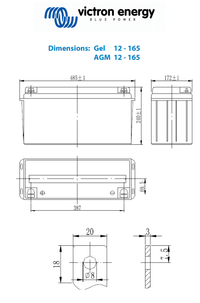

Dimensional engineering drawing for Victron 12-165 battery model
Regular price $732.64
$814.00
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

2
Victron 12V 165Ah Gel deep cycle battery featuring M8 terminals and integrated carry handles

Victron 12V 165Ah Gel Deep Cycle Battery

DESCRIPTION

Victron 12V 165Ah Gel Deep Cycle Battery – Reliable VRLA Power Storage

Designed for Long-Term Deep Cycle Applications

The Victron 12V 165Ah Gel Deep Cycle Battery is engineered for dependable energy storage in systems that demand long service life and consistent performance. Using advanced VRLA technology, this sealed lead acid battery is completely maintenance free for life, making it ideal for installations where access is limited or ongoing upkeep is impractical. Its robust gel construction delivers excellent durability under repeated cycling conditions.

Proven VRLA Gel Battery Technology

With the electrolyte immobilized in gel form, this sealed (VRLA) gel battery offers superior resistance to deep discharge stress compared to AGM alternatives. While AGM batteries are optimized for short bursts of high current, gel batteries excel in sustained discharge and recharge cycles, resulting in longer operational lifespan and improved cycle capacity for energy storage systems.

Core Performance Advantages

  • Low self-discharge rate under 2% per month at 20°C for extended storage
  • Exceptional deep discharge recovery even after prolonged use
  • Extended cycle life under both float and cyclic operation

Stable Capacity and Predictable Discharge Characteristics

The rated 165Ah capacity is specified at a 20-hour discharge rate, ensuring accurate performance expectations in real-world conditions. As with all deep cycle lead acid batteries, effective capacity decreases as discharge current increases, particularly when powering constant loads such as inverters. In return, this gel deep cycle battery provides outstanding longevity and reliability in continuous-use environments.

Temperature Resilience and Long Service Life

Manufactured using high purity materials and lead calcium grids, this Victron VRLA battery maintains stable performance during long storage periods without recharge. When installed in cool conditions and charged using temperature-compensated settings, service life is maximized. This makes it well suited for off-grid power systems, marine battery compartments, and enclosed battery banks where temperature stability is essential.

Optimised for Victron Adaptive Charging Systems

The Victron 12V 165Ah Gel Deep Cycle Battery is fully compatible with Victron’s four-step adaptive charging technology. This intelligent charging method reduces gassing, prevents overcharging, and lowers float voltage during storage, significantly extending battery lifespan. These features make it ideal for solar battery storage, inverter battery systems, and backup power solutions for improved system efficiency.

Ideal Applications

Commonly used in caravan, RV, marine, off-grid solar, industrial backup, and tiny home installations, this battery is a reliable solution for users searching for a 12V 165Ah gel deep cycle battery for solar systems, a maintenance free VRLA battery for off-grid power, or a long-life deep cycle battery for RV and marine use.

Dependable Power You Can Trust

When long service life, safety, and deep cycle reliability matter, the Victron 12V 165Ah Gel Deep Cycle Battery delivers proven performance. Upgrade your vehicle, vessel, or energy system now to be supported by durable Victron technology designed for demanding energy storage applications.

SPECIFICATIONS

SKU: VIC-BAT412151104
Barcode: 8719076037057
Model #: BAT412151104
MPN: BAT412151104

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
