Victron 12V 3000VA Quattro 12/3000/120-50/50 Inverter/Charger

Two AC inputs with integrated transfer switch


Front view of blue Victron Quattro 12/3000 inverter charger with status LEDs and operation switchHighlights:Charger Status LEDs: Indicators for mains on, bulk, absorption and float charging stages,Inverter Status LEDs: Monitors inverter operation, overload, low battery and temperature alerts,Operation Switch: Main rocker switch for on, off and charger only modes,Cable Entries: Heavy duty bottom-mounted glands for AC and DC wiring.Angled side view of blue Victron Quattro inverter charger showing aluminium enclosure and mounting pointsLeft side profile of the Victron Quattro inverter charger aluminium housingTechnical specifications table for Victron Quattro inverter charger range including power and current ratingsKey features: 3000VA continuous inverter power output, Integrated 120A house battery charger, Dual AC inputs for grid and generator connectivity, PowerControl and PowerAssist power management, IP21 protection category aluminium enclosure.Technical dimensional drawing of Victron Quattro showing front side and bottom measurements in millimetresSystem wiring diagram of Victron Quattro connected to generator grid batteries and AC distribution
Front view of blue Victron Quattro 12/3000 inverter charger with status LEDs and operation switch

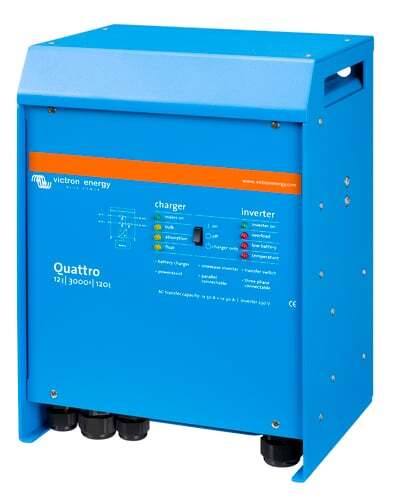

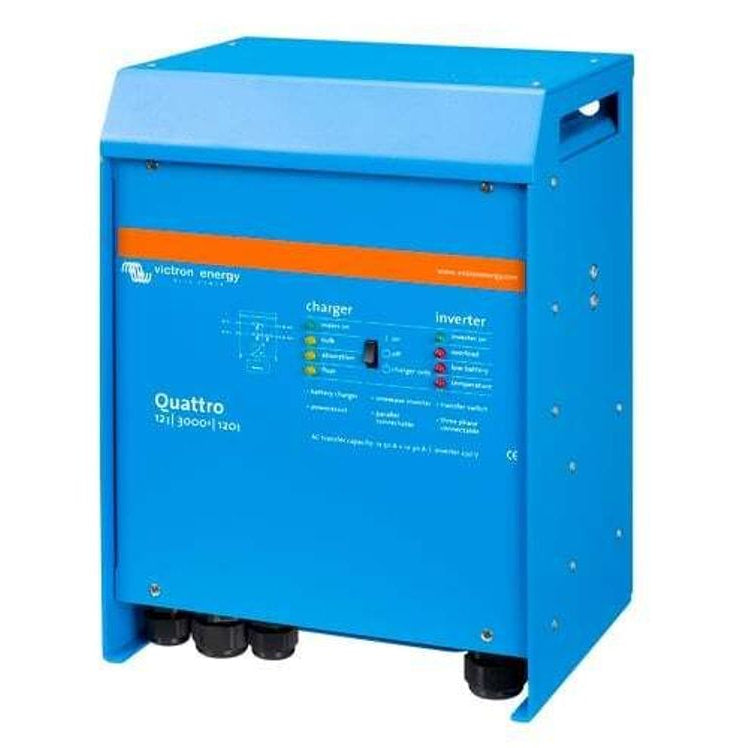

Angled side view of blue Victron Quattro inverter charger showing aluminium enclosure and mounting points

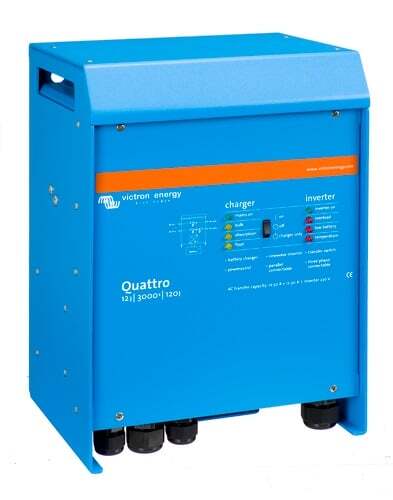

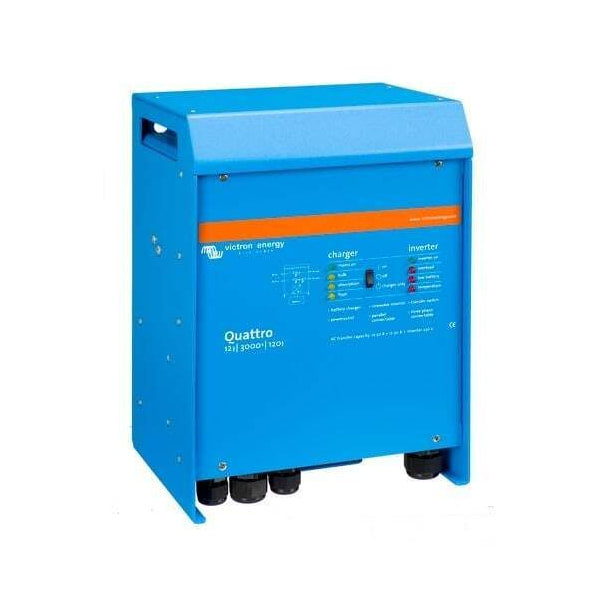

Left side profile of the Victron Quattro inverter charger aluminium housing
Technical specifications table for Victron Quattro inverter charger range including power and current ratings

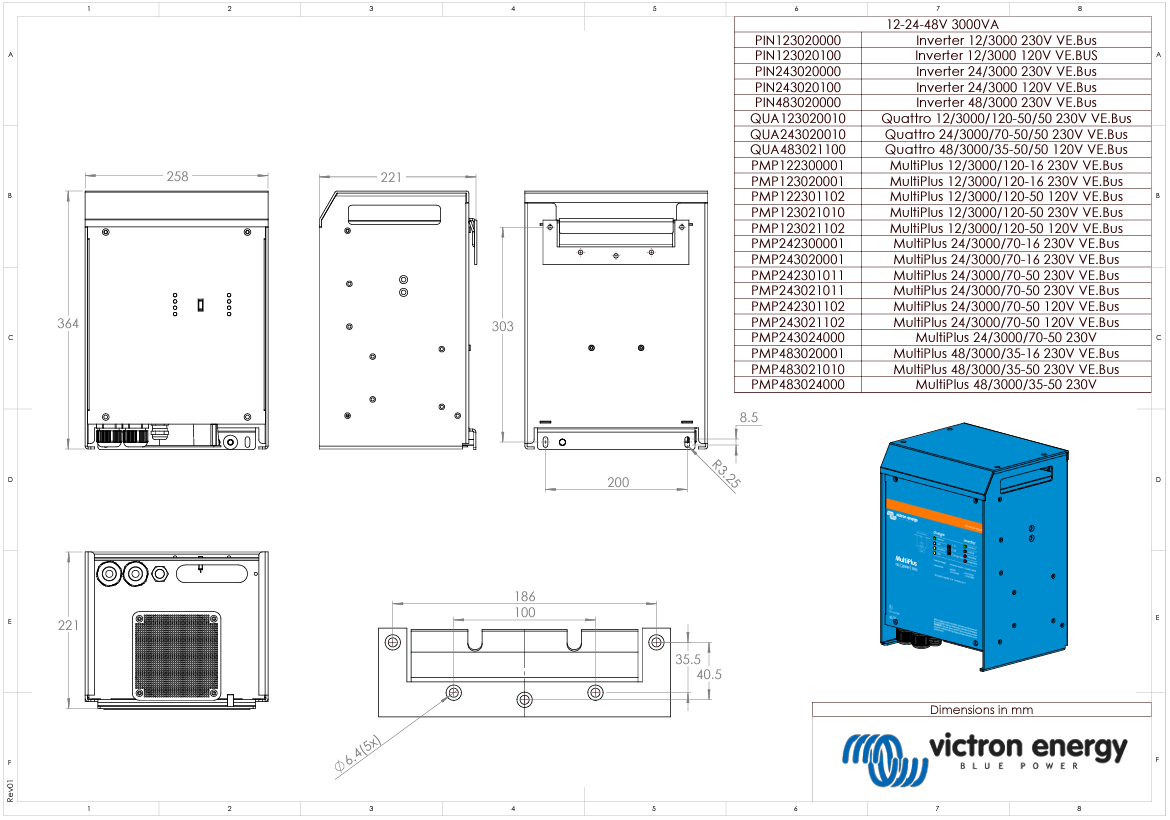

Technical dimensional drawing of Victron Quattro showing front side and bottom measurements in millimetres
System wiring diagram of Victron Quattro connected to generator grid batteries and AC distribution
Regular price $2,749.32
$3,243.90
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of blue Victron Quattro 12/3000 inverter charger with status LEDs and operation switch

Victron 12V 3000VA Quattro 12/3000/120-50/50 Inverter/Charger

DESCRIPTION

Victron 12V 3000VA Quattro 12/3000/120-50/50 VE.Bus Inverter/Charger: The Ultimate Power Solution for Marine, Caravans, RVs, and More

Discover the Victron 12V 3000VA Quattro Inverter/Charger, designed to cater to the unique needs of marine environments, caravans, RVs, and individuals seeking a straightforward, reliable power system. This inverter/charger stands out for its seamless integration with backup generators and the ability to power multiple high-power appliances simultaneously, ensuring you stay connected and comfortable no matter where you are.

Dual AC Inputs for Uncompromised Power Supply

The Quattro's innovative design includes dual AC inputs, allowing connections to both public grids and backup generators. This feature guarantees a continuous power supply by automatically switching to the active source, essential for maintaining power without interruption during your travels or off-grid living.

High-Capacity Output for All Your Needs

With a 3000VA output, the Quattro effortlessly supports multiple high-power appliances at once, making it an ideal choice for powering everything from kitchen appliances in your RV to navigation and communication equipment on your boat, all without skipping a beat.

Versatile Use in Marine, Caravans, and RVs

Specifically engineered for the dynamic requirements of marine vessels, caravans, and RVs, the Quattro 12/3000 provides a reliable and efficient power solution. Its compact design and powerful output make it perfect for those who prioritize simplicity and reliability in their power systems.

Effortless Integration with Backup Generators

Integration with backup generators is straightforward, ensuring that you have an uninterrupted power supply during extended off-grid adventures or unexpected grid outages. This capability is especially valuable in remote locations where access to the public grid is limited or unavailable.

Intelligent Power Management for Maximum Efficiency

The Quattro features intelligent power management technologies, including PowerControl and PowerAssist, to optimize the use of available power and prevent overloading your generator or grid connection. These features also allow the Quattro to provide additional power support during peak demand times, ensuring your appliances operate smoothly under any condition.

Seamless Solar and Renewable Energy Integration

Designed for easy integration with solar PV and other renewable energy systems, the Quattro enhances your ability to maintain a sustainable and eco-friendly lifestyle. Enjoy the benefits of clean energy while ensuring that AC power is available, even during grid failures, for a truly autonomous living experience.

Simplified Configuration and Monitoring

Configuring and monitoring your system is made easy with Victron's user-friendly software and monitoring tools. Whether you're on-site or remote, you have complete control over your power system, allowing for adjustments and optimizations to ensure peak performance at all times.

Ideal for Adventurers and Off-Grid Enthusiasts

Whether you're sailing the seas, exploring the country in your RV, or enjoying the solitude of off-grid living in your caravan, the Victron 12V 3000VA Quattro Inverter/Charger provides the power, reliability, and simplicity you need to support your lifestyle.

Ready to Power Your Next Adventure?

If you're looking for a versatile, reliable power solution for your marine, caravan, or RV setup, the Victron 12V 3000VA Quattro Inverter/Charger is ready to meet your demands. Talk to us about your project today, and let's ensure you have the power you need to enjoy your adventures to the fullest.

SPECIFICATIONS

Specifications

Quattro 12/3000/120-50/50
PowerControl / PowerAssist Yes
Integrated transfer switch (A) Yes
AC Inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x50
Inverter
Input voltage range (V DC) 9.5 – 17V 19 – 33V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0.1%
Cont. output power at 25°C (VA) (3) 3000
Cont. output power at 25°C (W) 2400
Cont. output power at 40°C (W) 2200
Peak power (W) 6000
Maximum efficiency (%) 93
Zero load power (W) 20
Zero load power in AES mode (W) 15
Zero load power in Search mode (W) 8
Charger
Charge voltage 'absorption' (V DC) 14.4 (adjustable)
Charge voltage 'float' (V DC) 13.8 (adjustable)
Storage mode (V DC) 13.2
Charge current house battery (A) (4) 120
Charge current starter battery (A) 4
Battery temperature sensor Yes
General
Auxiliary output (A) (5) 25
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on/off Yes
Common Characteristics Operating Temp.: -40C to 65C. Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Enclosure
Material & Colour: Protection category: IP 21 Aluminium (blue RAL 5012)
Battery-connection Four Bolts M8 (2x Plus & 2x Minus)
230 V AC-connection Screw terminals 13 mm² (6AWG)
Weight (kg) 19
Dimensions hxwxd in mm 362 x 258 x 218
Standards
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
Road Vehicles ECE R10-4

1) Can be adjusted to 60 Hz.

2) Protection key:

a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) inverter over temperature f) 230 VAC on inverter output g) input voltage ripple too high

3) Non-linear load, crest factor 3:1

4) At 25°C ambient

5) Switches off when no external AC source available

6) Programmable relay that can a.o. be set to for general alarm, DC under voltage or genset start/stop function AC Rating: 230V / 4A DC Rating: 4A Up to 35VDC, 1A Up to 60VDC


SKU: Vic-QUA123020010
Barcode: 8719076024101
Model #: QUA123020010
MPN: QUA123020010
