Victron 12V 3000VA MultiPlus 12/3000/120-50 120V Inverter/Charger
Victron 12V 3000VA MultiPlus 12/3000/120-50 120V Inverter/Charger
120V Two AC outputs & power assist
Highlights:Status LEDs: Visual indicators for charging stages and inverter status modes,Main Switch: Three-way toggle for On, Off, and Charger Only operation,Cable Glands: Secure bottom entry points for heavy-duty DC and AC wiring.
Important warning: This 120V unit is designed for specific systems and is not compatible with standard Australian 230V AC electronics, which may be damaged if connected.

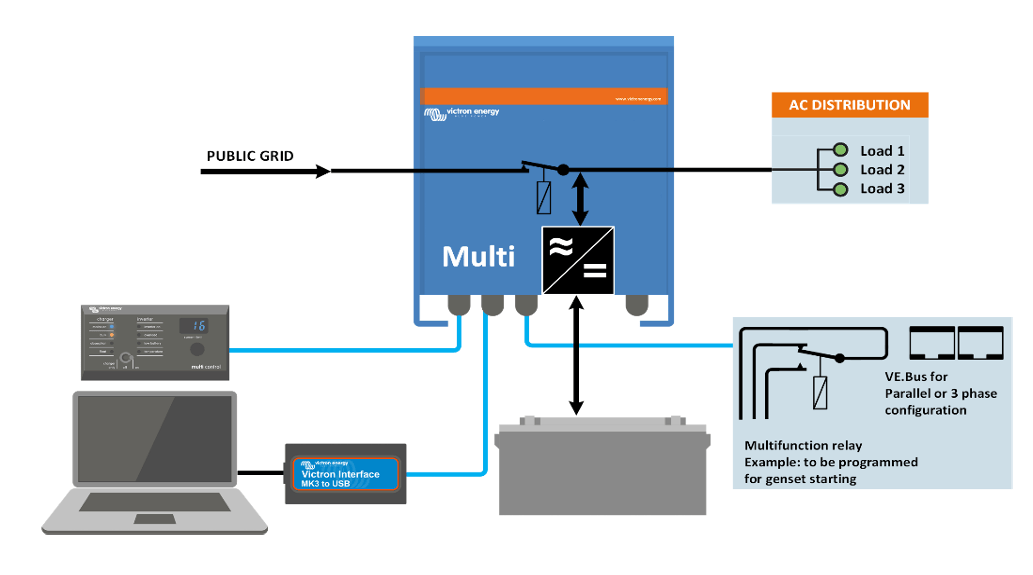

A system architecture diagram illustrating the MultiPlus connected to a public grid, battery bank, and AC distribution loads with remote monitoring interfaces.

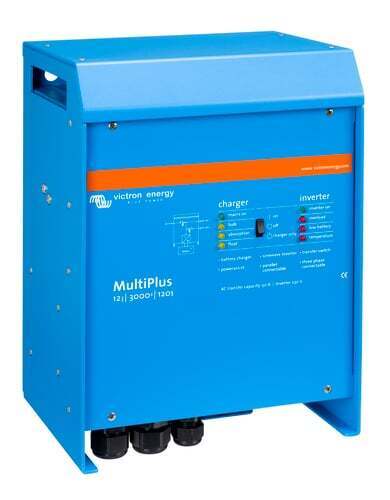

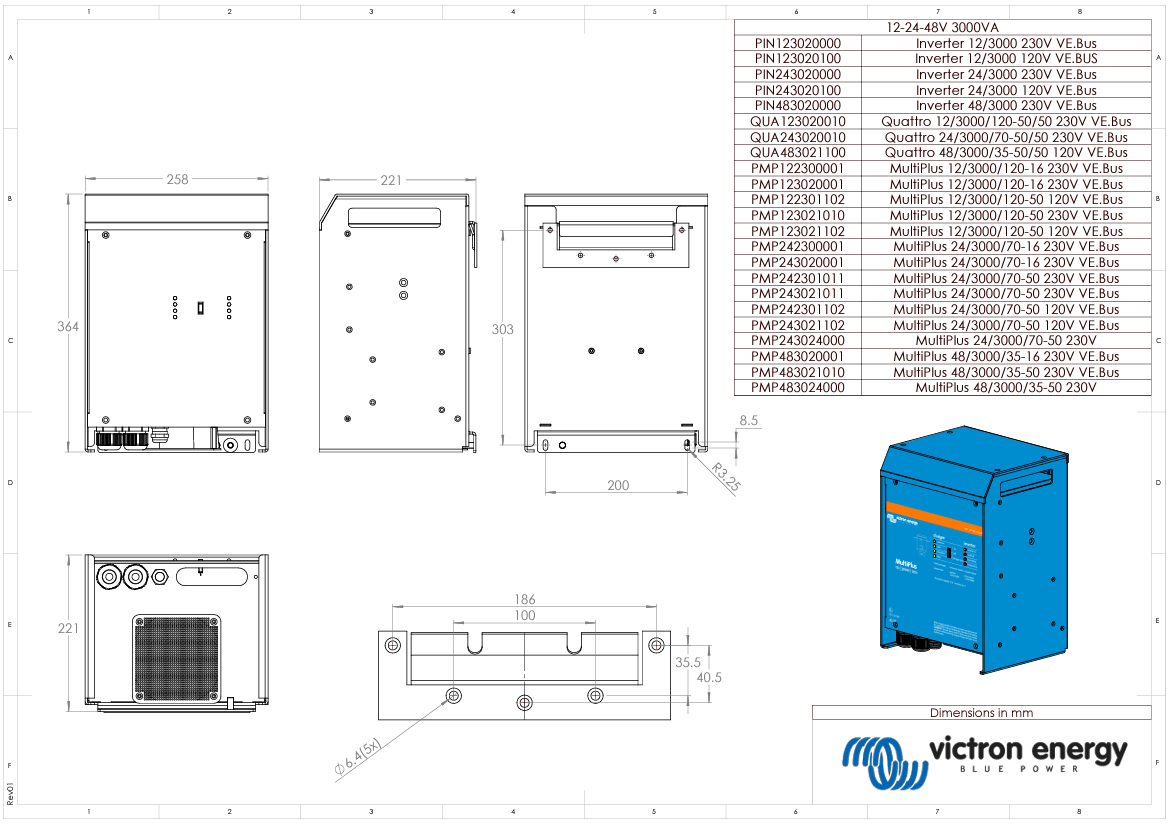

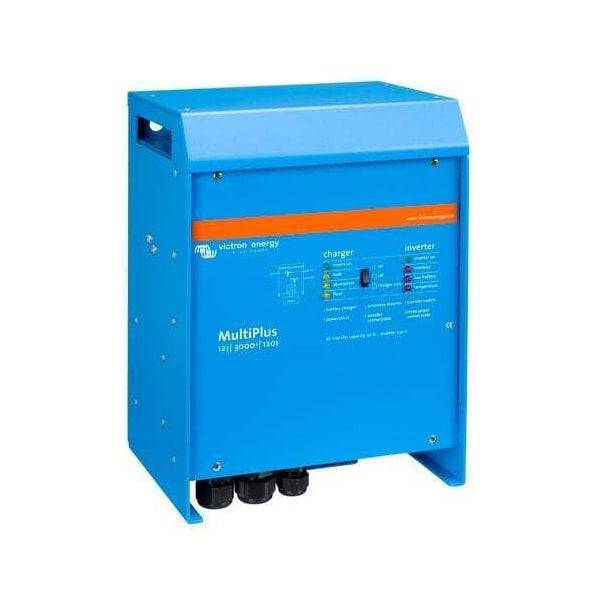

Key features: Overall dimensions: 362mm (h) x 258mm (w) x 218mm (d), Durable aluminium enclosure with IP21 protection rating, Integrated mounting bracket for secure wall installation, Bottom-facing ventilation and cable entry points.
DESCRIPTION
Victron 12V 3000VA MultiPlus 12/3000/120-50 120V Inverter/Charger: Optimize Your Power with Seamless Integration and Smart Control
Important Note: This is the 120V Model, mormally only used on boats intended for the US.
Discover the ultimate power solution with the Victron 12V 3000VA MultiPlus Inverter/Charger, designed for those who demand reliability and efficiency in their energy systems. Ideal for a wide range of applications such as sophisticated marine setups, this inverter/charger ensures continuous power supply and smart energy management.
Dual AC Outputs for Uninterrupted Power and Energy Savings
The MultiPlus features two AC outputs for unparalleled flexibility. The main output provides no-break functionality, seamlessly taking over power supply in milliseconds during grid failure, ensuring no disruption to sensitive electronics. The second output activates with AC input, perfect for non-essential loads, preventing unnecessary battery discharge.
Expandable Power with Parallel Operation
Experience virtually unlimited power capabilities. The MultiPlus allows for parallel connection of up to six units, offering up to 25 kW / 30 kVA of output and impressive charging capacity. This feature is ideal for large-scale installations requiring substantial power without compromising on efficiency.
Advanced Three Phase Capability
For applications demanding three-phase power, configure three units for seamless three-phase output. Expand further with parallel connections for up to 75 kW / 90 kVA of inverter power, catering to the most demanding power needs with ease.
Intelligent Power Management with PowerControl and PowerAssist
Manage limited power sources smartly with PowerControl, setting maximum currents to prevent overloading of generators or shore supplies. PowerAssist enhances this by supplementing insufficient power with battery reserves, ensuring optimal power usage and battery charging.
Solar Energy Integration for Grid Independence
The MultiPlus excels in off-grid and grid-connected PV systems, maintaining AC power even during grid failures. Its compatibility with alternative energy systems makes it a cornerstone for sustainable energy solutions.
Advanced System Configuration and Monitoring
Configure your system quickly with DIP switches or advanced VE.Bus software for parallel and three-phase setups. For off-grid, grid-interactive, or self-consumption applications, specialized Assistants simplify setup, MK3 to USB Cable required (sold separately).
Comprehensive On-Site and Remote Monitoring Options
Stay informed and in control with multiple monitoring options, including the Multi Control Panel, Cerbo GX, Ekrano GX or remotely via smartphone (VE.Bus Smart Dongle required - sold separately), and VRM for easy system oversight and management from anywhere.
Remote System Access and Configuration
With an Ethernet-connected Cerbo GX or other GX devices, access and adjust your system settings remotely, ensuring your system is always optimized for your needs.
The Victron 12V 3000VA MultiPlus Inverter/Charger is more than just a power source; it's a versatile, efficient, and intelligent solution designed to meet the most demanding energy needs.

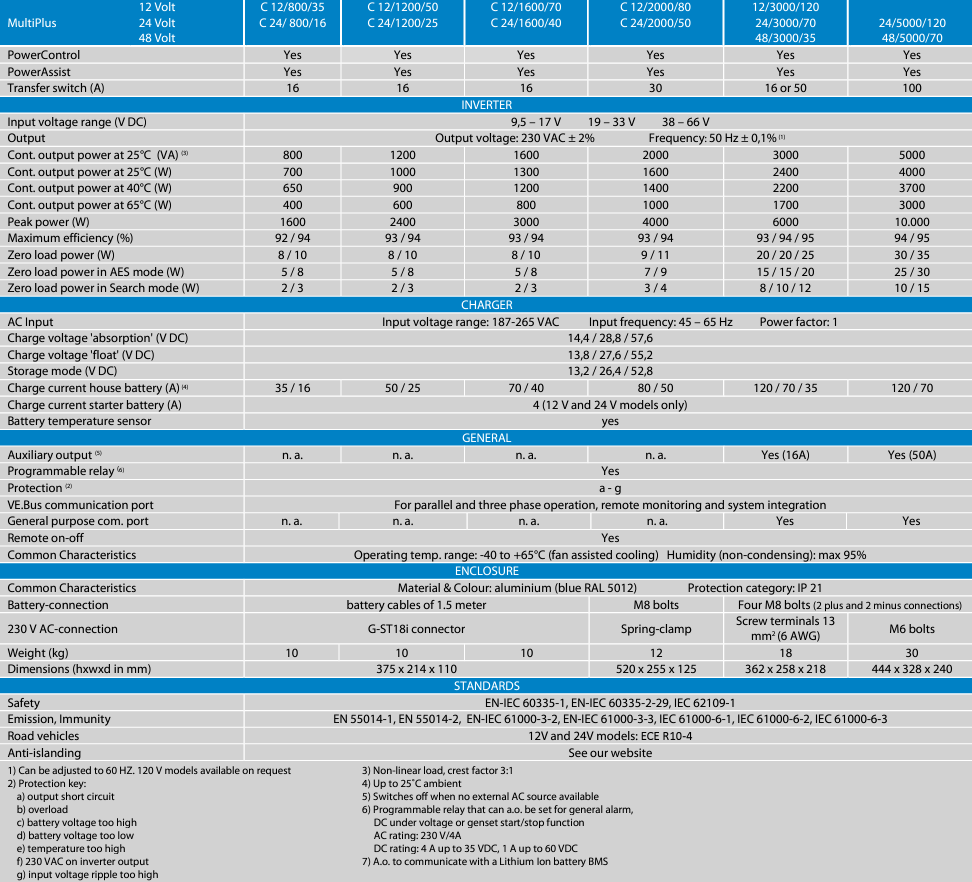

SPECIFICATIONS
Specifications
| MultiPlus | 12/3000/120 |
| PowerControl | Yes |
| PowerAssist | Yes |
| Transfer switch (A) | 50 |
| INVERTER | |
| Input voltage range (V DC) | 9.5 – 17 V |
| Output | Output voltage: 120 VAC ± 2% Frequency: 60 Hz ± 0.1%^{(1)} |
| Cont. output power at 25°C (VA) (3) | 3000 |
| Cont. output power at 25°C (W) | 2400 |
| Cont. output power at 40°C (W) | 2200 |
| Cont. output power at 65°C (W) | 1700 |
| Peak power (W) | 6000 |
| Maximum efficiency (%) | 93 |
| Zero load power (W) | 20 |
| Zero load power in AES mode (W) | 15 |
| Zero load power in Search mode (W) | 8 |
| CHARGER | |
| AC Input | Input voltage range: 95-140 VAC Input frequency: 45 – 65 Hz Power factor: 1 |
| Charge voltage 'absorption' (V DC) | 14.4 |
| Charge voltage 'float' (V DC) | 13.8 |
| Storage mode (V DC) | 13.2 |
| Charge current house battery (A)^{(4)} | 120 |
| Charge current starter battery (A) | 4 |
| Battery temperature sensor | Yes |
| GENERAL | |
| Auxiliary output (5) | Yes (16A) |
| Programmable relay^{(6)} | Yes |
| Protection (2) | a - g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes |
| Remote on-off | Yes |
| Common Characteristics | Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95% |
| ENCLOSURE | |
| Common Characteristics | Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21 |
| Battery-connection | Four M8 bolts (2 plus and 2 minus connections) |
| 230 V AC-connection | Screw terminals 13 mm^{2} (6 AWG) |
| Weight (kg) | 18 |
| Dimensions (hxwxd in mm) | 362 x 258 x 218 |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Road vehicles | 12V and 24V models: ECE R10-4 |
1) Can be adjusted to 50 HZ. 2) Protection key: 4) Up to 25˚C ambient 3) Non-linear load, crest factor 3:1 a) output short circuit 5) Switches off when no external AC source available b) overload 6) Programmable relay that can a.o. be set for general alarm, c) battery voltage too high DC under voltage or genset start/stop function d) battery voltage too low AC rating: 230 V/4A e) temperature too high DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC f) 230 VAC on inverter output 7) A.o. to communicate with a Lithium Ion battery BMS g) input voltage ripple too high
| SKU: | VIC-PMP123021102 |
| Barcode: | 8719076023968 |
| Model #: | PMP123021102 |
| MPN: | PMP123021102 |
