Scanstrut Ventura Waterproof F-Type Satellite & TV Socket
Scanstrut Ventura Waterproof F-Type Satellite & TV Socket
Dual IP68 Coaxial Connector with 316 Stainless Steel Hardware
Highlights:Watertight Seal: Internal rubber gasket on the lid ensures a waterproof seal when closed,Dual F-Type Ports: Nickel-plated brass 75 Ohm coaxial connectors for satellite and cable TV,Stainless Hinge: Durable spring-loaded hinge keeps the lid securely closed during travel,Secure Mounting: Four-point screw mounting system for vibration-resistant installation.

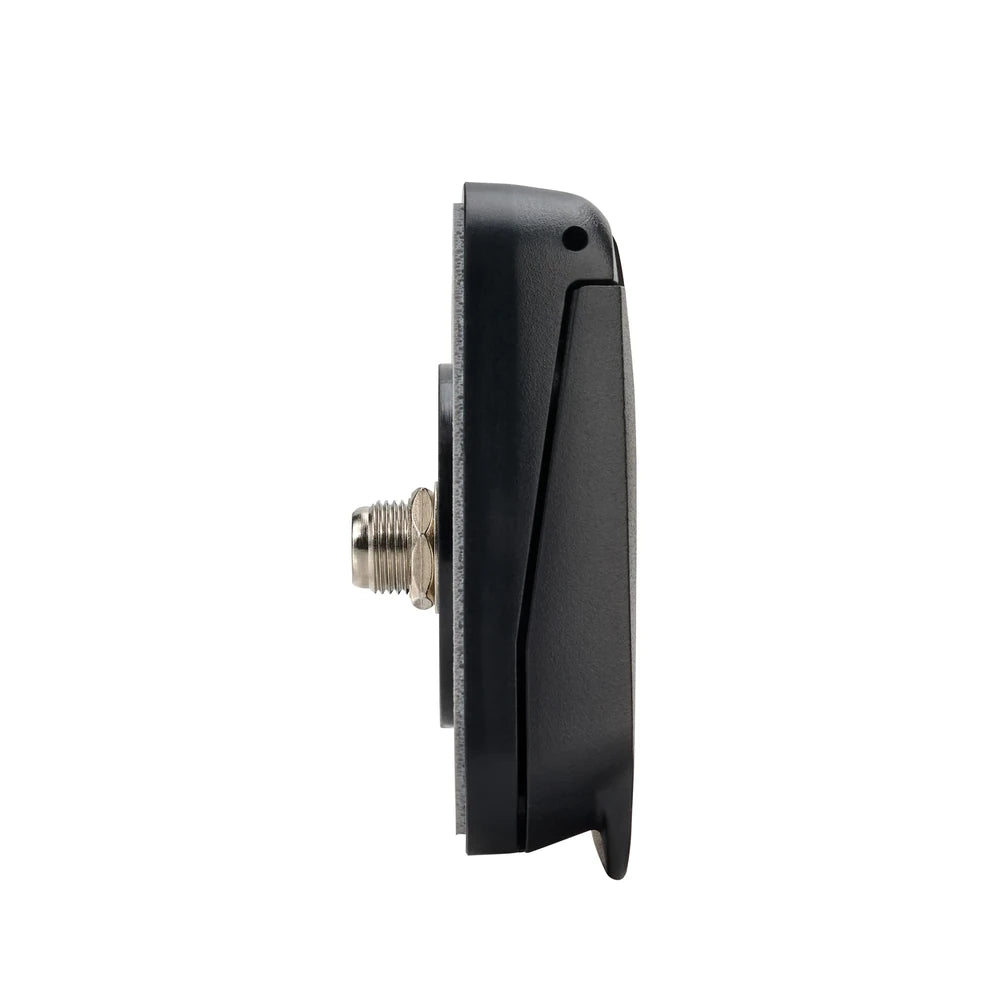

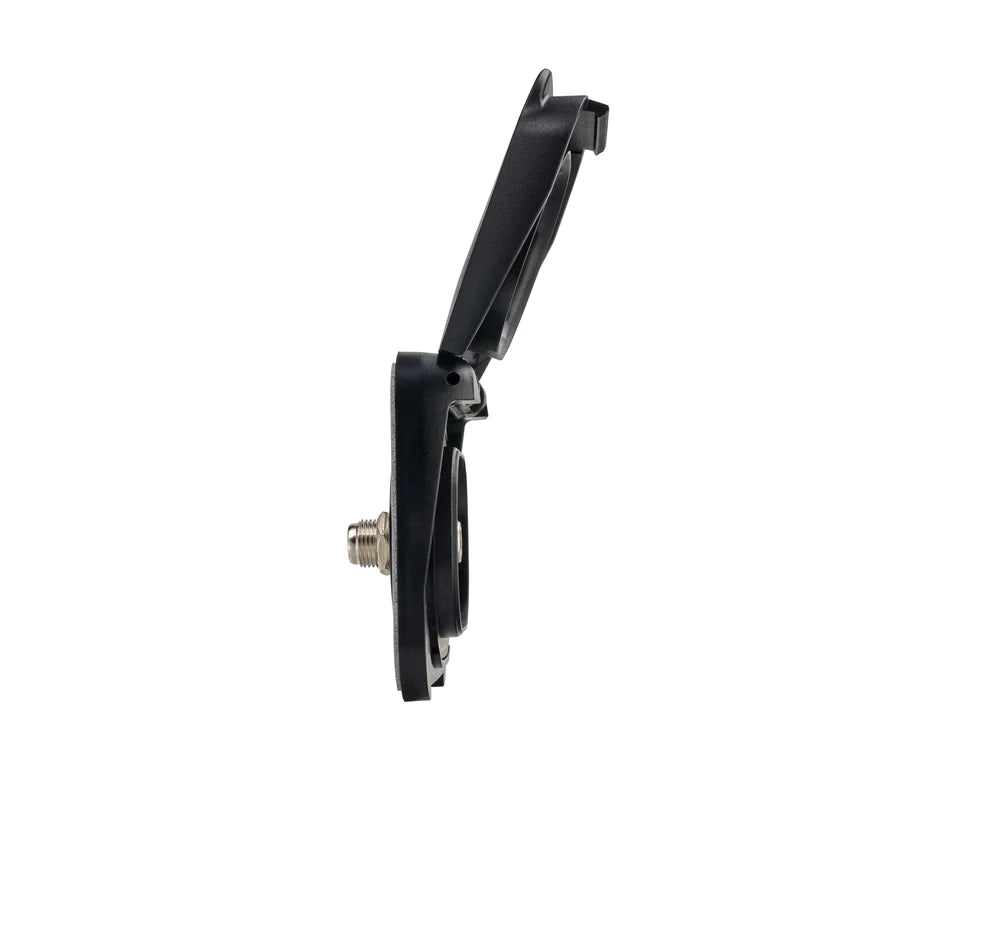

Slim profile side view showing the 90-degree opening range of the waterproof flip-up protective lid and threaded F-type connector.

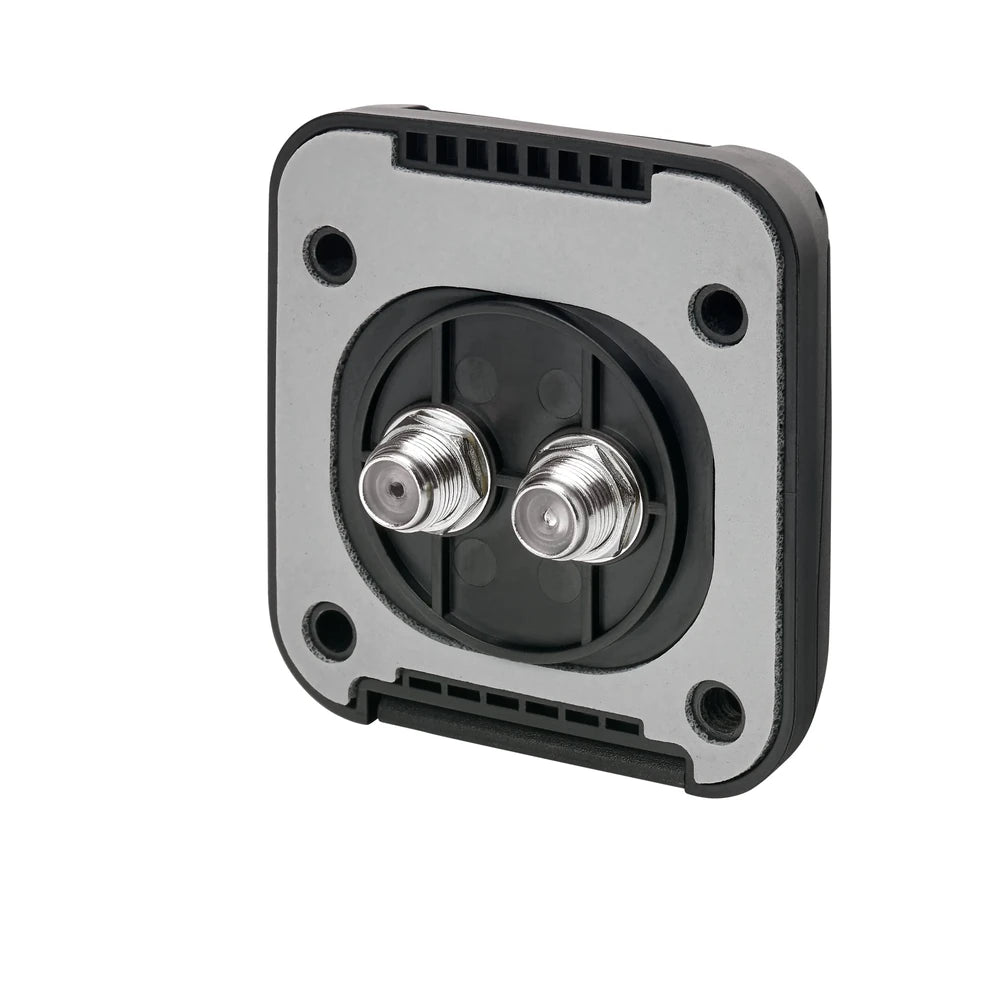

Rear view highlighting the waterproof foam gasket and dual nickel-plated brass F-type threaded terminals for secure internal connection.

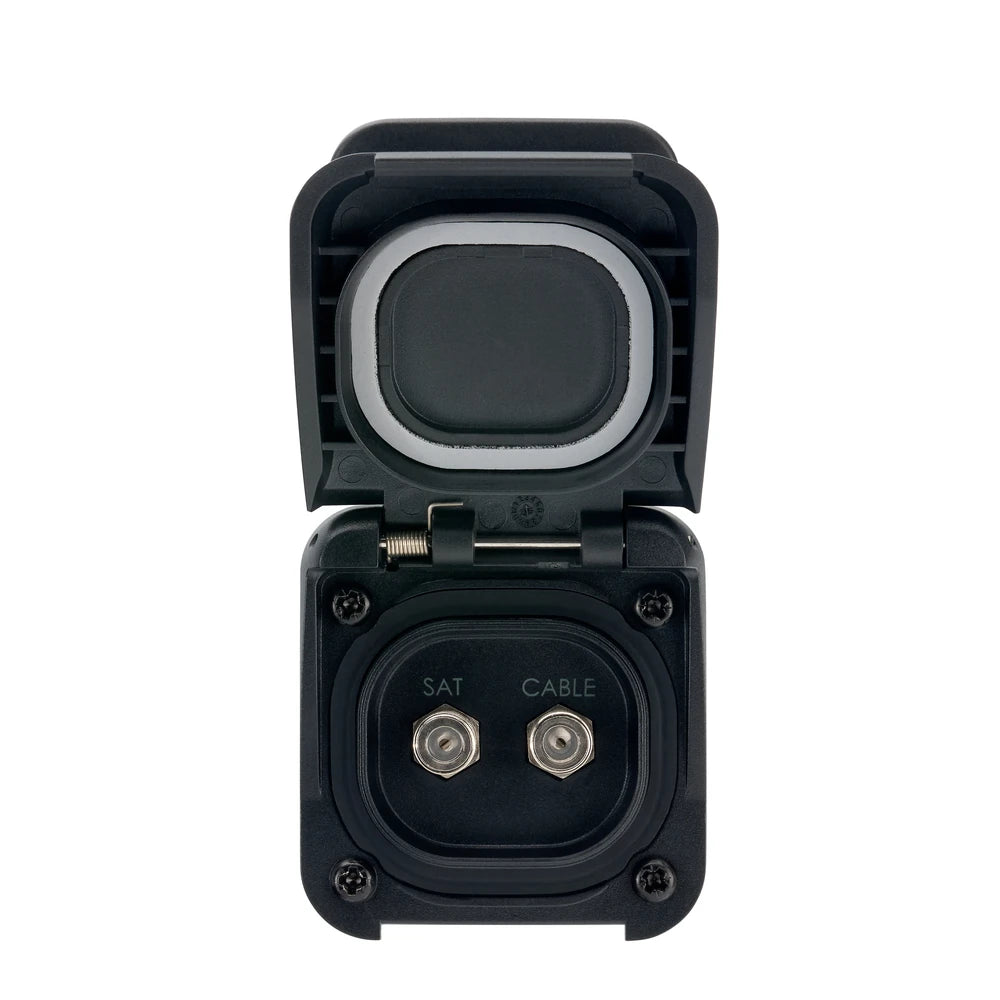

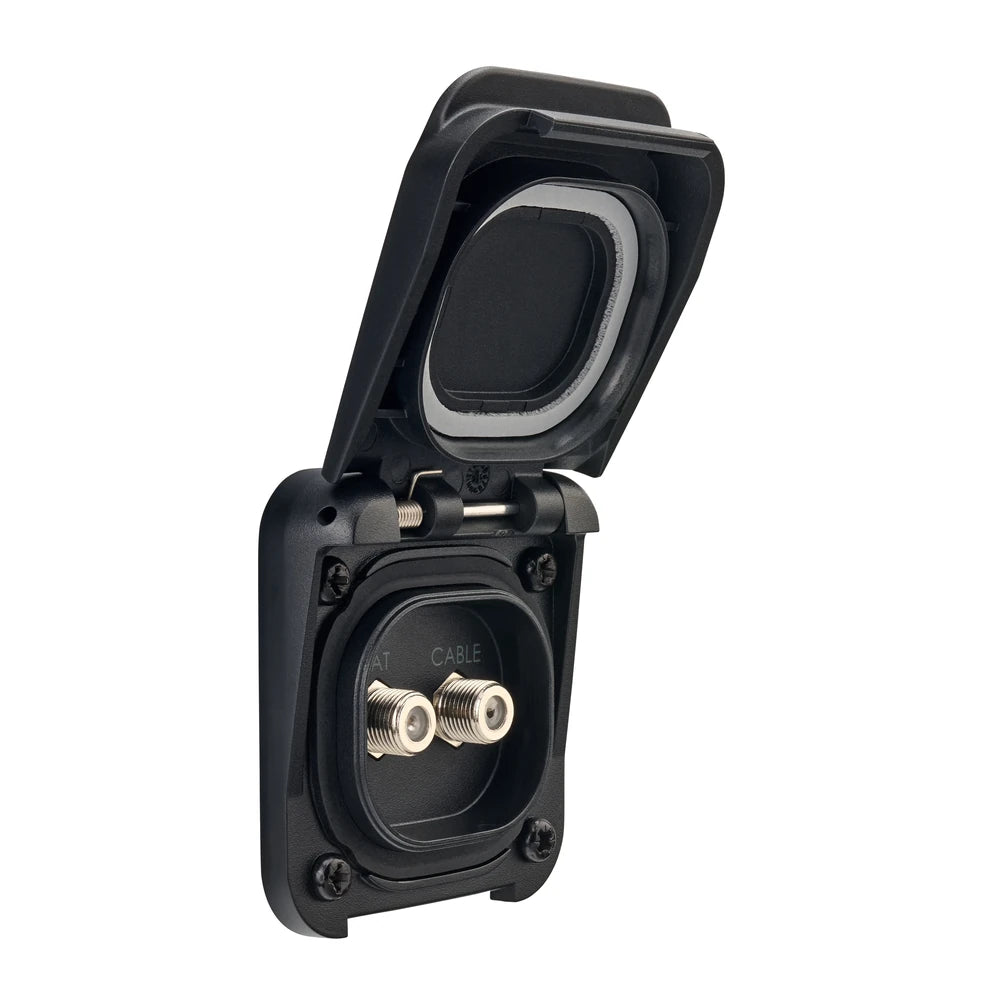

Key features: Clearly labelled Satellite and Cable ports, Dual F-type 75 Ohm coaxial connectors, IP68 and IP69K waterproof rating when closed, Spring-loaded flip-up lid with internal seal.


DESCRIPTION
Scanstrut Ventura Series: Marine-Grade Dual F-Type Coaxial Connector

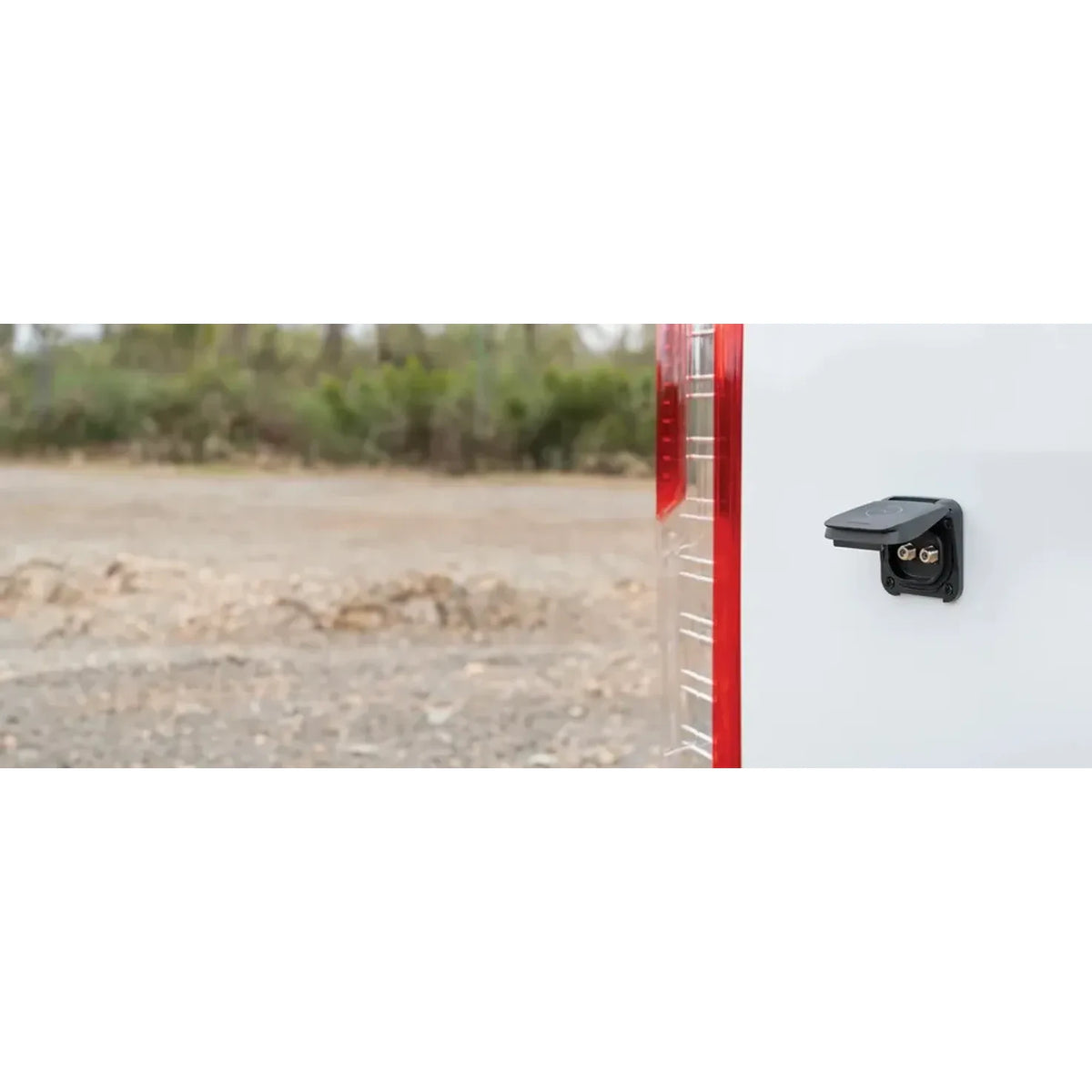

Upgrading your caravan, RV, or marine vessel with reliable outdoor entertainment requires components built to withstand harsh environments. The Scanstrut Ventura Waterproof F-Type Satellite & TV Socket provides a seamless, weatherproof connection for your portable screens and satellite receivers. Standard outdoor sockets often degrade under intense UV exposure and saltwater spray, leading to signal loss and corrosion. This premium dual coaxial socket eliminates those risks, ensuring you maintain a crystal-clear connection wherever your journey takes you.
Uncompromising Weather Protection and Durability
Moisture and dust are the leading causes of electrical failure in mobile applications. Designed with rigorous outdoor use in mind, this socket features an impressive IP68 and IP69K waterproof rating when the cover is closed. An internal rubber gasket forms a highly effective watertight seal against heavy rain, high-pressure washes, and persistent marine spray.
Constructed with UV-resistant materials and robust marine-grade 316 stainless steel components, the Ventura Series socket outlasts inferior alternatives that become brittle and crack under the harsh Australian sun. The integrated spring-loaded hinge ensures the protective lid remains securely shut during high-speed travel, effectively preventing accidental damage and contamination.
Premium Signal Transfer
A weak signal can quickly ruin an outdoor movie night. To deliver flawless audio and video, the socket utilises dual F-Type 75 Ω coaxial connectors crafted from nickel-plated brass. These high-quality terminals are clearly labelled for satellite and cable inputs, offering a low-resistance path that drastically minimises signal degradation compared to standard zinc-plated connectors.
Effortless Installation and Ergonomic Design

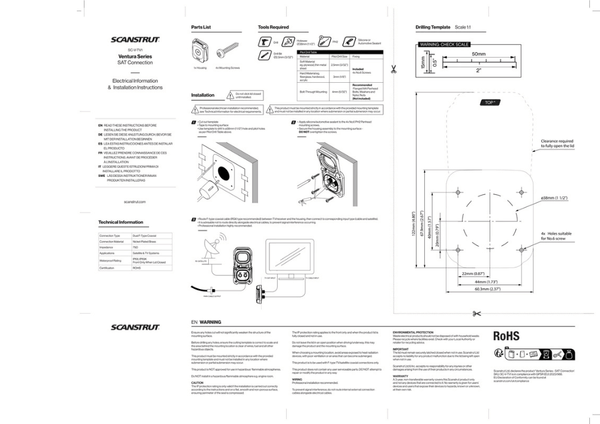

Whether you are outfitting a new camper trailer or refitting a yacht, installation is straightforward. The socket requires a standard 38 mm holesaw cutout, streamlining the fitting process for DIY enthusiasts and professional installers alike. A four-point screw mounting system ensures a vibration-resistant fit against exterior walls.
For added convenience, the flip-up lid opens a full 180 degrees to allow unobstructed access to the terminals. A clever 90-degree holding bump feature keeps the lid temporarily open while you connect your cables, making setup fast and hassle-free even in low-light conditions.
Key Features
- Dual F-Type Coaxial Ports: Nickel-plated brass terminals for superior 75 Ohm signal transfer
- Extreme Weather Resistance: IP68 and IP69K rated (front only, when lid is closed) to block out dust, water, and high-pressure spray
- Marine-Grade Hardware: 316 stainless steel hinge and fixings for maximum corrosion resistance
- UV-Stabilised Construction: Engineered to withstand prolonged exposure to harsh sunlight without degrading
- User-Friendly Design: Spring-loaded lid with a 90-degree hold feature and 180-degree full opening
- Simple Installation: Fits a standard 38 mm holesaw cutout with a built-in gasket for a watertight exterior seal
Elevate Your Off-Grid Entertainment
Experience uninterrupted viewing and unmatched durability on your next adventure. Pair this socket with other Scanstrut Ventura Series exterior connections for a uniform, sleek appearance across your vehicle or vessel.
Upgrade your outdoor media setup today and order the Scanstrut Ventura TV and Satellite Socket to secure reliable entertainment off the beaten track.
SKU: SST-SC-V-TV1
SPECIFICATIONS
Specifications
| Product Code | SC-V-TV1 |
|---|---|
| Series | Ventura Series |
| Product Name | SAT Connection |
| Connection Type | Dual F-Type Coaxial |
| Connection Material | Nickel-Plated Brass |
| Impedance | 75 Ω |
| Applications | Satellite & TV Systems |
| Waterproof Rating | IP68, IP69K Front Only When Lid Closed |
| Cable Length | 500 mm (19.69") |
| Certification | ROHS |
| Holesaw Installation | Standard 38 mm (1.50") Holesaw Installation |

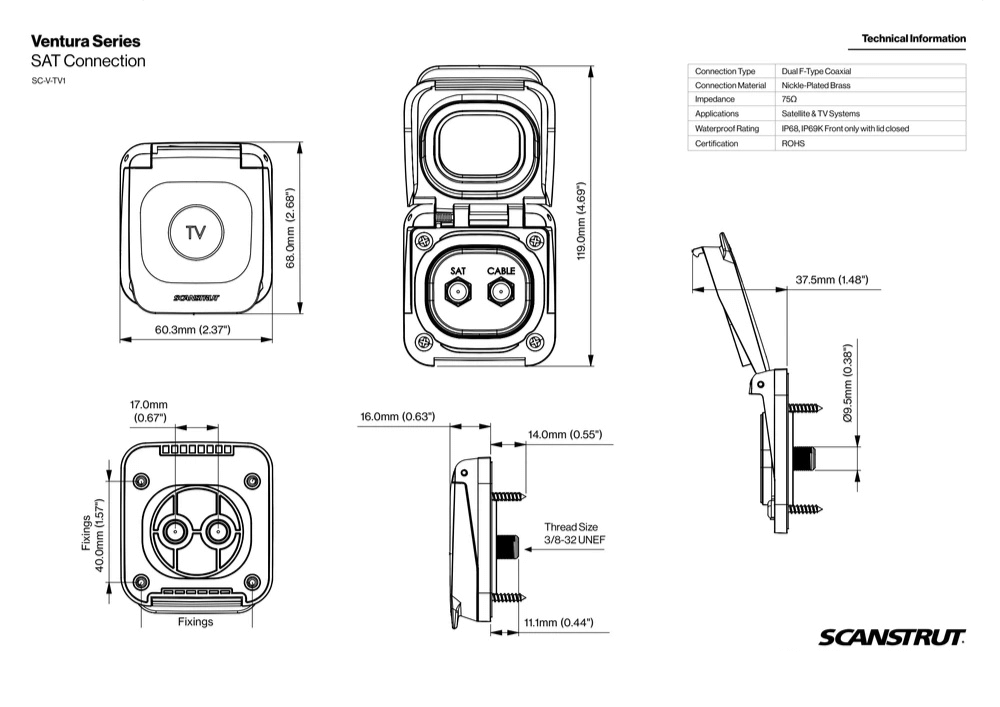

| Product Dimensions | 68.0 mm (2.68") x 60.3 mm (2.37") |
| Clearance Required To Fully Open The Lid | 122 mm (4.80") |
| Thread Size | 3/8-32 UNEF |
| Fixings | 4x Holes Suitable For No.6 Screw |
| 90° Holding Bump-Feature | Yes |
| UV Resistant | Yes |
| Lid | Spring-Loaded Lid |
| Gasket | Built-In Gasket For A Watertight Seal |
| SKU: | SST-SC-V-TV1 |
| Barcode: | 5060114799523 |
| Model #: | SC-V-TV1 |
| MPN: | SC-V-TV1 |
