Scanstrut Ventura Dual USB-C Socket
Scanstrut Ventura Dual USB-C Socket
IP68 Exterior 12V/24V Power Port with 316 Stainless Steel Components

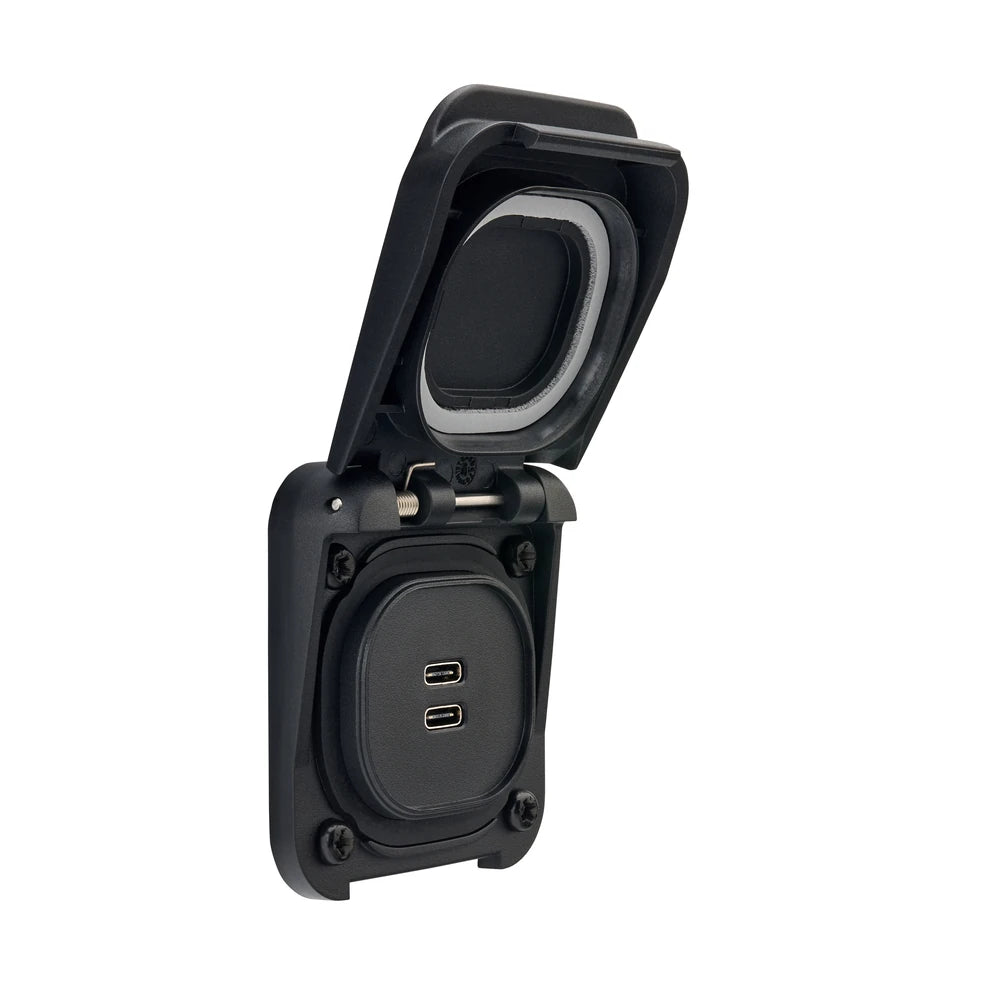

Highlights:Dual USB-C ports: Two fast-charging USB-C ports protected within a recessed housing,Lid gasket: Internal silicone gasket for IP68 and IP69K waterproof protection when closed,Spring-loaded hinge: Robust hinge mechanism ensures the lid remains securely open or closed,UV-stable housing: Durable black plastic housing designed to withstand harsh outdoor environments.

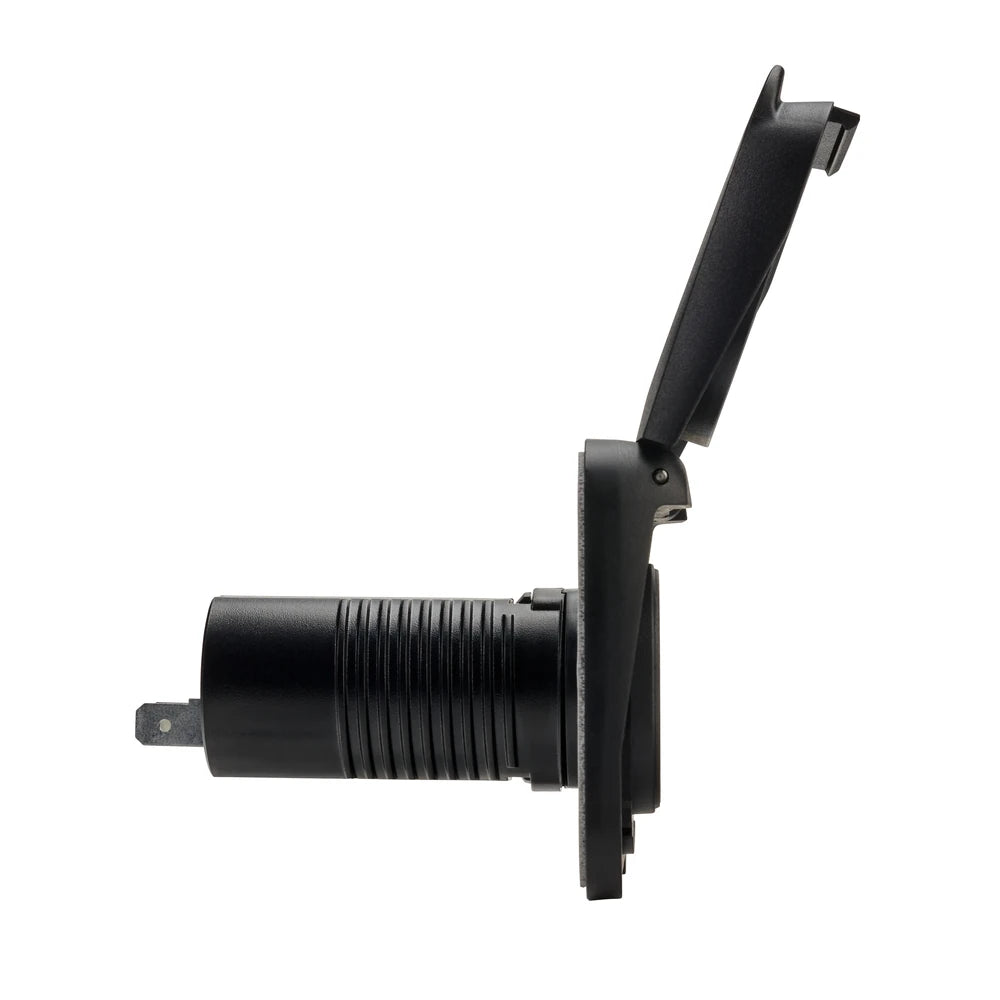

Key features: Standard 6.3mm male spade terminals for easy electrical connection, Deep threaded barrel supports various panel thicknesses, Compact low-profile front fascia design, High-performance waterproof seal architecture.

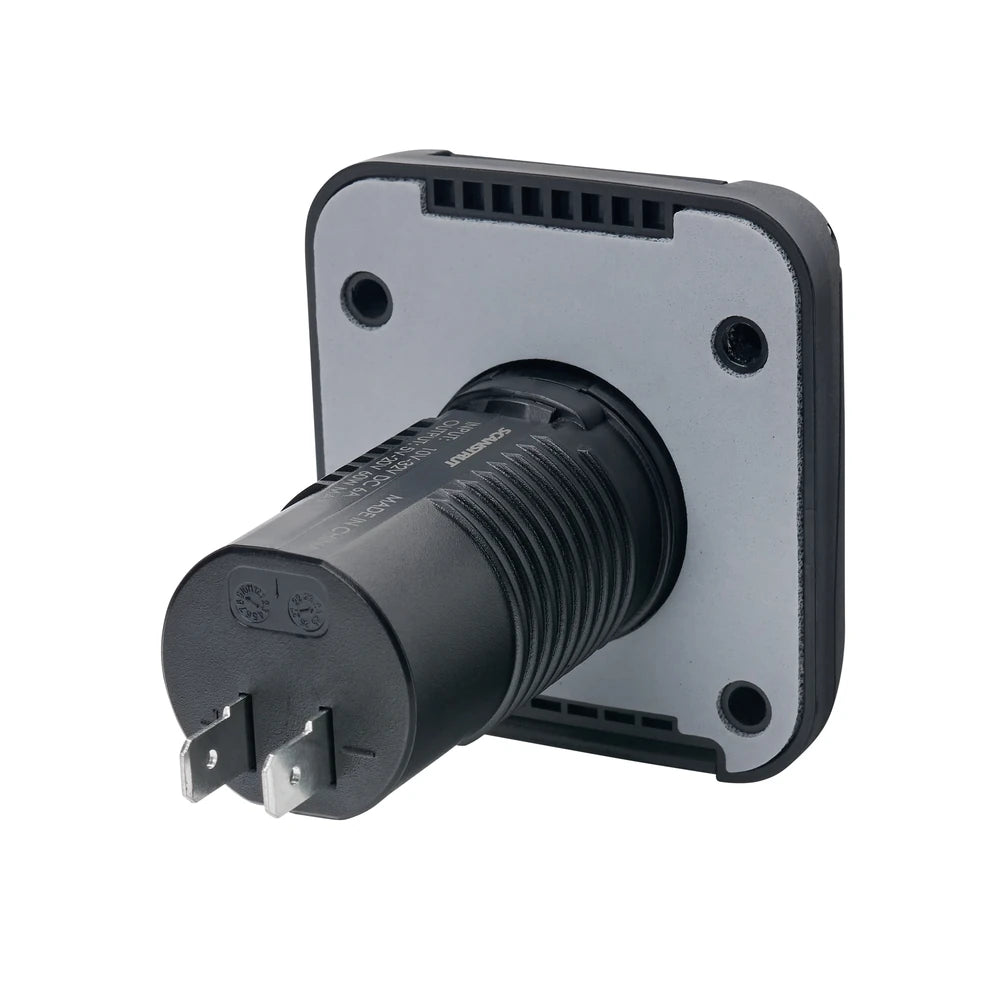

Detailed rear view highlighting the pre-applied adhesive foam gasket for a watertight seal and dual male spade terminals for simple power integration.



DESCRIPTION
Scanstrut Ventura Dual USB-C Socket: Premium Exterior Power
Reliable Outdoor Power for 12V and 24V Systems
The Scanstrut Ventura Dual USB-C Socket provides a seamless and robust solution for outdoor charging. Designed specifically to extend the liveable space of your caravan, camper trailer, or marine vessel, this exterior port eliminates the need to run messy cables inside your vehicle. Whether you are powering a laptop while working remotely by the beach, recharging a drone after an outback flight, or keeping outdoor speakers running off-grid, this socket ensures you have instant, high-performance power exactly where you need it.
Fast and Intelligent USB-C Power Delivery
Engineered for modern electronics, the dual USB-C ports offer intelligent power delivery tailored to your battery setup. On a standard 12V system, the socket delivers up to 12V at 3A, easily handling smartphones, tablets, and outdoor lighting. When connected to a 24V system, it scales up to a maximum 20V at 3A, providing enough wattage to efficiently charge high-draw devices like modern laptops. This intelligent output ensures your equipment charges safely and rapidly. Furthermore, the ultra-low standby power draw of just 0.01W means it will not inadvertently drain your battery bank while idle.
Built for Harsh Marine and Outback Environments
Outdoor electrical connections face significant risks from dust, water ingress, and ultraviolet degradation. The Scanstrut Ventura series solves these problems with a meticulous, weather-resistant design. Unlike standard unbranded plastic sockets that quickly degrade under harsh sunlight or fail after a single rainstorm, the Ventura series is engineered from the ground up for true outdoor resilience. It reduces the risk of electrical shorts and corroded terminals, ensuring your critical charging infrastructure remains dependable trip after trip.

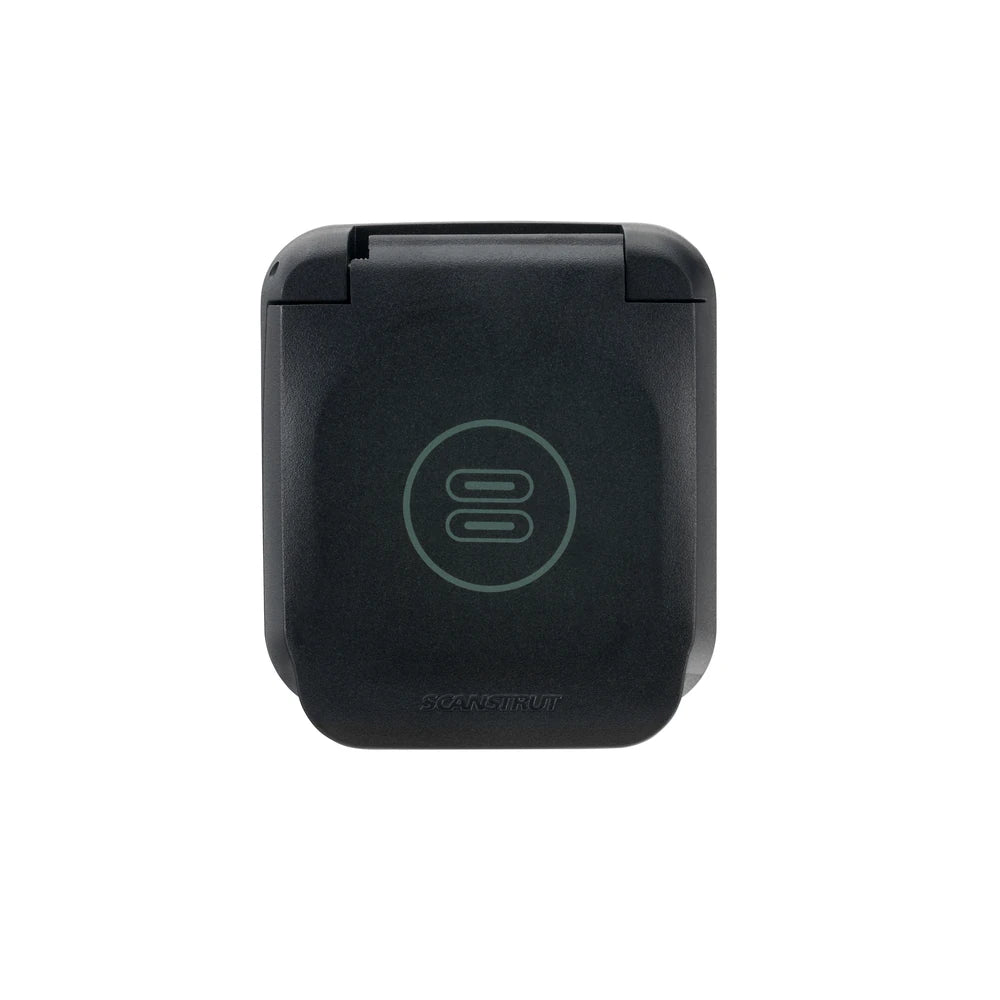

When the spring-loaded protective lid is closed, the unit achieves an impressive IP68 and IP69K waterproof rating, offering complete protection against continuous submersion and high-pressure water jets. The internal silicone gasket ensures a watertight seal against the mounting surface, while the marine-grade 316 stainless steel components provide long-lasting resilience against salt spray and coastal corrosion.
Key Features
- Dual USB-C ports: Charge two devices simultaneously with high-speed power delivery.
- Extreme weather protection: IP68 and IP69K rated (front only when lid is closed) to resist severe weather and marine conditions.

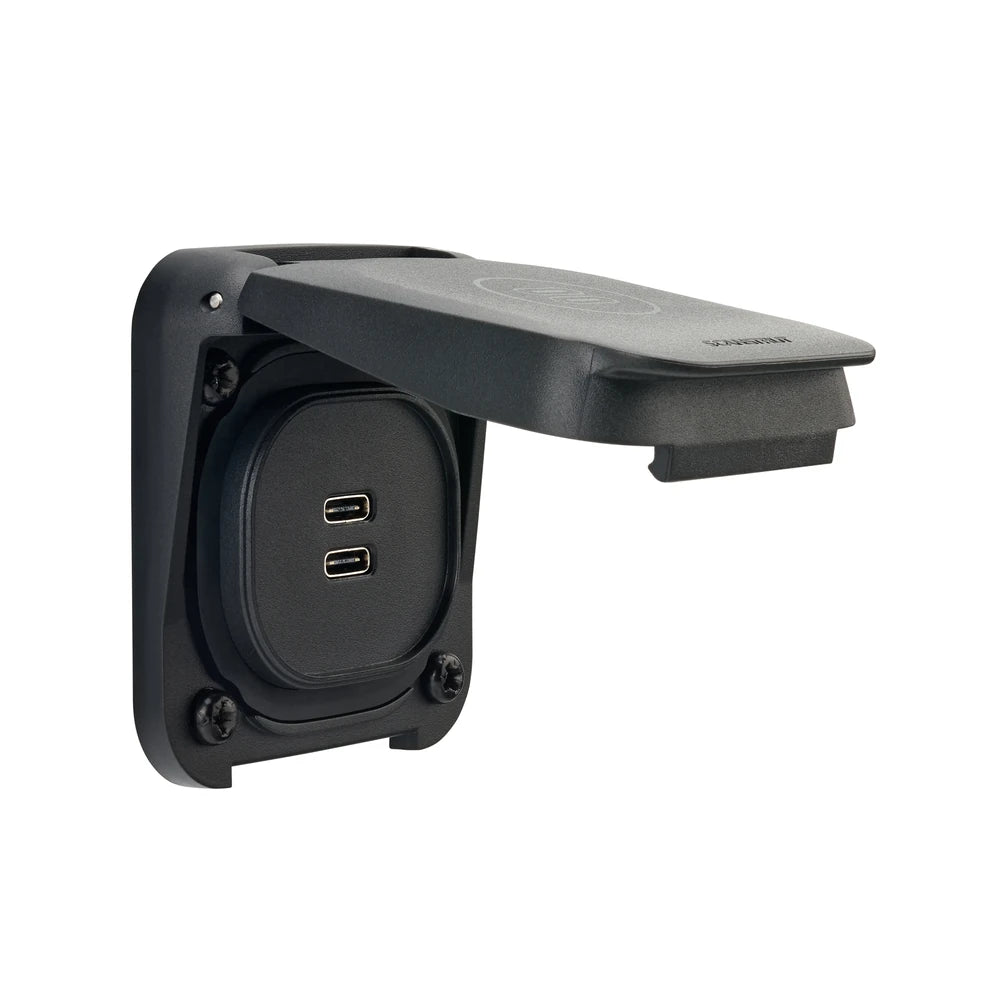

- Spring-loaded protective lid: Includes a 90-degree holding bump-feature for easy access and a secure closure.
- Ultra-low parasitic draw: Only 0.01W standby current protects your battery capacity.
- Marine-grade components: 316 stainless steel hinge and springs resist rust and degradation.
- UV-stable housing: Durable exterior casing withstands the intense Australian sun without becoming brittle.

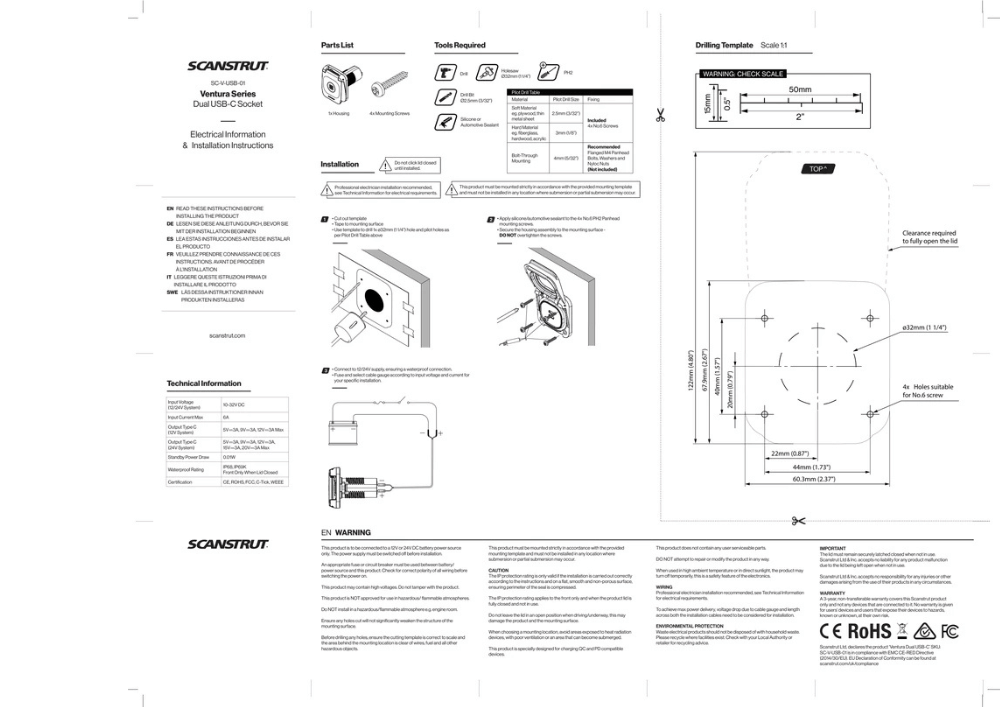

Simple Installation for Upgrades and New Builds

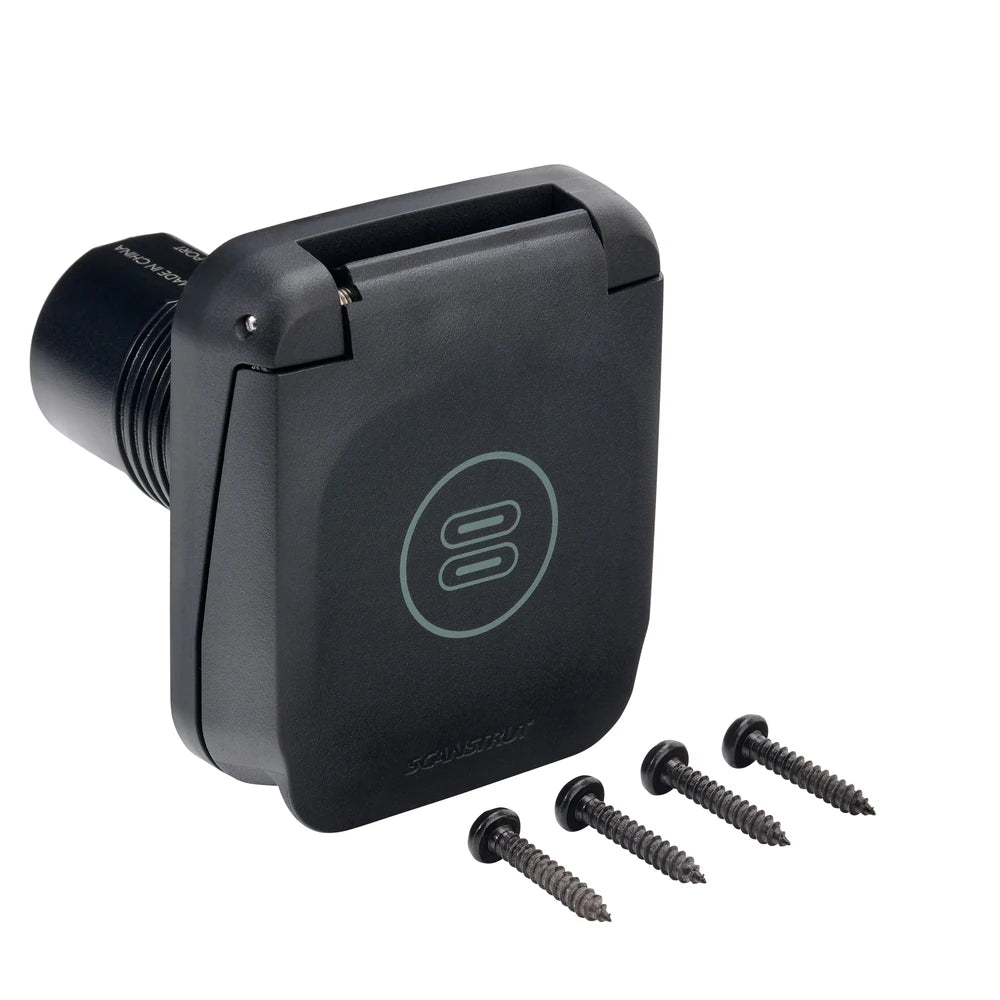

Fitting the Scanstrut Ventura socket is a straightforward process for both DIY enthusiasts and professional auto-electricians. The unit is designed to fit a standard 32 mm (approx. 1.25 inches) hole, easily cut with a standard hole saw. A deep threaded barrel accommodates a wide variety of panel thicknesses, making it suitable for thin metal vehicle skins or thicker fibreglass boat hulls. Electrical integration is equally simple, utilising standard 6.3 mm male spade terminals at the rear for a secure and vibration-resistant connection.
Upgrade Your Exterior Power Setup

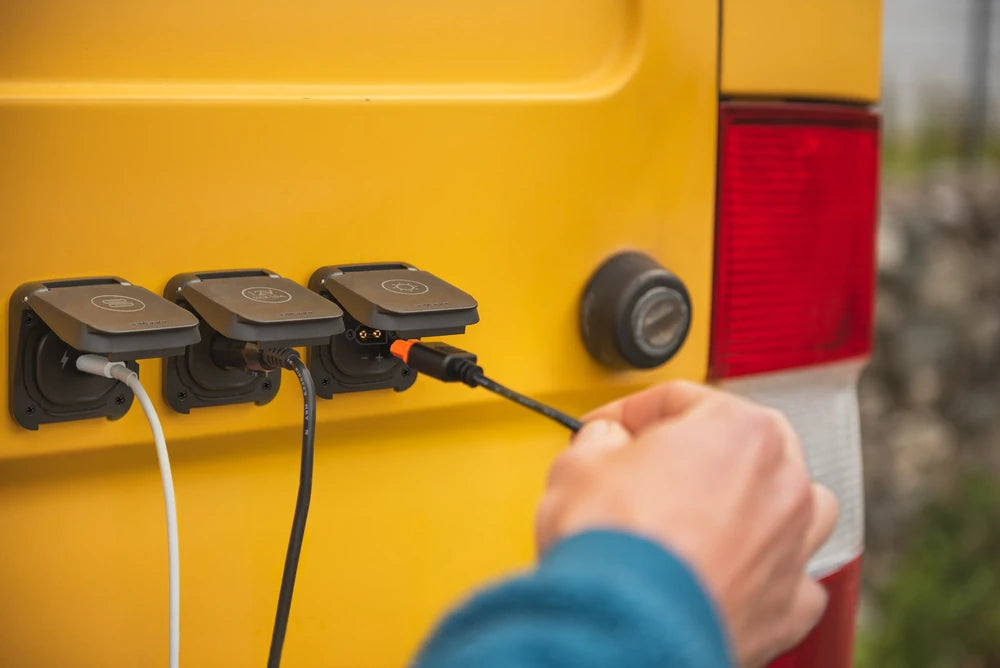

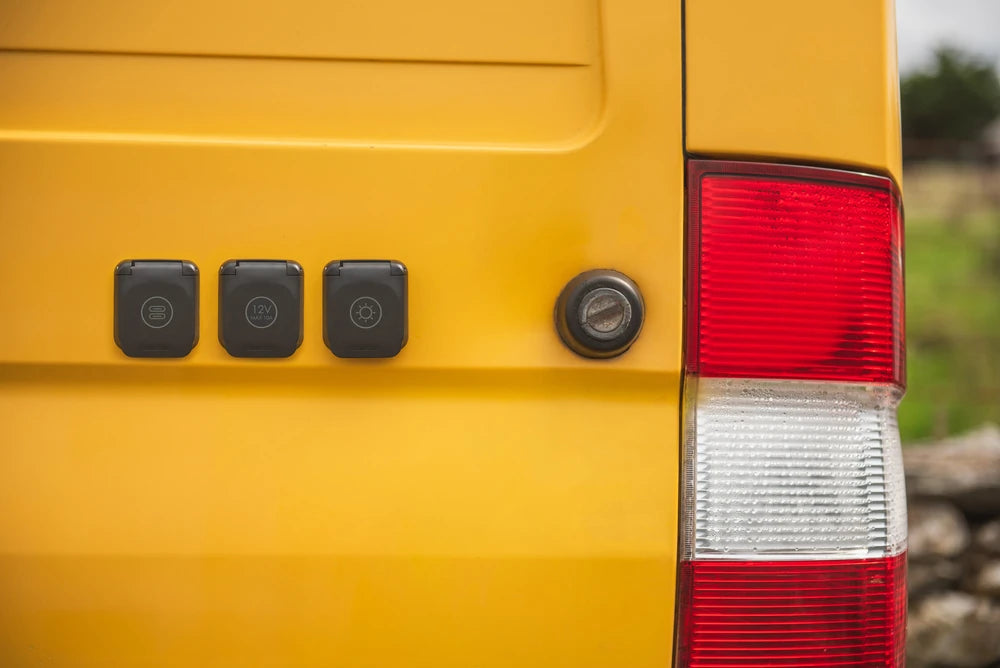

Stop compromising on outdoor convenience and eliminate the clutter of indoor extension leads. Install the Scanstrut Ventura Dual USB-C Socket today to equip your vehicle or vessel with reliable, all-weather charging capabilities perfectly suited for your next off-grid adventure.
SKU: SST-SC-V-USB-01
SPECIFICATIONS
Specifications
| Product Code | SC-V-USB-01 |
|---|---|
| Product Name | Ventura Series - Dual USB-C Socket |
| Input Voltage | 12/24 V System | 10-32 V DC |
| Input Current Max | 6 A |
| Output Type C 12 V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A Max |
| Output Type C 24 V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A Max |
| Standby Draw | 0.01 W |
| Waterproof Rating | IP68, IP69K Front only when lid closed |
| Certification | CE, ROHS, FCC, C-Tick, WEEE |

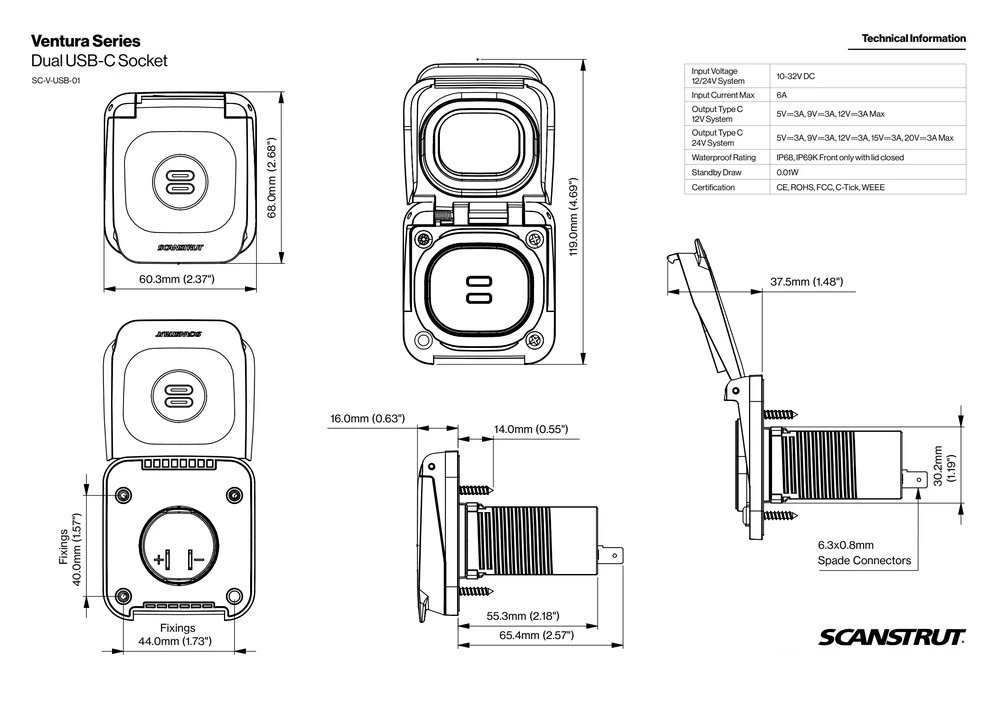

| Installation | Standard 32 mm (1.25”) Hole saw Installation |
| Lid | Spring-loaded lid |
| Holding Feature | 90° Holding Bump-Feature |
| Gasket | Built-in gasket for a watertight seal |
| Components | Marine-grade 316 stainless steel components |
| SKU: | SST-SC-V-USB-01 |
| Barcode: | 5060114799479 |
| Model #: | SC-V-USB-01 |
| MPN: | SC-V-USB-01 |
