Scanstrut Ventura Red 50A Anderson Solar Input Socket
Scanstrut Ventura Red 50A Anderson Solar Input Socket
IP68 Waterproof Flush Mount Port for 12V to 48V Off-Grid Systems
Highlights:Weatherproof Seal: Internal silicone gasket ensures an IP68 and IP69K waterproof rating when closed,Anderson SB50 Connector: Genuine red 50A Anderson socket for reliable solar charging connections,Stainless Steel Hinge: Corrosion-resistant marine-grade stainless steel spring-loaded hinge,Mounting Points: Four secure mounting points for flush installation on vehicle exteriors,Snap-Lock Lid: Moulded locking tab to keep the cover securely closed during transit.
Key features: IP68 and IP69K waterproof rating, UV-stabilised high-impact plastic construction, Clear solar sun icon for easy circuit identification, Includes 4x stainless steel mounting screws, Compact flush-mount profile.

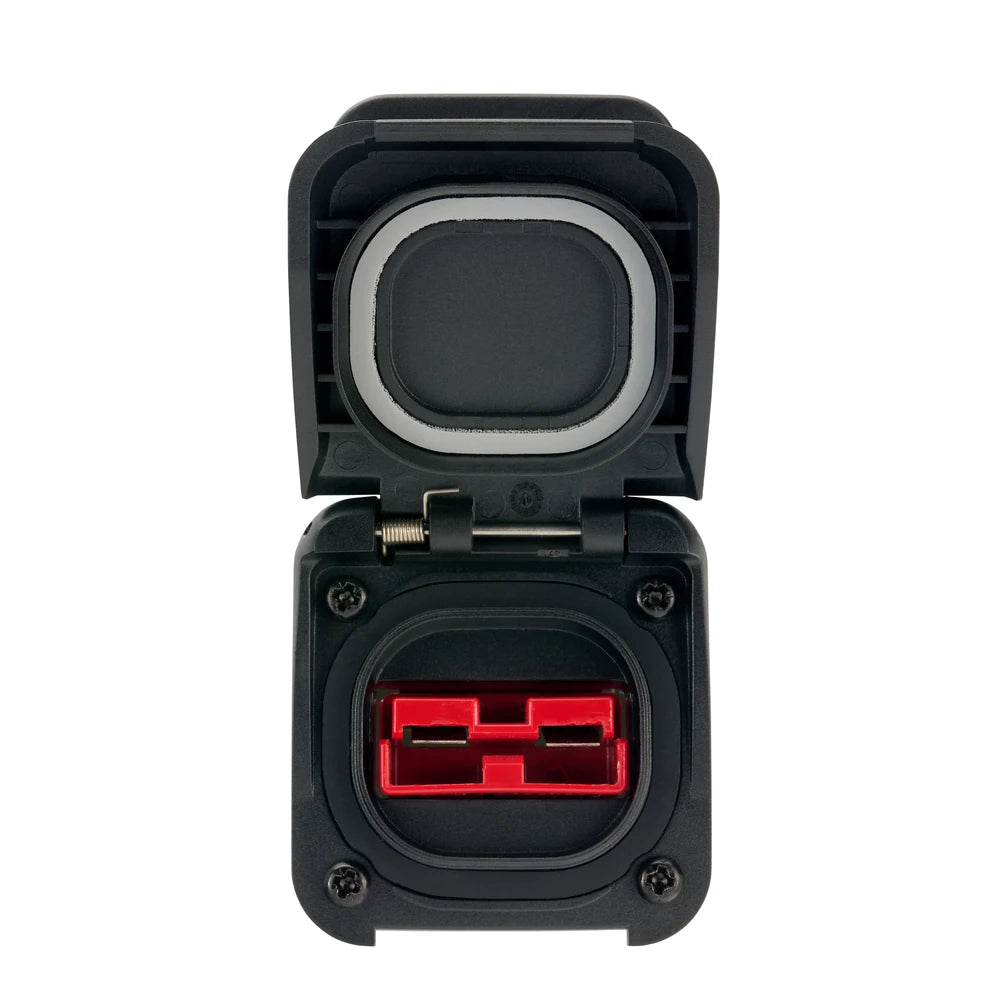

Straight-on view of the Ventura series input socket with the lid open, showcasing the internal red 50A Anderson connector and the protective lid gasket.





DESCRIPTION
Scanstrut Ventura Red 50A Anderson Solar Input Socket
Establishing a secure and weatherproof connection for your portable solar panels is critical for any serious off-grid touring setup. The Scanstrut Ventura Red 50A Anderson Solar Input Socket delivers a highly robust, flush-mounted exterior port designed specifically for caravans, camper trailers, 4x4 overland rigs, and marine vessels. Instead of routing cables through open windows or relying on inferior external plugs that degrade under harsh UV exposure, this purpose-built socket allows you to plug your solar feed directly into your vehicle with absolute confidence.
Engineered for Extreme Outdoor Environments
Built from UV-stabilised, high-impact plastics and fitted with marine-grade 316 stainless steel components, this input socket is designed to withstand the rigorous demands of the Australian outdoors. When the protective lid is securely closed, the internal silicone gasket provides an impressive IP68 and IP69K waterproof rating at the front face. This means your electrical connections remain completely isolated from driving rain, saltwater spray, dust, and mud, drastically reducing the risk of corrosion and short circuits that frequently compromise unprotected exterior fittings.
High-Performance 50A Power Transfer
At the core of the Ventura Series solar port is the capability to house a standard red Anderson SB50 connector. Rated for a maximum of 50A when used with 6 AWG (approx. 16mm2) cable, it handles high-current solar arrays effortlessly. It supports a maximum DC voltage of 600V, making it fully compatible with standard 12V systems as well as higher-voltage 24V and 48V off-grid battery banks. You can comfortably transfer up to 600W on a 12V input, 1200W on a 24V input, or 2400W on a 48V input. *Note typical current de-rating factors apply depending on your specific cable sizing, installation method, and environmental temperatures. Please note that SB50 terminal crimps are not included and must be sourced separately from Anderson Power to match your specific cable size.

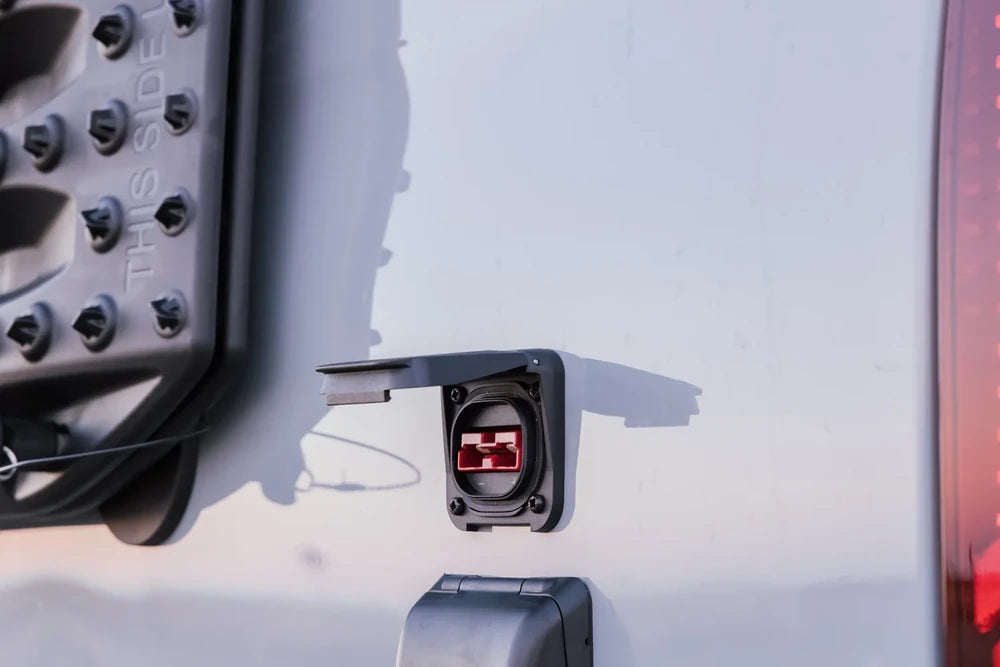

Clean and Simple Flush Mount Installation
The Ventura Series blends highly functional mechanical design with clean aesthetics, ensuring your vehicle or vessel maintains a professional finish. Installation requires only a standard 25mm (approx. 1.00 inch) holesaw, ensuring a neat flush mount against your exterior panels. The spring-loaded cover opens fully to 180 degrees for unobstructed access and features a convenient 90-degree holding bump to keep the lid steady while you plug in your panels. An integrated snap-lock tab ensures the cover remains firmly shut while in transit on corrugated roads.
Key Features
- Red Anderson SB50 Compatibility: specifically designed to securely house high-current exterior solar connections.
- IP68 and IP69K Waterproofing: the front face is fully sealed against high-pressure water and dust ingress when the lid is securely closed.
- Marine-Grade Hardware: utilizes 316 stainless steel hinges and mounting hardware for superior long-term corrosion resistance.
- Broad System Compatibility: highly suitable for 12V, 24V, and 48V solar systems with a massive maximum 600V DC rating.
- Easy Access Spring Lid: opens to 180 degrees with a secure locking tab to prevent accidental opening during transit.

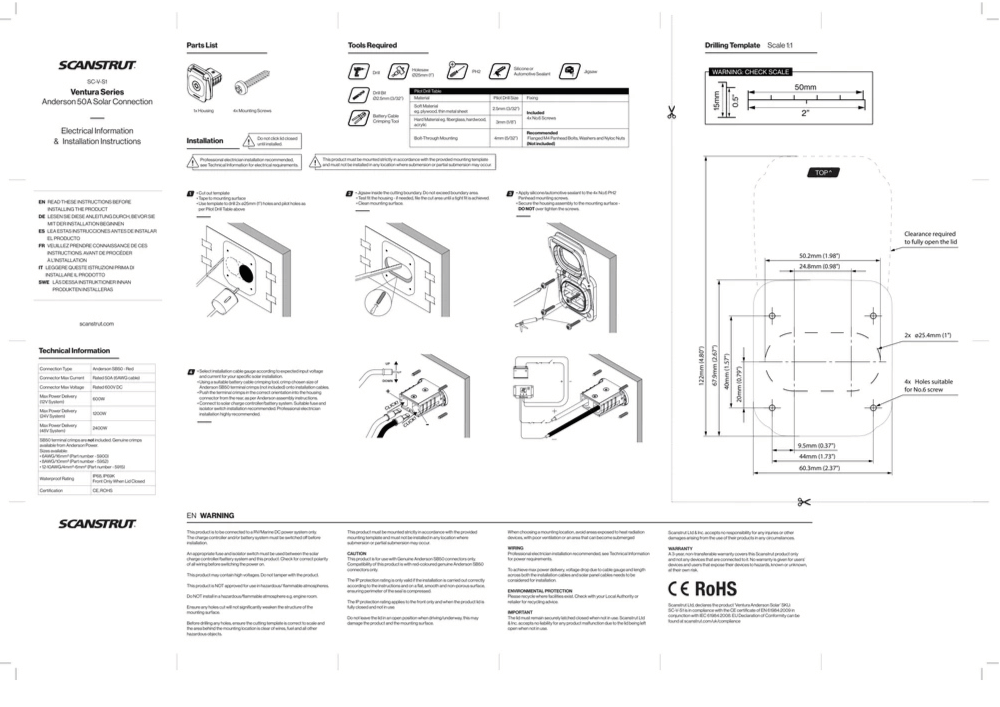

- Simple Installation Process: only requires a standard 25mm (approx. 1.00 inch) holesaw to fit the flush mount profile.
Ensure your off-grid power setup remains highly efficient, safe, and fully protected from the elements. Upgrade your exterior solar connections with the Scanstrut Ventura Red 50A Anderson Solar Input Socket today and keep your batteries charging flawlessly wherever your adventure takes you.
SKU: SST-SC-V-S1

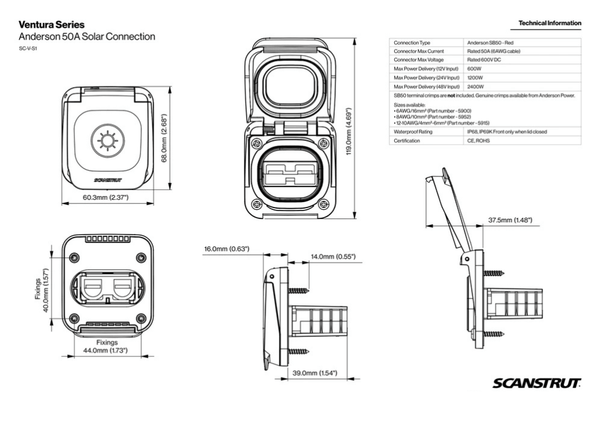

SPECIFICATIONS
Specifications
| Product Code | SC-V-S1 |
|---|---|
| Series | Ventura Series |
| Product Name | Anderson 50A Solar Connection - Red |
| Connection Type | Anderson SB50 - Red |
| Connector Max Current | Rated 50 A (6 AWG cable) |
| Connector Max Voltage | Rated 600 V DC |
| Max Power Delivery (12 V Input) | 600 W |
| Max Power Delivery (24 V Input) | 1200 W |
| Max Power Delivery (48 V Input) | 2400 W |
| Waterproof Rating | IP68, IP69K front only when lid closed |
| Certification | CE, ROHS |
| Terminal Crimps | SB50 terminal crimps are not included |
| Available Anderson Power Crimp Sizes | 6 AWG / 16 mm² (Part number - 5900); 8 AWG / 10 mm² (Part number - 5952); 12-10 AWG / 4 mm²-6 mm² (Part number - 5915) |
| SKU: | SST-SC-V-S1 |
| Barcode: | 5060114799486 |
| Model #: | SC-V-S1 |
| MPN: | SC-V-S1 |
