Scanstrut Grey 4-6mm / 16mm Starlink Compatible Cable Seal
Scanstrut Grey 4-6mm / 16mm Starlink Compatible Cable Seal
IP68 Waterproof Split-Bung Design for Seamless Deck Installations
Key features: IP68 100% waterproof rating, UV-stable and impact-resistant material, Split bung allows installation without removing connectors, Supplied with 316 stainless steel fixings.

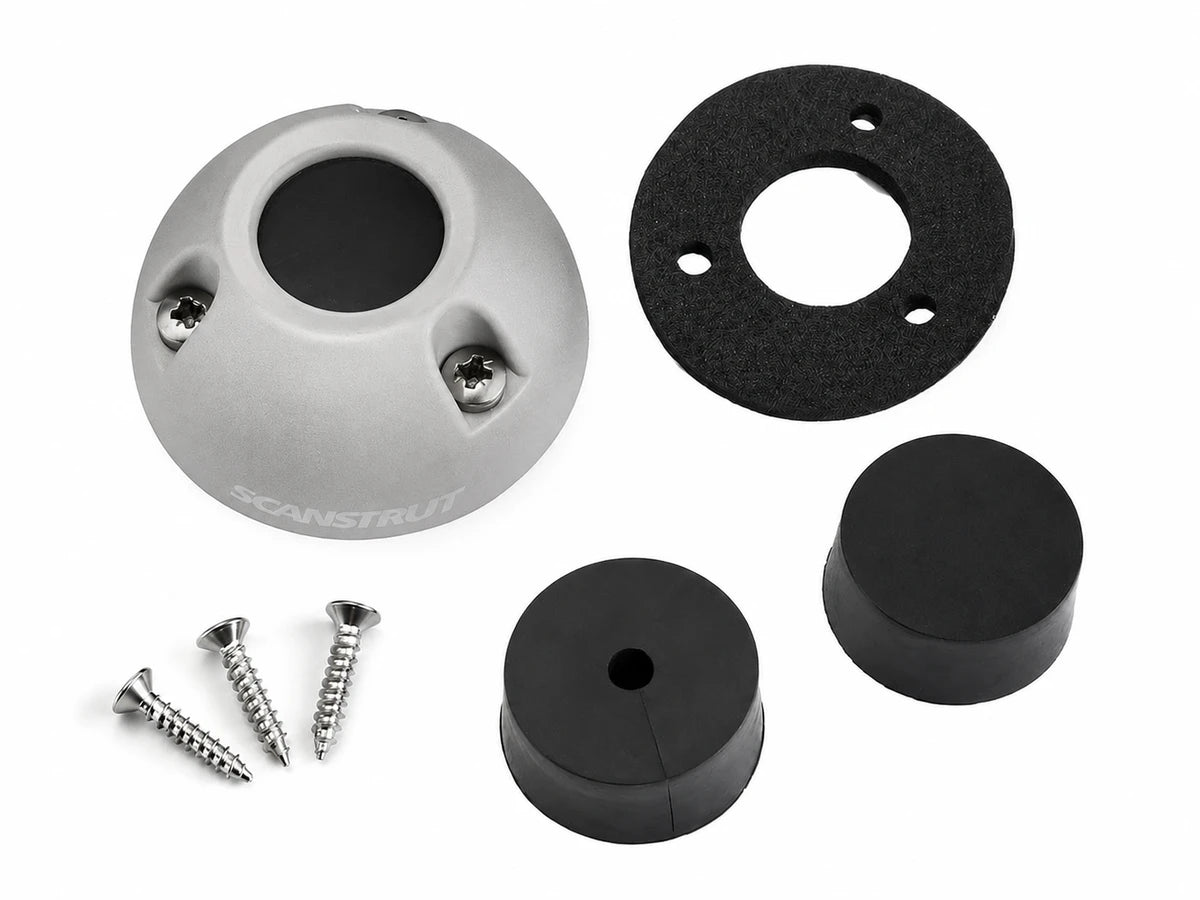

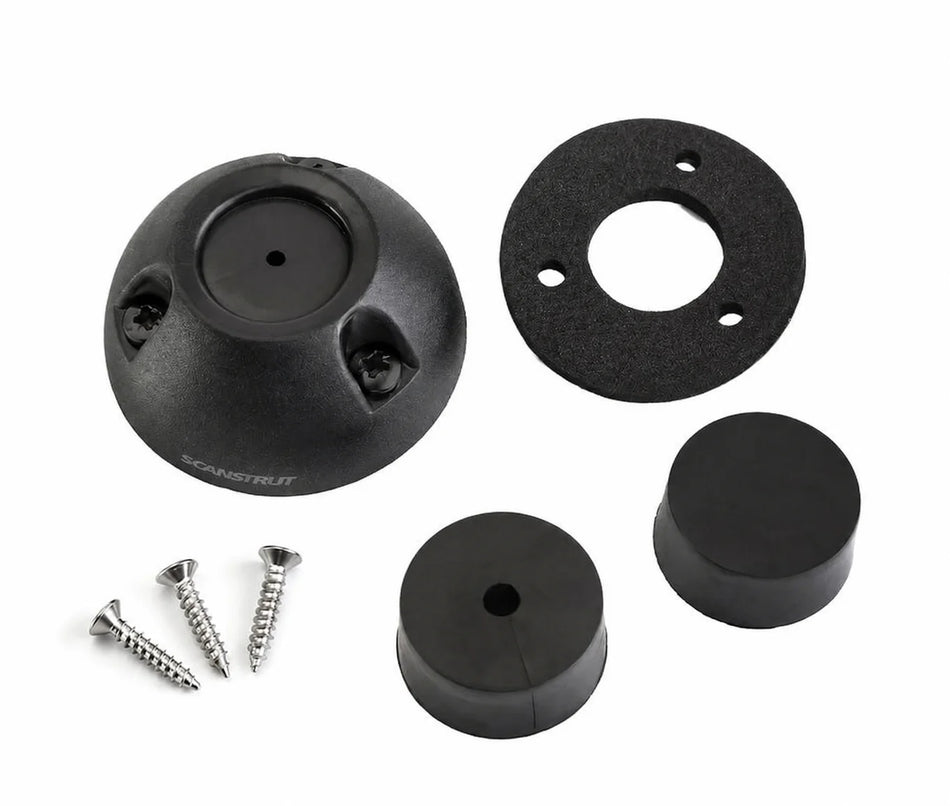

The complete assembly kit for the Scanstrut DS16-SL cable seal featuring multiple bung sizes and 316 stainless fixings for marine-grade durability.

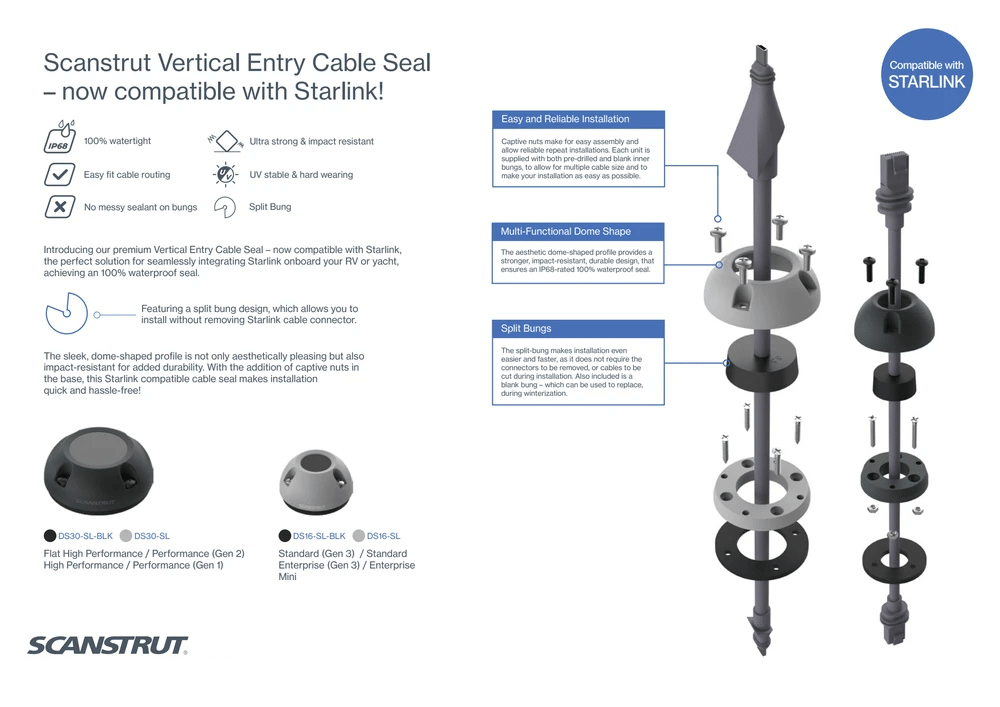

Highlights:IP68 Waterproof: Certified IP68 100% watertight protection for marine and outdoor environments,Marine-Grade Dome: UV-stable, impact-resistant dome provides a durable protective housing,Split Bung: Innovative split bung allows installation without cutting or removing the Starlink cable connector,Captive Nuts: Integrated nuts in the base ensure easy and reliable repeat installation,Sealing Gasket: Internal base gasket ensures a watertight seal against the mounting surface.

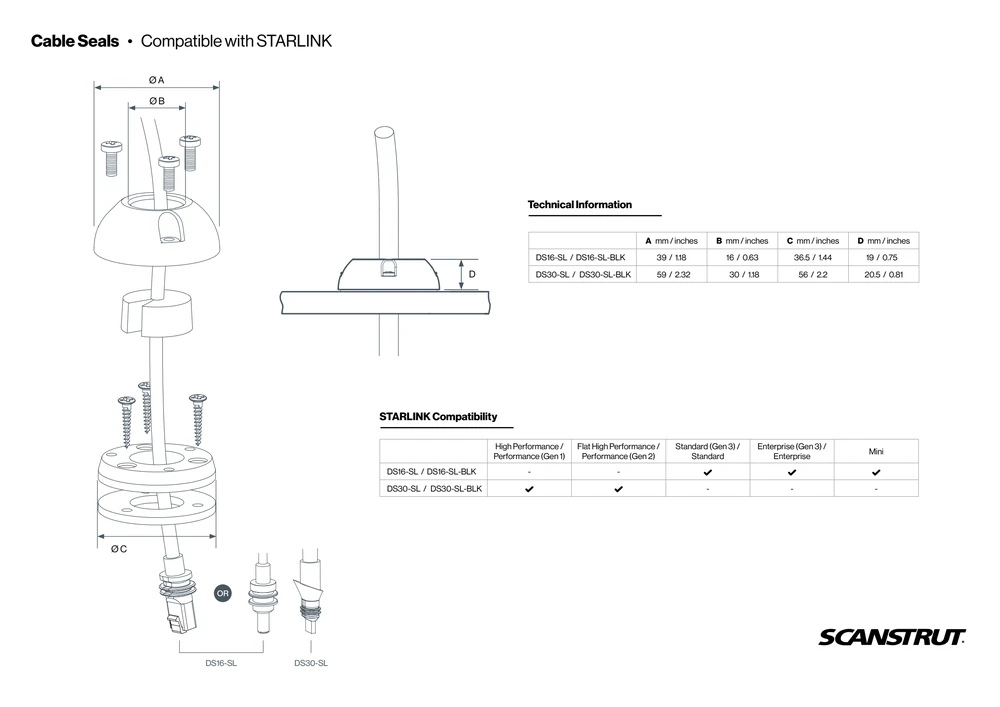

Dimensional drawing for DS16-SL and DS30-SL cable seals with a compatibility table for Starlink Standard Gen 3 and Enterprise Mini.

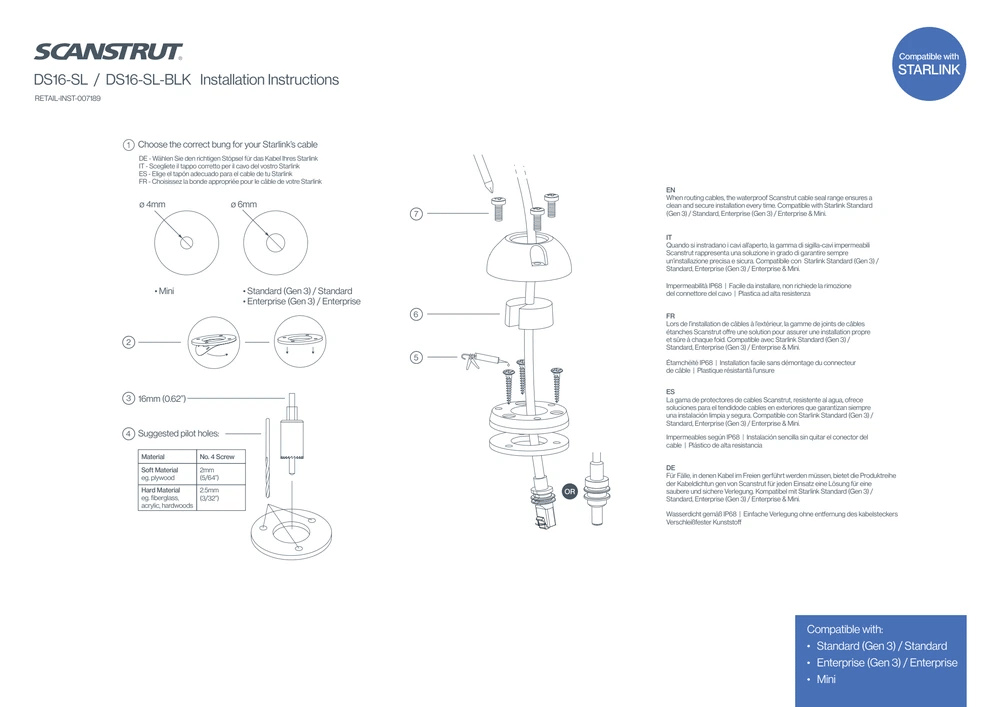

Detailed installation guide showing bung selection, assembly sequence, and suggested pilot hole sizes for various mounting materials.
DESCRIPTION

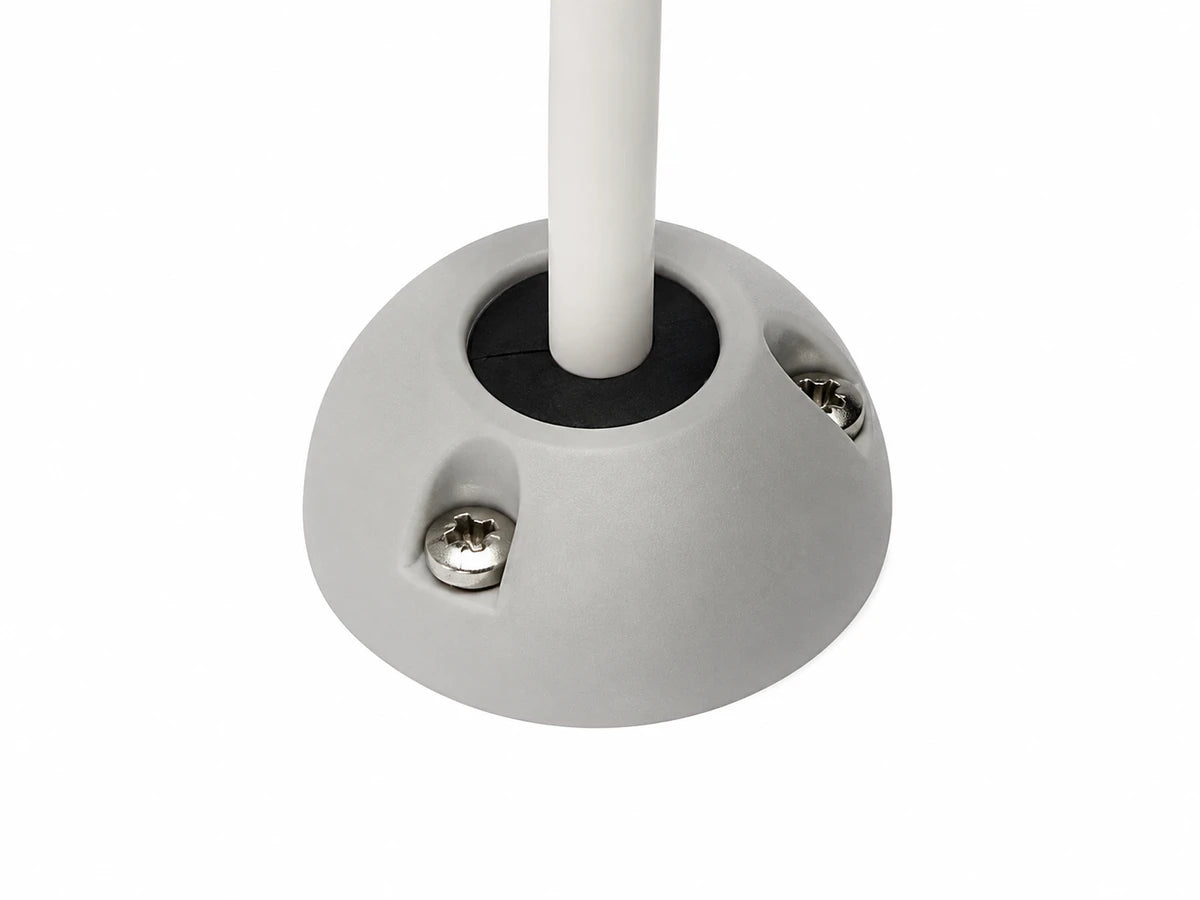

Scanstrut Grey 4-6mm / 16mm Starlink Compatible Cable Seal
Routing satellite internet cables through the deck or roof of your marine vessel, caravan, or recreational vehicle often presents a unique challenge, particularly when dealing with large, proprietary connectors. The Scanstrut Grey 16mm Cable Seal is meticulously engineered to solve this problem, providing a completely watertight, IP68 rated vertical entry point specifically designed for modern satellite communications equipment. Designed to accommodate cable sizes from 4mm to 6mm and connectors up to 16mm (Approx. 0.63 inches) in diameter, this cable seal ensures your connectivity remains uninterrupted while protecting your interior from harsh outdoor elements.
Seamless Routing Without Wire Modification
One of the most significant risks when installing satellite network systems is the potential damage caused by cutting cables to fit through standard cable glands. This Scanstrut seal features an innovative split-bung design that completely eliminates the need to remove factory connectors or splice wires during installation. You can simply pass the standard or enterprise connector straight through the base, fit the split bung around the wire, and secure the dome. This not only preserves the electrical integrity of your communications equipment but also dramatically reduces installation time and potential connectivity issues.
Marine-Grade IP68 Waterproof Protection
When drilling holes into the exterior of a boat or recreational vehicle, ensuring a complete environmental seal is paramount. This vertical cable seal achieves a stringent IP68 waterproof rating, ensuring your cabin remains completely dry even under heavy rain, sea spray, or brief submersion. The internal tapered bung works in tandem with a premium 3M closed-base gasket to form a formidable barrier against moisture ingress. Whether you are navigating rough offshore waters or encountering a heavy storm at a remote campsite, this seal provides ultimate peace of mind.
Robust Construction for Harsh Environments
Built to endure the rigours of continuous outdoor exposure, the aesthetic dome shaped profile is manufactured from high impact, UV stable plastic. The contoured design effectively deflects water and physical impacts, significantly reducing the risk of snagging or damage. Furthermore, the inclusion of premium 316 stainless steel fixings ensures long lasting resistance to rust and corrosion in salt laden coastal environments. The base also features captive nuts, which makes assembly straightforward and allows for reliable repeat installations if you ever need to upgrade or replace your communications equipment.
Key Features
- Split Bung Design: Allows installation of connectors up to 16mm (Approx. 0.63 inches) without cutting wires.
- IP68 Waterproof Rating: Provides maximum protection against water ingress for marine and outdoor use.
- Broad Compatibility: Seamlessly accommodates Standard (Gen 3), Enterprise (Gen 3), and Mini satellite internet systems.
- Marine-Grade Materials: Constructed from UV stable, impact resistant plastic with 316 stainless steel hardware.
- Easy Installation: Features captive nuts for reliable assembly and includes pre-drilled, blank, and split inner seals.
Upgrade Your Satellite Setup
Protect your investment and maintain a completely dry interior with a routing solution built specifically for the demands of modern satellite internet systems. Order the Scanstrut Grey 16mm Cable Seal today to complete your off grid or marine communications setup with professional grade reliability.
SKU: SST-DS16-SL
SPECIFICATIONS
Specifications
| SKU | DS16-SL |
|---|---|
| Product | Starlink® Compatible Cable Seal |
| Colour | Grey |
| Material | High-impact plastic |
| Cable Orientation | Vertical |
| Number Of Cables | 1 Cable |
| Fits Connectors Up To | Ø16 mm (0.63") |
| A | 39 mm / 1.18" |
| B | 16 mm / 0.63" |
| C | 36.5 mm / 1.44" |
| D | 19 mm / 0.75" |
| Starlink Compatibility | Standard (Gen 3) / Standard; Enterprise (Gen 3) / Enterprise; Mini |
| Ingress Protection | IP68 |
| Bungs | Pre-drilled, blank and split bungs are included |
| SKU: | SST-DS16-SL |
| Barcode: | 5060114799691 |
| Model #: | DS16-SL |
| MPN: | DS16-SL |
