Scanstrut Grey 2-8mm / 16mm Starlink Compatible Horizontal Cable Seal
Scanstrut Grey 2-8mm / 16mm Starlink Compatible Horizontal Cable Seal
IP68 Waterproof Routing for Starlink Gen 3 and Mini without Cutting

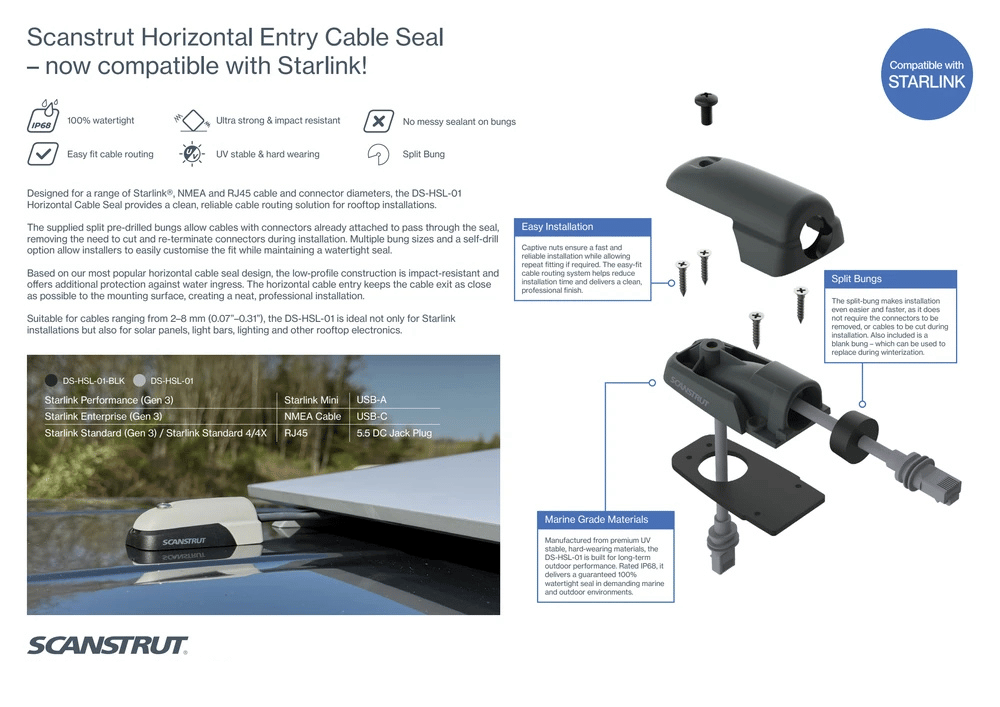

Highlights:Impact-resistant base: Marine-grade black base with Scanstrut branding,UV-stable cover: Aesthetic grey cover protects against harsh environmental conditions,Multi-size split bungs: Selection of split bungs for cables 2-8mm including Starlink sizes,Watertight foam gasket: Self-adhesive foam gasket for a 100% waterproof seal to mounting surfaces,Stainless steel fixings: Captive nuts and screws for secure and reliable installation.

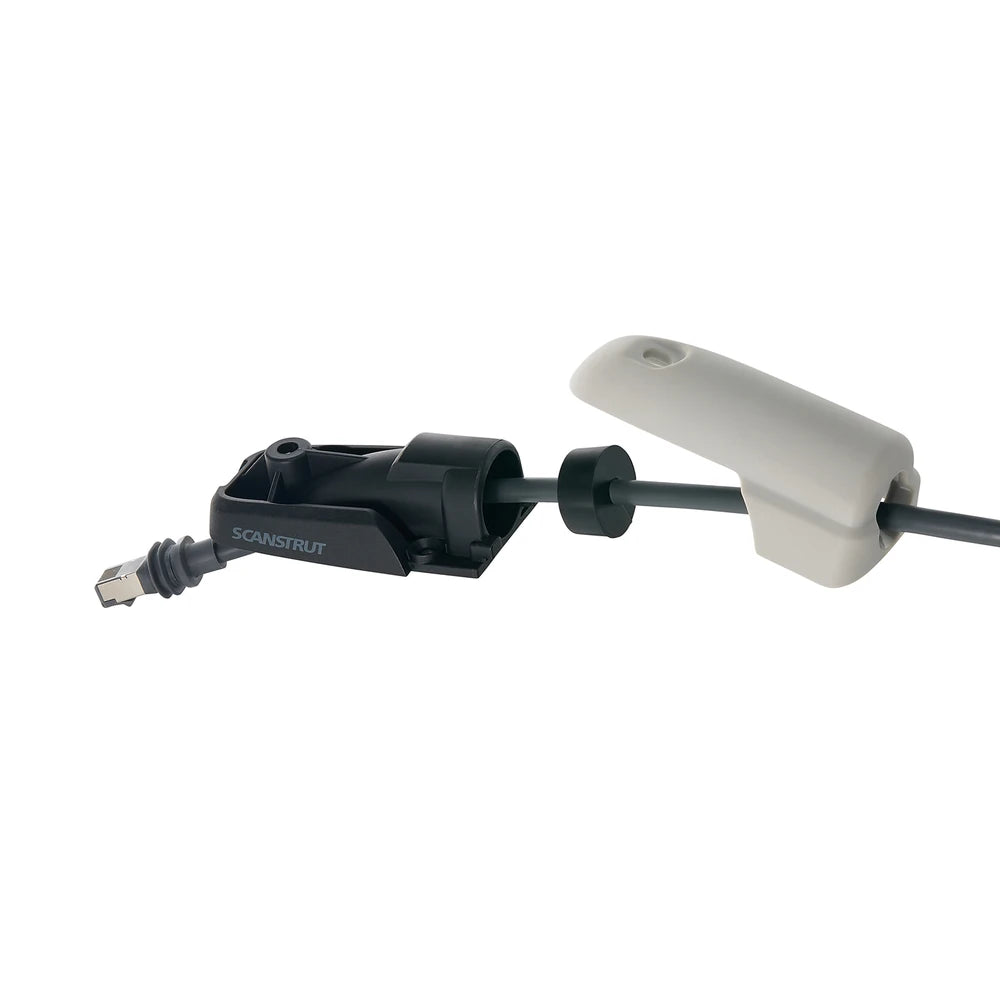

Detailed internal view showing the secure routing of a cable through a multi-size split bung, which enables installation over pre-terminated connectors without cutting
Key features: 100% Waterproof - IP68 rated for marine environments, Compatible with Starlink Gen 3 Performance, Enterprise, and Standard, Split bung system permits installation without removing connectors, Constructed from high-impact and UV-stable marine grade plastic.




DESCRIPTION

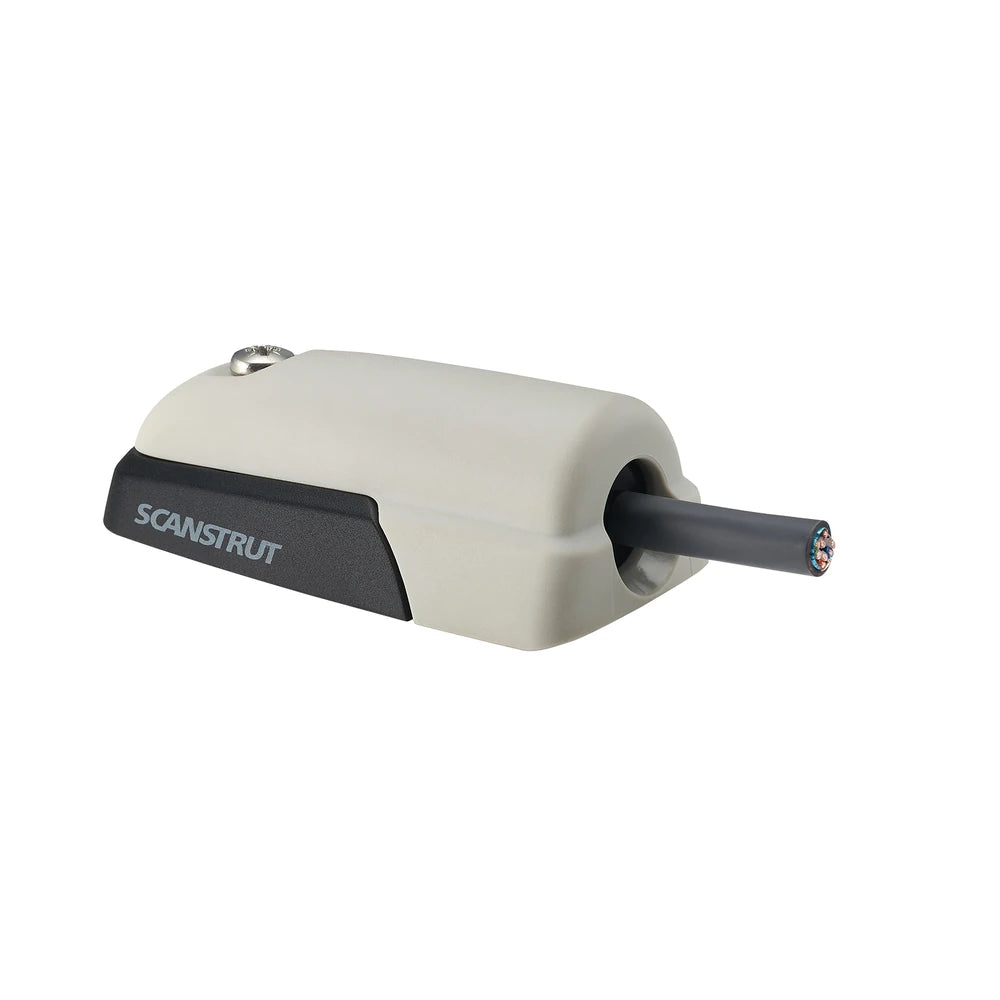

Scanstrut Grey 2-8mm / 16mm Starlink Compatible Horizontal Cable Seal
Reliable Rooftop Cable Routing for Satellite and Network Systems
Installing external communications equipment, such as satellite internet dishes, requires drilling through the exterior of your caravan, boat, or camper trailer. The most critical factor in this process is preventing water ingress. The Scanstrut Grey Horizontal Cable Seal provides a highly engineered, IP68 rated waterproof solution designed specifically to accommodate pre-terminated cables, ensuring your vehicle interior remains completely dry.
As mobile internet solutions become standard for remote travel and off-grid workspaces, a secure cable pass-through is essential. This seal easily accommodates cable diameters from 2 mm to 8 mm (0.07 to 0.31 in) and allows for a maximum connector size of 16 mm (0.62 in). It is the ideal hardware for routing complex wiring securely through a bulkhead or roof panel.
Split Bung Design: Install Without Cutting Connectors
A major challenge with modern satellite and networking equipment is the use of proprietary connectors. Cutting and re-splicing these cables voids manufacturer warranties and risks significant signal degradation. To solve this, the Scanstrut cable seal features a highly effective split bung system.

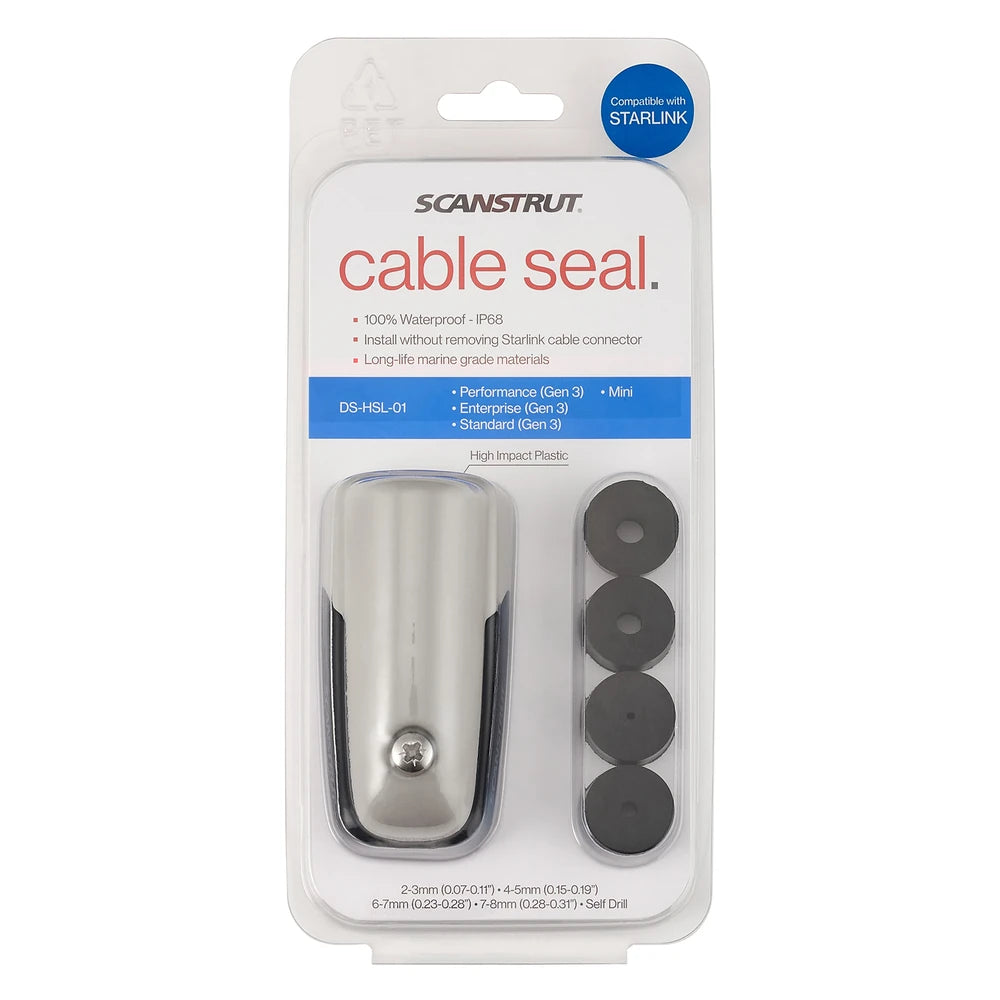

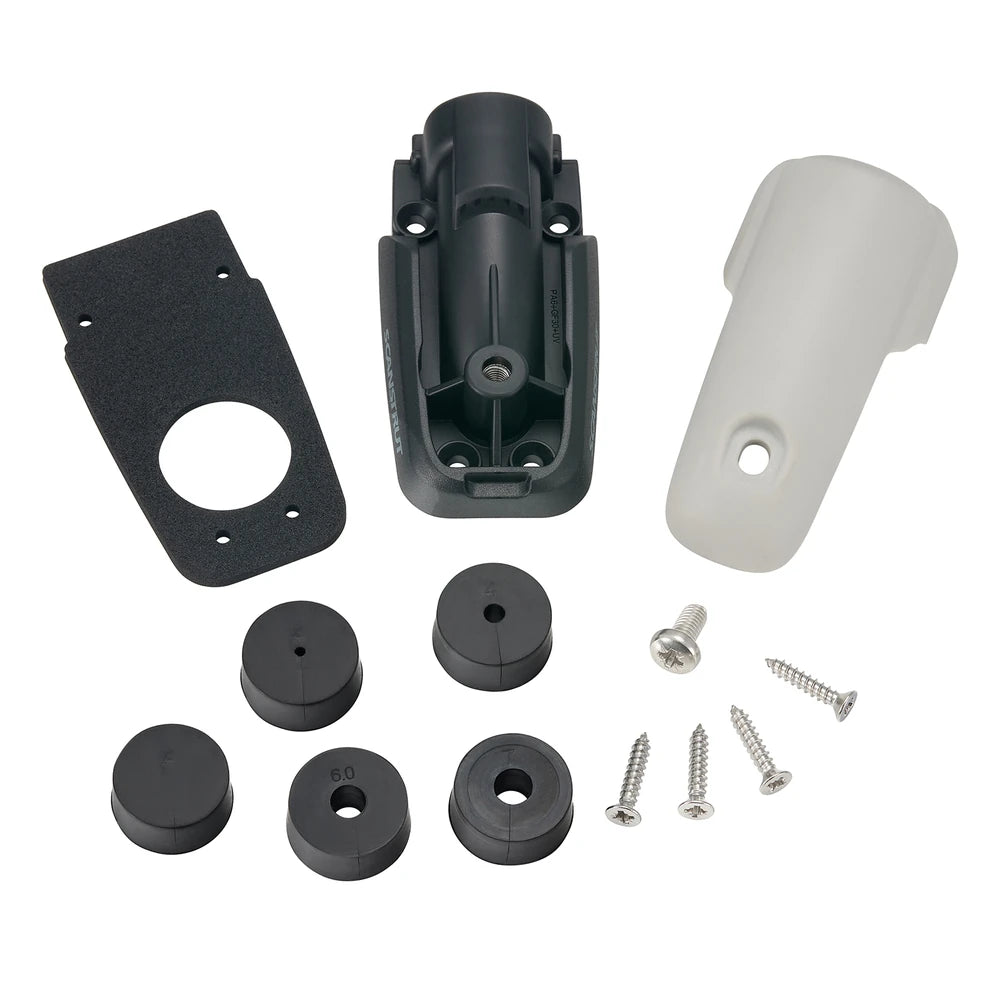

The supplied kit includes multiple pre-drilled split bungs. Installers can simply select the correctly sized bung, wrap it around the existing cable, and pass the fully assembled plug straight through the housing. This completely removes the need to cut and re-terminate cables during installation, saving time and preserving equipment integrity. For unique wire sizes, a blank self-drill bung is also included, allowing you to customise the fit precisely.

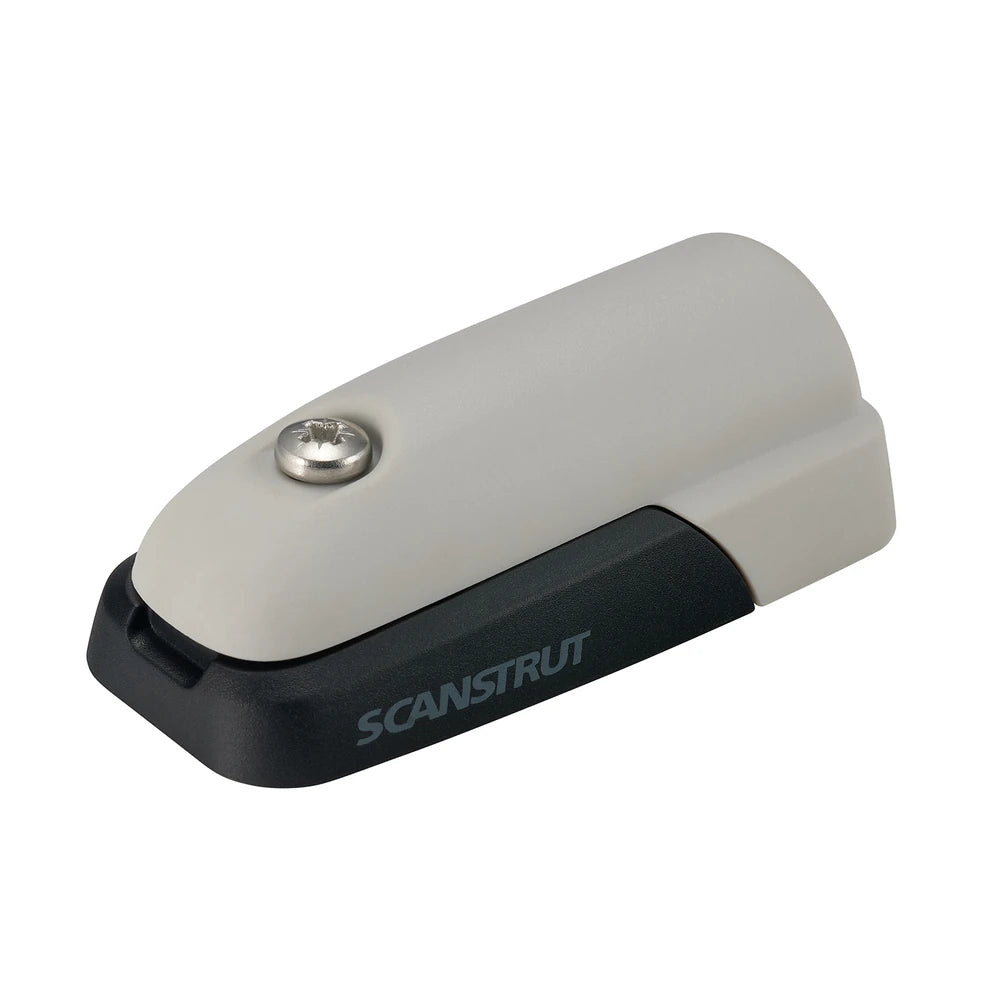

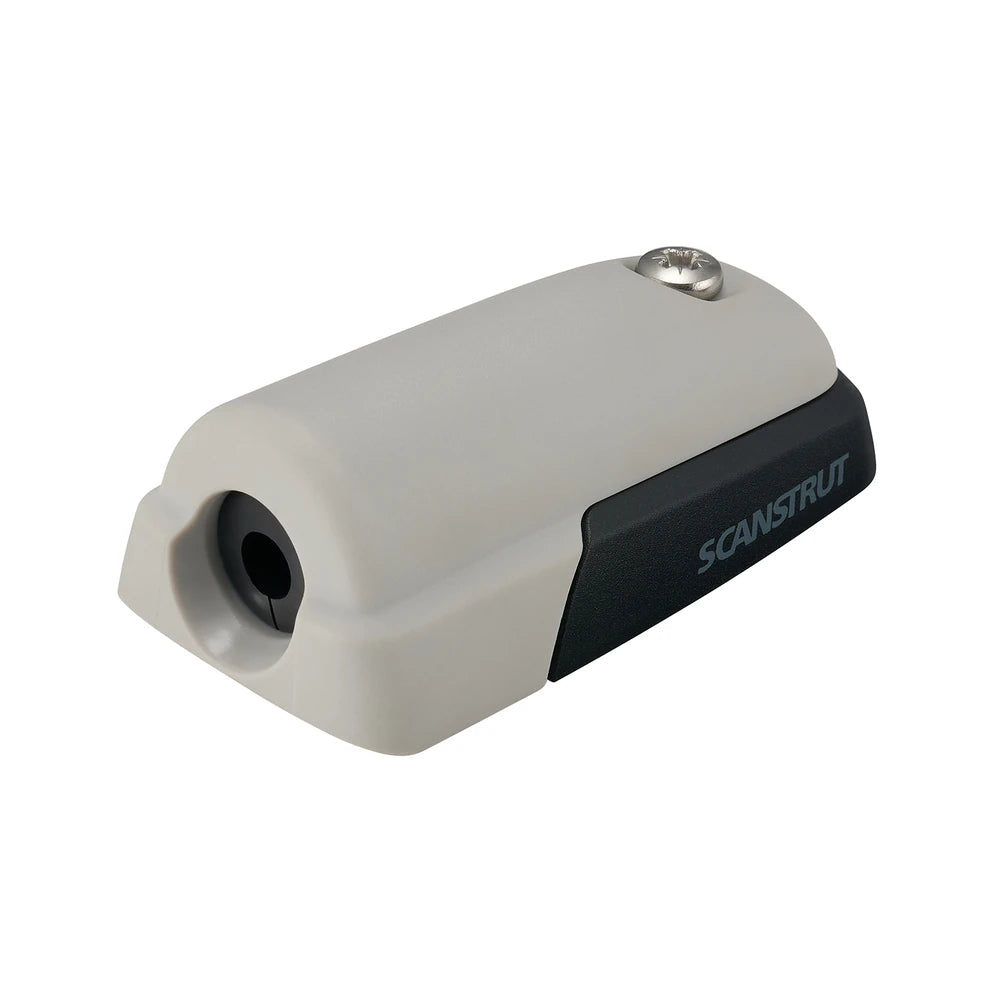

Aerodynamic Horizontal Profile
Unlike vertical glands that force the cable to loop upwards, the horizontal cable entry design directs the cable parallel to the roofline. This low-profile geometry keeps the wiring flush against the mounting surface, creating a neat, professional finish. For 4x4 vehicles and caravans, this greatly reduces the risk of the cable snagging on low-hanging branches or causing excess wind noise at highway speeds.

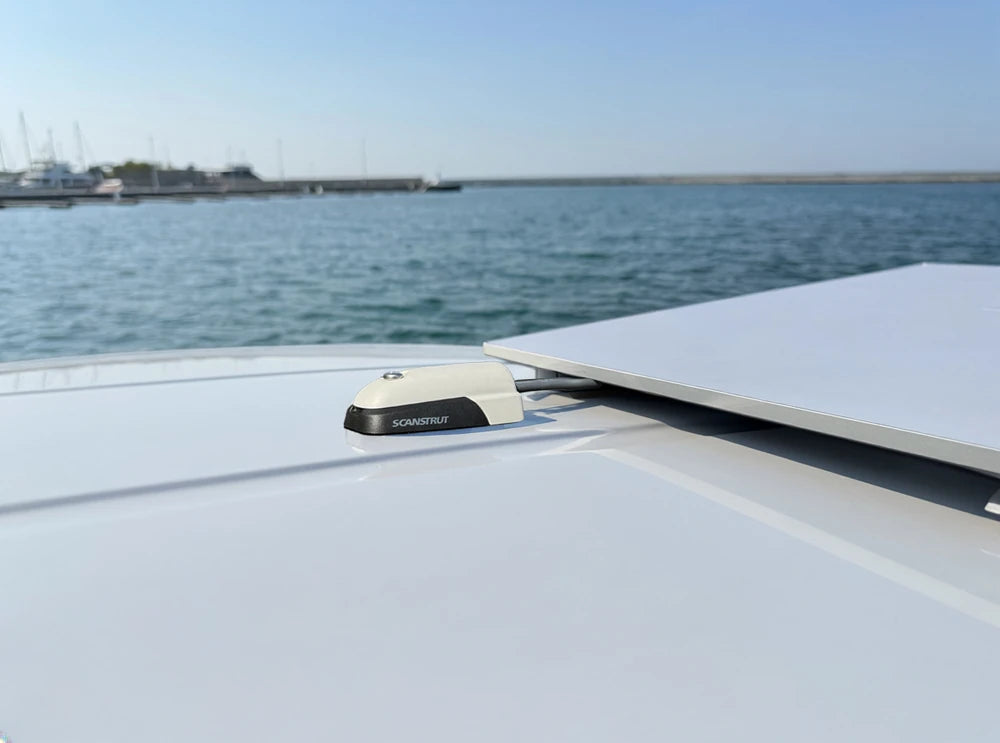

Marine-Grade Durability for Australian Conditions
Manufactured from high-impact, UV-stable plastic, the DS-HSL-01 is built to withstand extreme environments. Whether exposed to corrosive marine saltwater spray, heavy outback rain, or intense ultraviolet radiation, the premium materials prevent cracking and degradation over long-term use. The captive nut system enables fast, reliable installation and allows the unit to be disassembled easily if you ever need to upgrade your cables in the future. Furthermore, the self-adhesive waterproof foam gasket eliminates the need for messy silicone sealants.
Key Features and Compatibility

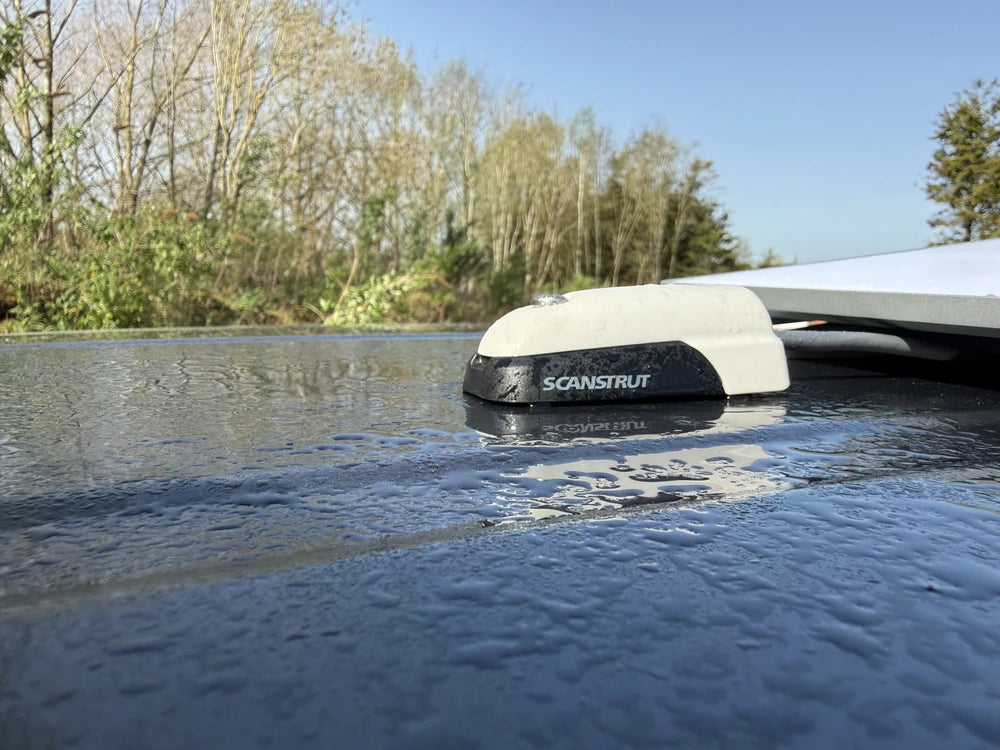

- IP68 rated waterproof barrier protects your cabin from moisture and dust ingress.
- Split bung system allows pre-terminated connectors up to 16 mm (0.62 in) to pass through seamlessly.
- Fully compatible with Starlink Performance (Gen 3), Enterprise (Gen 3), Standard (Gen 3), Mini, and Mini X hardware.
- Versatile application suitable for NMEA networks, RJ45 cables, USB-A, USB-C, and standard 5.5 DC jack plugs.
- Low-profile horizontal design improves aerodynamics and prevents cable snagging.
- Constructed from durable, UV-stable marine-grade plastic for maximum longevity.
- Integrated captive nuts ensure secure tightening and facilitate repeat fitting if necessary.

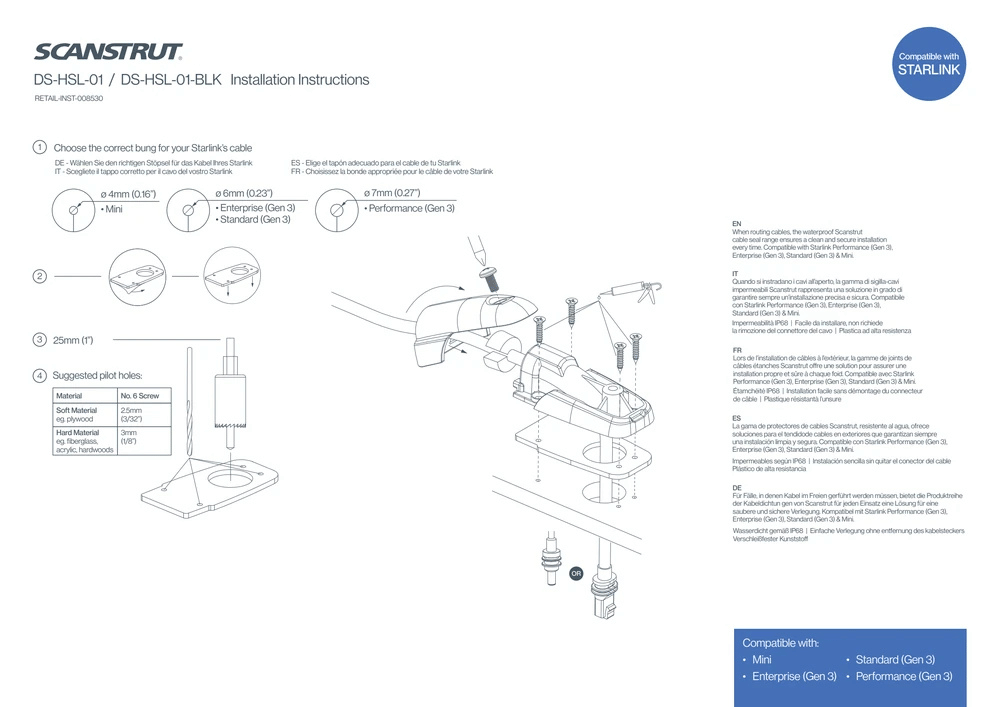

Professional Installation Made Simple
Whether you are upgrading a marine navigation network, adding light bars to a four-wheel drive, or setting up remote satellite internet for a caravan, this routing system delivers exceptional reliability. The comprehensive kit provides everything needed to achieve a highly reliable watertight seal in demanding outdoor environments.
Protect your investment and ensure a leak-free setup. Upgrade your cable management today with the Scanstrut Starlink Compatible Horizontal Cable Seal for a professional, watertight finish on your next project.
SKU: SST-DS-HSL-01

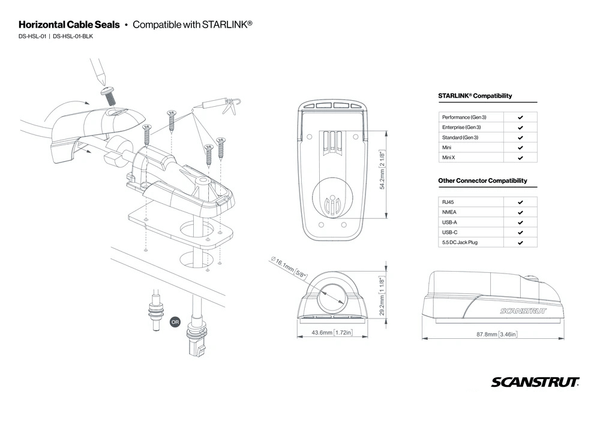

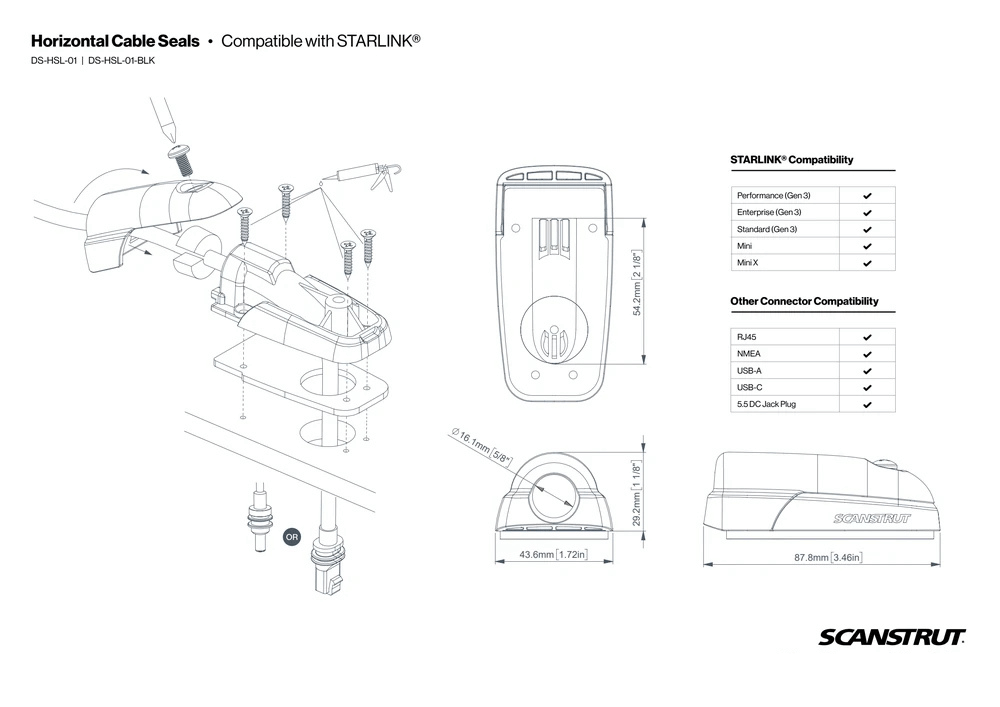

SPECIFICATIONS
Specifications
| Product Code | DS-HSL-01 |
|---|---|
| Material | High Impact Plastic |
| Colour | Grey |
| IP Rating | IP68 |
| Cable Diameter | 2-8 mm (0.07-0.31 in) |
| Max Connector Size | 16 mm (0.62 in) |
| Starlink® Compatibility | Performance (Gen 3), Enterprise (Gen 3), Standard (Gen 3), Mini, Mini X |
| Other Connector Compatibility | RJ45, NMEA, USB-A, USB-C, 5.5 DC Jack Plug |
| Bungs | 2-3 mm (0.07-0.11 in) / 4-5 mm (0.15-0.19 in) / 6-7 mm (0.23-0.28 in) / 7-8 mm (0.28-0.31 in) / 1 x Self Drill |
| Length | 87.8 mm (3.46 in) |
| Width | 43.6 mm (1.72 in) |
| Height | 29.2 mm (1 1/8 in) |
| SKU: | SST-DS-HSL-01 |
| Barcode: | 5061093900320 |
| Model #: | DS-HSL-01 |
| MPN: | DS-HSL-01 |
