Scanstrut Grey 2-6mm Horizontal Cable Seal
Scanstrut Grey 2-6mm Horizontal Cable Seal

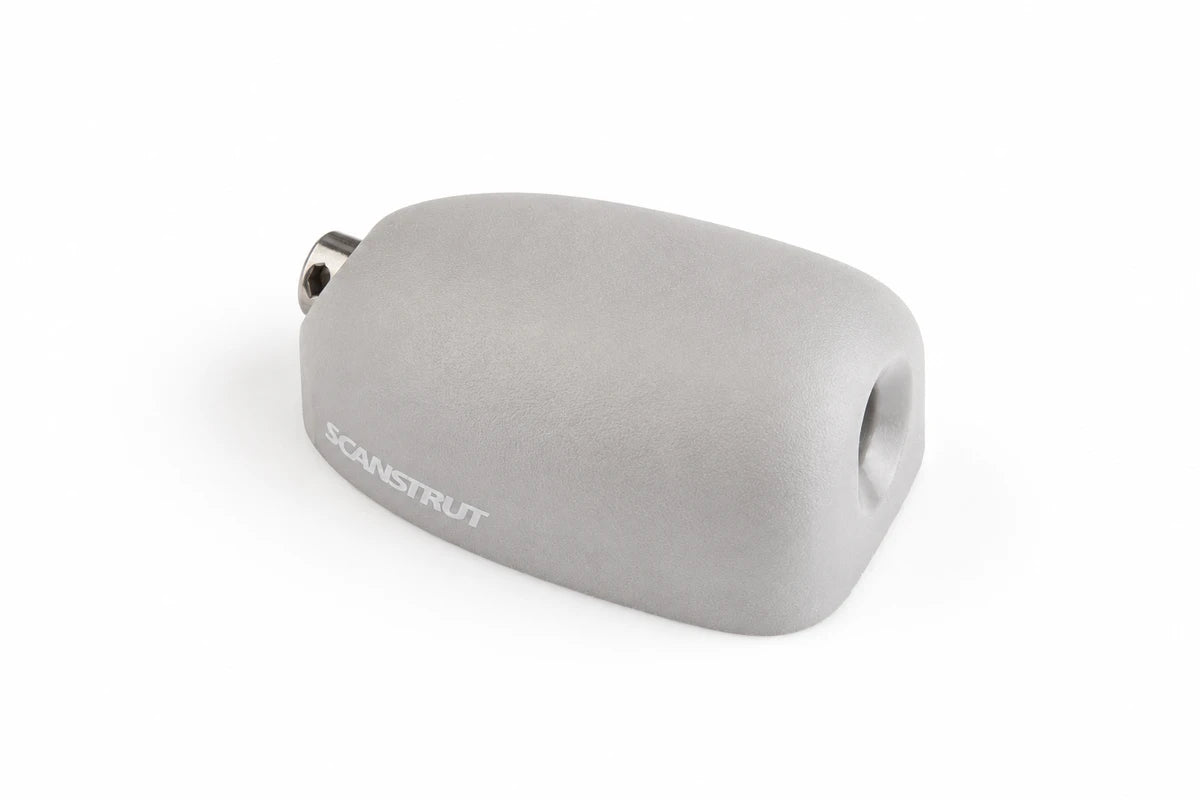

Ensure a 100% watertight, low-profile entry for 2-6mm rooftop electronics cables with this IP68 rated, UV-stable grey routing solution.
Key features: Compact horizontal entry profile, UV-stable grey plastic construction, Includes multiple bungs for 2mm to 6mm cables, Aesthetic low-profile design.

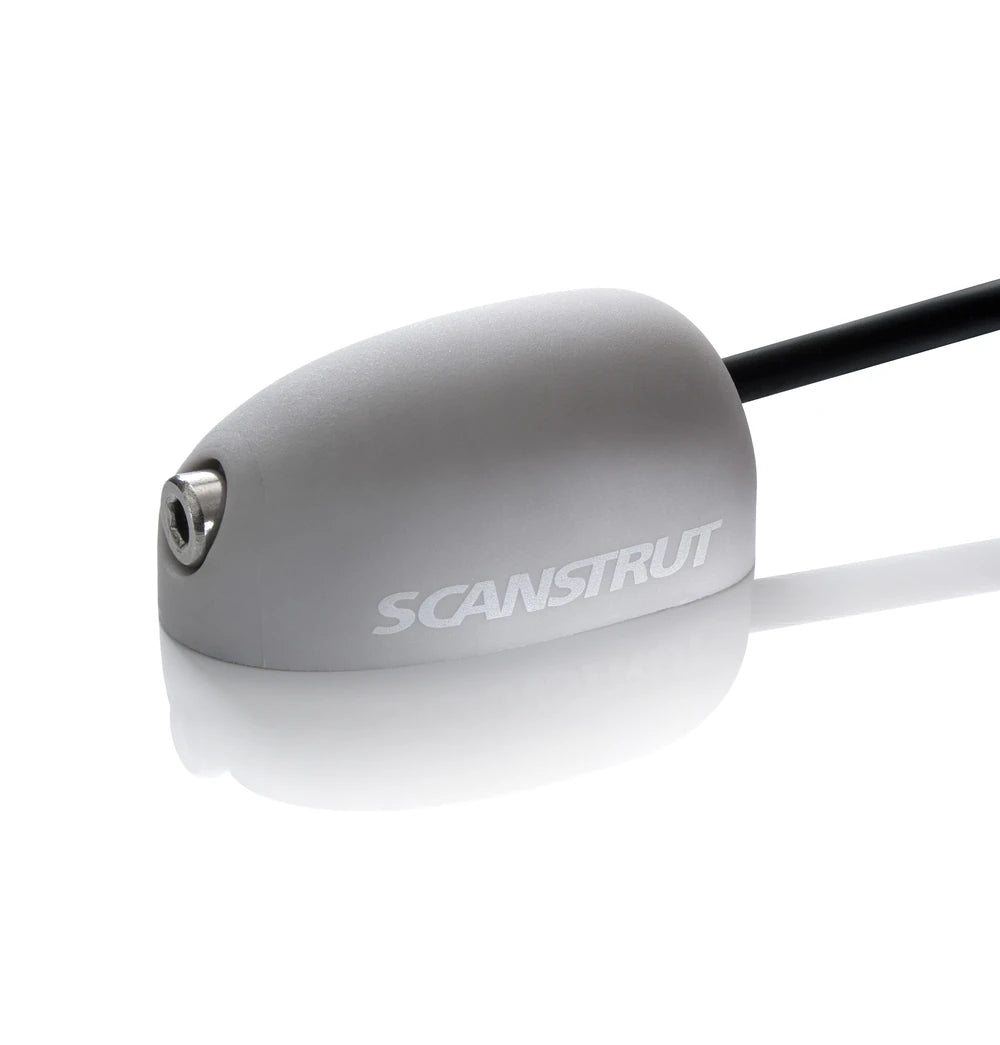

Low-profile marine cable seal shown in use with a cable installed, demonstrating the secure waterproof entry and sleek horizontal exit.

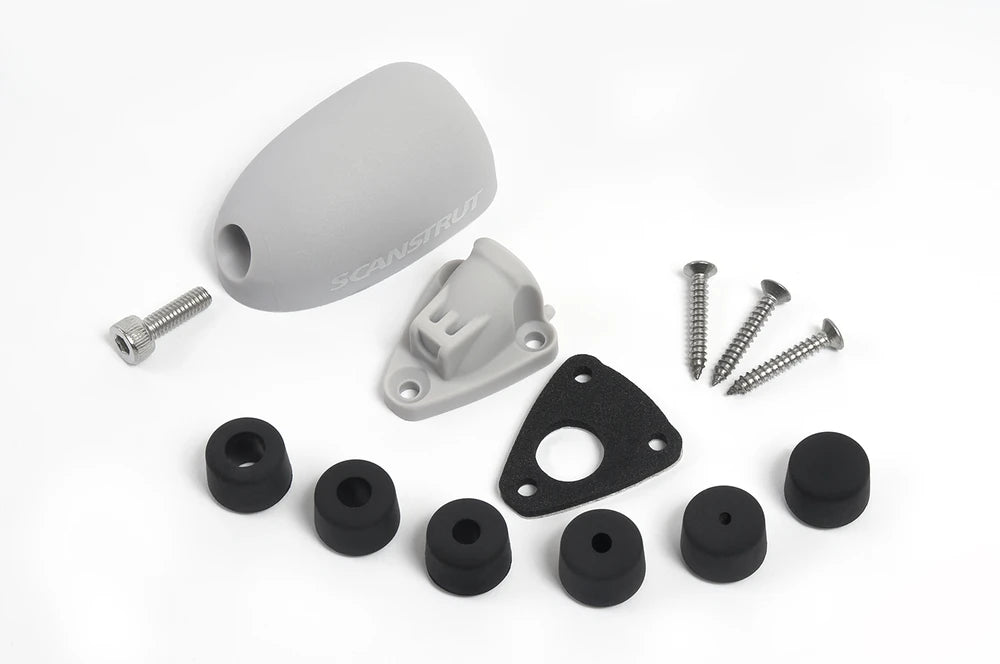

Highlights:UV-stable Shell: Outer protective shell with impact-resistant grey finish,Internal Base: Inner component providing structural support for the seal,Watertight Gasket: Foam gasket providing a reliable seal between base and mounting surface,Interchangeable Bungs: A range of rubber bungs to suit different cable diameters from 2mm to 6mm,Stainless Fasteners: Marine-grade stainless steel screws and bolts for secure installation.

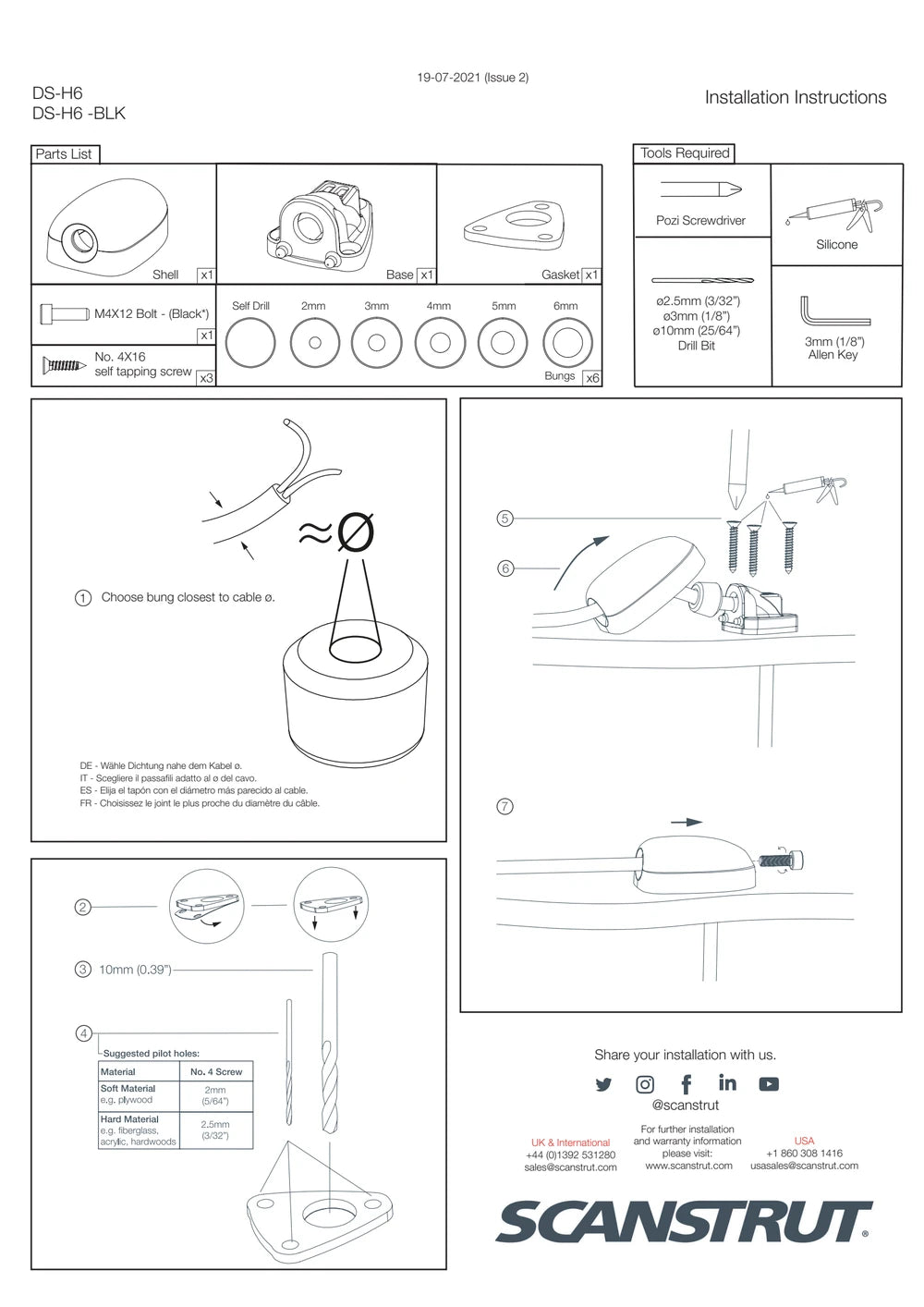

Step-by-step visual installation guide for the DS-H6 cable seal detailing parts list, required tools, and mounting procedures for a watertight finish.

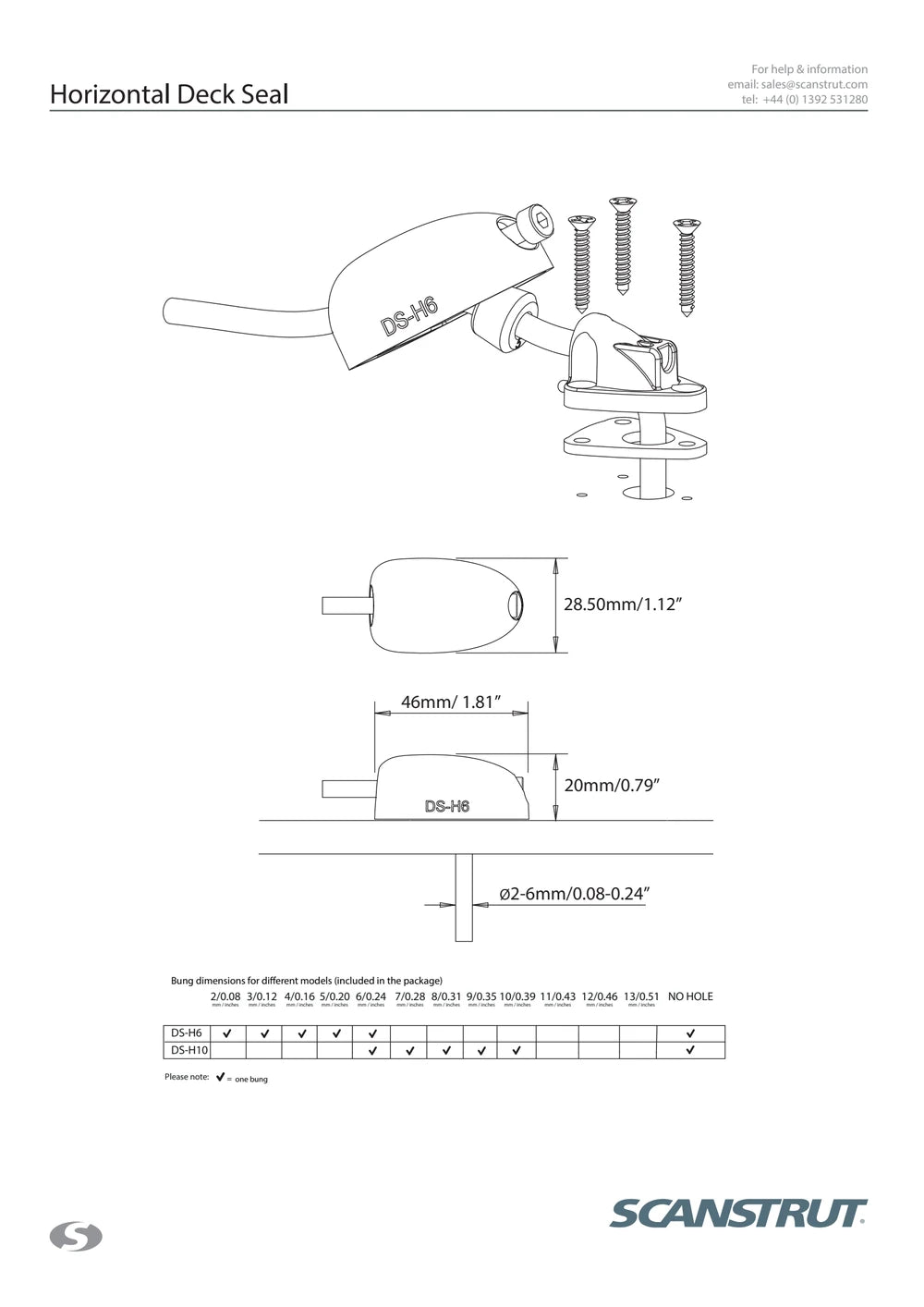

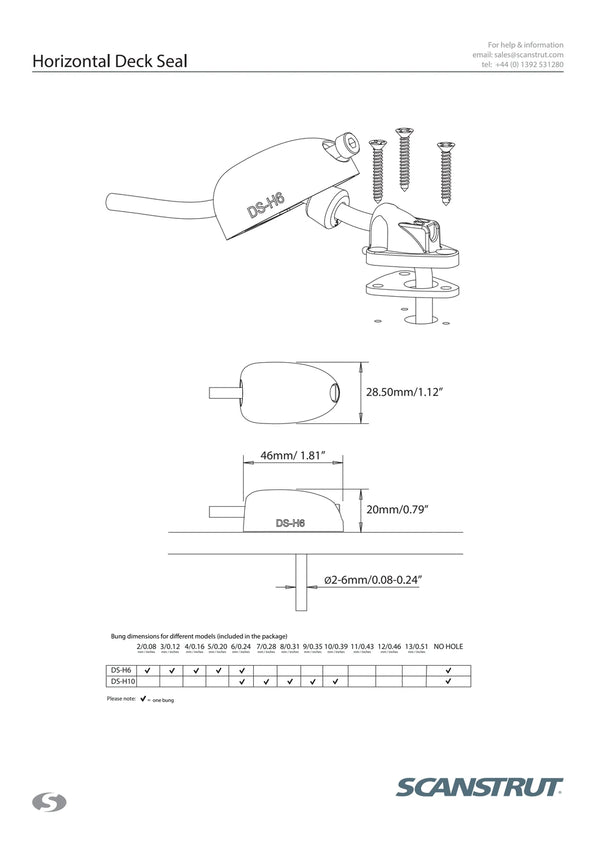

Technical specification drawing for the DS-H6 seal showing a 46mm length, 28.5mm width, and 20mm height, with bung selection for 2-6mm cables.
DESCRIPTION
Professional Grade Waterproof Cable Routing for Mobile and Marine Systems
Routing wiring through the roof of a caravan, 4WD, or boat introduces the risk of water ingress and environmental damage. The Scanstrut Grey 2-6mm Horizontal Cable Seal provides a highly reliable, flush-fitting solution designed to mitigate these risks. Engineered specifically for 2-6mm cables, this horizontal entry gland creates a secure pathway for solar panels, light bars, and communication antennas without the need for unreliable liquid sealants.
Built from UV-stable, high-impact plastic in a sleek grey finish, this cable seal blends perfectly with modern vehicle and vessel aesthetics. It is built to stand up to harsh Australian conditions, including intense sunlight, heavy rain, and coastal salt spray.
100% Watertight IP68 Reliability
Traditional cable entry methods often rely on silicones that degrade over time, leading to leaks and interior water damage. This advanced system utilizes a customisable split-seal rubber bung and a closed-cell base gasket to achieve a stringent IP68 waterproof rating. The secure compression fit ensures that moisture, dust, and debris remain securely outside your vehicle or vessel. This superior level of protection keeps sensitive interior electronics, headliners, and interior cabins completely dry and safe from the elements.
Low-Profile and Durable Construction
The horizontal orientation routes cables parallel to the mounting surface. This streamlined approach significantly reduces the risk of snagging on branches, ropes, or other roof-mounted equipment, while also improving aerodynamics on fast-moving vehicles. The impact-resistant outer shell provides robust mechanical protection against physical strikes and long-term UV exposure, easily outperforming standard grade alternatives that can become brittle and crack over time.
- IP68 waterproof rating for complete, long-lasting protection against water and dust
- UV-stable and impact-resistant outer shell designed for extreme outdoor environments
- Supplied with a closed-cell base gasket, completely eliminating the need for messy sealants
- Includes multiple pre-drilled rubber bungs and one blank bung for a precise, custom cable fit
- Marine-grade 316 stainless steel fasteners and captive nuts for simple, repeatable assembly
Versatile Applications Across Land and Sea
Whether you are upgrading an off-grid electrical system or fitting new exterior accessories, this seal offers exceptional versatility. It is highly suited for a wide variety of demanding applications, including:
- Caravan and RV solar panel wiring installations
- 4WD roof rack lighting and high-power LED light bars
- Marine electronics, VHF antennas, and vessel navigation lights
- Telecommunications wiring and external sensor cabling for remote off-grid monitoring
Engineered for compact installations with smaller 2mm to 6mm cables, this model features a minimal 46mm footprint and an ultra-low 20mm height, perfect for tight spaces and thinner control wires.
Simple, Mess-Free Installation
The inclusion of multiple interchangeable bungs allows for precise matching to your specific cable diameter right out of the box. The system uses captive nuts integrated directly into the base, which simplifies the assembly process. This thoughtful engineering allows the outer shell to be removed and refitted reliably if wiring needs to be updated, inspected, or replaced in the future, all without compromising the integrity of the watertight seal.
Upgrade Your Cable Management Today
Protect your vehicle interior and secure your exterior rooftop electronics with a professional routing solution. Order the Scanstrut Grey 2-6mm Horizontal Cable Seal for your next installation and ensure your critical wiring remains safe, dry, and neatly organised across all your off-grid and marine adventures.
SKU: SST-DS-H6
SPECIFICATIONS
Specifications
| Product | Horizontal Cable Seal |
|---|---|
| Model | DS-H6 |
| Material | High Impact Plastic |
| Height | 20 mm (0.79”) |
| Length | 46 mm (1.81”) |
| Width | 28.50 mm (1.12”) |
| Colour | Grey |
| Cable Diameter | 2-6 mm (0.08-0.24”) |
| Bend Radius | 12 mm (0.47”) with 6 mm (0.24”) cable |
| Bungs | 1 x 2 mm (0.08”) / 1 x 3 mm (0.12”) / 1 x 4 mm (0.16”) / 1 x 5 mm (0.20”) / 1 x 6 mm (0.24”) |
| SKU: | SST-DS-H6 |
| Barcode: | 5060114794931 |
| Model #: | DS-H6 |
| MPN: | DS-H6 |
