Scanstrut Black 4-6mm / 16mm Starlink Compatible Cable Seal

IP68 Watertight Marine-Grade Seal with Split Bung Design


Regular price $39.95
/
Availability: In Stock
View all products from Scanstrut
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa

20

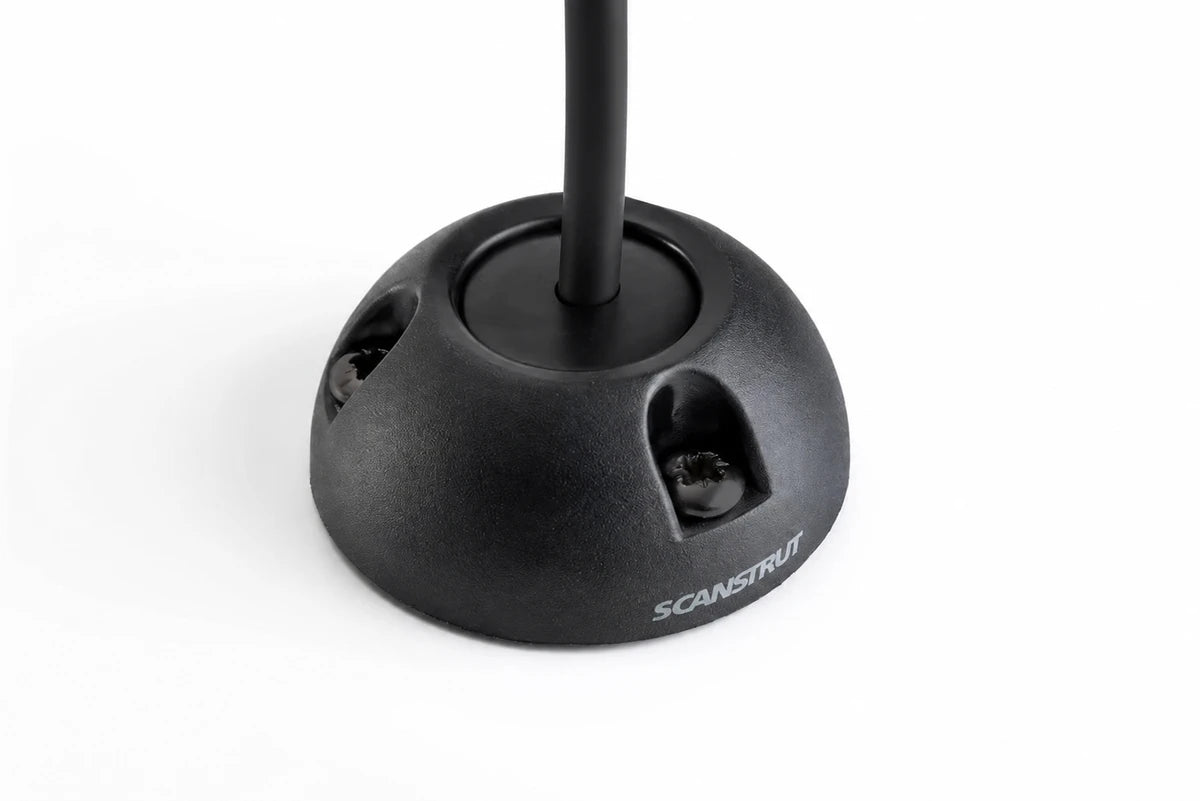

Black vertical entry cable seal with cable passing through the centre and mounting screws visible

Scanstrut Black 4-6mm / 16mm Starlink Compatible Cable Seal

DESCRIPTION

Scanstrut Black 4-6mm / 16mm Starlink Compatible Cable Seal

Achieving a secure, watertight cable entry for your satellite internet setup is critical when outfitting your marine vessel, caravan, or off-grid vehicle. The Scanstrut Black 4-6mm / 16mm Starlink Compatible Cable Seal delivers an engineered solution specifically tailored for routing communication cables through bulkheads, decks, or roofs. Featuring a vertical entry profile, this marine-grade seal accommodates cable diameters from 4mm to 6mm and allows connectors up to 16mm to pass through effortlessly.

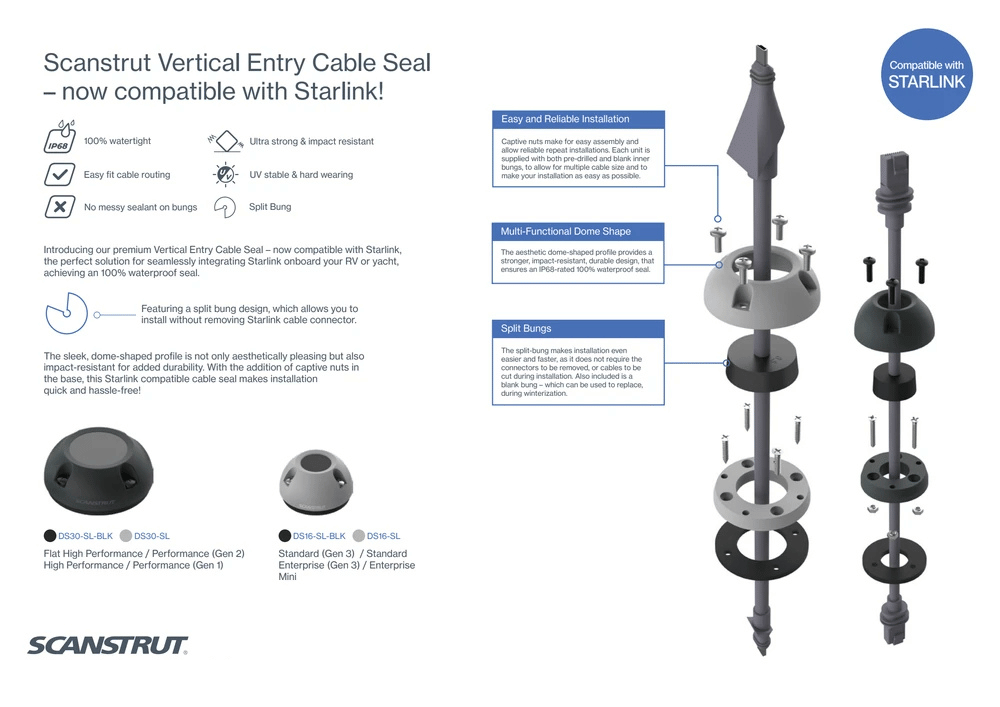

Split-Bung Design for Hassle-Free Routing

A major challenge when installing modern satellite internet systems is routing prefabricated cables without modifying them. Standard cable glands often require you to remove the proprietary connector, which introduces the risk of poor connections and voids hardware warranties. The Scanstrut split-bung system eliminates this problem entirely. By utilising a pre-slit inner seal, you can simply pass the 16mm connector through the base and wrap the bung directly around the cable. This preserves your factory connectors, saves valuable installation time, and maintains the maximum integrity of your data link.

Engineered for Harsh Environments

Protecting your interior from water ingress is paramount, especially when facing challenging Australian outdoor conditions. This premium cable seal provides a certified IP68 watertight rating, shielding your interior space from heavy rain, breaking waves, salt spray, and fine dust. Constructed from high-impact, UV-stable plastic, the unique dome-shaped profile is deliberately designed to deflect standing water and resist physical impacts. The kit includes 316 marine-grade stainless steel fixings and a custom-fit 3M base gasket, forming a highly secure mechanical and watertight bond against your mounting surface.

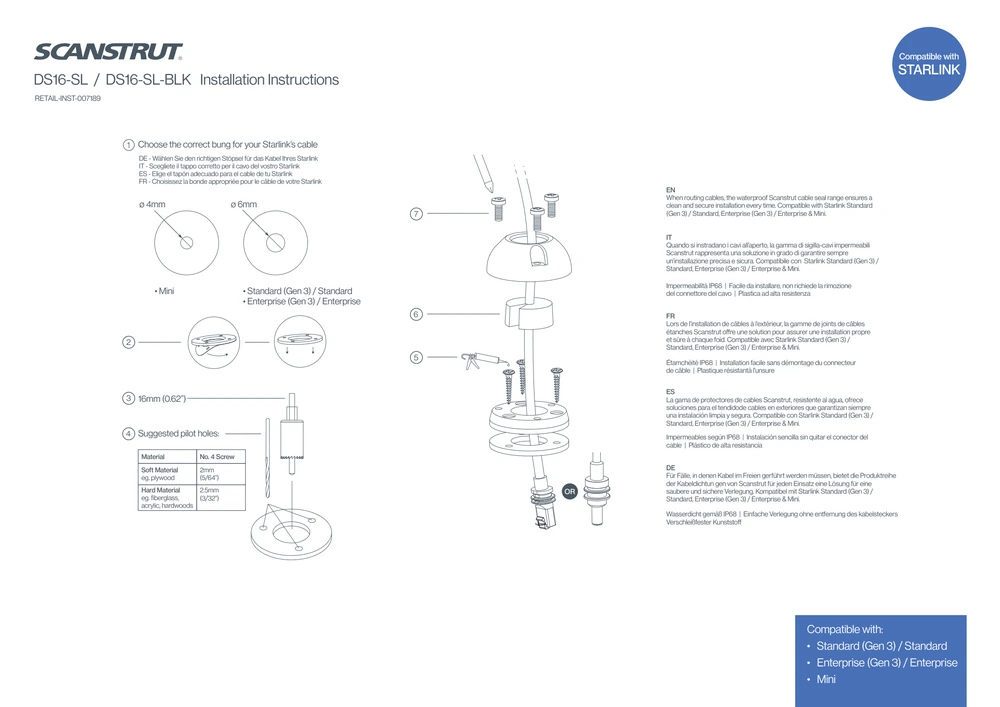

Reliable Assembly and Maintenance

Installation is designed to be straightforward and repeatable. Captive nuts integrated into the base housing simplify the assembly process, preventing lost hardware in tight spaces or over open water. This feature also allows for reliable repeat installations, making routine maintenance or future system upgrades incredibly straightforward. No messy liquid sealants are required on the bungs, ensuring a clean, professional finish every time.

Comprehensive System Compatibility

Designed specifically to meet the needs of modern satellite setups, this cable seal is fully compatible with Starlink Standard (Gen 3), Enterprise (Gen 3), and Mini hardware. Each unit is supplied with three highly adaptable split bungs: one blank seal for custom drilling, one 4mm seal, and one 6mm seal, ensuring you have the precise fitment required for your specific cable gauge.

Key Features

  • IP68 watertight rating for maximum protection against water and dust ingress
  • Split-bung technology allows installation without removing factory connectors
  • Accommodates cables from 4mm to 6mm and connectors up to 16mm in diameter
  • Manufactured from premium marine-grade, UV-stable, high-impact materials
  • Includes 316 stainless steel fasteners and a waterproof 3M base gasket
  • Captive nuts ensure simple assembly and reliable repeat installations

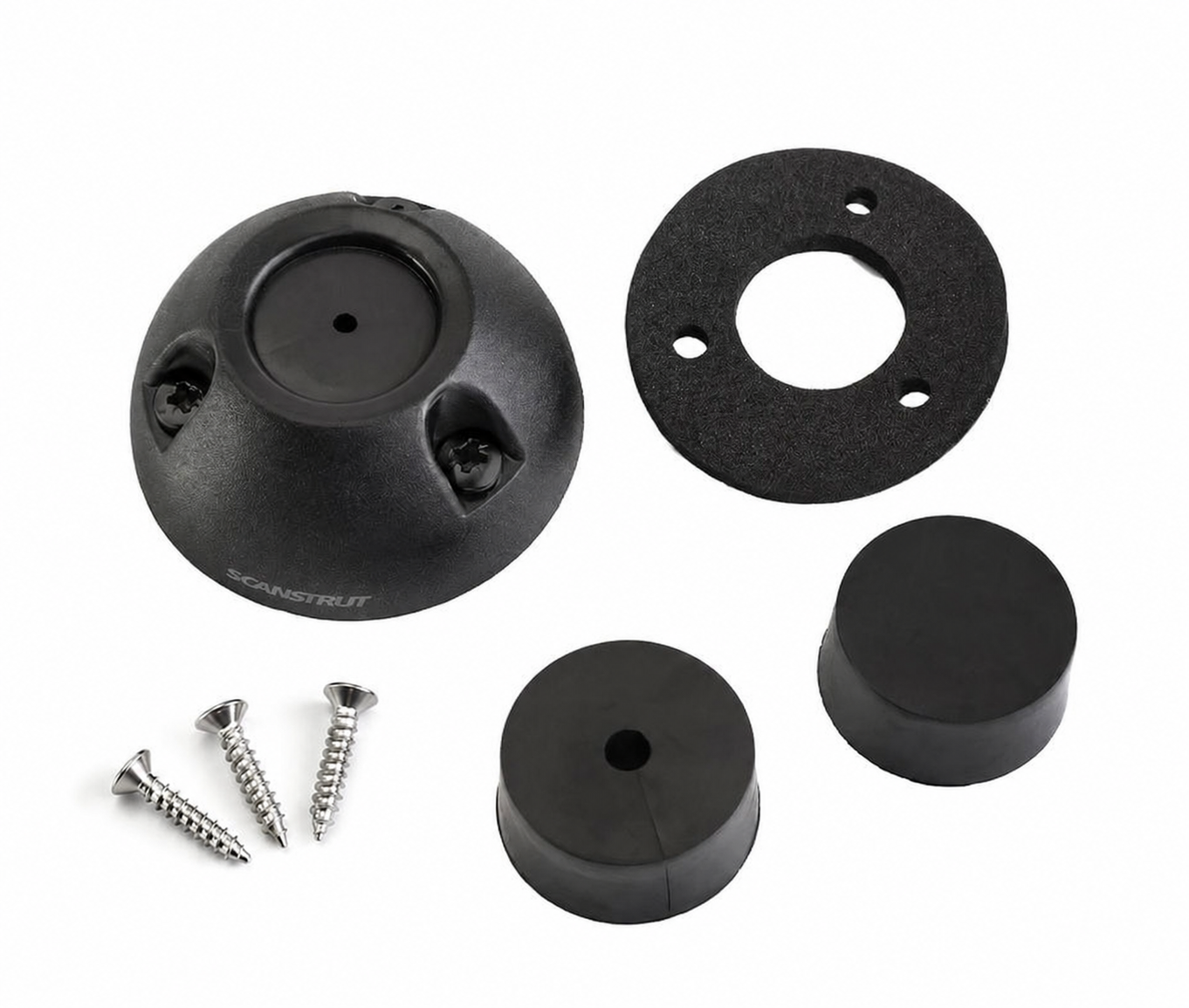

  • Supplied with three bungs: 1x blank, 1x 4mm, and 1x 6mm

Ensure your off-grid communications remain uninterrupted and your vehicle or vessel stays completely dry. Upgrade your roof or deck cable routing with the Scanstrut Black Cable Seal today and experience professional-grade weatherproofing for your satellite internet setup.


SKU: SST-DS16-SL-BLK

SPECIFICATIONS

Specifications

Product TypeStarlink Compatible Cable Seal
SKUDS16-SL-BLK
ColourBlack
MaterialHigh-Impact UV-Stable Plastic
Cable OrientationVertical Entry
IP RatingIP68
Starlink CompatibilityStandard (Gen 3) / Standard; Enterprise (Gen 3) / Enterprise; Mini
Pre-Drilled Bungs SuppliedSelf Drill; 4 mm (0.16"); 6 mm (0.23")
Split BungInstall without removing Starlink cable connector

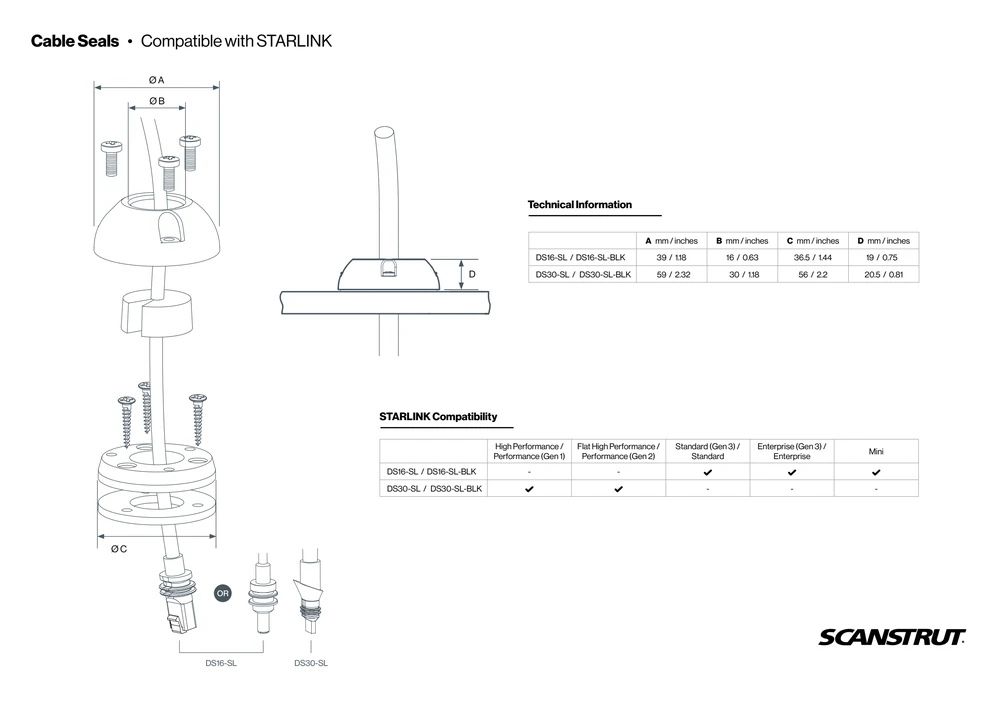

Dimension A39 mm (1.18")
Dimension B16 mm (0.63")
Dimension C36.5 mm (1.44")
Dimension D19 mm (0.75")

SKU: SST-DS16-SL-BLK
Barcode: 5060114799684
Model #: DS16-SL-BLK
MPN: DS16-SL-BLK
