Scanstrut 12V Flip Pro Multi Dual USB-C & Accessory/Cigarette Socket
Scanstrut 12V Flip Pro Multi Dual USB-C & Accessory/Cigarette Socket
IPX4 Waterproof Marine Fast Charge Outlet with 60W Capability

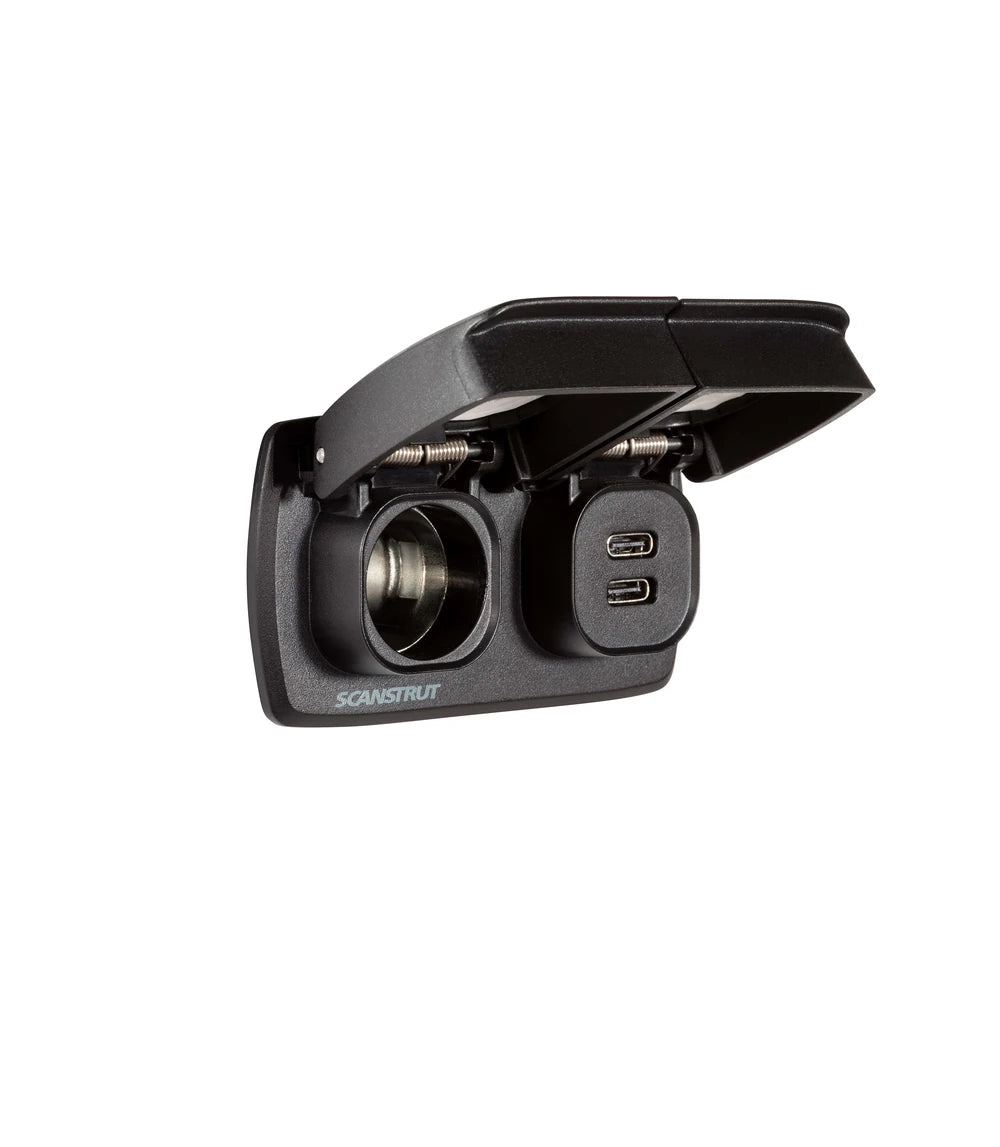

Highlights:12V Power Socket: Heavy-duty cigarette lighter style accessory socket for 12V devices,Dual USB-C Ports: High-speed USB-C charging ports with up to 60W output per port,Spring-loaded Covers: Weatherproof lids with 316 stainless steel hinges and springs,UV-Resistant Housing: Marine-grade construction designed for harsh outdoor environments.
Key features: IPX4 waterproof rating when lids are closed, Dual 60W USB-C fast-charging capability, Marine-ready 316 stainless steel hinge and spring, Premium UV-resistant high-performance plastic.

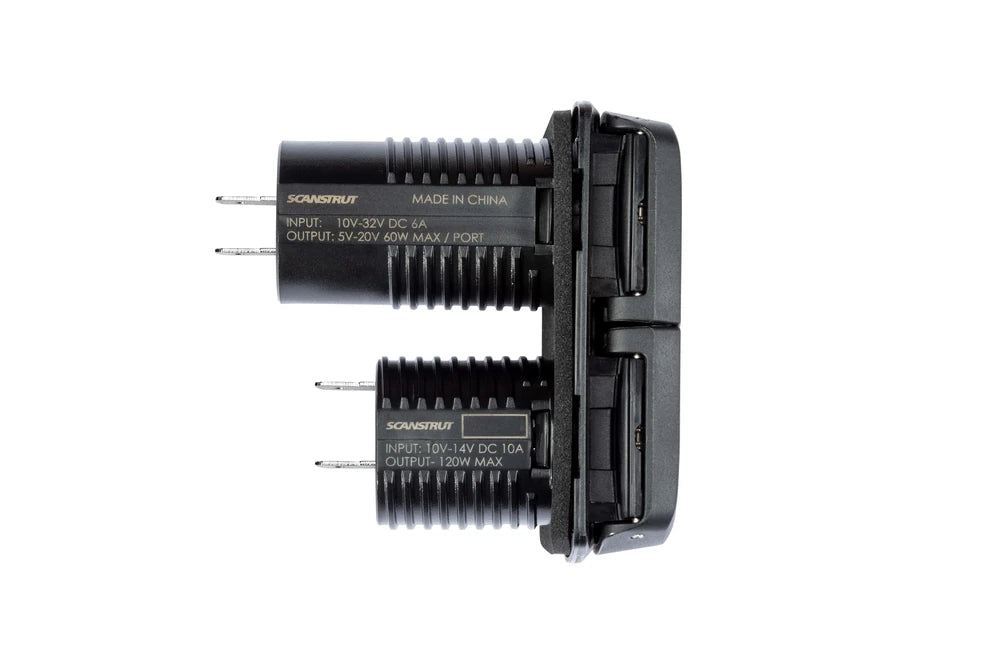

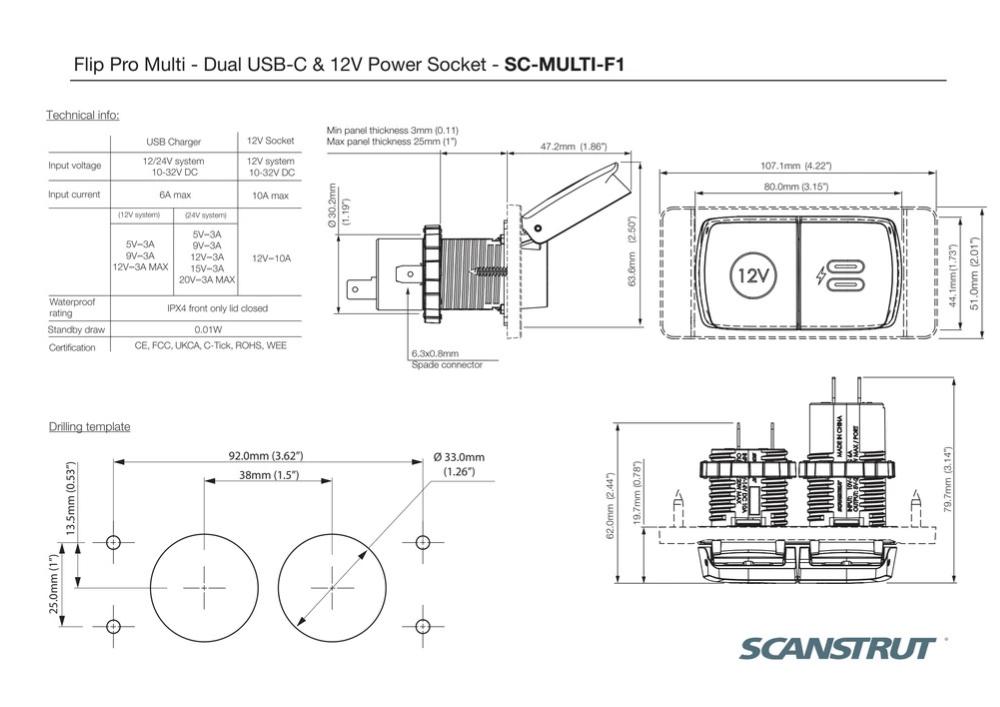

Technical side profile illustrating the compact rear housing with clear marking for 10V-32V DC input and 60W USB-C output per port.










DESCRIPTION

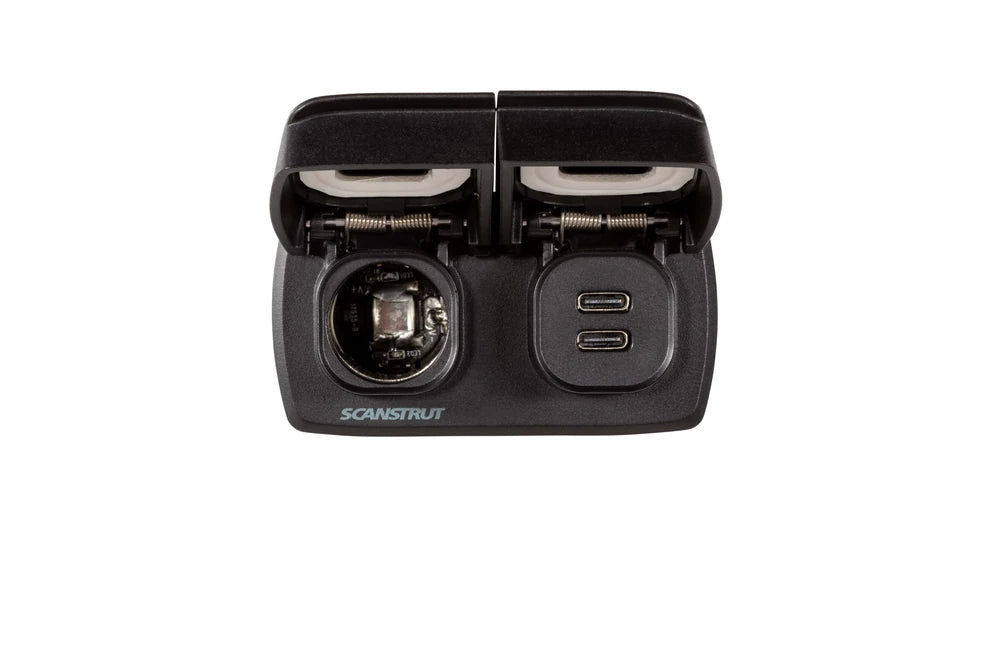

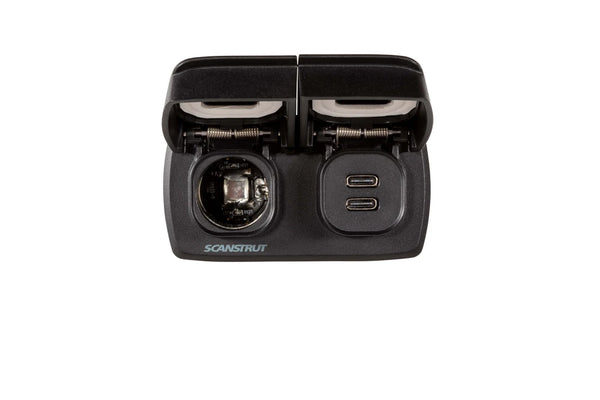

Scanstrut Flip Pro Multi Dual USB-C & 12V Accessory Socket
Keep your critical devices powered and ready with the Scanstrut Flip Pro Multi, a premium combination power solution engineered for marine, 4x4, and RV applications. This unit seamlessly combines the high-power capabilities of a dual USB-C fast charger with a heavy-duty 12V accessory receptacle, providing versatile power options in one compact, sleek panel.
Ultimate Power Flexibility on the Water or Off-Road
The increasing reliance on tablets, smartphones, and laptops for navigation and entertainment requires reliable onboard power. Standard factory power outlets often lack the wattage necessary to charge modern devices quickly, especially while they are actively in use. The Scanstrut Flip Pro Multi solves this issue by delivering simultaneous fast charging alongside a traditional power socket for your portable fridge, spotlight, or air compressor.
Fast Charging for Modern Devices
The integrated USB-C ports are engineered for speed, offering up to 60W of power output per port. This allows you to charge demanding devices like laptops efficiently. Note that while the USB-C ports operate on both 12V and 24V systems, a 24V input is required to achieve the full 60W output suitable for laptops. On a standard 12V system, the ports will output a maximum of 36W, which is still more than sufficient to rapidly charge most modern smartphones and navigation tablets. The 12V accessory socket operates exclusively on 12V systems and handles up to 10A of input current, delivering up to 150W of maximum power for your heavier equipment.
Built for Harsh Marine and Outdoor Environments
Constructed to endure harsh coastal and off-road conditions, this unit significantly reduces the risk of electrical corrosion and water ingress. When the ports are not in use, spring-loaded caps remain tightly closed to provide a reliable IPX4 waterproof rating. The hinges and springs are constructed from marine-grade 316 stainless steel, ensuring they will not rust or seize over time. Additionally, the external housing is manufactured from UV-resistant high-performance plastic to prevent fading and cracking under intense Australian sun exposure.
Key Features
- Dual USB-C ports with fast-charge capability (up to 60W per port on 24V systems)

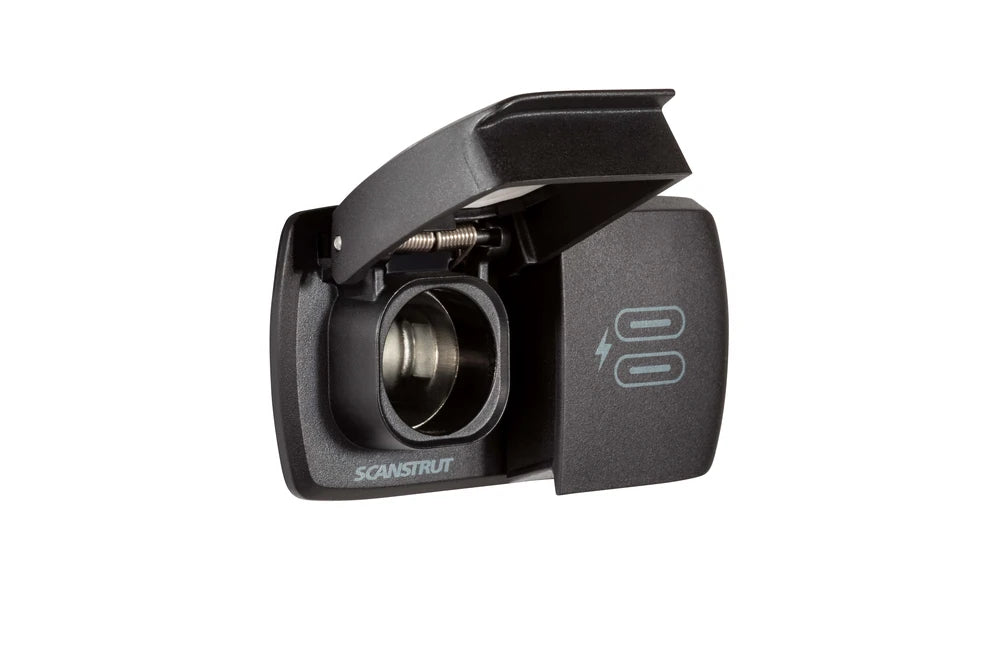

- Integrated 12V accessory power socket for heavy-duty appliances (12V systems only)

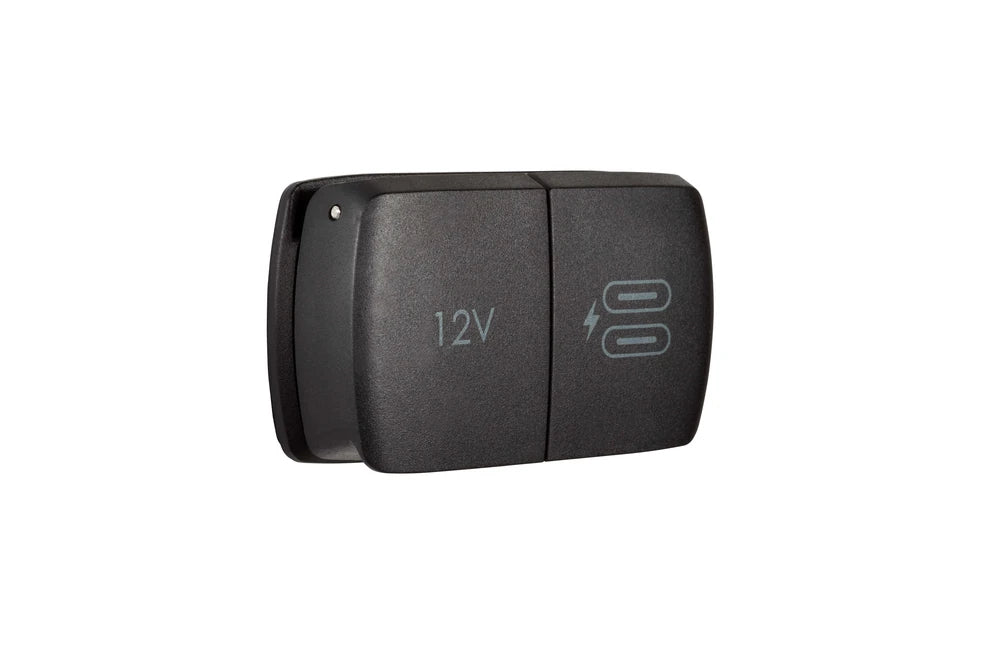

- IPX4 waterproof rating with the protective covers closed
- Marine-ready 316 stainless steel hinges and internal springs
- UV-resistant housing engineered for long-term outdoor durability

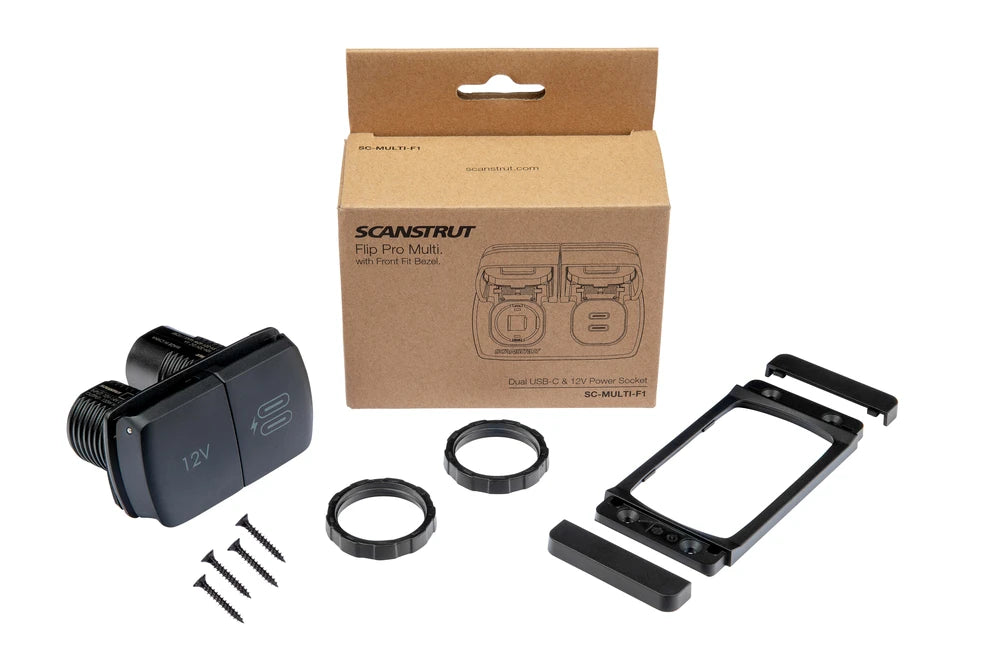

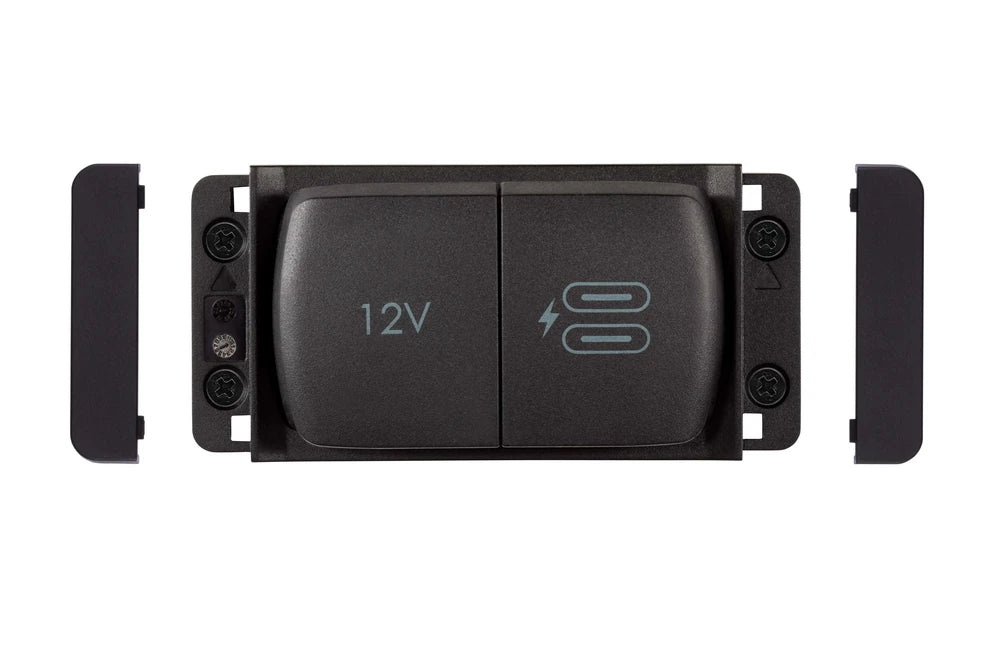

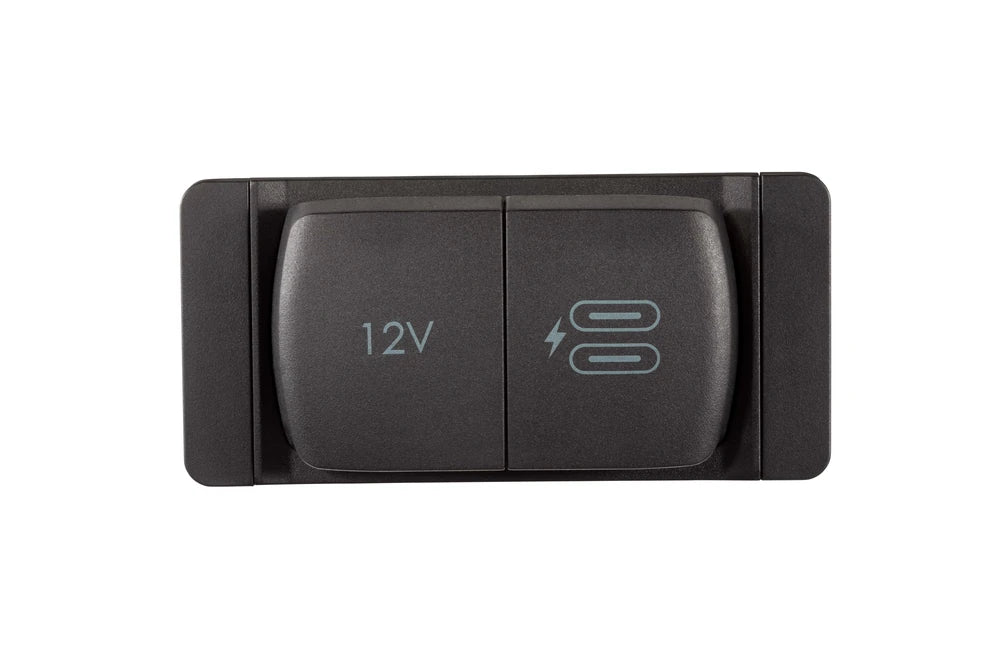

- Supplied with a front-fit bezel kit for a clean, professional finish

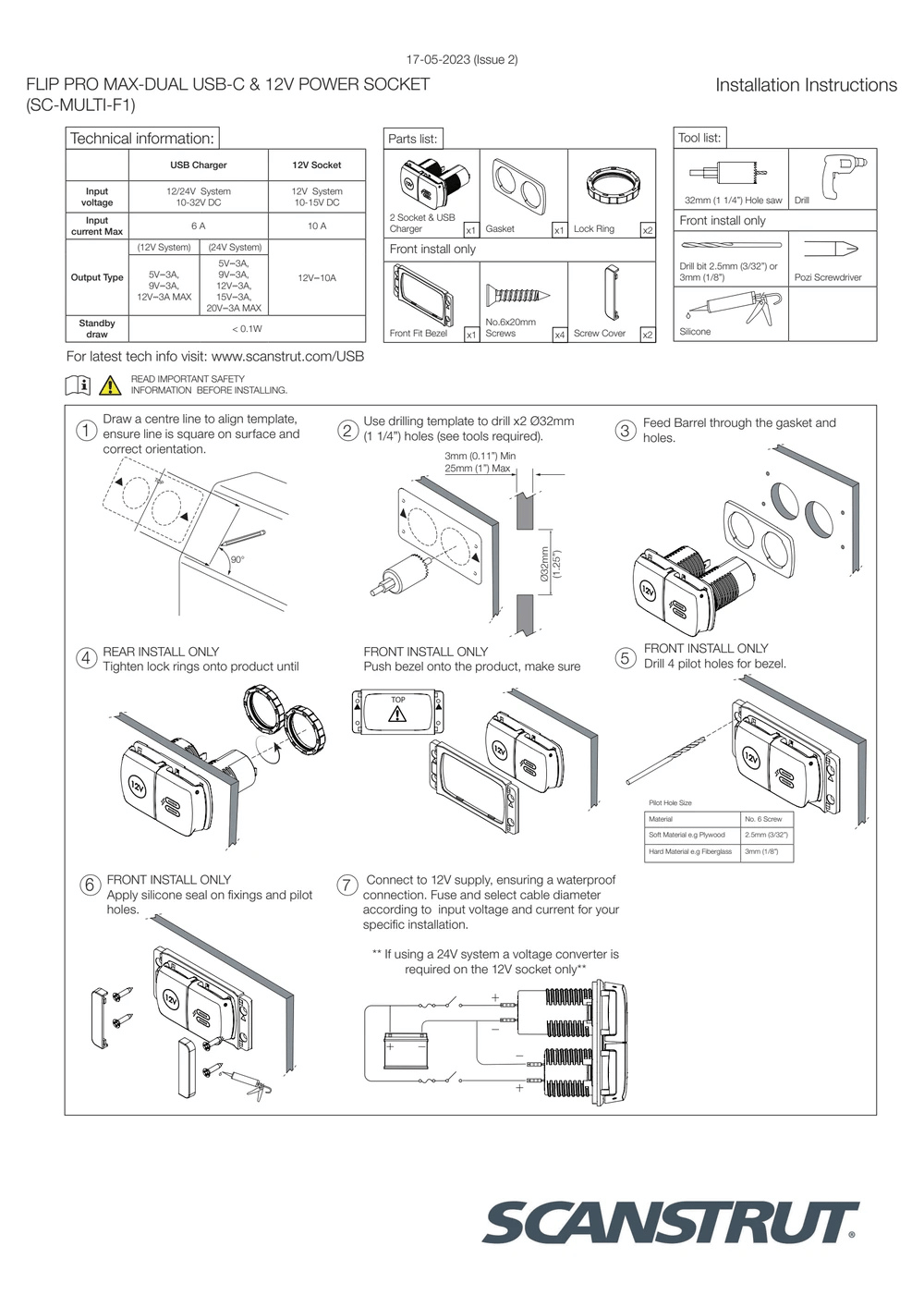

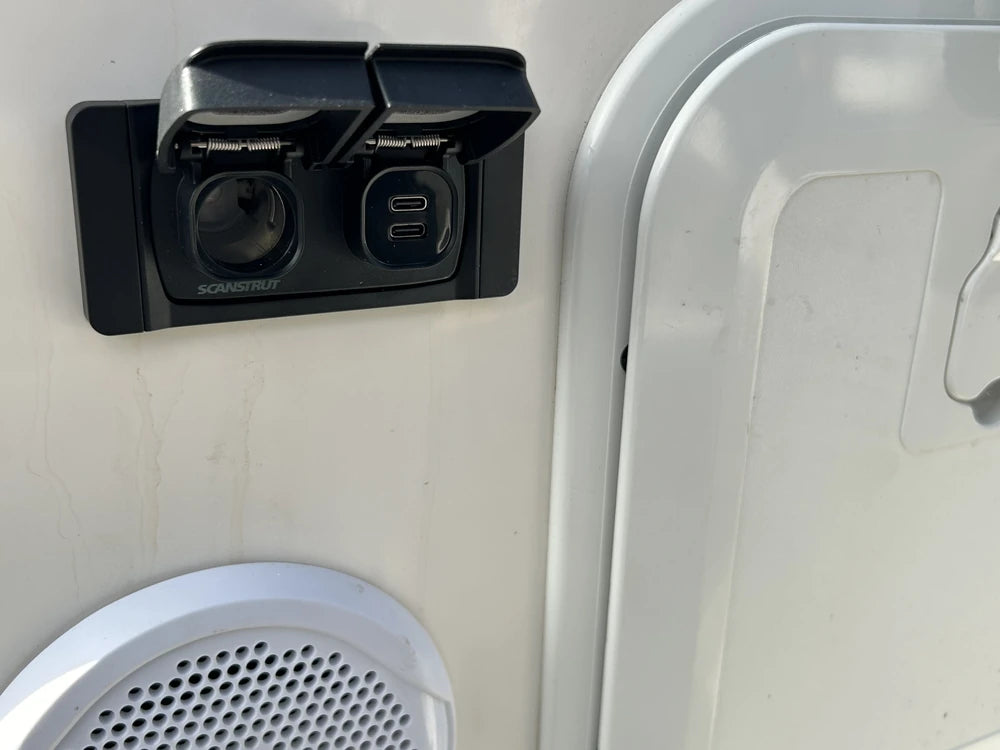

Installation and Application
Installation is straightforward and adaptable to various mounting locations. The unit requires a minimum panel thickness of 3 mm and can securely accommodate panels up to 25 mm thick. The overall footprint is a compact 107.1 mm wide by 80.0 mm high, making it an ideal upgrade for crowded dashboards, bulkheads, or custom electrical boxes. Standard 6.3 mm x 0.8 mm spade connectors make wiring into your existing 12V system simple, fast, and efficient.
Ready to Upgrade Your Power Setup?
Equip your vessel, camper, or off-grid vehicle with reliable, high-speed charging capabilities. Order the Scanstrut Flip Pro Multi today and ensure all your critical electronics stay powered wherever your next adventure takes you.
SKU: SST-SC-MULTI-F1
SPECIFICATIONS
Specifications
| Product | Flip Pro Multi |
|---|---|
| SKU | SC-MULTI-F1 |
| Description | Dual USB-C & 12V power socket |
| Max Power | 120 -150 W max power 12V system only |
| USB Input Voltage | 10-32 V DC (12/24V system) |
| USB Input Current | Max 6 A (10 A fuse recommended) |
| USB Output (Type C), 12V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX |
| USB Output (Type C), 24V System | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A MAX |
| USB Standby Draw | 0.01 W |
| USB Certification | CE, FCC, UKCA, C-Tick, ROHS, WEE |
| 12V Power Socket Input Voltage (12V System Only) | 10-15 V DC |
| 12V Power Socket Input Current | Max 10 A |
| 12V Power Socket Output | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX |
| 12V Power Socket Standby Draw | 0.01 W |
| 12V Power Socket Certification | CE, ROHS, WEE, UKCA |
| Waterproof Rating | IPX4 front only lid closed |
| Hinge And Spring | 316 stainless hinge and spring |
| Bezel Kit | Supplied with a front-fit bezel kit |
| Overall Width | 107.1 mm (4.22”) |
| Overall Height | 80.0 mm (3.15”) |
| Min Panel Thickness | 3 mm (0.11”) |
| Max Panel Thickness | 25 mm (1”) |
| Spade Connector | 6.3 x 0.8 mm |
| SKU: | SST-SC-MULTI-F1 |
| Barcode: | 5060114798298 |
| Model #: | SC-MULTI-F1 |
| MPN: | SC-MULTI-F1 |
