Scanstrut Flip Pro Fast Charge USB-A & USB-C Socket with Bezel
Scanstrut Flip Pro Fast Charge USB-A & USB-C Socket with Bezel
Up to 60W Fast Charging - IPX4 Waterproof - 12V & 24V Compatible

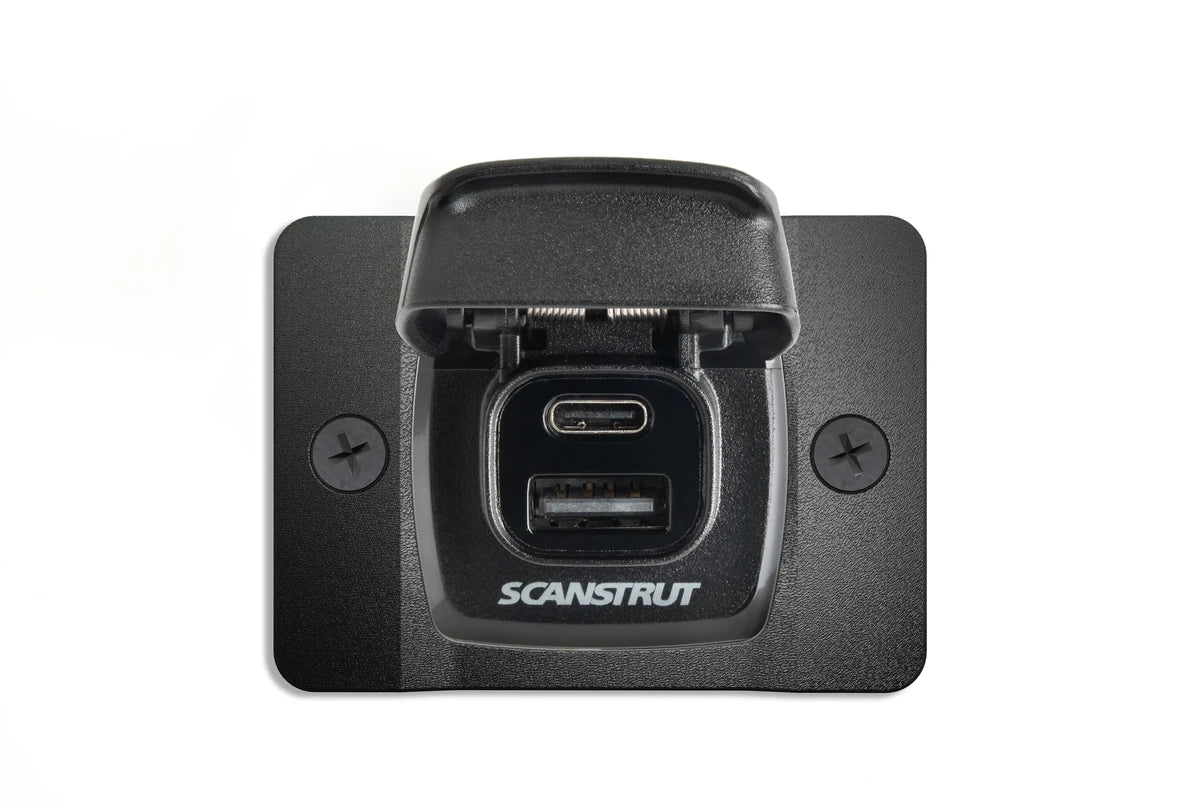

Highlights:Protective Lid: Spring-loaded cap for IPX4 waterproof protection,USB-C Port: Fast charge USB-C port supporting up to 60W,USB-A Port: Fast charge USB-A port supporting up to 36W,Front-Fit Bezel: Bezel for easy installation from the front of the panel,Fixing Screws: Stainless steel screws for secure front-mount fitting.
Key features: Dual USB-A and USB-C fast charging, Front-fit bezel for surface mounting, Threaded body with optional locking nut, IPX4 waterproof rating with lid closed, Marine-grade 316 stainless steel hinge.

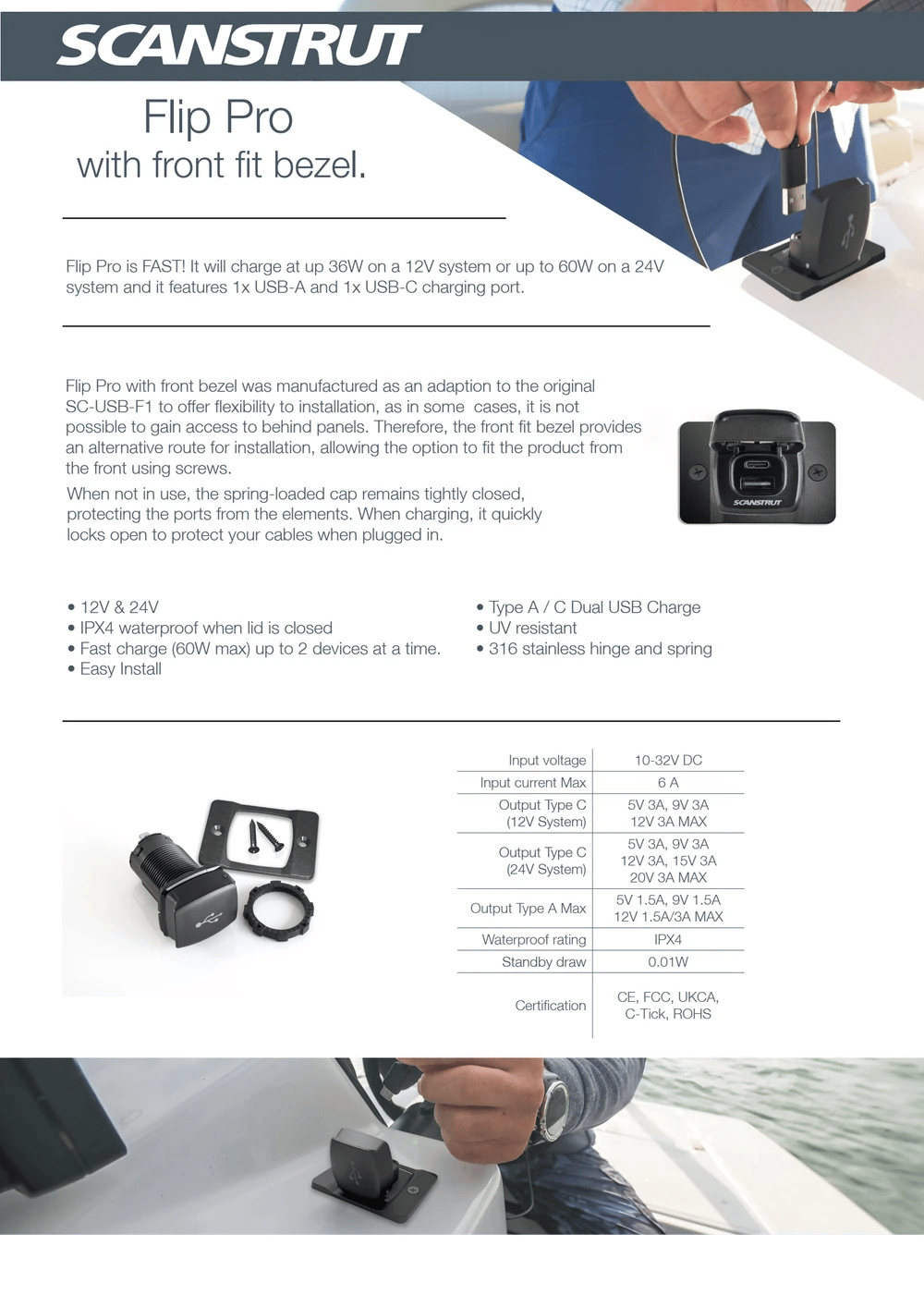

Product overview and specification sheet for the Flip Pro, detailing 12V and 24V compatibility, IPX4 waterproofing, and maximum 60W fast charge output for USB-C devices

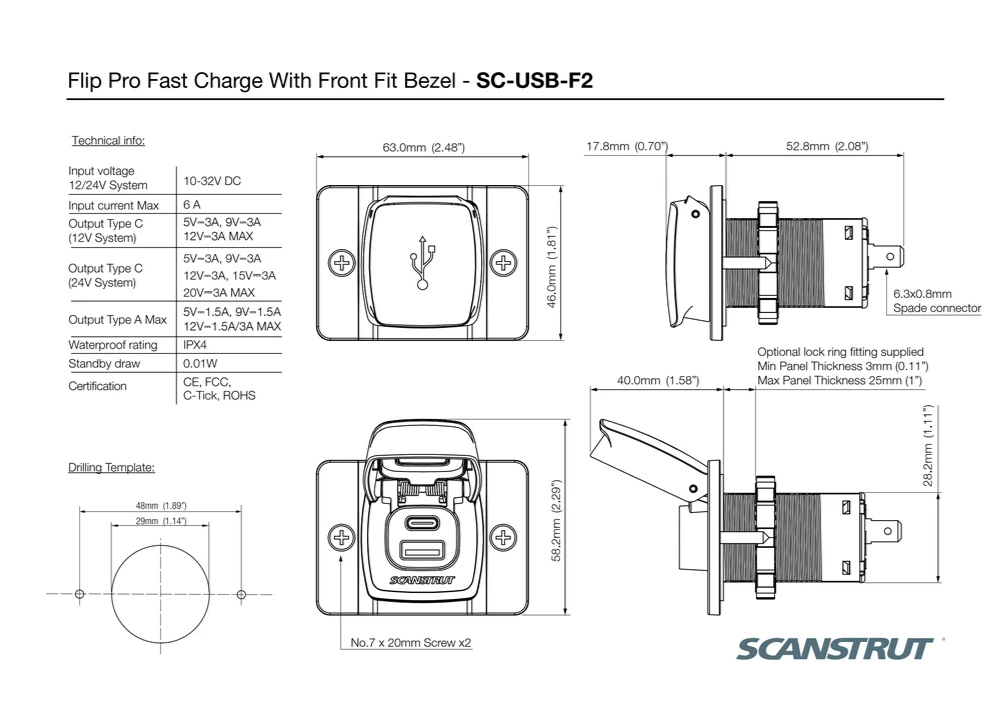

Detailed engineering drawing illustrating product dimensions, including a 63mm bezel width and 29mm cutout requirement for flush mounting with the front-fit bezel
DESCRIPTION
Scanstrut Flip Pro: Advanced Dual USB Fast Charging for Marine and RV Applications
Uncompromising Power for Modern Electronics
The Scanstrut Flip Pro Fast Charge USB-A & USB-C Socket with Bezel delivers the performance required to keep today's power-hungry devices fully charged while on the move. Engineered for both 12V and 24V DC systems, this marine-grade charger provides a highly efficient power delivery solution for boats, caravans, and off-grid setups. Unlike standard automotive chargers that struggle to maintain current under load, the Flip Pro is designed to output up to 60W on a 24V system and 36W on a 12V system. This makes it fully capable of fast-charging modern laptops, large tablets like the iPad Pro, and smartphones simultaneously without thermal throttling or voltage drops.
Robust Marine-Grade Durability
Operating electronic equipment in coastal, marine, or rugged outback environments carries the risk of corrosion and water ingress. The Flip Pro mitigates these risks through meticulous engineering. It features an IPX4 waterproof rating when the cover is closed, making it completely washdown-ready. The robust spring-loaded cap remains tightly sealed against the elements when not in use and locks open securely to protect your cables during charging.
Internally, the circuitry is protected by an advanced anti-corrosion coating, while the exterior housing is constructed from UV-resistant materials. Combined with a premium 316 stainless steel hinge and spring, this socket provides long-lasting reliability in salt-air and high-UV environments, significantly outlasting inferior alternatives.
Seamless Installation and Retrofitting
The inclusion of a front-fit bezel provides exceptional installation flexibility. If rear access to the mounting panel is restricted, this model allows you to easily secure the socket from the front using the supplied screws. It requires a standard 29 mm (approx. 1 1/8") mounting hole, matching the footprint of legacy 12V power receptacles and older USB chargers. This makes upgrading your current setup a straightforward process. With a minimal standby power draw of just 0.01W, you can leave the socket wired permanently to your battery bank without worrying about parasitic drain.
Key Features and Technical Benefits
- Dual Port Design: Features 1x USB-A and 1x USB-C port to support a wide range of legacy and modern devices.
- High-Speed Output: Delivers up to 60W maximum output on 24V systems and 36W on 12V systems.
- Weatherproof Construction: IPX4 rated with the cap closed, ensuring protection against splashes and washdowns.
- Corrosion Resistance: Internal anti-corrosion coating and a 316 stainless steel hinge engineered for marine environments.
- Front-Fit Bezel: Allows for secure surface mounting from the front, ideal for bulkheads and tight console spaces.
- Ultra-Low Standby Draw: Consumes only 0.01W when idle, preserving battery health in off-grid systems.
- Standard Sizing: Fits standard 29 mm mounting cut-outs for effortless retrofitting.
Reliable Power for Every Journey
Whether you are outfitting a centre console boat, upgrading a caravan power system, or building a custom 12V canopy setup, dependable device charging is essential. The Scanstrut Flip Pro provides the high wattage needed for demanding electronics in a compact, weather-resistant package.
Upgrade Your Power Setup Today
Ensure your laptops, tablets, and communication devices stay powered no matter how far off the grid you travel. Add the Scanstrut Flip Pro Fast Charge USB-A & USB-C Socket to your system and experience reliable, high-speed charging in any environment.
SKU: SST-SC-USB-F2
SPECIFICATIONS
Specifications
| Manufacturer | Scanstrut |
|---|---|
| Part Number | SC-USB-F2 |
| Product Name | Flip Pro Fast Charge With Front Fit Bezel |
| USB Ports | 1x USB-A and 1x USB-C charging port |
| Input Voltage | 10-32 V DC (12/24 V system) |
| Input Current | Max 6 A (10 A fuse recommended) |
| Output Type C (12 V System) | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX |
| Output Type C (24 V System) | 5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A MAX |
| Output Type A Max | 5 V⎓1.5 A, 9 V⎓1.5 A, 12 V⎓1.5 A/3 A MAX |
| USB-C Output | 60 W max on 24 V system; 36 W max on 12 V system |
| USB-A Output | 36 W max |
| Standby Draw | 0.01 W |
| Waterproof Rating | IPX4 with the cover closed |
| Mounting Hole | 29 mm (1 1/8") |
| Panel Thickness | Min Panel Thickness 3 mm (0.11"); Max Panel Thickness 25 mm (1") |
| Connector | 6.3 x 0.8 mm Spade connector |
| Material Features | Internal anti-corrosion protective coating; UV resistant; 316 stainless hinge and spring |
| Certification | CE, FCC, UKCA, C-Tick, ROHS |
| SKU: | SST-SC-USB-F2 |
| Barcode: | 5060114798113 |
| Model #: | SC-USB-F2 |
| MPN: | SC-USB-F2 |
