Scanstrut 1-15mm Aluminium Vertical Multi Cable Seal
Scanstrut 1-15mm Aluminium Vertical Multi Cable Seal
IP68 Waterproof Anodised Housing with Customisable Undrilled Bung
Key features: Marine-grade aluminium construction, IPX6 and IPX7 waterproof rating, Accommodates multiple cables from 1mm to 15mm, No need to remove cable connectors during installation.

Highlights:Aluminium Shell: UV-stable, marine-grade aluminium housing,Split Bung: Customisable rubber bung for multiple cables,Base Plate: Internal base for secure mounting,Gasket: Watertight seal between product and mounting surface,Stainless Fasteners: Corrosion-resistant mounting hardware.

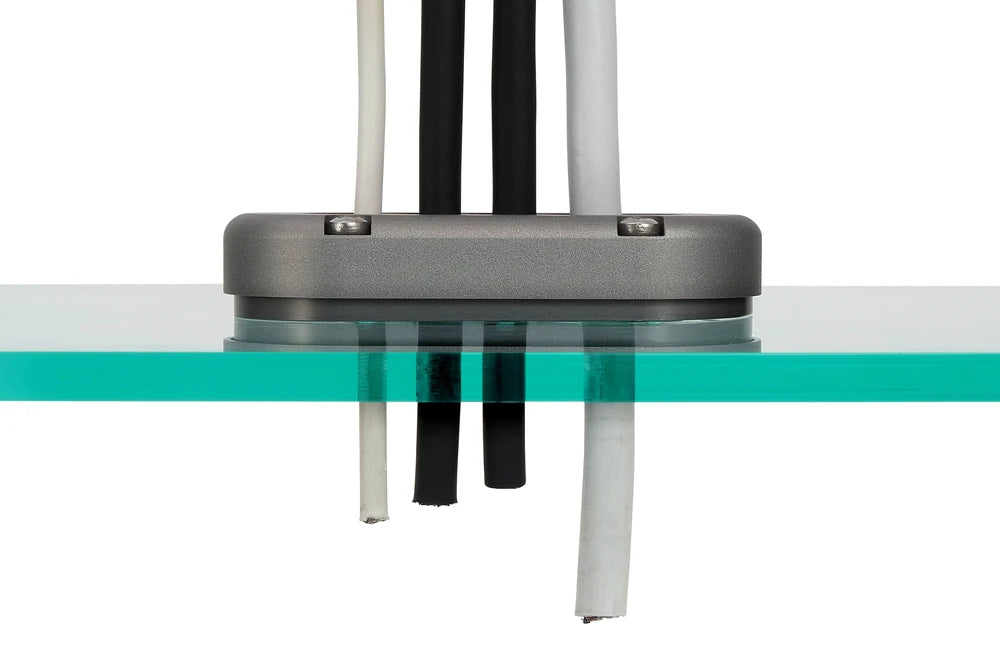

A side profile demonstrates the low-profile design of the aluminium multi cable seal while securely managing and sealing four distinct cables through a single surface entry point.





DESCRIPTION
Scanstrut 1-15mm Aluminium Vertical Multi Cable Seal
Professional Cable Management for Marine and RV Applications
Routing multiple electrical wires through a bulkhead, roof, or deck can expose your vehicle or vessel to significant moisture risks. The Scanstrut 1-15mm Aluminium Vertical Multi Cable Seal provides a highly engineered, watertight solution for feeding several cables through a single entry point. Designed for marine, 4x4, and off-grid caravan systems, this low-profile cable gland ensures critical electronics remain protected from harsh environmental conditions.
Constructed from marine-grade anodised aluminium, this robust seal is built to withstand extreme weather, UV exposure, and physical impacts. Whether you are installing solar panels, lighting, or communication antennas, this premium fitting offers a secure, reliable barrier against water and dust intrusion.
Customisable Installation with Undrilled Bung
One of the primary challenges when installing electronics is managing cables of varying diameters while maintaining a watertight seal. This Scanstrut cable seal includes a customisable, undrilled rubber bung. This allows you to drill custom hole sizes specifically tailored to your exact wiring requirements, accommodating multiple cables up to a maximum diameter of 15mm.
Furthermore, the innovative split-bung design means you do not have to remove factory-fitted cable connectors during the installation process. You can simply route your pre-terminated cables through the surface, fit the split seal around the wires, and clamp the aluminium housing down. This significantly reduces installation time and prevents potential damage to sensitive electrical connectors.
Rugged Anodised Aluminium Construction
Durability is essential for exterior fittings on boats, caravans, and expedition vehicles. The outer shell is precision-machined from marine-grade aluminium and finished with a hard anodised coating. This treatment offers exceptional resistance to impact marks, corrosion, and continuous UV exposure. Unlike standard plastic cable entries that may become brittle over time, this metallic housing is designed for longevity in the harshest Australian environments.
Standing at just 23mm high, the sleek and low-profile design minimises the risk of snagging on ropes, branches, or other equipment. The compact footprint ensures a neat, unobtrusive aesthetic on your roof or deck.
Reliable Waterproofing Without Messy Sealants
Achieving a watertight finish traditionally required liberal applications of silicone or marine sealant, which can be messy and degrade over time. This multi-cable seal features an integrated internal base and a high-quality bottom gasket that form a secure, watertight bond with the mounting surface. When assembled with the supplied corrosion-resistant stainless steel fasteners, the unit achieves an IP68 waterproof rating. This ensures a clean, professional finish that keeps your interior spaces completely dry, reducing the risk of water damage and electrical faults.
Key Features
- IP68 Waterproofing: Provides superior protection against prolonged water immersion and dust ingress.
- Customisable Split Bung: Supplied undrilled, allowing you to tailor the seal for multiple wires up to 15mm in diameter.
- Connector Friendly: The split-seal design eliminates the need to cut off or remove pre-installed cable ends.
- Marine-Grade Aluminium: Hard anodised finish delivers excellent impact, UV, and corrosion resistance.
- Sealant-Free Installation: Integrated base and precision gasket ensure a watertight fit without requiring messy silicones.
- Low-Profile Aesthetics: Stands only 23mm tall for a sleek, snag-free installation.
Secure Your Electrical Routing Today
Protect your vital electrical connections with a premium, engineered sealing solution. Equip your boat, caravan, or 4x4 with the Scanstrut 1-15mm Aluminium Vertical Multi Cable Seal to ensure reliable, long-lasting performance in any environment.
SKU: SST-DS-Multi
SPECIFICATIONS
Specifications
| Product Code | DS-MULTI |
|---|---|
| Product Name | Vertical Multi Cable Seal Aluminium |
| Waterproof Rating | IP68 Waterproof |
| Material | Marine Grade Anodized Aluminium |

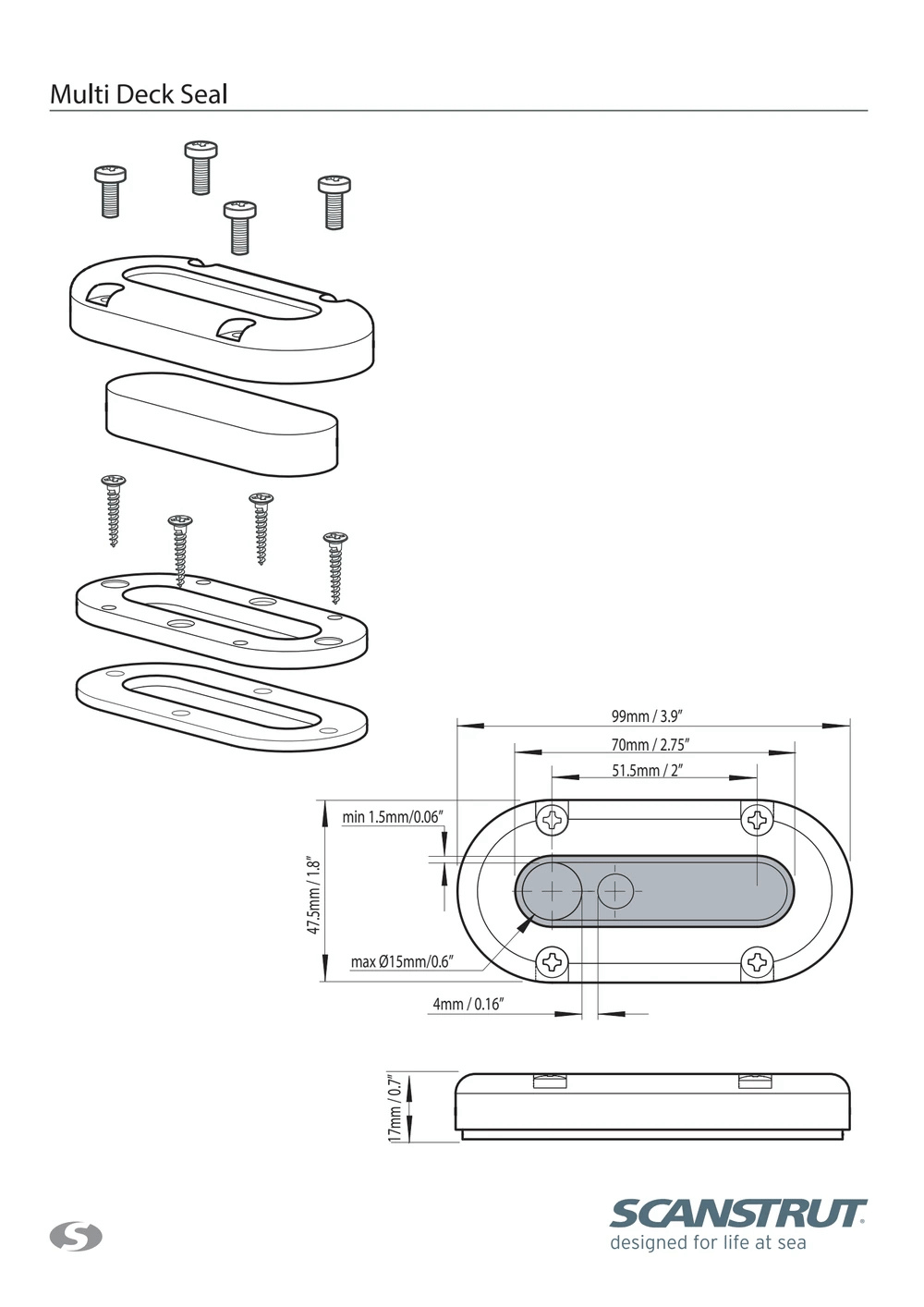

| Height | 23.0 mm (0.91") |
| Length | 105.0 mm (4.13") |
| Max Cable Diameter | 15 mm (0.59") |
| Colour | Silver |
| Bung | 1 x Self drill |
| Cable Entry | Multiple cables up to Ø15 mm (0.59") |
| SKU: | SST-DS-Multi |
| Barcode: | 5060114793309 |
| Model #: | DS-Multi |
| MPN: | DS-Multi |
