Scanstrut 12V Flip Pro Duo USB-A, USB-C & Accessory/Cigarette Socket

60W Fast Charge - IPX4 Rated - Marine Grade 316 Stainless Components


Regular price $144.99
/
Availability: In Stock
View all products from Scanstrut

Free Shipping | This item has a free shipping option Australia-wide.

Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa

10

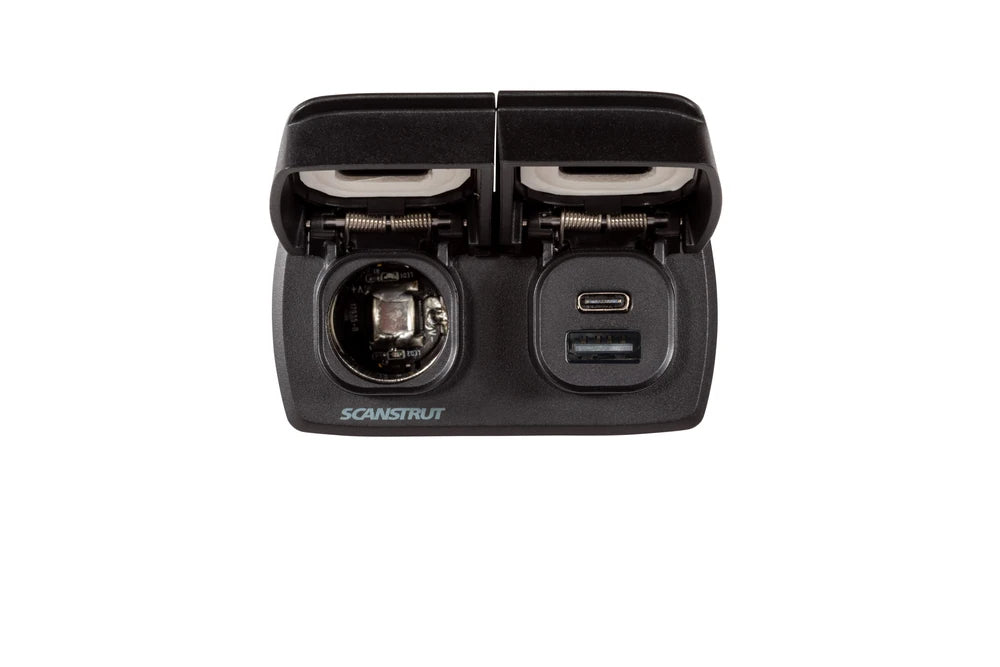

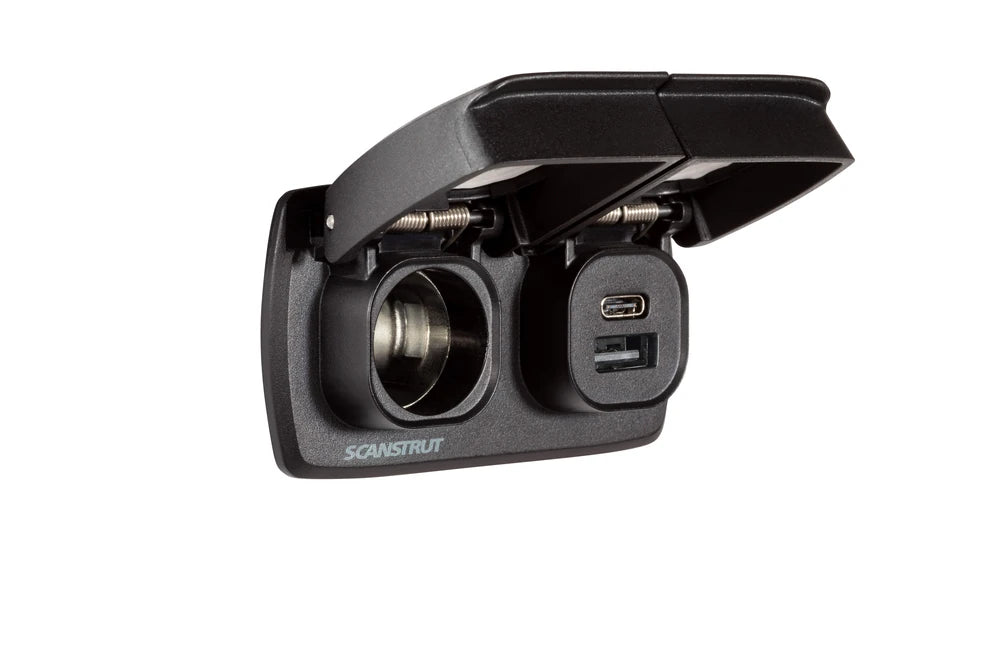

Dual 12V cigarette socket and USB charging ports with both spring-loaded lids open

Scanstrut 12V Flip Pro Duo USB-A, USB-C & Accessory/Cigarette Socket

DESCRIPTION

Scanstrut Flip Pro Duo: The Ultimate Multi-Power Marine Hub

The Scanstrut 12V Flip Pro Duo USB-A, USB-C & Accessory/Cigarette Socket is a premium electrical upgrade designed to centralise your charging and power needs. By combining a high-output USB charging module with a traditional 12V power receptacle, this unit provides a sleek, space-saving solution for boats, caravans, camper trailers, and 4x4 canopies. It eliminates the hassle of drilling multiple holes in your dashboard or control panel, delivering a seamless aesthetic that stands up to harsh outdoor environments.

Unmatched Fast Charging Performance

Modern devices require substantial power, and standard chargers often struggle to keep up. The Flip Pro Duo integrates an advanced power delivery system capable of providing up to 60W of fast charging through the USB-C port, alongside a highly compatible USB-A port. This allows you to rapidly charge two devices simultaneously, from smartphones and action cameras to power-hungry tablets and modern laptops. Whether you are navigating via a tablet on a boat or working remotely from your caravan, this socket ensures your essential electronics remain powered.

While the standard 12V accessory socket is strictly designed for 12V systems, the USB module is highly versatile, supporting input voltages from 10V to 30V DC. This makes the USB charging component fully compatible with both 12V and 24V battery setups, offering enhanced charging profiles like 20V at 3A when connected to a 24V system.

Engineered for Harsh Marine and Off-Grid Environments

Standard power sockets are highly susceptible to corrosion, dust, and water ingress, which can lead to electrical faults. Scanstrut has engineered the Flip Pro Duo specifically for demanding outdoor use. Both the USB and 12V accessory sockets feature robust, spring-loaded caps built with marine-grade 316 stainless steel hinges and springs. When not in use, these caps snap shut to form a tight seal, providing an IPX4 waterproof rating. The housing is constructed from premium UV-resistant materials, preventing degradation, fading, or cracking under intense Australian sun exposure.

Key Features and Specifications

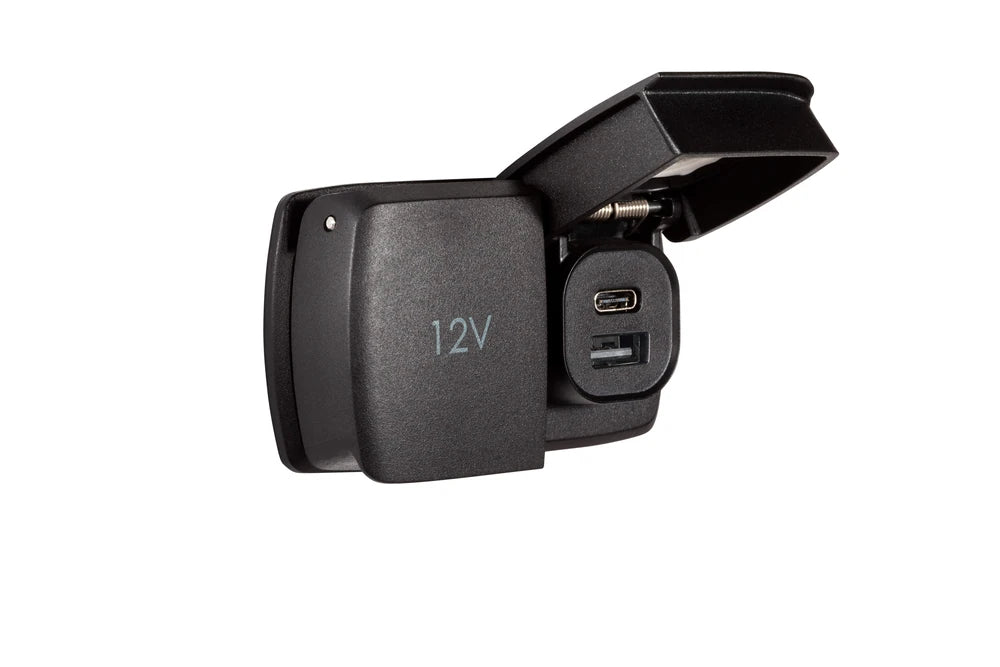

  • Dual USB-A and USB-C ports providing up to 60W max output for rapid device charging

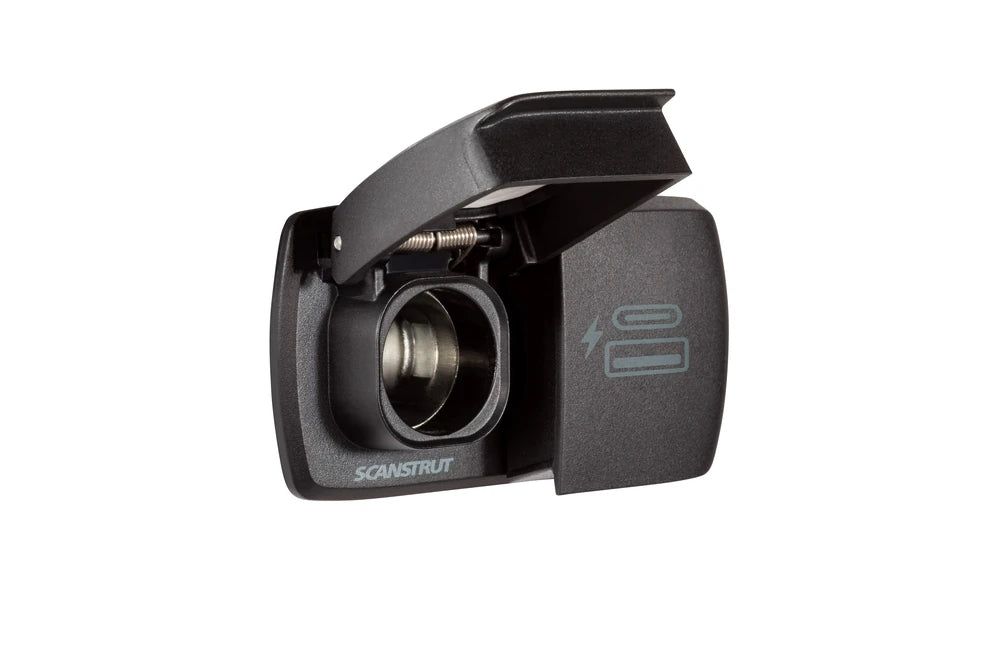

  • Integrated 12V accessory socket for powering portable fridges, pumps, or heavier draw electronics
  • Spring-loaded covers deliver an IPX4 waterproof rating when closed, protecting internal contacts from moisture
  • Constructed with UV-resistant plastics and 316 stainless steel hardware for superior marine longevity
  • Extremely low standby power draw of less than 0.1W, protecting your battery bank during long periods of storage

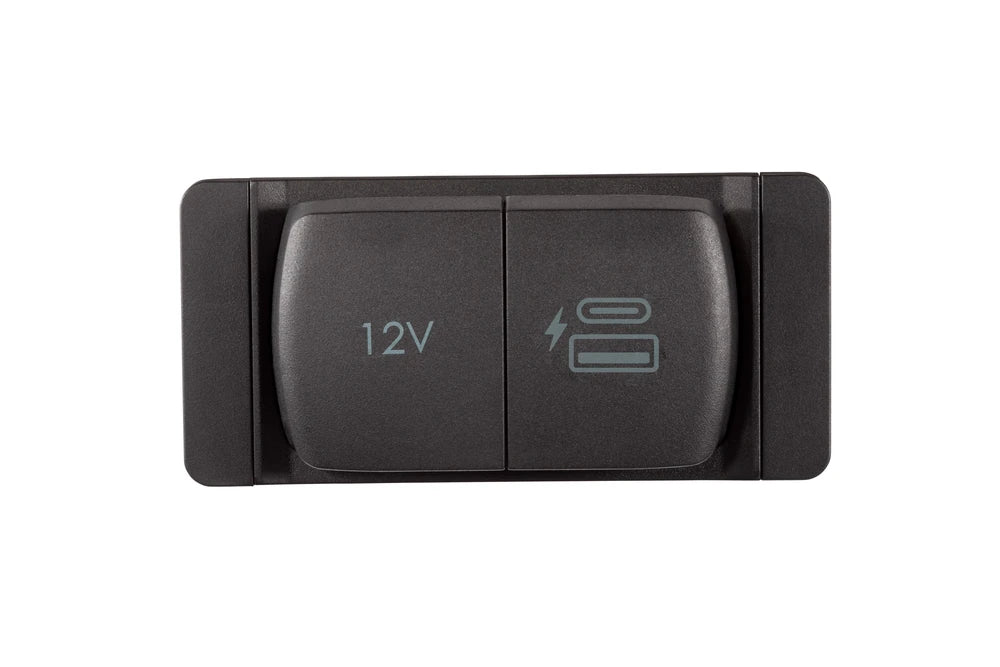

  • Universal front-fit bezel creates a professional, clean finish on any console or bulkhead

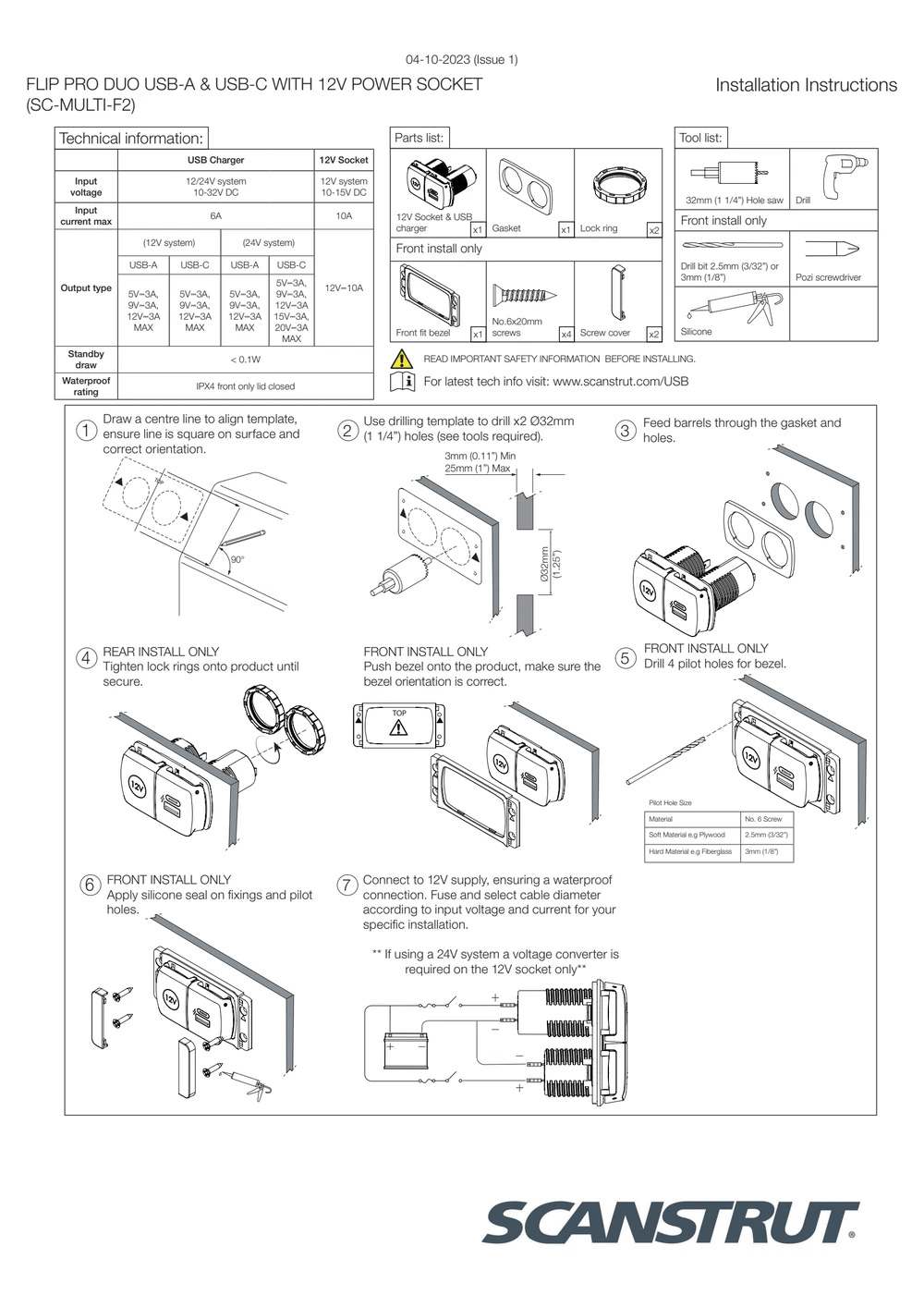

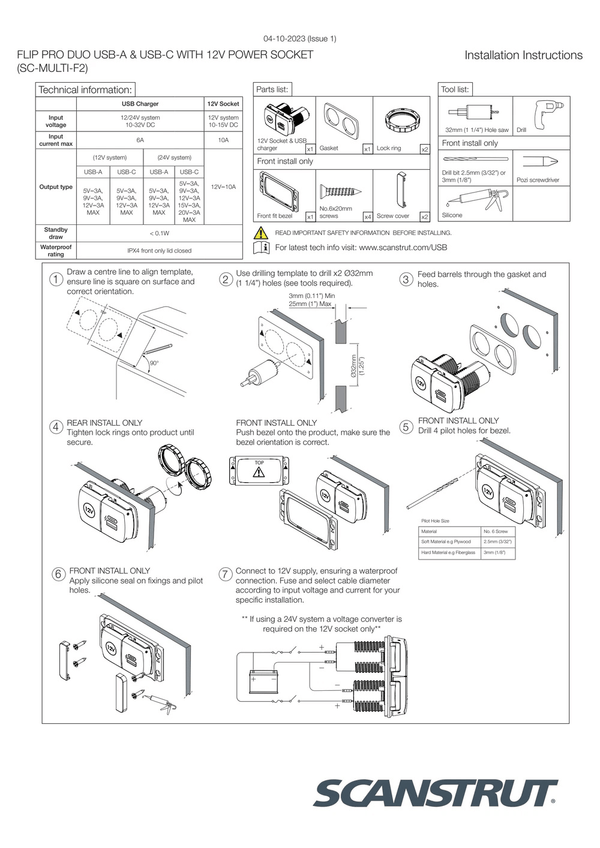

Simplified Installation Process

Upgrading your power interface is straightforward. The Flip Pro Duo is designed to fit into standard cutouts, requiring only a standard 32mm (approx. 1.25 inch) hole saw for each socket. It accommodates panel thicknesses ranging from a minimum of 3mm to a maximum of 25mm, making it suitable for thin fibreglass consoles, aluminium dashboards, or thicker timber cabinetry. The included front-fit bezel neatly covers the mounting hardware, ensuring a flush and professional appearance without exposed screws.

The Ideal Power Solution for Any Adventure

By integrating multiple power outputs into one neat footprint, this dual socket solves the problem of cluttered control panels. It is the perfect choice for users who need a mix of high-speed modern USB charging and a traditional 12V cigarette lighter connection. Whether you are replacing corroded marine hardware or outfitting a brand-new custom off-grid canopy, this unit delivers exceptional reliability and power delivery.

Equip your vessel or vehicle with the best in modern power delivery. Order the Scanstrut Flip Pro Duo today and ensure your devices stay powered up and protected, no matter where your journey takes you.


SKU: SST-SC-MULTI-F2

SPECIFICATIONS

Specifications

ModelSC-MULTI-F2
Product TypeFlip Pro Duo USB-A & USB-C with 12 V Power Socket
USB Charger Input Voltage12/24 V system, 10-32 V DC
12 V Socket Input Voltage12 V system, 10-15 V DC
USB Charger Input Current Max6 A
12 V Socket Input Current Max10 A
USB-A Output (12 V System)5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX
USB-C Output (12 V System)5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX
USB-A Output (24 V System)5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A MAX
USB-C Output (24 V System)5 V⎓3 A, 9 V⎓3 A, 12 V⎓3 A, 15 V⎓3 A, 20 V⎓3 A MAX
12 V Socket Output12 V⎓10 A
Standby Draw< 0.1 W
Waterproof RatingIPX4 front only lid closed

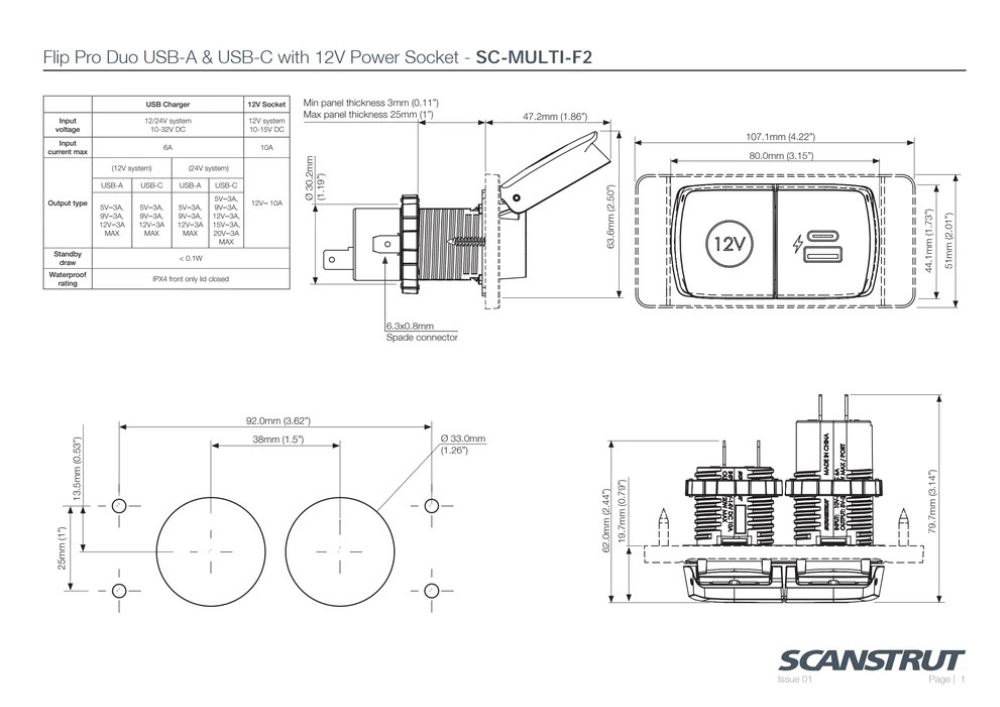

Panel ThicknessMin 3 mm (0.11 in), max 25 mm (1 in)
Installation Hole Saw32 mm (1 1/4 in)
Spade Connector6.3 x 0.8 mm
Bezel Dimensions107.1 mm (4.22 in) x 51 mm (2.01 in)

SKU: SST-SC-MULTI-F2
Barcode: 5060114798489
Model #: SC-MULTI-F2
MPN: SC-MULTI-F2
