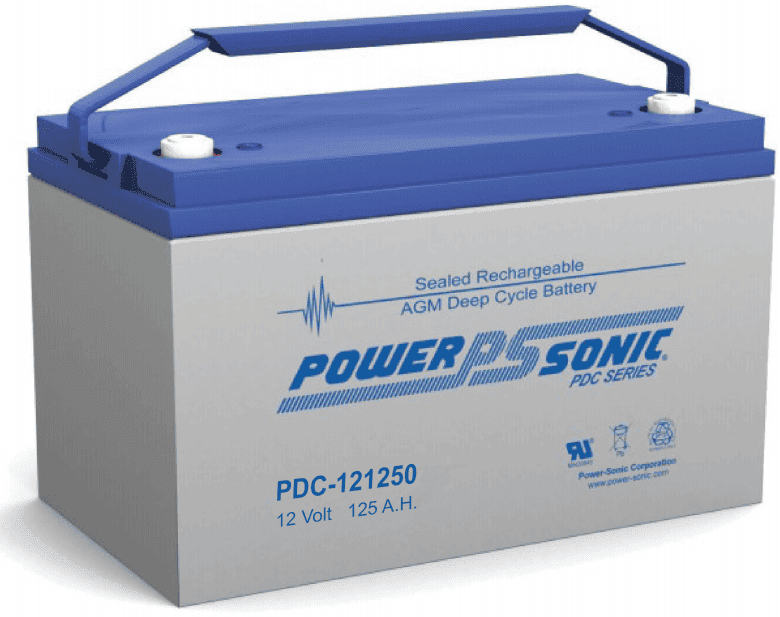

Power-Sonic 12V 125Ah AGM Deep Cycle Battery
Power-Sonic 12V 125Ah AGM Deep Cycle Battery
125Ah Capacity, Oversized Plates, M8 Terminals, Integrated Handle
Regular price
$524.68
Availability:
Special Order
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Power-Sonic PDC-121250: 125Ah AGM Deep Cycle Battery for Reliable Off-Grid Energy
Engineered for Sustained Cycling in Caravans, Marine, and Mobility Applications
The Power-Sonic PDC-121250 12V 125Ah AGM deep cycle battery is purpose-built for applications demanding regular, deep discharges and consistent cycling. Unlike standard lead-acid batteries, its oversized negative plates and specialised paste formulation deliver true deep cycle performance, providing stable power over extended periods without compromising service life. This makes it an ideal choice for caravan battery systems, marine house banks, mobility scooters, and other off-grid setups where reliability is critical.
Utilising Absorbent Glass Mat (AGM) technology, the PDC-121250 offers maintenance-free, spill-proof operation and can be mounted in any orientation except inverted. Its valve-regulated design ensures safe, clean energy storage, while the rugged ABS case (UL94-HB) withstands vibration and impact in mobile environments. With a low internal resistance of approximately 4.5 mΩ, this battery supports efficient charge acceptance and high discharge currents, making it suitable for demanding loads.
Key Features
- 125Ah capacity (20-hour rate) for extended runtime in deep cycling applications
- AGM construction eliminates watering and allows safe operation in any position
- Oversized negative plates and specialised paste for superior deep discharge recovery
- Low internal resistance ensures efficient charging and high current delivery
- M8 screw terminals provide secure, low-resistance connections for heavy-duty cables
- Integrated carry handle simplifies transport and installation in tight compartments
- Certified for air transport (D.O.T., I.A.T.A., F.A.A., C.A.B.) and UL recognised (MH 20845)
Built for Deep Cycling Demands
Deep cycle batteries are often subjected to repeated discharge and recharge cycles, which can rapidly degrade standard batteries. The PDC-121250 addresses this with special additives in the paste that enhance performance in deep discharge situations, reducing the risk of premature capacity loss. Its oversized negative plates provide a larger active surface area, promoting longer cycle life and consistent voltage delivery even under heavy loads. Whether powering a 12V caravan fridge, trolling motor, or mobility scooter, this battery maintains dependable output throughout its discharge cycle.
Versatile Applications
The Power-Sonic PDC-121250 is suited to a wide range of 12V deep cycle applications:
- Caravans and RVs: Reliable house battery for lighting, pumps, and appliances
- Marine: Ideal for house banks, navigation electronics, and electric trolling motors
- Camping and Off-Grid: Powers portable fridges, inverters, and lighting systems
- Mobility Scooters and Electric Bikes: Delivers sustained power for daily use
- Renewable Energy Storage: Compatible with solar charging systems for remote power
Durable and Safe Design
Encased in a high-impact ABS housing, the PDC-121250 resists physical damage from vibration and rough handling common in mobile installations. The sealed AGM design prevents acid leaks and fumes, making it safe for enclosed spaces like caravan compartments and boat bilges. Its M8 terminals accept standard ring lugs for secure, low-resistance connections, and the integrated carry handle eases installation in confined areas.
Why Choose the Power-Sonic PDC-121250?
Compared to generic deep cycle batteries, the PDC-121250 offers proven cycle life and consistent performance backed by Power-Sonic's engineering expertise. Its low self-discharge rate ensures readiness after storage, and the wide operating temperature range (-20°C to 55°C discharge) supports use in diverse Australian climates. By choosing a battery specifically designed for deep cycling, you reduce the risk of unexpected power loss and extend the life of your energy system.
Upgrade your off-grid power setup with the Power-Sonic PDC-121250 12V 125Ah AGM deep cycle battery. Order today to ensure reliable energy for your next adventure or daily mobility needs.
SPECIFICATIONS
Specifications
| Nominal Voltage | 12.0 Volts (6.0 cells) |
|---|---|
| Nominal Capacity 20-hr. (6.25 A to 10.8 Volts) | 125.0 Ah |
| Nominal Capacity 10-hr. (11.0 A to 10.8 Volts) | 110.0 Ah |
| Nominal Capacity 5-hr. (20.0 A to 10.2 Volts) | 100.0 Ah |
| Nominal Capacity 1-hr. (73.6 A to 9.6 Volts) | 73.6 Ah |
| Approximate Weight | 71.21 lbs (32.3 kg) |
| Length | 16.06 in (408.0 mm) |
| Width | 6.97 in (177.0 mm) |
| Height | 8.86 in (225.0 mm) |
| Height Over Terminal | 8.86 in (225.0 mm) |
| Dimensional Tolerances | +/- 0.08 in. (+/- 2 mm) for length, width, and height dimensions |
| Internal Resistance (approx.) | 4.5 mΩ |
| Max Short Circuit Discharge Current | 2200.0 A |
| Operating Temperature Range - Charge | 32°F (0°C) to 104°F (40°C) |
| Operating Temperature Range - Discharge | -4°F (-20°C) to 131°F (55°C) |
| Case | ABS |
| Terminal Type | M8 |
| Recommended Power-Sonic Charger | PSC-1212000ACX |
| SKU: | PDC121250 |
| Model #: | PDC121250 |
| MPN: | PDC121250 |
WARRANTY
Power-Sonic Batteries are warranted throughout Australia against faulty workmanship and materials. Depending on the battery and application the amount of time covered varies (refer below for details).
If a Power-Sonic Battery is defective (other than for the warranty exclusions specified below) during that period, we will replace or repair it at our cost. To make a claim please return the part to Solar 4 RV's. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality. The benefits under this warranty are in addition to other rights and remedies you may have at law. This voluntary warranty is given by Solar 4 RV's.
PS & PSH Series 12 months when used in standby applications 6 months when used in cyclic applications PG Series 24 months when used in standby applications 12 months when used in cyclic applications if average depth of discharge does not exceed 50% 6 months when used in mobility applications (including but not limited to wheelchair, electric scooter, pallet jack, golf buggy) PDC Cyclic & DCG Gel Series 12 months when used in standby and cyclic applications Powersports Motorcycle and Jet Ski Series 12 months warranty PSOPzV – 3 Years full replacement when used in standby or cyclic applications Warranty commences from date of purchase.
Warranty Conditions- This warranty does NOT cover: Normal wear and tear, Transportation costs to and from the place of purchase, Labour for removal and replacement of the unit unless prior written approval has been obtained from Solar 4 RV's, Parts which have been subjected to deliberate abuse, Conditions resulting from abnormal wear, negligence, alterations or accidents, Incorrect fitment, Parts used in an incorrect application or parts that are not used for their intended purpose.
