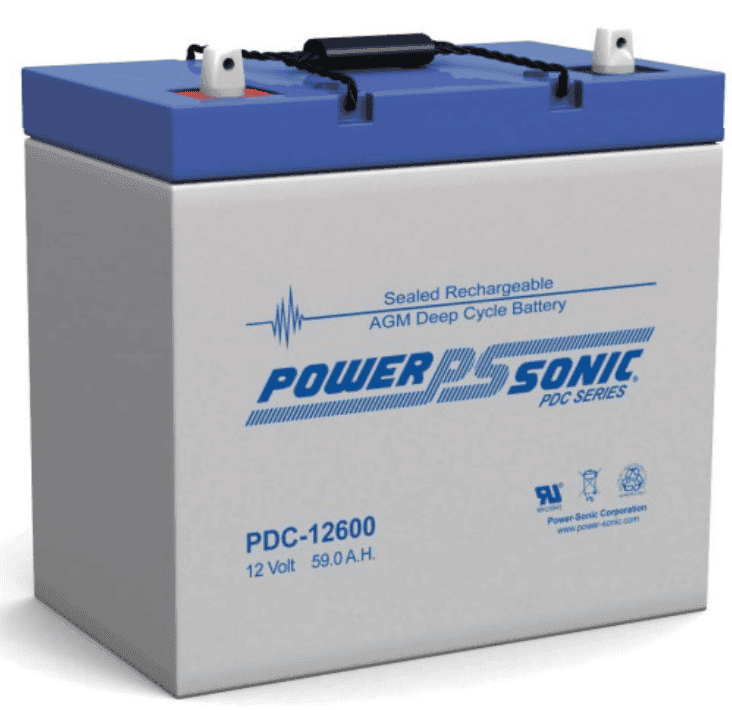

Power-Sonic 12V 59Ah AGM Deep Cycle Battery
Power-Sonic 12V 59Ah AGM Deep Cycle Battery
Oversized Plates for True Deep Cycle - 229x138x210mm, 17.7kg
Regular price
$345.08
Availability:
Special Order
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Power-Sonic PDC-12600: 12V 60Ah AGM Deep Cycle Battery for Reliable Off-Grid Energy
Engineered for Sustained Cycling in Caravans, Marine, and Mobility Applications
The Power-Sonic PDC-12600 is a purpose-built 12V 60Ah AGM deep cycle battery designed to deliver consistent power over extended discharge cycles. Unlike standard starter batteries, its oversized negative plates and specialised paste formulation enable true deep cycling performance, making it an ideal choice for applications that demand regular charge and discharge without compromising service life.
Whether you're powering a caravan, marine electronics, a mobility scooter, or an electric bike, this sealed lead-acid battery provides reliable energy storage in a compact, maintenance-free package. Its Absorbent Glass Mat (AGM) technology ensures superior performance, spill-proof operation, and resistance to vibration, making it suitable for mobile and off-grid environments.
Advanced AGM Construction for Demanding Cycles
At the core of the PDC-12600 is a valve-regulated AGM design that immobilises the electrolyte in glass mat separators. This not only prevents acid leakage but also enhances charge acceptance and reduces internal resistance to approximately 9.0 mΩ, enabling efficient energy transfer. The battery's rugged ABS case (UL94-HB) withstands impacts and harsh conditions, while the sealed construction allows safe operation in any orientation, a critical advantage for mobile installations.
Special additives in the paste formulation improve performance during deep discharge events, reducing the risk of capacity loss over time. With a 20-hour capacity of 60Ah and a maximum short-circuit discharge current of 1288A, this battery handles both steady loads and momentary surges with confidence.
Key Features
- True deep cycle design with oversized negative plates for extended cycle life
- AGM technology for spill-proof, maintenance-free operation in any position
- Low internal resistance (approx. 9.0 mΩ) for efficient charging and discharging
- Rugged ABS case (UL94-HB) with impact resistance for mobile and outdoor use
- Certified for air transport (D.O.T., I.A.T.A., F.A.A., C.A.B.) and U.L. recognised (MH 20845)
- Compact dimensions: 229mm (L) x 138mm (W) x 210mm (H) for easy integration
- Lightweight at 17.7 kg with integrated rope carry handle for portability
Versatile Applications Across Mobile and Stationary Systems
The PDC-12600 excels in scenarios where reliable deep cycling is essential. Its 12V nominal voltage and 60Ah capacity make it a popular choice for:
- Caravans and RVs: Powering lights, pumps, and electronics during off-grid stays
- Marine vessels: Running trolling motors, fish finders, and onboard accessories
- Mobility scooters and electric bikes: Providing dependable range and consistent power delivery
- Camping and outdoor gear: Supporting portable fridges, lighting, and charging stations
- Backup power systems: Serving as a reliable energy reserve for small-scale off-grid setups
With M6 and U terminal options, the battery accommodates various connection requirements, and its recommended charger (PSC-126000ACX) ensures optimal charging profiles for maximum lifespan.
Built to Reduce Downtime and Maintenance
Compared to flooded lead-acid batteries, the PDC-12600 eliminates the need for watering and reduces the risk of acid spills, making it safer for enclosed spaces. Its valve-regulated design minimises gassing under normal operation, and the wide operating temperature range (-20°C to 55°C discharge) ensures reliable performance in diverse Australian climates. By choosing a battery engineered for deep cycling, you avoid the premature failure common with starter batteries used in cyclic applications, reducing replacement costs and downtime.
Power Your Next Adventure with Confidence
Equip your caravan, boat, or mobility device with the Power-Sonic PDC-12600 12V 60Ah AGM Deep Cycle Battery and experience consistent, maintenance-free power. Order today to ensure your off-grid energy needs are met with a battery built for the long haul.
SPECIFICATIONS
Specifications
| Model | PDC-12600 |
|---|---|
| Battery Type | Deep Cycle AGM |
| Series | PDC Series - Deep Cycle AGM |
| Configuration Options | PDC-12600 M6; PDC-12600 U |
| Available Terminals | M6; U |
| Nominal Voltage | 12.0 Volts (6.0 cells) |
| Nominal Capacity (20-hr.) | 60.0 Ah (3.0 A to 10.8 Volts) |
| Nominal Capacity (10-hr.) | 56.0 Ah (5.6 A to 10.8 Volts) |
| Nominal Capacity (5-hr.) | 52.0 Ah (10.4 A to 10.2 Volts) |
| Nominal Capacity (1-hr.) | 35.8 Ah (35.8 A to 9.6 Volts) |
| Approximate Weight | 39.02 lbs (17.7 kg) |
| Dimensions | L: 9.02 in, 229.0 mm; W: 5.43 in, 138.0 mm; H: 8.27 in, 210.0 mm; TH: 8.5 in, 216.0 mm |
| Dimensional Tolerances | +/- 0.08 in. (+/- 2 mm) for length, width, and height dimensions |
| Internal Resistance (Approx.) | 9.0 mΩ |
| Max Short Circuit Discharge Current | 1288.0 A |
| Operating Temperature Range - Charge | 32°F (0°C) to 104°F (40°C) |
| Operating Temperature Range - Discharge | -4°F (-20°C) to 131°F (55°C) |
| Case | ABS |
| Recommended Power-Sonic Charger | PSC-126000ACX |
| Cycle Applications Charge Voltage | 2.35 VPC to 2.45 VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C; initial charging current less than C/5 Amps |
| Stand-By Or Float Service Voltage | 2.25 VPC to 2.30 VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C |
| SKU: | PDC12600 |
| Model #: | PDC12600 |
| MPN: | PDC12600 |
WARRANTY
Power-Sonic Batteries are warranted throughout Australia against faulty workmanship and materials. Depending on the battery and application the amount of time covered varies (refer below for details).
If a Power-Sonic Battery is defective (other than for the warranty exclusions specified below) during that period, we will replace or repair it at our cost. To make a claim please return the part to Solar 4 RV's. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality. The benefits under this warranty are in addition to other rights and remedies you may have at law. This voluntary warranty is given by Solar 4 RV's.
PS & PSH Series 12 months when used in standby applications 6 months when used in cyclic applications PG Series 24 months when used in standby applications 12 months when used in cyclic applications if average depth of discharge does not exceed 50% 6 months when used in mobility applications (including but not limited to wheelchair, electric scooter, pallet jack, golf buggy) PDC Cyclic & DCG Gel Series 12 months when used in standby and cyclic applications Powersports Motorcycle and Jet Ski Series 12 months warranty PSOPzV – 3 Years full replacement when used in standby or cyclic applications Warranty commences from date of purchase.
Warranty Conditions- This warranty does NOT cover: Normal wear and tear, Transportation costs to and from the place of purchase, Labour for removal and replacement of the unit unless prior written approval has been obtained from Solar 4 RV's, Parts which have been subjected to deliberate abuse, Conditions resulting from abnormal wear, negligence, alterations or accidents, Incorrect fitment, Parts used in an incorrect application or parts that are not used for their intended purpose.
