Carling 5A A-Series Flat Circuit Breaker

Compact Hydraulic-Magnetic Panel Protection

The Carling A Series FLAT Circuit Breaker delivers dependable electrical protection within a compact, low-profile enclosure. Engineered by Carling Technologies, this breaker utilises advanced hydraulic-magnetic technology to provide consistent overcurrent protection for general-purpose and full amp-load applications. Its space-saving architecture makes it an exceptional choice for dense distribution panels in marine vessels, recreational vehicles, off-grid power systems, and industrial control cabinets where panel real estate is limited.

Why Choose Hydraulic-Magnetic Technology?

Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, a hydraulic-magnetic circuit breaker operates purely on magnetic force generated by the load current. This provides a distinct operational advantage in challenging Australian environments:

• Temperature Independence: The trip point remains unaffected by ambient temperature fluctuations, preventing nuisance tripping in hot engine bays, enclosed canopies, or sun-exposed marine dashboards.
• Full Amp-Load Capability: Capable of carrying 100% of its rated current continuously without thermal derating.
• Immediate Reset: Because there is no thermal element that requires a cool-down period, the breaker can be reset immediately after a fault condition is cleared and inspected.

Ergonomic Low-Profile Rocker Design

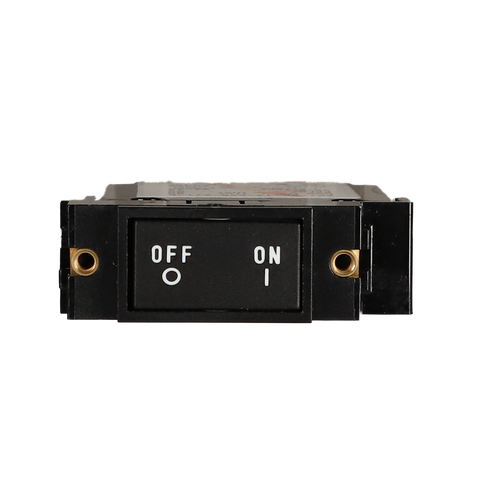

A standout feature of the A Series FLAT variant is its flush, ergonomic rocker actuator. Standard protruding toggle switches are vulnerable to accidental switching or physical damage when installed in tight walkways, narrow companionways, or busy utility vehicle canopies. The flat rocker design sits neatly against the panel face, significantly reducing the risk of inadvertent actuation when brushing past the switchboard.

For rapid system diagnostics, the black rocker actuator features high-contrast white ON and OFF markings. This ensures immediate visual confirmation of circuit status, even in low-light conditions inside a boat cabin or battery enclosure.

Engineered for Secure Panel Mounting

Long-term mechanical reliability is critical in mobile and marine applications subject to constant vibration and shock. The Carling A Series FLAT breaker is built to endure harsh operating conditions:

• Brass-Lined Mounting Points: Integrated brass inserts reinforce the mounting holes, ensuring a secure, thread-safe attachment to your switchboard or dash panel without cracking the housing.
• Space-Saving Footprint: The compact enclosure allows for tight gang-mounting configurations, enabling system builders to fit more circuits into smaller switch panels.
• Combined Switching and Protection: Acts as both a heavy-duty appliance switch and a precision overload protector, eliminating the need to wire separate fuses and rocker switches.
• Ergonomic Flat Actuator: Prevents snagging and accidental knock-offs in high-traffic areas.
• High-Contrast Status Labels: Clear white-on-black text provides unmistakable visual feedback of the circuit state.

Versatile Applications

Designed to meet the rigorous demands of professional electrical installers and OEM builders, the Carling A Series is widely specified across multiple industries. It is ideally suited for protecting branch circuits in marine AC/DC distribution panels, 4WD dual-battery setups, caravan control systems, telecommunications racks, and commercial power supplies. Note that the available product details do not state model-specific electrical ratings or pole configuration, so please verify that the CT-A1F-05 part number matches your system schematic requirements.

Upgrade Your Switchboard Protection

Ensure your electrical distribution panel is protected against overloads without compromising on space or aesthetics. Select the Carling A Series FLAT Circuit Breaker for your next marine, mobile, or industrial switchboard build.
