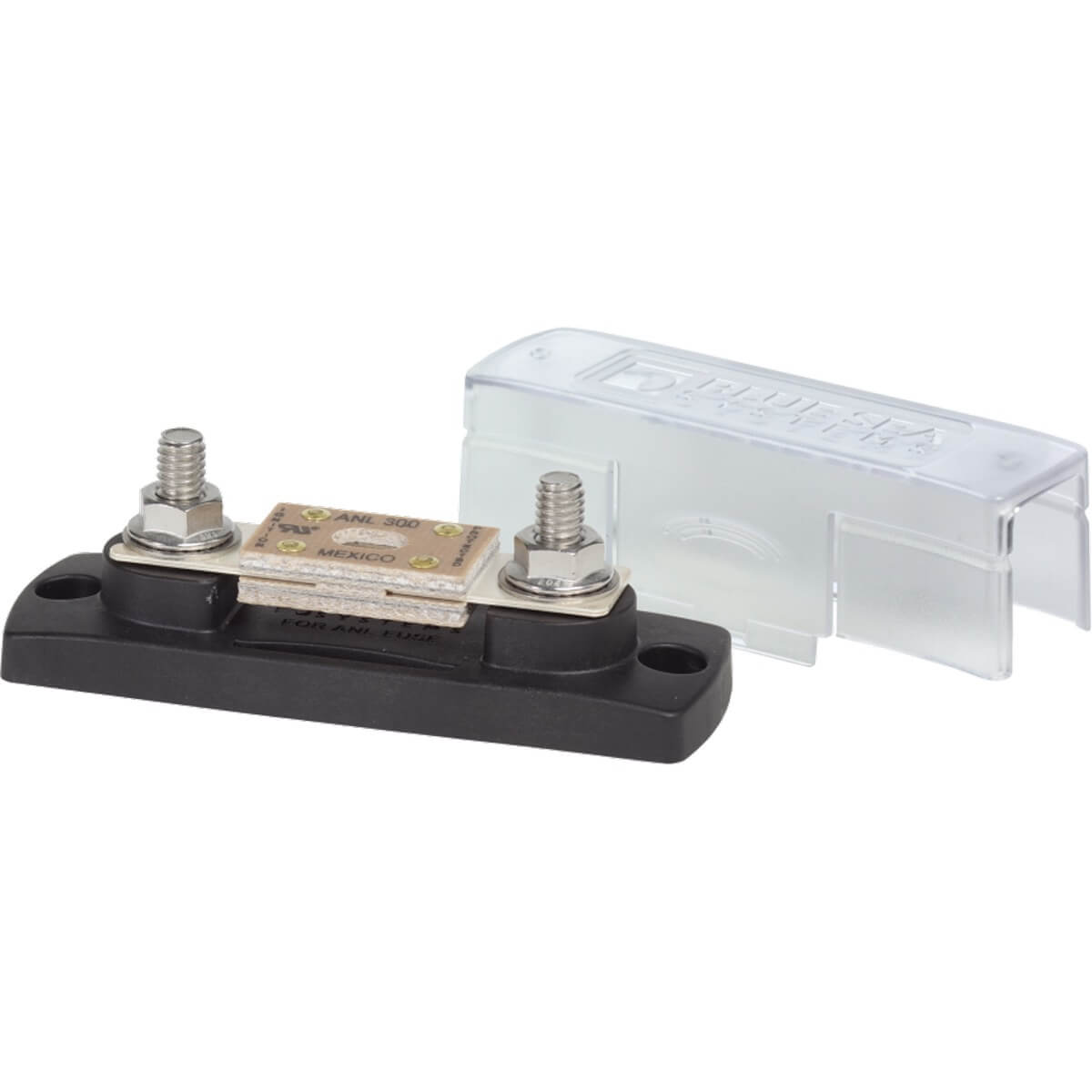

Blue Sea 35-300A ANL Fuse Holder with Insulating Cover
Blue Sea 35-300A ANL Fuse Holder with Insulating Cover
Up to 32V DC | Swing-Out Access | Suits M8 Lugs & 2/0 AWG (70mm2) Cable
Regular price
$41.40
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Circuit Protection for 12V and 24V DC Electrical Systems
Managing high-current loads in automotive, marine, and off-grid power systems requires dependable overcurrent protection that does not compromise system efficiency. The Blue Sea Systems 5005B ANL Fuse Holder is engineered for demanding DC environments up to 32V, making it suitable for both 12V and 24V battery banks. Supporting ANL fuses from 35A to 300A, this holder provides a secure, thermally stable mounting point to safeguard inverters, windlasses, bow thrusters, and high-output alternators from damaging short circuits and current overloads.
Practical Swing-Out Design for Rapid Servicing
Traditional fuse holders often require complete fastener removal to swap a blown fuse, increasing the risk of dropping washers or nuts into tight engine bays or battery compartments. The Blue Sea 5005B solves this maintenance challenge with an innovative swing-out design. By simply loosening the terminal nuts, the fuse can be pivoted out for quick replacement without fully removing the hardware. This reduces system downtime and simplifies maintenance in confined installation spaces.
Engineered for Low Resistance and High Thermal Stability
Inferior fuse holders can introduce voltage drop and excessive heat buildup at the connection points, risking melted housings or premature fuse failure. This unit is constructed with tin-plated copper mounting blocks to ensure maximum conductivity and superior corrosion resistance in damp or coastal environments. The base is moulded from UL 94-V0 reinforced polycarbonate, engineered to withstand high operating temperatures generated by heavy continuous loads.
To ensure mechanical integrity under vibration, the insert-moulded stainless steel studs prevent the posts from spinning when applying high tightening torque. This allows installers to achieve a tight, low-resistance clamp on heavy-gauge battery lugs without stripping the base material.
- Swing-out fuse access: Enables fast fuse replacement without completely removing terminal fasteners.
- High-conductivity contacts: Tin-plated copper mounting blocks minimise voltage drop and resist marine corrosion.
- Robust terminal hardware: 5/16"-18 (Approx. M8) stainless steel studs support high torqueing for secure connections.
- Heavy cable compatibility: Accommodates heavy-duty ring terminals and battery cables up to 2/0 AWG (approx. 70mm2).
- Multi-directional routing: Clear insulating cover meets ABYC/USCG safety requirements and features removable breakouts for cable entry from multiple angles.
- High-temperature base: Glass-filled polycarbonate construction resists heat deformation under heavy current loads.
Important Installation Notes
This unit is supplied as the fuse holder and insulating cover only; the ANL fuse is sold separately, allowing you to select the exact amperage rating required for your specific wire gauge and appliance load. The clear protective cover snaps securely in place to prevent accidental short circuits from dropped tools or shifting gear, while allowing immediate visual inspection of the fuse element.
Upgrade Your DC Circuit Safety
Select the Blue Sea 35-300A ANL Fuse Holder for your next 12V or 24V electrical build to ensure compliant, low-resistance circuit protection across your high-amperage DC equipment.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | ANL fuse holder with insulating cover |
| Fuse range | 35 to 300A |
| Maximum voltage | 32V DC |
| Base material | Reinforced polycarbonate |
| Fuse mounting blocks | Tin-plated copper |
| Maximum cable size | 2/0 AWG |
| Maximum torque | 110 in-lb (12.43 Nm) |
| Terminal stud size | 5/16″ – 18 (M8) |
| Weight | 0.16 kg |
| SKU: | BS-5005B |
| Model #: | BS-5005B |
| MPN: | BS-5005B |
| Package weight: | 0.192 kg |
| Package length: | 0.12 m |
| Package width: | 0.06 m |
| Package height: | 0.06 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
DOCUMENTS
Loading product documents…
OR SWAP TO:

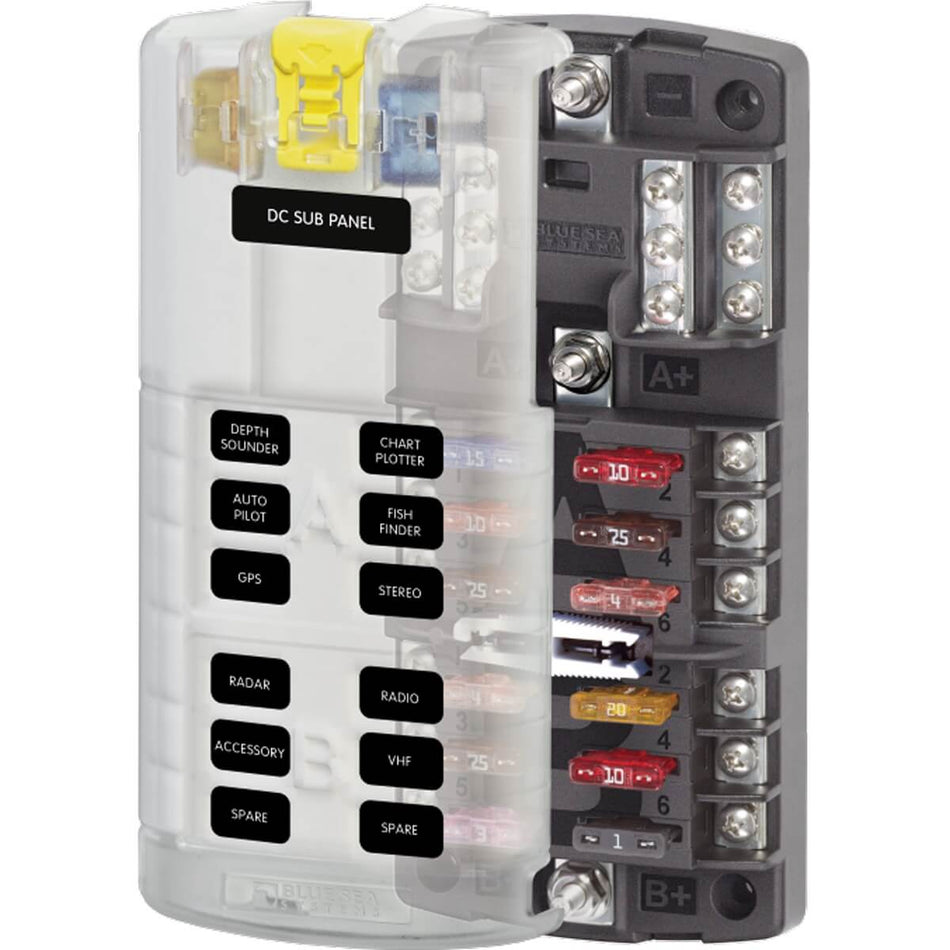

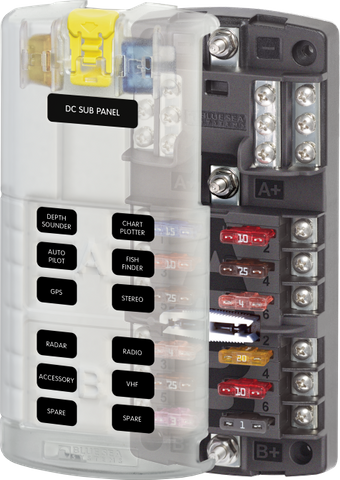

Blue Sea ST Blade 12 Circuit Split Bus Fuse Block with Negative Bus and Cover
