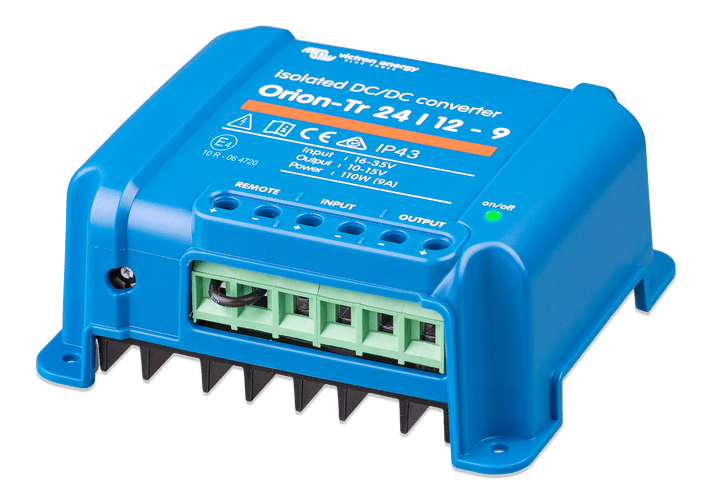

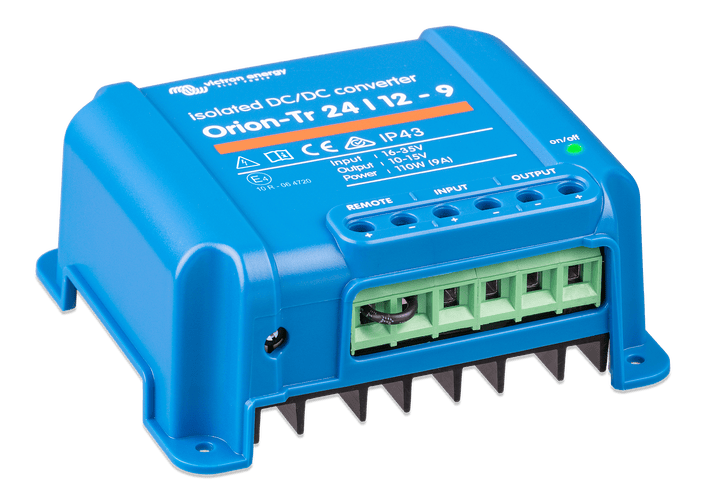

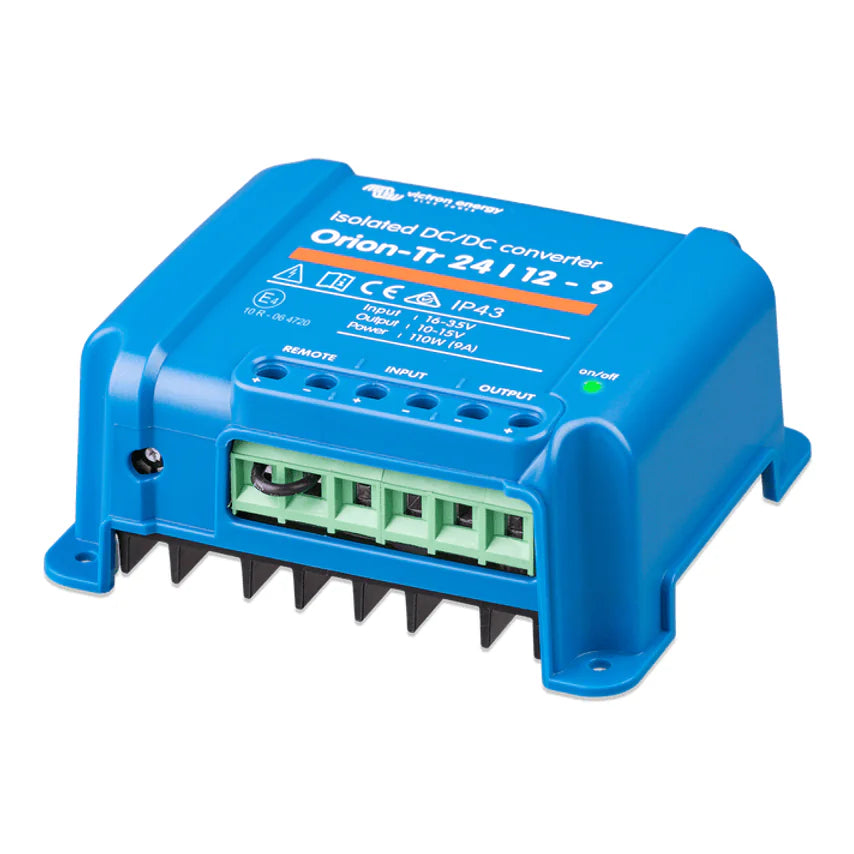

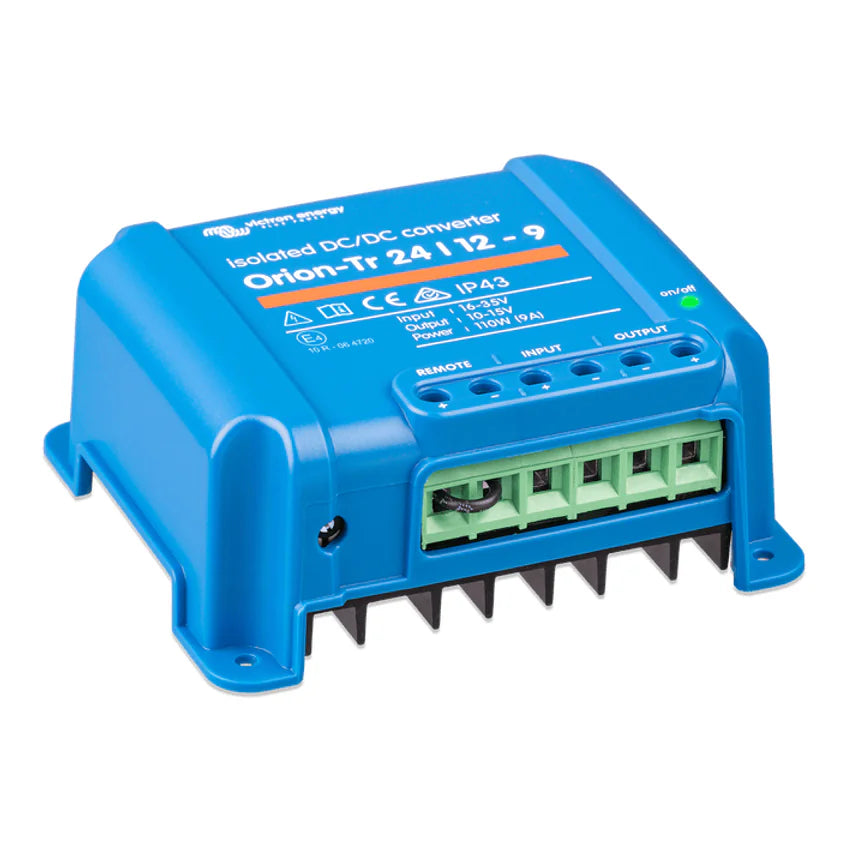

Victron 24V to 12V Orion-Tr 24/12-9A Isolated DC-DC Converter
Victron 24V to 12V Orion-Tr 24/12-9A Isolated DC-DC Converter

DESCRIPTION
Victron Orion-Tr 24/12-9A (24V to 12V 9A / 110W) Isolated DC-DC Voltage Reducing (Buck) Converter
Important Note
This device is a DC-DC converter only, if you require a DC-DC charger, please see the Victron Orion-Tr Smart Charger range.
Powerful and Reliable DC-DC Converter
The Victron Orion-Tr 24/12-9A (110W) Isolated DC-DC Converter is a versatile and robust solution for all your power conversion needs. Designed for reliability and efficiency, this converter ensures a stable power supply for various applications.
Unmatched Convenience and Flexibility
Featuring a remote on-off capability, this converter allows for easy operation with a low power switch, eliminating the need for a high current switch in the input wiring. It can be operated by various switches, such as the engine run/stop switch, enhancing its usability in different settings. The adjustable output voltage offers unparalleled flexibility, enabling the converter to function as a battery charger if needed, and allowing you to tailor the output to meet specific power requirements for optimal device performance.
Safety and Scalability
All models are short circuit proof, providing reliable protection against electrical faults, and are capable of connecting an unlimited number of units in parallel to increase the output current, making it suitable for larger power demands. Additionally, the converter is equipped with high temperature protection, reducing the output current at high ambient temperatures to protect the unit and ensure long-term reliability even in harsh conditions.
Robust and Easy to Install
The Victron Orion-Tr meets IP43 protection standards when installed with screw terminals oriented downwards, safeguarding it against dust and water ingress. The screw terminals require no special tools for installation, simplifying the setup process. Moreover, the built-in input fuse on 12V and 24V input models enhances safety and reliability, providing an added layer of protection (note: fuse is not replaceable).
Versatile Applications
This DC-DC converter is ideal for a range of applications:
- Ensure a stable supply to critical loads in caravans, such as lights, fans, and refrigerators.
- Protect navigation electronics and communication systems in marine environments from unstable DC input, ensuring reliable operation at sea.
- Adjust voltage levels for off-grid systems to power various devices, from lights to pumps, with a stable output.
- Isolate the DC-DC from other sources in industrial settings to protect sensitive equipment from electrical interference.
- Customize power for tiny homes by adjusting the voltage as needed to efficiently power specific equipment in compact living spaces.
Upgrade Your Power System
Ensure a stable and reliable power supply with the Victron Orion-Tr 24/12-9A (110W) Isolated DC-DC Converter. With its advanced features and robust design, this converter is perfect for various applications. Upgrade your vehicle or off-grid system today and experience unparalleled performance and reliability!
SPECIFICATIONS
Specifications
| Orion-Tr 24/12-9 (110 W) | |
|---|---|
| Input voltage range (1) | 16-35 V |
| Under voltage shut down | 14 V |
| Under voltage restart | 15 V |
| Nominal output voltage | 12.2 V |
| Output voltage adjust range | 10-15 V |
| Output voltage tolerance | +/- 0.2 V |
| Output noise | 2 mV rms |
| Cont. output current at nominal output voltage and 25 °C | 9 A |
| Maximum output current (10 s) at nominal output voltage | 12.5 A |
| Short circuit output current | 39 A |
| Cont. output power at 25 °C | 110 W |
| Cont. output power at 40 °C | 85 W |
| Efficiency | 85 % |
| No load input current (2) | < 40 mA |
| Current consumption | < 200 uA when disabled via remote port |
| Galvanic isolation | 200 V dc between input, output and case |
| Operating temperature range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
| Humidity | Max. 95 % non-condensing |
| DC connection | Screw terminals |
| Maximum cable cross-section | 6 mm² AWG10 |
| Weight | 0.42 kg (1 lb) |
| Dimensions h x w x d | 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch) |
| Standards: Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
1) If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.
2) Current consumption when the Orion-Tr is generating output voltage but no load is applied.
| SKU: | Vic-ORI241210110 |
| Barcode: | 8719076016731 |
| Model #: | ORI241210110 |
| MPN: | ORI241210110 |
