Victron Large DIN35 Adapters for Cerbo & 10-15A MPPTs
Victron Large DIN35 Adapters for Cerbo & 10-15A MPPTs
For Cerbo GX, MPPT 75/10-100/15 & Orion 110/120W - 105x12.5x11mm
Highlights:DIN Rail Clip: Spring-loaded mechanism for secure attachment to standard 35mm DIN rails,M4 Mounting Screw: Included screw for fastening devices to the adapter plate,Slotted Mounting Hole: Adjustable channel allowing for flexible device positioning during installation,Fixed Mounting Hole: Stable screw point for secure device alignment,Reinforced Plastic Body: Durable black plastic construction featuring internal ribbing for structural rigidity.
Key features: 105mm total length for larger device support, Dual M4x14 mounting screws included, Slotted hole for adjustable hardware alignment, Designed for standard 35mm DIN rail systems, 12.5mm component width.
DESCRIPTION
Victron DIN35 Adapter Large: Secure DIN Rail Mounting for MPPT and Orion DC-DC Chargers
Professional-Grade Mounting Solution for Victron Energy Devices
The Victron DIN35 Adapter Large (2 pcs) provides a robust and efficient method for installing compatible Victron devices onto standard 35 mm DIN rails. Engineered for industrial and mobile applications, this adapter ensures a stable, vibration-resistant connection, simplifying system integration in control cabinets, vehicle installations, and off-grid power setups.
Designed specifically for the Victron Cerbo GX, as well as MPPT 75/10, 75/15, 100/15 solar charge controllers and Orion 110 W and 120 W DC-DC converters, this adapter eliminates the need for custom brackets or unreliable mounting methods. Its reinforced plastic construction with internal ribbing delivers long-term durability without adding unnecessary weight.
Key Features
- Compatible with standard 35 mm DIN rails for quick, tool-free clipping
- Includes two adapters and M4x14 mounting screws for complete installation
- Slotted mounting holes allow precise device alignment during setup
- Reinforced black plastic body resists deformation under mechanical stress
- Compact 105 mm length supports larger devices while maintaining a slim 12.5 mm profile
Reliable Integration for Critical Systems
In environments where electrical connections must withstand vibration, temperature fluctuations, and continuous operation, a secure physical mount is essential. The Victron DIN35 Adapter Large addresses common installation challenges by providing a dedicated, manufacturer-approved mounting interface. This reduces the risk of loose connections, cable strain, and potential equipment damage compared to generic or improvised mounting solutions.

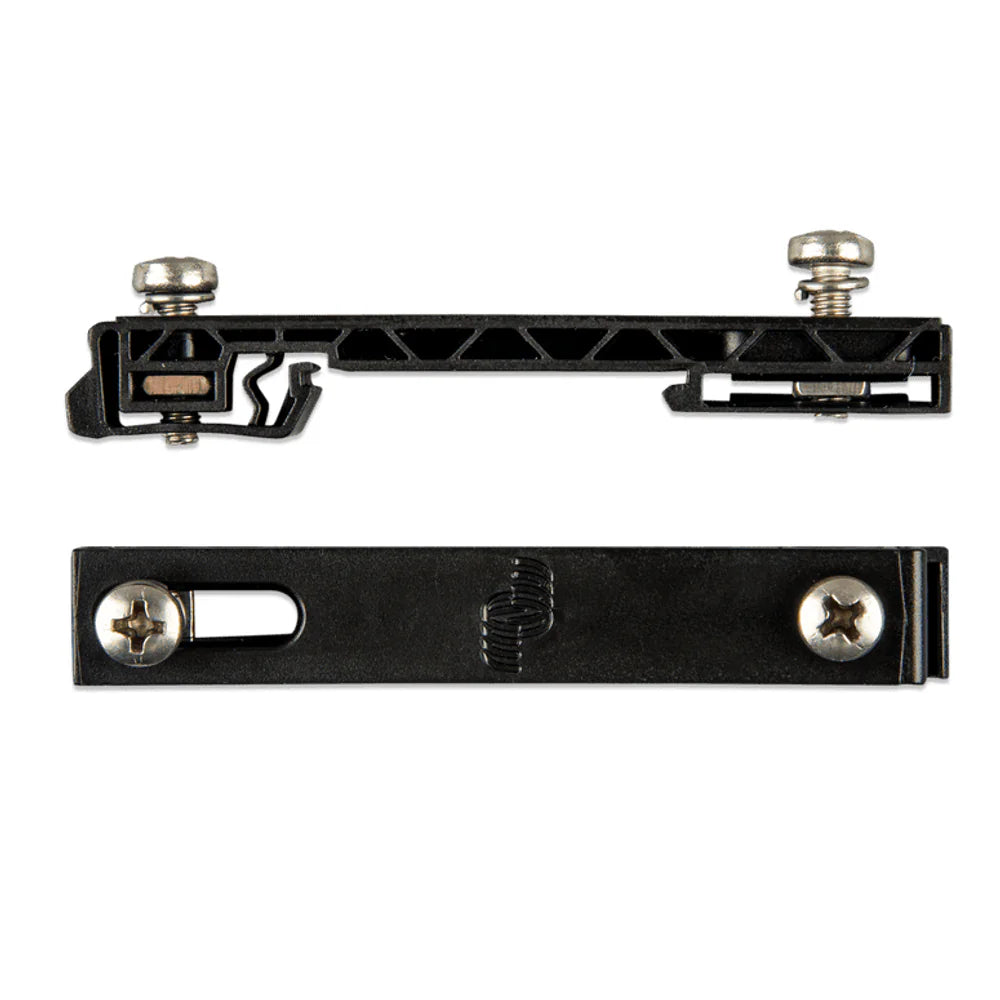

The spring-loaded DIN rail clip ensures a firm grip on the rail, while the dual mounting points—one fixed and one slotted—accommodate slight variations in device footprint, making installation straightforward even in tight enclosures.
Applications

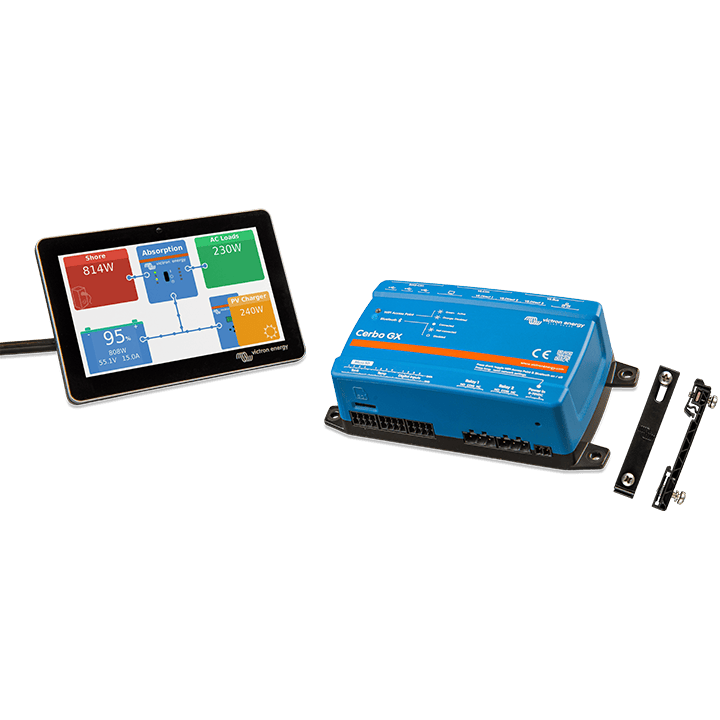

- Mounting Cerbo GX communication centres in RV and marine electrical panels
- Securing MPPT solar charge controllers in off-grid power cabinets
- Installing Orion DC-DC converters in vehicle-based dual-battery systems
- Organising industrial control panels with standardised DIN rail layouts
Designed for Australian Conditions
Whether you are building a remote solar installation, upgrading a 4WD electrical system, or maintaining a commercial switchboard, the Victron DIN35 Adapter Large offers a dependable mounting method. Its corrosion-resistant materials and secure fastening design help maintain system integrity in coastal, outback, and mobile environments.
Upgrade your Victron installation with a mounting solution that matches the quality of your power electronics. Add the Victron DIN35 Adapter Large (2 pcs) to your system today for a cleaner, more professional setup.

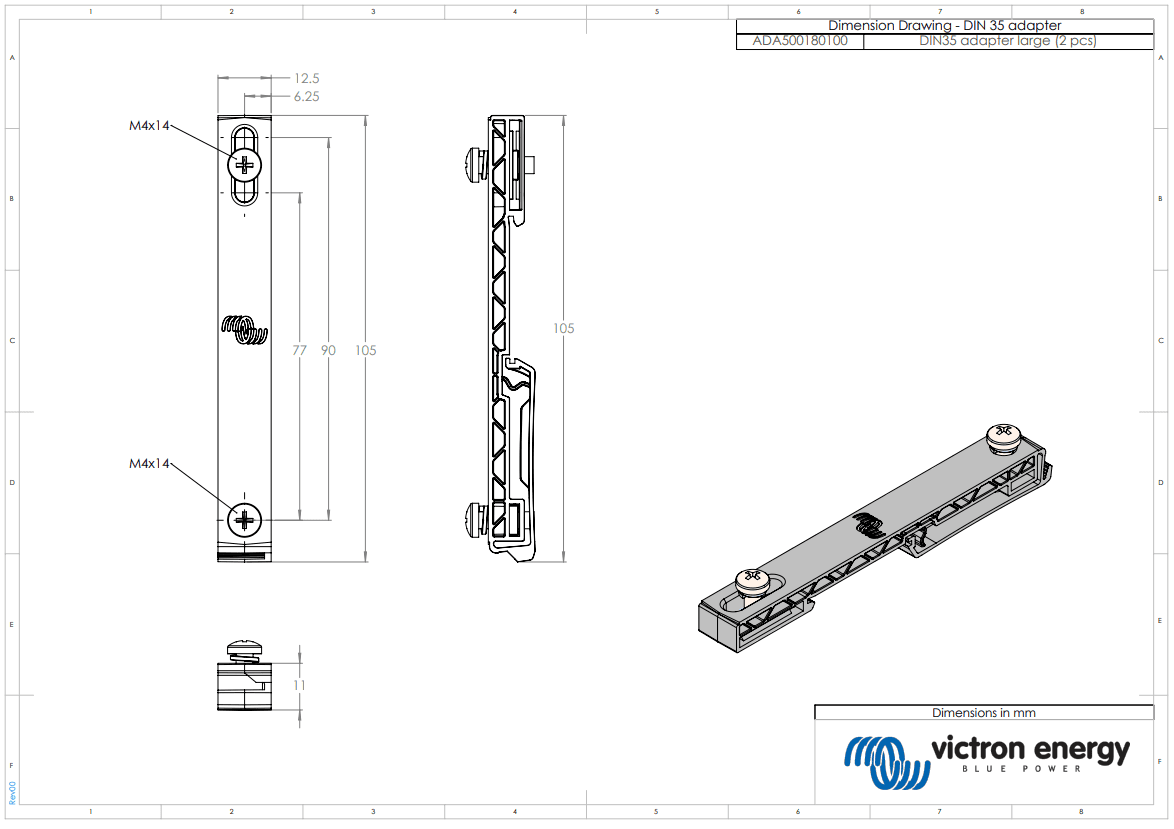

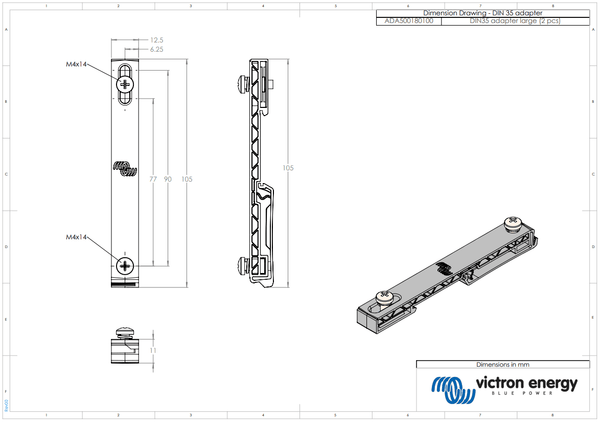

SPECIFICATIONS
Specifications
| Part Number | ADA500180100 |
|---|---|
| Product | DIN35 Adapter Large |
| Pack Quantity | 2 pcs |
| Compatible With | MPPT 75/10-15 & 100/15 & Orion 110/120W |
| Overall Length | 105 mm |
| Overall Width | 12.5 mm |
| Overall Depth | 11 mm |
| Screw Size | M4x14 |
| SKU: | VIC-ADA500180100 |
| Barcode: | 8719076054511 |
| Model #: | ADA500180100 |
| MPN: | ADA500180100 |
