Victron Lynx Power In (M10)


Front view of blue Victron Lynx Power In M10 DC modular busbar enclosureKey features: 1000A continuous DC current rating, Tinned copper busbars for high conductivity, Modular design for Lynx distribution system, IP22 protection class enclosure.Right side perspective view of the blue Victron Lynx Power In enclosureLeft angled view of Victron Lynx Power In showing red and black terminal connection coversInternal top-down view of Victron Lynx Power In showing tinned copper busbars and M10 studsHighlights:Positive Busbar: Tinned copper positive busbar for 1000A continuous current,Negative Busbar: Tinned copper negative return busbar,M8 Terminal Stud: Heavy-duty M8 bolt for cable lug attachment,M10 Module Interface: End connection point for linking to other Lynx modules.Perspective internal view of the Victron Lynx Power In busbar assembly without coverDimensional drawing for Victron Lynx Power In M10 showing physical measurementsTechnical specification drawing providing external dimensions of 290mm x 170mm x 80mm and mounting hole spacings for the Lynx Power In module.
Front view of blue Victron Lynx Power In M10 DC modular busbar enclosure

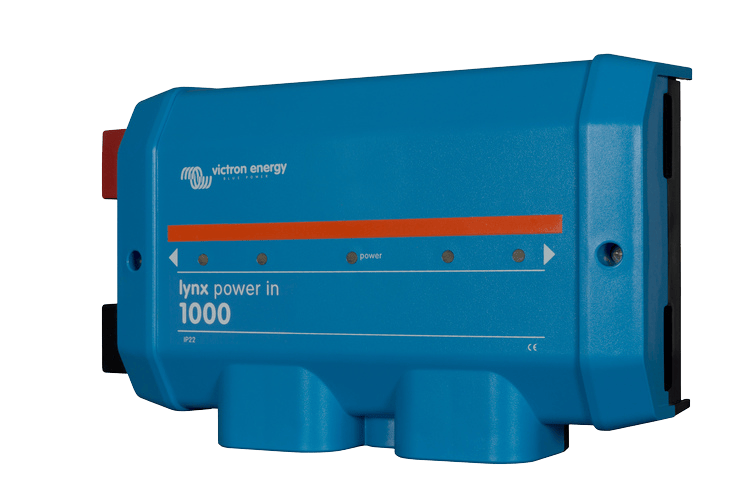

Right side perspective view of the blue Victron Lynx Power In enclosure

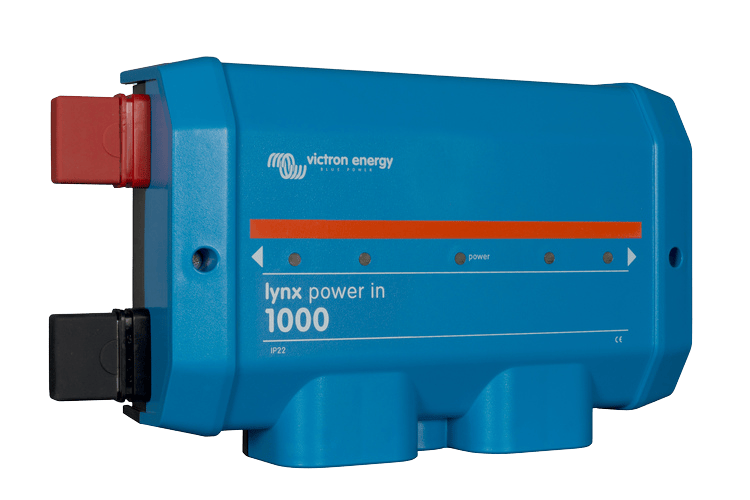

Left angled view of Victron Lynx Power In showing red and black terminal connection covers

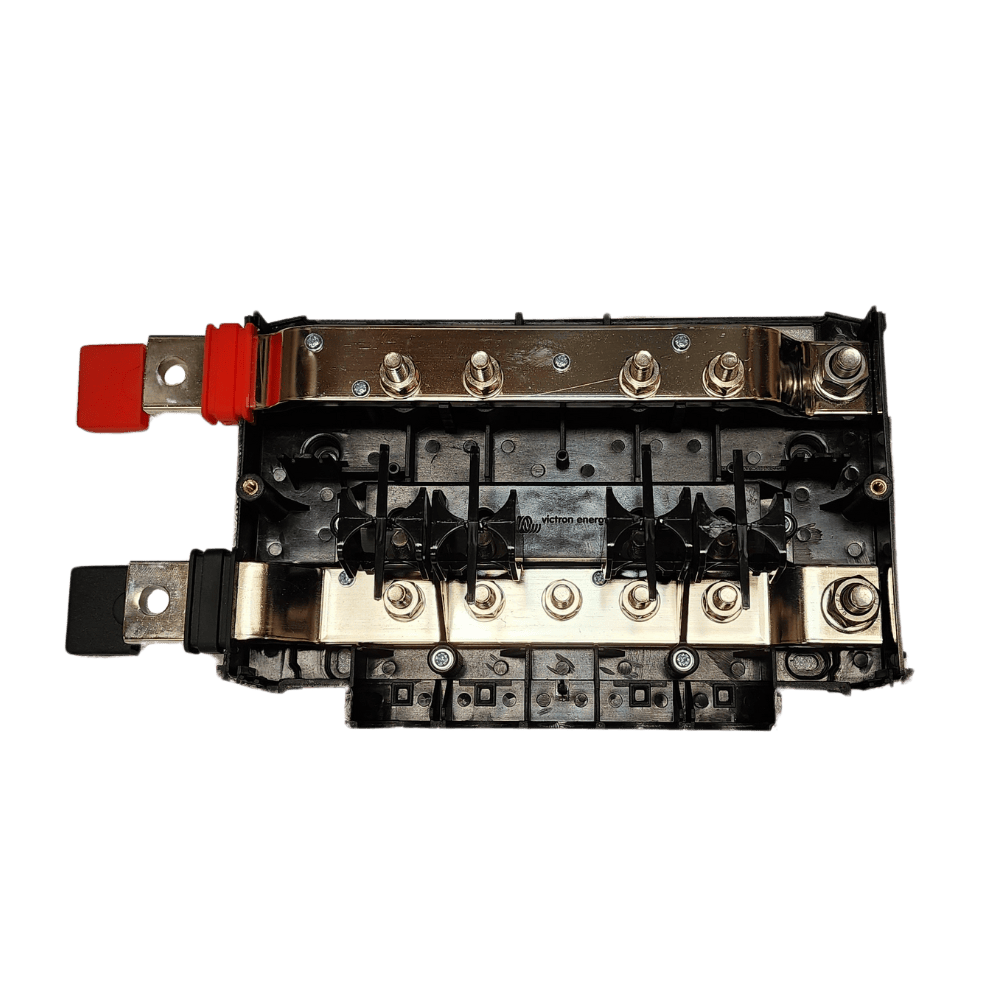

Internal top-down view of Victron Lynx Power In showing tinned copper busbars and M10 studs

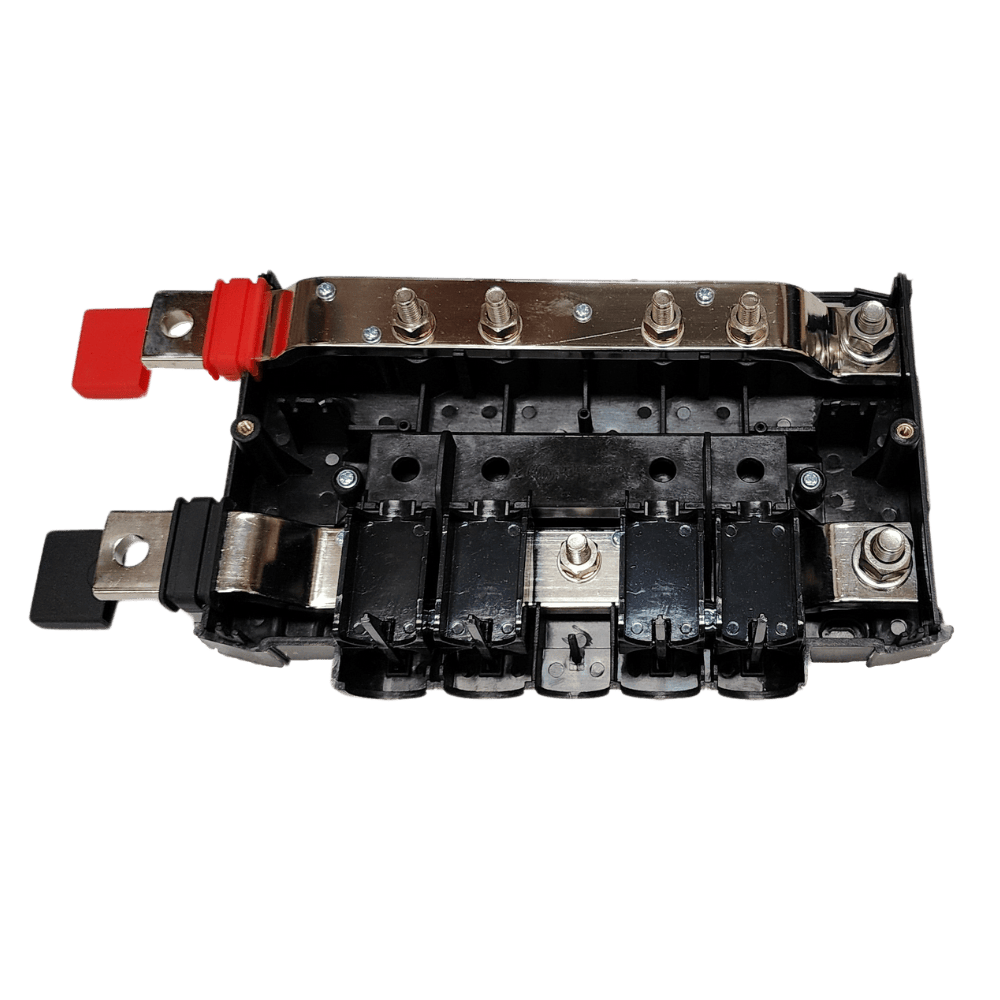

Perspective internal view of the Victron Lynx Power In busbar assembly without cover
Dimensional drawing for Victron Lynx Power In M10 showing physical measurements
Regular price $202.80
$266.20
/
Availability: Expected next week
View all products from Victron

Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of blue Victron Lynx Power In M10 DC modular busbar enclosure

Victron Lynx Power In (M10)

DESCRIPTION

Introducing the Victron Energy Lynx Power In M10: Your Robust Solution for DC Power Distribution

When it comes to reliable power management solutions, Victron Energy stands at the forefront of innovation and efficiency. The Lynx Power In M10 is a testament to Victron’s dedication to quality and performance, embodying robustness and high efficiency in DC power distribution.

Victron Lynx Power In M8 versus Lynx Power In M10: What's the Difference?

The primary difference between the Lynx Power In M8 and M10 models lies in the connection ports. The M10 features larger left-hand positive and negative holes and two right-hand positive and negative bolts for connecting to another Lynx distribution system, such as the Lynx Power In, Lynx Distributor, Lynx Shunt, or Lynx Smart BMS. With the eventual discontinuation of the Lynx M8 versions, the M10 is the recommended choice for future-proofing your power distribution needs.

Modular DC Bus Bar with High Current Capability

The Lynx Power In M10 is a modular DC bus bar designed to facilitate the connection of batteries to the Lynx DC distribution system. Capable of handling an impressive 1000A, it is perfectly suited for high-demand applications such as large battery installations and industrial power systems. The robust design ensures a secure connection, minimizing power loss and maximizing efficiency.

Versatility with MEGA Fuses Integration

One of the standout features of the Lynx Power In M10 is its compatibility with MEGA fuses. These fuses are crucial for protecting your equipment and circuits from overcurrents. While the MEGA fuse bolts are not included, they can easily be purchased separately and integrated into your system with the optional Lynx Power In Bolt Kit for enhanced protection and safety.

Seamless Integration with Victron Energy Products

As a Victron Energy product, the Lynx Power In M10 is designed for seamless integration with other Victron components. This compatibility ensures a harmonious and efficient performance, whether you’re building a new power distribution system or upgrading an existing one.

Why Choose Victron Energy Lynx Power In M10?

  • High current capacity of 1000A for demanding applications.
  • Modular design for versatile configurations in various settings.
  • Compatibility with MEGA fuses for enhanced circuit protection, ensuring safety and reliability.
  • Optimized for seamless integration with Victron Energy products.
  • Durable and reliable construction, upholding Victron’s legacy of quality.

Explore the capabilities of the Victron Energy Lynx Power In M10 and elevate your power distribution setup to the next level.

SPECIFICATIONS

Specifications

Power
Voltage range 9 - 60Vdc
Current rating 1000Adc 1000Adc continuous
Physical
Enclosure material ABS
Enclosure dimensions (hxwxd) 290 x 170 x 80mm
Unit weight 2.1kg
Busbar material Tinned copper
Busbar dimensions (hxw) 8 x 30mm
Environmental
Operating temperature range -40°C to +60°
Storage temperature range -40°C to +60°
Humidity Max. 95% (non-condensing)
Protection class IP22

SKU: VIC-LYN020102010
Barcode: 8719076057581
Model #: LYN020102010
MPN: LYN020102010

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
