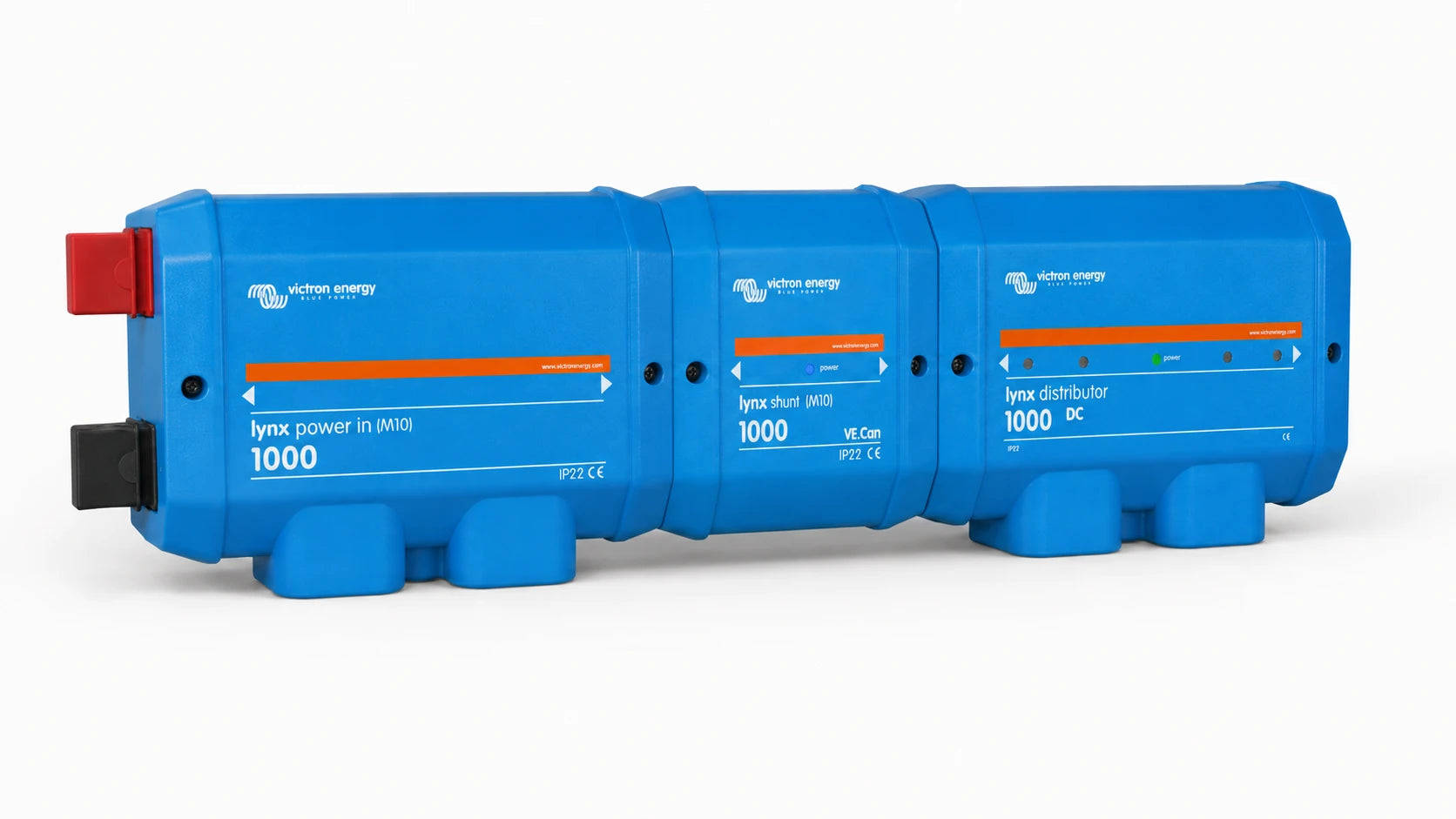

Victron 1000A Lynx Modular DC Distribution Bundle
Victron 1000A Lynx Modular DC Distribution Bundle
Complete 1000A modular DC busbar and monitoring system for heavy-duty off-grid power.
Guaranteed Safe and Secure Checkout
2
DESCRIPTION
Complete High-Capacity DC Distribution Network
The Victron 1000A Lynx Modular DC Distribution Bundle provides everything needed to establish a highly robust, centralised power management board for your 12V, 24V, or 48V off-grid, marine, or caravan electrical system. Replacing disorganised cables and basic busbars, this all-in-one package delivers a professional, scalable foundation to manage multiple large battery banks, heavy-duty inverter arrays, and solar charge controllers safely and efficiently.
What is Included in the Bundle
This comprehensive kit packages five essential components to complete your DC distribution setup:

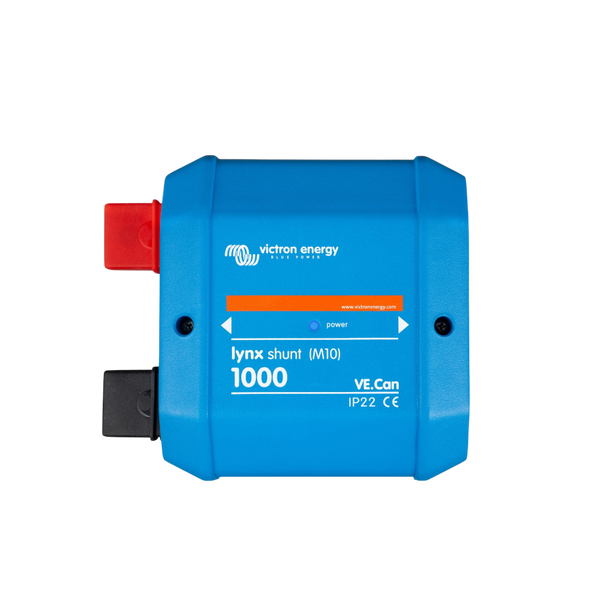

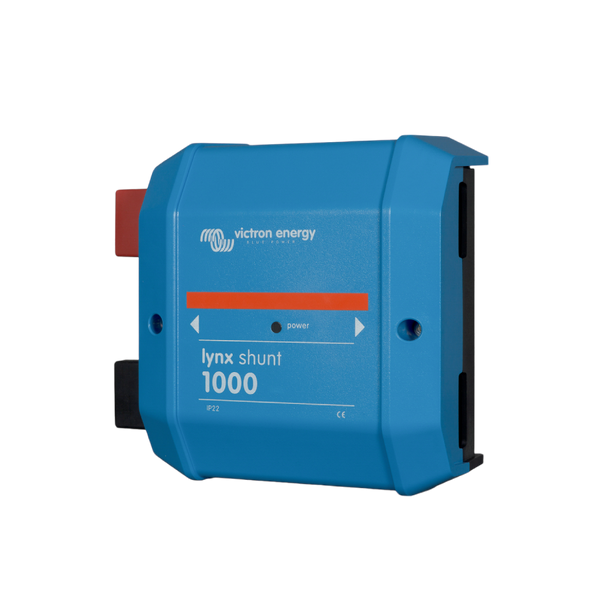

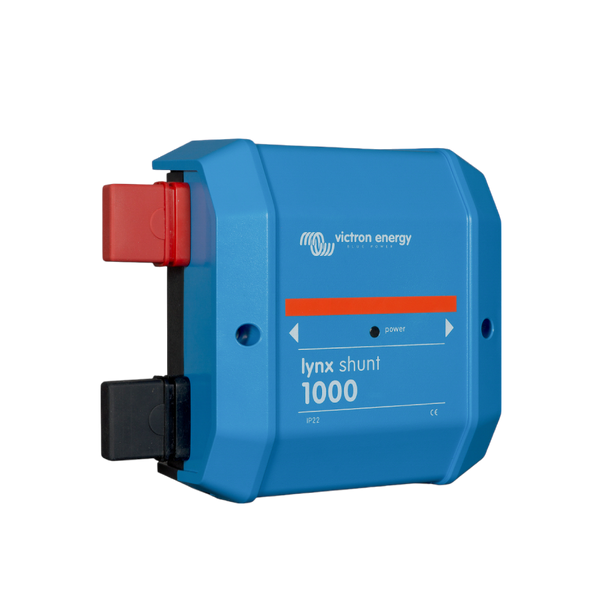

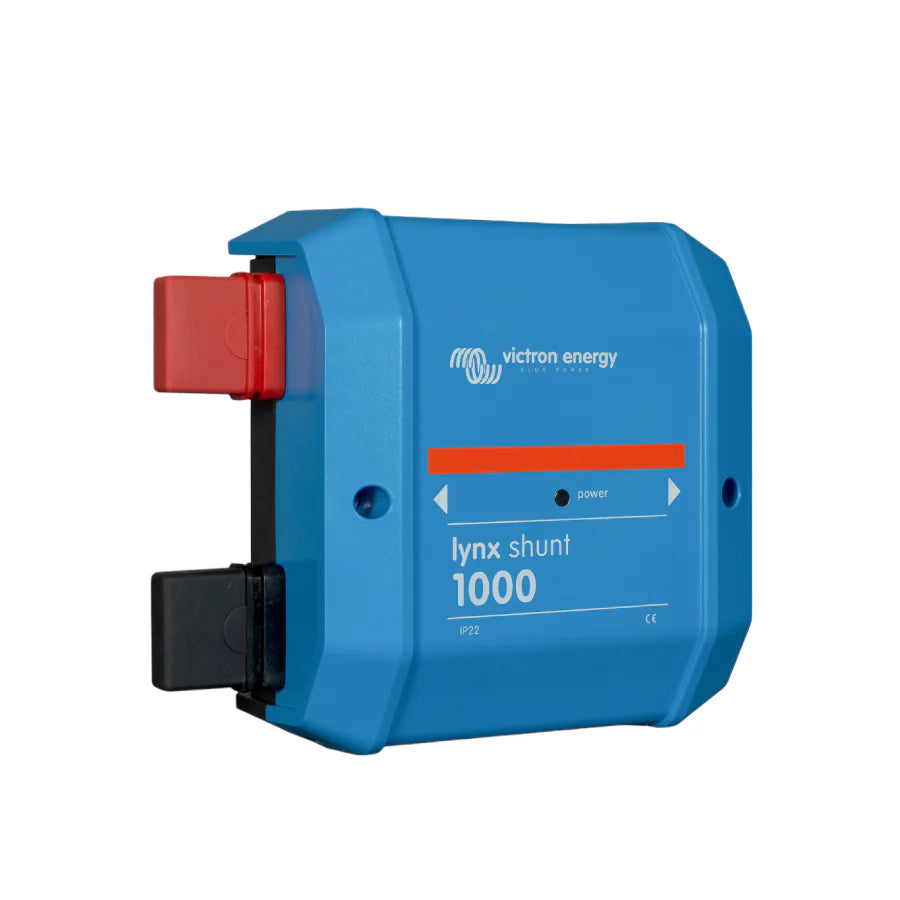

- 1 x Victron 1000A Lynx Shunt VE.Can M10 Battery Monitor

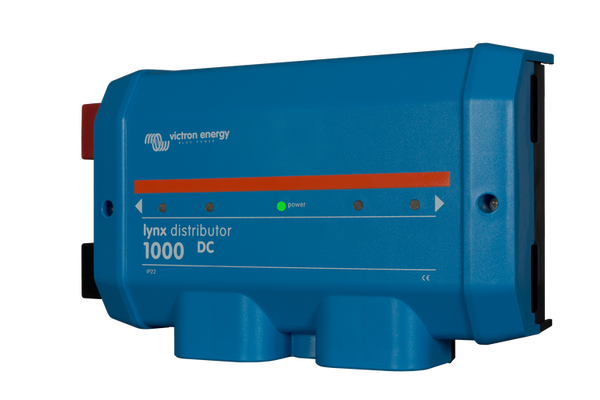

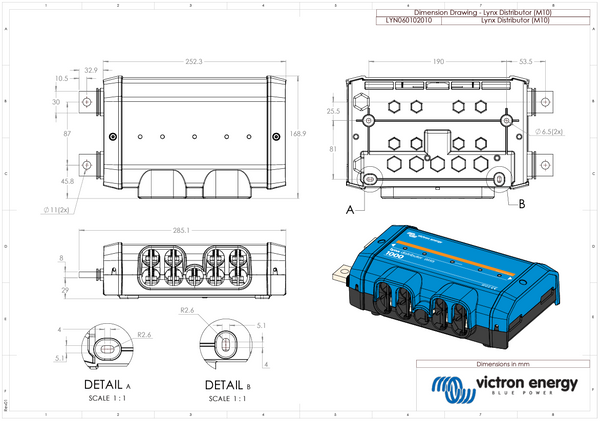

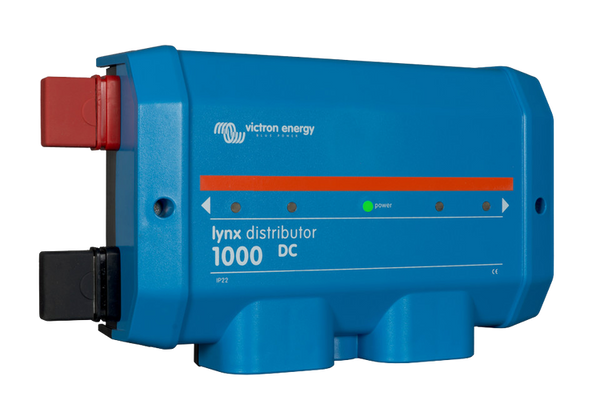

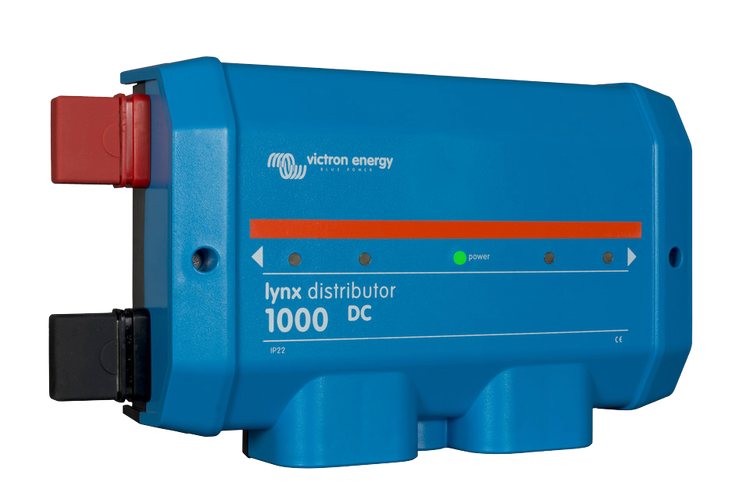

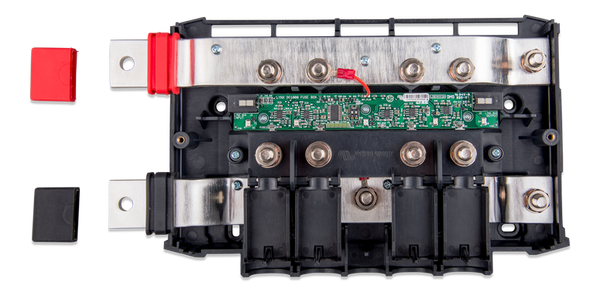

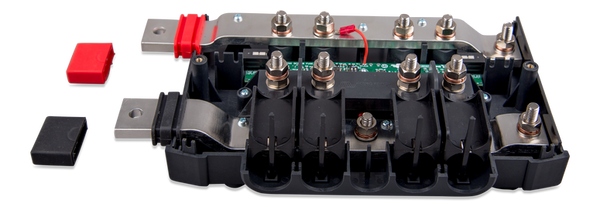

- 1 x Victron 1000A Lynx Distributor M10 Busbar

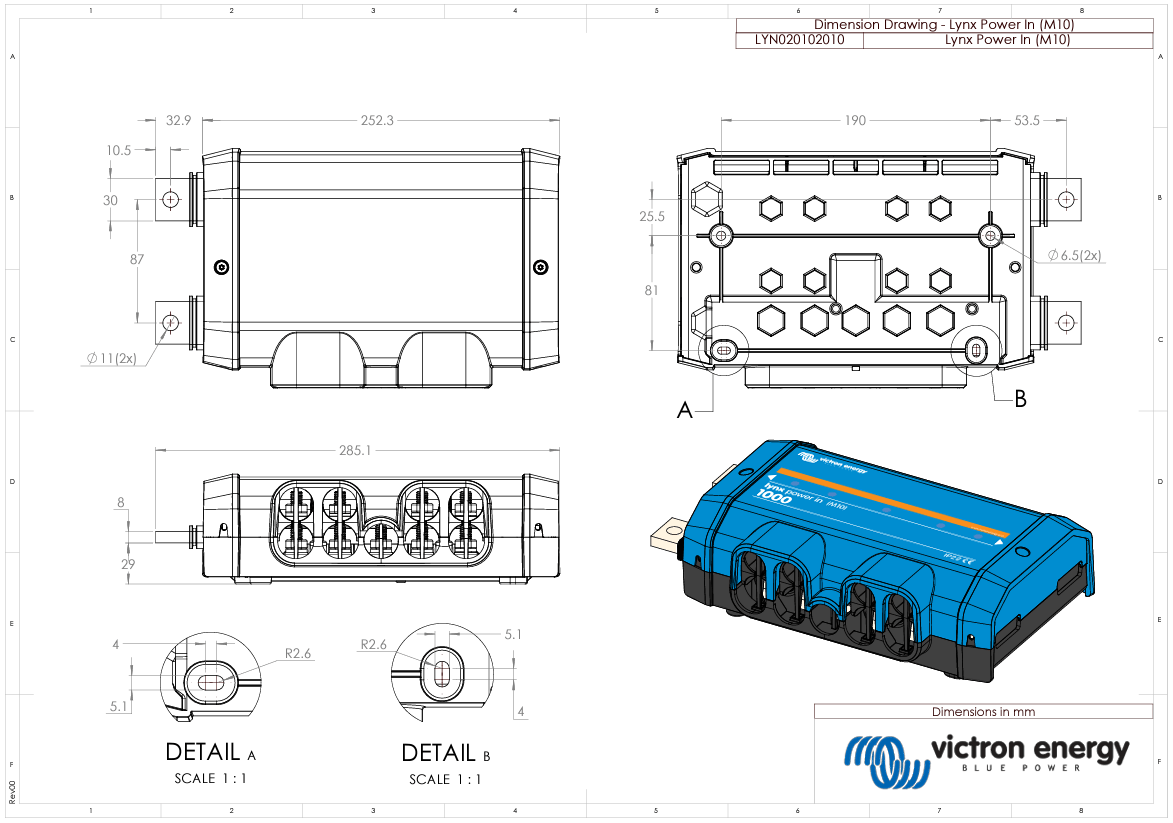

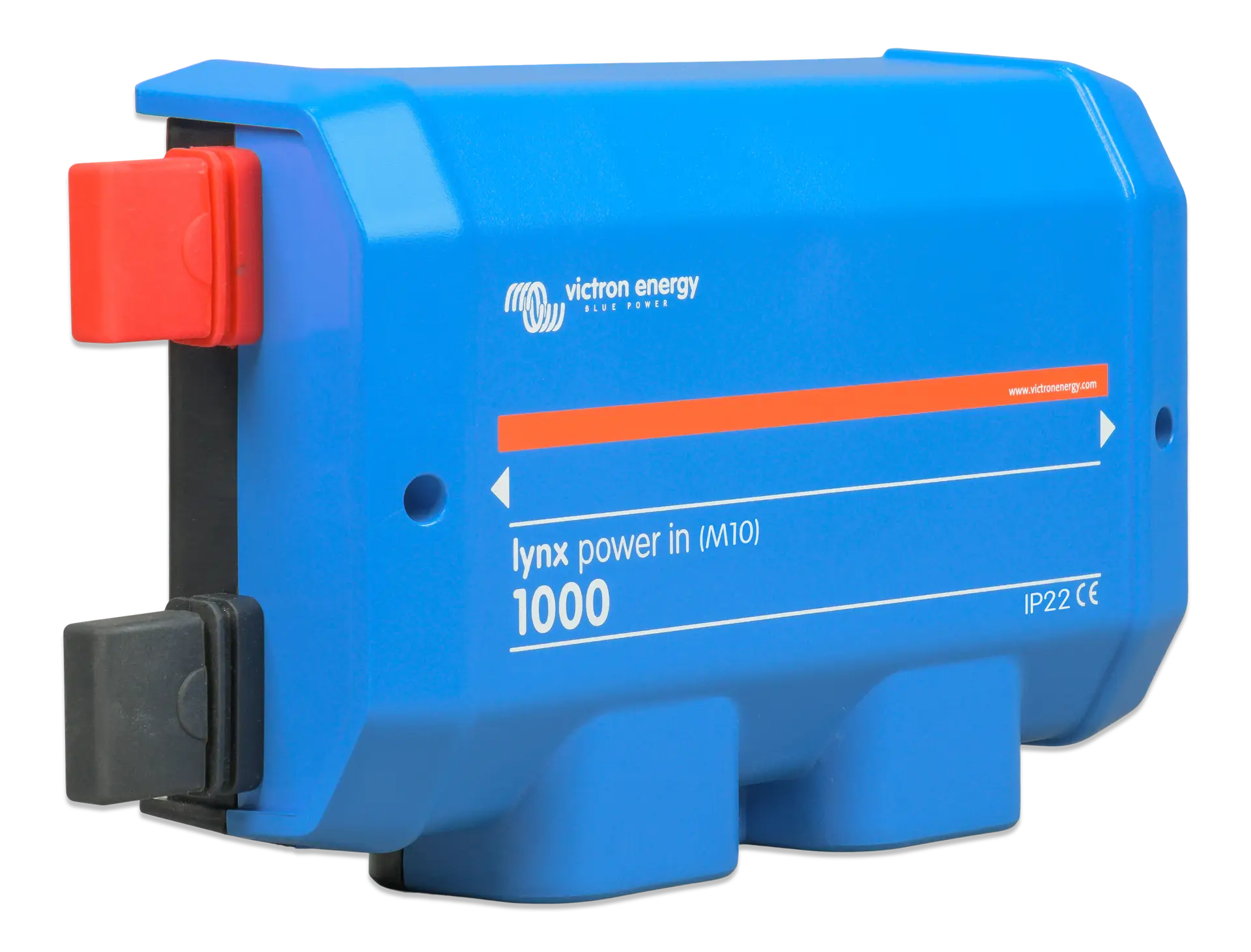

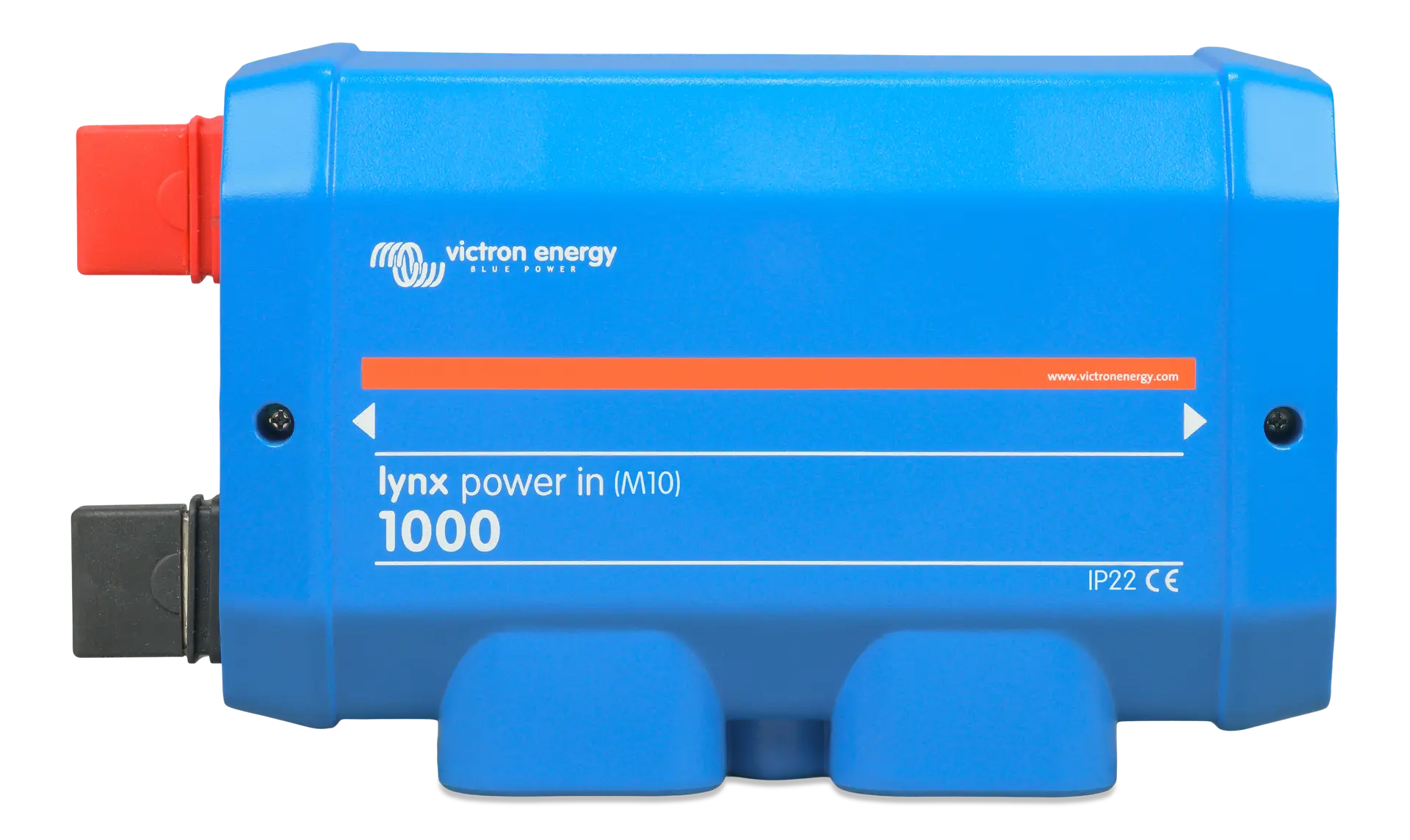

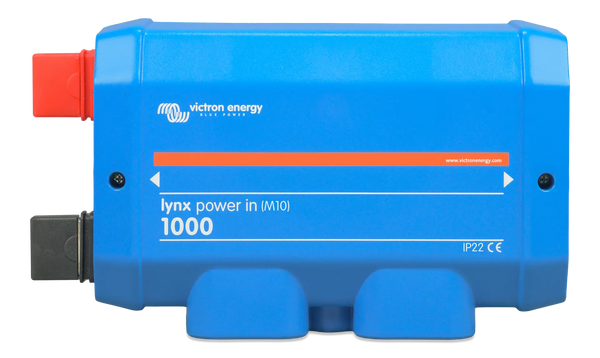

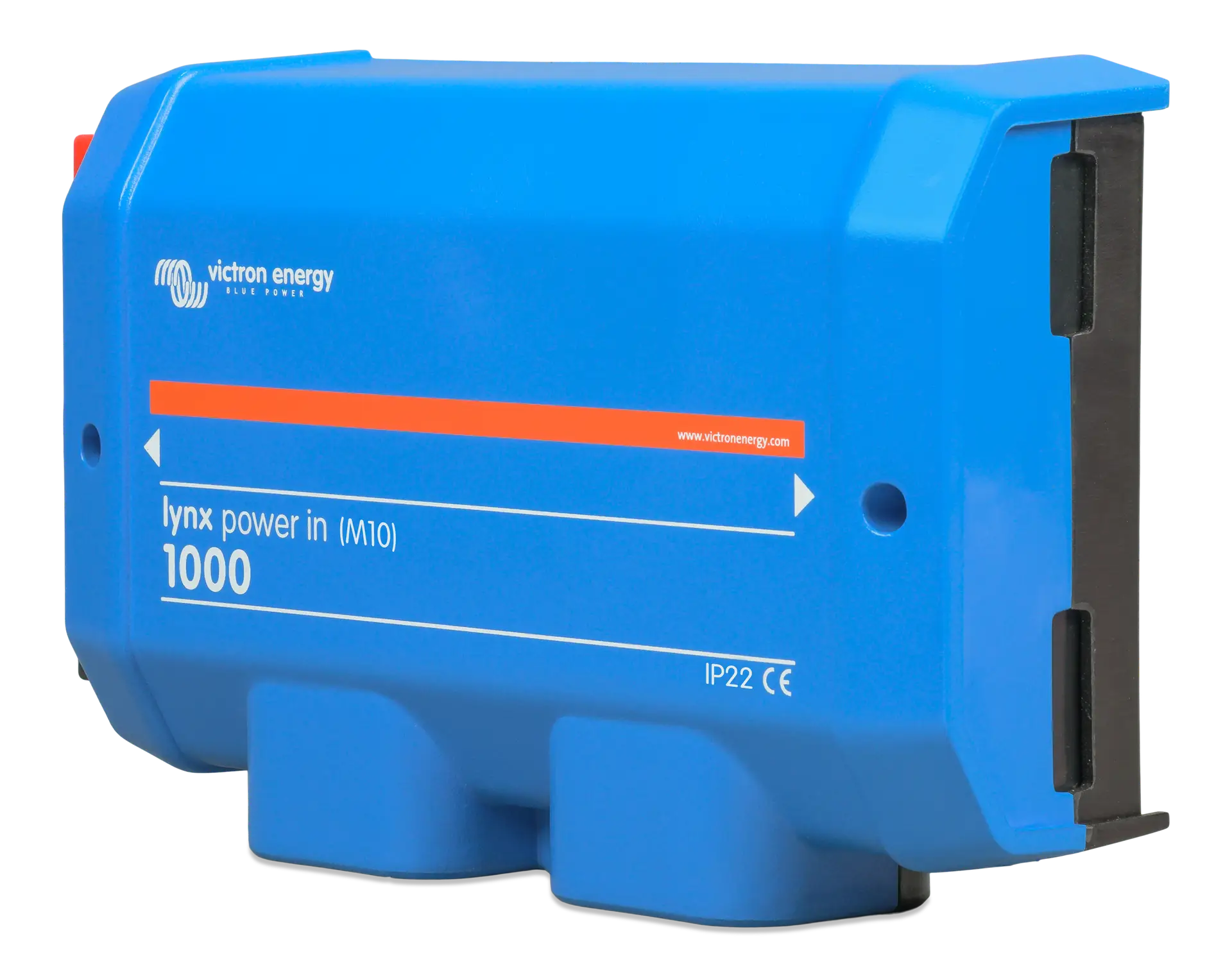

- 1 x Victron 1000A Lynx Power In M10 Busbar
- 1 x Victron 80V 325A CNN Fuse for Lynx Shunt
- 1 x Lynx Power In Bolt Kit for MEGA Fuses
Intelligent Monitoring and Fusing

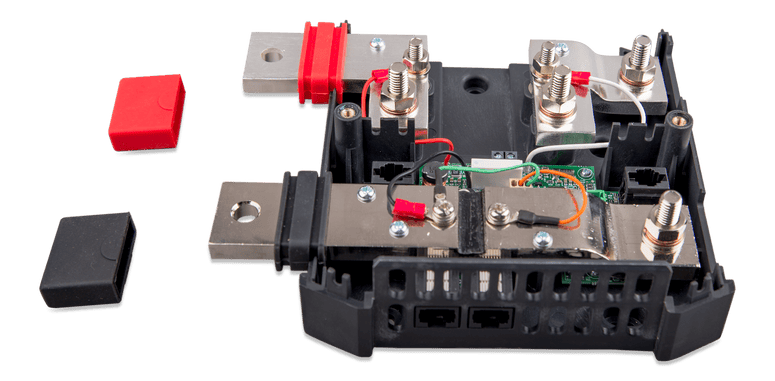

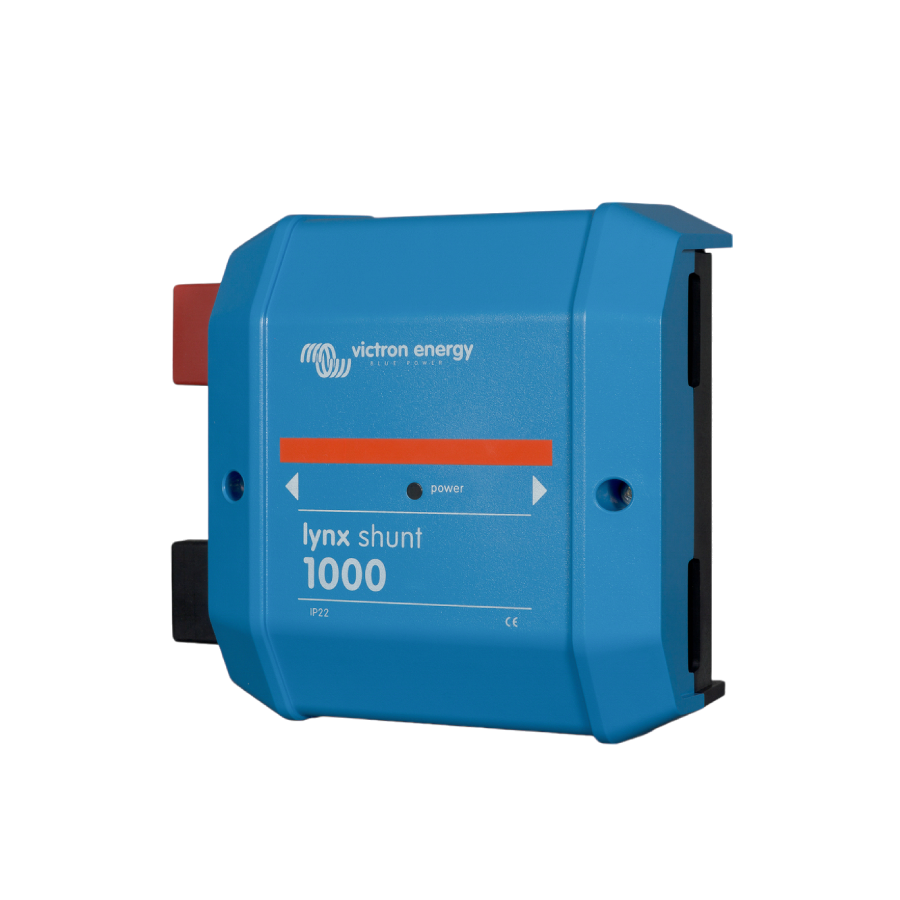

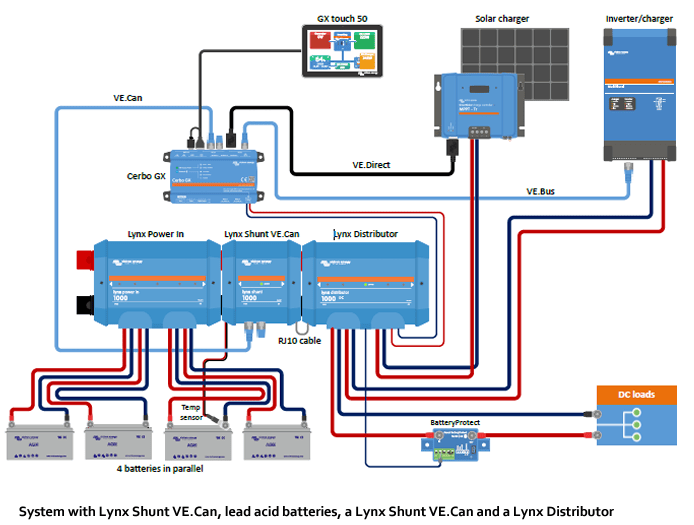

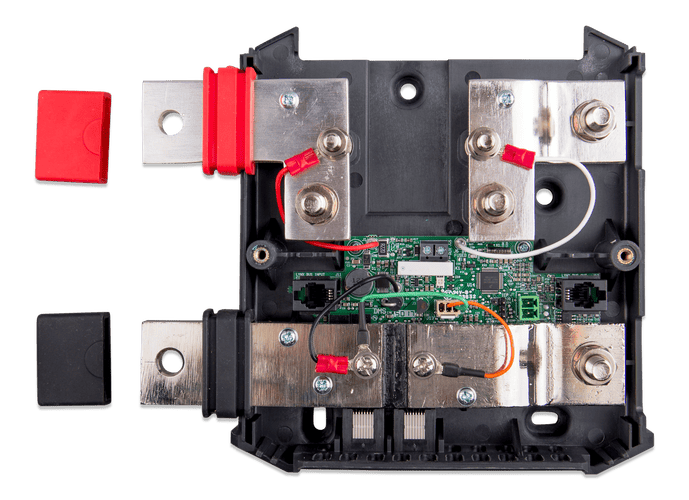

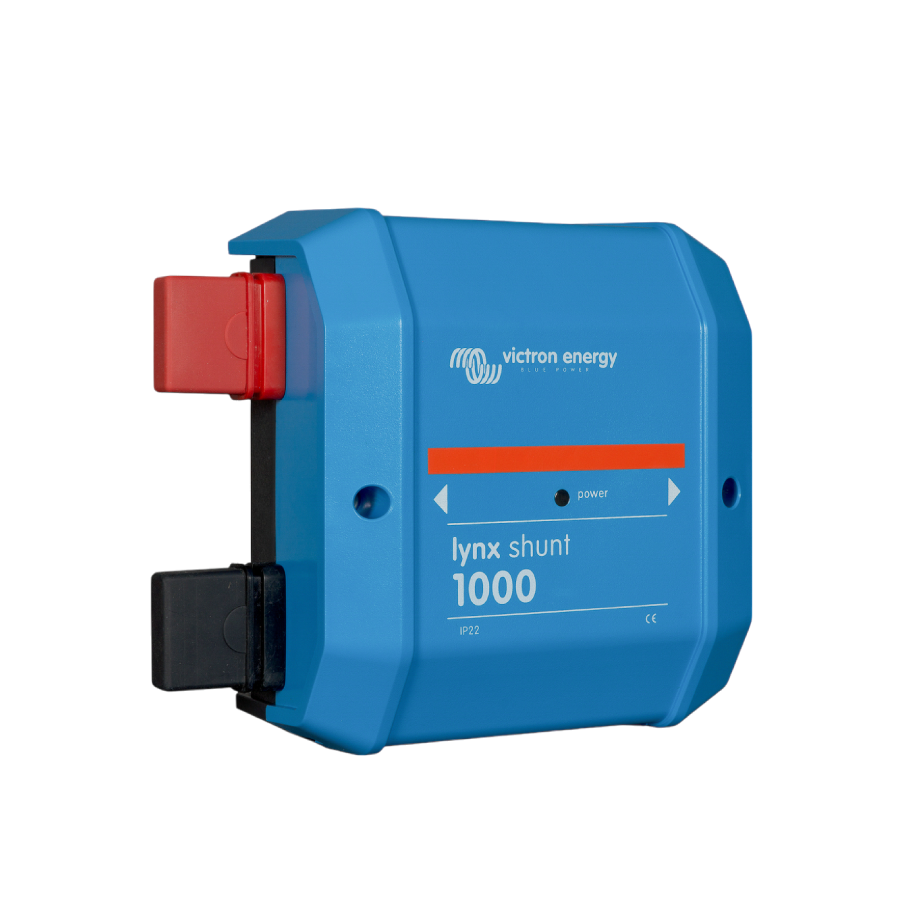

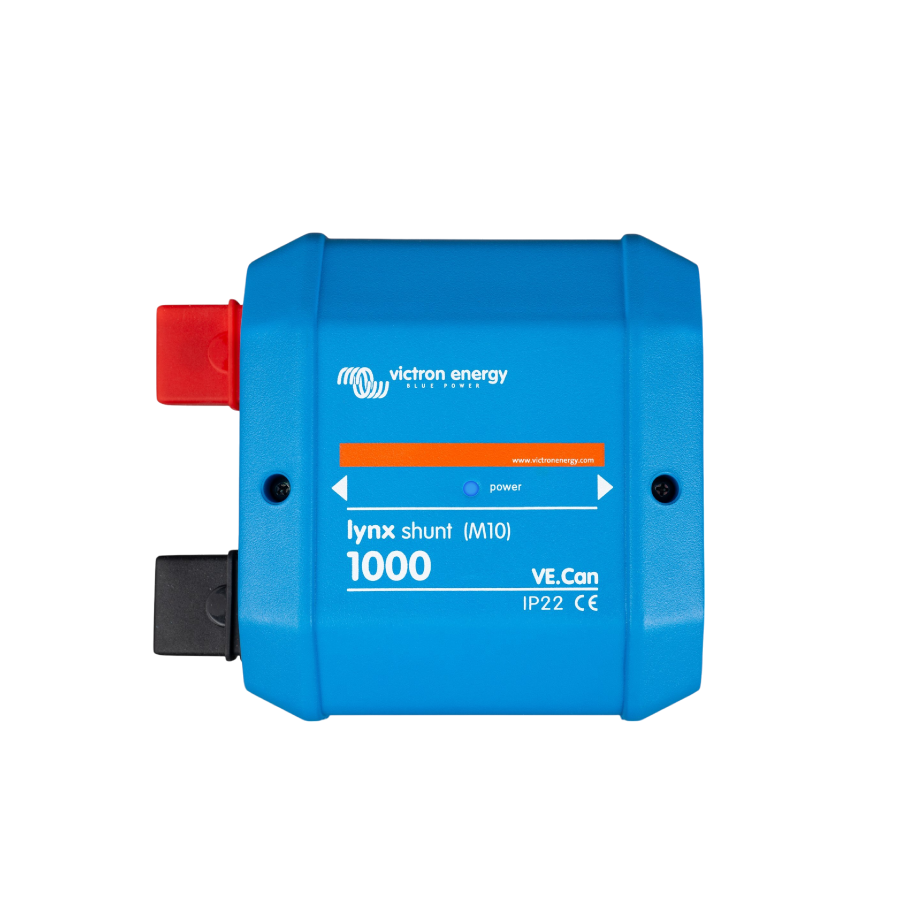

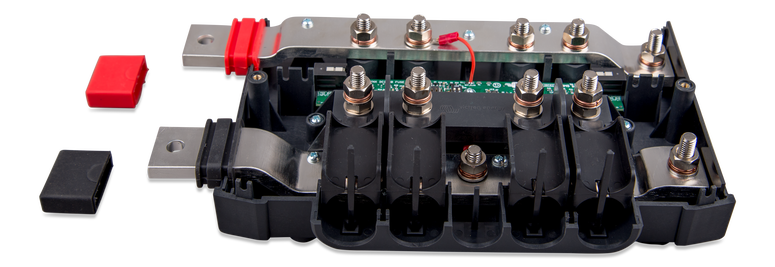

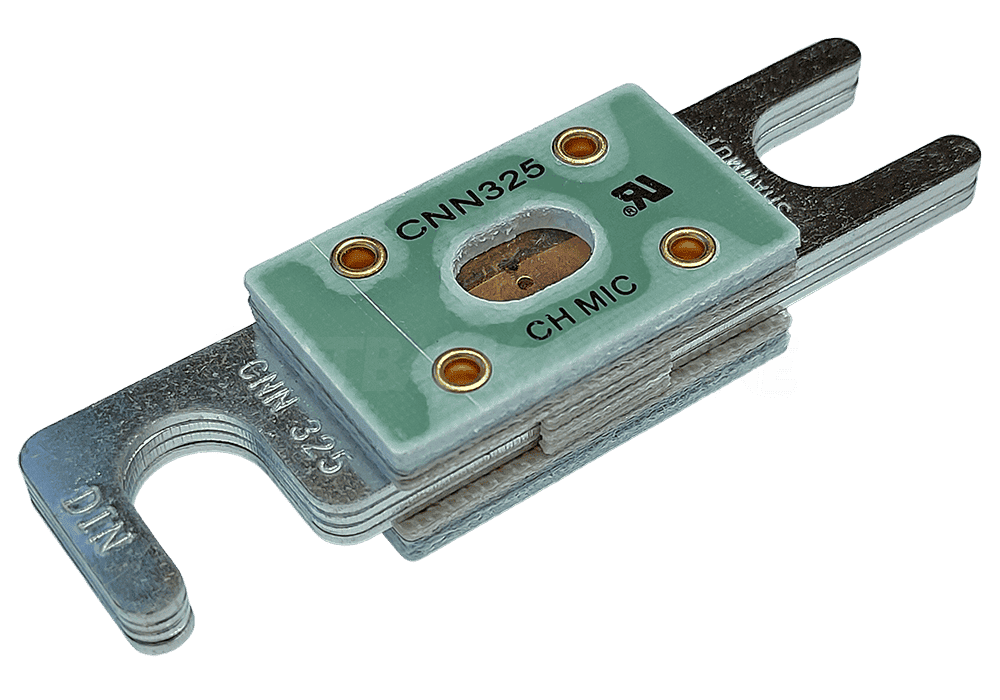

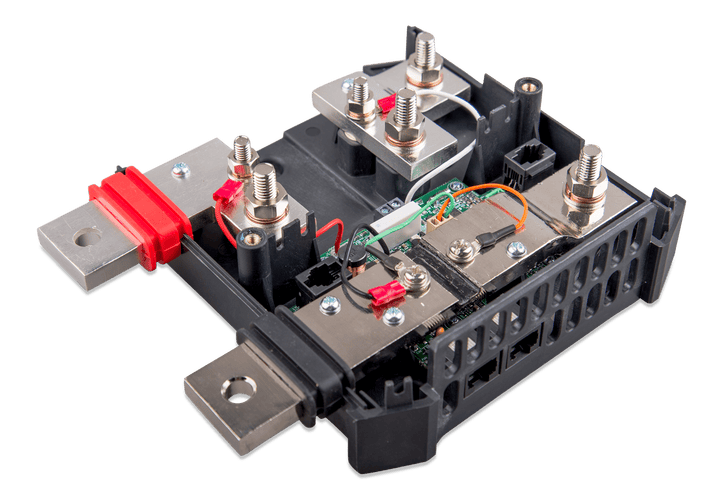

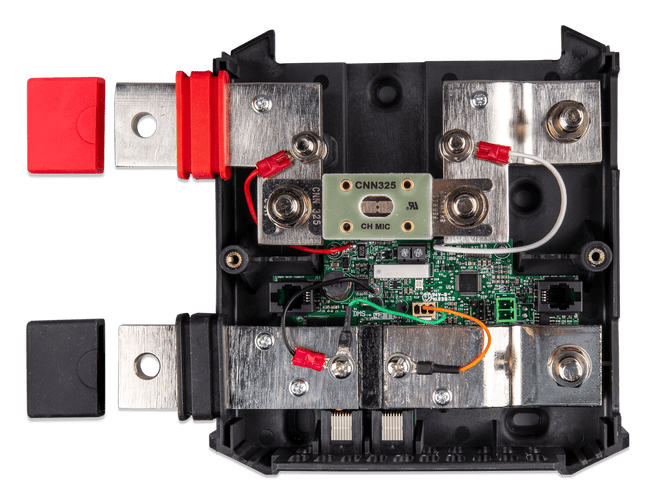

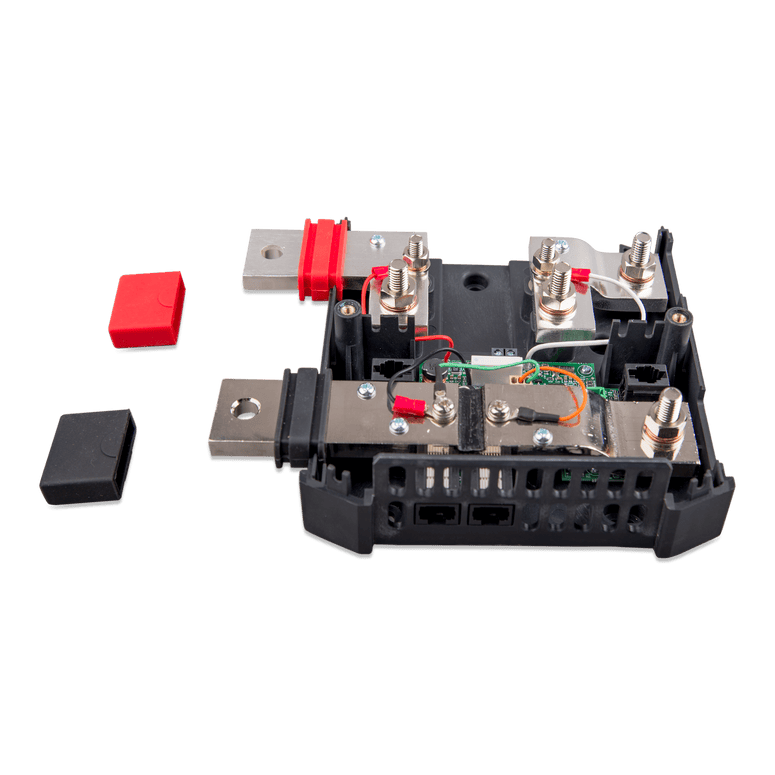

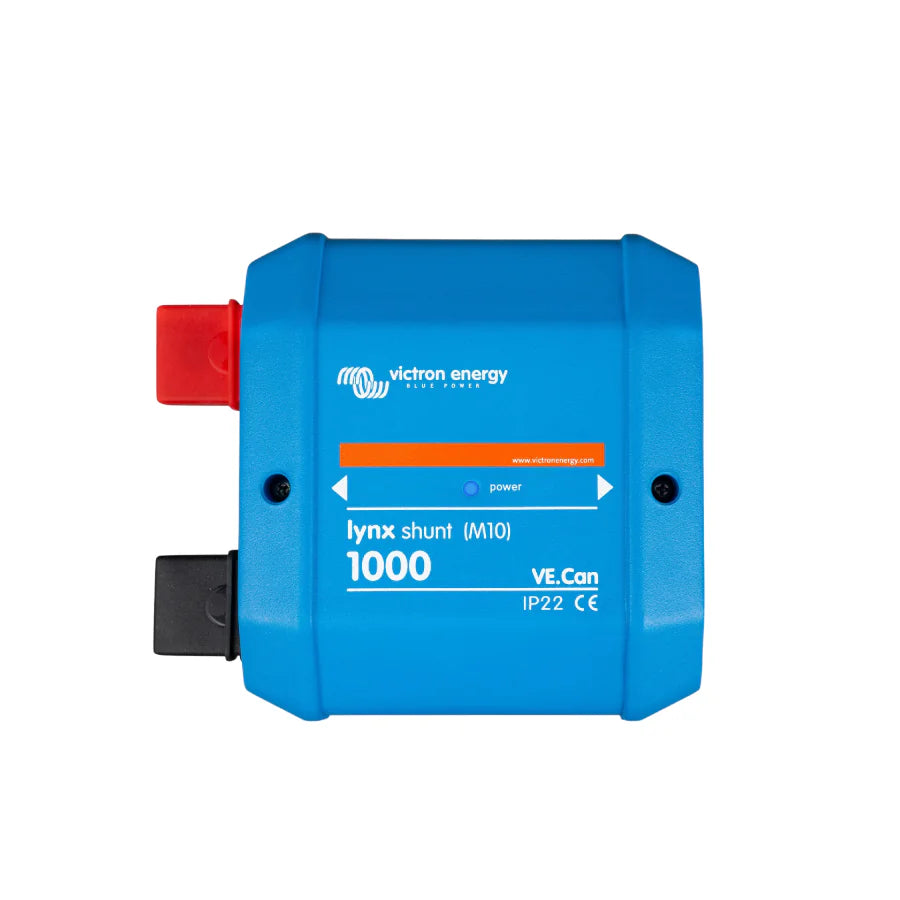

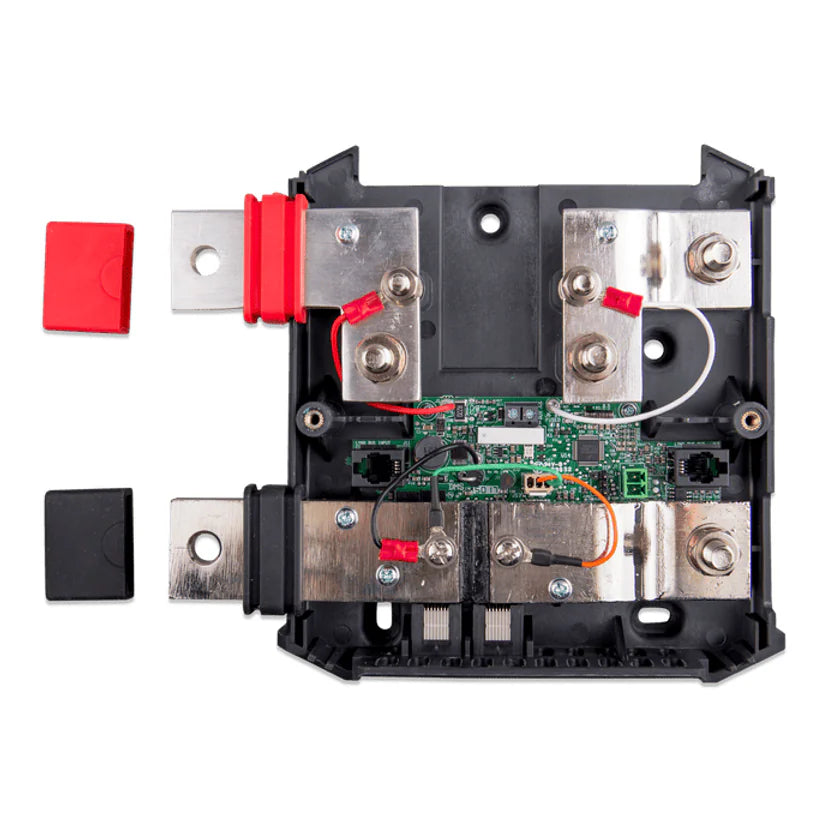

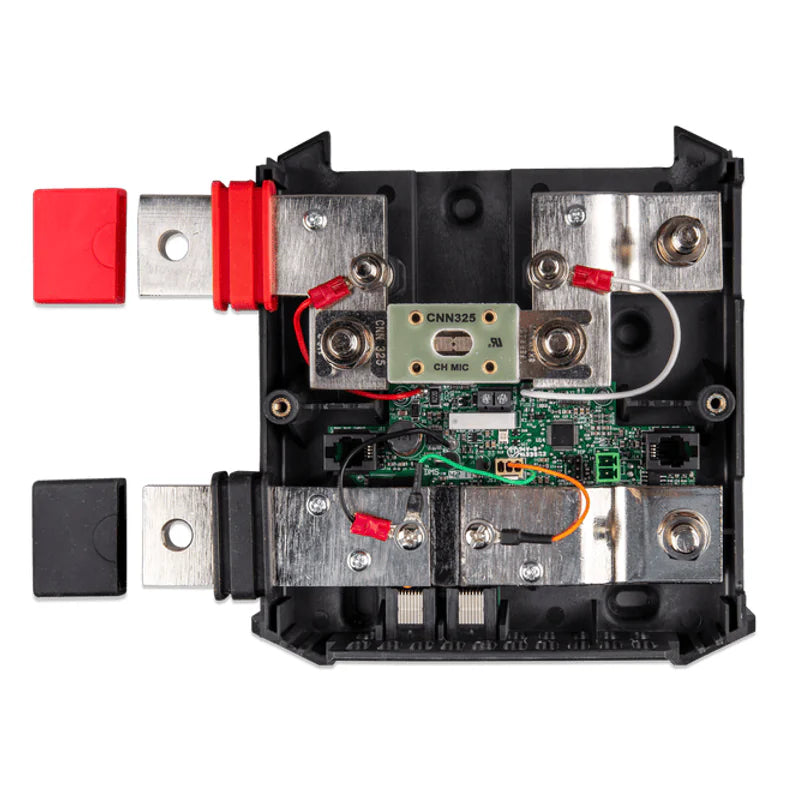

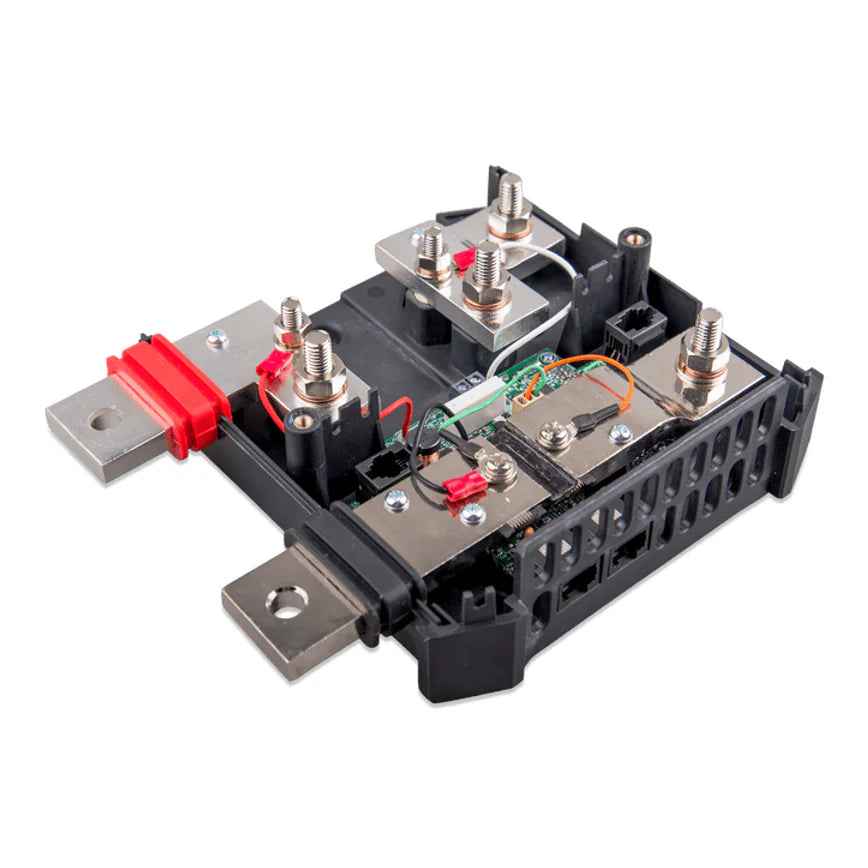

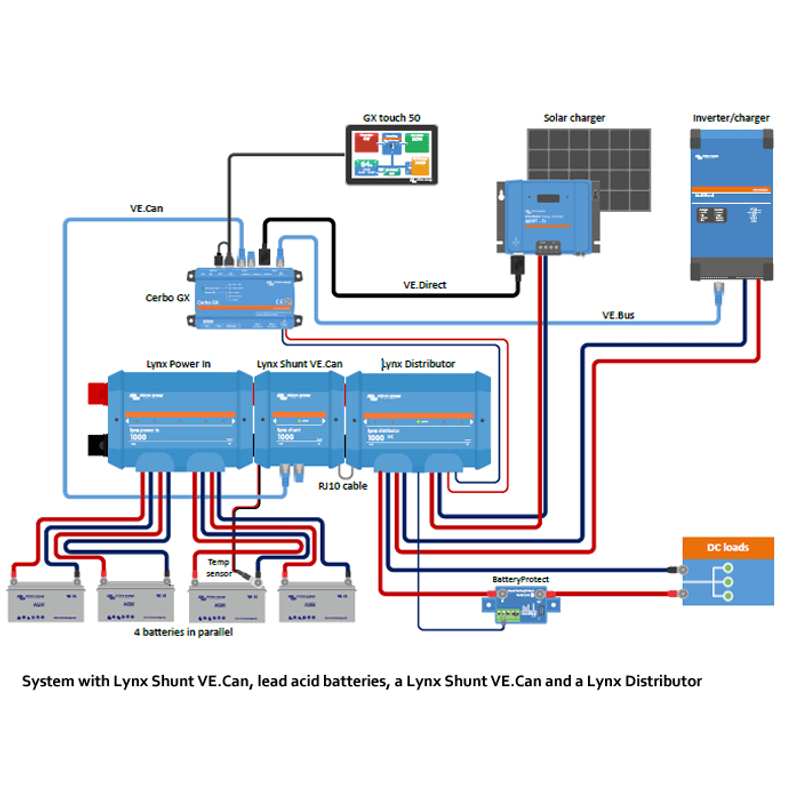

At the core of the bundle is the Lynx Shunt VE.Can, which actively measures your state of charge and integrates seamlessly with a Victron GX device. The included 325A CNN fuse drops right into the shunt, protecting your main system components from overcurrent events. To the left and right, the Lynx Distributor and Lynx Power In modules provide ample connection points for your DC loads and batteries. The Distributor features built-in LED indicators that alert you immediately if a MEGA fuse blows, significantly reducing troubleshooting time.
Enhanced Modularity with the Power In Bolt Kit

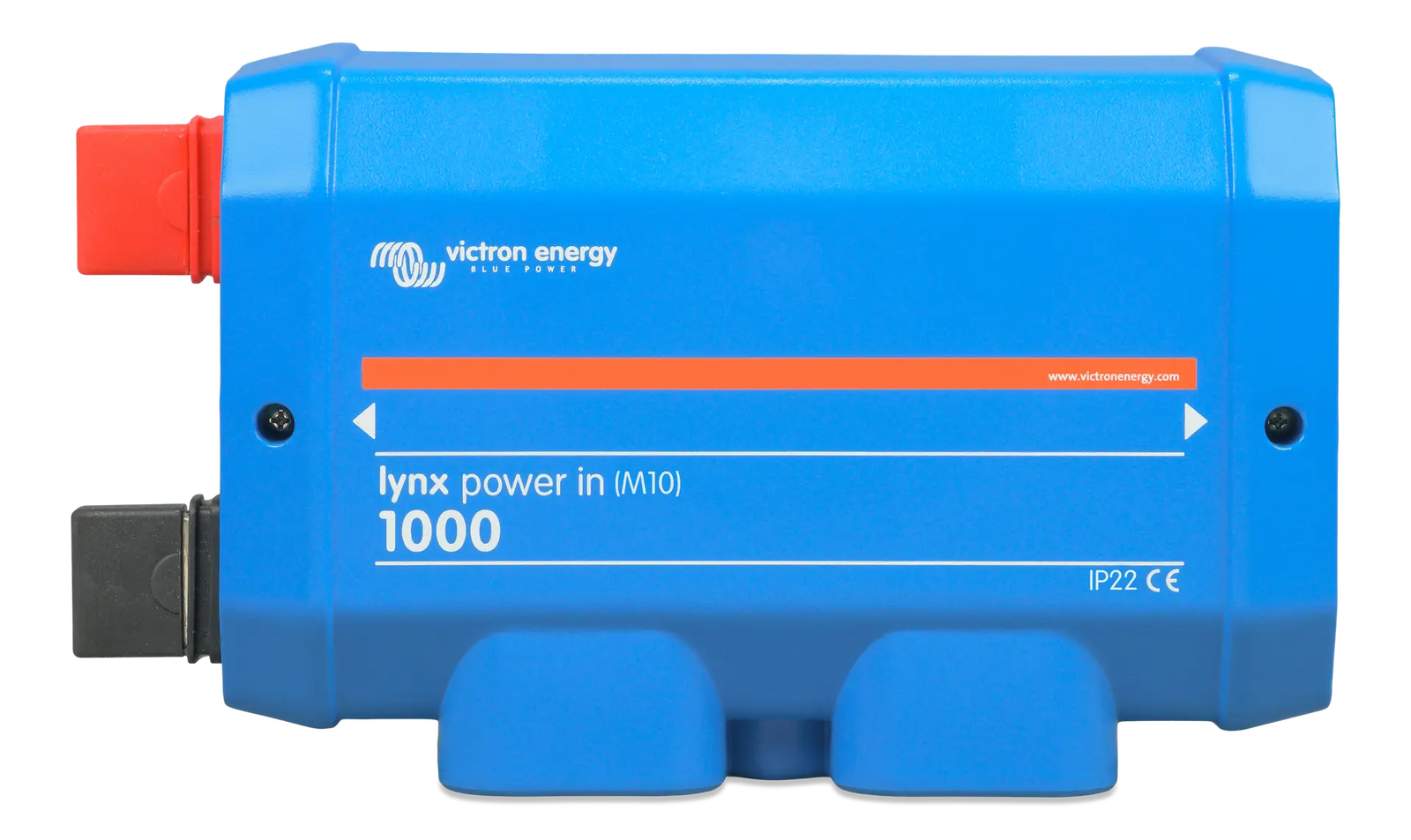

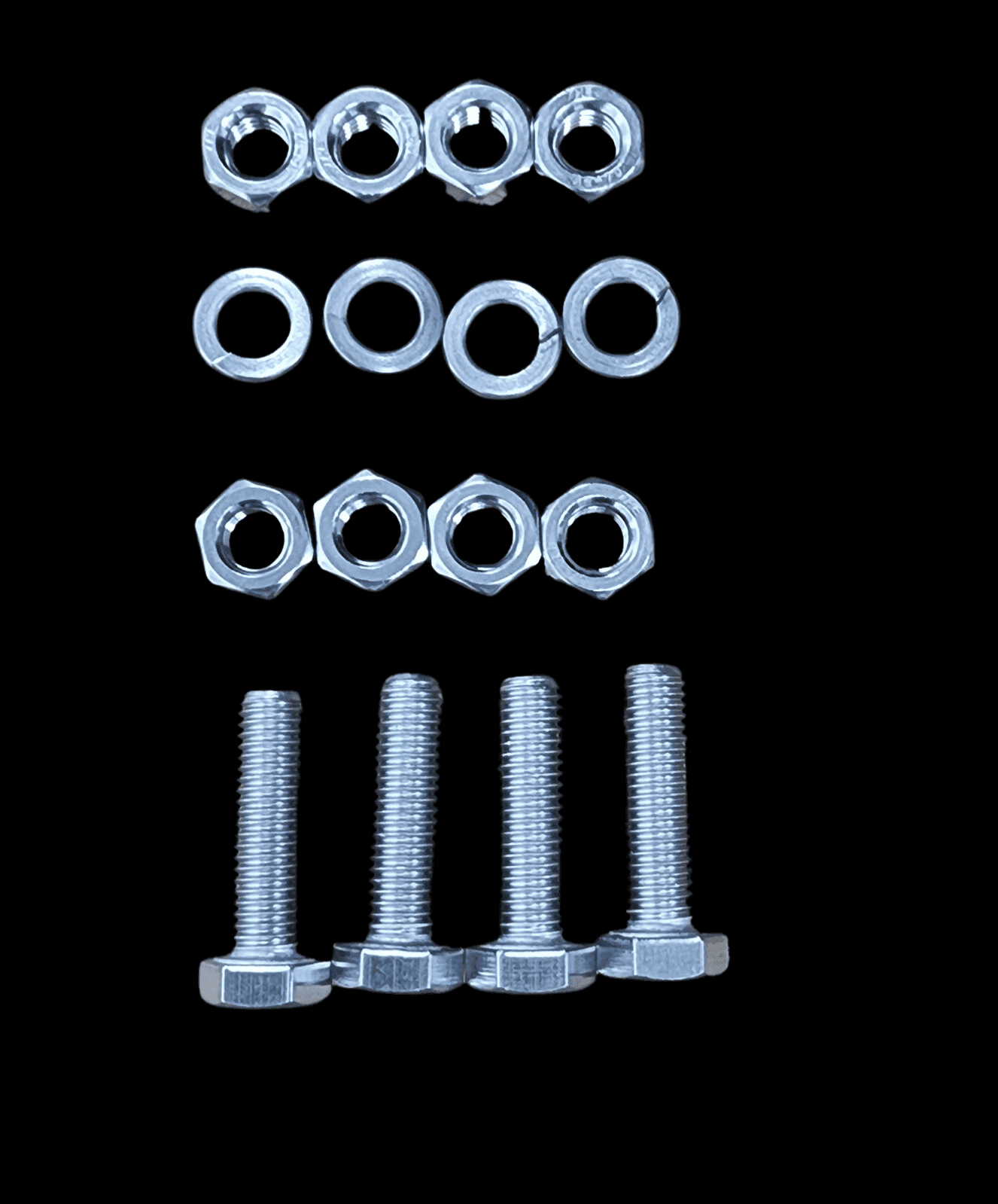

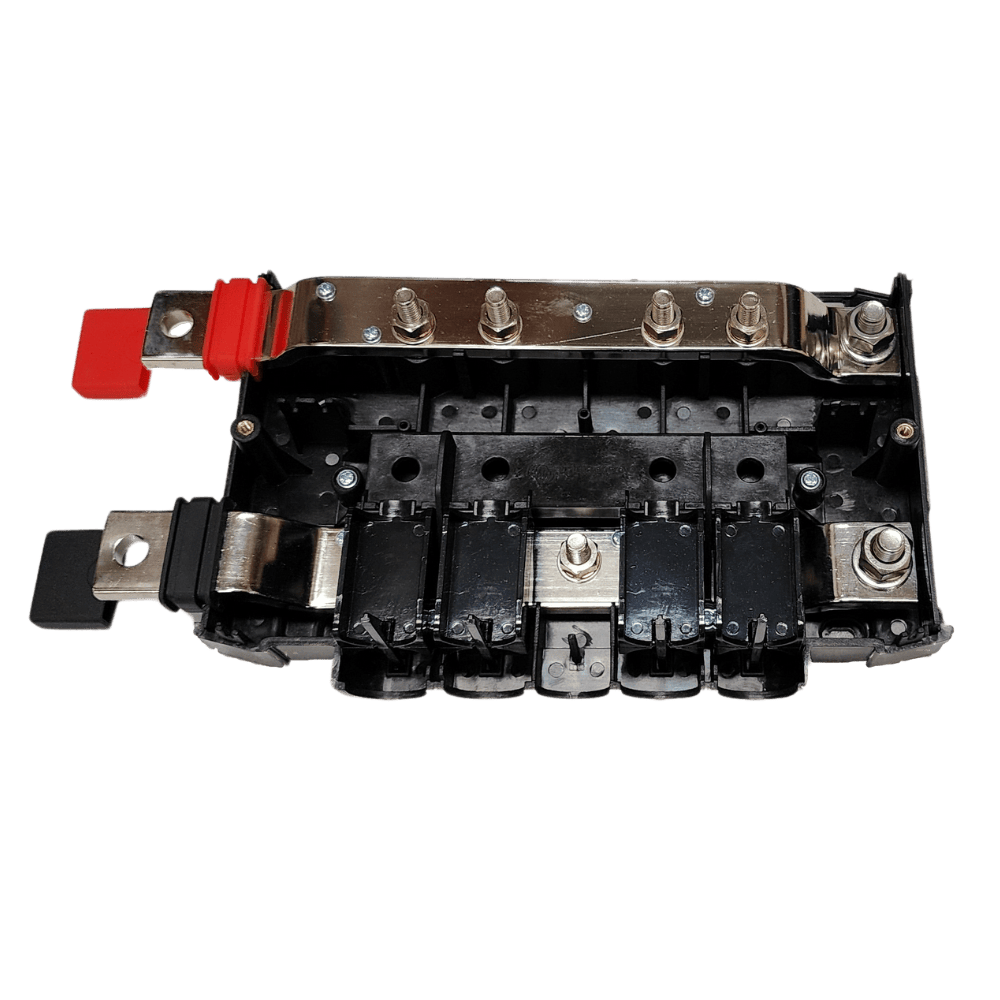

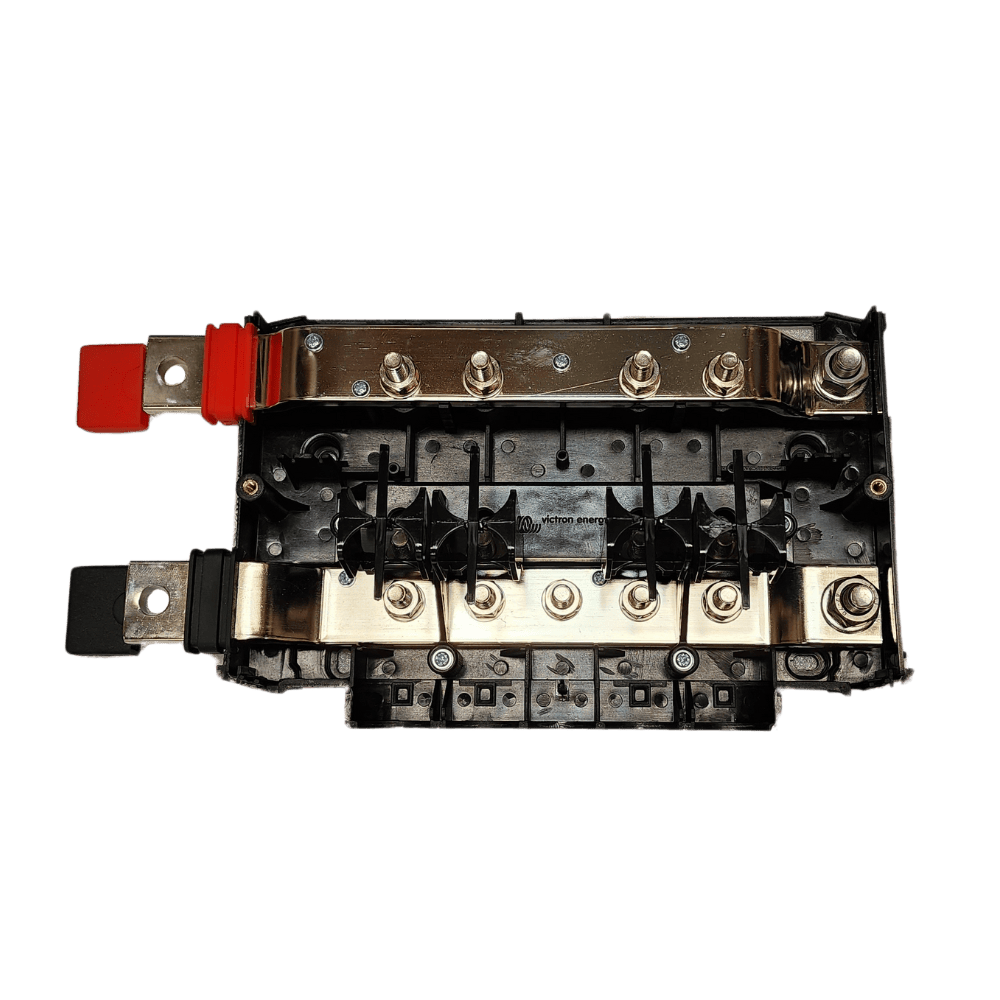

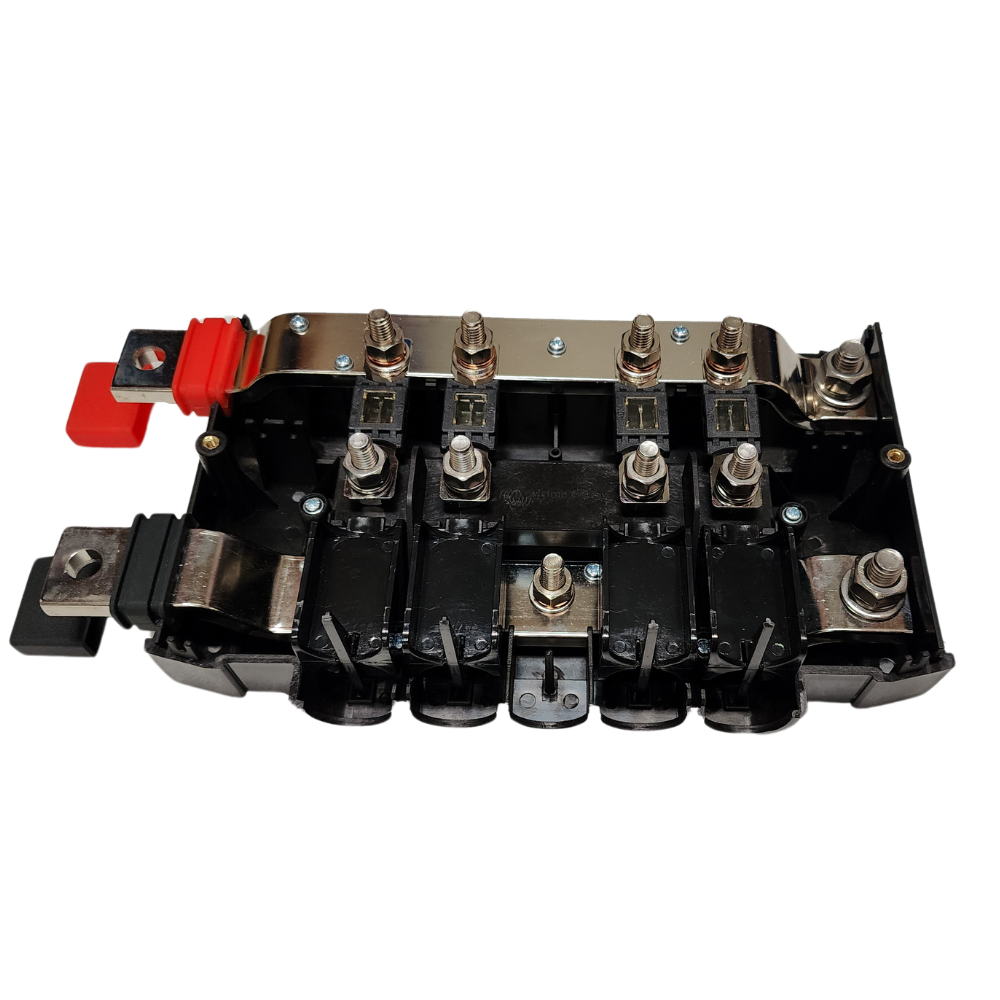

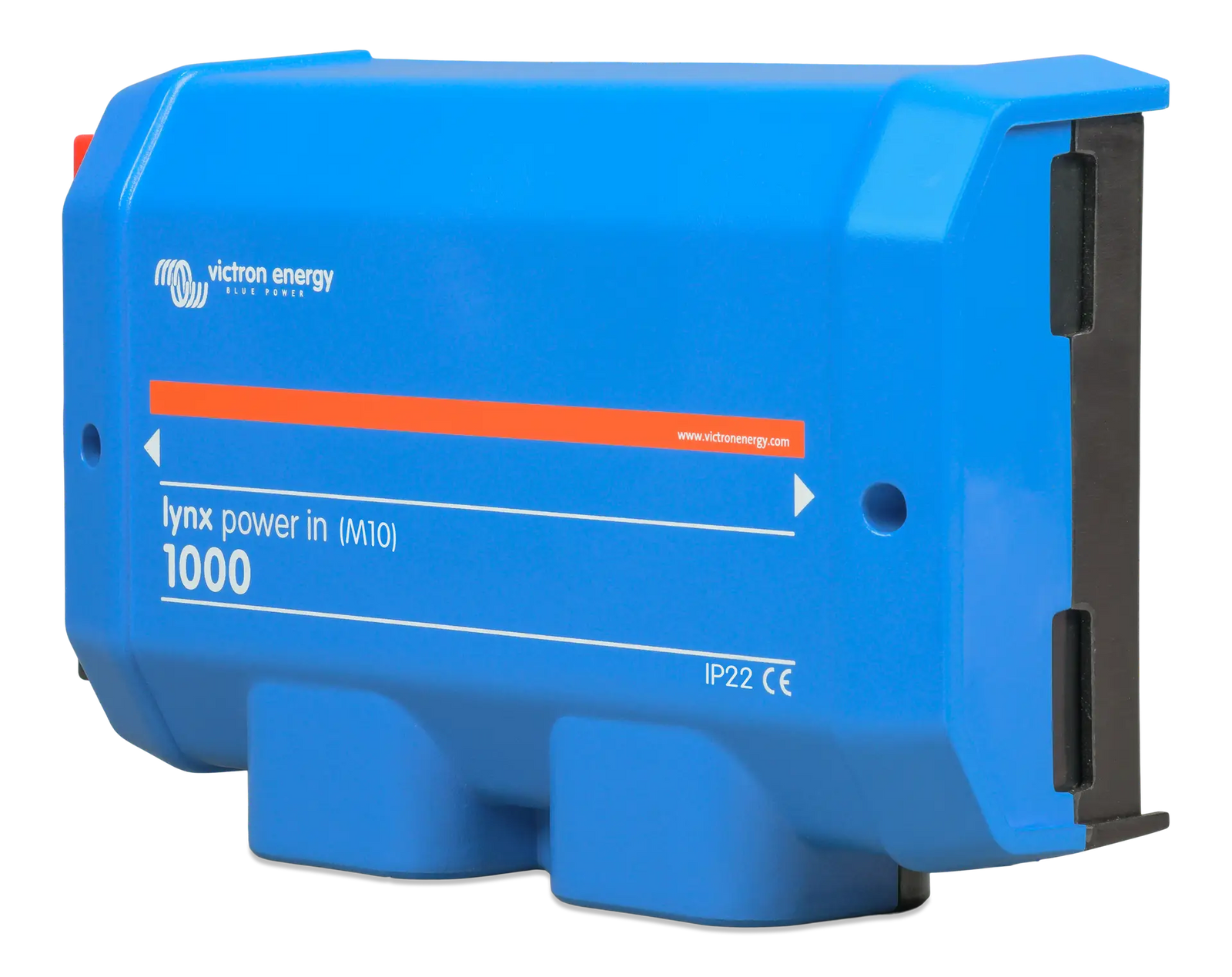

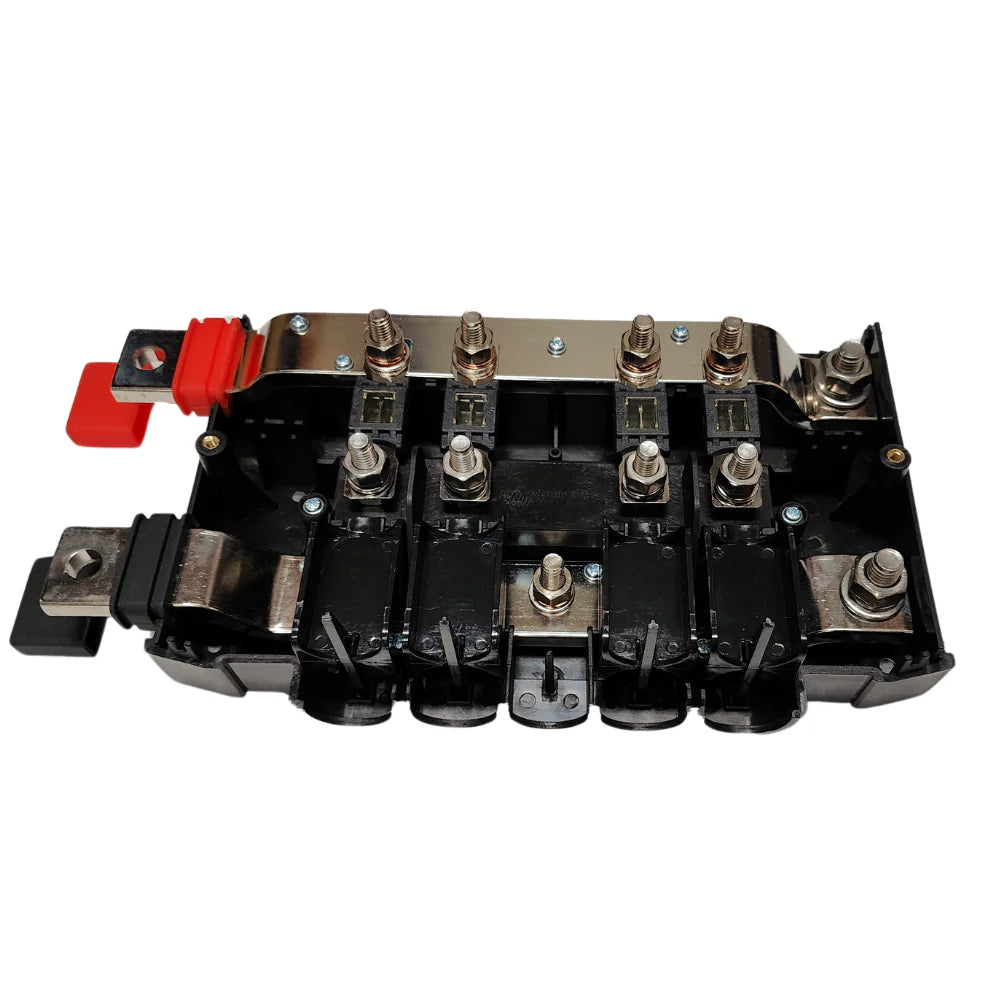

A standout feature of this bundle is the inclusion of the Lynx Power In Bolt Kit. Ordinarily, the Lynx Power In acts solely as a converging point without internal fusing. This custom bolt kit allows you to mount MEGA fuses directly inside the Power In module, transforming it into a fully protected distribution block that perfectly complements the rest of your Lynx network.
Key Features and Benefits
- 1000A Continuous Capacity: Heavy-duty 8 x 30 mm tinned copper busbars effortlessly manage massive current draws from lithium battery banks and large inverters.
- Modular M10 Interconnects: Components bolt seamlessly together using upgraded M10 hardware, creating a unified and highly conductive distribution block.

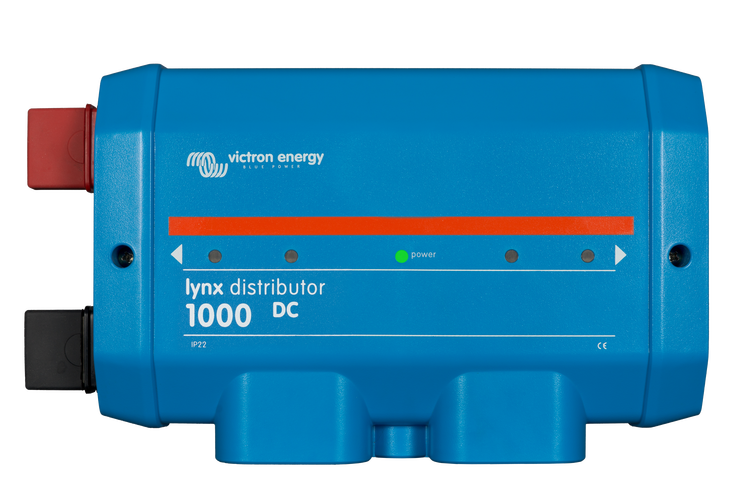

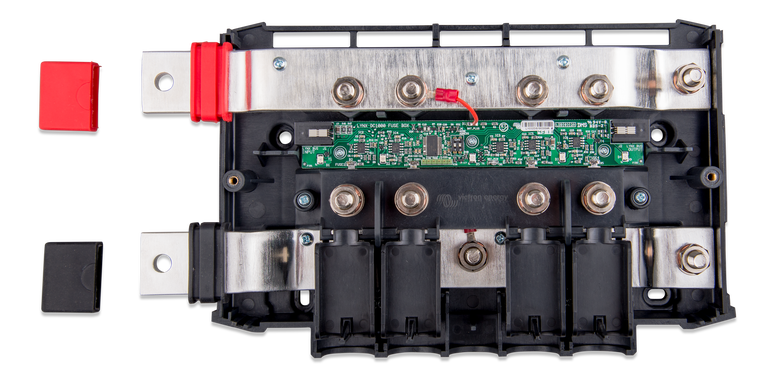

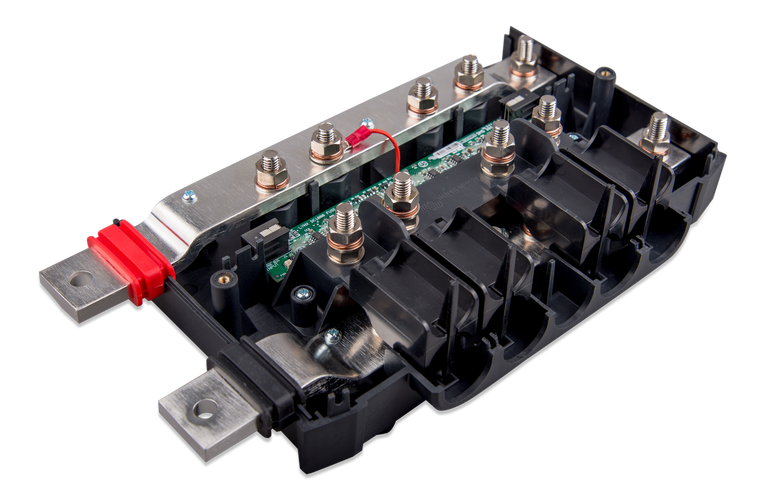

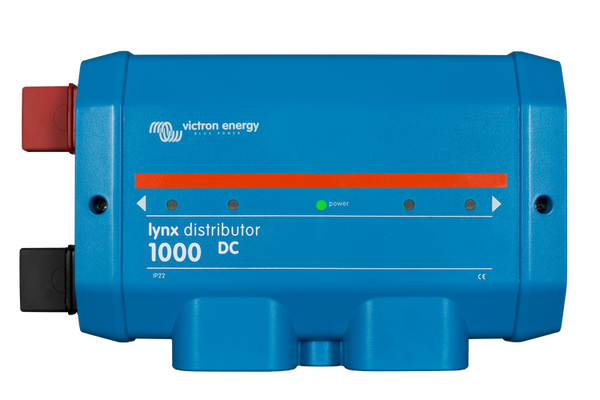

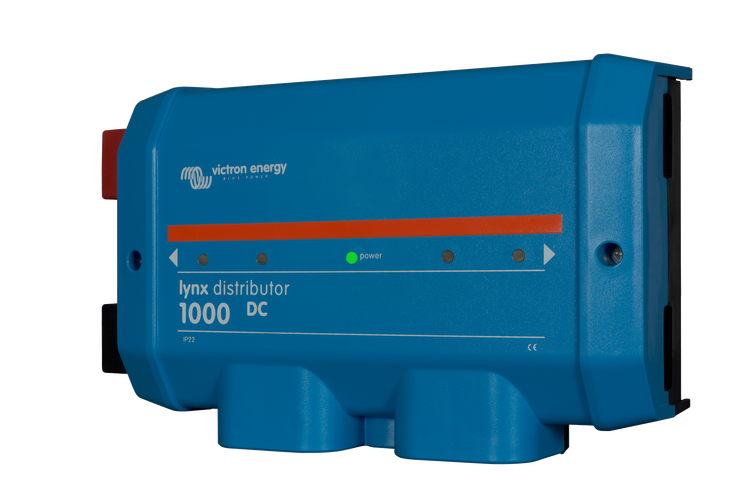

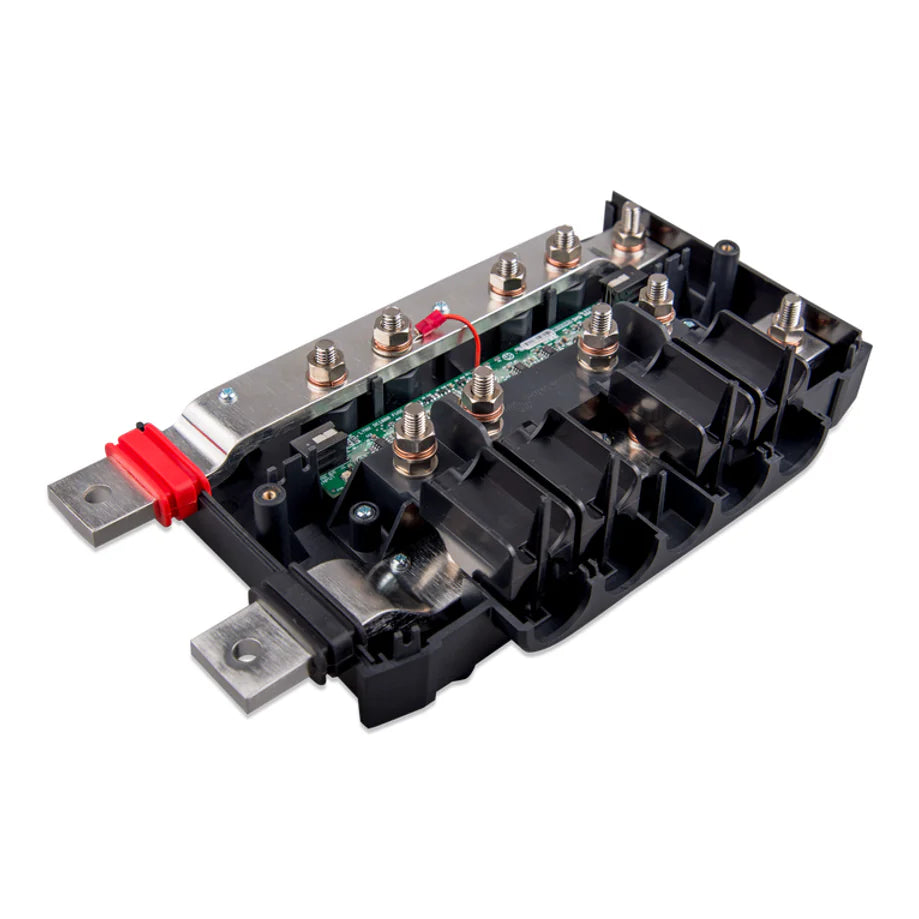

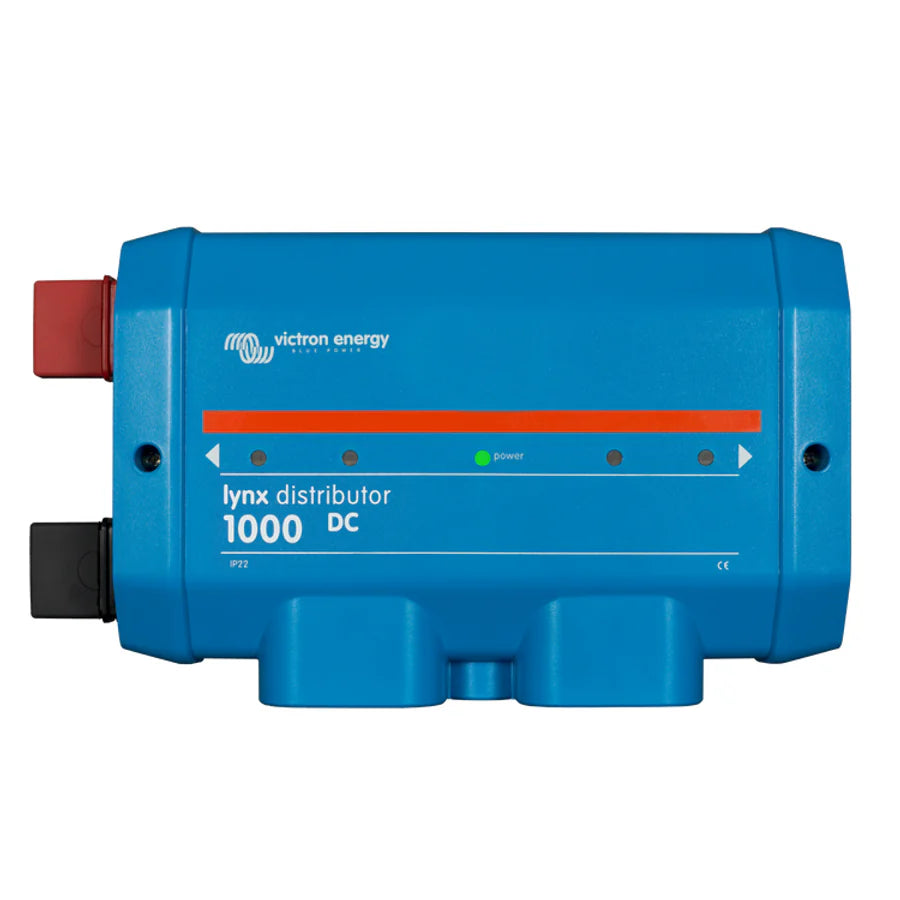

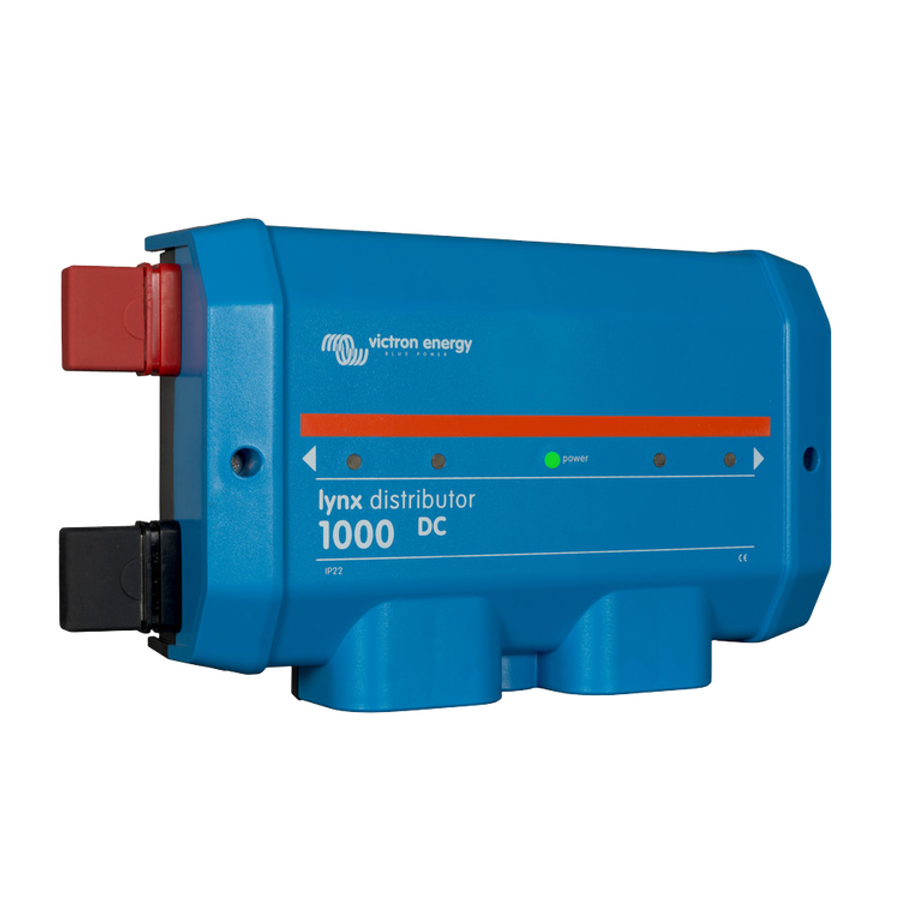

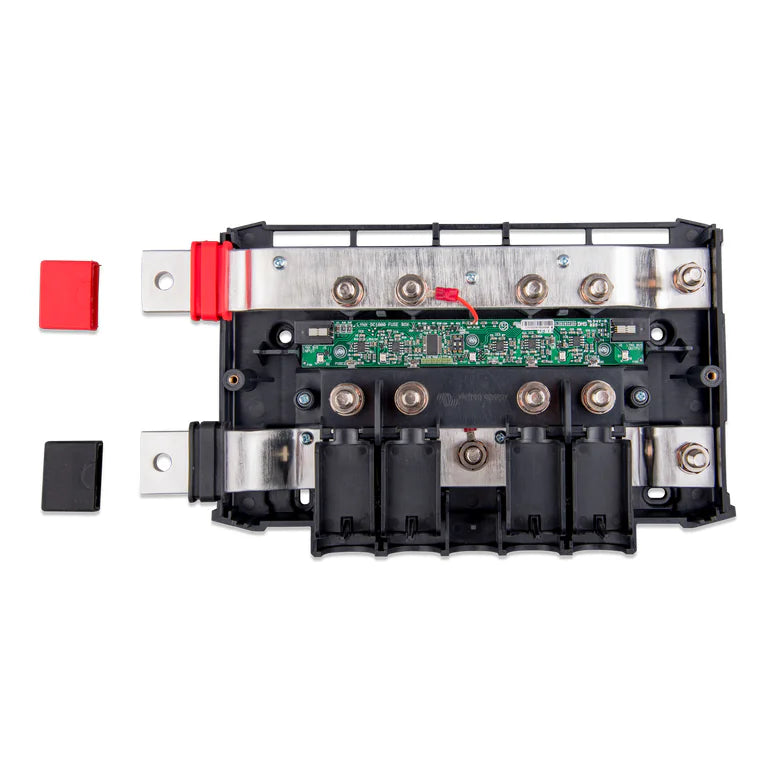

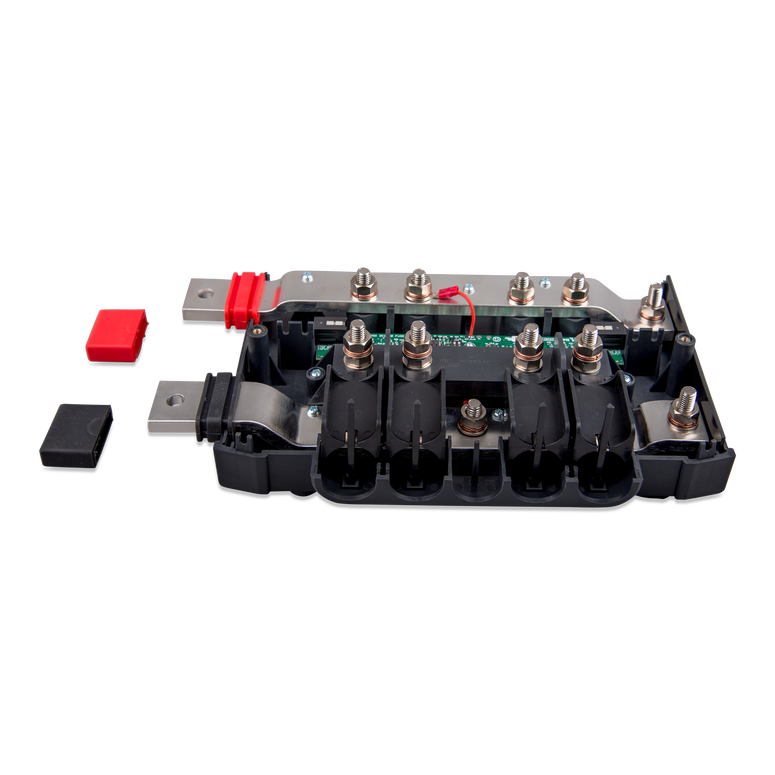

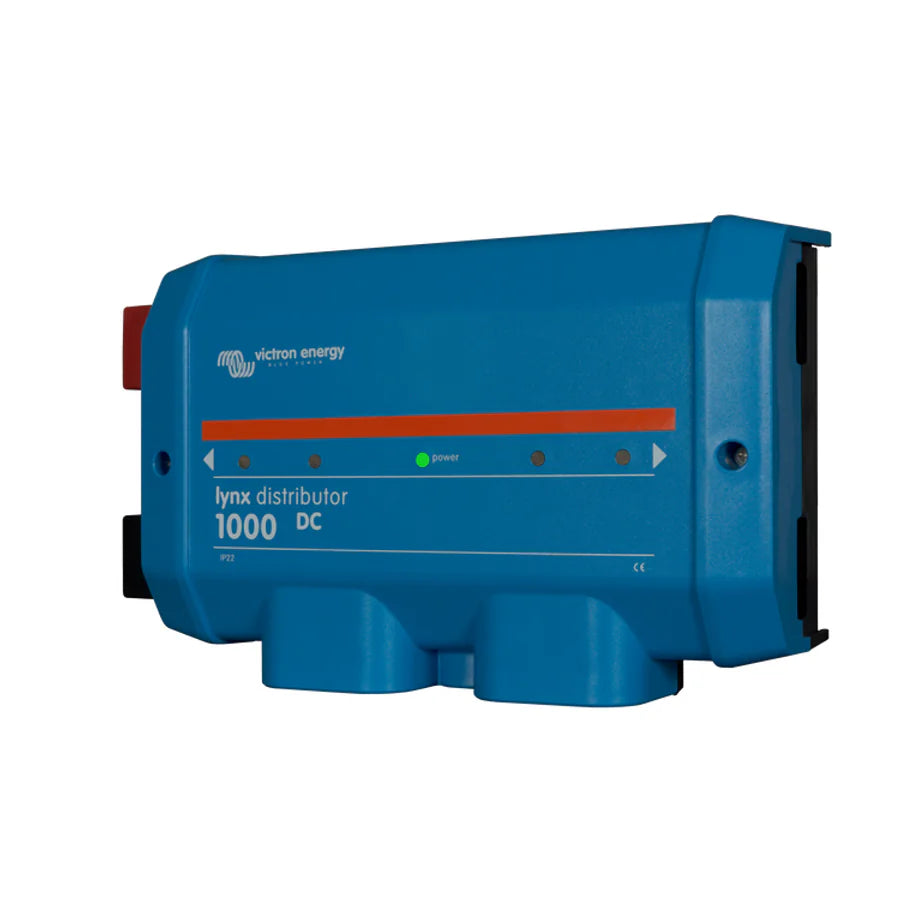

- Intelligent Fuse Monitoring: Active LED status indicators on the Lynx Distributor provide rapid visual diagnostics of your system fuses.
- Comprehensive Protection: Includes the essential 325A CNN main system fuse, plus a specialised bolt kit to enable MEGA fuse installation inside the Power In unit.
- Advanced State of Charge Tracking: The Lynx Shunt VE.Can delivers precise battery monitoring and feeds data directly to your Victron GX ecosystem.
Built for Demanding Environments

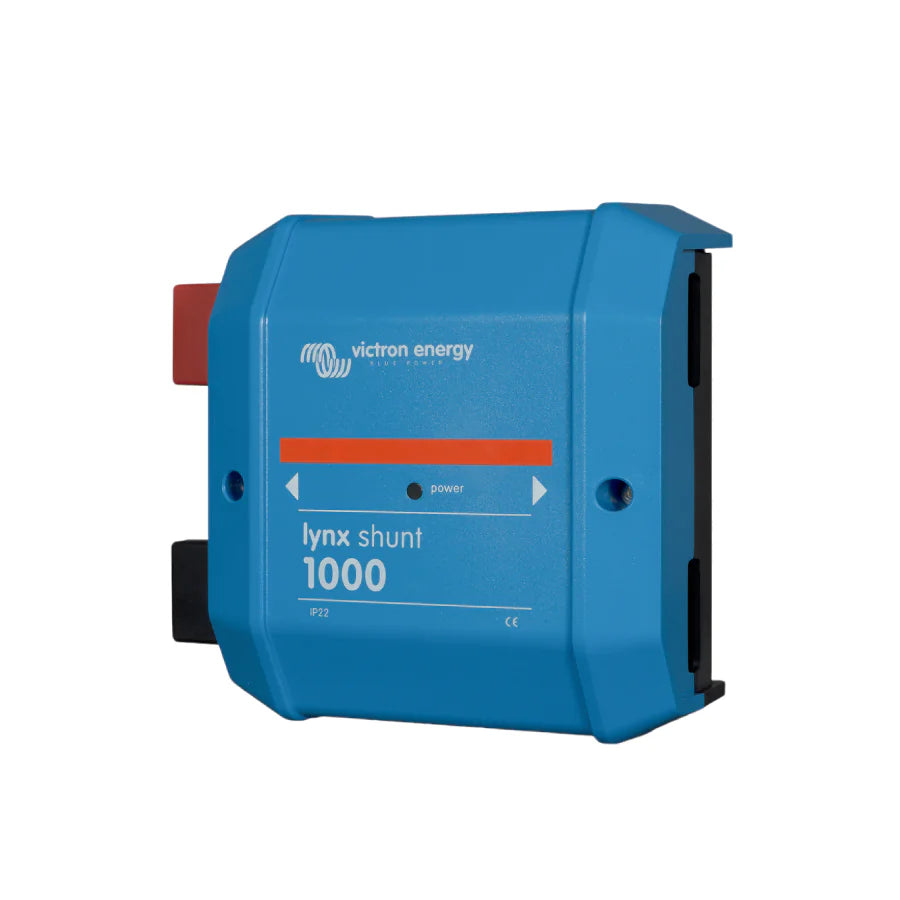

Constructed from durable ABS enclosures with IP22 protection, the Lynx system actively guards against accidental terminal contact while allowing visual inspection through the transparent front covers. Designed to resist corrosion in harsh coastal or outback environments, it is well suited to anyone seeking uncompromised reliability in their power infrastructure.
Secure your high-current connections and streamline your electrical architecture. Order the Victron 1000A Lynx Modular DC Distribution Bundle today for a safer, cleaner, and highly efficient power setup.
SKU: BDL-Lynx-Dist-Shnt-Pwr-In

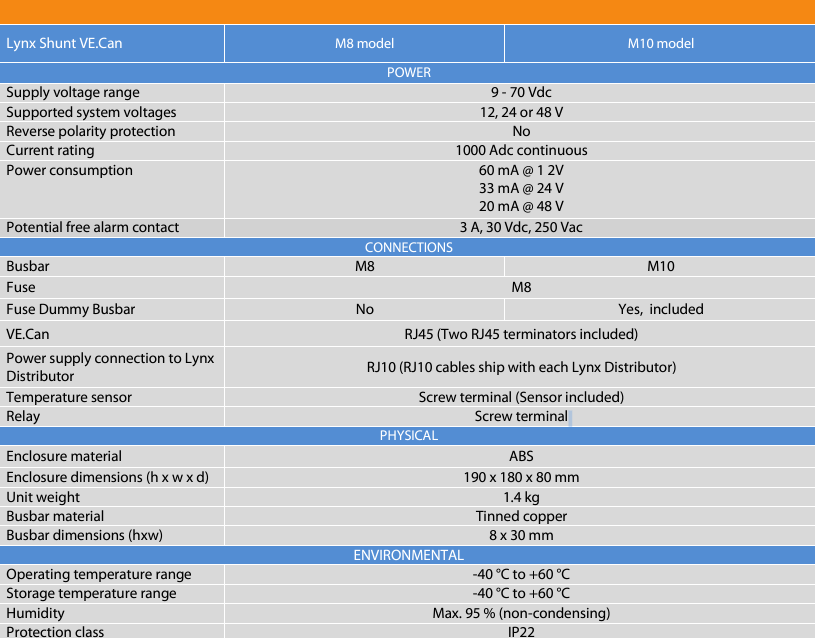

SPECIFICATIONS
| Bundle System Specifications | |
|---|---|
| Supported System Voltages | 12V, 24V, or 48V |
| Continuous Current Rating | 1000A DC |
| Busbar Material | Tinned Copper (8 x 30 mm) |
| Interconnects | M10 Busbar Connections, M8 Fuse Connections |
| Included Main System Fuse | 325A / 80V CNN Fuse (for Lynx Shunt) |
| Additional Fusing Capability | MEGA fuses (via Distributor and modified Power In) |
| Enclosure Material & Protection | ABS, IP22 Rated |
| Operating Temperature | -40°C to +60°C |
| Combined Packaged Weight (Approx) | 6.61 kg |
Please note: The bundle specifications are indicative only. Customers should view the specifications of each individual product for full details.
| SKU: | BDL-Lynx-Dist-Shnt-Pwr-In |
