Victron 12/24/48V 70A SmartSolar MPPT 250/70-MC4 VE.CAN Bluetooth Solar Charge Controller
Victron 12/24/48V 70A SmartSolar MPPT 250/70-MC4 VE.CAN Bluetooth Solar Charge Controller
99% Peak Efficiency, Ultra-Fast MPPT with Bluetooth and VE.Can — 70A Charge Current
Highlights:Display Option: Port for optional plug-in LCD display for local monitoring,Status LEDs: Indicators for Bulk, Absorption, and Float charging stages,Battery Terminals: Secure screw terminals for 12V, 24V, or 48V battery connections,PV MC4 Connectors: Dual MC4 connectors for quick solar array installation,VE.Can Ports: Communication ports for synchronising multiple controllers.

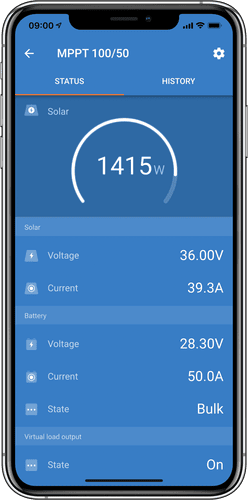

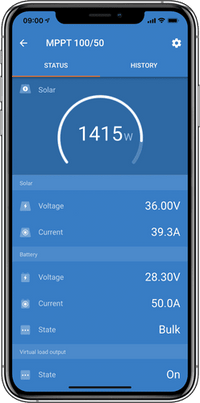

Remote monitoring via the VictronConnect app using built-in Bluetooth to track solar power, battery voltage, and current charge state.
Key features: Supports 12V, 24V, and 48V battery systems with auto-select, Maximum PV open circuit voltage of 250V, Peak conversion efficiency of 99 percent, IP43 protection for electronics and IP22 for connection area, Synchronised parallel operation via VE.Can or Bluetooth.
DESCRIPTION

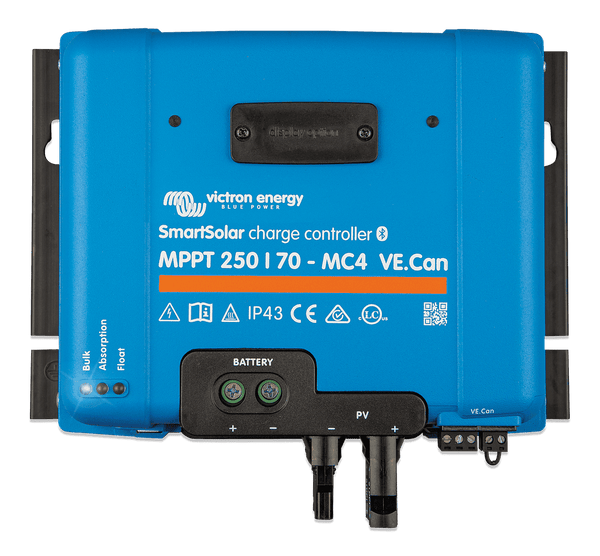

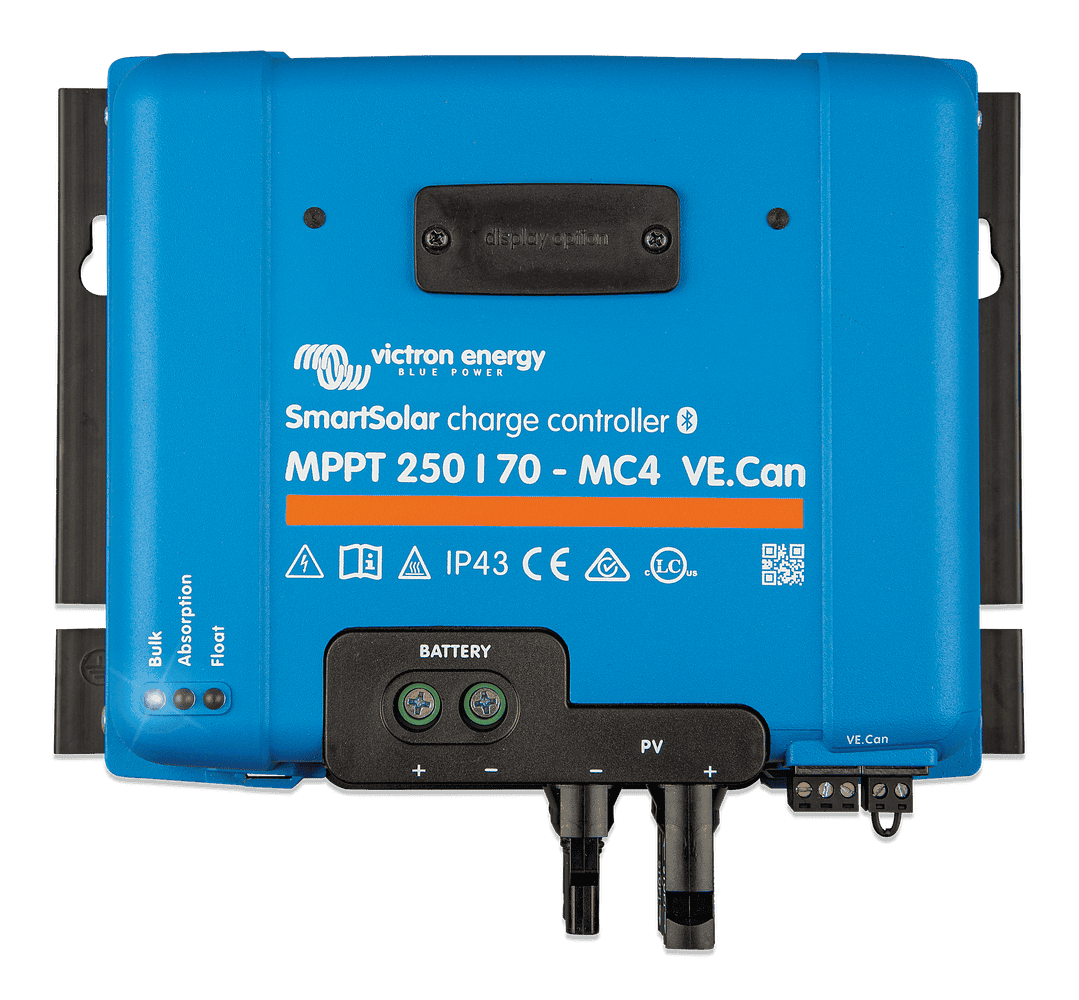

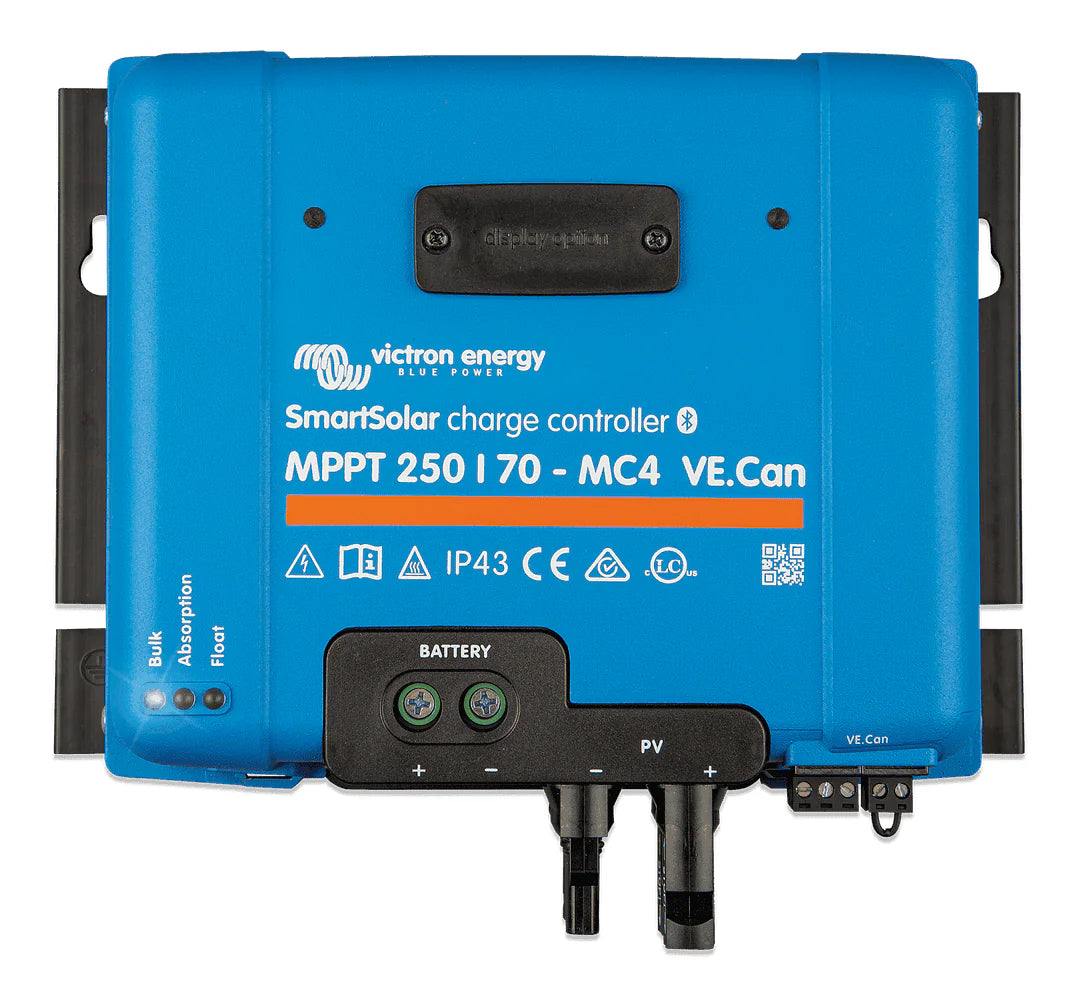

Victron SmartSolar MPPT 250/70-MC4 VE.Can Bluetooth Solar Charge Controller
High-Performance MPPT Solar Charge Controller for 12V, 24V, and 48V Systems
The Victron SmartSolar MPPT 70A charge controller brings advanced Maximum Power Point Tracking (MPPT) technology to your off-grid, mobile, or backup power system. Designed to extract the maximum possible energy from your solar array, this controller uses ultra-fast MPPT tracking to adapt to changing light conditions—delivering up to 30% more energy than traditional PWM controllers and up to 10% more than slower MPPT units, especially under cloudy or partially shaded skies.
With a peak conversion efficiency of 99% and full rated output up to 40°C, this controller operates without a cooling fan, ensuring silent, reliable performance. The built-in Bluetooth Smart interface allows wireless setup, monitoring, and firmware updates via the free VictronConnect app, while the VE.Can port enables wired integration with GX devices and parallel synchronisation of multiple controllers for larger systems.
Ultra-Fast MPPT and Advanced Shading Response
In real-world conditions, clouds and partial shading can cause conventional MPPT controllers to lock onto a local power peak, missing the true maximum power point. The Victron SmartSolar algorithm continuously scans the full power-voltage curve to lock onto the optimal MPP, maximising energy harvest even when shadows fall across part of your array. This is especially valuable for installations on vehicles, boats, or rooftops where shading is unavoidable.
Flexible Charging for Any Battery Chemistry
The controller supports 12V, 24V, and 48V battery banks with automatic voltage detection (36V manual), and includes eight pre-programmed charge algorithms for lead-acid, AGM, gel, and lithium batteries. A fully user-definable charge profile is also available, giving you complete control over absorption, float, and equalisation voltages. Temperature compensation is built in, and optional external voltage and temperature sensing via a Smart Battery Sense or BMV-712 Smart Battery Monitor ensures precise charging even when the controller is mounted away from the battery.
Robust Protection and Reliable Operation
Engineered for demanding environments, the SmartSolar MPPT includes comprehensive electronic protection: PV reverse polarity, PV short circuit, over-temperature, and PV reverse current protection. The electronics are rated IP43, while the connection area is IP22, making it suitable for indoor, unconditioned spaces. With an operating range of -30°C to +60°C and an altitude rating of up to 5000 m, this controller is built to perform in Australia’s harshest climates.
Key Features
- Ultra-fast MPPT tracking for up to 30% more energy harvest in variable light
- 99% peak efficiency with no cooling fan for silent, maintenance-free operation
- Built-in Bluetooth Smart for wireless setup, monitoring, and updates via VictronConnect
- VE.Can connectivity for wired integration with GX devices and parallel synchronisation
- Advanced shading algorithm locks onto the true maximum power point under partial shading
- Multi-stage adaptive charging with eight pre-programmed battery presets and user-definable profiles
- Temperature-compensated charging with optional external sensor support for precision
- Comprehensive electronic protection including PV reverse polarity, short circuit, and over-temperature
- Programmable relay for alarm or event-driven control
- Remote on/off terminal for integration with battery management systems
- Optional plug-in LCD display for local monitoring without a smartphone
Seamless System Integration
The SmartSolar MPPT is designed to work as part of a complete Victron energy system. Connect it to a Color Control GX or other GX device via VE.Can for centralised monitoring and control, or use Bluetooth to synchronise up to 10 controllers in parallel. For larger arrays, VE.Can allows up to 25 units to operate in synchronised parallel mode, sharing charge current evenly across multiple controllers.
The programmable relay can be configured to trigger on low battery voltage, high temperature, or other events, while the remote on/off input allows a BMS or other external device to disable charging when needed. With 46 days of historical data storage, you can review solar yield, battery voltage, and charge trends directly in the VictronConnect app.
Built for Australian Conditions
From the tropical north to the arid interior, Australian solar installations face extreme heat, dust, and humidity. The SmartSolar MPPT’s convection-cooled design eliminates fan failures, while the fully potted electronics resist moisture and corrosion. The controller derates power gracefully above 40°C, protecting itself and your batteries without sudden shutdowns.
Installation is straightforward with MC4 PV connectors for quick, weatherproof solar array connections and 35 mm² (AWG2) battery terminals that accept heavy-gauge cable for minimal voltage drop. The compact footprint (215 x 250 x 95 mm) and 3 kg weight make it easy to mount in tight spaces such as vehicle compartments or electrical cabinets.
Ready to Maximise Your Solar Harvest?
Whether you’re upgrading an existing off-grid system, building a new caravan setup, or expanding a commercial solar array, the Victron SmartSolar MPPT 70A controller delivers the efficiency, reliability, and control you need. Order yours today and experience the difference that ultra-fast MPPT tracking and intelligent charge management can make to your energy independence.

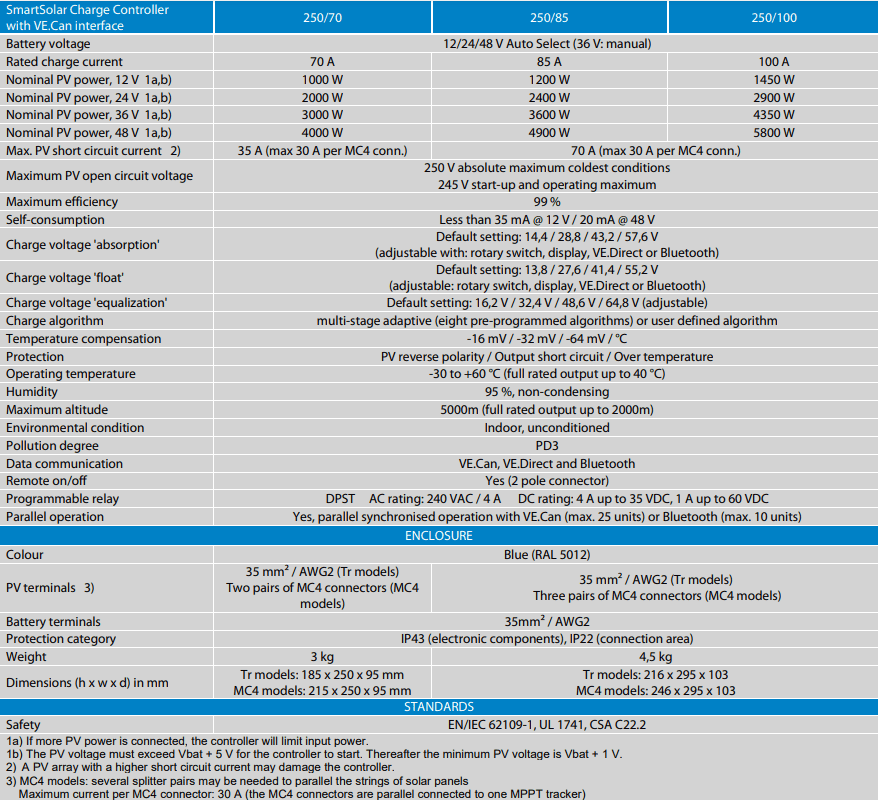

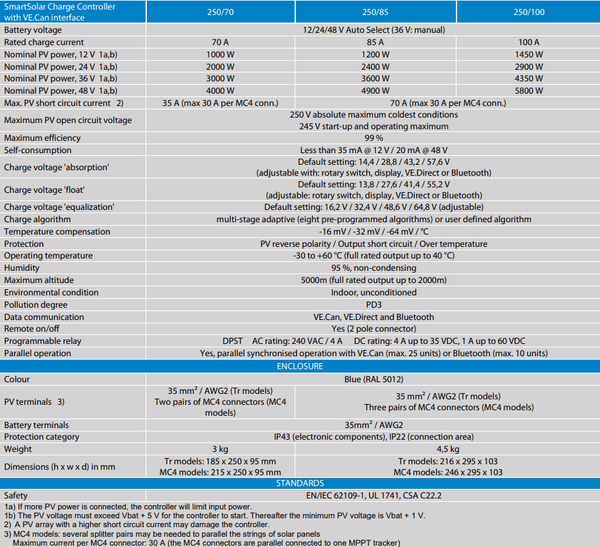

SPECIFICATIONS
Specifications
| Model | SmartSolar MPPT 250/70-MC4 VE.Can |
|---|---|
| Part Number | SCC125070521 |
| Battery Voltage | 12/24/48 V Auto Select (36 V: Manual) |
| Rated Charge Current | 70 A |
| Nominal PV Power, 12 V | 1000 W |
| Nominal PV Power, 24 V | 2000 W |
| Nominal PV Power, 36 V | 3000 W |
| Nominal PV Power, 48 V | 4000 W |
| Max. PV Short Circuit Current | 35 A |
| Maximum Current Per MC4 Connector | 30 A |
| Maximum PV Open Circuit Voltage | 250 V Absolute Maximum Coldest Conditions; 245 V Start-up And Operating Maximum |
| Maximum Efficiency | 99 % |
| Self-Consumption | Less Than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' (12/24/36/48 V) | Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V |
| Charge Voltage 'Float' (12/24/36/48 V) | Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V |
| Charge Voltage 'Equalization' (12/24/36/48 V) | Default Setting: 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable) |
| Charge Algorithm | Multi-Stage Adaptive (Eight Pre-programmed Algorithms) Or User Defined Algorithm |
| Protection | PV Reverse Polarity / Output Short Circuit / Over Temperature |
| Operating Temperature | -30 To +60 °C (Full Rated Output Up To 40 °C) |
| Humidity | 95 %, Non-Condensing |
| Maximum Altitude | 5000 m (Full Rated Output Up To 2000 m) |
| Environmental Condition | Indoor, Unconditioned |
| Pollution Degree | PD3 |
| Data Communication | VE.Can, VE.Direct And Bluetooth |
| Remote On/Off | Yes (2 Pole Connector) |
| Programmable Relay | DPST AC Rating: 240 VAC / 4 A; DC Rating: 4 A Up To 35 VDC, 1 A Up To 60 VDC |
| Parallel Operation | Yes, Parallel Synchronised Operation With VE.Can (Max. 25 Units) Or Bluetooth (Max. 10 Units) |
| PV Terminals | 2 Pairs Of MC4 Connectors |
| Battery Terminals | 35 mm² / AWG2 |
| Protection Category | IP43 (Electronic Components), IP22 (Connection Area) |
| Weight | 3 kg |
| Dimensions (H x W x D) | 215 x 250 x 95 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | VIC-SCC125070521 |
| Barcode: | 8719076051909 |
| Model #: | SCC125070521 |
| MPN: | SCC125070521 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
