Victron 12/24/48V 100A SmartSolar MPPT 250/100-MC4 VE.CAN Bluetooth Solar Charge Controller

99% Peak Efficiency, Ultra-Fast MPPT with Bluetooth and VE.Can — 100A Charge Current


Regular price $893.04
$1,173.70
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

1

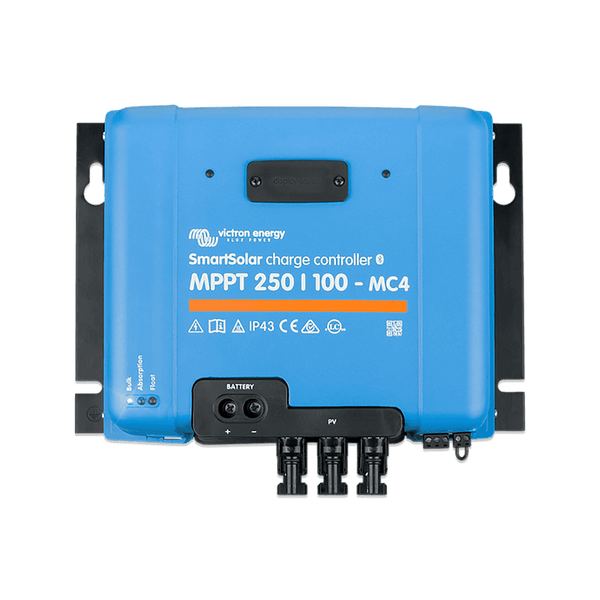

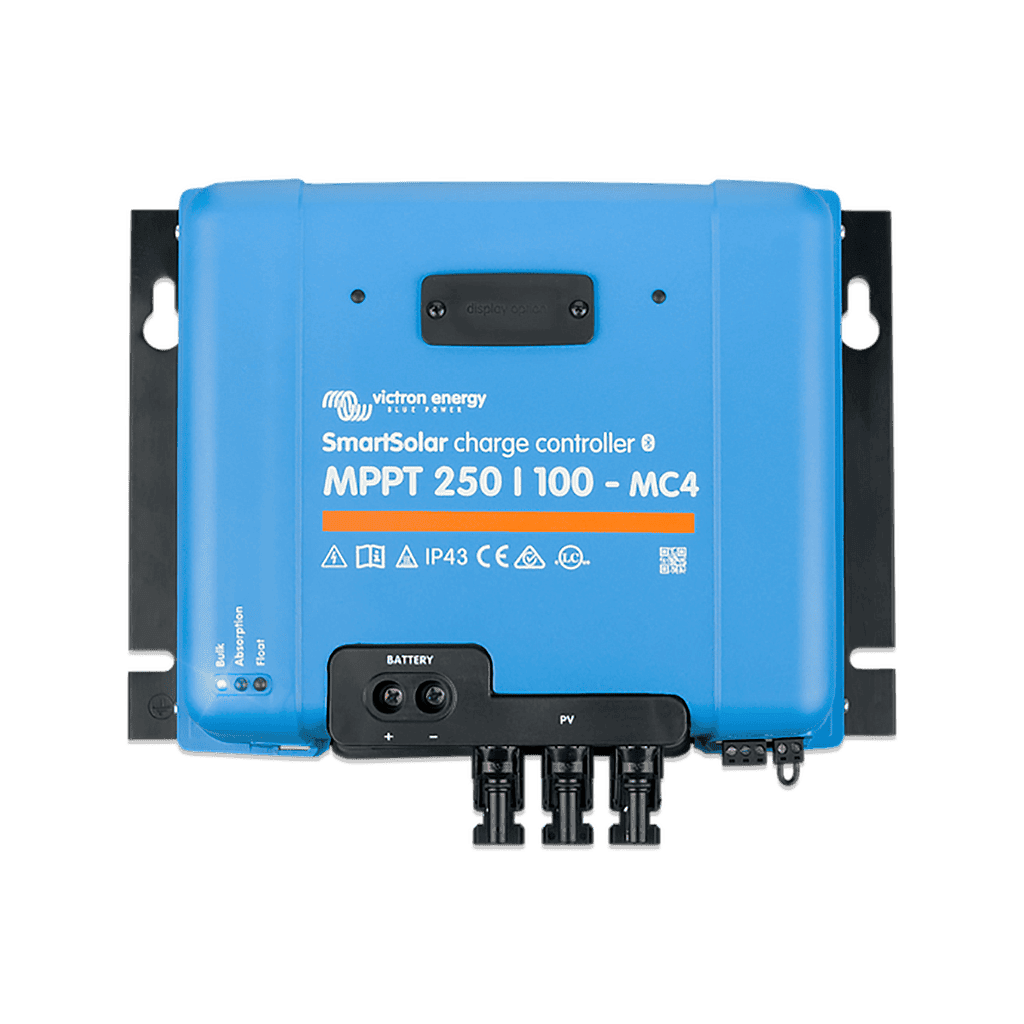

Front view of Victron SmartSolar MPPT 250/100-MC4 solar charge controller

Victron 12/24/48V 100A SmartSolar MPPT 250/100-MC4 VE.CAN Bluetooth Solar Charge Controller

DESCRIPTION

Victron SmartSolar MPPT 250/100-MC4 VE.Can Bluetooth Solar Charge Controller

High-Performance MPPT Solar Charge Controller for 12V, 24V, and 48V Systems

The Victron SmartSolar MPPT 100A charge controller brings advanced Maximum Power Point Tracking (MPPT) technology to your off-grid, mobile, or backup power system. Designed to extract the maximum possible energy from your solar array, this controller uses ultra-fast MPPT tracking to adapt to changing light conditions—delivering up to 30% more energy than traditional PWM controllers and up to 10% more than slower MPPT units, especially under cloudy or partially shaded skies.

With a peak conversion efficiency of 99% and full rated output up to 40°C, this controller operates without a cooling fan, ensuring silent, reliable performance. The built-in Bluetooth Smart interface allows wireless setup, monitoring, and firmware updates via the free VictronConnect app, while the VE.Can port enables wired integration with GX devices and parallel synchronisation of multiple controllers for larger systems.

Ultra-Fast MPPT and Advanced Shading Response

In real-world conditions, clouds and partial shading can cause conventional MPPT controllers to lock onto a local power peak, missing the true maximum power point. The Victron SmartSolar algorithm continuously scans the full power-voltage curve to lock onto the optimal MPP, maximising energy harvest even when shadows fall across part of your array. This is especially valuable for installations on vehicles, boats, or rooftops where shading is unavoidable.

Flexible Charging for Any Battery Chemistry

The controller supports 12V, 24V, and 48V battery banks with automatic voltage detection, and includes eight pre-programmed charge algorithms for lead-acid, AGM, gel, and lithium batteries. A fully user-definable charge profile is also available, giving you complete control over absorption, float, and equalisation voltages. Temperature compensation is built in, and optional external voltage and temperature sensing via a Smart Battery Sense or BMV-712 Smart Battery Monitor ensures precise charging even when the controller is mounted away from the battery.

Robust Protection and Reliable Operation

Engineered for demanding environments, the SmartSolar MPPT includes comprehensive electronic protection: PV reverse polarity, PV short circuit, over-temperature, and PV reverse current protection. The electronics are rated IP43, while the connection area is IP22, making it suitable for indoor, unconditioned spaces. With an operating range of -30°C to +60°C and an altitude rating of up to 5000 m, this controller is built to perform in Australia’s harshest climates.

Key Features

  • Ultra-fast MPPT tracking for up to 30% more energy harvest in variable light
  • 99% peak efficiency with no cooling fan for silent, maintenance-free operation

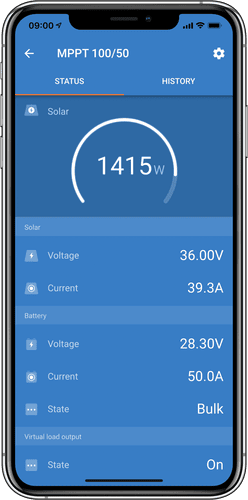

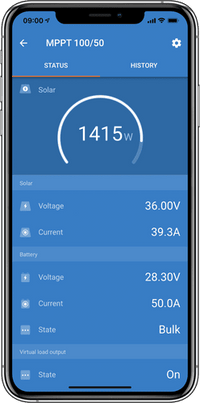

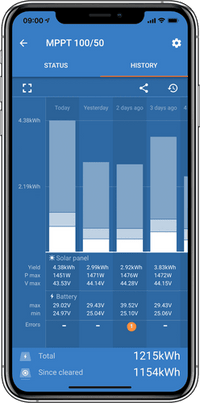

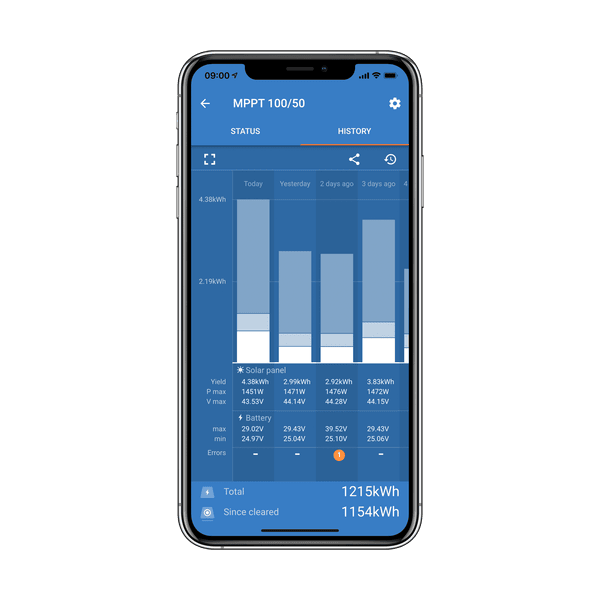

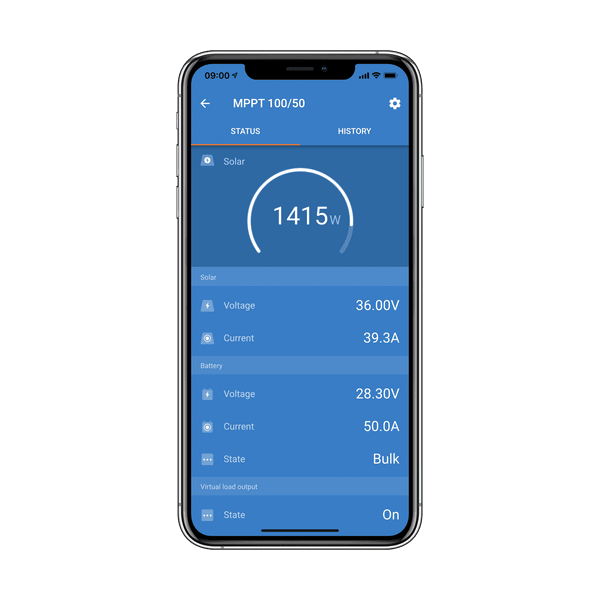

  • Built-in Bluetooth Smart for wireless setup, monitoring, and updates via VictronConnect
  • VE.Can connectivity for wired integration with GX devices and parallel synchronisation
  • Advanced shading algorithm locks onto the true maximum power point under partial shading
  • Multi-stage adaptive charging with eight pre-programmed battery presets and user-definable profiles
  • Temperature-compensated charging with optional external sensor support for precision
  • Comprehensive electronic protection including PV reverse polarity, short circuit, and over-temperature
  • Programmable relay for alarm or event-driven control
  • Remote on/off terminal for integration with battery management systems
  • Optional plug-in LCD display for local monitoring without a smartphone

Seamless System Integration

The SmartSolar MPPT is designed to work as part of a complete Victron energy system. Connect it to a Color Control GX or other GX device via VE.Can for centralised monitoring and control, or use Bluetooth to synchronise up to 10 controllers in parallel. For larger arrays, VE.Can allows up to 25 units to operate in synchronised parallel mode, sharing charge current evenly across multiple controllers.

The programmable relay can be configured to trigger on low battery voltage, high temperature, or other events, while the remote on/off input allows a BMS or other external device to disable charging when needed. With 46 days of historical data storage, you can review solar yield, battery voltage, and charge trends directly in the VictronConnect app.

Built for Australian Conditions

From the tropical north to the arid interior, Australian solar installations face extreme heat, dust, and humidity. The SmartSolar MPPT’s convection-cooled design eliminates fan failures, while the fully potted electronics resist moisture and corrosion. The controller derates power gracefully above 40°C, protecting itself and your batteries without sudden shutdowns.

Installation is straightforward with MC4 PV connectors for quick, weatherproof solar array connections and 35 mm² (AWG2) battery terminals that accept heavy-gauge cable for minimal voltage drop. The compact footprint (246 × 295 × 103 mm) and 4.5 kg weight make it easy to mount in tight spaces such as vehicle compartments or electrical cabinets.

Ready to Maximise Your Solar Harvest?

Whether you’re upgrading an existing off-grid system, building a new caravan setup, or expanding a commercial solar array, the Victron SmartSolar MPPT 100A controller delivers the efficiency, reliability, and control you need. Order yours today and experience the difference that ultra-fast MPPT tracking and intelligent charge management can make to your energy independence.

SPECIFICATIONS

SmartSolar Charge Controller with VE.Can interface 250/100 (MC4)
Battery voltage 12 / 24 / 48 V Auto Select (36 V: manual)
Rated charge current 100 A
Nominal PV power, 12 V 1a,b) 1450 W
Nominal PV power, 24 V 1a,b) 2900 W
Nominal PV power, 36 V 1a,b) 4350 W
Nominal PV power, 48 V 1a,b) 5800 W
Max. PV short circuit current 2) 70 A (max 30 A per MC4 connector)
Maximum PV open circuit voltage 250 V absolute maximum (coldest conditions)
245 V start-up and operating maximum
Maximum efficiency 99 %
Self-consumption Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge voltage ‘absorption’ Default setting: 14.4 / 28.8 / 43.2 / 57.6 V
(adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage ‘float’ Default setting: 13.8 / 27.6 / 41.4 / 55.2 V
(adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage ‘equalisation’ Default setting: 16.2 / 32.4 / 48.6 / 64.8 V (adjustable)
Charge algorithm Multi-stage adaptive (eight pre-programmed algorithms) or user-defined algorithm
Temperature compensation -16 mV / -32 mV / -64 mV / °C
Protection PV reverse polarity / Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95 %, non-condensing
Maximum altitude 5000 m (full rated output up to 2000 m)
Environmental condition Indoor, unconditioned
Pollution degree PD3
Data communication VE.Can, VE.Direct and Bluetooth
Remote on/off Yes (2-pole connector)
Programmable relay DPST   AC rating: 240 VAC / 4 A   DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel operation Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
ENCLOSURE
Colour Blue (RAL 5012)
PV terminals 3) Two pairs of MC4 connectors
Battery terminals 35 mm² / AWG2
Protection category IP43 (electronic components), IP22 (connection area)
Weight 4.5 kg

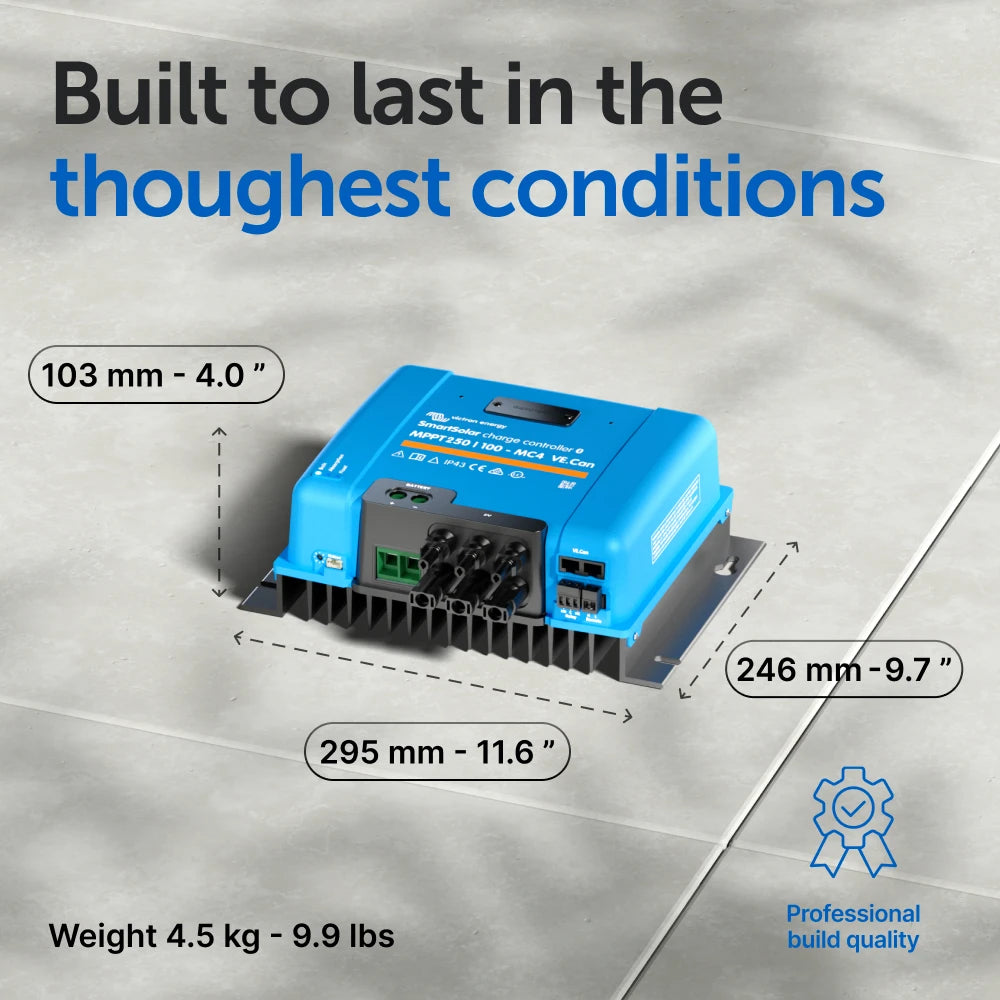

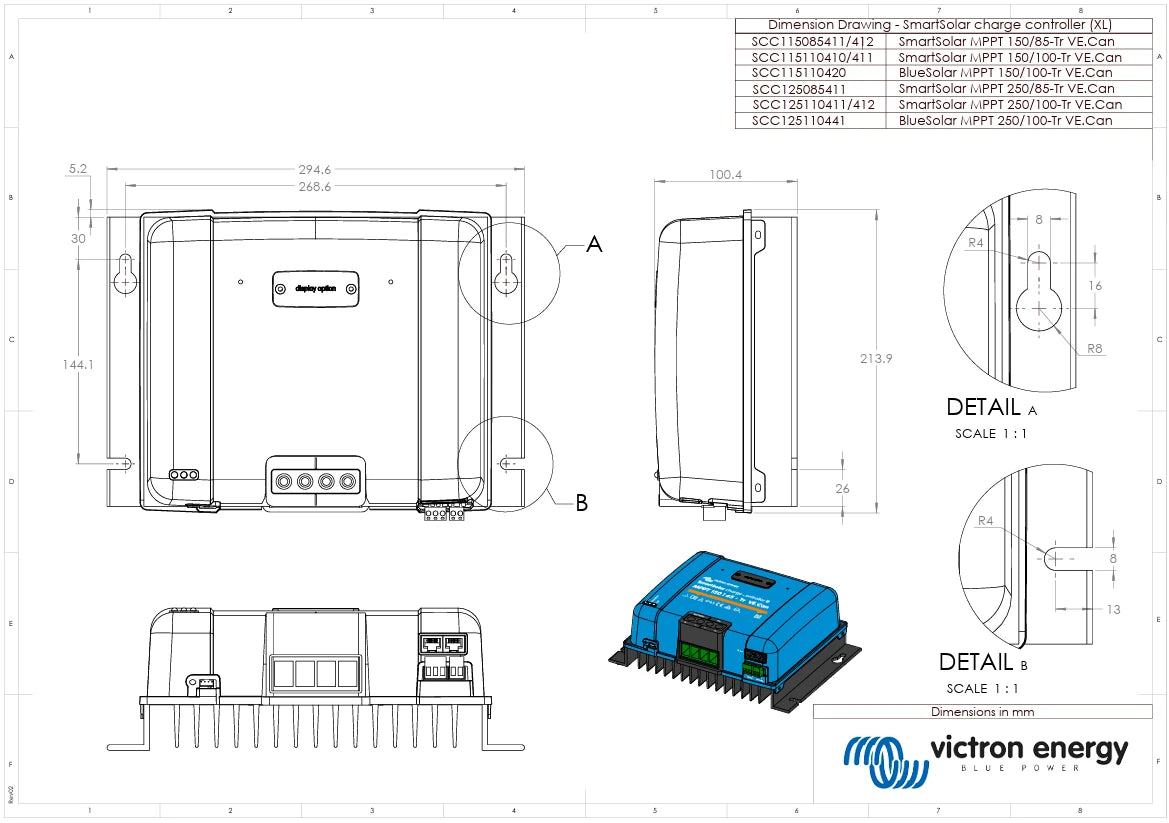

Dimensions (h × w × d) 246 × 295 × 103 mm
STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
STORED TRENDS

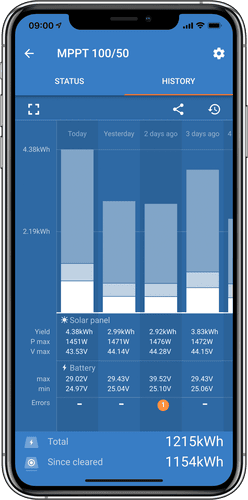

Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current
Number of days trends data is stored 46
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels.
Maximum current per MC4 connector: 30 A (the MC4 connectors are paralleled connected to one MPPT tracker).

SKU: VIC-SCC125110512
Barcode: 8719076055679
Model #: SCC125110512
MPN: SCC125110512
