Victron 12/24/48V 85A SmartSolar MPPT 150/85-MC4 VE.CAN Bluetooth Solar Charge Controller
Victron 12/24/48V 85A SmartSolar MPPT 150/85-MC4 VE.CAN Bluetooth Solar Charge Controller
Ultra-Fast MPPT Tracking, Built-in Bluetooth & VE.Can Networking

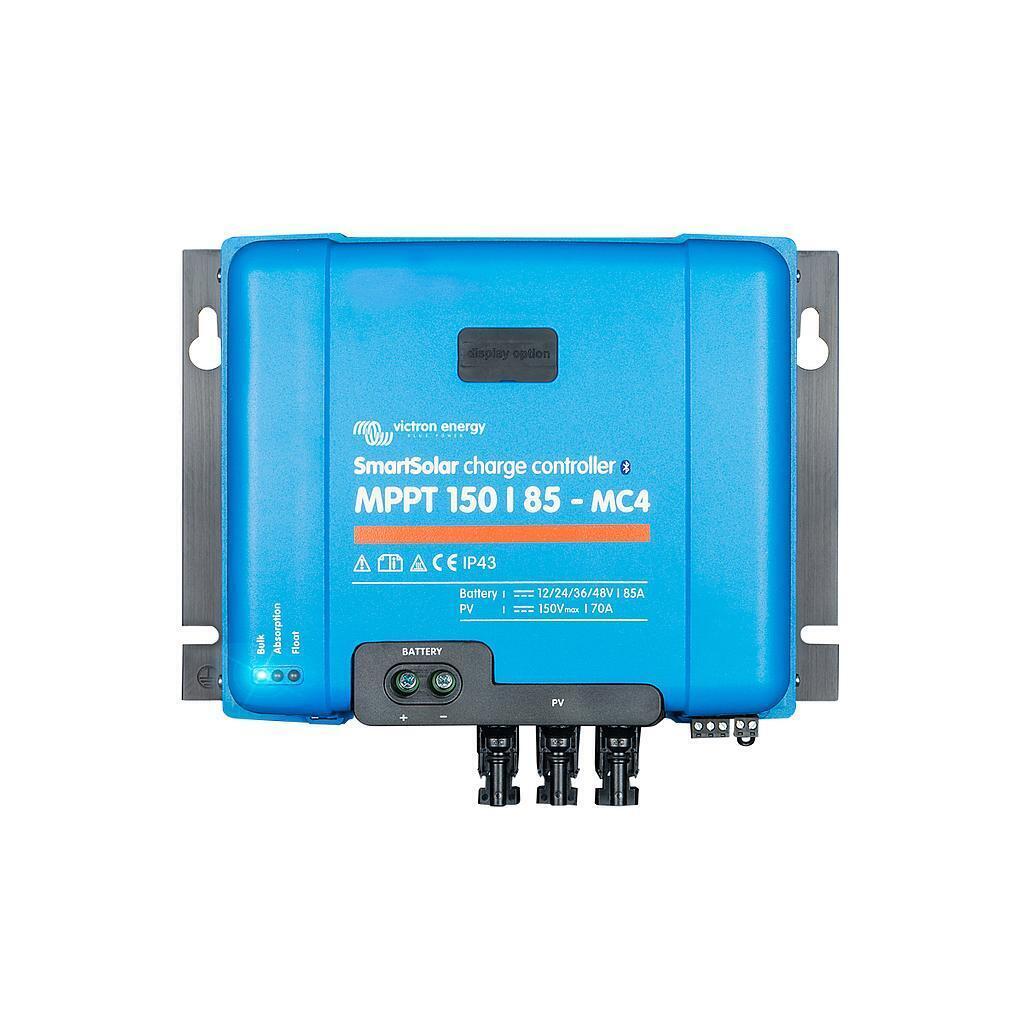

Highlights:Display Option Slot: Port for optional plug-in LCD display,Status LEDs: Indicators for Bulk, Absorption, and Float charge stages,Battery Terminals: Screw terminal connections for battery bank wiring,MC4 PV Connectors: Standard MC4 connectors for solar panel array input,Mounting Brackets: Heavy-duty side brackets for wall mounting.

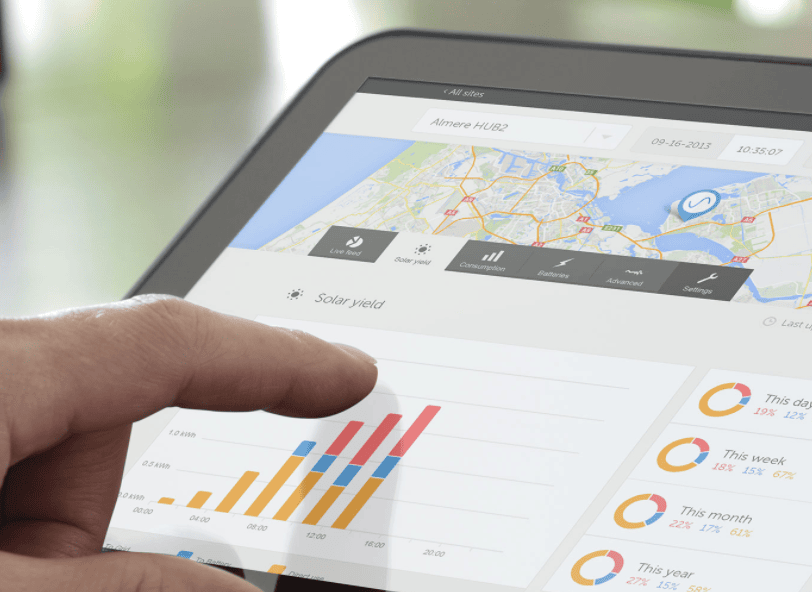

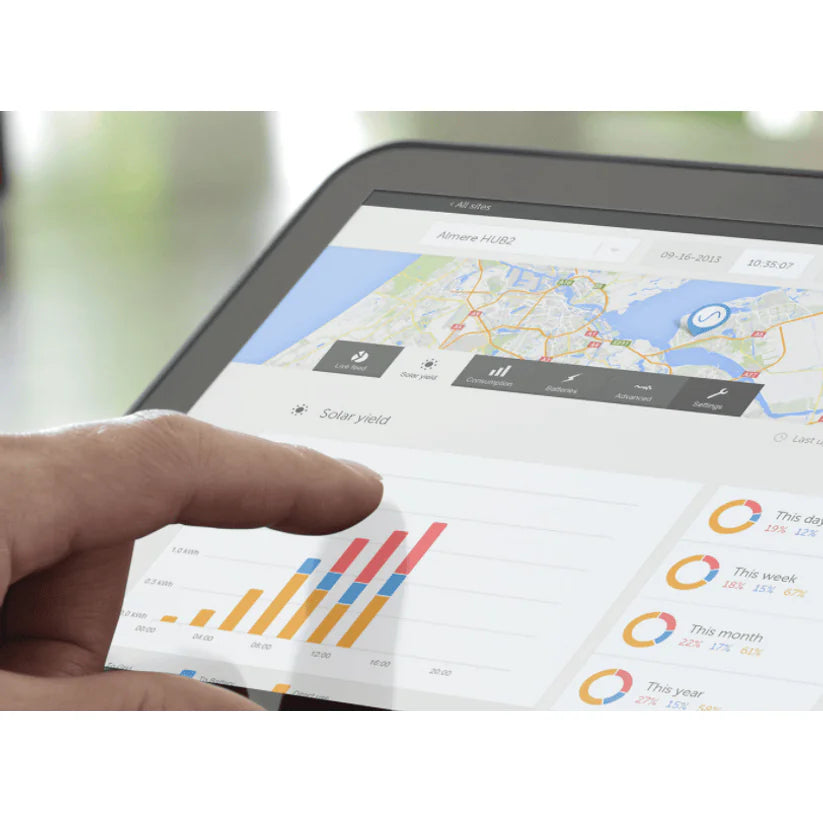

Key features: Real-time solar yield and battery status tracking, Bluetooth connectivity for wireless monitoring via mobile device, Detailed historical energy data and performance logs, Remote management through the Victron Remote Management (VRM) portal.
DESCRIPTION
Advanced Solar Yield Optimisation for Off-Grid Systems
Maximise your solar energy harvest with the highly efficient Victron SmartSolar MPPT 150/85-MC4 VE.Can. Engineered for demanding off-grid, marine, and mobile power systems, this robust solar charge controller ensures your battery bank reaches full charge in the shortest possible time. By utilising ultra-fast Maximum Power Point Tracking (MPPT), the controller intelligently adapts to constantly changing environmental conditions, capturing every available drop of power from your solar panels.
Ultra-Fast MPPT and Partial Shading Performance
In off-grid environments, weather patterns and shading are unpredictable. Traditional controllers often struggle to maintain optimal performance when clouds pass overhead or trees cast partial shadows across an array. The advanced MPPT algorithm in this unit excels in these challenging conditions. By continuously sweeping the voltage curve and identifying the optimal maximum power point, it significantly outperforms conventional regulators, delivering up to 30% more power than PWM charge controllers and improving upon slower MPPT models by up to 10%.
Seamless Networking with VE.Can Integration
A standout feature of this specific model is the integrated VE.Can networking port. This allows for the synchronisation of up to 25 VE.Can-equipped charge controllers within a single system. When daisy-chained together, these units operate as a unified charging source, perfectly synchronising their charge states to prolong battery life and optimise overall system efficiency. This makes it an ideal solution for large-scale residential, commercial, or heavy-duty marine applications where expanding your solar array is a future possibility.
Intelligent Wireless Monitoring and Control
Built-in Bluetooth provides complete control directly from your smartphone, tablet, or laptop. Using the free VictronConnect app, you can easily configure settings, view real-time data such as solar yield and battery voltage, and access 30 days of historical performance logs. For users who prefer physical interfaces, the unit includes a port for an optional plug-in LCD display, offering instant visual feedback directly on the device face.
Key Features
- Ultra-fast MPPT technology for superior energy harvest in variable light conditions
- VE.Can communication supports daisy-chaining up to 25 units for synchronised charging
- Built-in Bluetooth for wireless configuration and monitoring via the VictronConnect app
- Standard MC4 connectors for fast, secure wiring directly from your solar array
- Advanced partial shading detection maintains optimal output when panels are partially obstructed
- Internal temperature sensor automatically compensates charging voltages to protect your batteries
- Programmable relay and remote ON/OFF capability for advanced system integration
Robust Construction and Battery Protection
Protecting your expensive battery bank is critical. The fully programmable battery charge algorithm allows for precise tailoring to specific battery chemistries, including lead-acid, AGM, Gel, and Lithium-ion. Combined with internal temperature compensation, the controller actively prevents overcharging and excessive gassing. The sturdy design includes heavy-duty side brackets for secure wall mounting, while the integrated MC4 terminals ensure weather-resistant, industry-standard connections to your photovoltaic array.
Ready to Upgrade Your Power System?
Ensure your battery bank receives maximum charging efficiency regardless of the weather. Integrate the Victron SmartSolar MPPT 150/85-MC4 VE.Can into your electrical setup today and experience true off-grid reliability.
SKU: Vic-SCC115085511
SPECIFICATIONS
Specifications
| Battery Voltage | 12/24/48 V Auto Select (36 V: Manual) |
|---|---|
| Maximum Battery Current | 85 A |
| Nominal PV Power, 12 V | 1200 W |
| Nominal PV Power, 24 V | 2400 W |
| Nominal PV Power, 36 V | 3600 W |
| Nominal PV Power, 48 V | 4900 W |
| Max. PV Short Circuit Current | 70 A (max 30 A per MC4 conn.) |
| Max. PV Open Circuit Voltage | 150 V absolute maximum coldest conditions, 145 V start-up and operating maximum |
| Maximum Efficiency | 98 % |
| Self-Consumption | Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage 'Equalization' | Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
| Charge Algorithm | Multi-stage Adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature Compensation | -16 mV/°C / -32 mV/°C / -48 mV/°C / -64 mV/°C |
| Protection | PV Reverse Polarity / Output Short Circuit / Over Temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum Altitude | 5000 m (full rated output up to 2000 m) |
| Environmental Condition | Indoor, unconditioned |
| Pollution Degree | PD3 |
| Data Communication | VE.Can, VE.Direct and Bluetooth |
| Remote On/Off | Yes (2 pole connector) |
| Programmable Relay | DPST AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units) |
| Colour | Blue (RAL 5012) |
| PV Terminals | 3 pairs of MC4 connectors |
| Battery Terminals | 35 mm² / AWG2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (H x W x D) | 246 x 295 x 103 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | Vic-SCC115085511 |
| Barcode: | 8719076050346 |
| Model #: | SCC115085511 |
| MPN: | SCC115085511 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
