Victron 12/24/48V 100A SmartSolar MPPT 150/100-Tr VE.CAN Bluetooth Solar Charge Controller

100A MPPT with Bluetooth, VE.Can, and 98% peak efficiency


Regular price $715.62
$974.60
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

2

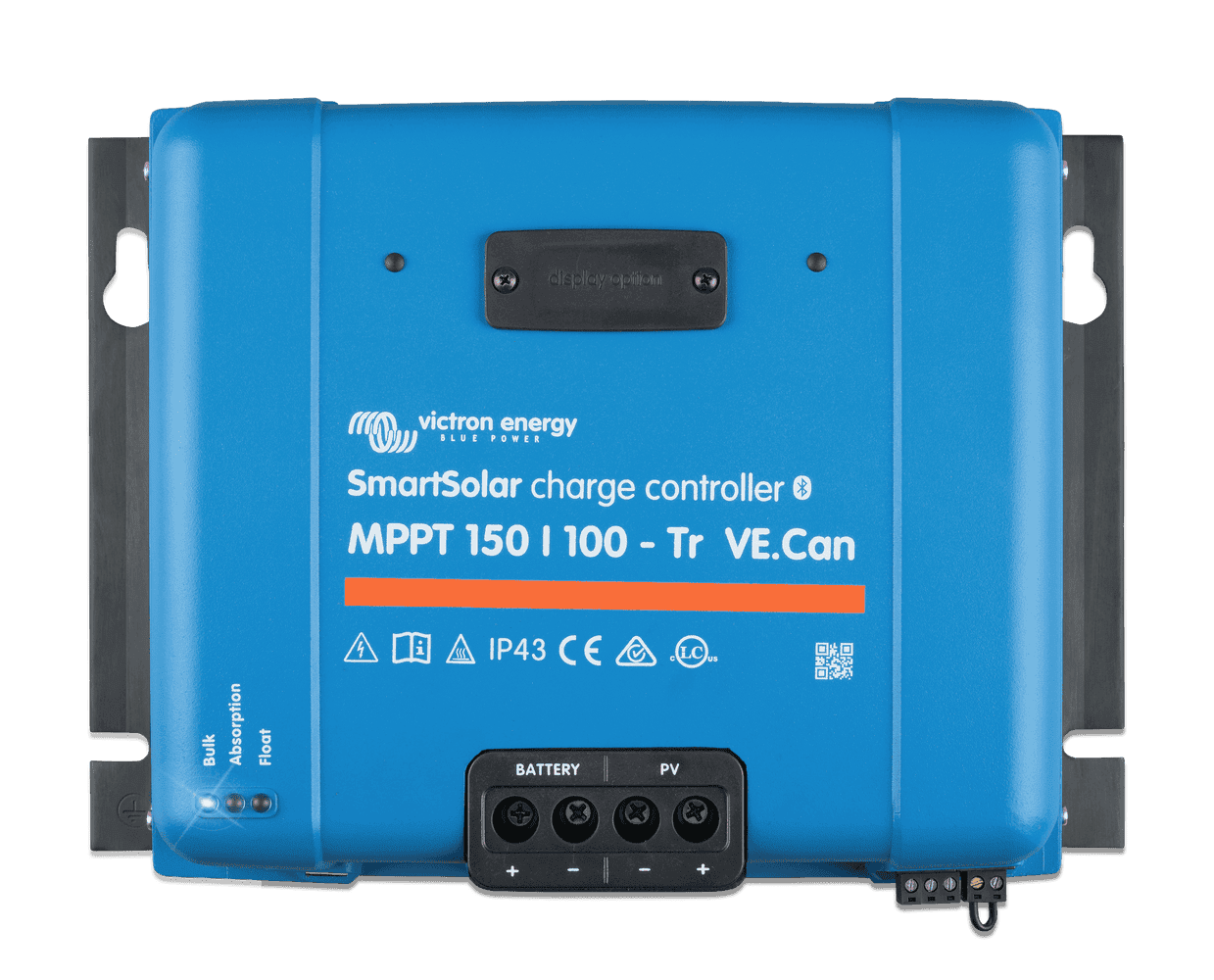

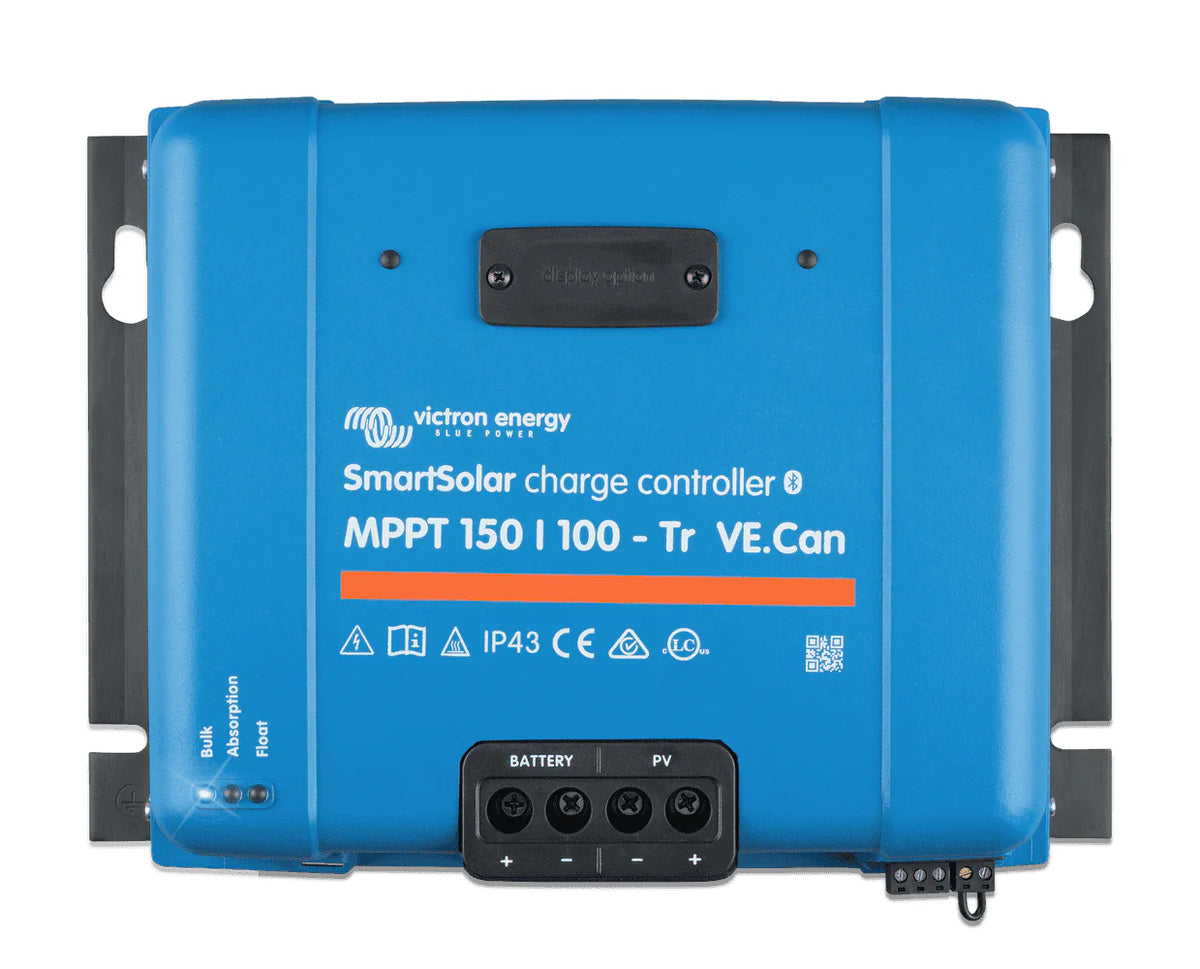

Front view of Victron SmartSolar MPPT 150/100-Tr VE.Can charge controller with blue housing and terminal covers

Victron 12/24/48V 100A SmartSolar MPPT 150/100-Tr VE.CAN Bluetooth Solar Charge Controller

DESCRIPTION

Victron SmartSolar MPPT 150/100-Tr VE.CAN: High-Capacity Solar Charge Controller for Large Off-Grid Systems

Advanced MPPT Technology for Maximum Energy Harvest

The Victron SmartSolar MPPT 150/100-Tr VE.CAN is a premium 100A solar charge controller engineered for demanding 12V, 24V, and 48V off-grid solar systems. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm continuously adjusts to changing light conditions, capturing up to 30% more energy than traditional PWM controllers and outperforming slower MPPT units by up to 10%. This is particularly valuable during overcast or rapidly changing weather, ensuring your battery bank receives optimal charge throughout the day.

In partial shading scenarios, where multiple power peaks can confuse conventional controllers, the SmartSolar algorithm intelligently locks onto the true global maximum power point. This prevents energy loss and maintains high system efficiency even when panels are partially obstructed.

High-Efficiency Design with Passive Cooling

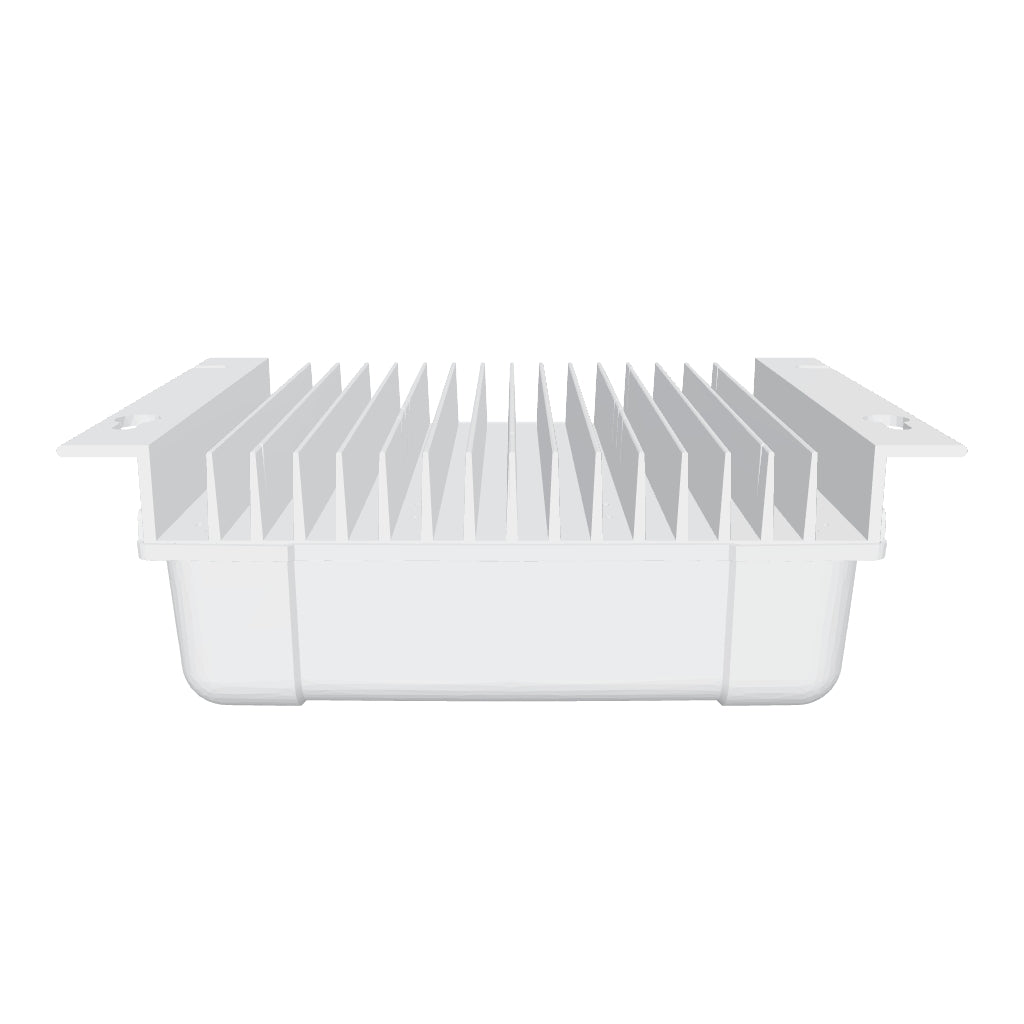

With a peak conversion efficiency exceeding 98%, this controller minimises energy waste and operates without a cooling fan. The fanless design reduces potential points of failure, lowers maintenance, and ensures silent operation, making it suitable for installations in living spaces or noise-sensitive environments. The robust IP43-rated electronics protect against dust and water spray, while the connection area is rated IP22, providing reliable performance in unconditioned indoor locations.

Comprehensive Battery Management and Protection

The fully programmable charge algorithm, adjustable via the rotary switch, VictronConnect app, or VE.Direct, supports eight pre-programmed battery profiles and custom user-defined settings. An internal temperature sensor automatically compensates absorption and float voltages, promoting longer battery life. Extensive electronic safeguards include:

  • PV reverse polarity and short circuit protection
  • Over-temperature protection with automatic power derating above 40°C
  • PV reverse current blocking

Seamless Connectivity and System Integration

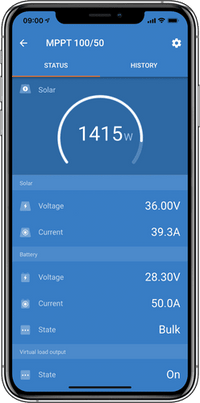

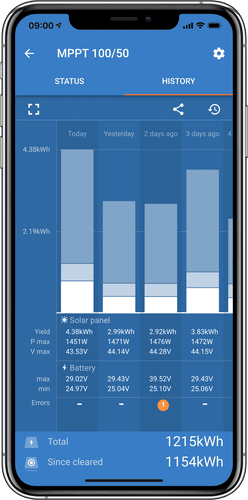

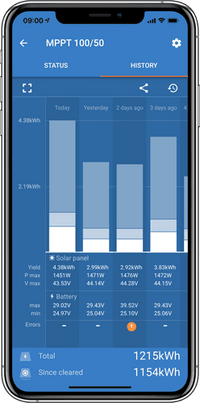

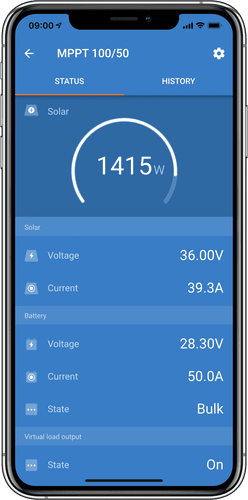

Built-in Bluetooth Smart allows wireless configuration, monitoring, and firmware updates via the VictronConnect app on iOS and Android devices. For wired integration, VE.Direct connects to a Color Control GX panel or PC, while VE.Can enables synchronised parallel operation of up to 25 controllers, ideal for large-scale systems. A programmable relay and remote on/off terminal provide flexible control, including integration with a VE.BUS BMS for lithium battery systems.

Key Features

  • 100A rated charge current for 12/24/48V battery banks (auto-select)
  • Ultra-fast MPPT with advanced shading optimisation
  • 98% peak efficiency with fanless, silent operation
  • Bluetooth, VE.Direct, and VE.Can communication ports
  • IP43 protection for electronics; operating range -30°C to +60°C
  • Supports up to 5800W PV input at 48V

Built for Large-Scale and Critical Applications

This controller is designed for serious off-grid power systems, including residential solar arrays, remote telecommunications, agricultural pumping, and marine installations. Its ability to handle high PV input power and synchronise multiple units makes it a scalable solution for growing energy demands. The 35 mm² (AWG2) battery and PV terminals accommodate heavy-duty cabling, ensuring secure, low-resistance connections for sustained high-current operation.

Take Control of Your Solar Harvest

Upgrade your energy system with the Victron SmartSolar MPPT 150/100-Tr VE.CAN and experience precise, efficient charge management. Whether you're expanding an existing array or building a new off-grid installation, this controller delivers the reliability and performance needed for critical power applications.

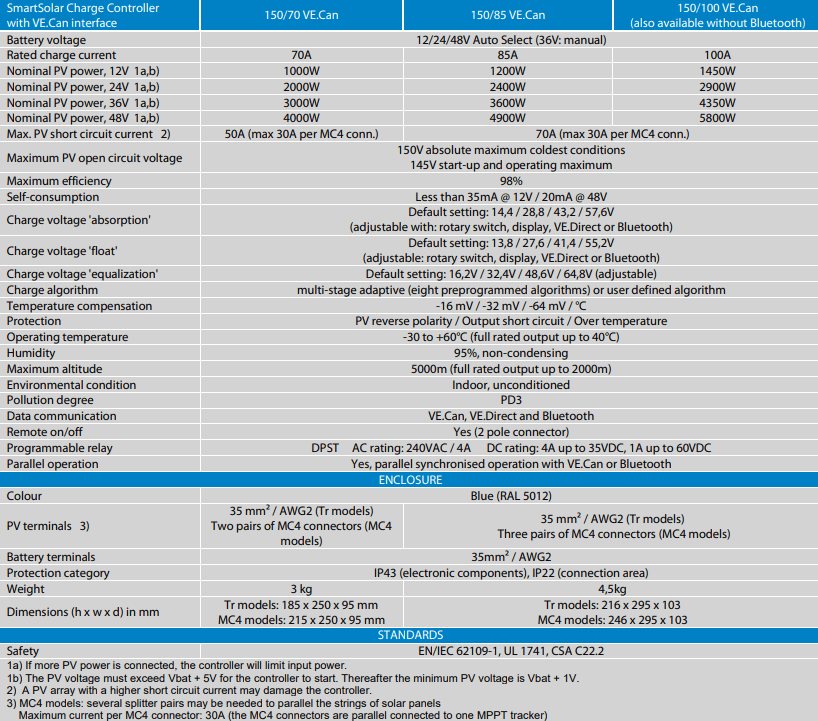

SPECIFICATIONS

Specifications

Battery Voltage12/24/48 V Auto Select (36 V: manual)
Rated Charge Current100 A
Nominal PV Power, 12 V1450 W
Nominal PV Power, 24 V2900 W
Nominal PV Power, 36 V4350 W
Nominal PV Power, 48 V5800 W
Max. PV Short Circuit Current70 A
Maximum PV Open Circuit Voltage150 V absolute maximum coldest conditions; 145 V start-up and operating maximum
Maximum Efficiency98 %
Self-ConsumptionLess than 35 mA @ 12 V / Less than 20 mA @ 48 V
Charge Voltage 'Absorption'Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Float'Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Equalization'Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge AlgorithmMulti-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature Compensation-16 mV/°C / -32 mV/°C / -48 mV/°C / -64 mV/°C
ProtectionPV reverse polarity / Output short circuit / Over temperature
Operating Temperature-30 °C to +60 °C (full rated output up to 40 °C)
Humidity95 %, non-condensing
Maximum Altitude5000 m (full rated output up to 2000 m)
Environmental ConditionIndoor, unconditioned
Pollution DegreePD3
Data CommunicationVE.Can, VE.Direct and Bluetooth
Remote On/OffYes (2 pole connector)
Programmable RelayDPST AC rating: 4 A up to 240 Vac / DC rating: 4 A up to 35 Vdc, 1 A up to 60 Vdc

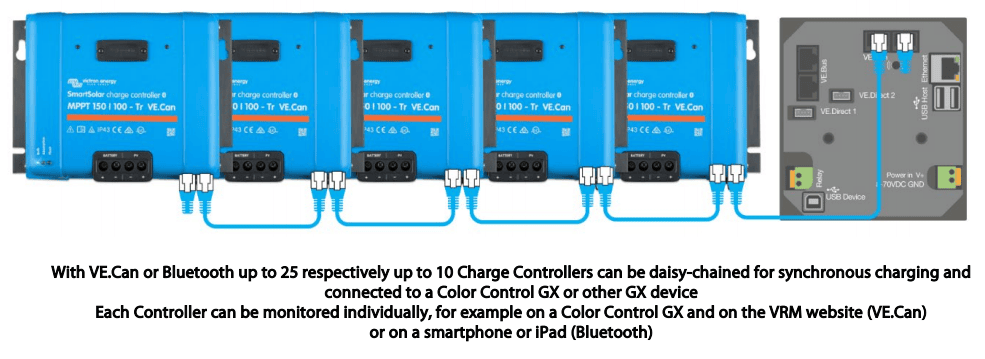

Parallel OperationYes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
ColourBlue (RAL 5012)
PV Terminals35 mm² / AWG2 (Tr models)
Battery Terminals35 mm² / AWG2
Protection CategoryIP43 (electronic components), IP22 (connection area)
Weight4.5 kg
Dimensions (H x W x D)216 x 295 x 103 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: VIC-SCC115110411
Barcode: 8719076050353
Model #: SCC115110411
MPN: SCC115110411

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
