Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller

Bluetooth built-in for remote monitoring and control


Top-down view of a blue Victron SmartSolar MPPT 100/15 Bluetooth charge controllerHighlights:MPPT Technology: Ultra-fast Maximum Power Point Tracking for improved energy harvest,Bluetooth Smart: Integrated Bluetooth for wireless monitoring via VictronConnect app,IP43 Rating: Protected against water spray less than 60 degrees from vertical,Battery Terminals: Screw terminals for secure 12V or 24V battery connection,PV Terminals: Input terminals for solar panel arrays up to 100V open circuit,Load Output: 15A load output with automatic low voltage disconnect.
Perspective view of the Victron solar controller showing green terminal blocks and heat sinkKey features: 12V and 24V battery auto-select, 15A rated charge and load current, High peak efficiency of 98%, Internal 15A blade fuse protection, Large aluminium heat sink for passive cooling, 6mm² power terminal capacity.Low angle front view of the SmartSolar controller showing internal components and wiring portsSide perspective of the blue MPPT 100/15 controller highlighting the status LED indicatorsDetailed front view of the Victron controller terminal section, fuse, and cooling finsFront-on view showing the 15A blade fuse and terminal connections for battery, solar PV, and DC loads with a clear look at the aluminium cooling fins.VictronConnect app interface on a smartphone showing live solar wattage and battery statusIntegrated Bluetooth allows real-time monitoring of solar voltage, current, battery charging state, and load output directly on your smartphone.History tab of the VictronConnect app showing a 4-day bar graph of solar energy yieldTechnical specifications table for Victron SmartSolar MPPT charge controllersTechnical dimensional drawing of the MPPT 100/15 controller showing metric measurements

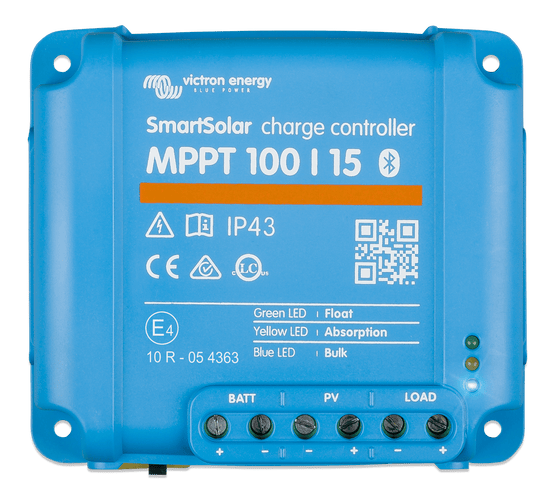

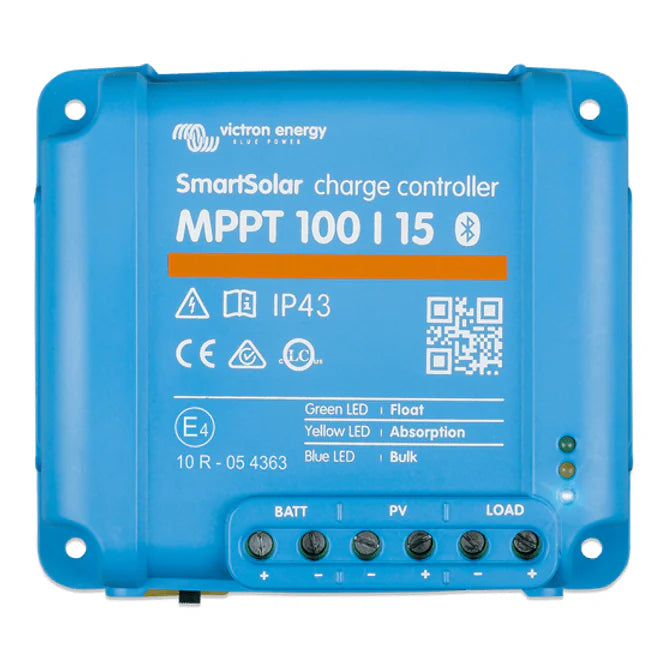

Top-down view of a blue Victron SmartSolar MPPT 100/15 Bluetooth charge controller
Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller

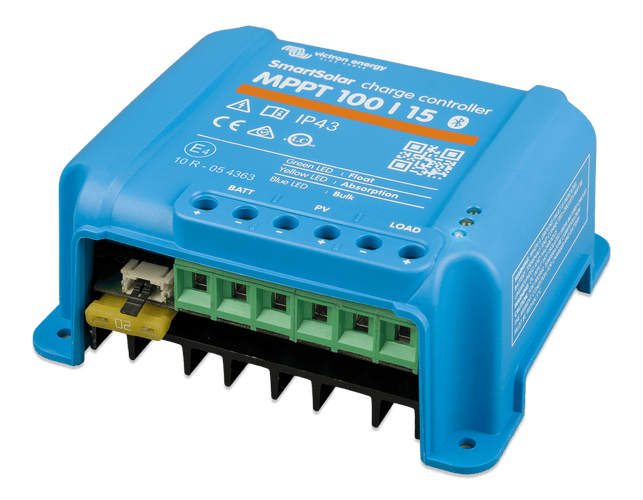

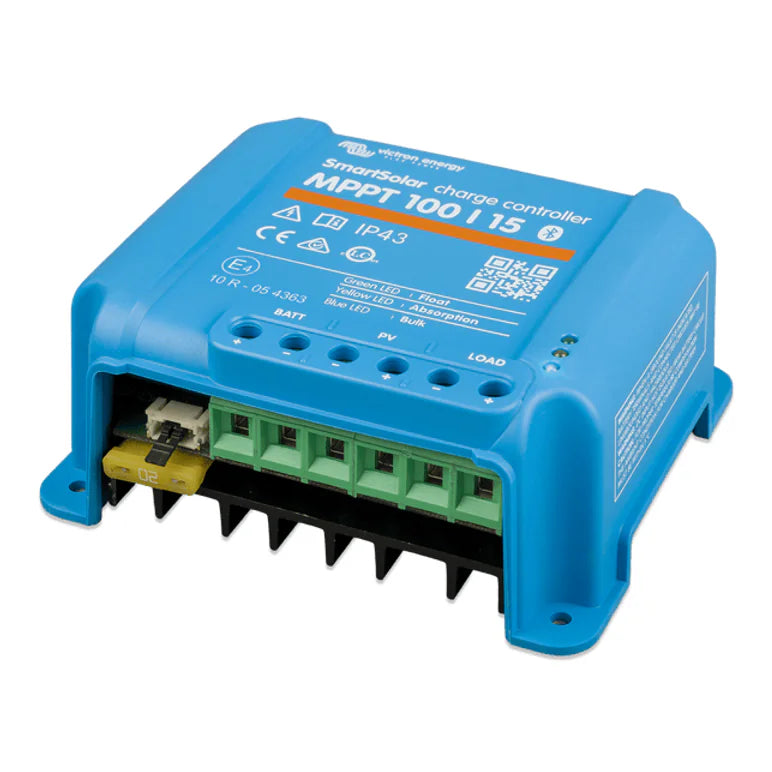

Perspective view of the Victron solar controller showing green terminal blocks and heat sink

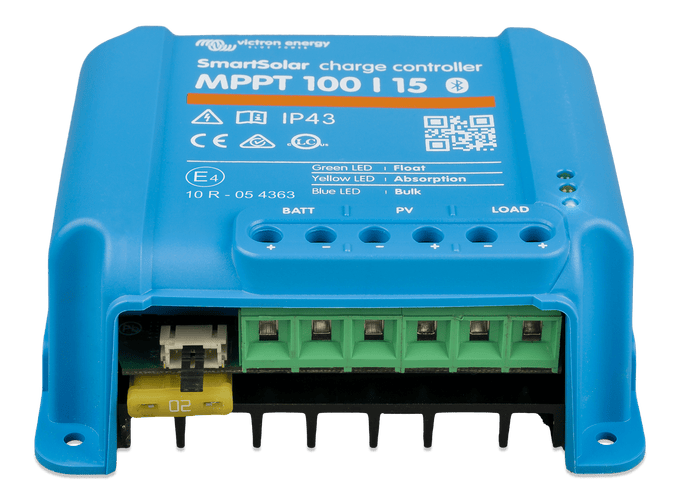

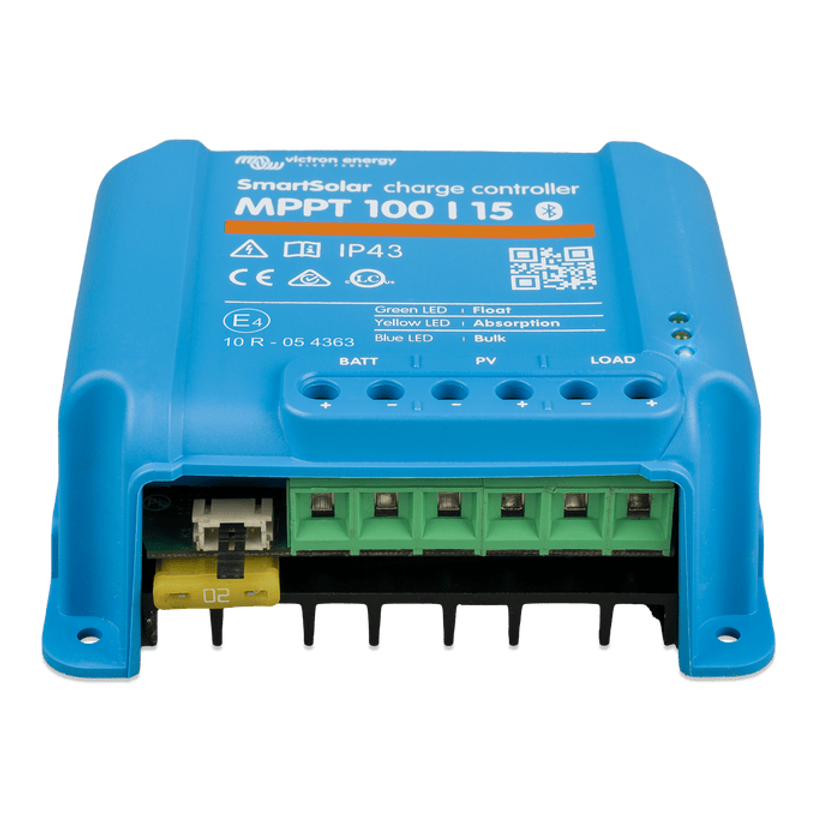

Low angle front view of the SmartSolar controller showing internal components and wiring ports

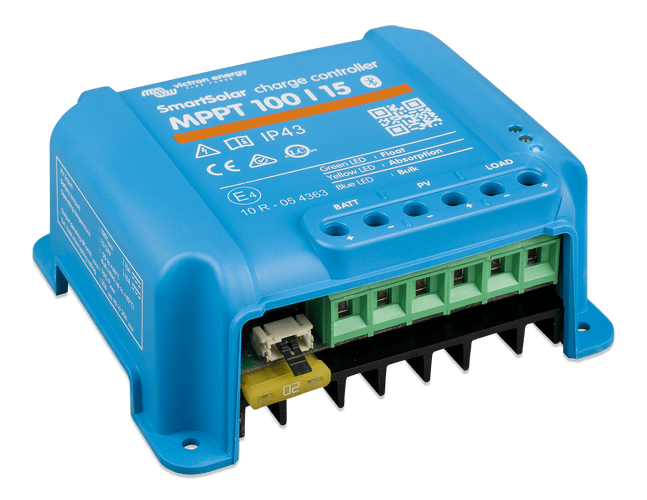

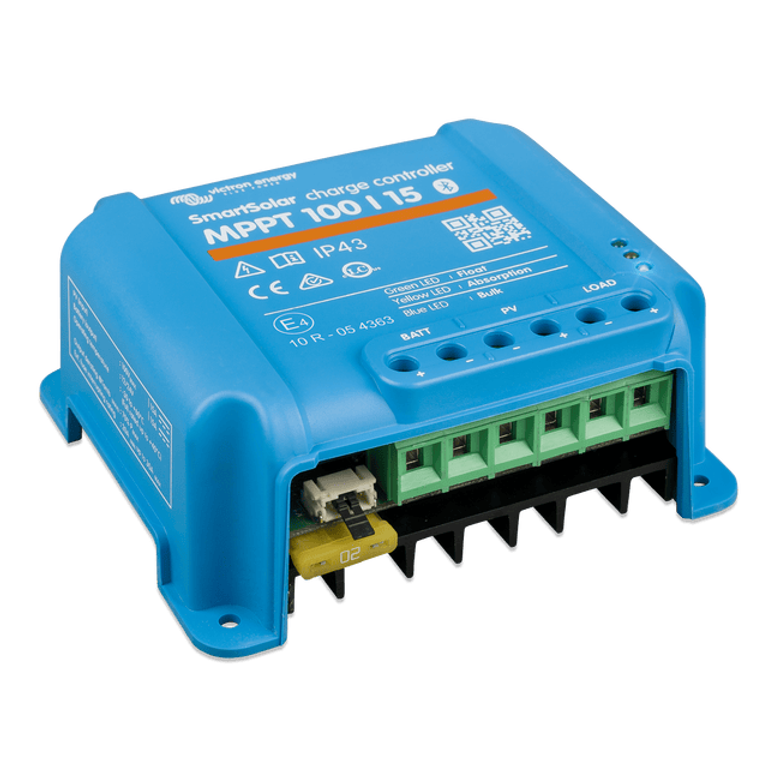

Side perspective of the blue MPPT 100/15 controller highlighting the status LED indicators

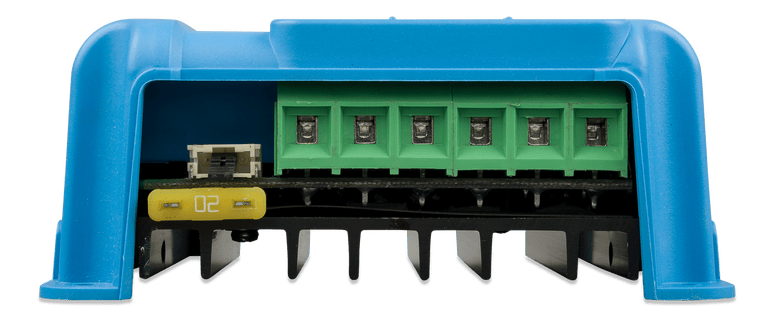

Detailed front view of the Victron controller terminal section, fuse, and cooling fins

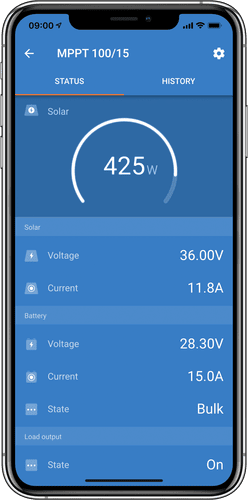

VictronConnect app interface on a smartphone showing live solar wattage and battery status

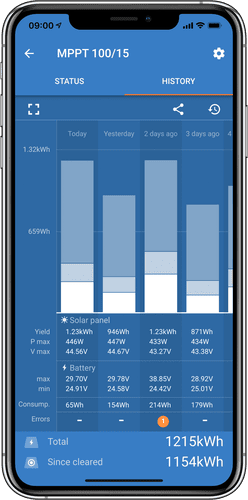

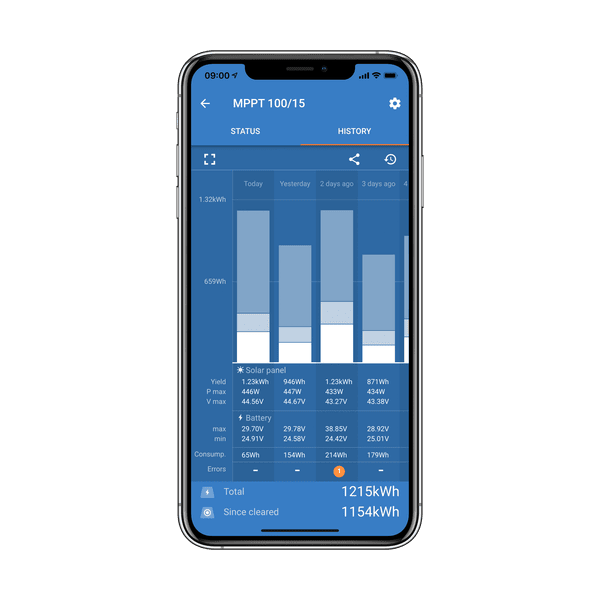

History tab of the VictronConnect app showing a 4-day bar graph of solar energy yield

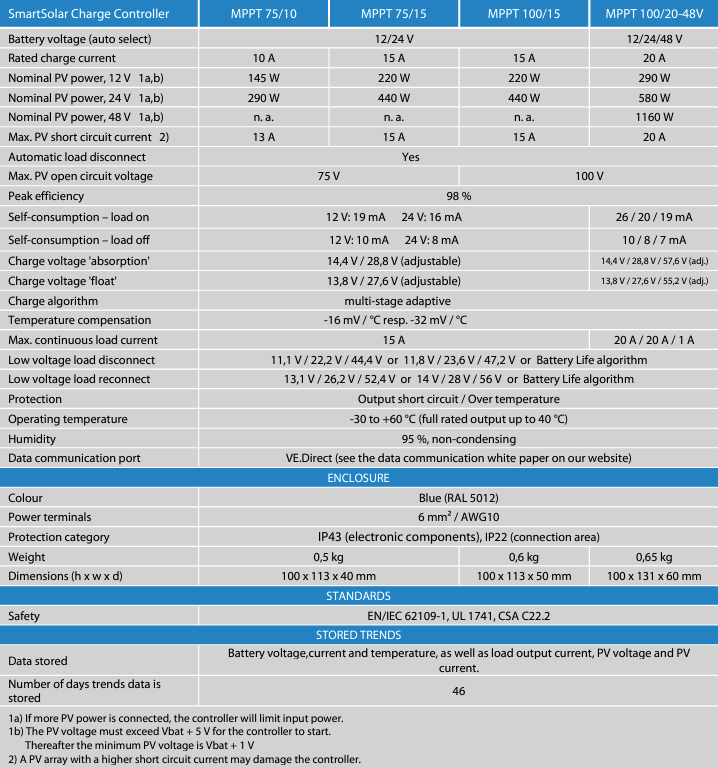

Technical specifications table for Victron SmartSolar MPPT charge controllers

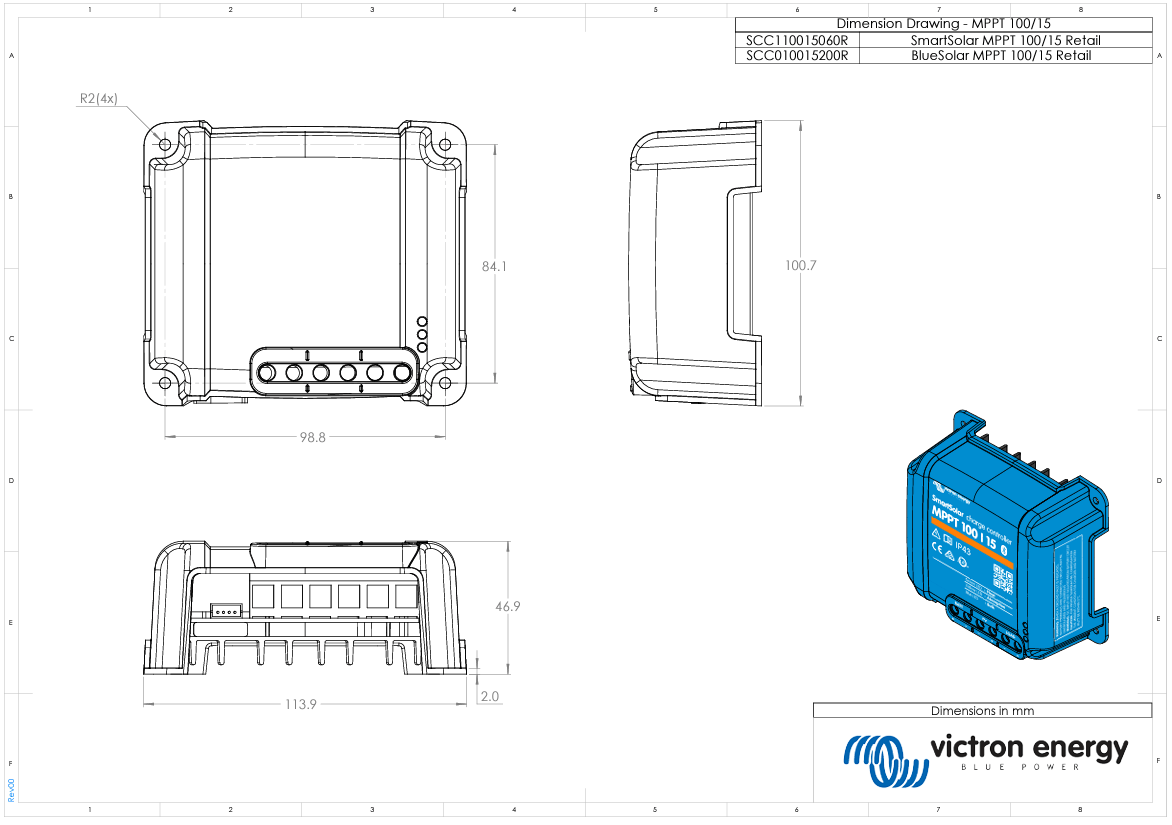

Technical dimensional drawing of the MPPT 100/15 controller showing metric measurements
Regular price $132.67
$147.40
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

6
Top-down view of a blue Victron SmartSolar MPPT 100/15 Bluetooth charge controller

Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller

DESCRIPTION

Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller

Maximize your solar system's efficiency with the Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller. This controller is engineered to bring you unparalleled ease of use and performance, ensuring you get the most out of your solar installation.

Bluetooth Smart: Effortless Solar Management

With built-in Bluetooth Smart technology, managing your SmartSolar Charge Controllers has never been easier. This feature allows for wireless setup, monitoring, updates, and synchronization, providing a seamless experience in managing your solar energy.

VE.Direct: Reliable Wired Data Connection

The VE.Direct feature offers a robust wired data connection to Cerbo GX and other GX devices, PCs, and more. This connectivity ensures efficient data sharing and device integration, enhancing your system's performance and reliability.

Ultra-fast MPPT: Enhanced Solar Energy Harvest

Our ultra-fast Maximum Power Point Tracking (MPPT) technology is designed to optimize your energy harvest, boosting it by up to 30% compared to PWM charge controllers, and by up to 10% more than slower MPPT controllers. It's perfect for handling cloudy skies and changing light conditions, ensuring maximum efficiency.

Load Output: Intelligent Battery Protection

To prevent battery over-discharge, all loads can be connected to the load output. This feature intelligently disconnects the load when the battery voltage drops to a predetermined level, ensuring your battery's longevity and health.

Battery Life: Advanced Battery Management

The Battery Life algorithm enhances the way your solar charge controller manages the battery, efficiently charging it to avoid harmful cycles between partially charged and fully discharged states. This strategy helps achieve a near-full recharge approximately once every week, extending your battery's lifespan.

Programmable Battery Charge Algorithm: Tailor-Made Charging

Visit our software section to learn how to customize the battery charge algorithm according to your needs. This flexibility allows for a personalized charging process, optimizing your system's performance.

Day/Night Timing and Light Dimming

Discover additional functionalities like day/night timing and light dimming by exploring the software section on our website. These features offer more control over your solar system, adapting it to your specific requirements.

Internal Temperature Sensor: Accurate Charging Adjustments

The internal temperature sensor provides precise charge compensation by adjusting the absorption and float charge voltages according to temperature fluctuations, ensuring efficient and accurate charging under varying environmental conditions.

Optional External Battery Voltage and Temperature Sensing

Enhance your system's monitoring capabilities by using a Smart Battery Sense or a BMV-712 Smart Battery Monitor. These optional devices communicate vital battery voltage and temperature information to your SmartSolar Charge Controllers via Bluetooth, further optimizing your system's efficiency.

Advanced Charging Features

Adaptive 3-Stage Battery Charging

The sophisticated 3-stage charging process includes Bulk, Absorption, and Float stages, designed for efficient and thorough battery charging. This adaptive approach ensures optimal recharging, based on the battery's discharge level, and maintains the batteries at a healthy voltage, preventing overcharging during inactivity.

  • Bulk Stage: Rapid charging with maximum current until reaching the set absorption voltage.
  • Absorption Stage: Switches to constant voltage, reducing current to prevent overcharging.
  • Float Stage: Keeps batteries at a safe voltage, extending their life and ensuring they remain charged.

Flexible Charge Algorithm and Equalization Charging

Through the VictronConnect App, you can choose from 8 pre-set charge algorithms or create a fully programmable charge algorithm to suit your specific needs. Additionally, equalization charging for certain lead-acid batteries can be activated to ensure all cells are balanced, promoting battery health and longevity.

Upgrade to the Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller for a smart, efficient, and customizable solar charging experience, ensuring your solar system performs at its best.

SPECIFICATIONS

Specifications

Solar Charge Controller MPPT 100/15
Battery voltage (auto select) 12/24 V
Rated charge current 15 A
Nominal PV power, 12 V 220 W
Nominal PV power, 24 V 440 W
Nominal PV power, 48 V n.a.
Max. PV short circuit current 15 A
Automatic load disconnect Yes
Max. PV open circuit voltage 100 V
Peak efficiency 98%
Self-consumption – load on 12 V: 19 mA 24 V: 16 mA
Self-consumption – load off 12 V: 10 mA 24 V: 8 mA
Charge voltage 'absorption' 14.4 V / 28.8 V (adj.)
Charge voltage 'float' 13.8 V / 27.6 V (adj.)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 15 A
Low voltage load disconnect 11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm
Low voltage load reconnect 13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.6 kg
Dimensions (h x w x d) 100 x 113 x 50 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
Stored Trends
Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored 46

Note:

1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter, the minimum PV voltage is Vbat + 1 V.

2. A PV array with a higher short circuit current may damage the controller.


SKU: VIC-SCC110015060R
Barcode: 8719076040811
Model #: SCC110015060R
MPN: SCC110015060R
