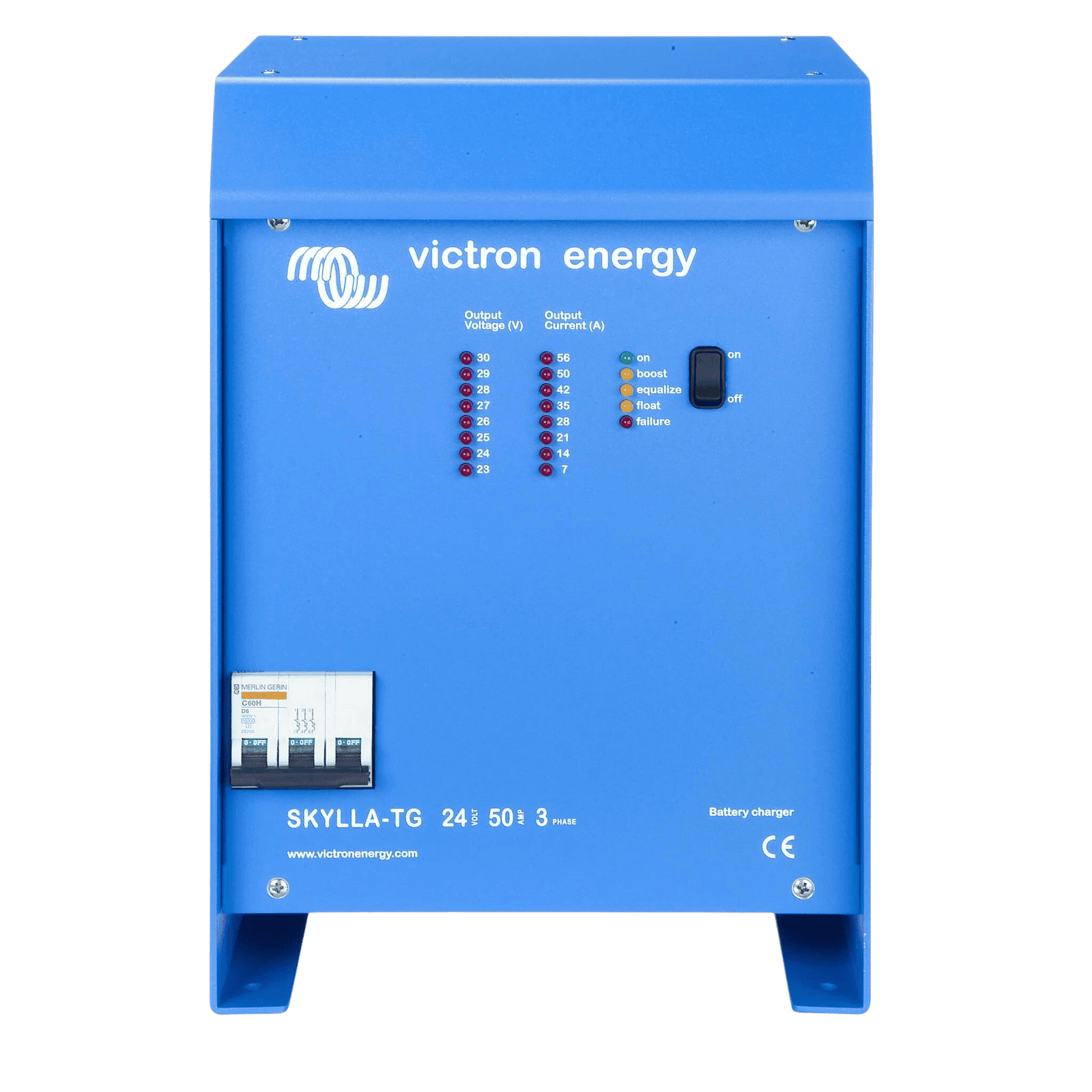

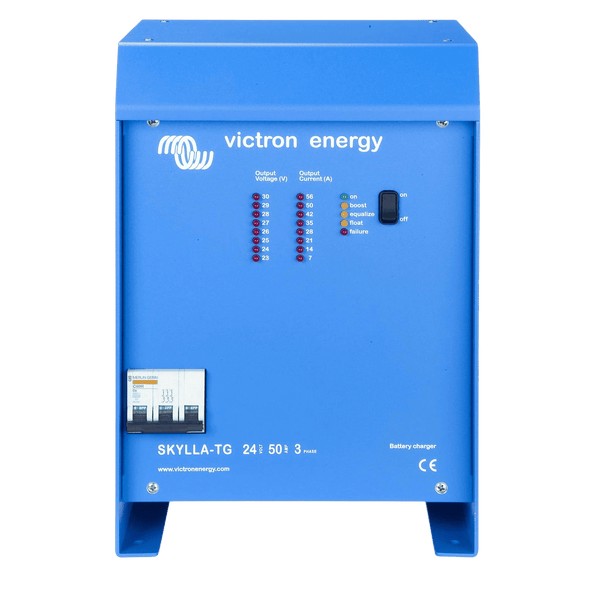

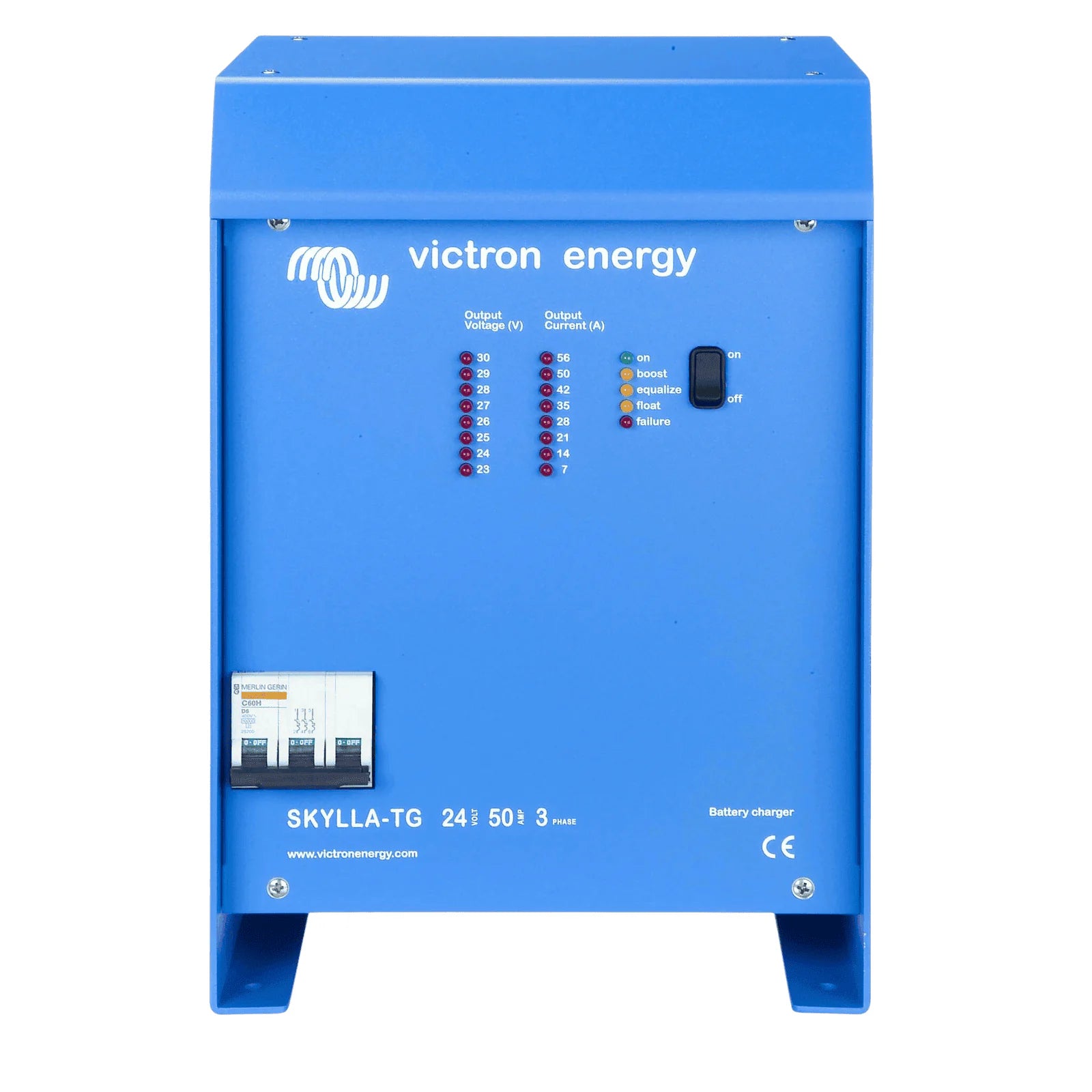

Victron 24V 50A Skylla-TG 24/50 3-phase (1+1) Battery Charger
Victron 24V 50A Skylla-TG 24/50 3-phase (1+1) Battery Charger
50A 3-Phase Input, Dual Outputs, Temperature Compensated

DESCRIPTION
Victron Skylla-TG 24/50: Industrial 3-Phase Battery Charger for Demanding 24V Systems
Precision 3-Phase Charging for Critical 24V Battery Banks
The Victron Skylla-TG 24/50 is a robust, microprocessor-controlled 3-phase battery charger engineered for professional and industrial applications where reliability and precise charge control are paramount. Delivering a full-rated 50 A charge current to your main 24V battery bank, plus a dedicated 4 A output for a starter battery, this unit ensures your entire DC system remains optimally charged. Its 3-phase input (3 x 400 V AC) provides balanced load distribution and higher efficiency, making it ideal for fixed installations in workshops, marine vessels, and off-grid power systems.
Unlike generic chargers, the Skylla-TG employs an advanced IUoUo three-step charge characteristic, rapidly and safely recharging batteries while preventing overcharge. The microprocessor continuously monitors and adjusts the process, significantly extending battery service life, particularly for sealed, maintenance-free batteries where precise voltage control is critical to avoid drying out and premature failure.
Key Features
- 3-Phase Input: 3 x 400 V AC for efficient, balanced power draw and reduced line current per phase
- Dual Isolated Outputs: 50 A main output plus 4 A auxiliary output to maintain starter batteries
- Adaptive IUoUo Charging: Microprocessor-controlled three-step charge profile for faster, safer charging
- Temperature Compensation: Included battery sensor adjusts voltage to prevent overcharge in high temperatures
- Voltage Sense: Compensates for cable losses, ensuring the battery receives the exact charge voltage
- Power Supply Mode: Stabilised output allows use as a DC power supply without batteries connected
- Remote Alarm: Potential-free contacts (NO/NC) for integration with monitoring systems
- Rugged Build: Aluminium enclosure with forced cooling, rated for -40 to +50 °C operation
Engineered for Battery Longevity
Battery health depends on precise charging. The Skylla-TG’s temperature compensation actively reduces charge voltage as ambient or battery temperature rises, a vital feature for sealed AGM or gel batteries that are sensitive to overvoltage. Combined with voltage sensing that eliminates voltage drop errors over long cable runs, your batteries are charged exactly to specification, maximising cycle life and reducing total cost of ownership.
Versatile Power Solution
Beyond battery charging, the Skylla-TG functions as a highly stabilised DC power supply. This dual-purpose capability is invaluable for bench testing, powering DC equipment directly, or acting as a buffer in systems without batteries. The integrated remote alarm with potential-free contacts allows seamless integration into building management or vessel monitoring systems, providing alerts for charger status or fault conditions.
Built for Harsh Environments
Housed in a durable blue aluminium case (RAL 5012) with forced cooling, the Skylla-TG operates reliably in ambient temperatures from -40 to +50 °C and up to 95% non-condensing humidity. Comprehensive protection against output short circuits, reverse polarity, over-temperature, and excessive battery voltage safeguards both the charger and your valuable battery investment. The M8 stud terminals (Approx. 5/16") provide secure, low-resistance connections for heavy-duty cables.
Applications
- Marine and yacht 24V house and starter battery banks
- Industrial off-grid and backup power systems
- Workshop and service centre battery maintenance
- Mobile equipment and heavy vehicle charging
- Telecom and remote monitoring installations
Equip your 24V system with the charging precision and durability it demands. Order the Victron Skylla-TG 24/50 today and ensure your batteries deliver peak performance and extended service life.
SPECIFICATIONS
Specifications
| Input Voltage (V AC) | 3 x 400 V AC |
|---|---|
| Input Voltage Range (V AC) | 320-450 V AC |
| Input Voltage Range (V DC) | N/A |
| Frequency (Hz) | 45-65 Hz |
| Power Factor | 1 |
| Charge Voltage Absorption (V DC) | 28.5 V DC |
| Charge Voltage Float (V DC) | 26.5 V DC |
| Charge Current House Batt. (A) | 50 A |
| Charge Current Starter Batt. (A) | 4 A |
| Charge Characteristic | IUoUo (Three Step) |
| Temperature Sensor | Yes |
| Can Be Used As Power Supply | Yes |
| Remote Alarm | Potential Free Contacts 60 V / 1 A (1x NO and 1x NC) |
| Forced Cooling | Yes |
| Protection | Output Short Circuit; Battery Reverse Polarity Detection; Battery Voltage Too High; Temperature Too High |
| Operating Temp. Range | -40 to +50 °C (-40 - 122 °F) |
| Humidity (Non-Condensing) | Max 95% |
| Material & Colour | Aluminium (Blue RAL 5012) |
| Battery Connection | M8 Studs |
| Protection Category | IP 21 |
| Dimensions H x W x D | 365 x 250 x 257 mm |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-3-3 |
| SKU: | VIC-STG024050300 |
| Barcode: | 8719076026679 |
| Model #: | STG024050300 |
| MPN: | STG024050300 |
