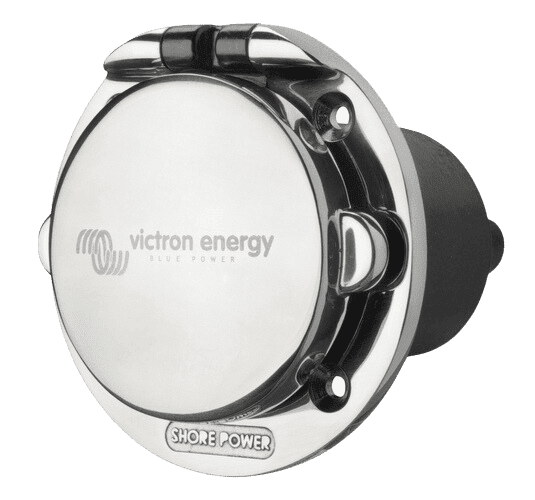

Victron 16A/250Vac CEE Stainless Steel Shore Power Inlet with Cover
Victron 16A/250Vac CEE Stainless Steel Shore Power Inlet with Cover
IP56 Waterproof Marine & RV Connection with LED Indicator

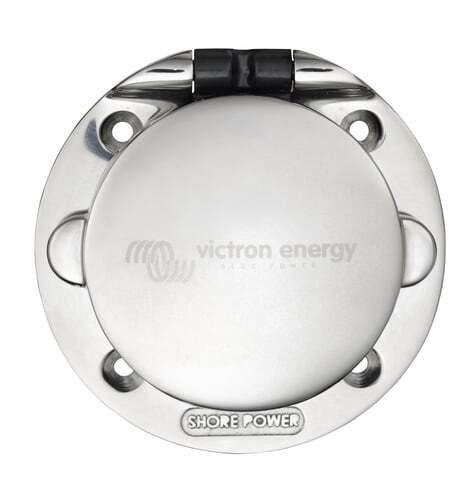

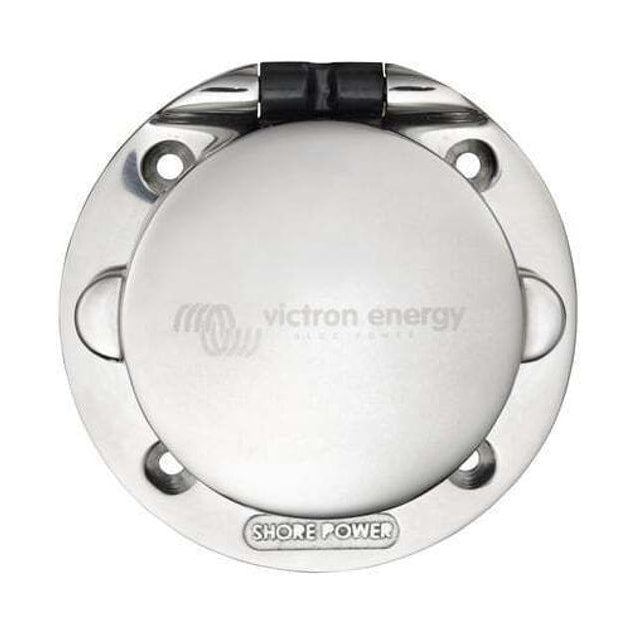

Key features: High-grade stainless steel construction, 16A 250Vac electrical rating, Spring-loaded protective flip cover, Secure four-hole mounting flange, Embossed shore power identification.

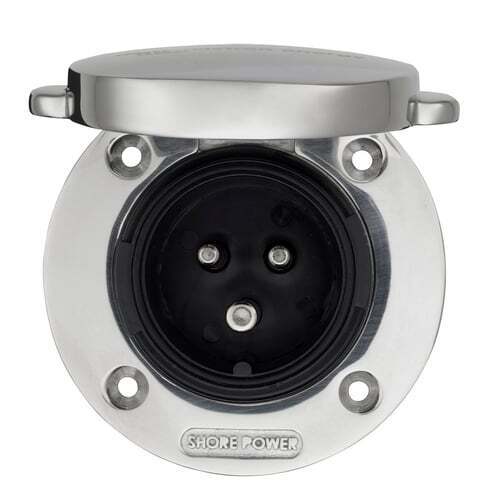

Highlights:Protective Cover: Durable stainless steel flip lid to protect terminals from weather,3-Pin Connector: Male electrical connection terminals for shore power cable,Mounting Hole: Pre-drilled hole for secure surface installation,Shore Power Label: Embossed label for clear identification of power source.

DESCRIPTION
Robust and Reliable Mains Power Connection for Mobile Environments
Premium 240V Shore Power Socket for Marine and RV Applications
Establishing a safe and stable connection to mains electricity is critical for any mobile energy setup. The Victron 16A/250Vac CEE Stainless Steel Shore Power Inlet is engineered to provide a secure and highly durable 240V shore power socket for boats, caravans, and off-grid vehicles. Constructed from high-grade, marine-ready stainless steel, this shore power inlet is designed to resist the severe corrosion and degradation commonly experienced in coastal environments and harsh Australian weather.
Standard domestic plugs or generic plastic inlets are often vulnerable to UV damage, impact cracking, and moisture ingress, which can lead to dangerous electrical faults. By upgrading to a dedicated marine shore power inlet, you significantly reduce the risk of high-resistance connections and arcing, ensuring your onboard chargers, inverters, and appliances receive stable power.
IP56 Weatherproof Rating and LED Safety Indicator
Safety and environmental protection are at the forefront of this design. The unit features an IP56 waterproof rating when closed, protecting the internal terminals from high-pressure water spray, dust, and salt mist. A heavy-duty, spring-loaded stainless steel flip cover securely seals the connection point when the boat shore power plug is disconnected, preventing moisture accumulation inside the contacts.
For added operational safety, this Victron shore power inlet includes an integrated LED power indicator. This highly visible LED illuminates when the inlet is receiving live AC power from the marina pedestal or caravan park pedestal. This allows users to confirm instantly that the shore power lead is active and functioning correctly before interacting with the main switchboard or internal breakers.
CEE-Standard Compatibility and Low-Resistance Contact
Built to meet strict IEC 60309 (2P+E) CEE standards, this 16A inlet ensures universal compatibility with standard marine and RV electrical systems. It pairs perfectly with the dedicated Victron shore power plug and cable series, creating a watertight, mechanically locking connection that will not accidentally vibrate loose during movement or high winds.
The internal three-pin male connector is manufactured to maintain a low-resistance contact point. In high-draw environments, such as running air conditioners or heavy-duty battery chargers simultaneously, minimizing electrical resistance is essential to prevent terminal overheating and voltage drop.
Key Features
- Constructed from premium marine-grade stainless steel for maximum corrosion resistance and longevity.
- Rated for 16A and 250Vac, making it an ideal 240V shore power socket for Australian applications.
- IP56 weatherproof housing with a secure, spring-loaded protective cover to block water and dust.
- Built-in LED power indicator for instant visual confirmation of a live electrical supply.
- CEE-standard (IEC 60309) configuration for seamless integration with Victron power cables and connectors.
- Four-hole mounting flange for secure, flush surface installation on fiberglass, metal, or timber exteriors.
Versatile Applications for Off-Grid and Mobile Power
Whether you are outfitting a new vessel or replacing an old, sun-damaged plastic inlet, this stainless steel socket delivers exceptional reliability. It is an outstanding choice for:
- Marine Vessels: Yachts, cruisers, and workboats requiring a reliable, corrosion-proof marine shore power inlet.
- Caravans and Motorhomes: Providing a rugged caravan shore power connection that withstands UV exposure and road vibration.
- Off-Grid and Tiny Homes: Offering a heavy-duty input point for generator or mains backup connections in remote locations.
- Specialized Vehicles: Food trucks, emergency service vehicles, and mobile workshops that demand consistent daily power cycling.
Secure Your Power Supply
Invest in an electrical connection built to last. Equip your vessel or vehicle with the Victron 16A/250Vac CEE Stainless Steel Shore Power Inlet to ensure maximum safety, weather resistance, and uninterrupted energy transfer. Order today and experience the peace of mind that comes with professional-grade hardware for your next journey.
SKU: VIC-SHP301602000
SPECIFICATIONS
Specifications
| Current Rating | 16 A |
|---|---|
| Voltage Rating | 250 VAC |
| Standard | IEC 60309, 2p+E |
| Cover | Solid Cast 316 Stainless Steel |
| Plug Body | PA6 |
| Pins | Brass, Nickel Plated |
| Waterproof | IP 56 |
| CE Certified | Yes |
| Weight | 0.34 kg |
| Overall Diameter | Ø87 mm |
| Cut-Out Diameter | Ø55 mm |
| Mounting Hole Centres | 50 x 50 mm |
| Mounting Hole Diameter | Ø4.5 mm |
| Overall Length | 91.7 mm |
| SKU: | VIC-SHP301602000 |
| Barcode: | 8719076007463 |
| Model #: | SHP301602000 |
| MPN: | SHP301602000 |
