Victron Energy Anti-Islanding Box 63A Single and Three Phase
Victron Energy Anti-Islanding Box 63A Single and Three Phase

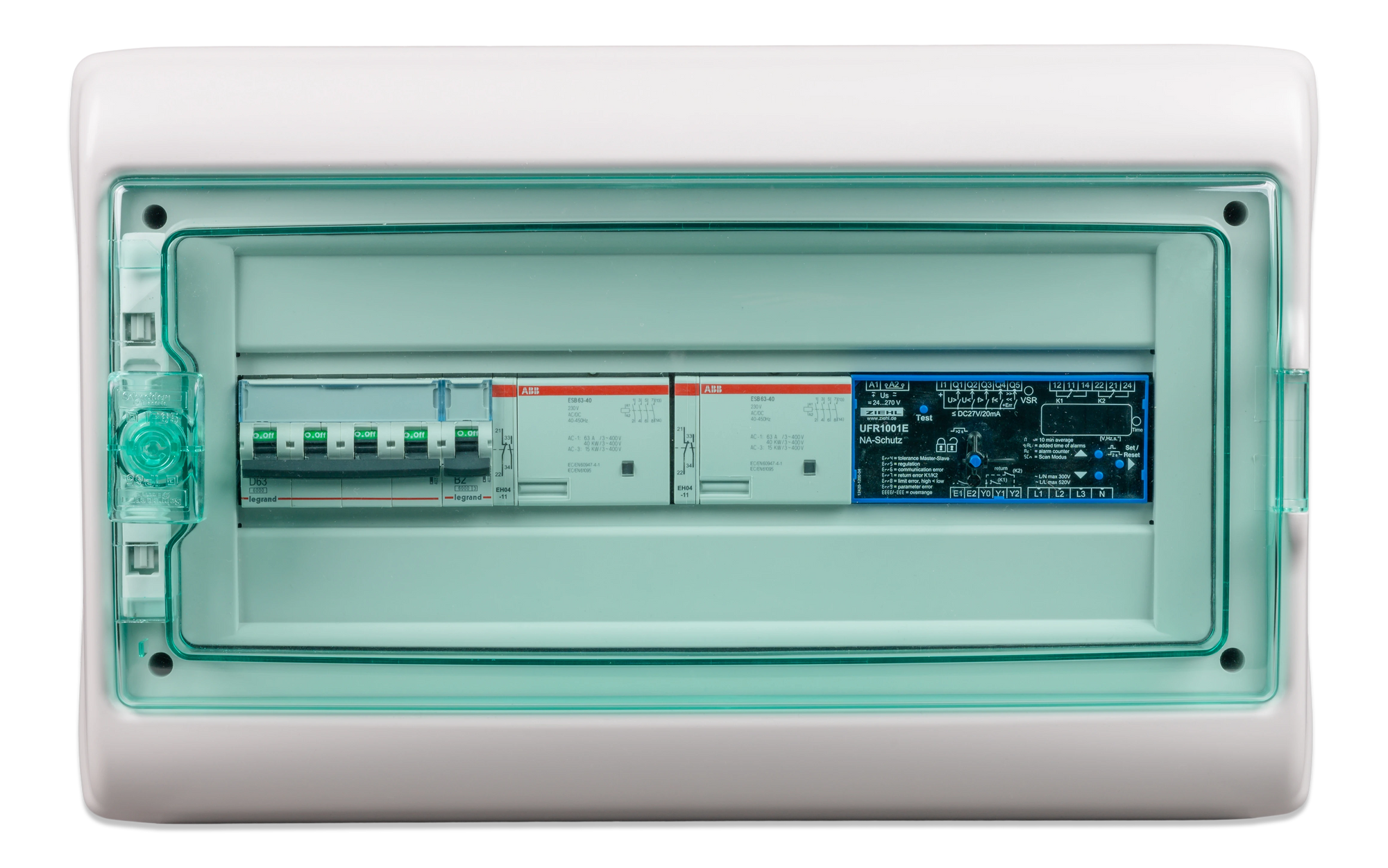

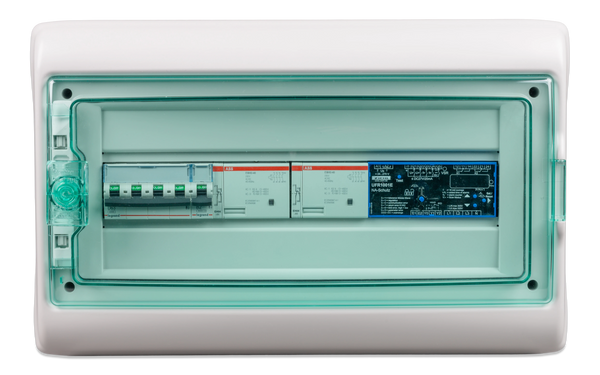

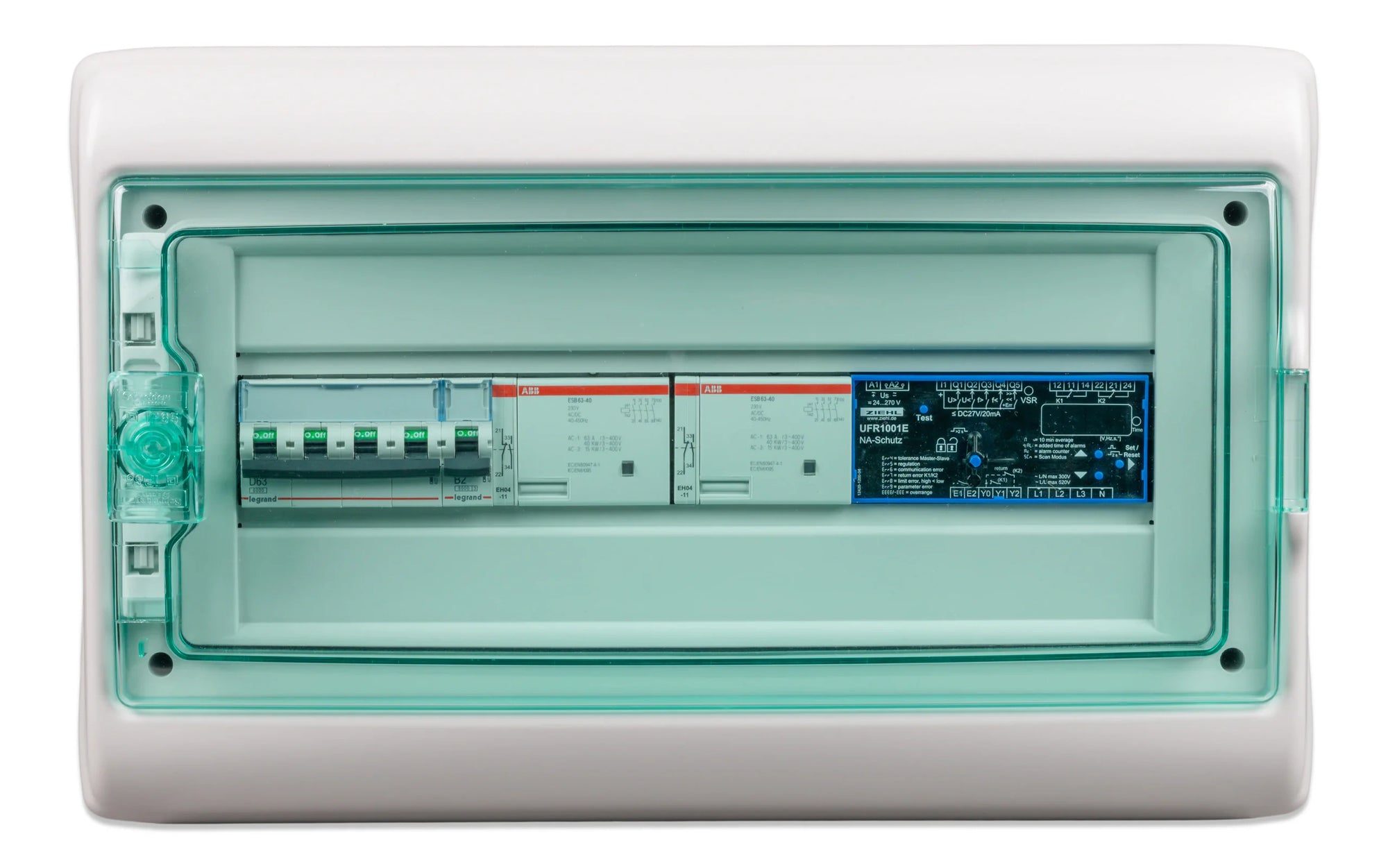

Ensure strict grid-compliance and safe energy feeding with this pre-wired IP65 anti-islanding enclosure.

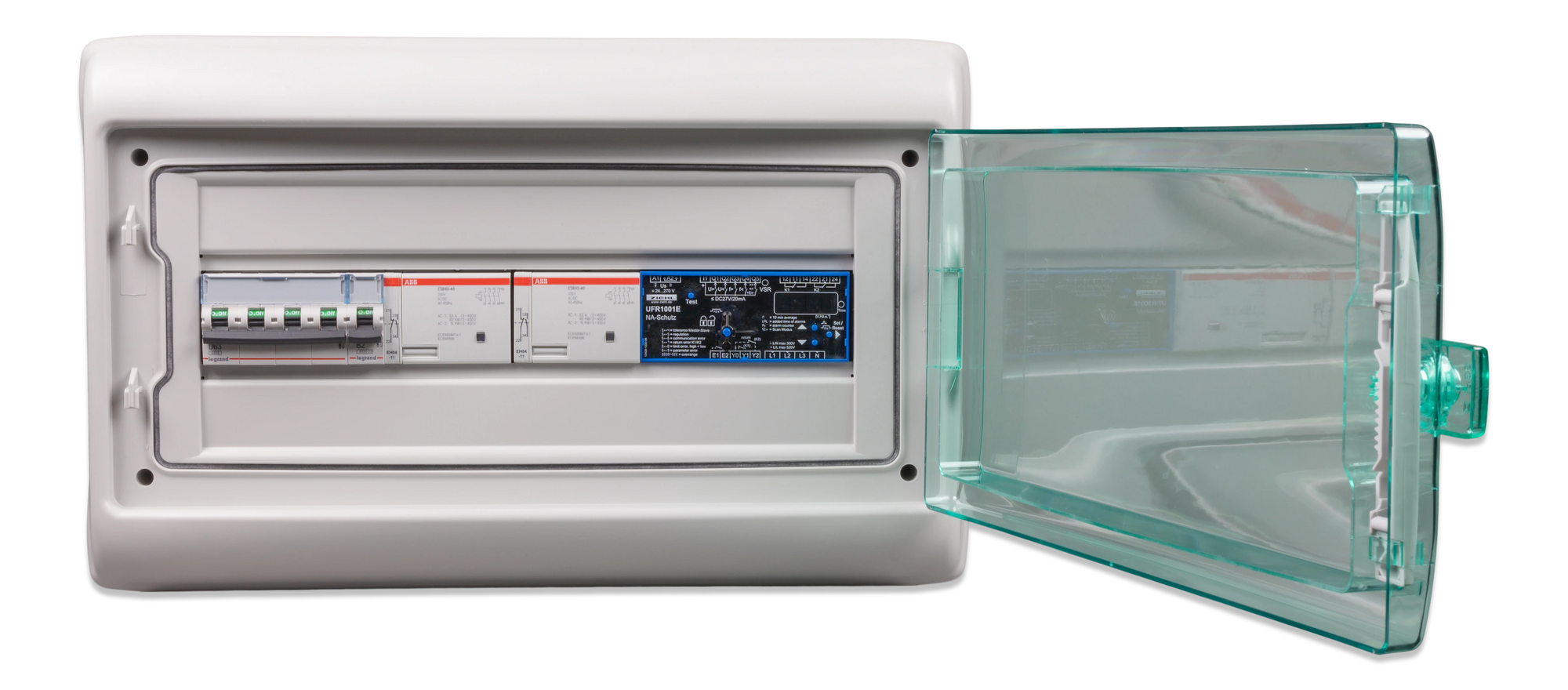

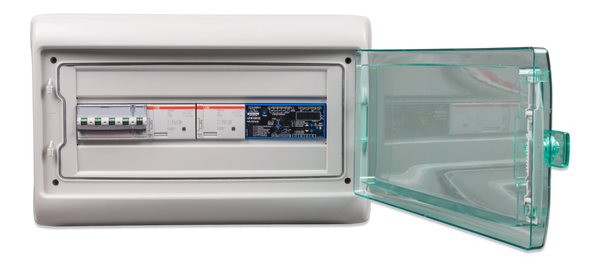

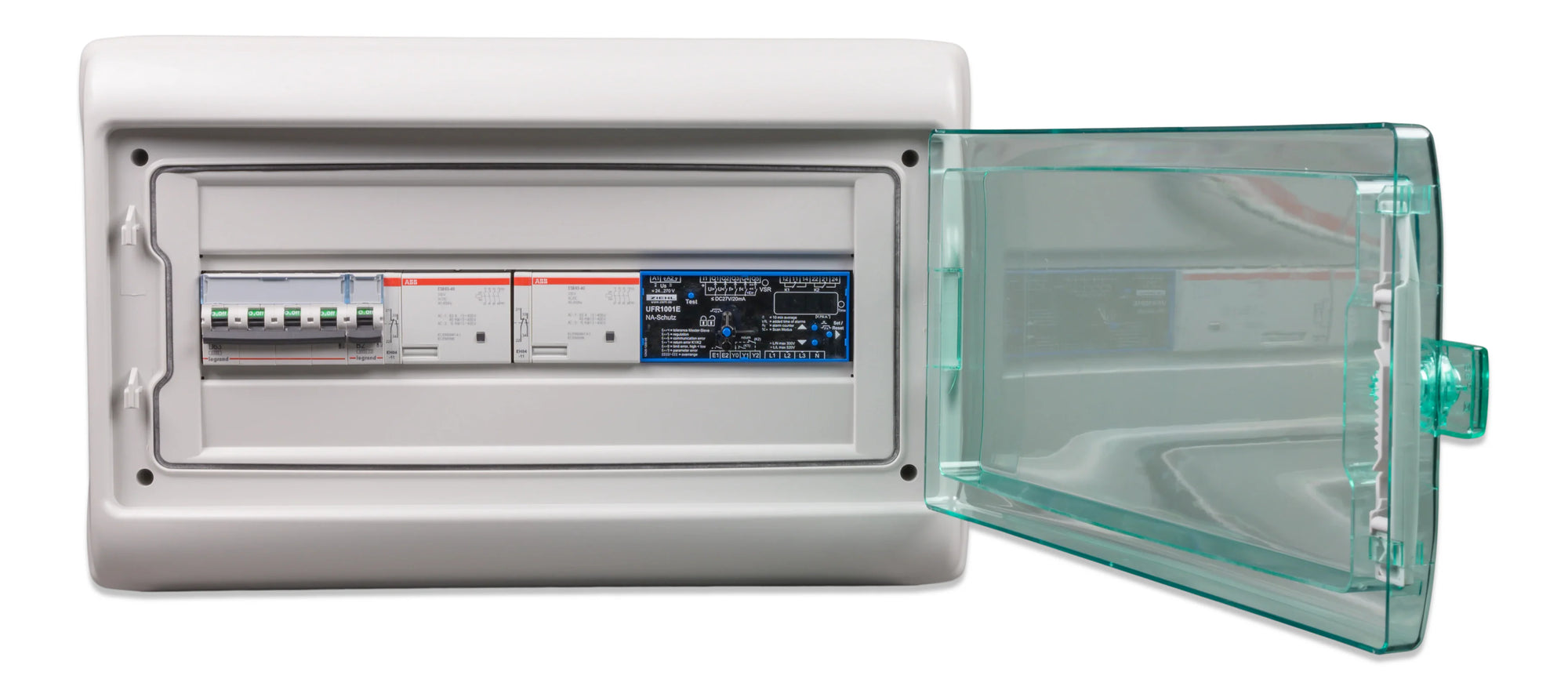

Key features: IP65 rated weather-resistant enclosure, 63A maximum current per phase, Compatible with single and three-phase systems, Clear inspection window for status monitoring.

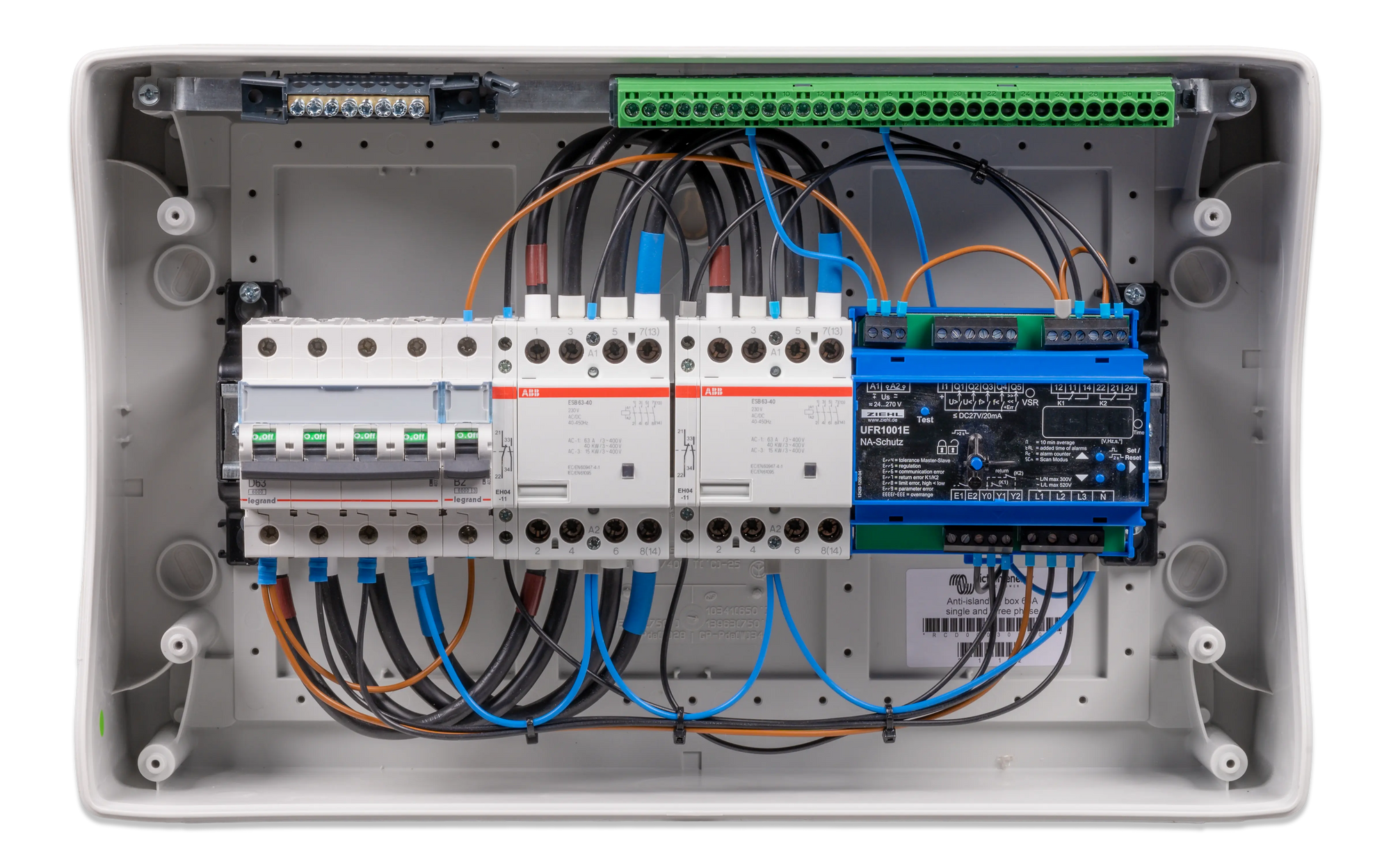

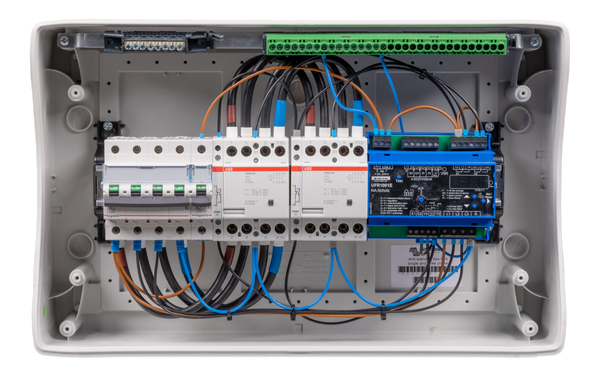

Highlights:63A Circuit Breaker: Main protection breaker for the electrical system,ABB In-line Contactor: Primary 63A AC-1 rated power contactor,Secondary Contactor: Redundant 63A contactor for safety compliance,Ziehl UFR1001E Relay: Network and system protection relay for anti-islanding control,Ground Terminal Rail: Multi-point terminal rail for secure earth connections.
Technical drawing illustrating dimensions of 240x390x105mm and detailed mounting hole layout for the IP65 enclosure.
Regular price
$1,595.00
Availability:
In Stock at Victron Warehouse
Allow up to 5 days before dispatch
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Victron Energy Anti-Islanding Box 63A
The Victron Energy Anti-Islanding Box 63A provides a pre-wired, fully integrated solution to meet strict grid-feeding regulations for Energy Storage Systems (ESS). Designed to seamlessly interface with grid-tied inverter/charger installations, this device ensures your system automatically disconnects from the grid in the event of a power outage, protecting utility workers and maintaining network stability.
Fully Integrated Grid Protection
Housed within the unit is a combination of high-quality protective components. The core of the system is the highly regarded Ziehl UFR1001E anti-islanding relay, which constantly monitors grid voltage and frequency. This relay is paired with two in-line contactors and a main circuit breaker, providing a reliable, all-in-one hardware disconnect solution that is suitable for both single-phase and three-phase configurations.
Key Features
- Universal Compatibility: Suitable for both single-phase and three-phase electrical systems.
- High Current Rating: Rated for up to 63A per phase to support high-capacity solar and energy storage systems.
- Pre-Wired Convenience: Combines the Ziehl UFR1001E, dual contactors, and a main breaker into a single, ready-to-mount enclosure.
- Robust Housing: Enclosed in an IP65-rated casing, providing excellent protection against dust and low-pressure water ingress.
- ESS Integration: Well suited for grid-feeding inverter/charger setups requiring certified external hardware anti-islanding protection.
System Compliance and Installation
When implementing grid-tied or ESS applications, adherence to local grid codes is critical. While some inverters feature built-in software anti-islanding, specific Distribution Network Service Providers (DNSPs) mandate an external, hardware-based disconnect mechanism for larger systems. This fully enclosed unit simplifies that compliance process by providing the necessary contactors and relay in one box. Ensure you verify compatibility and specific network rules with your local authority prior to design and installation.
SPECIFICATIONS
Specifications
| Brand | Victron Energy |
| Part Number | RCD000300200 |
| Phase Compatibility | Single Phase and Three Phase |
| Maximum Current | 63A per phase |
| Included Relay | Ziehl UFR1001E |
| Additional Included Components | 2x In-line Contactors, 1x Main Circuit Breaker |
| Enclosure Protection Class | IP65 |
| Dimensions (H x W x D) | 240 x 390 x 105 mm |
| Weight | 3.185 kg |
| SKU: | VIC-RCD000300200 |
| Barcode: | 8719076024293 |
