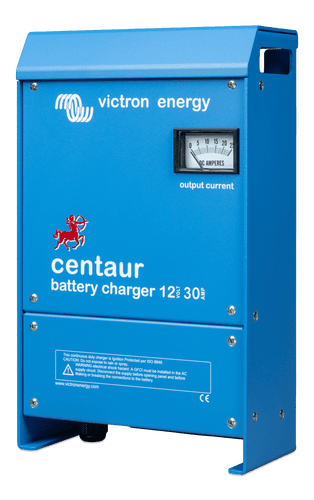

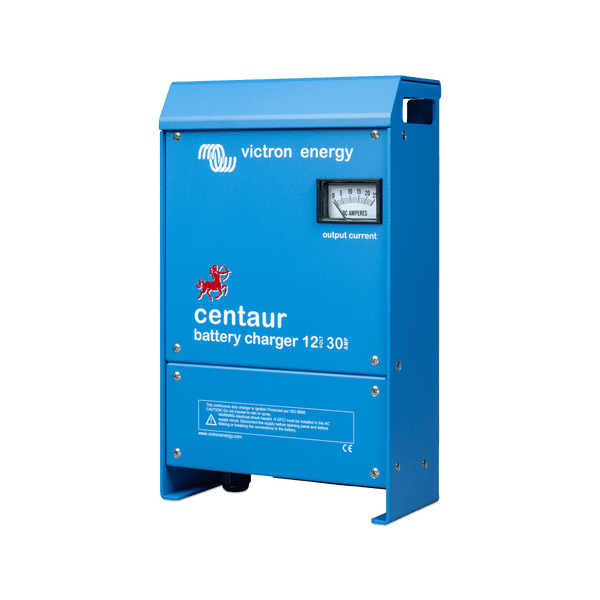

Victron 12V 30A Multi-Bank Centaur 12/30 (3) Uin 90-265VAC/45-65Hz Battery Charger
Victron 12V 30A Multi-Bank Centaur 12/30 (3) Uin 90-265VAC/45-65Hz Battery Charger
Fully automatic three stage charge characteristic

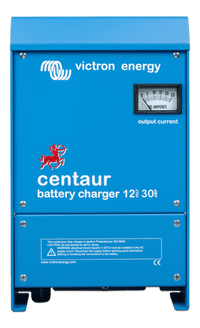

Key features: Universal 90-265V AC input voltage range, Three isolated battery bank outputs, Three-stage charging characteristic, Analogue output current ammeter.

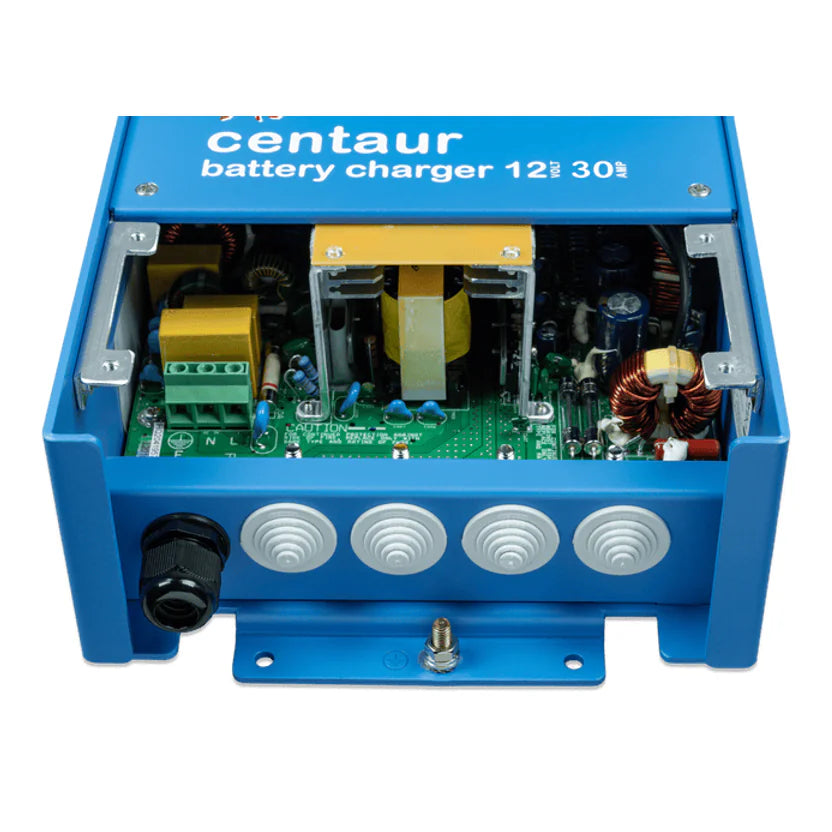

Internal view of the Centaur battery charger featuring secure AC input screw-clamp terminals and multiple cable entry points through glands.

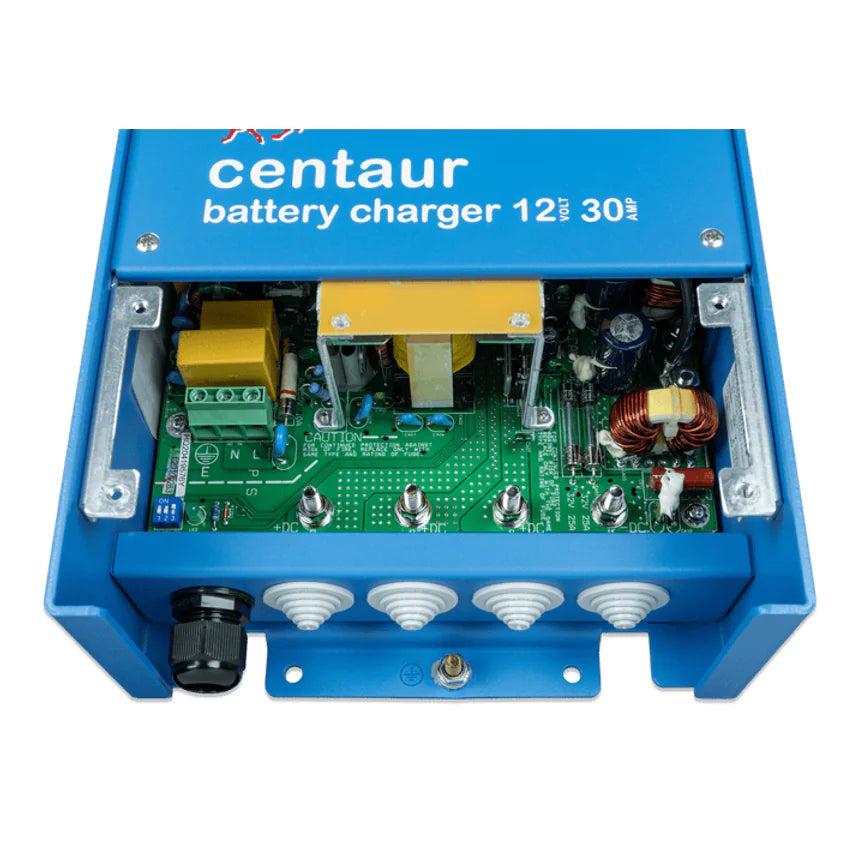

Highlights:DC Output Studs: Three M6 threaded studs for multi-bank battery connection,AC Input Terminal: Green screw terminal for universal 90-265V AC power input,Protection Fuses: Internal automotive blade fuses for output circuit protection,DIP Switches: Configuration switches for battery type and charge settings.

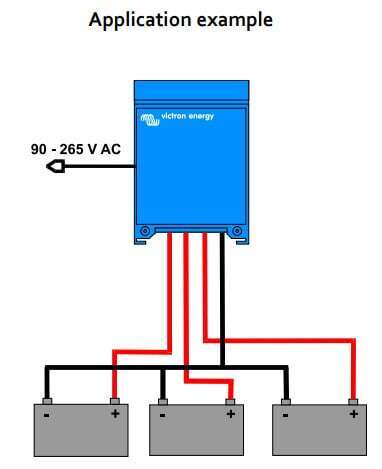

Schematic diagram illustrating the multi-bank charging capability, showing a single Centaur charger connected to three separate 12V battery banks simultaneously.

DESCRIPTION
Quality without compromise Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Learn more about batteries and battery charging
To learn more about batteries and charging batteries (including the pro’s and cons of multi-bank charging and intelligent charging), please refer to our book ‘Electricity on Board’.
OPTIONAL ACCESSORIES

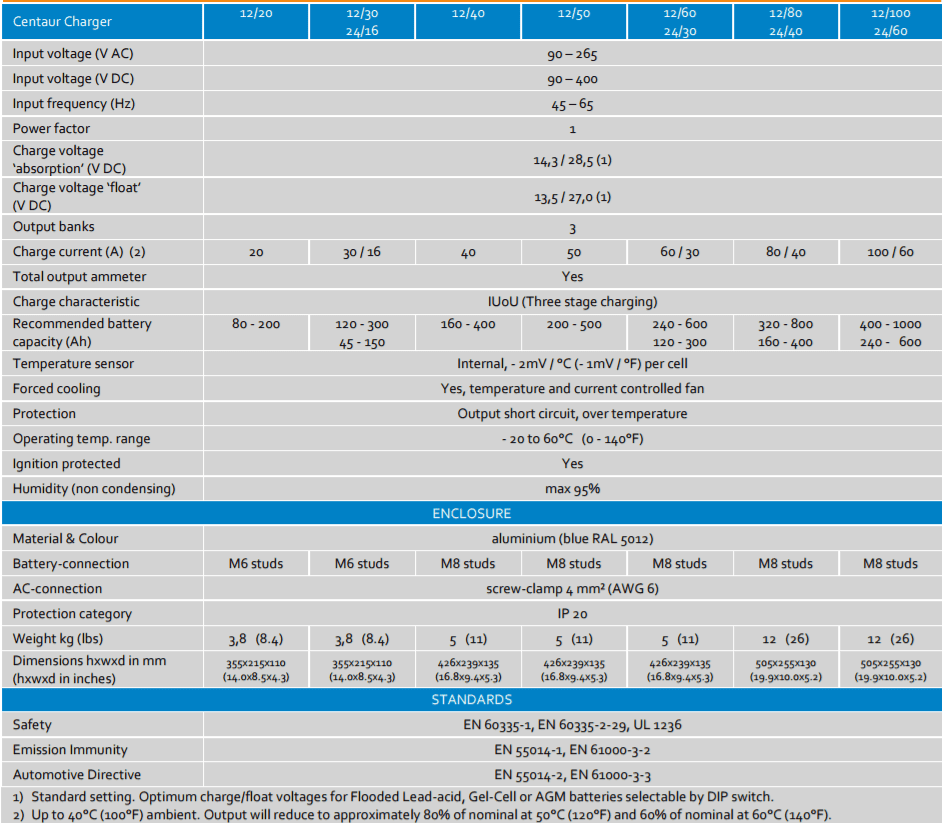

SPECIFICATIONS
| SKU: | VIC-CCH012030000 |
| Barcode: | 8719076021483 |
| Model #: | CCH012030000 |
| MPN: | CCH012030000 |
