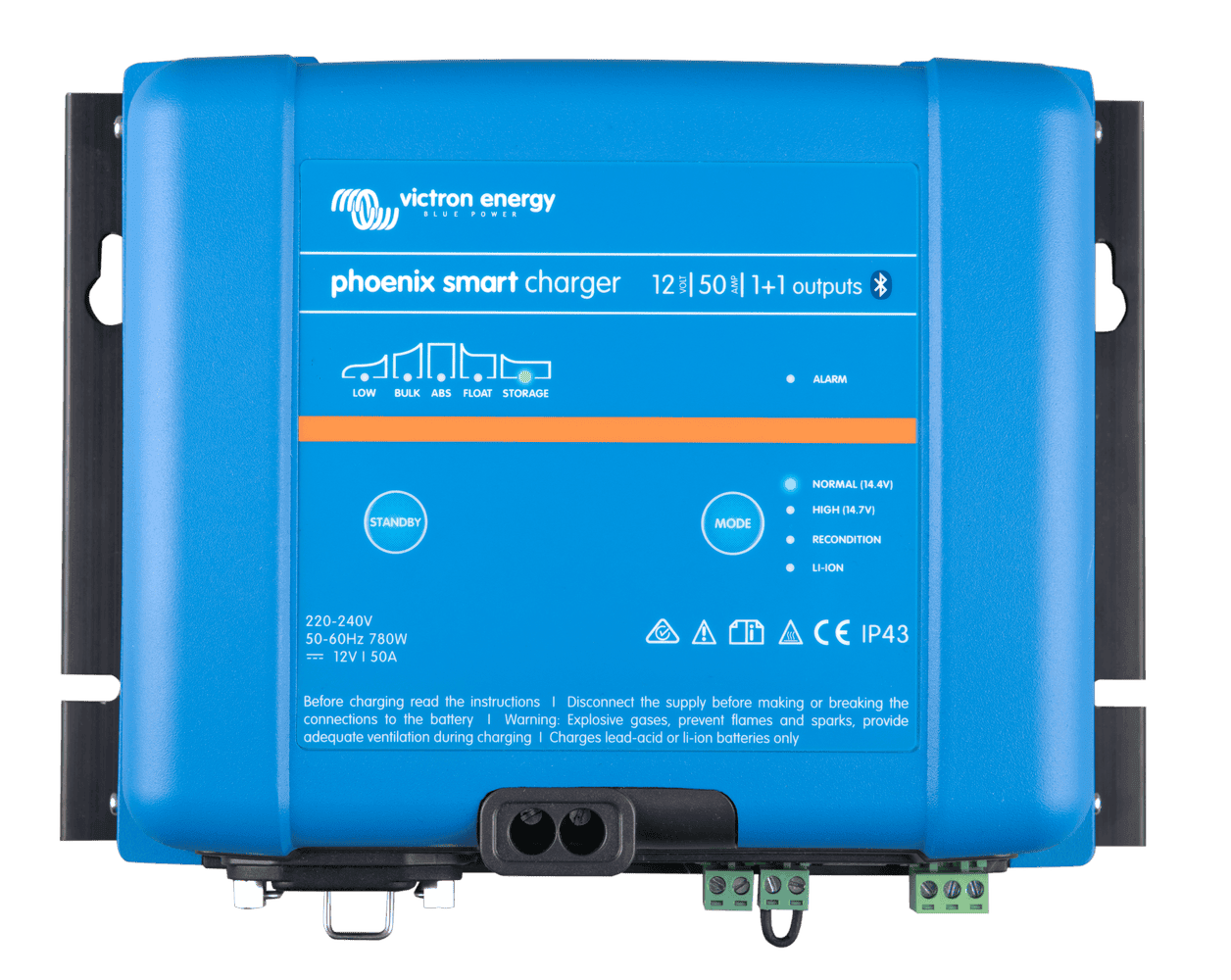

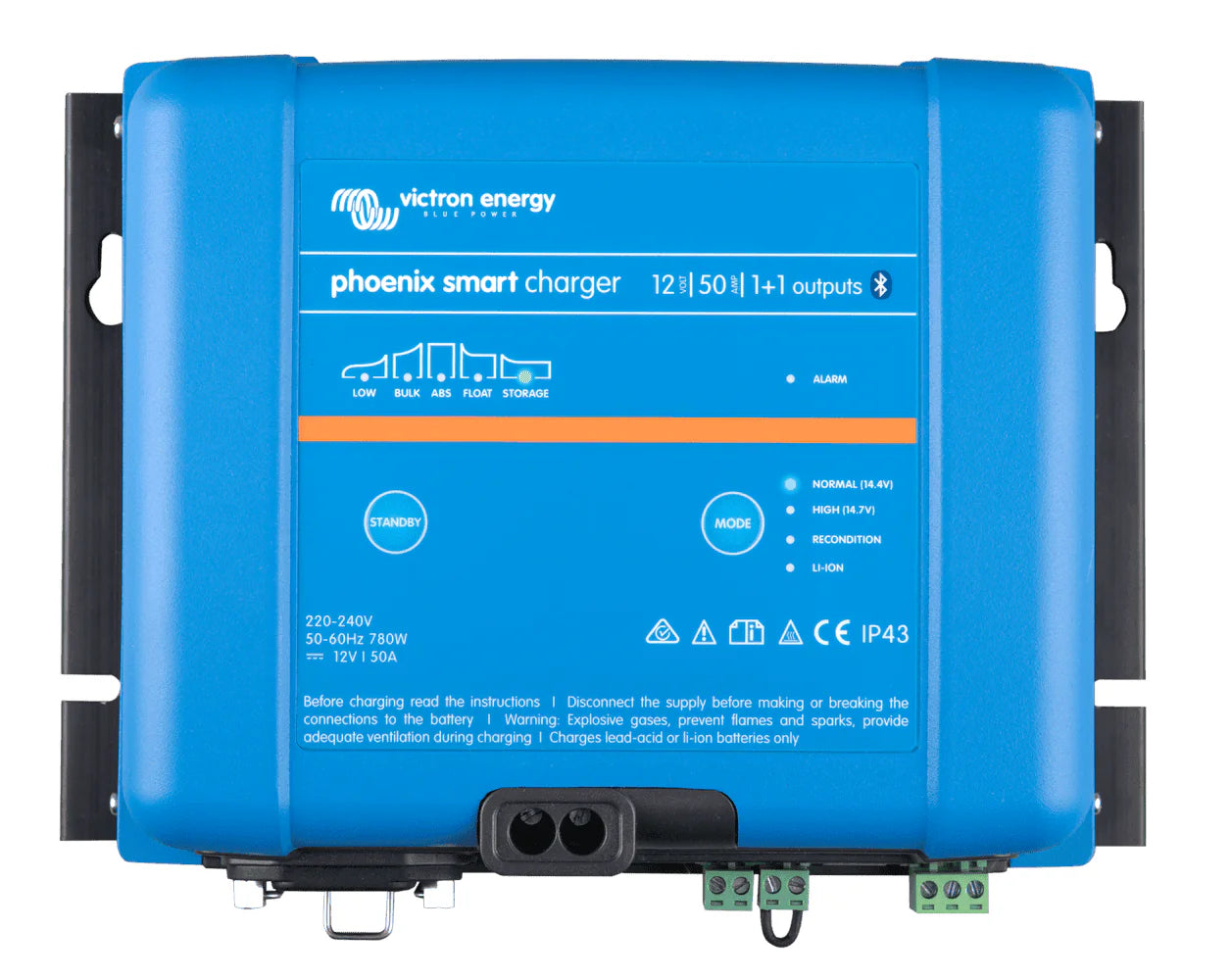

Victron 12V 50A Phoenix Smart IP43 12/50(1+1) Battery Charger
Victron 12V 50A Phoenix Smart IP43 12/50(1+1) Battery Charger
Deliver intelligent, adaptive battery maintenance with this 12V 50A charger, featuring built-in Bluetooth and dual-bank capabilities for marine and off-grid systems.
Key features: Bluetooth Smart enabled for wireless monitoring and configuration, Adaptive 5-stage charge algorithm including storage mode, Dual outputs for simultaneous main and starter battery charging, IP43 ingress protection rating when mounted correctly.

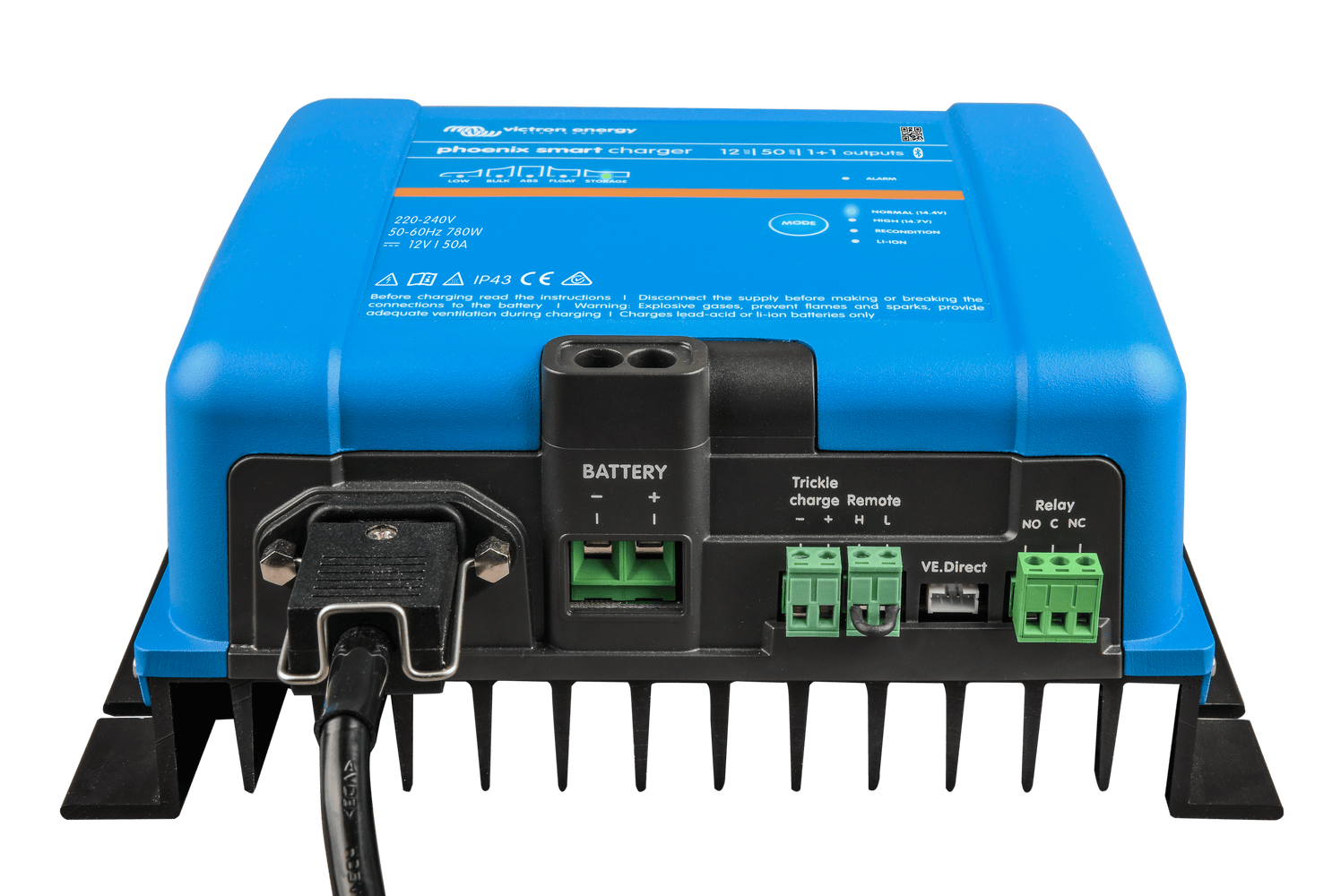

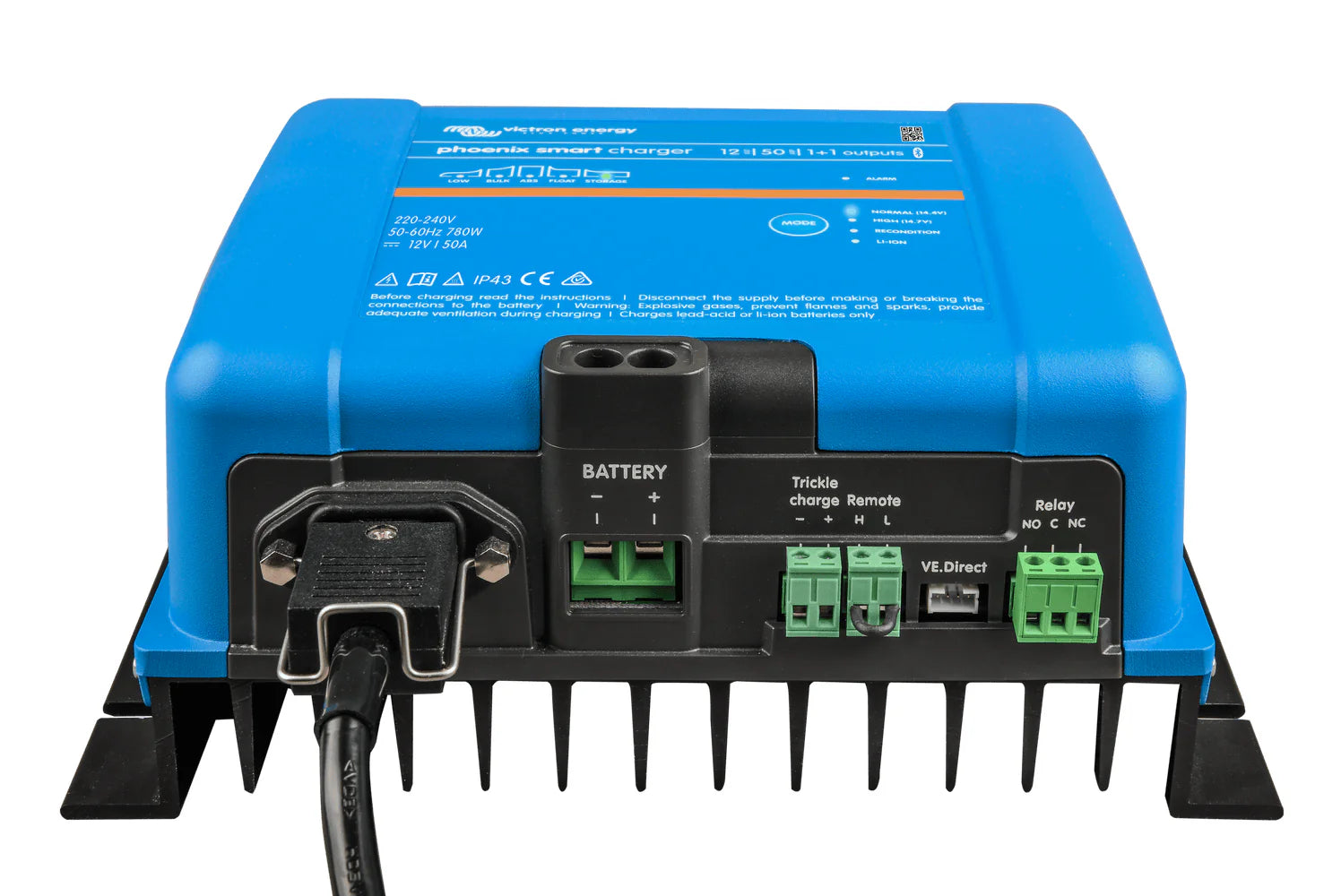

Highlights:AC Input: Standard IEC AC power input connection,Main Battery Terminals: High-current screw terminals for the primary battery bank,Remote & Trickle Terminals: Connections for remote on/off and secondary starter battery trickle charge,VE.Direct Port: Communication port for wired connection to a GX device or PC,Programmable Relay: Configurable relay for alarms or generator start/stop,Cooling Heat Sink: Large aluminium fins for efficient passive thermal management.

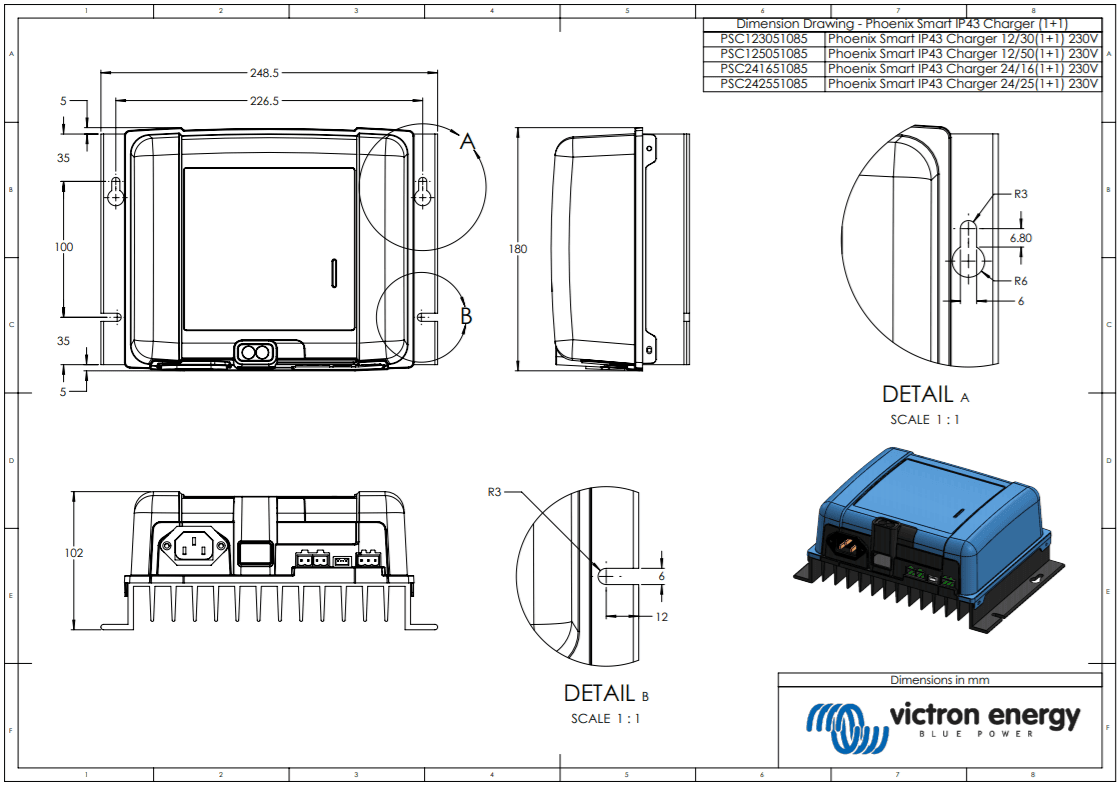

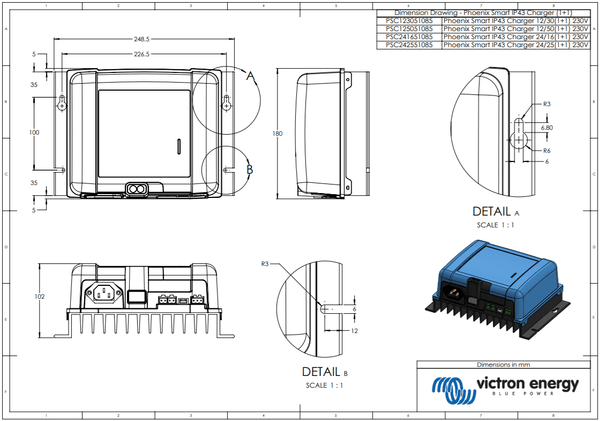

Technical drawing illustrating the physical dimensions and mounting hole layout of the Phoenix Smart IP43 charger, featuring a total width of 248.5mm and height of 180mm.

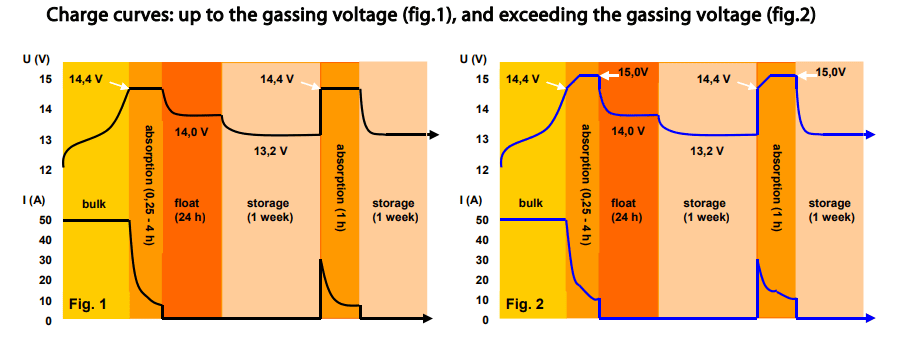

Multi-stage charging profile graph demonstrating the adaptive charge algorithm including bulk, absorption, float, and storage phases designed to optimise battery health and longevity.
DESCRIPTION
Intelligent Adaptive Charging for Marine and Off-Grid Systems
The Victron 12V 50A Phoenix Smart IP43 12/50(1+1) Battery Charger offers professional-level battery maintenance for demanding marine, automotive, and off-grid applications. Designed to handle the rigours of mobile power systems, this intelligent Victron smart charger ensures your batteries receive the precise energy they need to maximise lifespan and performance. With a robust 12V architecture and 50A output, it is an essential component for any reliable standalone power system.
Complete Control with Bluetooth Smart
Built-in Bluetooth connectivity transforms how you interact with your power system. Using the free VictronConnect app on your smartphone or tablet, you can monitor charge status, adjust settings, and update firmware completely wirelessly. For larger, integrated setups, the VE.Direct port provides seamless wired communication with Victron GX devices, enabling comprehensive system oversight.
Adaptive 5-Stage Battery Management
Standard chargers can easily overcharge batteries during extended periods of shore power or standby use. This unit employs a highly advanced, adaptive 5-stage algorithm: bulk, absorption, recondition, float, and storage. By automatically adjusting the charging process based on how the battery is being used, it delivers the exact right amount of charge.
If the battery experiences only shallow discharges, the absorption time is reduced to prevent overcharging. Conversely, after deep discharges, the system automatically extends the absorption phase to ensure a complete recharge.
Superior Battery Protection
Prolonged periods of inactivity often lead to early battery failure due to sulphation and corrosion. The innovative Storage Mode activates automatically after 24 hours without discharge. It reduces the float voltage to minimise gassing and positive plate corrosion, while initiating a weekly refresh cycle to prevent electrolyte stratification. Furthermore, the BatterySafe mode prevents damage from excessive gassing by automatically limiting the rate of voltage increase during rapid charging.
This dual-output model features a high-current primary connection for your main house battery bank, accompanied by a dedicated 4A trickle charge output that is ideal for maintaining an engine starter battery.
Built for Harsh Australian Environments
Operating in marine vessels or off-grid caravans means exposing equipment to challenging conditions. The IP43 protection rating ensures the internal electronic components are shielded against dust and water spray up to 60 degrees from vertical, provided the unit is mounted correctly. The natural convection cooling system utilises a large aluminium heatsink, eliminating the need for noisy cooling fans while maintaining exceptional efficiency and thermal stability even in warmer climates. Additionally, automatic voltage compensation offsets DC cable voltage drop by slightly increasing output voltage when DC current increases, ensuring optimal delivery to your battery bank.
Versatile Chemistry Support
Whether you are using traditional lead-acid, AGM, Gel, or advanced Lithium-ion (LiFePO4) battery banks, this charger adapts to your specific chemistry. It features a fully programmable charge algorithm and a dedicated lithium mode. Charger remote on/off control can even be managed directly by a Lithium-ion Battery Management System (BMS) via the integrated two-pole terminal.
Key Features
- Built-in Bluetooth for wireless monitoring and setup via the VictronConnect app
- VE.Direct port for seamless integration into advanced monitoring networks
- Adaptive 5-stage charging algorithm prolongs battery life and efficiency
- Automatic voltage compensation ensures accurate power delivery
- Programmable relay for triggering external alarms or generator start signals
- IP43 protection rating for electronic components provides resilience in tough environments
- Compatible with a wide range of battery chemistries including LiFePO4
Upgrade Your Power System Today
Maintaining healthy batteries is critical for any off-grid or marine adventure. Equip your setup with the Victron 12V 50A Phoenix Smart IP43 12/50(1+1) Battery Charger to ensure reliable, intelligent charging day in and day out. Secure your Victron smart charger today and experience peace of mind on your next journey.
SPECIFICATIONS
Specifications
| Model | Smart IP43 Charger 12/50 (1+1) |
|---|---|
| Cooling | Natural Convection Cooled |
| Input Voltage | 85-250 VAC (full power from 100 VAC, startup from 90 VAC) |
| DC Input Voltage Range | 90-375 VDC |
| Frequency | 45-65 Hz |
| Power Factor | 1 |
| Back Current Drain | <1 mA |
| No Load Power Consumption | 1 W |
| Maximum Efficiency | 94 % |
| Charge Voltage - Normal Mode | Absorption 14.4 V / Float 13.8 V / Storage 13.2 V |
| Charge Voltage - High Mode | Absorption 14.7 V / Float 13.8 V / Storage 13.2 V |
| Charge Voltage - Lithium Mode | Absorption 14.2 V / Float N/A / Storage 13.5 V |
| Fully Programmable | Yes, with Bluetooth and/or VE.Direct |
| Maximum Input Current Setting | 3-10 A |
| Number Of Battery Connections | 2 (2nd output via 2 pole terminal & 4 A max) |
| Charge Current - House Battery | 50 A |
| Low Current Mode | 25 A |
| Charge Current - Starter Battery | 4 A Max (1+1 output models only) |
| Temperature Compensation - Default | -16 mV/°C |
| Charge Algorithm | 6-stage Adaptive (3 stage for Li-ion) |
| Protection | Battery Reverse Polarity (fuse, not user accessible) / Output Short Circuit / Over Temperature |
| Can Be Used As Power Supply | Yes, output voltage can be set with Bluetooth and/or VE.Direct |
| Remote On/Off | Yes (2 pole terminal) |
| Relay (Programmable) | Yes (SPDT - 5 A up to 250 VAC / 5 A up to 28 VDC) |
| Bluetooth | Power: -4 dBm | Frequency: 2402-2480 MHz |
| Operating Temp. Range | -20 to 60 °C (0-140 °F) |
| Rated Output Current | Up to 40 °C, derate linearly to 20 % at 60 °C |
| Humidity (Non-condensing) | Max 95 % |
| Material & Color | Aluminium (Blue RAL 5012) |
| Battery Connection | Screw Terminals 16 mm² (AWG6) |
| AC Connection | IEC 320 C14 inlet with retainer clip (AC cord ordered separately) |
| Protection Category | Electronic components: IP43 | Connection area: IP22 |
| Weight | 2.7 kg (6 lbs) |
| Dimensions (H x W x D) | 180 x 249 x 116 mm (7.1 x 9.8 x 4.6 inch) |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Vibration | IEC68-2-6:10-150Hz/1.0G |
| SKU: | VIC-PSC125051095 |
| Barcode: | 8719076053507 |
| Model #: | PSC125051085 |
| MPN: | PSC125051085 |
