Victron 12/24/48V 70A BlueSolar MPPT 250/70-Tr VE.CAN Non-Bluetooth Solar Charge Controller

70A MPPT with VE.Can Networking for 12/24/48V Systems up to 4000W


Regular price $844.51
$938.30
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

0

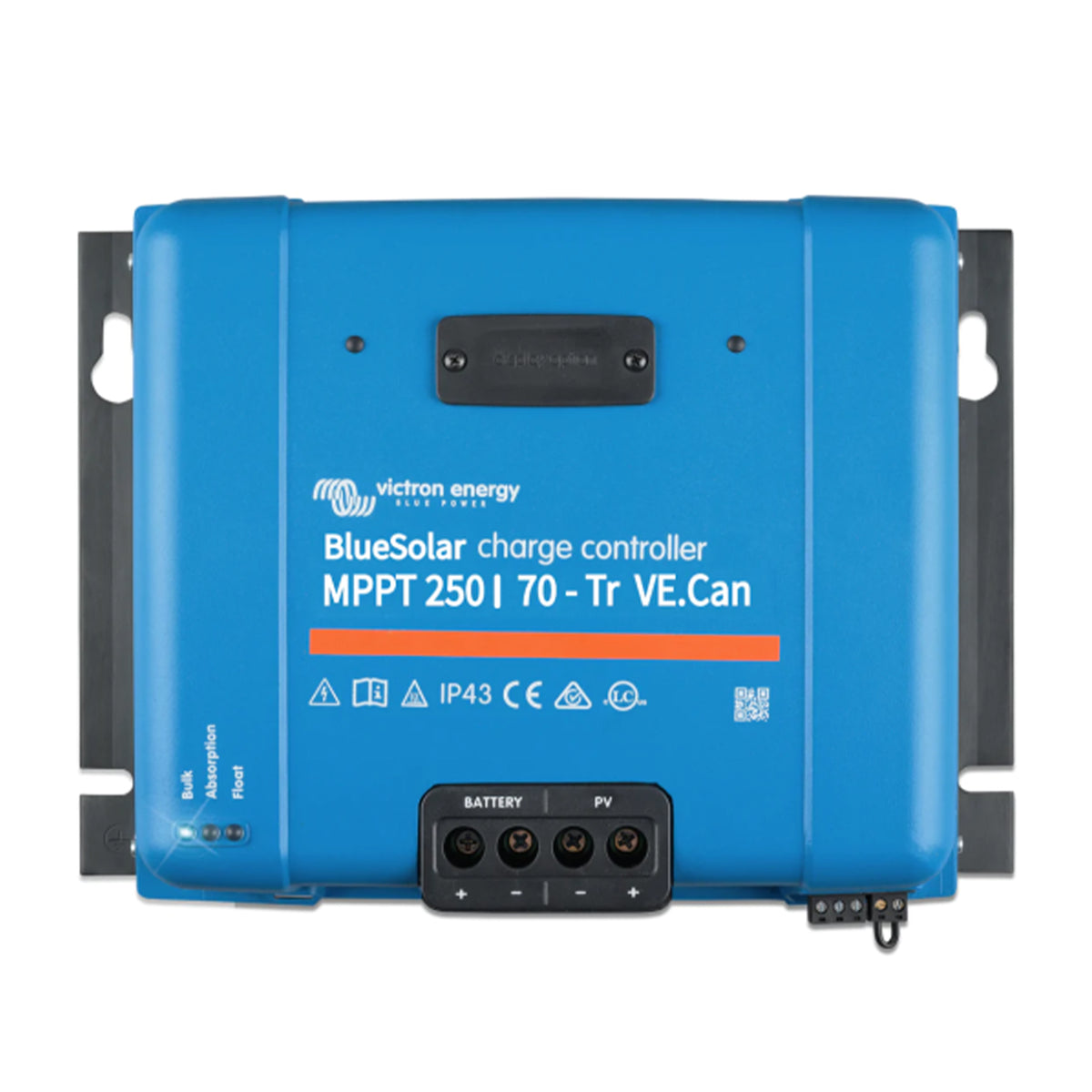

Front view of BlueSolar MPPT 250/70 solar charge controller showing interface and terminals

Victron 12/24/48V 70A BlueSolar MPPT 250/70-Tr VE.CAN Non-Bluetooth Solar Charge Controller

DESCRIPTION

Victron BlueSolar MPPT 250/70-Tr VE.Can: High-Capacity Solar Charge Controller for 12V, 24V, and 48V Systems

Advanced MPPT Technology for Maximum Energy Harvest

The Victron BlueSolar MPPT 250/70-Tr VE.Can is a professional-grade solar charge controller engineered for large off-grid and grid-interactive systems. With a 70 A rated charge current and support for 12 V, 24 V, and 48 V battery banks, it efficiently manages up to 4000 W of solar input. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm ensures optimal energy capture even under rapidly changing light conditions, while advanced shading detection maximises output when partial cloud cover or obstructions occur.

Unlike generic PWM controllers, this MPPT unit converts excess voltage into usable current, delivering up to 30% more energy from the same array. The 250 V maximum open-circuit voltage allows long series strings, reducing cable losses and installation complexity. With a peak efficiency of 99%, minimal self-consumption, and natural convection cooling, it operates reliably in demanding environments without fan noise or maintenance.

VE.Can Networking for Scalable, Synchronised Systems

Parallel operation is a standout feature: up to 25 units can be synchronised via the VE.Can bus, enabling large-scale installations with coordinated charging. This makes the 250/70-Tr ideal for commercial off-grid sites, remote telecommunications, and residential systems requiring high reliability. The VE.Can interface also integrates with Victron GX devices (such as the Color Control GX) and the VRM portal for remote monitoring, firmware updates, and system control.

For local configuration, the controller includes a VE.Direct port compatible with the MPPT Control display or a Bluetooth Smart dongle (sold separately). A programmable relay and remote on/off terminal provide flexible load management, while the eight pre-programmed charge algorithms and user-definable settings accommodate lead-acid, lithium, and other battery chemistries.

Built for Harsh Australian Conditions

Rated IP43 for electronics and IP22 for connections, the BlueSolar 250/70-Tr withstands high humidity, dust, and temperature extremes from -30 °C to +60 °C. Full output is maintained up to 40 °C, with automatic derating above that to protect internal components. The robust aluminium housing and conformally coated circuit board resist corrosion, making it suitable for unconditioned indoor spaces such as sheds, equipment rooms, and marine engine compartments.

Heavy-duty 35 mm² (AWG2) terminals accept large gauge cable, minimising voltage drop and heat buildup. PV reverse polarity, output short circuit, and over-temperature protections safeguard both the controller and connected equipment.

Key Features

  • 70 A rated charge current supports 12 V, 24 V, and 48 V battery banks
  • 250 V maximum PV open-circuit voltage for long series string configurations
  • Ultra-fast MPPT with advanced shading detection for maximum yield
  • VE.Can networking allows parallel synchronised operation of up to 25 units
  • 99% peak efficiency and natural convection cooling for silent, reliable operation
  • Programmable relay and remote on/off for automated load control
  • Compatible with Victron GX monitoring and VRM portal via VE.Can
  • Optional plug-in MPPT Control display or VE.Direct Bluetooth dongle for local access

Applications

This controller is purpose-built for large off-grid solar arrays, including:

  • Remote homes and cabins with high daily energy demands
  • Commercial and industrial off-grid power systems
  • Telecommunications and monitoring stations
  • Agricultural water pumping and irrigation
  • Marine and RV installations requiring robust, networked charging

Take Control of Your Solar Harvest

Equip your system with the Victron BlueSolar MPPT 250/70-Tr VE.Can and experience professional-grade charge control with the flexibility to scale. Order today to maximise your solar investment with proven Victron reliability.


SKU: VIC-SCC125070441

SPECIFICATIONS

Specifications

ModelMPPT 250/70-Tr VE.Can
Battery Voltage12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated Charge Current70 A
Nominal PV Power, 12 V1000 W
Nominal PV Power, 24 V2000 W
Nominal PV Power, 36 V3000 W
Nominal PV Power, 48 V4000 W
Max. PV Short Circuit Current35 A
Maximum PV Open Circuit Voltage250 V absolute maximum coldest conditions; 245 V start-up and operating maximum
Maximum Efficiency99%
Self-ConsumptionLess than 35 mA @ 12 V / 20 mA @ 48 V
Charge Voltage 'Absorption'Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Float'Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage 'Equalization'Default setting: 16.2 / 32.4 / 48.6 / 64.8 V (adjustable)
Charge AlgorithmMulti-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature Compensation-16 mV / -32 mV / -64 mV / °C
ProtectionPV reverse polarity / Output short circuit / Over temperature
Operating Temperature-30 to +60 °C (full rated output up to 40 °C)
Humidity95%, non-condensing
Maximum Altitude5000 m (full rated output up to 2000 m)
Environmental ConditionIndoor, unconditioned
Pollution DegreePD3
Data Communication PortVE.Direct and VE.Can
Remote On/OffYes (2 pole connector)
Programmable RelayDPST AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel OperationYes, parallel synchronised operation with VE.Can (max. 25 units)
ColourBlue (RAL 5012)
PV Terminals35 mm² / AWG2
Battery Terminals35 mm² / AWG2
Protection CategoryIP43 (electronic components), IP22 (connection area)
Weight3 kg
Dimensions (H x W x D)185 x 250 x 95 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: VIC-SCC125070441
Barcode: 8719076050889
Model #: SCC125070441
MPN: SCC125070441

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
