Victron 12/24/48V 100A BlueSolar MPPT 150/100-Tr VE.Can Non-Bluetooth Solar Charge Controller
Victron 12/24/48V 100A BlueSolar MPPT 150/100-Tr VE.Can Non-Bluetooth Solar Charge Controller
100A MPPT for 12/24/48V systems, VE.Can networking, up to 5800W PV input

DESCRIPTION
Victron BlueSolar MPPT 150/100-Tr VE.Can: High-Capacity Solar Charge Controller for Large Off-Grid Systems
Advanced MPPT Technology for 12V, 24V, and 48V Battery Banks
The Victron BlueSolar MPPT 150/100-Tr VE.Can is a professional-grade solar charge controller engineered for demanding off-grid and hybrid energy systems. With a 100 A rated charge current and support for 12V, 24V, and 48V battery banks (36V configurable via software), it efficiently manages large solar arrays up to 5800 W at 48V. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm continuously optimises energy harvest, even under partial shading or fluctuating light conditions, ensuring your batteries receive maximum available power throughout the day.
Unlike generic PWM controllers, the BlueSolar MPPT 150/100-Tr uses advanced MPPT technology to convert excess voltage into higher charge current, significantly improving overall system efficiency—up to 98% peak conversion efficiency. This means faster charging, reduced energy loss, and better utilisation of your solar investment, particularly in cooler climates where panel voltage rises.
Designed for Large-Scale and Parallel Installations
This controller is built for scalability. With VE.Can communication, you can synchronise up to 25 units in parallel, making it ideal for large residential, commercial, or industrial off-grid systems. The VE.Can interface also enables seamless integration with Victron GX monitoring devices (such as the Color Control GX or Cerbo GX) and the VRM online portal, allowing remote monitoring, firmware updates, and system management from anywhere.
For installations requiring Bluetooth connectivity, the BlueSolar model can be upgraded with an optional VE.Direct Bluetooth Smart dongle (sold separately). This provides wireless access to VictronConnect for configuration and real-time data, while maintaining the security benefit of a physically disconnected Bluetooth module when not in use.
Robust Protection and Adaptive Charging
Engineered for reliability in harsh environments, the BlueSolar MPPT 150/100-Tr features comprehensive electronic protection including PV reverse polarity, output short circuit, and over-temperature safeguards. The controller automatically derates power output when internal temperatures rise, preventing damage and extending service life. Its IP43-rated electronics (IP22 for connection area) provide resistance against dust and water ingress, suitable for unconditioned indoor installations.
The multi-stage adaptive charge algorithm with eight preprogrammed battery presets ensures optimal charging for various battery chemistries, including lead-acid, AGM, gel, and lithium (with user-defined settings). Temperature compensation adjusts charge voltages based on ambient conditions, protecting batteries from overcharging in heat and undercharging in cold.
Key Features
- Ultra-fast MPPT with advanced shading detection maximises energy yield
- 100 A charge current supports large battery banks and high-power loads
- 150 V PV input allows series wiring of multiple panels for reduced current and thinner cabling
- VE.Can and VE.Direct ports for system integration, monitoring, and optional Bluetooth
- Parallel synchronised operation (up to 25 units) for scalable power systems
- Programmable DPST relay for generator start, alarms, or load control
- Remote on/off and virtual load output functionality via VE.Direct
- Natural convection cooling ensures silent, maintenance-free operation
Installation and Connectivity

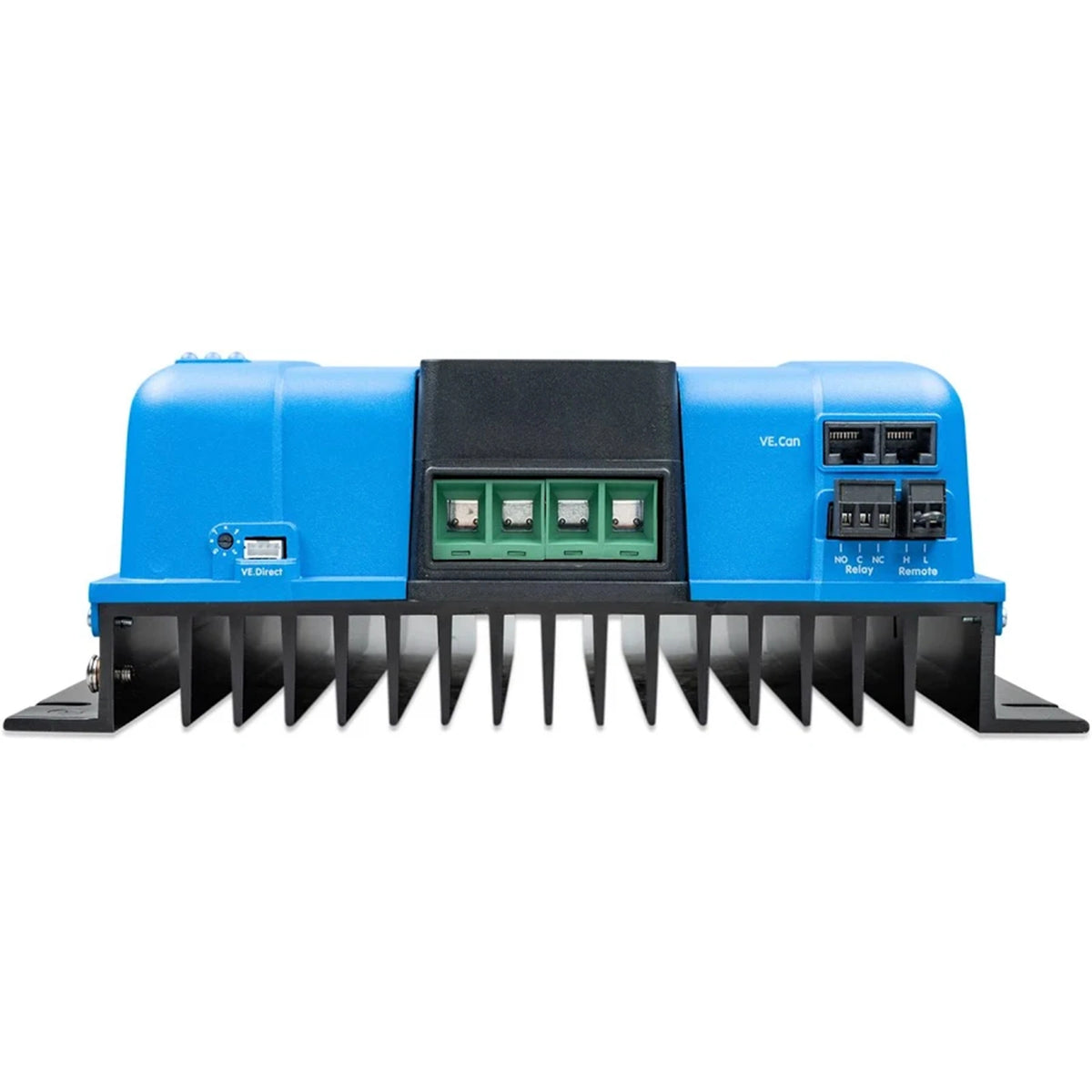

The controller features robust 35 mm² (AWG 2) screw terminals for both battery and PV connections, accommodating heavy-gauge cables for minimal voltage drop. The compact dimensions (216 x 295 x 103 mm) and 4.5 kg weight allow flexible mounting, while the blue anodised aluminium housing (RAL 5012) provides durability and corrosion resistance.
For advanced system control, the BlueSolar MPPT 150/100-Tr supports optional accessories such as the SmartSolar Control Display (plug-on LCD) and the MPPT Control remote panel. These provide local monitoring and configuration without needing a smartphone or computer.
Why Choose the Victron BlueSolar MPPT 150/100-Tr?
This controller addresses the limitations of smaller or less sophisticated charge controllers by delivering higher power handling, superior efficiency, and extensive communication options. It reduces the risk of undercharged batteries during cloudy periods, prevents overvoltage damage to sensitive electronics, and enables future system expansion through parallel operation. For installers and system owners seeking a dependable, high-performance charge controller backed by Victron's engineering heritage, the BlueSolar MPPT 150/100-Tr is a proven solution.
Upgrade your solar installation with the Victron BlueSolar MPPT 150/100-Tr VE.Can and experience precise, efficient battery charging for your off-grid or backup power system.
SKU: VIC-SCC115110420
SPECIFICATIONS
Specifications
| Battery Voltage | 12 / 24 / 48 V Auto Select (Software Tool Needed to Select 36 V) |
|---|---|
| Rated Charge Current | 100 A |
| Nominal PV Power, 12 V | 1450 W |
| Nominal PV Power, 24 V | 2900 W |
| Nominal PV Power, 36 V | 4350 W |
| Nominal PV Power, 48 V | 5800 W |
| Max. PV Short Circuit Current | 70 A |
| Maximum PV Open Circuit Voltage | 150 V absolute maximum coldest conditions; 145 V start-up and operating maximum |
| Maximum Efficiency | 98% |
| Self-Consumption | Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V |
| Charge Voltage 'Float' | Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V |
| Charge Voltage 'Equalization' | Default Setting: 16.2 / 32.4 / 48.6 / 64.8 V |
| Charge Algorithm | Multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature Compensation | -16 mV / -32 mV / -48 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95%, non-condensing |
| Maximum Altitude | 5000 m (full rated output up to 2000 m) |
| Environmental Condition | Indoor, unconditioned |
| Pollution Degree | PD3 |
| Data Communication Port | VE.Direct and VE.Can |
| Remote On/Off | Yes (2 Pole Connector) |
| Programmable Relay | DPST; AC Rating: 240 VAC / 4 A; DC Rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) |
| Colour | Blue (RAL 5012) |
| PV Terminals | 35 mm² / AWG 2 |
| Battery Terminals | 35 mm² / AWG 2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (H x W x D) | 216 x 295 x 103 mm |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | VIC-SCC115110420 |
| Barcode: | 8719076049852 |
| Model #: | SCC115110420 |
| MPN: | SCC115110420 |
WARRANTY
Victron Energy Limited Warranty Policy
Direct Customers
Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.
End-Users
Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.
If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.
Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.
During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.
This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
- Reversed battery polarity.
- Inadequate connection.
- Mechanical shock or deformation.
- Contact with liquid or oxidation by condensation.
- Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
- Breakage or damage due to lightning.
- Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
- For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.
Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.
In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.
If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.
All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.
The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.
Life Support Policy
As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.
Warranty on repairs for products outside their warranty period
The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.
Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.
Severability
If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.
Applicable law
This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.
Contact details
Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
