Victron 12/24V 15A BlueSolar MPPT 100/15 Non-Bluetooth Solar Charge Controller

Marine humidity-proof.


Front view of Victron BlueSolar MPPT 100/15 solar charge controller with LED indicatorsHighlights:LED indicators: Green and yellow status LEDs for power and charging stages,Battery terminals: Secure connection points for 12V or 24V battery systems,PV terminals: Solar panel input terminals supporting up to 100V open circuit,Load output: Dedicated terminals for low voltage load connection with disconnect feature,IP43 Protection: Enclosure rated to IP43 for electronic component protection.Warning sign explaining that Victron BlueSolar models are non-Bluetooth variantsInformational graphic clarifying the distinction between the BlueSolar range, which requires a separate dongle for connectivity, and the Bluetooth-integrated SmartSolar range.Perspective view of BlueSolar controller showing connection terminals and replaceable fuseKey features: Replaceable 20A automotive blade fuse for over-current protection, Large 6mm² screw terminals for secure cable termination, Integrated aluminium heat sink for efficient passive cooling, Robust blue powder-coated enclosure with integrated mounting holes.Side view of BlueSolar MPPT 100/15 controller showing technical specification labelSide profile of the unit detailing input/output voltage limits, rated currents, and environmental operating standards for field reference.Bottom angled view of the Victron BlueSolar charge controller housingDirect bottom view showing terminal block, replaceable fuse and cooling finsThe connection area features clear polar markings and a user-accessible 20A fuse situated above the cast aluminium cooling fins.Technical specification comparison table for Victron BlueSolar MPPT modelsComparative data table showing electrical performance, efficiency, and physical dimensions across the BlueSolar MPPT 75/10 to 100/20 range.Dimensional engineering drawing for BlueSolar MPPT 100/15 solar controllerTechnical CAD drawing providing precise metric dimensions (100.7mm x 113.9mm) and screw hole spacing for installation planning.

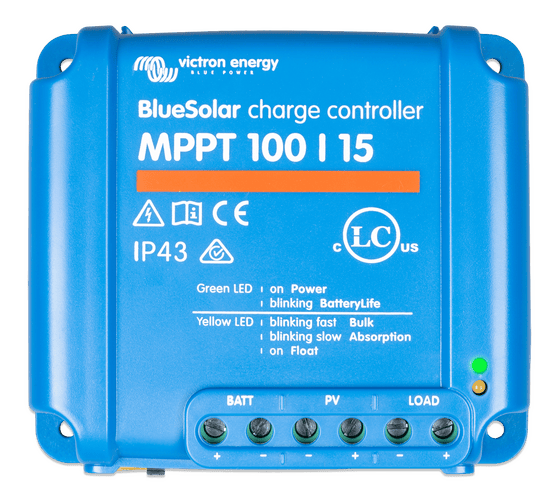

Front view of Victron BlueSolar MPPT 100/15 solar charge controller with LED indicators
Warning sign explaining that Victron BlueSolar models are non-Bluetooth variants

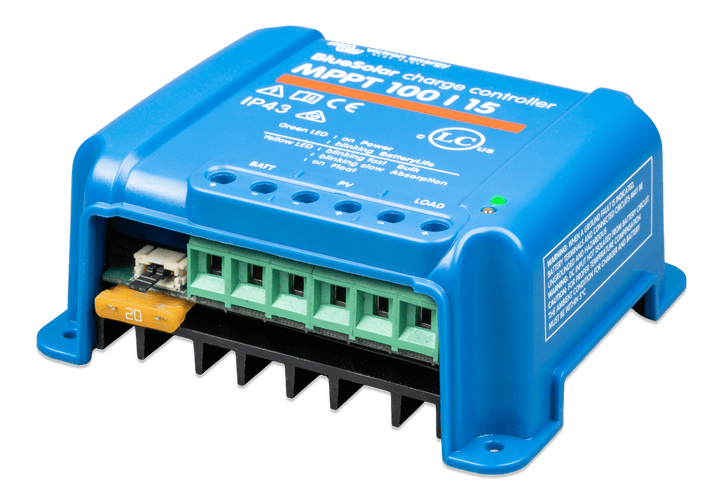

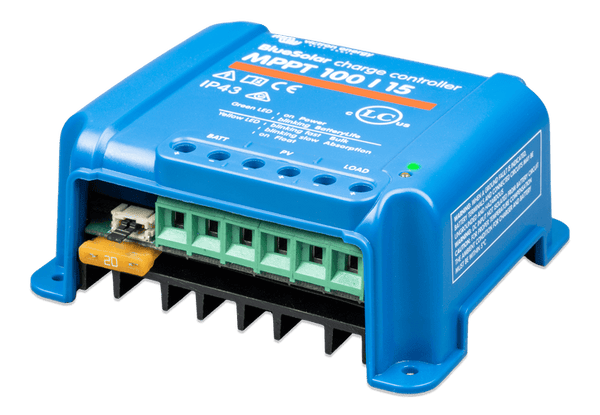

Perspective view of BlueSolar controller showing connection terminals and replaceable fuse

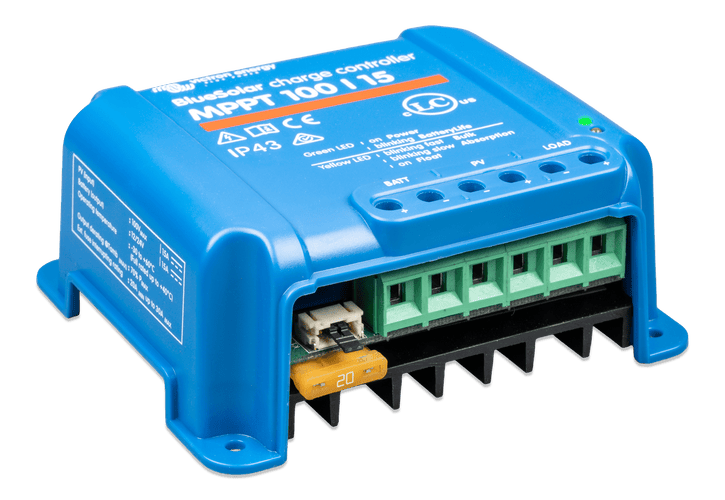

Side view of BlueSolar MPPT 100/15 controller showing technical specification label

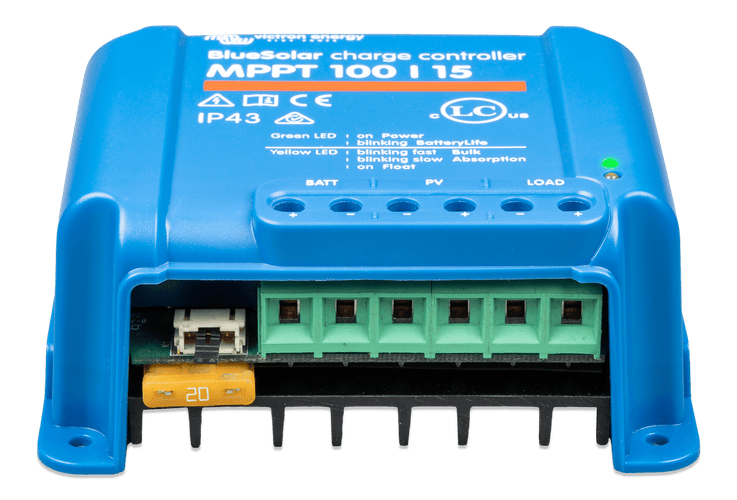

Bottom angled view of the Victron BlueSolar charge controller housing

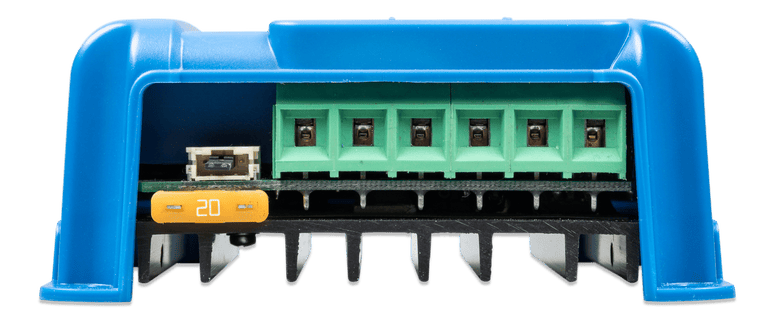

Direct bottom view showing terminal block, replaceable fuse and cooling fins

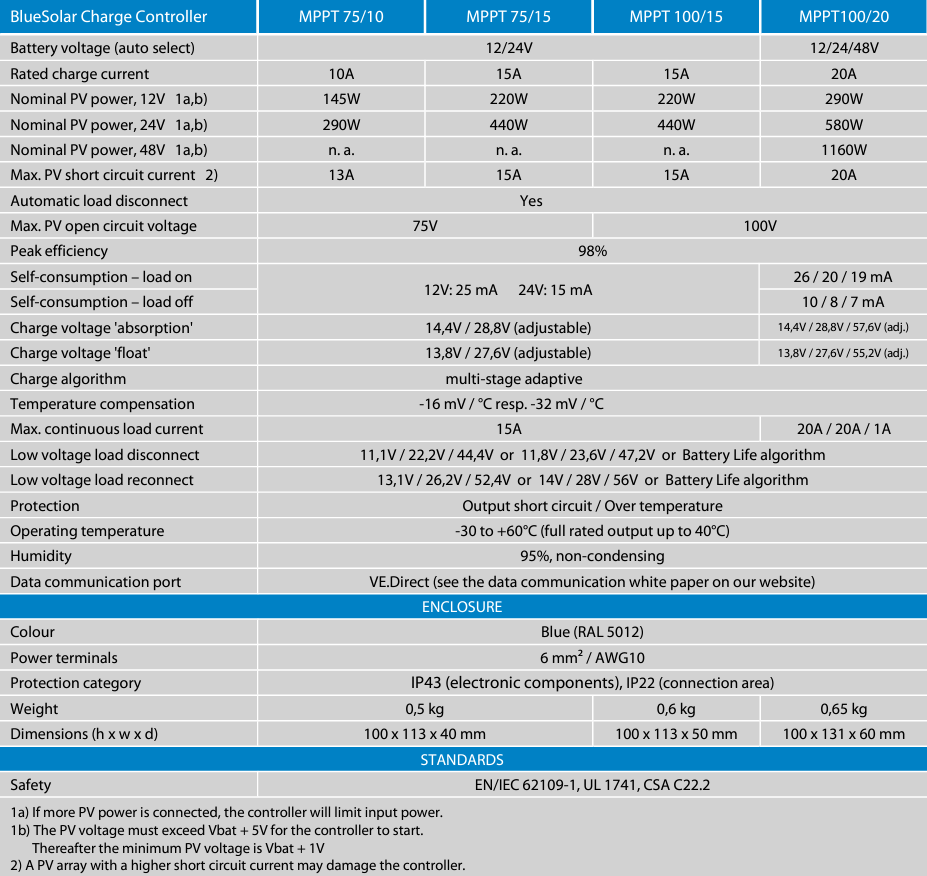

Technical specification comparison table for Victron BlueSolar MPPT models

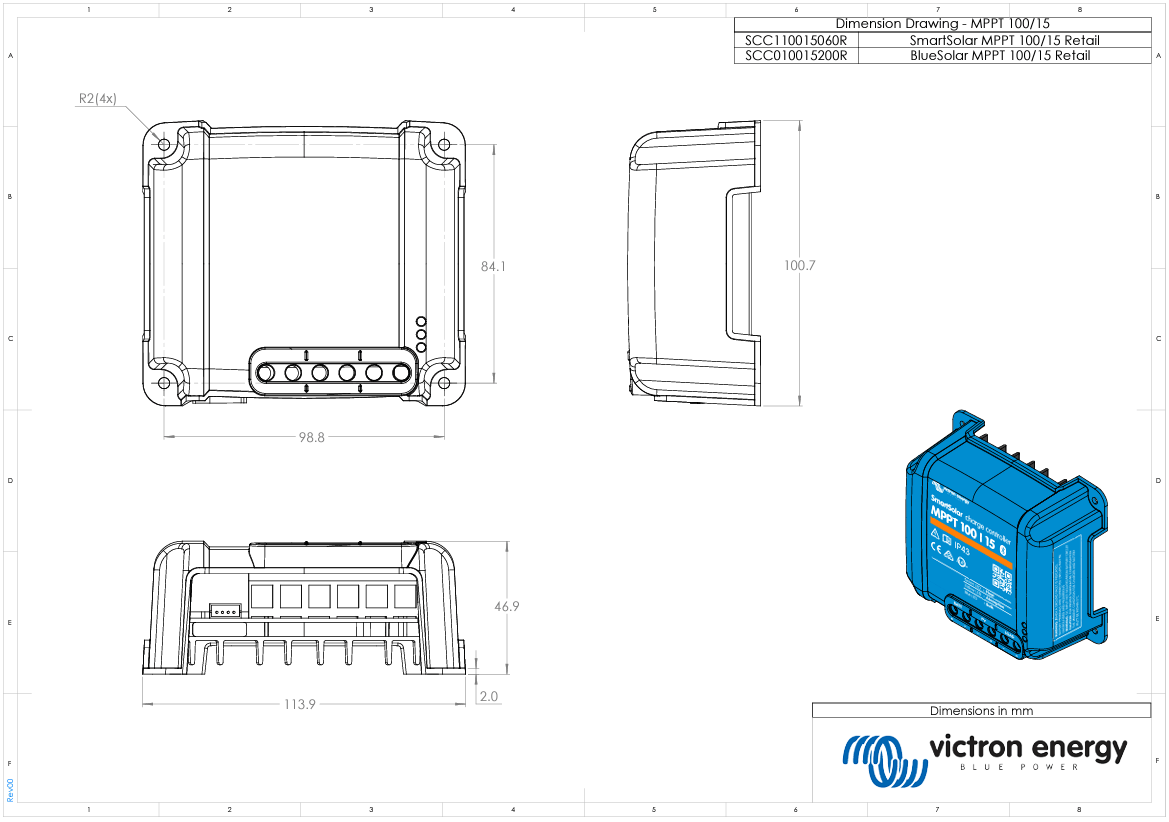

Dimensional engineering drawing for BlueSolar MPPT 100/15 solar controller
Regular price $104.95
$116.60
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of Victron BlueSolar MPPT 100/15 solar charge controller with LED indicators

Victron 12/24V 15A BlueSolar MPPT 100/15 Non-Bluetooth Solar Charge Controller

DESCRIPTION

Maximize Your Solar Efficiency with Victron's BlueSolar 100/15 MPPT Charge Controller

Important! Programming Your Victron BlueSolar 100/15 for Lithium Batteries

The BlueSolar 100/15 is set to AGM batteries as default, in order to set to lithium you must do one of the following options, all three require an additional purchase:

  1. PC Connection: Utilize a VE.Direct to USB cable to connect the unit to a PC. Once connected, you can program the controller using the VictronConnect software, which offers an intuitive interface and easy navigation.

  2. Smart Device Connection: For programming with a smartphone or tablet, connect a VE.Direct to Bluetooth Dongle to the unit. With this setup, you can use the VictronConnect app for a seamless and convenient programming experience right from your device.

  3. Direct Display Programming: Alternatively, if you prefer hands-on programming, connect a VE.Direct cable from the charge controller to a Victron MPPT control/display. You can then program the unit directly via the display interface, which provides on-the-spot adjustments and settings confirmation.

Exceptional Energy Harvesting with Ultra-Fast MPPT

Harness the power of the sun like never before with Victron BlueSolar 100/15's cutting-edge MPPT technology. Even during fluctuating light conditions, our ultra-fast MPPT advantage ensures you capture up to 30% more energy than with PWM controllers and an additional 10% over other MPPT options.

Reliable Load Output for Battery Protection

The smart load output feature of the BlueSolar 100/15 prevents battery over-discharge by automatically disconnecting the load at a predetermined voltage. Choose our innovative Battery Life algorithm for intelligent battery management, ensuring durability and efficiency. For detailed instructions on connecting high-power loads, refer to our user-friendly manual.

Innovative Battery Life Management

Victron's exclusive Battery Life algorithm extends your battery's lifespan by avoiding the harmful patterns of incomplete charging. Experience the benefits of a fully charged battery, ensuring operational efficiency and longevity.

Tailored Charging with Programmable Algorithms

Customize your solar charging with programmable battery charge algorithms, available through the software section on our website. Adapt the controller to suit your specific energy needs.

Advanced Day/Night Control and Light Dimming

Implement sophisticated day/night timing and light dimming functions by visiting the software section on our website. Take control of your energy management with precision.

SPECIFICATIONS

Specifications

Model BlueSolar MPPT 100/15
Battery voltage (auto select) 12/24V
Rated charge current 15A
Nominal PV power, 12V (1a,b) 220W
Nominal PV power, 24V (1a,b) 440W
Nominal PV power, 48V (1a,b) n/a
Max. PV short circuit current (2) 15A
Automatic load disconnect Yes
Max. PV open circuit voltage 100V
Peak efficiency 98%
Self-consumption – load on 12V: 25 mA 24V: 15 mA
Self-consumption – load off 12V: 25 mA 24V: 15 mA
Charge voltage 'absorption' 14.4V / 28.8V (adjustable)
Charge voltage 'float' 13.8V / 27.6V (adjustable)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 15A
Low voltage load disconnect 1.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm
Low voltage load reconnect 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Data communication port VE.Direct
Enclosure
Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0.6 kg
Dimensions (h x w x d) 100 x 131 x 50 mm
Standards
Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.

1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.

2) A PV array with a higher short circuit current may damage the controller.


SKU: Vic-SCC010015200R
Barcode: 8719076025337
Model #: SCC010015200R
MPN: SCC010015200R

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
