Victron Battery Protect 48V-100A Low Voltage Disconnect

Disconnects the battery from non-essential loads


Front view of blue Victron 48V 100A Battery Protect with M8 terminals and digital displayHighlights:Output Terminal: High-current M8 bolted terminal for load connection,Input Terminal: High-current M8 bolted terminal for battery connection,Programming Block: Removable green terminal for ground, alarm, and remote switch connections,Status Display: 7-segment LED display used for status monitoring and configuration,Aluminium Heatsink: Large finned base for efficient heat dissipation during high current loads.Warning notice that this specific Battery Protect model does not include BluetoothThis model is a non-Bluetooth version. For wireless configuration and monitoring via the VictronConnect app, please refer to the 'Smart' range of Battery Protect units.Included DC minus cable with green terminal connector and ring terminalThe package includes a preassembled DC minus cable with a 3-pin green connector and a pre-crimped ring terminal for quick system integration.Technical specifications table for the 48V 100A Battery Protect disconnectKey features: 100A maximum continuous load current, 24V to 64V operating voltage range, IP67 rated potted electronics for durability, M8 bolted connection terminals.Electrical wiring diagram for the Victron 48V Battery Protect systemComprehensive installation diagram showing the Battery Protect connected between a 48V battery bank and DC loads, featuring alarm and remote switch configurations.Dimension drawing for the Battery Protect 48V-100A showing physical size in mmTechnical dimensional drawing showing the unit's footprint of 123mm x 120mm and a total height of 62mm for installation planning.

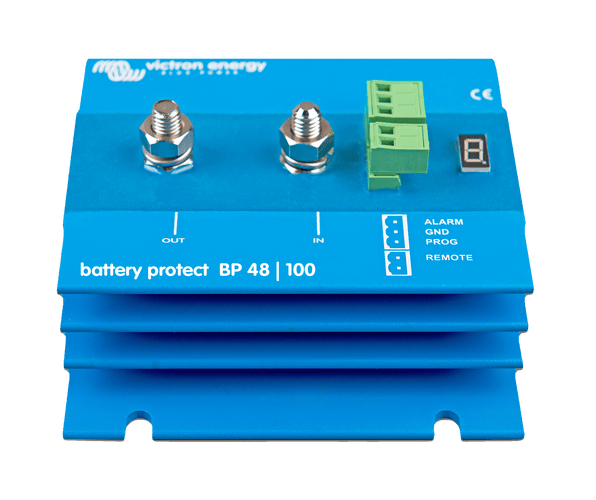

Front view of blue Victron 48V 100A Battery Protect with M8 terminals and digital display
Warning notice that this specific Battery Protect model does not include Bluetooth
Included DC minus cable with green terminal connector and ring terminal
Technical specifications table for the 48V 100A Battery Protect disconnect
Electrical wiring diagram for the Victron 48V Battery Protect system

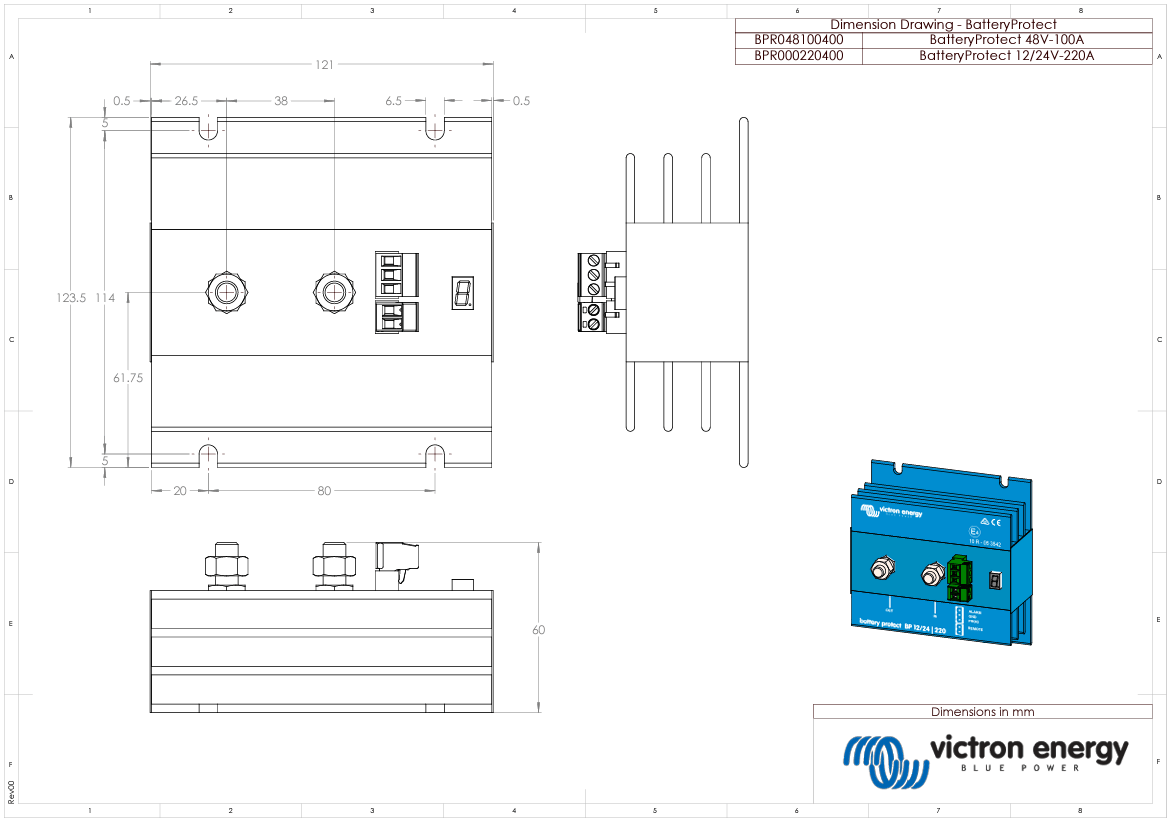

Dimension drawing for the Battery Protect 48V-100A showing physical size in mm
Regular price $194.87
$226.60
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of blue Victron 48V 100A Battery Protect with M8 terminals and digital display

Victron Battery Protect 48V-100A Low Voltage Disconnect

DESCRIPTION

Victron Battery Protect 48V-100A: Advanced Power Management for Industrial and Off-Grid Systems

Note: "Victron Battery Protect" units are NOT Bluetooth-enabled. See "Victron Smart Battery Protect" units if Bluetooth connectivity is required.

Important Considerations for Inverter Connection

It's crucial to avoid connecting inverters or inverter/chargers directly to the BatteryProtect's DC inputs to prevent reverse current damage. Instead, use the BatteryProtect to control the inverter or inverter/charger via its remote port, as illustrated in the manual.

Essential for Preserving Battery Health in 48V Systems

The Victron Battery Protect 48V-100A is key to safeguarding batteries in high-power applications from complete discharge. Ideal for industrial setups and off-grid systems, it disconnects non-essential loads before the battery is drained or too low for operational needs.

Uni-Directional Current Management for Enhanced Safety

Designed as a uni-directional device, the BatteryProtect ensures safe current flow, either to a load or from a charger, providing reliable over-voltage protection for sensitive equipment in demanding environments.

Specialized for High-Voltage Systems and LithiumĀ Batteries

With an intelligent system that caters to 48V setups, this device is also optimized for Li-ion batteries, offering a unique control mode via the VE.Bus BMS and functioning as a charge interrupter for advanced battery care.

Ultra-Low Consumption for Energy Efficiency

The BatteryProtect's minimal energy consumption is vital in maintaining system efficiency, particularly crucial in 48V setups like large solar arrays and industrial machinery.

Over Voltage and Ignition Protection for Industrial Safety

Equipped with robust over-voltage protection and MOSFET switches, the BatteryProtect ensures safe and spark-free operation, a must-have for industrial and off-grid applications.

Versatile Remote Switch Functionality

Its ability to function as a remote switch offers additional convenience, allowing for remote operation of various devices, an essential feature in large-scale and remotely managed systems.

Smart Alarm and Load Management

The delayed alarm feature and intelligent load management system of the BatteryProtect ensure seamless operation, maintaining system integrity and preventing unnecessary power interruptions.

The Victron Battery Protect 48V-100A is an ideal choice for managing high-capacity battery systems in industrial and off-grid applications, ensuring optimal performance and extended battery life.

SPECIFICATIONS

Specifications

Specification Detail
Maximum Continuous Load Current* 100A
Peak Current 250A
Operating Voltage Range 24 – 64V
Current Consumption When on: 2 mA When off/low voltage shutdown: 1.5 mA
Alarm Output Delay 12 seconds
Maximum Load on Alarm Output 50 mA (short circuit proof)
Load Disconnect Delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Load Reconnect Delay 30 seconds
Default Thresholds Disengage: 42V Engage: 48V
Operating Temperature Range Full load: -40°C to +40°C (Up to 60% of nominal load at 50°C)
IP Rating Electronics: IP67 (potted) Connections: IP00
Weight 0.8 kg / 1.8 lbs
Connection M8
Mounting Torque 9 Nm
Dimensions (HxWxD) 62 x 123 x 120 mm / 2.5 x 4.9 x 4.8 inches
Additional Note The BatteryProtect is not designed for reverse currents from charging sources

*Note: The BatteryProtect is specifically designed to handle load currents and is not suitable for reverse currents from charging sources.


SKU: Vic-BPR048100400
Barcode: 8719076021469
Model #: BPR048100400
MPN: BPR048100400
