Victron Smart Battery Protect 48V-100A Bluetooth Low Voltage Disconnect

Disconnects the battery from non-essential loads


Victron 48V 100A Smart BatteryProtect with M8 terminals and programming displayHighlights:M8 Output Terminal: Secure M8 bolt connection for power output to DC loads,M8 Input Terminal: Primary M8 bolt input for battery connection,Remote Connector: Interface for external on/off switch or BMS control,Control Terminals: Terminals for alarm output, ground, and manual programming,Status Display: 7-segment display for status codes and threshold programming,Status LED: LED indicator for Bluetooth connectivity and status.Front angled view of Victron Smart BatteryProtect showing robust heat sink finsKey features: Bluetooth-enabled for wireless programming and monitoring, 100A continuous current rating with 250A peak capacity, Potted electronics for IP67 waterproof protection, Integrated aluminium heat sink for efficient thermal management.Top-right angled view of Smart BatteryProtect 48V 100A with terminal studsTop-left angled view of 48V 100A Bluetooth battery protection deviceVictronConnect app interface showing battery voltage status and load stateThe VictronConnect app provides real-time monitoring of battery voltage and load status via a Bluetooth connection to the Smart BatteryProtect, enabling remote system oversightSettings menu in VictronConnect app for voltage thresholds and alarm modesUsers can easily customise under-voltage shutdown and restart thresholds using the intuitive presets or custom settings within the app for precise battery managementTechnical specification table for Victron Smart BatteryProtect 48V 100AInstallation diagram for the 48V 100A Smart BatteryProtect with electrical connectionsThis comprehensive wiring diagram demonstrates the correct integration of the BatteryProtect with a 48V battery bank, DC loads, and external alarm or remote connectionsDimensional drawing of the Smart BatteryProtect unit showing height and widthDetailed dimensional drawing providing accurate measurements in millimetres for the unit footprint and mounting hole positions to assist with installation planning

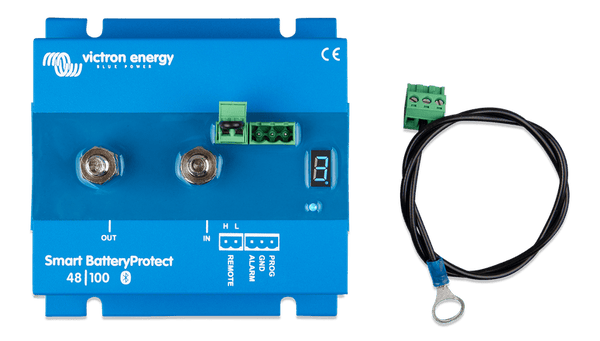

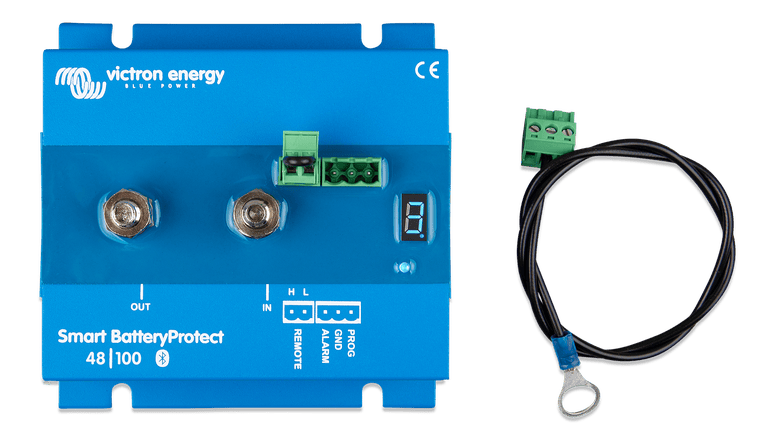

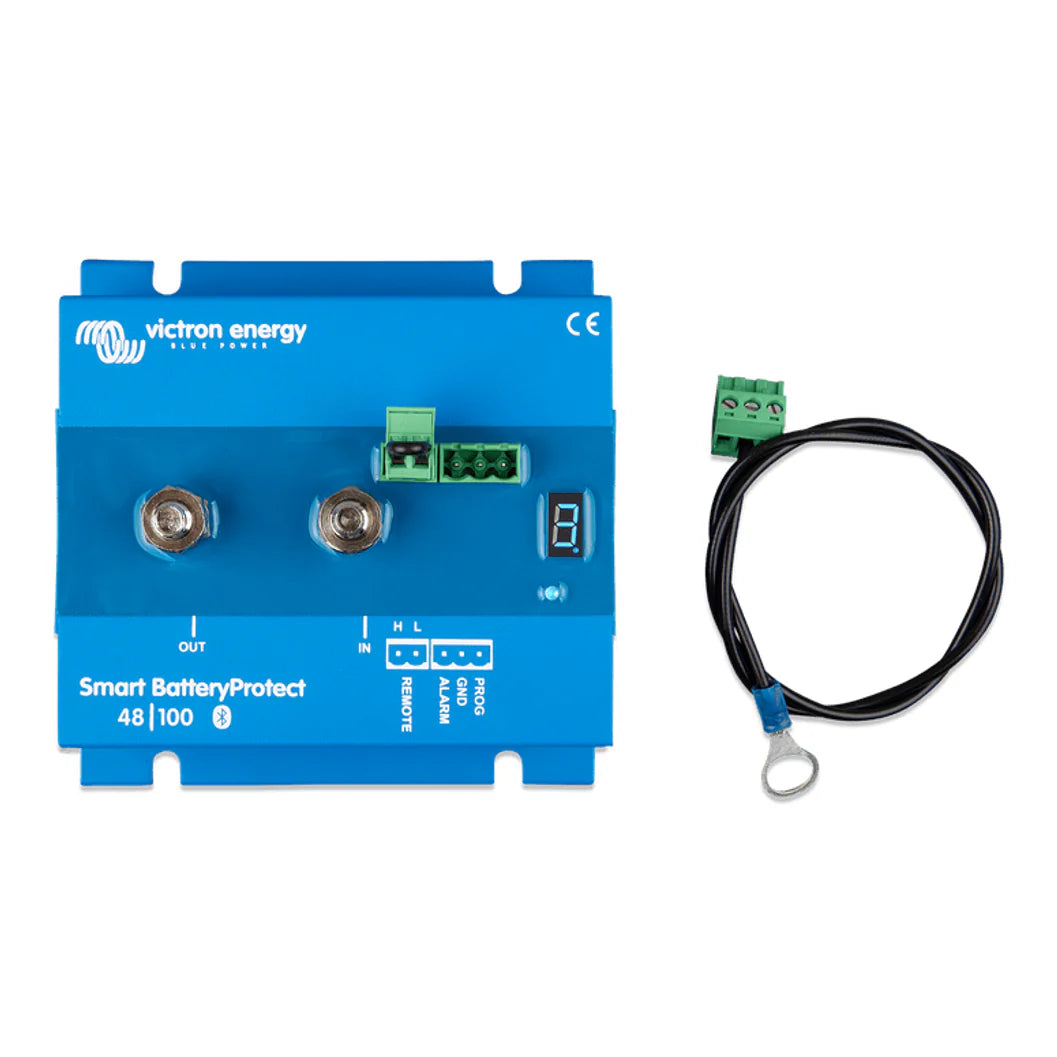

Victron 48V 100A Smart BatteryProtect with M8 terminals and programming display

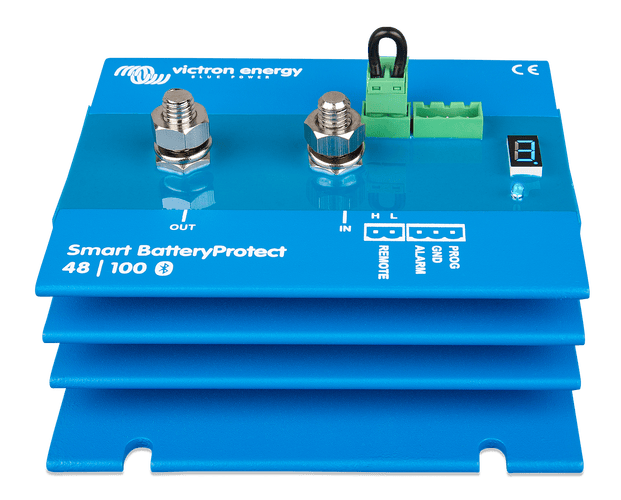

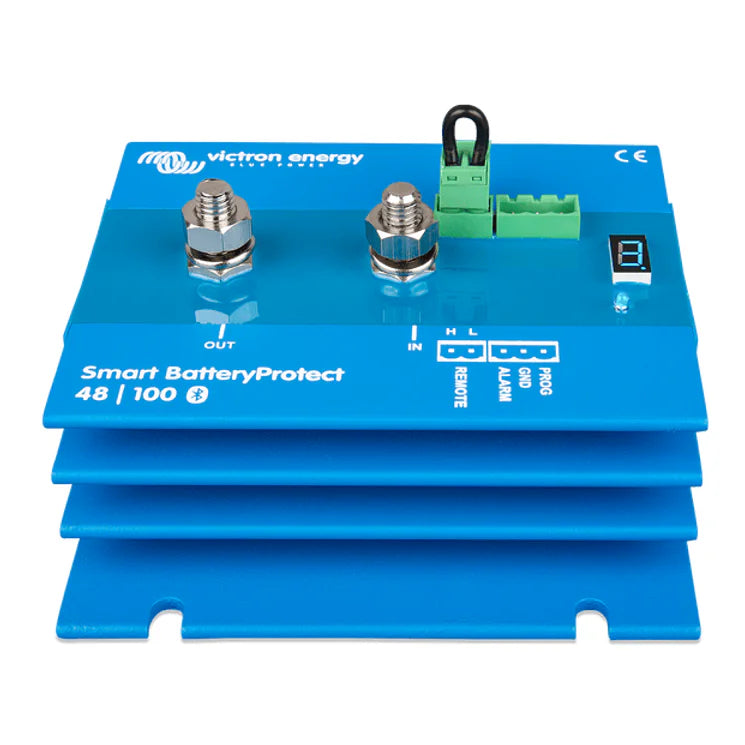

Front angled view of Victron Smart BatteryProtect showing robust heat sink fins

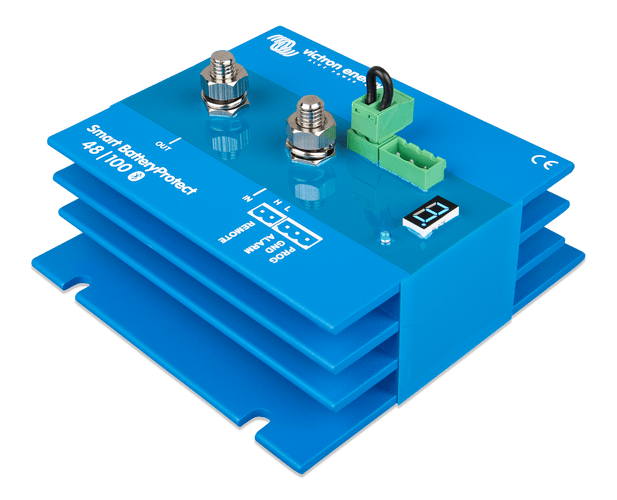

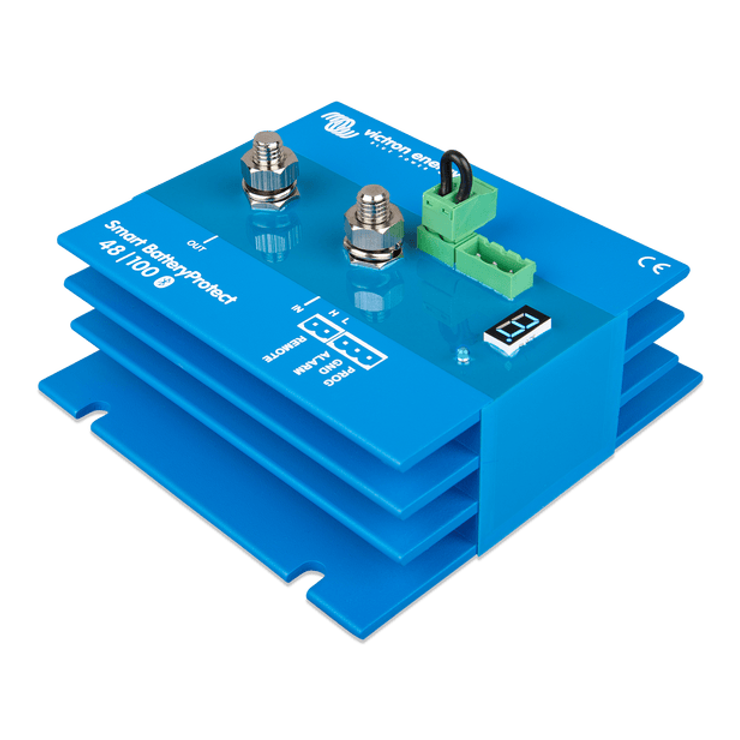

Top-right angled view of Smart BatteryProtect 48V 100A with terminal studs

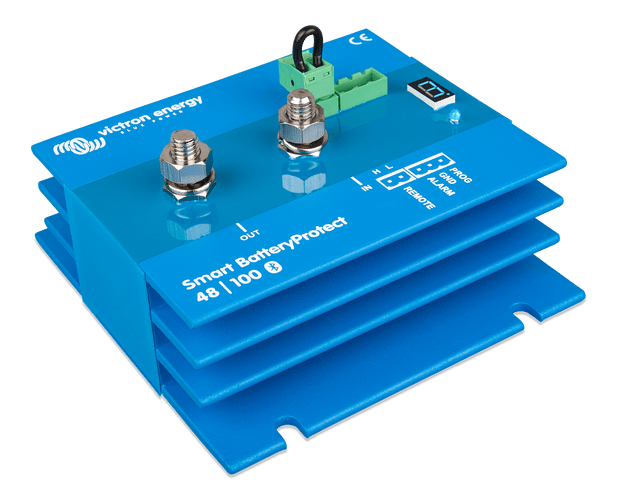

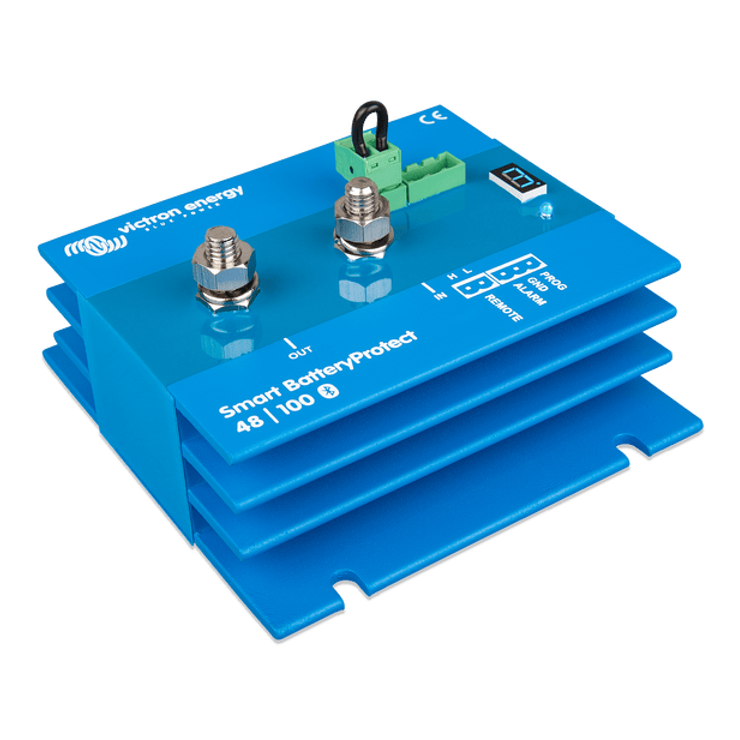

Top-left angled view of 48V 100A Bluetooth battery protection device

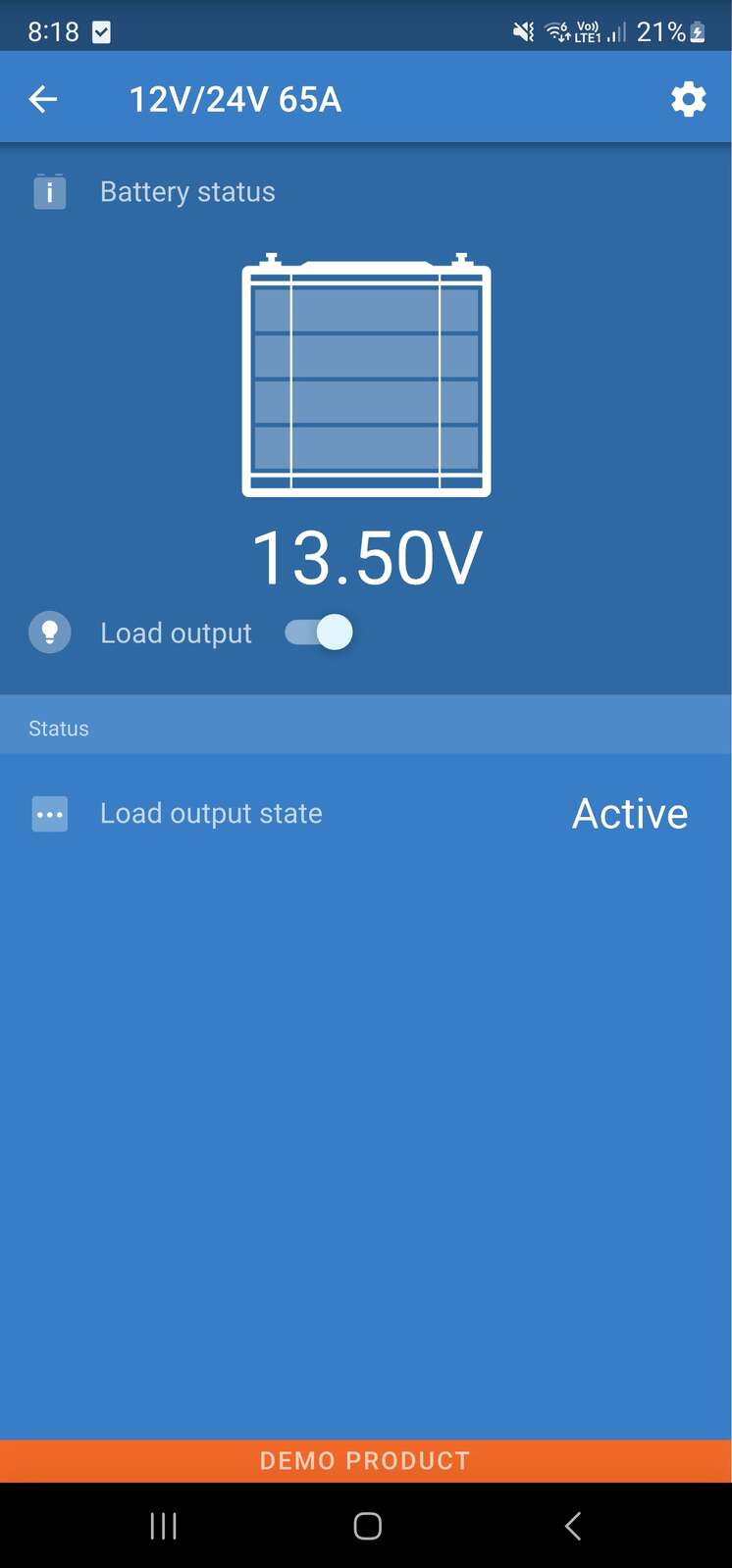

VictronConnect app interface showing battery voltage status and load state

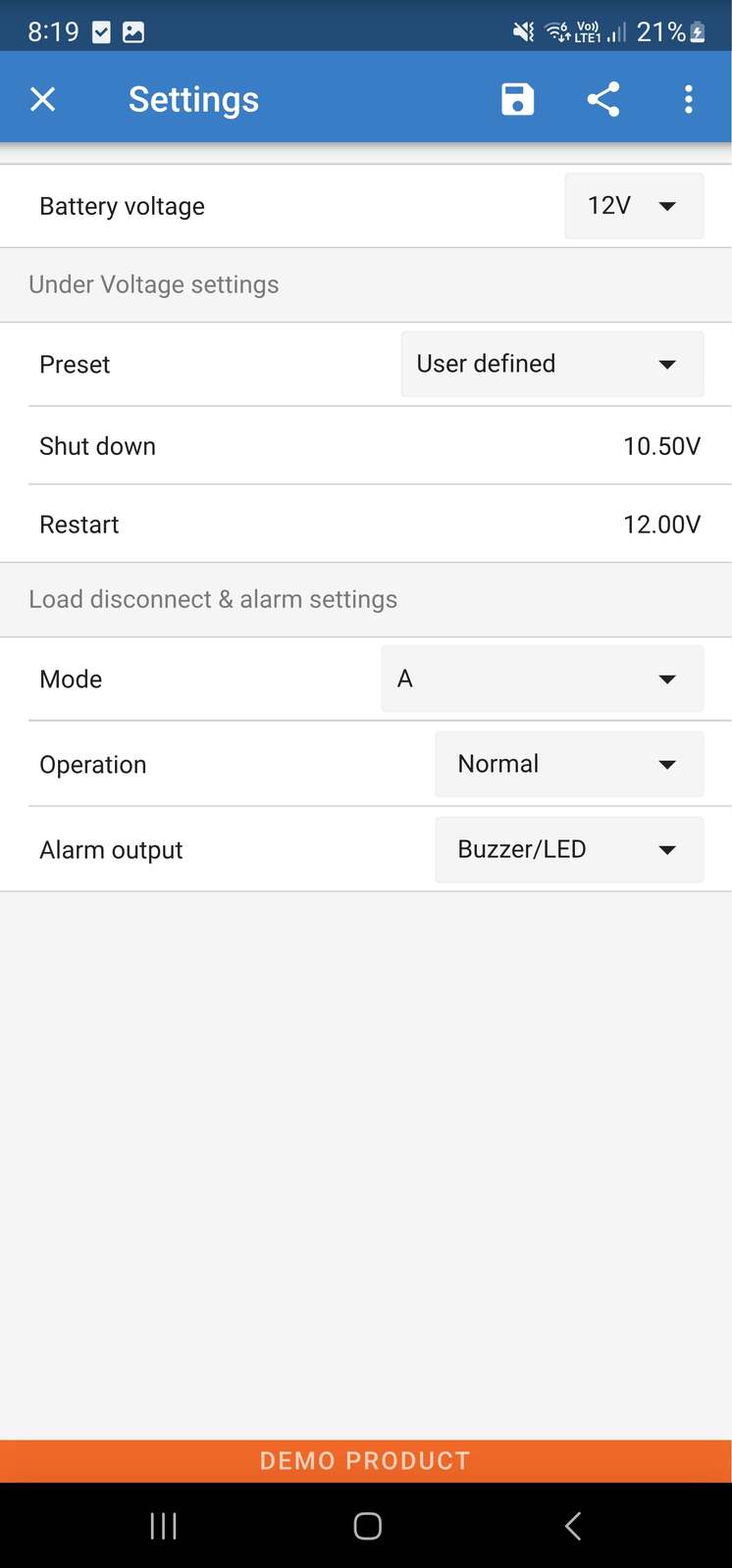

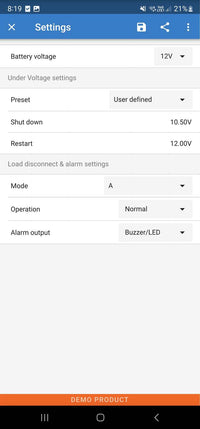

Settings menu in VictronConnect app for voltage thresholds and alarm modes

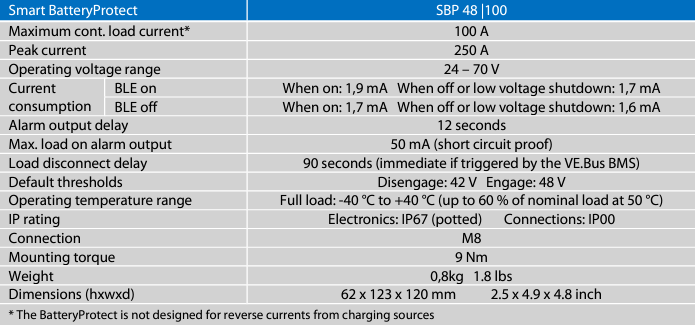

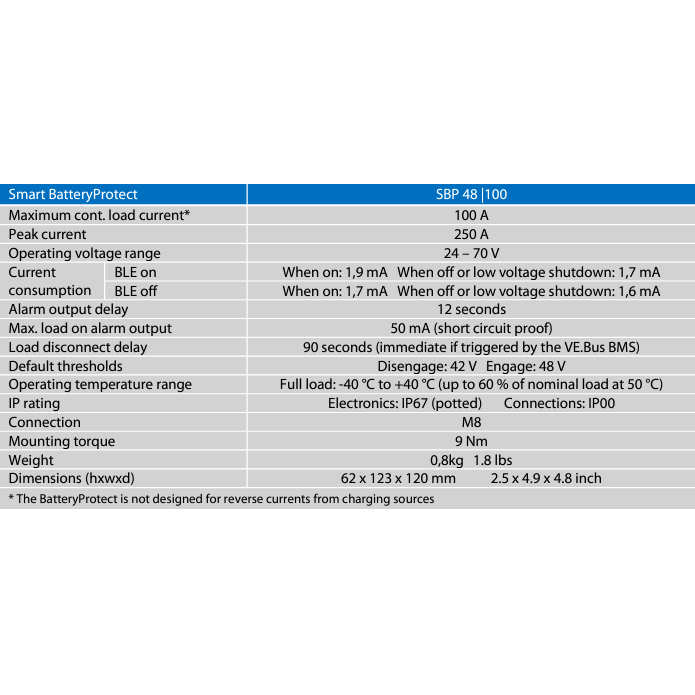

Technical specification table for Victron Smart BatteryProtect 48V 100A

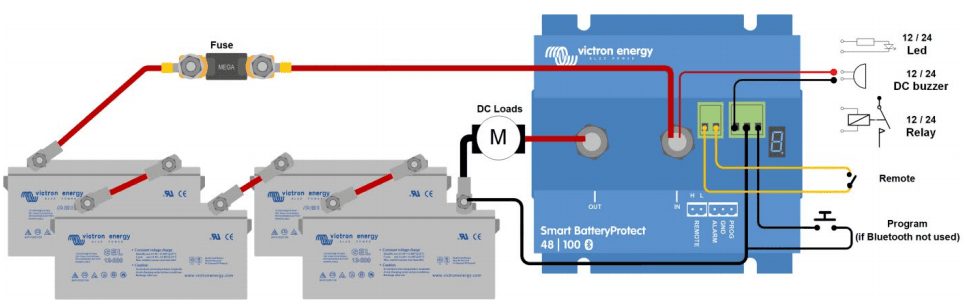

Installation diagram for the 48V 100A Smart BatteryProtect with electrical connections

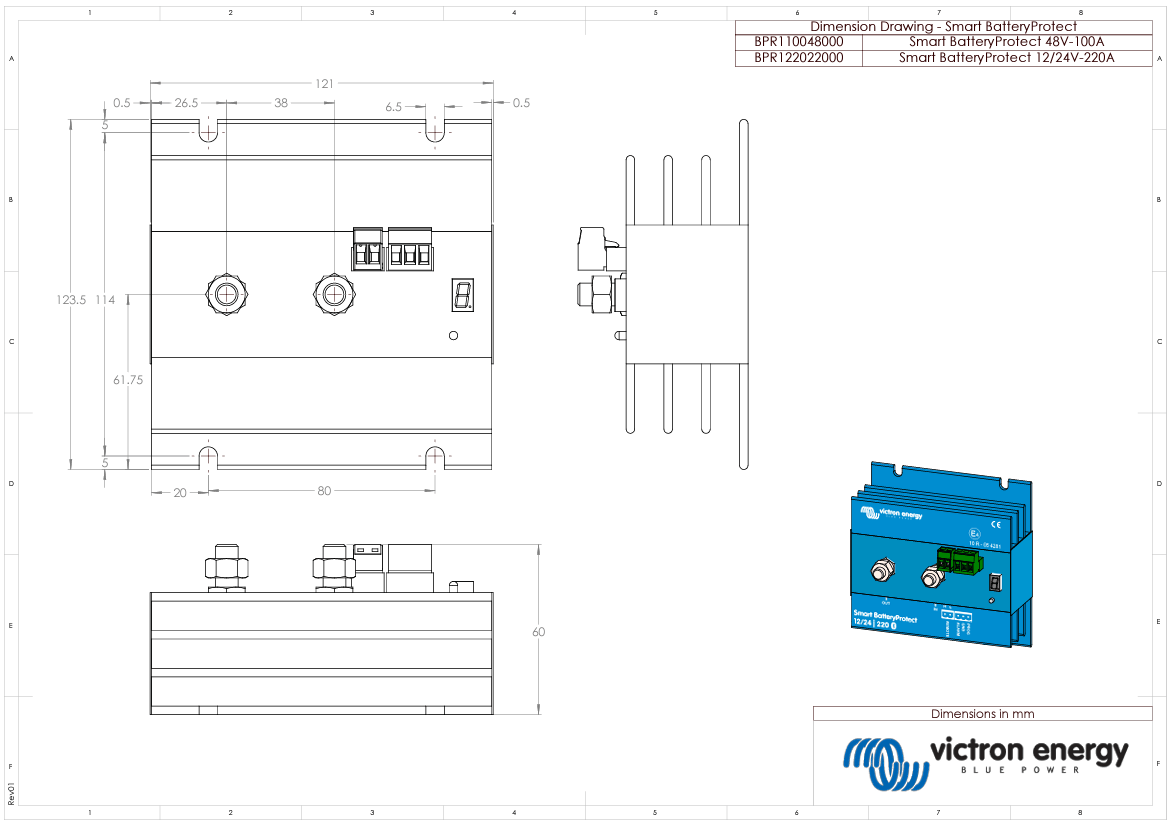

Dimensional drawing of the Smart BatteryProtect unit showing height and width
Regular price $215.00
$259.60
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

2
Victron 48V 100A Smart BatteryProtect with M8 terminals and programming display

Victron Smart Battery Protect 48V-100A Bluetooth Low Voltage Disconnect

DESCRIPTION

Victron Smart Battery Protect 48V-100A: Enhanced Power Management with Bluetooth Connectivity

Integrated Bluetooth for Advanced Control

The Victron Smart Battery Protect 48V-100A stands out with its built-in Bluetooth capability, allowing for easy monitoring and control through a wireless connection. This feature adds a new level of convenience and accessibility in managing your battery system.

Essential Battery Protection for High-Power 48V Systems

Designed specifically for 48V systems, the Victron Smart Battery Protect is crucial for preventing complete discharge in batteries used in industrial setups and off-grid systems. It intelligently disconnects non-essential loads to preserve battery health and ensure operational readiness.

Reliable Uni-Directional Current Management

Uni-directional current flow design ensures safe and efficient power management, offering robust over-voltage protection. This is particularly valuable in high-demand environments where sensitive equipment requires consistent and safe power delivery.

Optimized for High-Voltage and Lithium Batteries

This device is tailored for 48V systems and is particularly effective with Li-ion batteries. It offers specialized control modes, including integration with the VE.Bus BMS, and serves as a charge interrupter, enhancing the care and longevity of your batteries.

Energy Efficiency with Ultra-Low Power Consumption

With minimal energy consumption, the Victron Smart Battery Protect is a highly efficient solution, ensuring your 48V systems, like large solar arrays and industrial machinery, run optimally with reduced energy wastage.

Advanced Safety Features

The robust over-voltage protection and MOSFET switches provide reliable, spark-free operation, crucial for maintaining safety in industrial and off-grid applications.

Convenient Remote Switch Capabilities

Utilize the Bluetooth functionality to remotely operate various devices, enhancing the ease of use and flexibility in large-scale and remotely managed systems.

Intelligent Alarm and Load Management

The smart alarm system and load management features ensure smooth operation, preventing unnecessary power interruptions and maintaining the integrity of your power system.

Choose the Victron Smart Battery Protect 48V-100A for a sophisticated, Bluetooth-enabled solution in managing high-capacity battery systems. Its advanced features make it the ideal choice for industrial and off-grid applications where performance and connectivity are paramount.

SPECIFICATIONS

Specifications

Smart BatteryProtect SBP 48 |100
Maximum Continuous Load Current* 100 A
Peak Current 250 A
Operating Voltage Range 24 – 70 V
Current Consumption BLE On When on: 1.9 mA When off/low voltage shutdown: 1.7 mA
Current Consumption BLE Off When on: 1.7 mA When off/low voltage shutdown: 1.6 mA
Alarm Output Delay 12 seconds
Maximum Load on Alarm Output 50 mA (short circuit proof)
Load Disconnect Delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Default Thresholds Disengage: 42 V Engage: 48 V
Operating Temperature Range Full load: -40 °C to +40 °C (Up to 60% of nominal load at 50 °C)
IP Rating Electronics: IP67 (potted) Connections: IP00
Connection M8
Mounting Torque 9 Nm
Weight 0.8 kg / 1.8 lbs
Dimensions (HxWxD) 62 x 123 x 120 mm / 2.5 x 4.9 x 4.8 inches
Additional Note Not designed for reverse currents from charging sources

*Note: The BatteryProtect is specifically designed to handle load currents and is not suitable for reverse currents from charging sources.


SKU: VIC-BPR110048000
Barcode: 8719076041252
Model #: BPR110048000
MPN: BPR110048000
