Victron Battery Protect 12/24V-220A Low Voltage Disconnect
Victron Battery Protect 12/24V-220A Low Voltage Disconnect
Low voltage battery protection

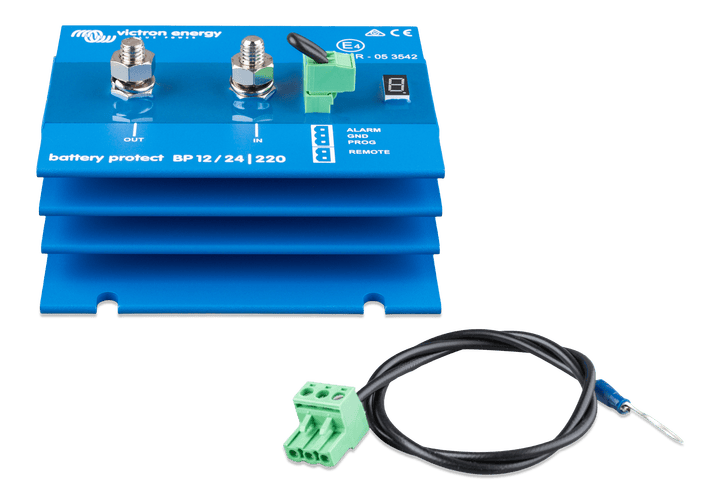

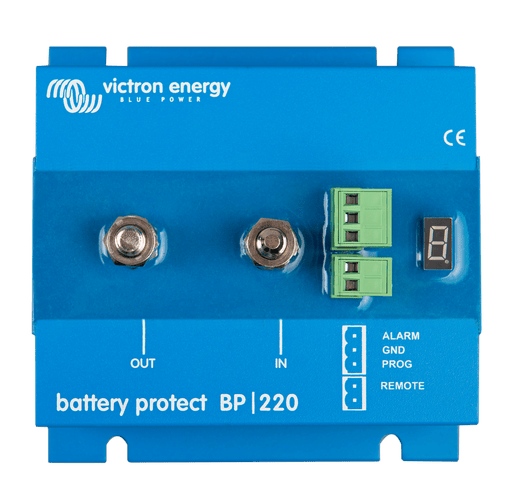

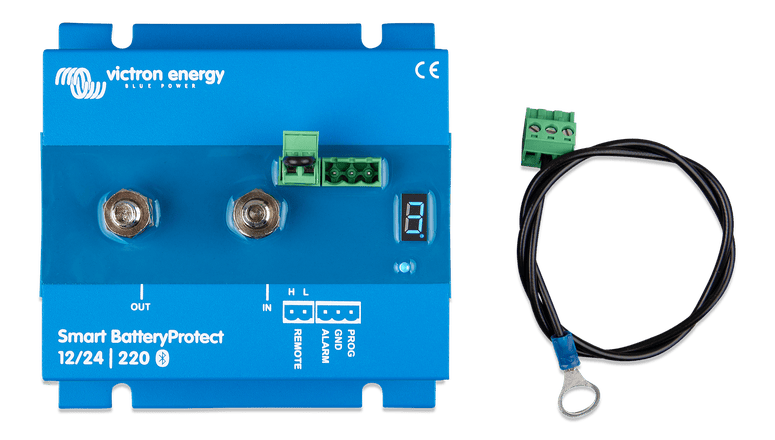

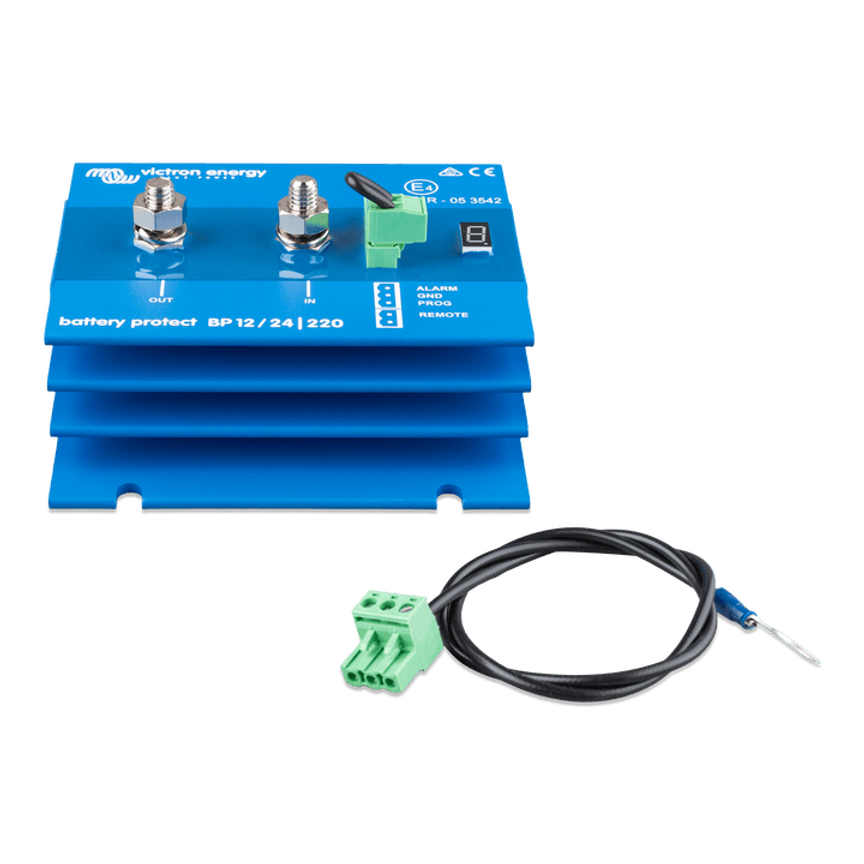

Highlights:M8 Load Terminal: M8 bolt output terminal for connecting DC loads,M8 Battery Terminal: M8 bolt input terminal for battery connection,Control Terminals: Green terminal blocks for alarm, ground, programming and remote control,Programming Display: Seven-segment digital display for configuring voltage thresholds,Mounting Notch: Integrated mounting slot for securing the unit to a flat surface.
A warning notice clarifying that this specific Battery Protect model is not Bluetooth-enabled. For wireless monitoring and setup, users should refer to the Victron Smart Battery Protect range.

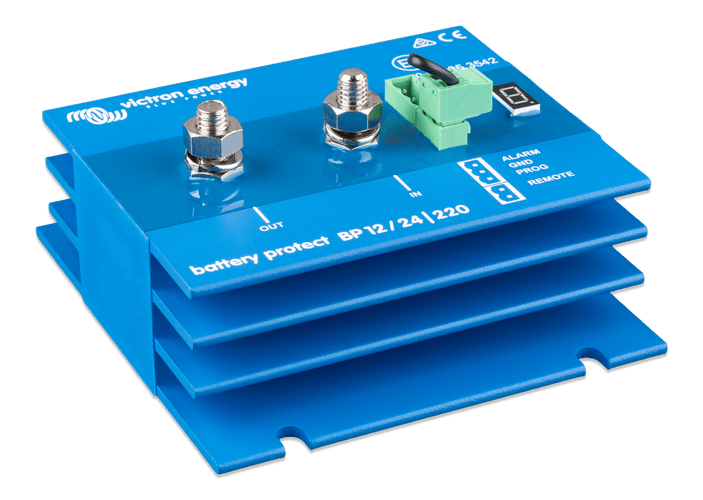

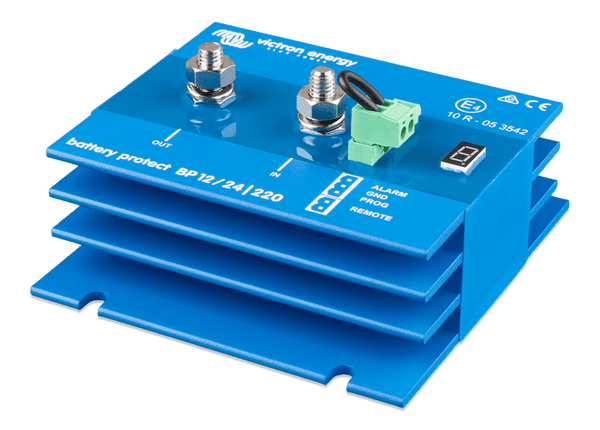

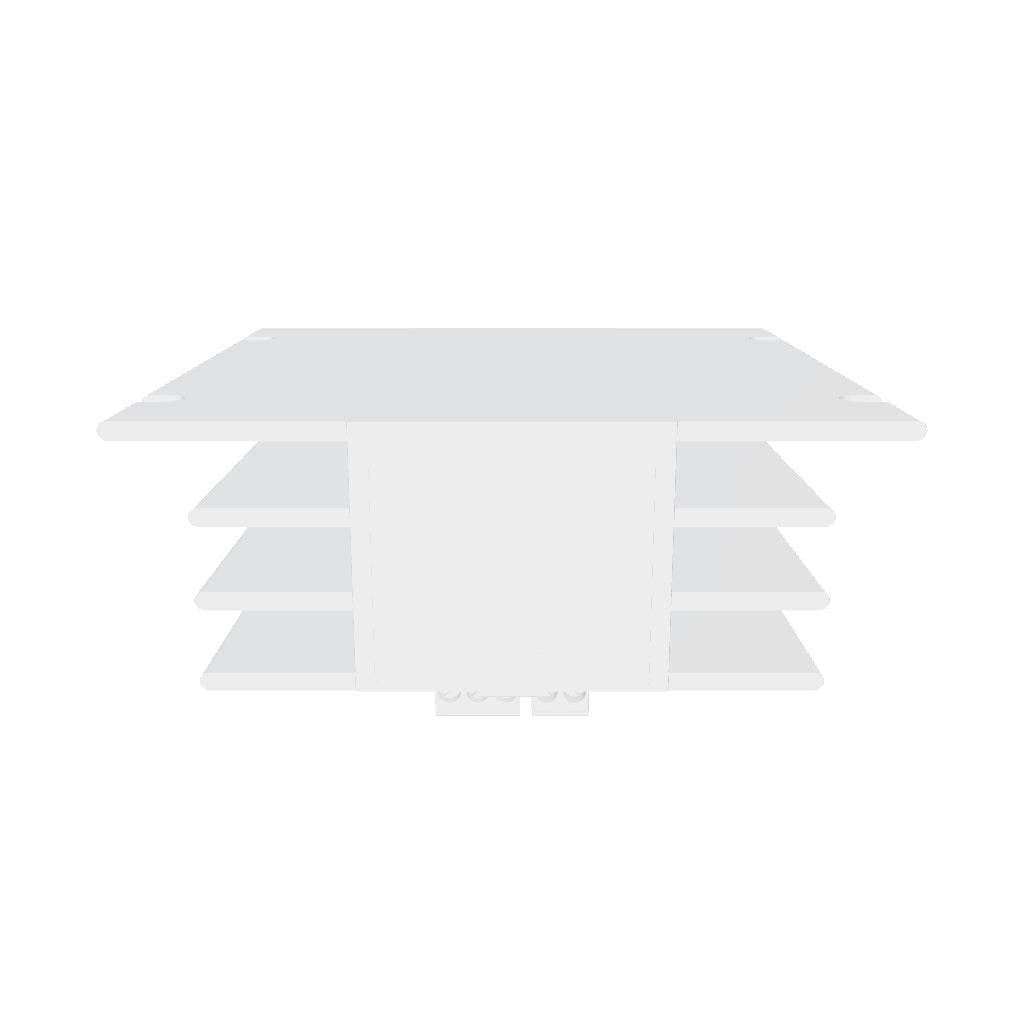

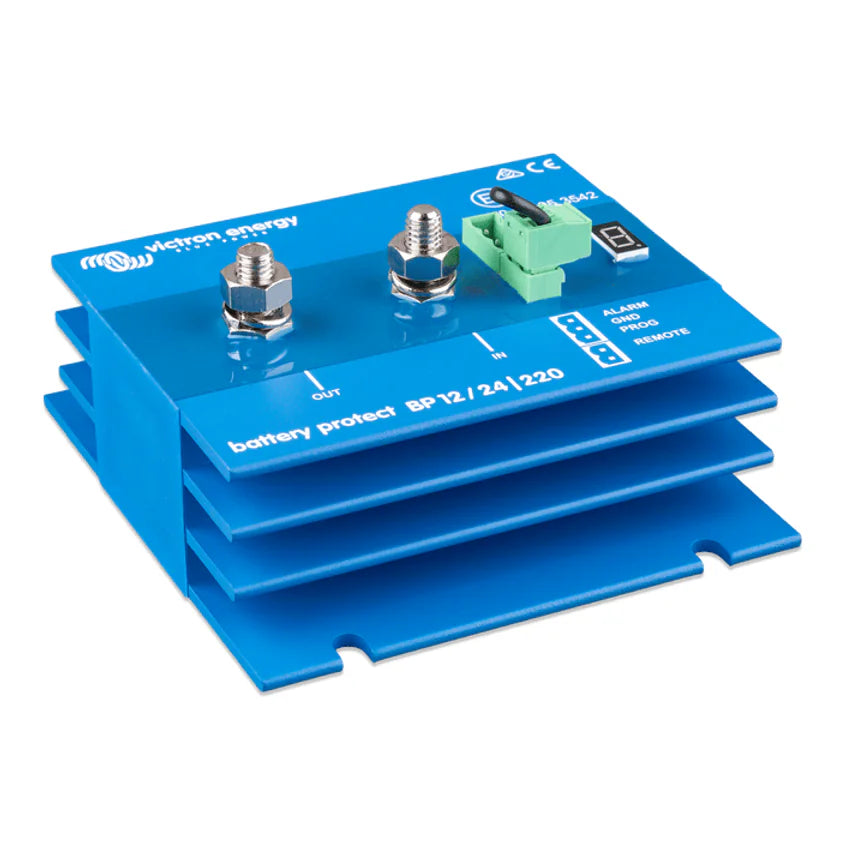

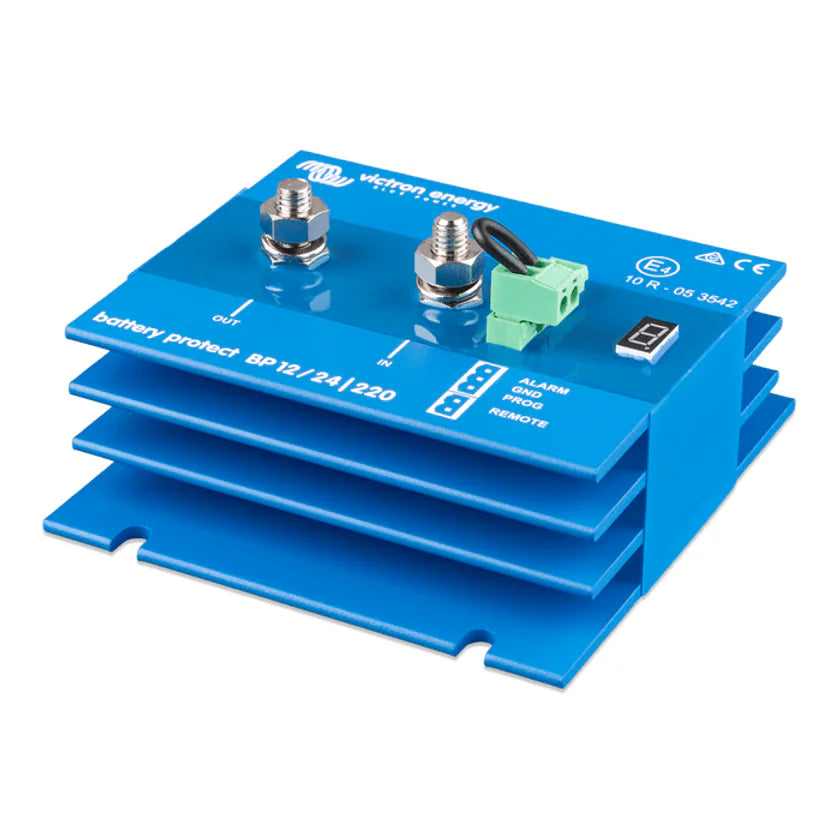

Key features: 220A continuous load rating for high-power DC systems, Large aluminium heat sink fins for efficient thermal management, Automatic 12V and 24V system voltage detection, M8 terminal bolts for secure high-current connections.



DESCRIPTION
Victron Battery Protect 12/24V-220A: Optimal Power Management for Vehicle and Marine Systems
Note: "Victron Battery Protect" units are NOT Bluetooth. See "Victron Smart Battery Protect" units if Bluetooth is required.
Not Suitable for Direct Inverter Connection
Under no circumstances is it permitted to connect inverters or inverter/chargers to a BP via their DC inputs, a reverse current may flow that damages the BP. In case you want to control an inverter or inverter/charger via a BP, you must use the BP to control the inverter or inverter/charger via its remote port. See example below.
Preserve Your Battery's Lifespan
The Victron Battery Protect is an essential device for safeguarding your vehicle's battery from complete discharge, thereby extending its lifespan. It efficiently disconnects the battery from non-essential loads, like lights or a refrigerator, before they fully drain the battery or when the power is too low for engine cranking.
Uni-Directional Current Flow and Voltage Protection
Uniquely designed as a uni-directional device, the BatteryProtect handles current in one direction – either to a load or from a charger, but not both simultaneously. This function is ideal for ensuring the safe flow of current and protecting sensitive onboard equipment from over-voltage.
Auto-Detecting 12/24V System and Simple Programming
This device intelligently auto-detects system voltage, whether 12V or 24V, for seamless integration into various setups. The user-friendly programming allows you to set engagement and disengagement at different voltages, indicated by a clear display.
Special Mode for Li-ion Batteries

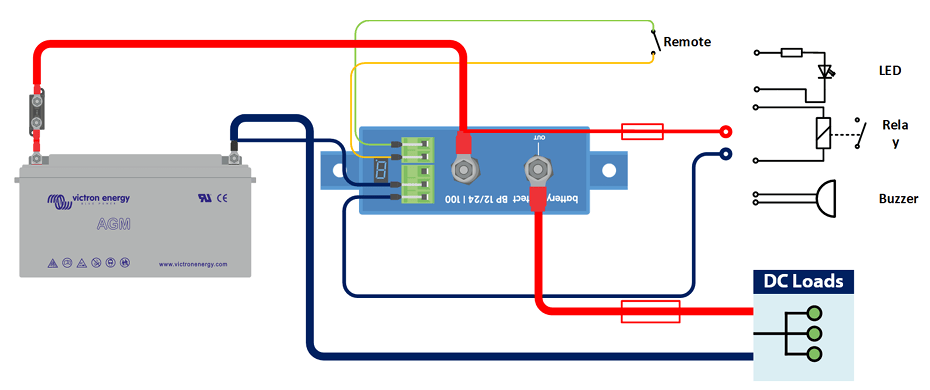

Incorporating a specific setting for Li-ion batteries, the BatteryProtect can be controlled by the VE.Bus BMS. It's also ideal as a charge interrupter between a battery charger and a Li-ion battery, as detailed in the connection diagram in the manual.
Ultra-Low Current Consumption
With its low current consumption, the BatteryProtect is crucial for Li-ion batteries, especially after a low voltage shutdown, to minimize energy loss and enhance battery protection.
Reliable Over Voltage and Ignition Protection
Equipped with over-voltage protection, the BatteryProtect disconnects loads when the DC voltage exceeds safe levels. MOSFET switches ensure ignition-proof operation, removing the risk of sparks.
Flexible Use as a Remote Switch
The BatteryProtect can also function as a remote switch, allowing you to turn on and off various devices remotely. This flexibility is particularly useful in situations where manual control of devices like external lighting or electronic gadgets is needed.
Delayed Alarm and Load Management
Featuring a delayed alarm output, the BatteryProtect ensures that starting the engine won't trigger a false alarm. It also offers intelligent load disconnect and reconnect, managing power effectively to maintain continuity.
Choose the Victron Battery Protect for efficient and reliable battery management, enhancing the performance and lifespan of your battery system in a variety of scenarios.
SPECIFICATIONS

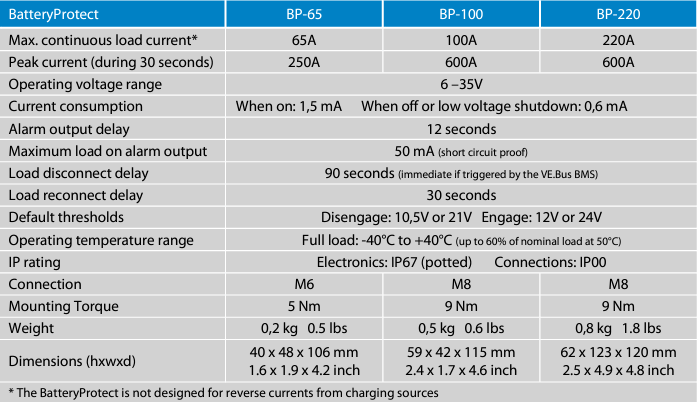

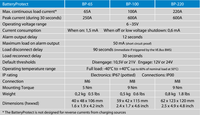

Specifications
| BatteryProtect | BP-220 |
| Max. continuous load current* | 220A |
| Peak current (during 30 seconds) | 600A |
| Operating voltage range | 6 –35V |
| Current consumption | When on: 1.5 mA When off or low voltage shutdown: 0.6 mA |
| Alarm output delay | 12 seconds |
| Maximum load on alarm output | 50 mA (short circuit proof) |
| Load disconnect delay | 90 seconds (immediate if triggered by the VE.Bus BMS) |
| Load reconnect delay | 30 seconds |
| Default thresholds | Disengage: 10.5V or 21V Engage: 12V or 24V |
| Operating temperature range | Full load: -40°C to +40°C (up to 60% of nominal load at 50°C) |
| IP rating | Electronics: IP67 (potted) Connections: IP00 |
| Connection | M8 |
| Mounting Torque | 9 Nm |
| Weight | 0.8 kg 1.8 lbs |

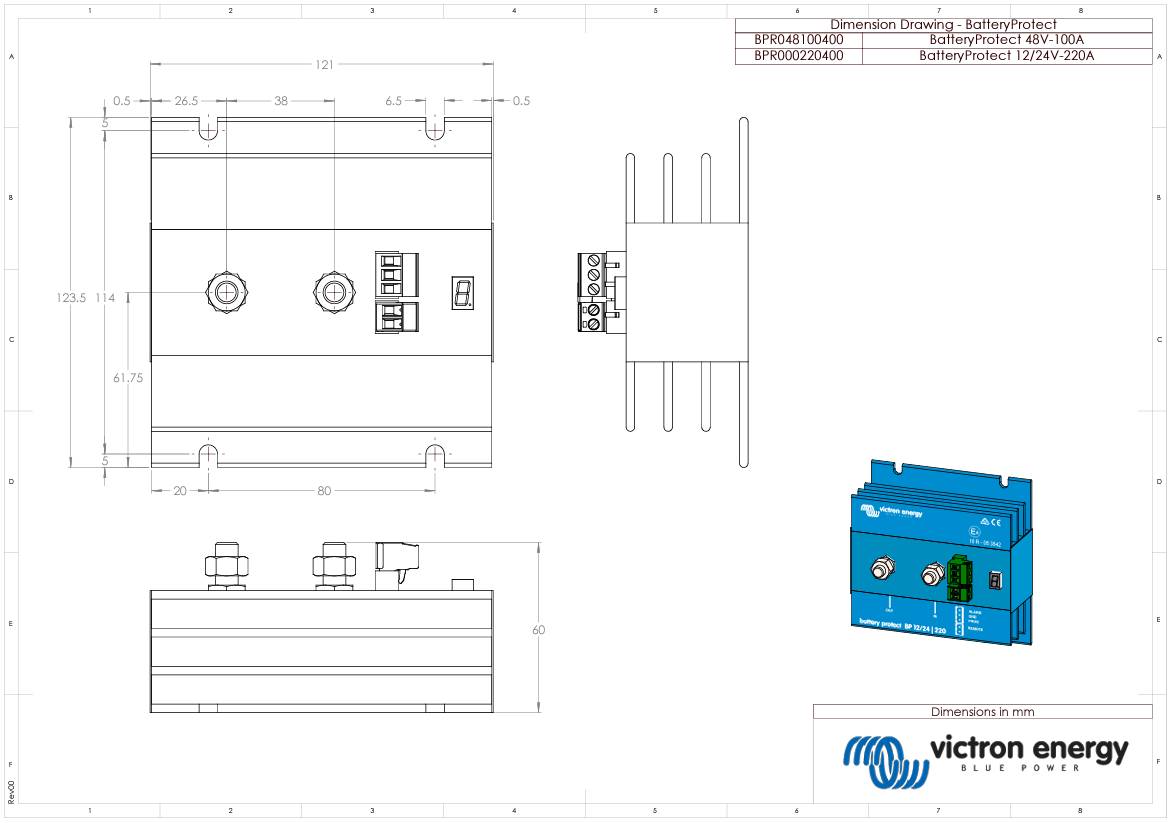

| Dimensions (hxwxd) | 62 x 123 x 120 mm 2.5 x 4.9 x 4.8 inch |
* The BatteryProtect is not designed for reverse currents from charging sources
| SKU: | Vic-BPR000220400 |
| Barcode: | 8719076021452 |
| Model #: | BPR000220400 |
| MPN: | BPR000220400 |
