Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect

Disconnects the battery from non-essential loads


Top-down view of Victron Smart BatteryProtect 220A with M8 terminals, display and connector cableHighlights:M8 Load Output: High-current M8 stud for connecting DC loads,M8 Battery Input: High-current M8 stud for connection to battery positive,7-Segment Display: LED display for status and programming information,Remote Connector: Terminal for remote on/off switch or BMS control,Programming Pins: Pins for manual configuration using a jumper wire.Angled front view of blue Smart BatteryProtect 220A showing integrated aluminium heatsink finsKey features: Bluetooth built-in for easy wireless programming and monitoring, IP67 rated electronics with potted resin protection, 220A continuous load rating for high-power DC systems, Automatic 12V or 24V system voltage detection, Integrated aluminium heatsink for efficient thermal management.Perspective view of Victron 220A BatteryProtect showing terminal arrangement and programming displaySide perspective of Victron Smart BatteryProtect showing large M8 studs and cooling fin designVictronConnect app interface showing 13.50V battery voltage and load output status for BatteryProtectThe VictronConnect app displays real-time battery voltage and current load output status for the Smart BatteryProtect via Bluetooth connection.VictronConnect settings screen for BatteryProtect showing customisable shutdown and restart voltage levelsConfigure custom shutdown and restart voltages via the VictronConnect app to protect battery banks from deep discharge and ensure longevity.Specification comparison table for Smart BatteryProtect 65A, 100A, and 220A modelsWiring diagram for Victron Smart BatteryProtect showing battery, DC load, and remote switch connectionsTechnical dimensional drawing of Smart BatteryProtect 220A showing physical measurements in millimetres

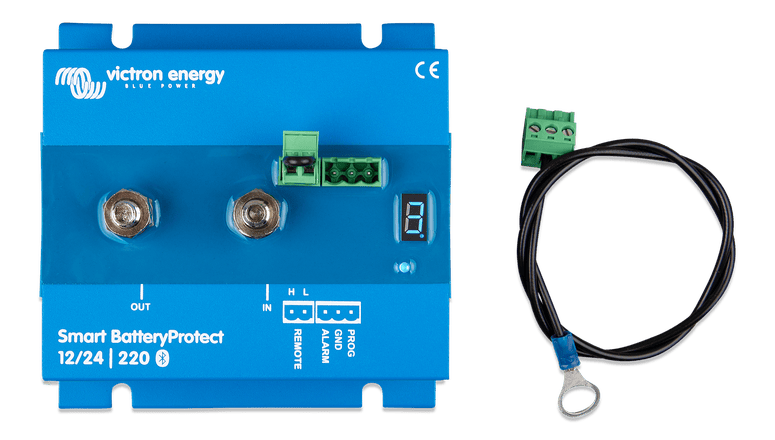

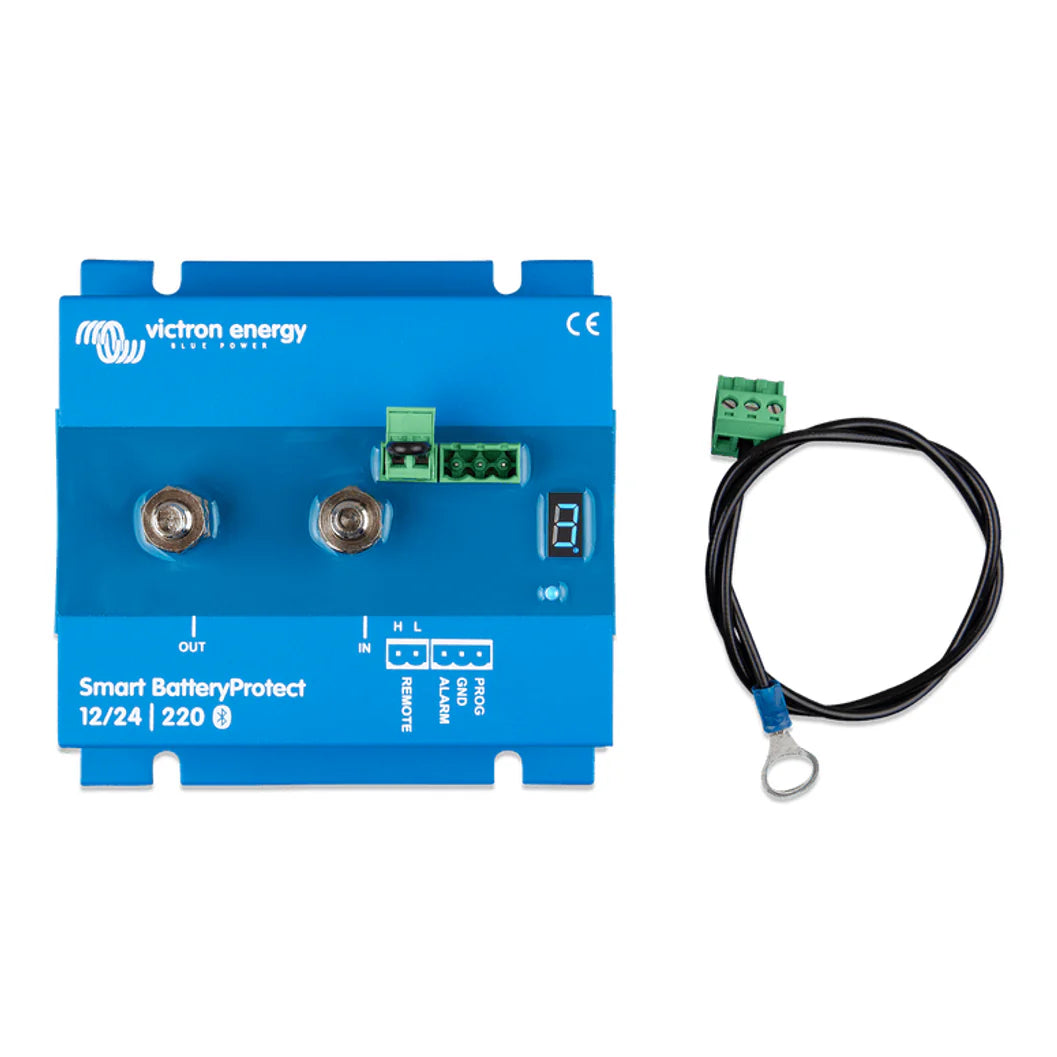

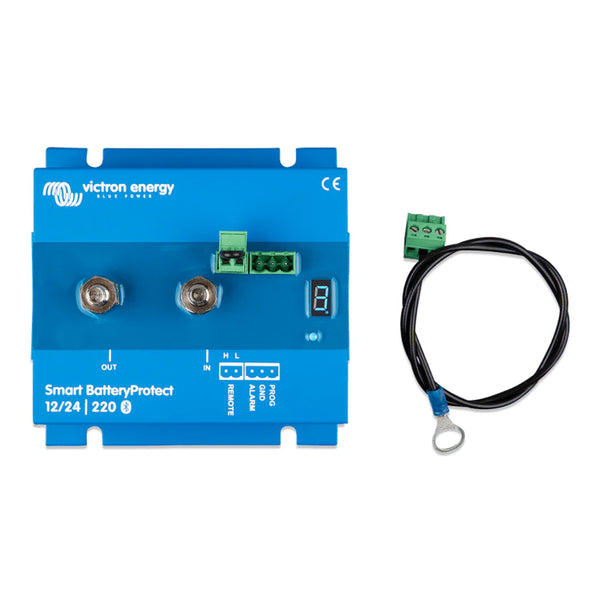

Top-down view of Victron Smart BatteryProtect 220A with M8 terminals, display and connector cable

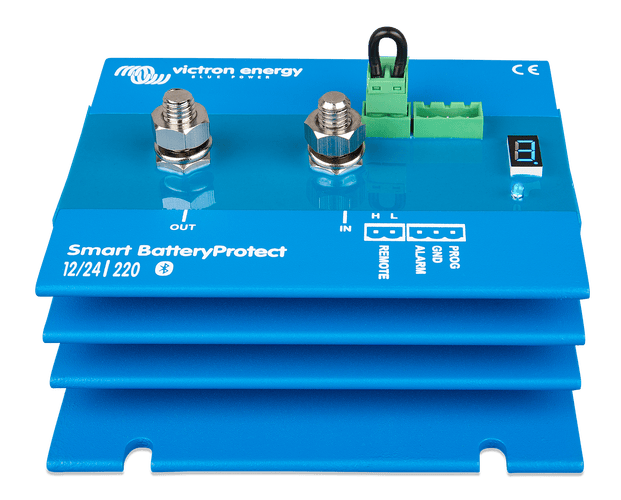

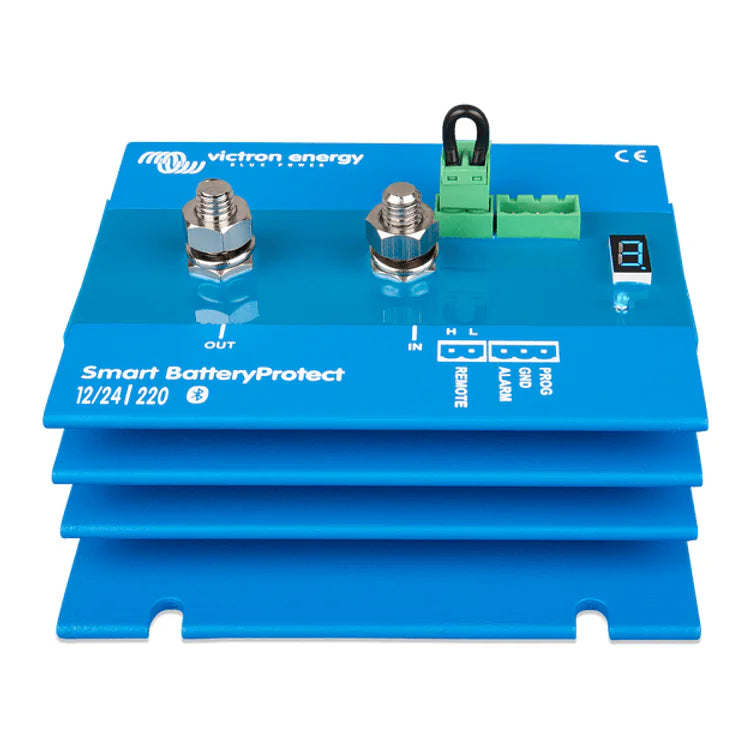

Angled front view of blue Smart BatteryProtect 220A showing integrated aluminium heatsink fins

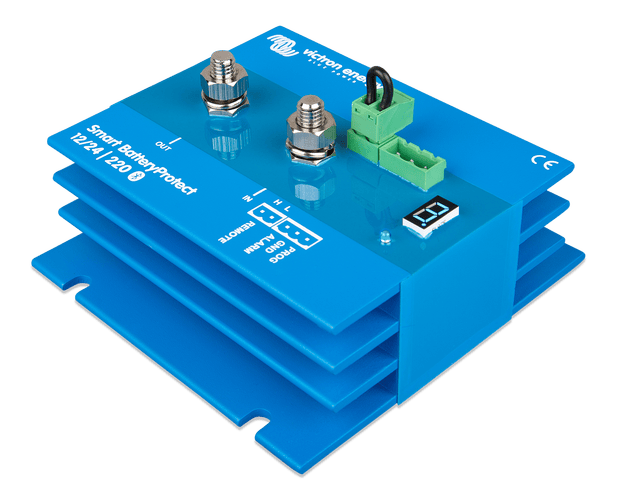

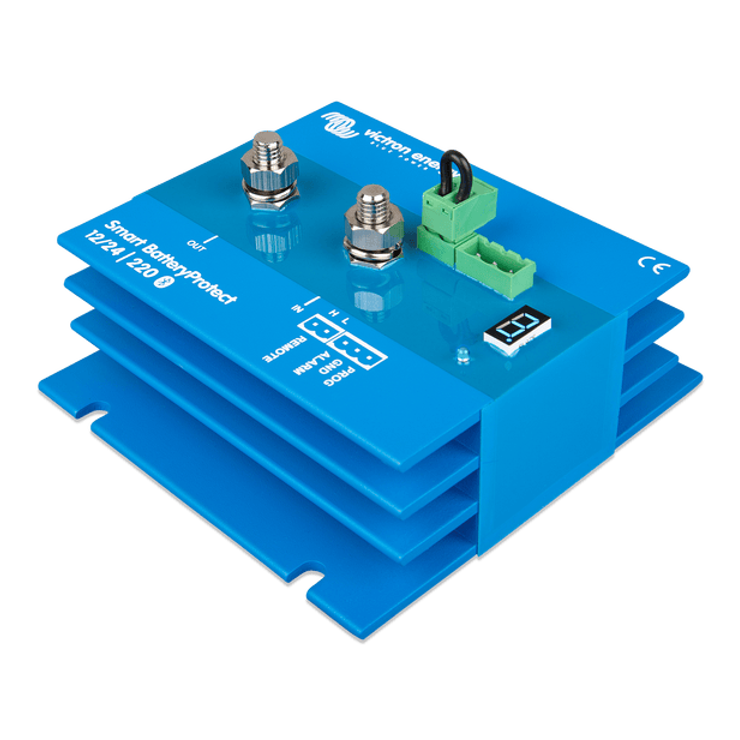

Perspective view of Victron 220A BatteryProtect showing terminal arrangement and programming display

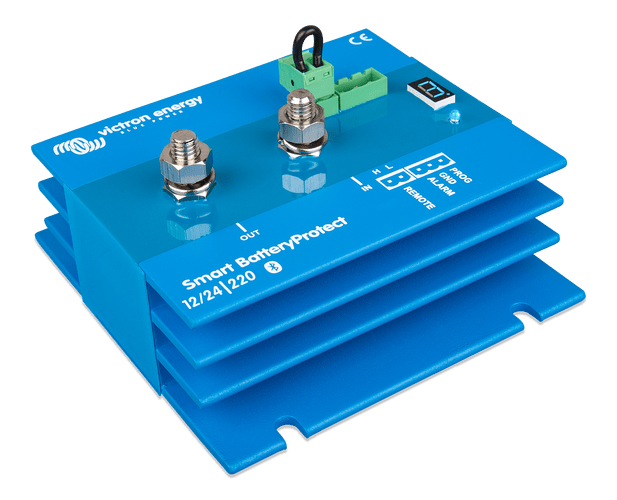

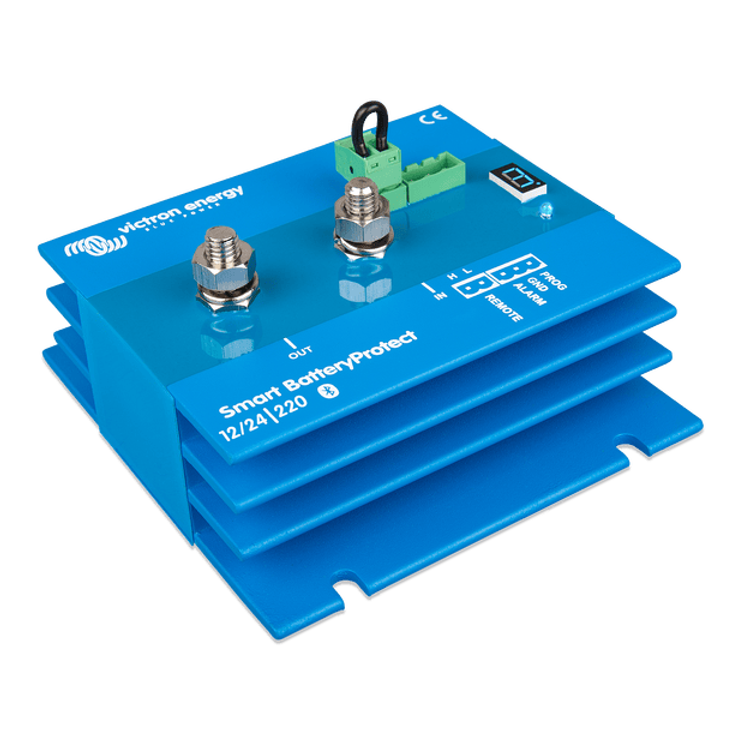

Side perspective of Victron Smart BatteryProtect showing large M8 studs and cooling fin design

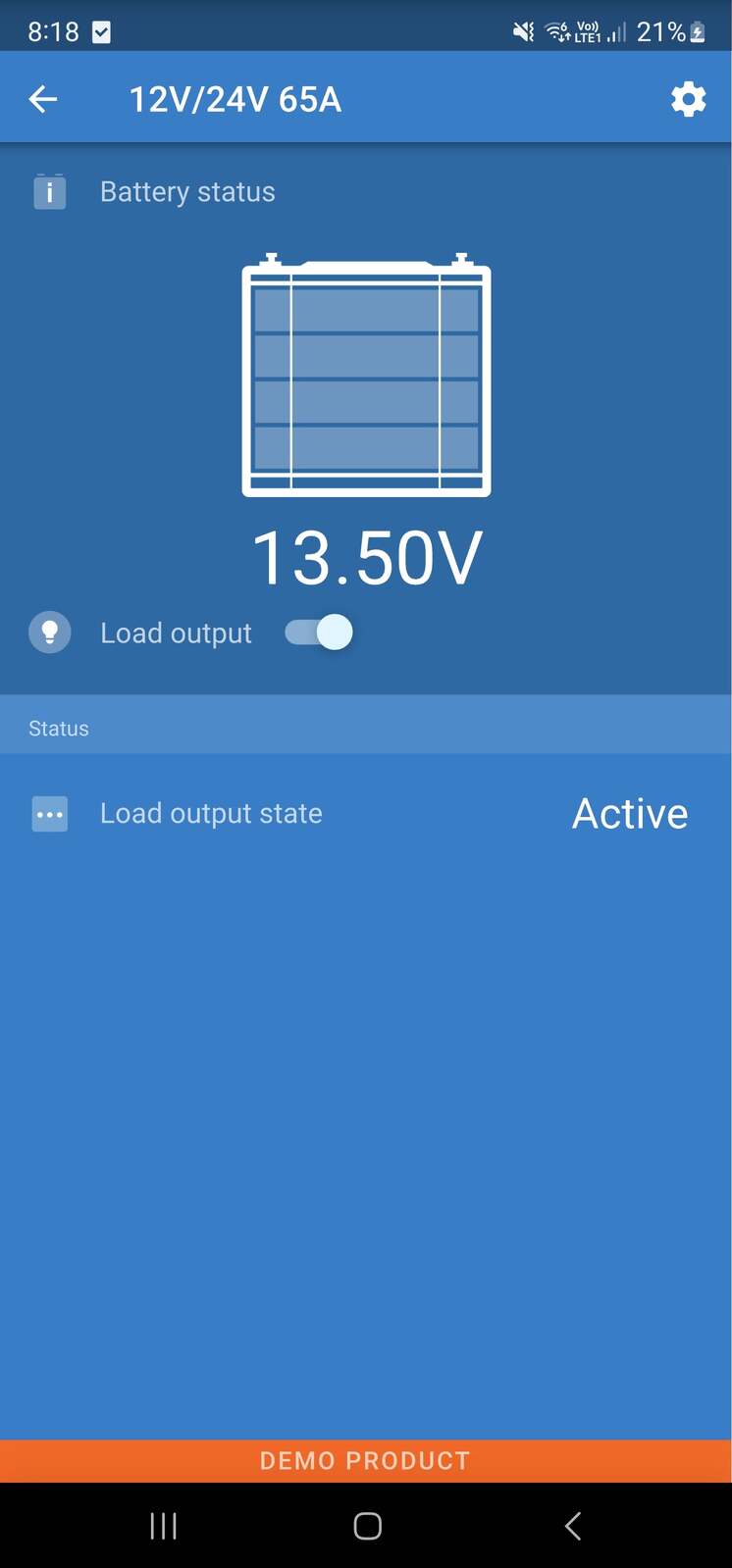

VictronConnect app interface showing 13.50V battery voltage and load output status for BatteryProtect

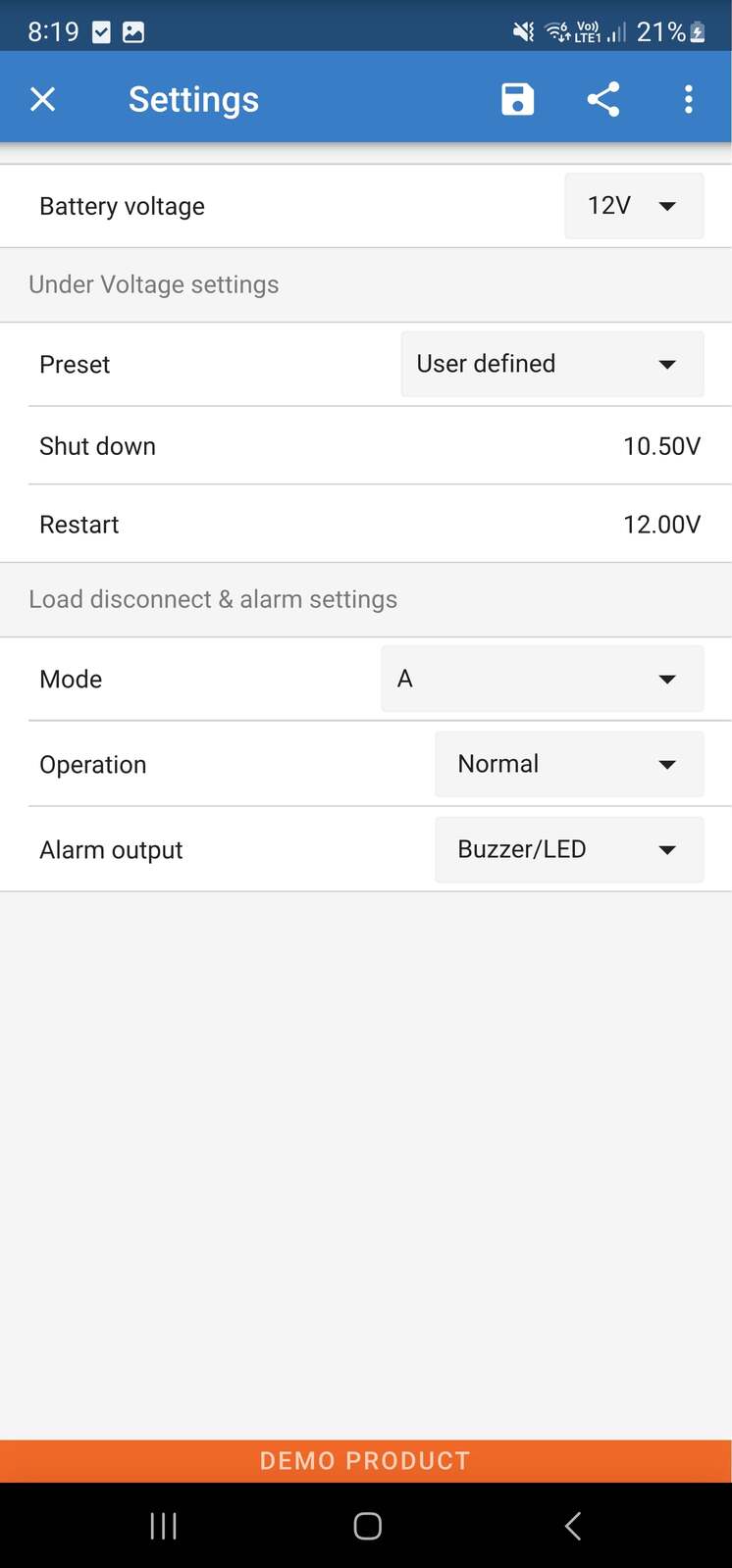

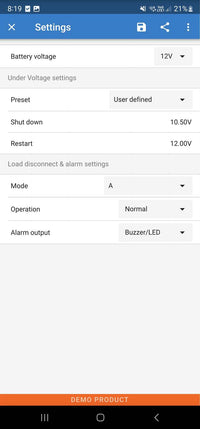

VictronConnect settings screen for BatteryProtect showing customisable shutdown and restart voltage levels

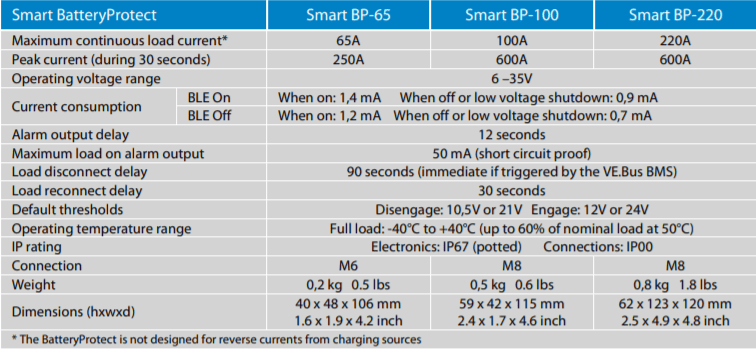

Specification comparison table for Smart BatteryProtect 65A, 100A, and 220A models

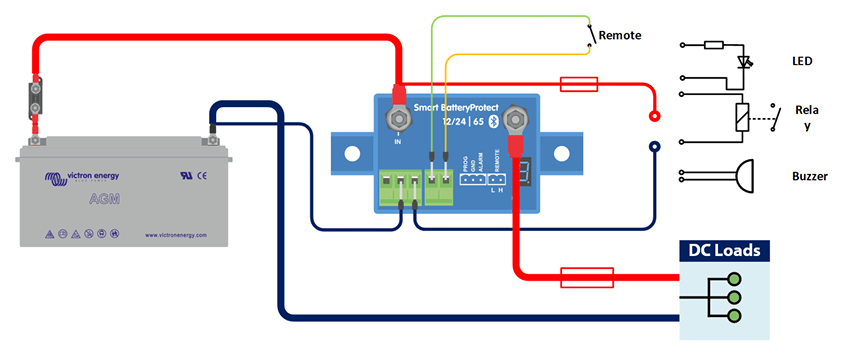

Wiring diagram for Victron Smart BatteryProtect showing battery, DC load, and remote switch connections

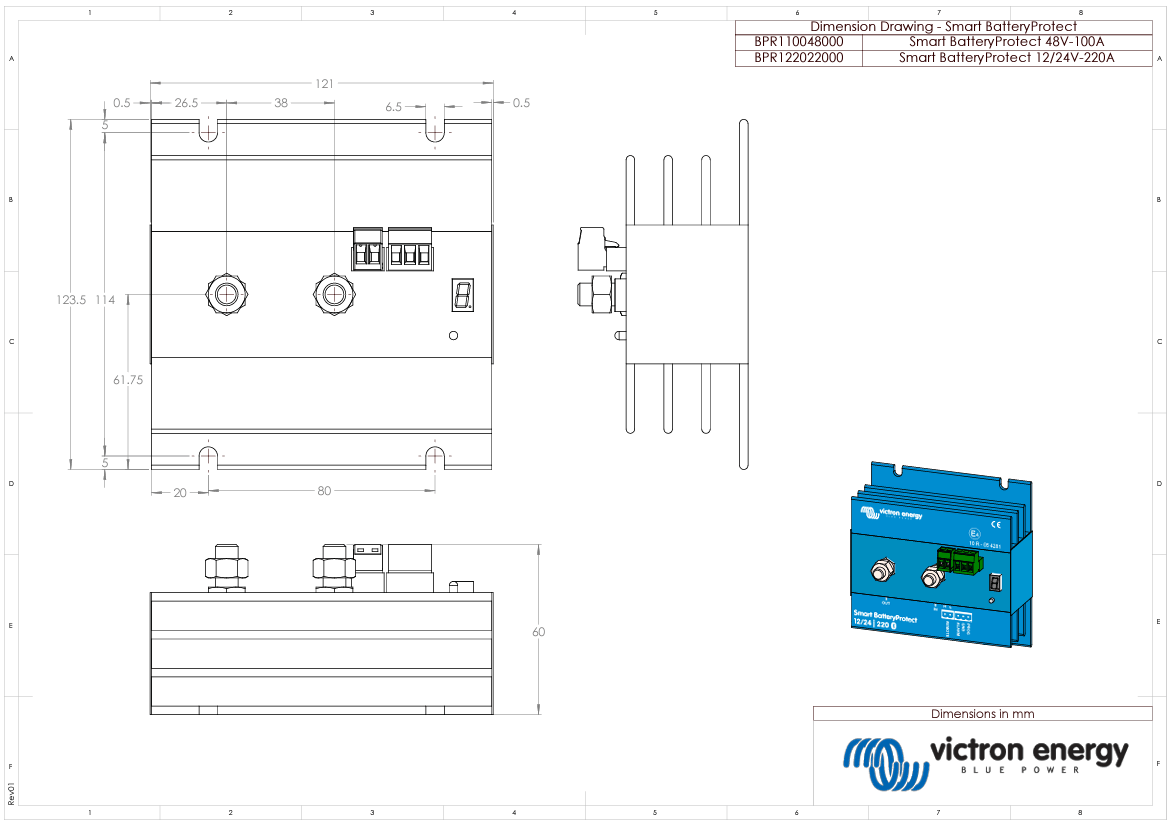

Technical dimensional drawing of Smart BatteryProtect 220A showing physical measurements in millimetres
Regular price $151.48
$199.10
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

12
Top-down view of Victron Smart BatteryProtect 220A with M8 terminals, display and connector cable

Victron Smart BatteryProtect 12/24V-220A Bluetooth Low Voltage Disconnect

DESCRIPTION

Victron Smart Battery Protect 12/24V-220A: Advanced Power Management with Bluetooth Connectivity

Enhanced with Bluetooth Technology

The Victron Smart Battery Protect 12/24V-220A integrates Bluetooth functionality, allowing for seamless monitoring and control directly from your device. This feature adds a layer of convenience and advanced management for your battery system.

High-Capacity Solution for Demanding Applications

The Victron Smart Battery Protect 12/24V-220A is designed to safeguard your vehicle or marine system's battery from complete discharge, ensuring its longevity. It is capable of handling significant loads, efficiently disconnecting non-essential power consumers like heavy-duty lights or large refrigeration units before they deplete the battery.

Uni-Directional Current Flow for Enhanced Safety

This model ensures safe and efficient power flow, either to a load or from a charger, but not both at the same time. This uni-directional current management is key to protecting your high-power equipment from over-voltage risks.

Smart 12/24V System Recognition and User-Friendly Operation

With intelligent system voltage detection, the Smart Battery Protect adjusts automatically to 12V or 24V systems. Its user-friendly interface, enhanced with Bluetooth, allows for easy engagement and disengagement settings, viewable on a clear display.

Optimized for High-Power Systems and Lithium Batteries

The device's 220A capacity makes it ideal for larger systems, and it includes a special mode for Li-ion batteries, enabling control via the VE.Bus BMS. It also functions as a charge interrupter between a battery charger and Li-ion battery setups.

Efficient Power Management

With ultra-low energy consumption, the Smart Battery Protect is particularly effective in reducing energy loss, especially critical in large-scale applications and after low voltage shutdowns in Li-ion batteries.

Robust Protection Features

Equipped with over-voltage protection and MOSFET switches, the device provides safe and reliable operation, preventing sparks and ensuring the safety of your systems.

Convenient Remote Switch Capabilities

Utilize the integrated Bluetooth functionality for easy remote operation, adding flexibility and convenience to managing various devices within your system.

Intelligent Alarm and Load Control

The Smart Battery Protect's advanced alarm and load control system ensures efficient power management, avoiding false alarms and maintaining seamless operation.

Opt for the Victron Smart Battery Protect 12/24V-220A for a superior battery management experience in high-demand vehicle and marine systems, where power, control, and connectivity are paramount.

SPECIFICATIONS

Specifications

Model SPB 220
Maximum continuous load current* 220 A
Peak current (during 30 seconds) 600 A
Operating voltage range 6 –35 V
BLE On When on: 1.4 mA When off or low voltage shutdown: 0.9 mA
Current consumption BLE Off When on: 1.2 mA When off or low voltage shutdown: 0.7 mA
Alarm output delay 12 seconds
Maximum load on alarm output 50 mA (short circuit proof)
Load disconnect delay 90 seconds (immediate if triggered by the VE.Bus BMS)
Load reconnect delay 30 seconds
Default thresholds Disengage: 10.5 V or 21 V Engage: 12 V or 24 V
Operating temperature range Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
IP rating Electronics: IP67 (potted) Connections: IP00
Connection M8
Mounting Torque 9 Nm
Weight 0.8 kg 1.8 lbs
Dimensions (hxwxd) 60 x 123 x 121 mm 2.4 x 4.8 x 4.8 inch

* The BatteryProtect is not designed for reverse currents from charging sources
