Victron BMV-710H Smart High Voltage Battery Monitor
Victron BMV-710H Smart High Voltage Battery Monitor
60-385V DC Range, 500A Shunt, Bluetooth Smart, ±0.4% Accuracy
Key features: High voltage monitoring range up to 385V DC, Built-in Bluetooth for VictronConnect app integration, Includes 500A high voltage shunt in protective safety enclosure, Standard 52mm diameter display for easy panel mounting, Programmable visual and audible battery alarms.

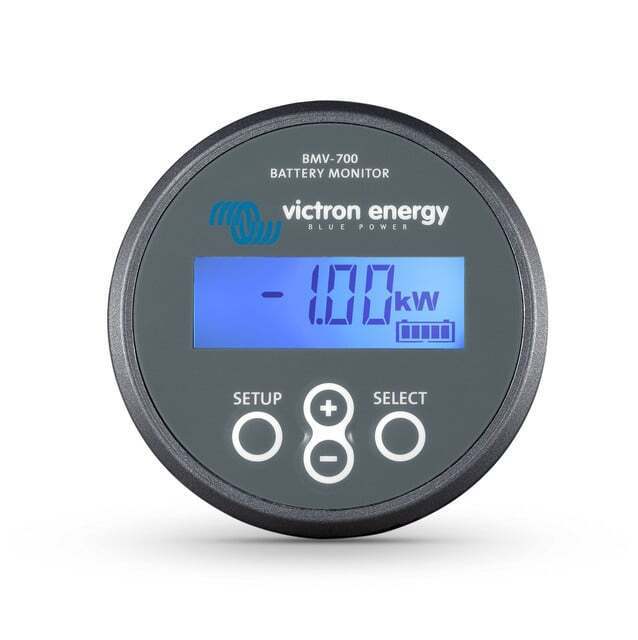

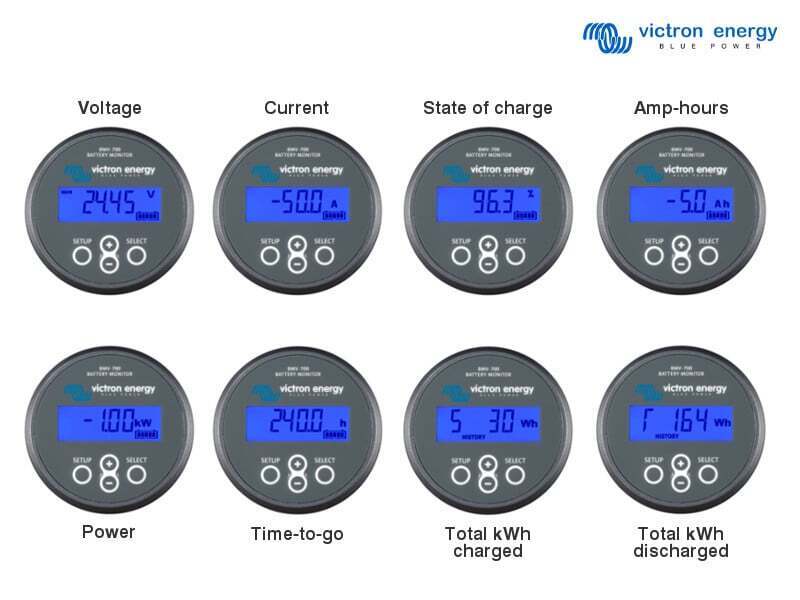

Clear backlit LCD display providing real-time power data including wattage, state of charge, and estimated time-to-go.
Optional square bezel for surface mounting the round battery monitor gauge to match other square dashboard components.

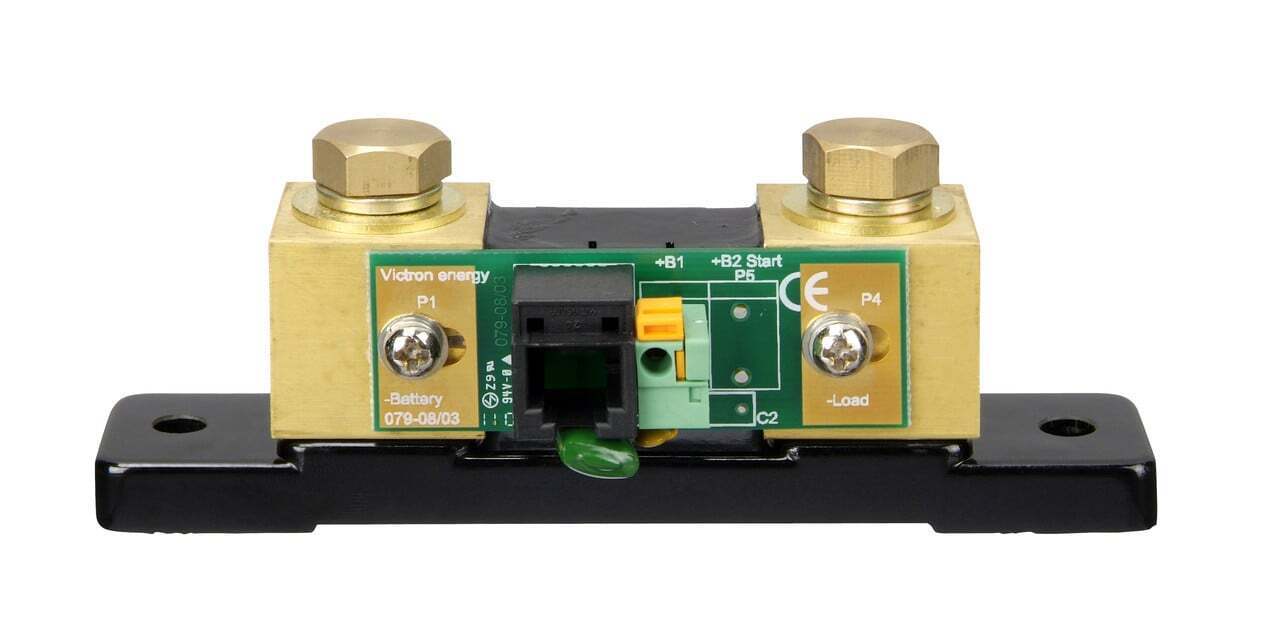

Highlights:High-Current Terminals: Heavy-duty brass bolts for secure connection of battery and load cables,RJ12 Data Port: Communication port for connecting to the display gauge via high-speed data cable,Secure Mounting Base: Sturdy insulated base with pre-drilled holes for robust surface installation.
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Victron BMV-710H Smart: Precision Battery Monitoring for High-Voltage Systems
Advanced State-of-Charge Tracking for 60V to 385V DC Installations
The Victron BMV-710H Smart is a high-precision battery monitor engineered for demanding high-voltage DC systems. Designed to operate across a wide supply range of 60V to 385V DC, it provides accurate, real-time insight into battery performance, making it an essential tool for electric vehicles, industrial equipment, and large-scale energy storage. By precisely tracking ampere-hours consumed and integrating current flow, the BMV-710H Smart calculates true state of charge (SoC), eliminating guesswork and helping to prevent unexpected downtime.

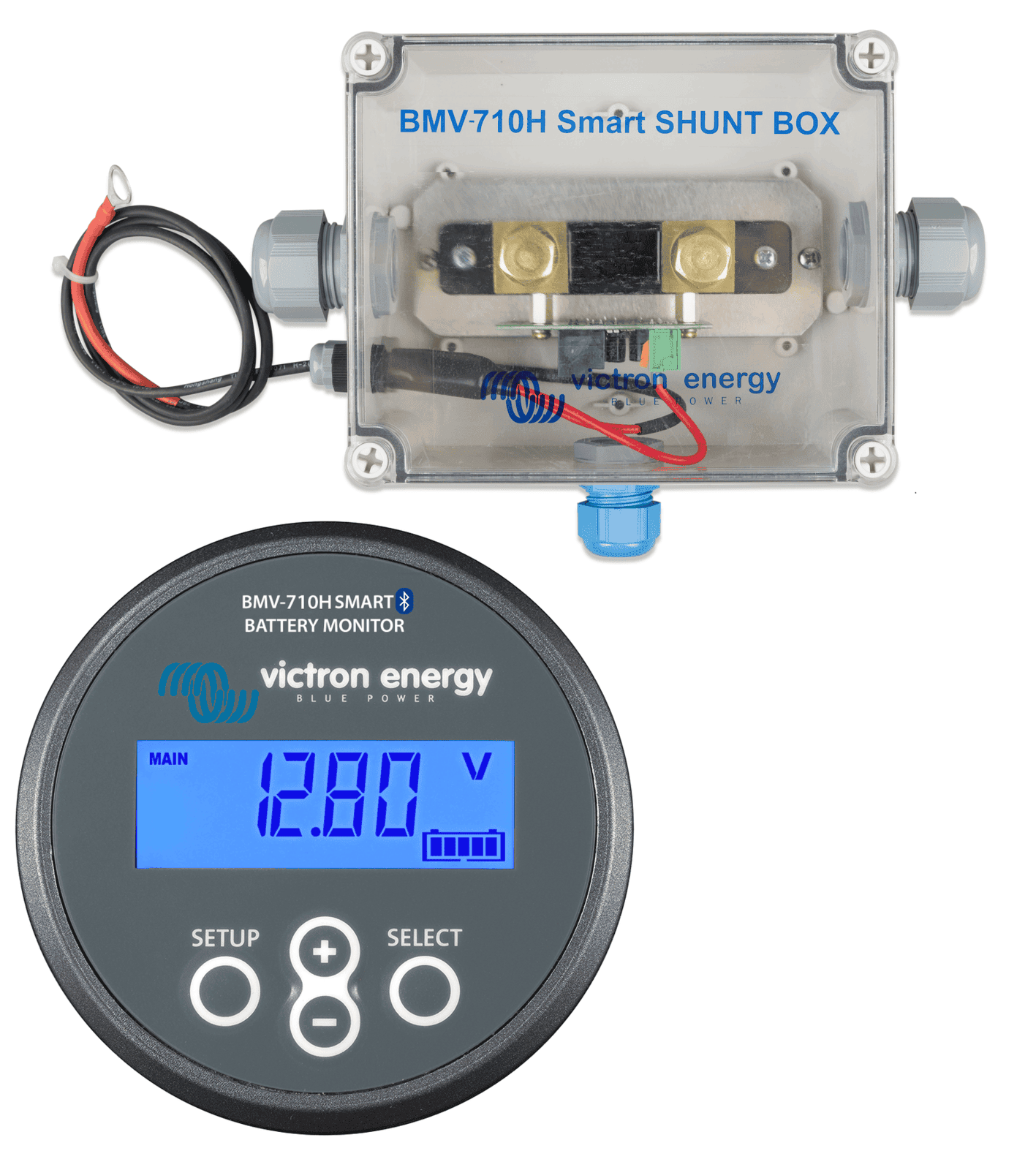

Unlike basic voltage-based indicators, this monitor uses a 500A / 50mV shunt housed in a dedicated safety enclosure, ensuring reliable current measurement even in high-voltage environments. The included 10-metre UTP cable with RJ12 connectors allows flexible placement of the round head unit, while the optional square bezel overlay enables seamless integration into existing dashboards.
Wireless Connectivity with VictronConnect App

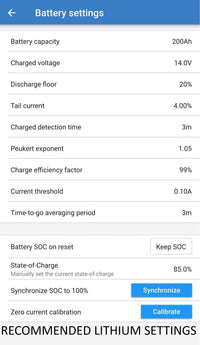

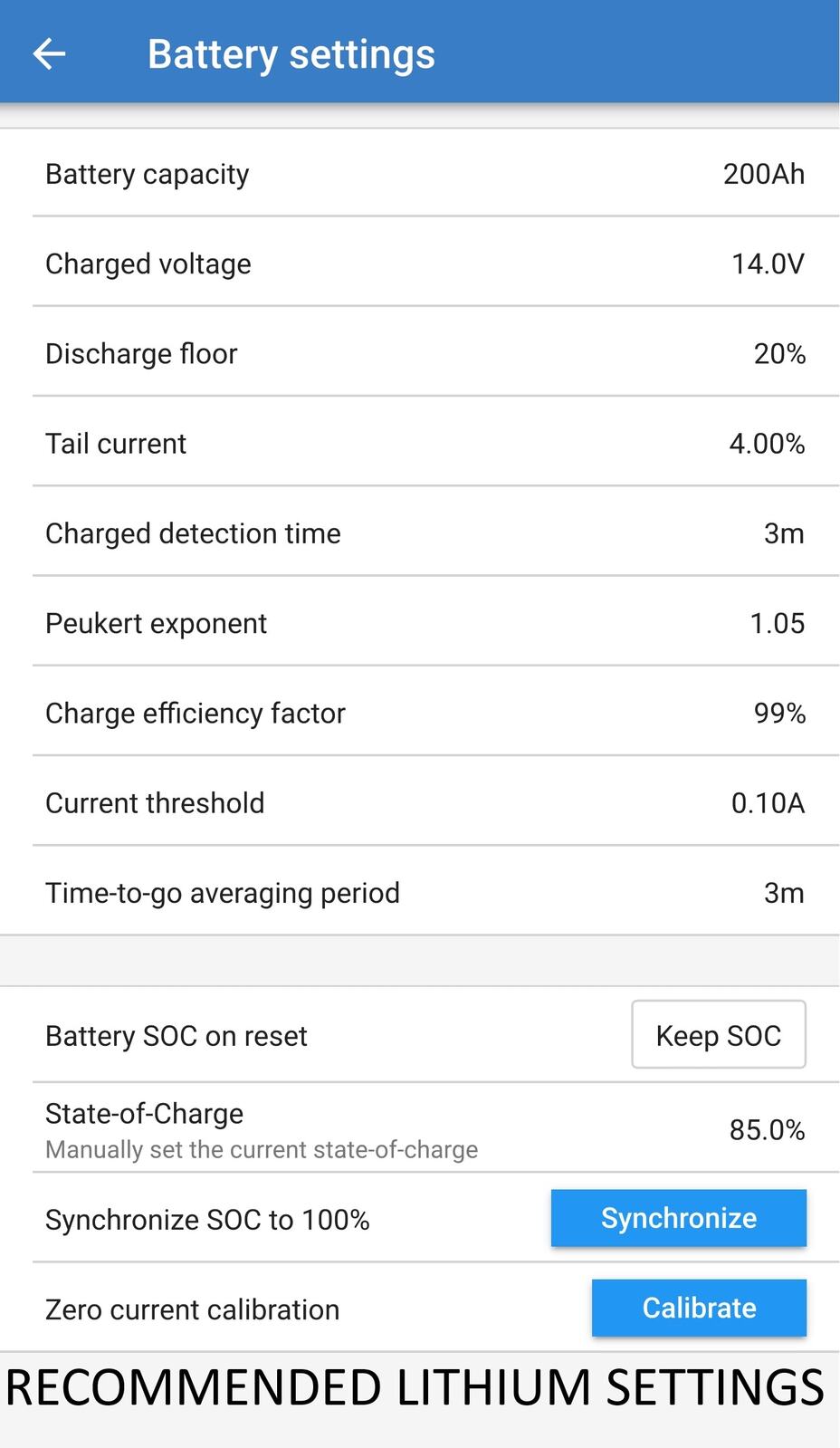

Built-in Bluetooth Smart enables direct connection to your smartphone or tablet via the free VictronConnect app. From a single screen, you can view all critical parameters—state of charge, voltage, current, power, and time-to-go—as well as historical data logs. Configure alarms, update firmware, and adjust settings without needing a separate display or programming tool. This wireless capability simplifies installation and provides convenient access to battery data from anywhere within range.
Key Features
- Monitors battery banks from 60V to 385V DC, ideal for high-voltage lithium, lead-acid, and nickel-based systems
- High-accuracy measurement: ±0.4% current, ±0.3% voltage, and ±0.1% SoC resolution
- Includes a 500A / 50mV shunt in a protective enclosure, with M10 (approx. 3/8") brass connection bolts
- Bluetooth built-in for real-time monitoring and configuration via VictronConnect (iOS/Android)
- Programmable visual and audible alarms, plus a bistable relay for external control
- Flush-mount round display (52mm body diameter) with IP55 protection; square bezel included for panel mounting
- 10-metre UTP RJ12 cable and fused power supply cable supplied for straightforward installation
Why High-Voltage Monitoring Matters
In systems operating above 60V DC, standard battery monitors often lack the necessary isolation and safety features. The BMV-710H Smart addresses this with a dedicated high-voltage shunt enclosure and robust design, reducing the risk of electrical hazards and ensuring accurate readings in applications such as electric forklifts, aerial work platforms, solar storage systems, and marine hybrid propulsion. By providing precise SoC data, it helps extend battery lifespan through informed charging and discharging decisions.
Reliable Data for Critical Applications
With an operating temperature range of -40°C to +50°C and compliance with automotive ECE R10-4 and safety standard EN 60335-1, the BMV-710H Smart is built for harsh environments. The backlit LCD display remains readable in low light, and the low current draw (<1 mA with backlight off) minimises parasitic drain on the battery. Whether monitoring a single string or a large bank, the monitor supports capacities from 1 to 9999 Ah, adapting to a wide variety of setups.
Take Control of Your High-Voltage Energy System
Upgrade your battery management with the Victron BMV-710H Smart and gain the clarity needed to optimise performance and prevent costly failures. Order today to start monitoring your high-voltage system with professional-grade accuracy.
SKU: Vic-BAM030710100
SPECIFICATIONS
Specifications
| Supply Voltage Range | 60 - 385 Vdc |
|---|---|
| Current Draw (Backlight Off) | < 1 mA |
| Battery Capacity (Ah) | 1 - 9999 Ah |
| Operating Temperature Range | -40 to +50 °C (-40 to 120 °F) |
| VE.Direct Communication Port | Yes |
| Bistable Relay | 60 V / 1 A normally open (function can be inverted) |
| Current | ± 0.01 A |
| Voltage | ± 0.01 V |
| Amp Hours | ± 0.1 Ah |
| State Of Charge (0 - 100%) | ± 0.1% |
| Time-To-Go | ± 1 min |
| Accuracy Of Current Measurement | ± 0.4% |
| Accuracy Of Voltage Measurement | ± 0.3% |
| Installation | Flush mount |
| Head Unit Front Diameter | 63 mm (2.5 inch) |
| Head Unit Front Bezel | 69 x 69 mm (2.7 x 2.7 inch) |
| Shunt Connection Bolts | M10 (0.3937 inch) |
| Head Unit Body Diameter And Depth | 52 mm (2.0 inch) and 31 mm (1.2 inch) |
| Head Unit Protection Category | IP55 (not intended for outdoor use) |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Automotive | ECE R10-4 / EN 50498 |
| Shunt (Included) | 500 A / 50 mV |
| Cables (Included) | 10 m 6 core UTP with RJ12 connectors, with 1 A slow blow fuse for the battery positive connection |
| SKU: | Vic-BAM030710100 |
| Barcode: | 8719076049500 |
| Model #: | BAM030710100 |
| MPN: | BAM030710100 |
